УВЧ интегрированный радиочастотный считыватель 5 7 метров дальнего радиуса действия с антенной 8 дБи RS232/RS485/Wiegand26 порт

Сохранить в закладки 1600543587645:


Цена:*

Количество:

  • В избранное

Описание и отзывы

Характеристики












1. Reliable quality. FIVE meters reading distance for UHF RFID card(Working Frequency range: 902~928MHZ)
2. Protocol: Passive Middle Range Integrated reader, ISO18000-6B, ISO18000-6C
3. Interface: R232, RS485 and Wiegand26( for access control, can work with our all seriese controllers, we can do combine shipping for you)
4. Free SDK and manual
5. We have special designed adhesive tag for car/vehicle windshield, card and various other tags for this reader.




Introduction:



The UHF RFID Middle Range Reader is a high performance UHF integrated reader .Based on proprietary efficient digital signal processing algorithm, it supports fast tag read/write operation with high identification rate. It can be widely applied in many RFID application systems such as logistics, access control( Door Control, Car control .etc.) , and anti-counterfeit and industrial production process, control system.






Parameters:









































































Type



UHF Passive Middle Range Integrated reader



Dimensions



235x235x57mm



Net Weight



2,500g



Operating Temp.



-10 ~ +60 degree



Storage Temp.



-25 ~ +80 degree



Interface



RS232, RS485, Wiegand26



Indicator



Buzzer



Power Supply



+DC 9V (equipped with power adaptor)







Frequency Range



902-928mhz



Protocols



ISO18000-6B, ISO18000-6C



Work Mode



FHSS hopping and fixed frequency



RF Power



0~30dBm, adjustable set by software



Antenna



Built-in 8dbi circularly polarized antenna



Read Range



5M, tag and environment dependent



Vehicle Moving Speed



80Km/h



Software



Provide SDK,DLL and Demonstration Software,
sample code to facilitate further development.

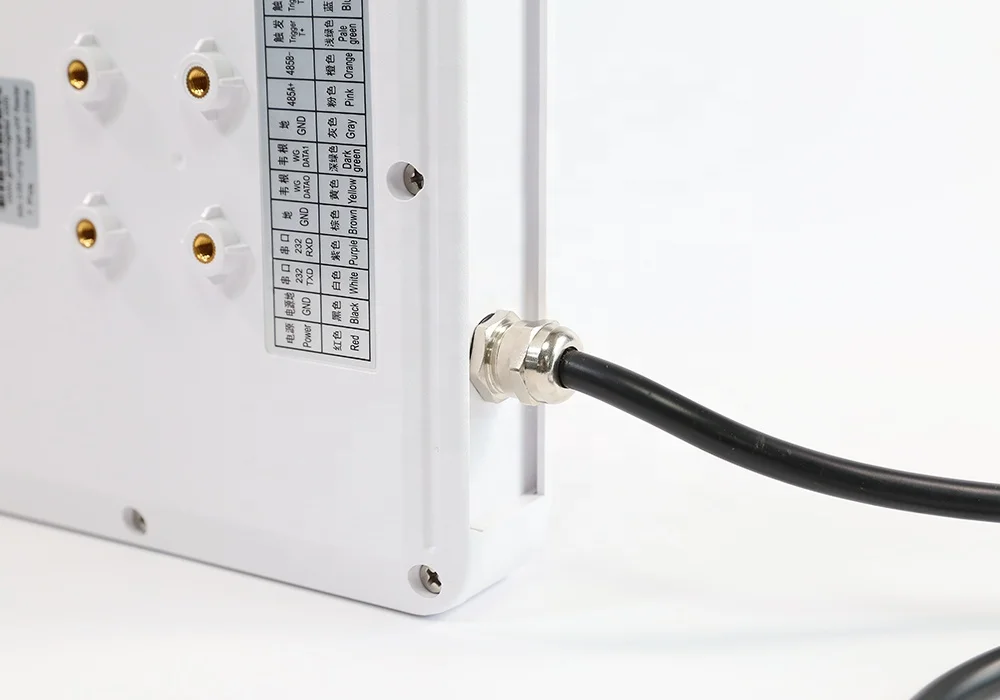

Interface:














































ITEM



COMMENT



Red



+9V



Black



GND



Yellow



Wiegand DATA0



Blue



Wiegand DATA1



Purple



RS485 R+



Orange



RS485 R-



Brown



GND



White



RS232 RXD



Green



RS232 TXD
