Заводская поставка высокопроизводительная сушилка для жидкости под заказ гранулятор сухого молока оборудование сушки производитель Китай
- Категория: >>>
- Поставщик: ZHEJIANG LEADTOP PHARMACEUTICAL MACHINERY CO. LTD
Сохранить в закладки 1600543893951:
Описание и отзывы
Характеристики
Attention: 1 --- All prices and parameters shown above are automatically generated by the system, if you want to know the exact information, please click "Contact Supplier" to send mail to us.
2 --- Because of the time difference, we suggest that you can choose to send us an inquiry instead of online chat.
3 --- When sending us an inquiry or message, please tell us your Email or WhatsApp/Wechat/Skype .etc, then our sales manager can contact you quickly.
Simple Description
The powder granule in fluid bed appears in the state of fluidization. It is preheated and mixed with clean and heated air. At the same time the solution of adhesive is sprayed into the container. It makes the particles become granulating that contains adhesive. Being of unceasing dry through hot air, the moisture in the granulating is evaporated. The process is carried out continuously. Finally it forms ideal, uniform and porous granules.
Application
1.Drugs granulation and coating.
2.Granulation: Tablet particles, granule particles, capsule particles.
3.Coating: particles, pill covers, color-prepared, slow-release, films, enteric coating.
4.Food granulation and coating Granulated sugar, coffee, cacao powder, cream, juice powder, amino acids, sauce, puffed food.
5.Pesticide, paint pigment, dry granulation Powder, granules, block materials.
2.Granulation: Tablet particles, granule particles, capsule particles.
3.Coating: particles, pill covers, color-prepared, slow-release, films, enteric coating.
4.Food granulation and coating Granulated sugar, coffee, cacao powder, cream, juice powder, amino acids, sauce, puffed food.
5.Pesticide, paint pigment, dry granulation Powder, granules, block materials.
Features
1.By using powder granulation, to improve the liquidity and thinner dust.
2.By using powder granulation, to improve solubility property.
3.Mixing—granulation—drying can be finished in one device (one-step granulation)
4.To adopt antistatic filtering mediums, to ensure safe operation.
5.Caking agent atomizer adopts multi-fluid spray gun to maintain uniform spray particles and to increase the rate of qualified products greatly.
6.No dead-corner of equipment; it is easy and rapid of feeding or discharging materials and clean of washing to satisfy the GMP standard.
2.By using powder granulation, to improve solubility property.
3.Mixing—granulation—drying can be finished in one device (one-step granulation)
4.To adopt antistatic filtering mediums, to ensure safe operation.
5.Caking agent atomizer adopts multi-fluid spray gun to maintain uniform spray particles and to increase the rate of qualified products greatly.
6.No dead-corner of equipment; it is easy and rapid of feeding or discharging materials and clean of washing to satisfy the GMP standard.
Main Technical Data
item | unit | Model | ||||||||||
3 | 5 | 15 | 30 | 60 | ||||||||
Raw material tank | volume | L | 12 | 22 | 45 | 100 | 220 | |||||
diameter | mm | 300 | 400 | 550 | 700 | 1000 | ||||||
Output capacity | min | kg | 1.5 | 4 | 10 | 15 | 30 | |||||
max | kg | 4 | 6 | 18 | 36 | 72 | ||||||
fan | air quantity | m3/h | 1000 | 1200 | 1400 | 1800 | 3000 | |||||
Air pressure | mmH2O | 375 | 375 | 480 | 480 | 480 | ||||||
power | kw | 3 | 4 | 5.5 | 7.5 | 11 | ||||||
steam consumption | kg/h | 15 | 23 | 42 | 70 | 141 | ||||||
compressured air consupmtion | m3/min | 0.6 | 0.6 | 0.6 | 0.9 | 0.9 | ||||||
weight | kg | 250 | 300 | 700 | 900 | 1100 | ||||||
steam pressure | Mpa | 0.3~0.6 | ||||||||||
temperature | ℃ | room temperature -120℃,adjustable | ||||||||||
Working time | min | according to material feature45~90 | ||||||||||
Receiving rate | % | ≥99 | ||||||||||
noize | dB(A) | fan and main frame installed separately, noise≤75dB(A) | ||||||||||
item | unit | Model | ||||||||||
120 | 150 | 200 | 300 | 500 | ||||||||
Raw material tank | volume | L | 420 | 530 | 670 | 1000 | 1500 | |||||
diameter | mm | 1200 | 1300 | 1400 | 1600 | 1800 | ||||||
Output capacity | min | kg | 80 | 90 | 100 | 150 | 250 | |||||
max | kg | 140 | 200 | 240 | 360 | 600 | ||||||
fan | air quantity | m3/h | 4500 | 5200 | 6000 | 7000 | 8000 | |||||
Air pressure | mmH2O | 550 | 550 | 750 | 750 | 950 | ||||||
power | kw | 18.5 | 18.5 | 22 | 30 | 45 | ||||||
steam consumption | kg/h | 211 | 251 | 282 | 366 | 451 | ||||||
compressured air consupmtion | m3/min | 0.9 | 0.9 | 1.1 | 1.5 | 1.5 | ||||||
weight | kg | 1300 | 1500 | 1650 | 1800 | 2000 | ||||||
steam pressure | Mpa | 0.3~0.6 | ||||||||||
temperature | ℃ | room temperature -120℃,adjustable | ||||||||||
Working time | min | according to material feature45~90 | ||||||||||
Receiving rate | % | ≥99 | ||||||||||
noize | dB(A) | fan and main frame installed separately, noise≤75dB(A) | ||||||||||

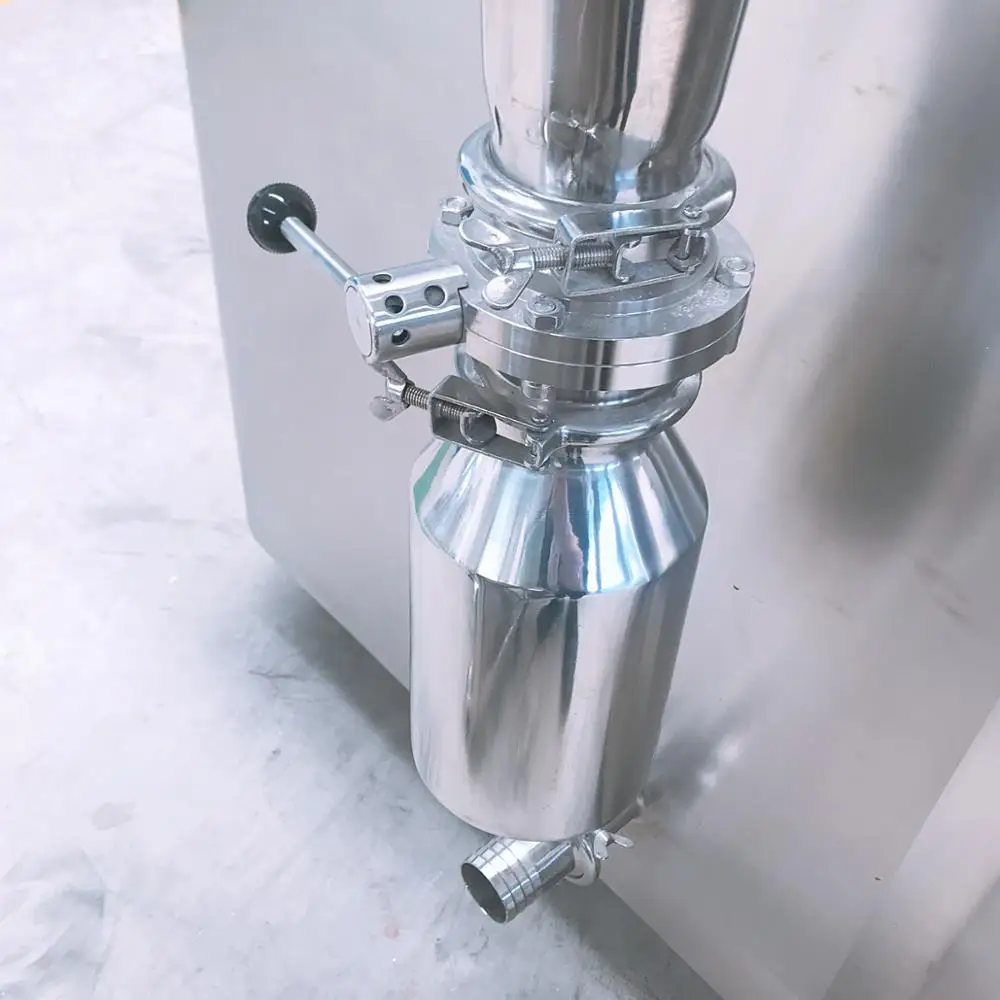

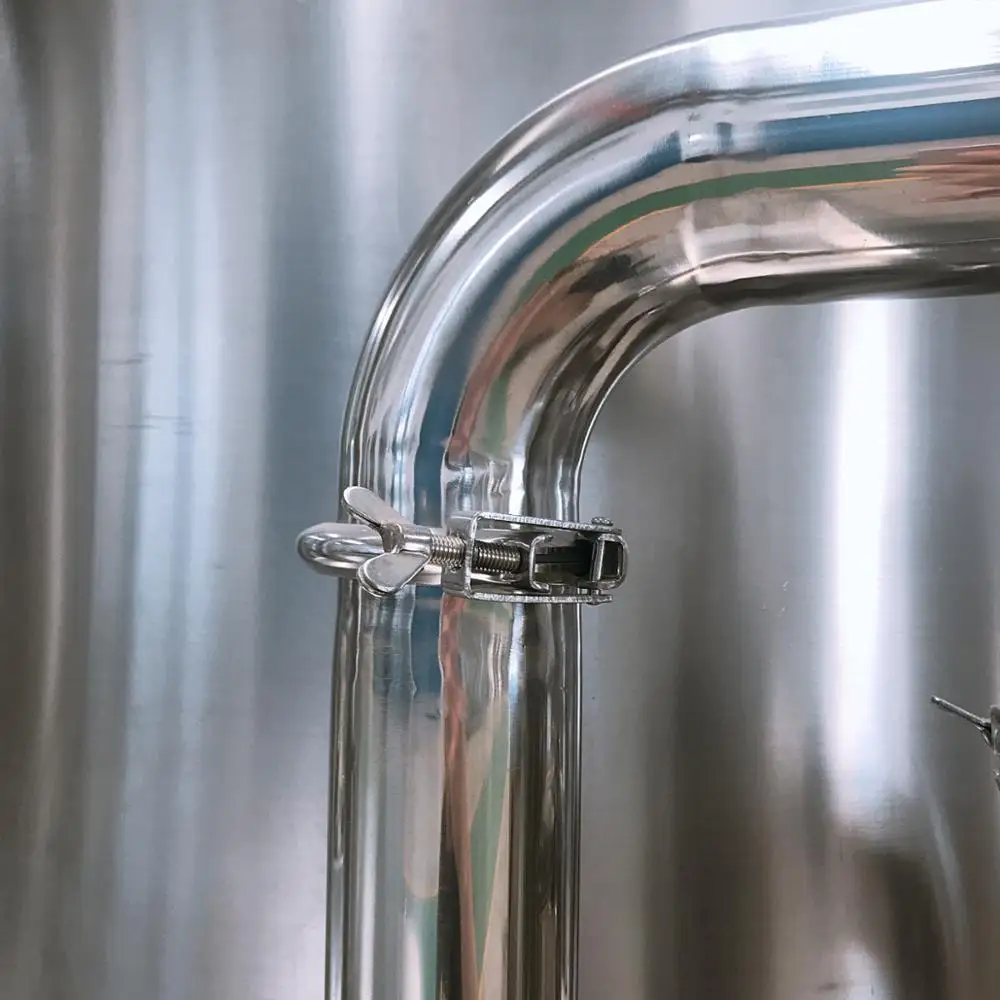

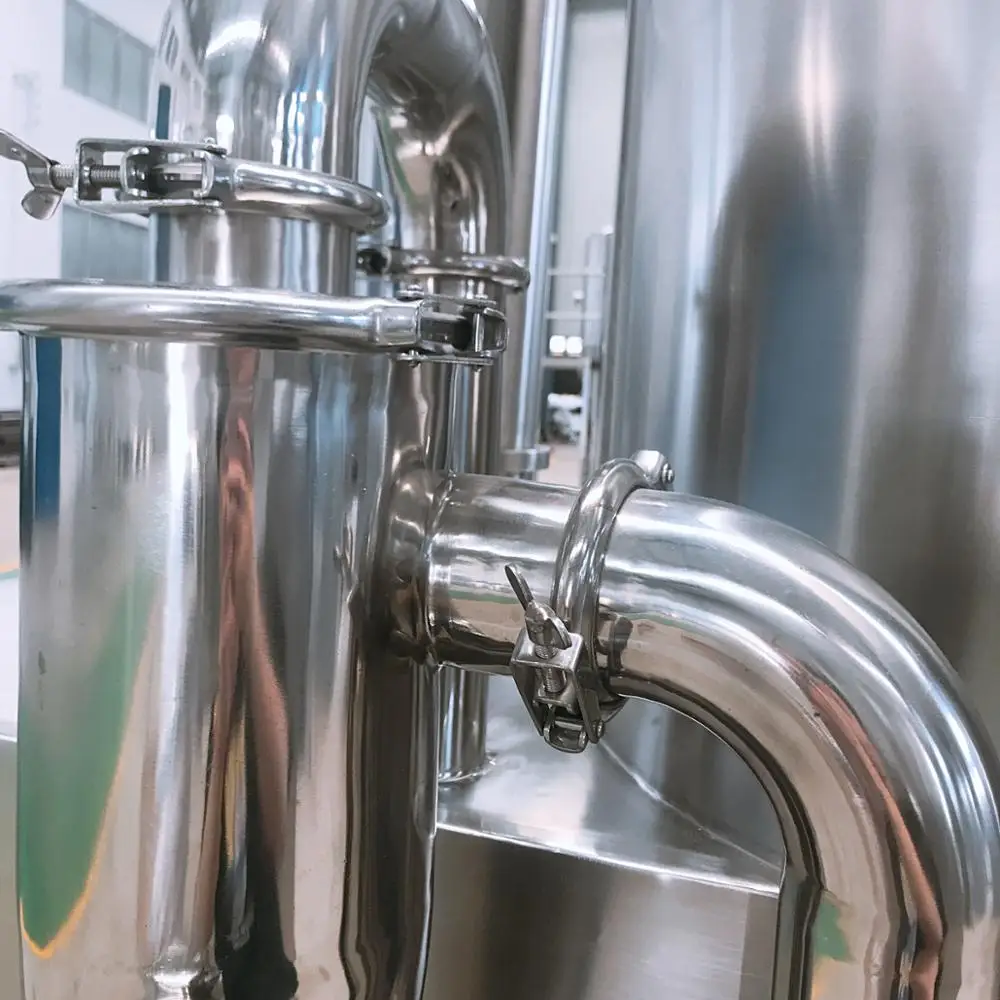

Product Details
By Using Powder Granulation,
To Improve The Liquidity And Thinner Dust.
To Adopt Antistatic Filtering Mediums,
To Ensure Safe Operation.
Caking Agent Atomizer Adopts Multi-Fluid Spray Gun To Maintain Uniform Spray Particles An To Increase The Rate Of Qualified Products Greatly.
No Dead-Corner Of Equipment; It Is Easy And
Rapid Of Feeding Or Discharging Materials And Clean Of Washing To Satisfy The GMP Standard.
Company Profile
Our Company
Zhejiang LeadTop Pharmaceutical Machinery Co.,ltd well known as LTPM China. Since year 1996, we are start manufacturing Oral Solid Dosage Pharmaceutical Machinery includes Mixing Machine, Drying Equipment, granulation line, IBC Bin and Bin Washing Machine. As year passed, LTPM China absorb advanced domestic and abroad technology, we export machinery to more than 30 countries all over the world. LTPM China is considered one of the major Pharmaceutical Machinery Supplier and exporter in China mainland. Professional,Enthusiasm, Service and Team Work has been always our value to create for our Staff and customers. As year 2012 we position our value as “A Pharma Machinery Division, For A Better Life”, creating a Win-Win Platform for our clients and staff for a better life is our vision.
Our Certificates
ISO, CE, SGS, BV Certified Company.

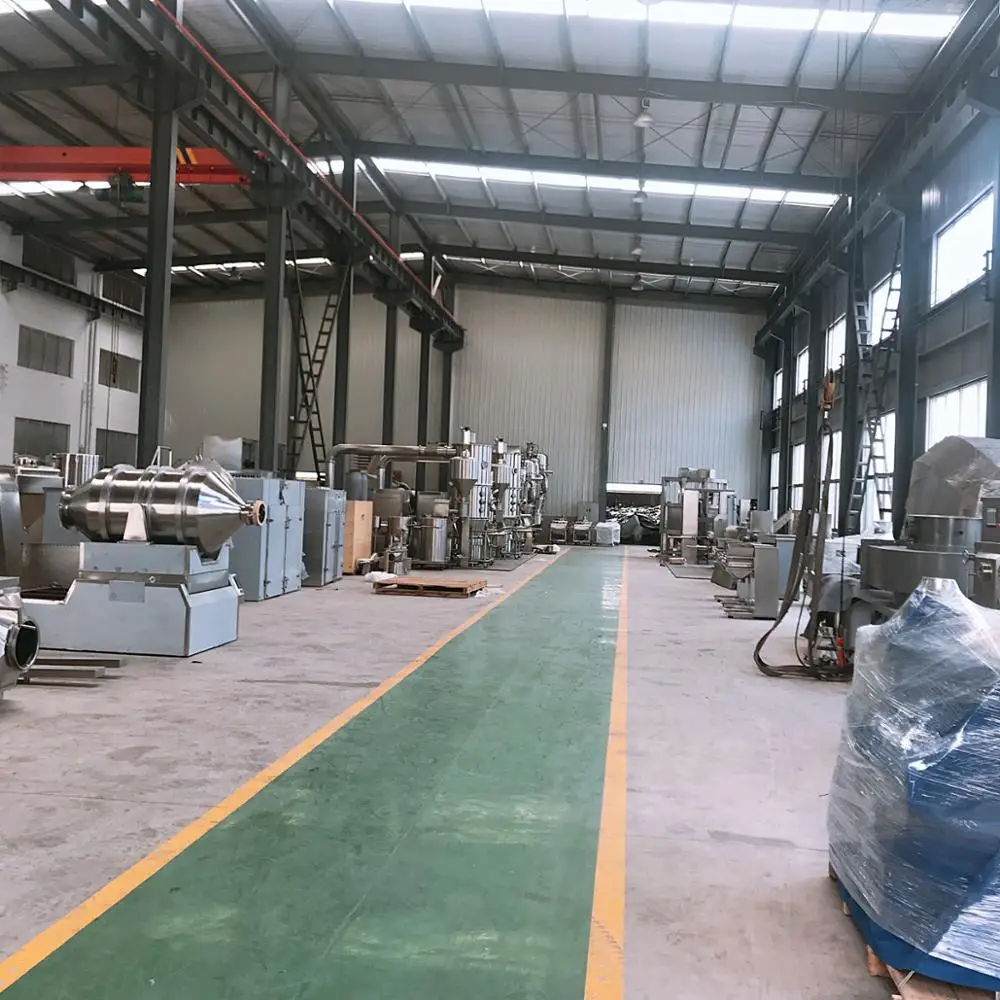

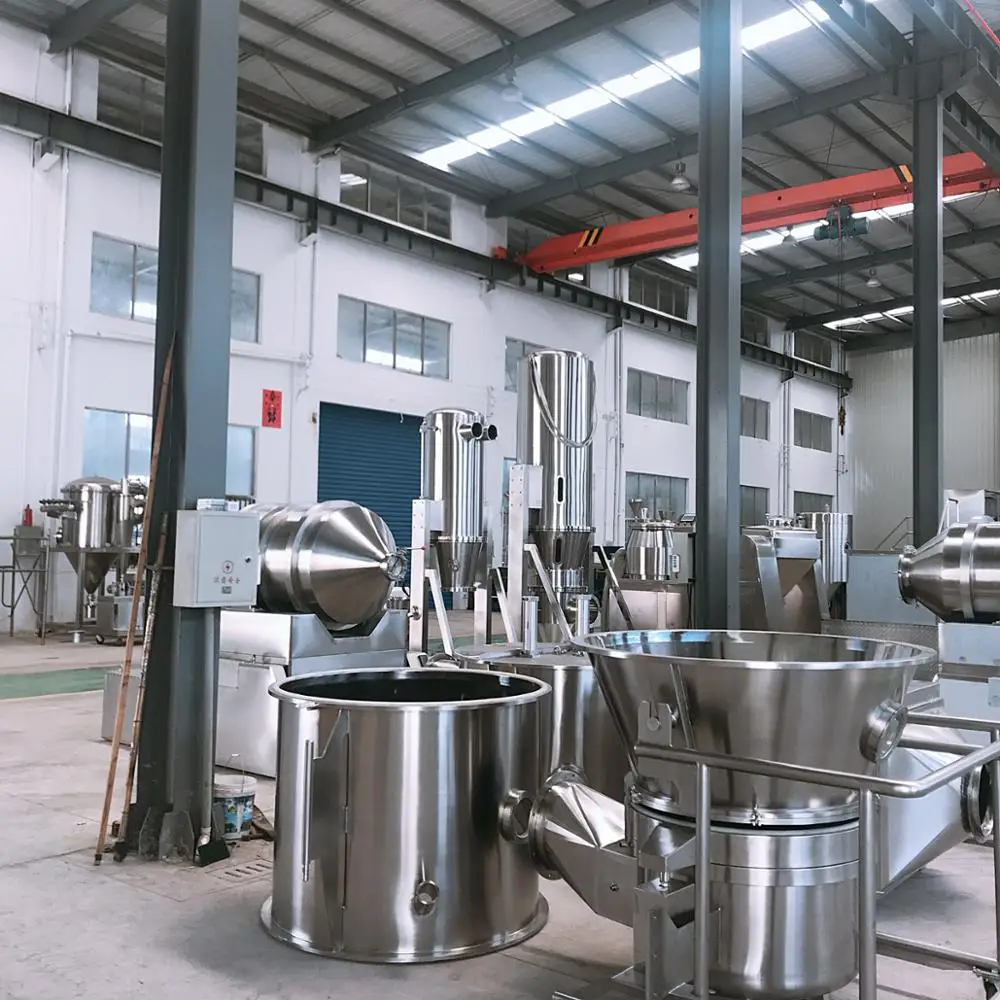

Our Machinery Manufacturing Workshop
Imported CNC Machining Centre makes all parts process accurate. Own R&D team with more than 20 years engineering expereince, can customize the equipment and packaging line to your satisfaction.
Professional Business Team
Warm, professional business team, careful response to your inquiry, timely response rate of more than 93%, higher than the average level of the industry.
Packing & Shipping
All machine delivery with anti rust spray, film wrapping and Sea shipping affordable wooden box.
FAQ
Q: What price terms you offer?
A: We can offer FOB, FCA, CFR, CIF, EXW and other price terms based on your request.
Q: What payment terms you take?
A: TT, LC, other terms are also workable.
Q: Will you help with installation and stuff training?
A: Yes, we can send our engineers to your place to guide the installation and train your workers if you need, but the buyer should bear our technician's round tickets, accomodation, food and subsidiary USD100/day.
Q: How can I visit your factory?
A: Our factory is located in Ruian city Zhejiang Province. Just let us know your scheduel in advance and we will arrange everything for you!
Any other doubts about our machine, please feel easy to contact with us.
A: We can offer FOB, FCA, CFR, CIF, EXW and other price terms based on your request.
Q: What payment terms you take?
A: TT, LC, other terms are also workable.
Q: Will you help with installation and stuff training?
A: Yes, we can send our engineers to your place to guide the installation and train your workers if you need, but the buyer should bear our technician's round tickets, accomodation, food and subsidiary USD100/day.
Q: How can I visit your factory?
A: Our factory is located in Ruian city Zhejiang Province. Just let us know your scheduel in advance and we will arrange everything for you!
Any other doubts about our machine, please feel easy to contact with us.
Похожие товары
Консервированные ананасы в легком сиропе, 20 унций
Бумажная Этикетка на заказ оптовая продажа печатный лист этикетка клейкая эстетические наклейки виниловая cmyk для
0,01 $ - 0,08 $

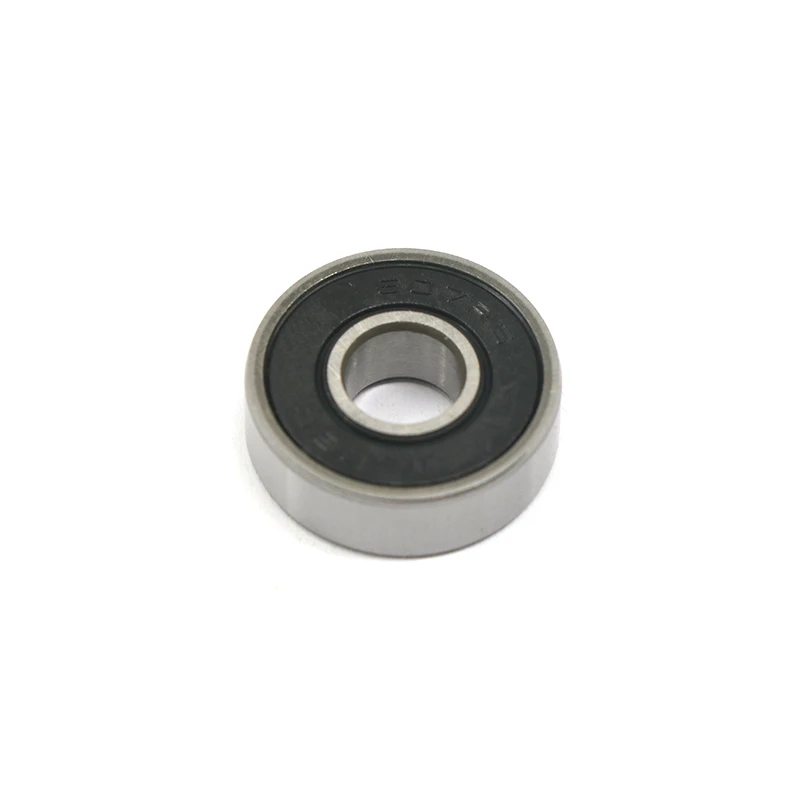

Лидер продаж, дизайнерские подшипники, цены, подшипники высокого качества, миниатюрные подшипники для мотоциклов
0,15 $ - 0,18 $
Хрустальный шар, Хрустальный астронавт, планета, глобус, 3D лазерная гравировка, шарик на солнечной батарее с сенсорным выключателем, основа для светодиодной подсветки, астрономический
Хрустальный шар кристалл Сатурн планета глобус 3D лазерная гравировка солнечная система Галактический со светодиодной

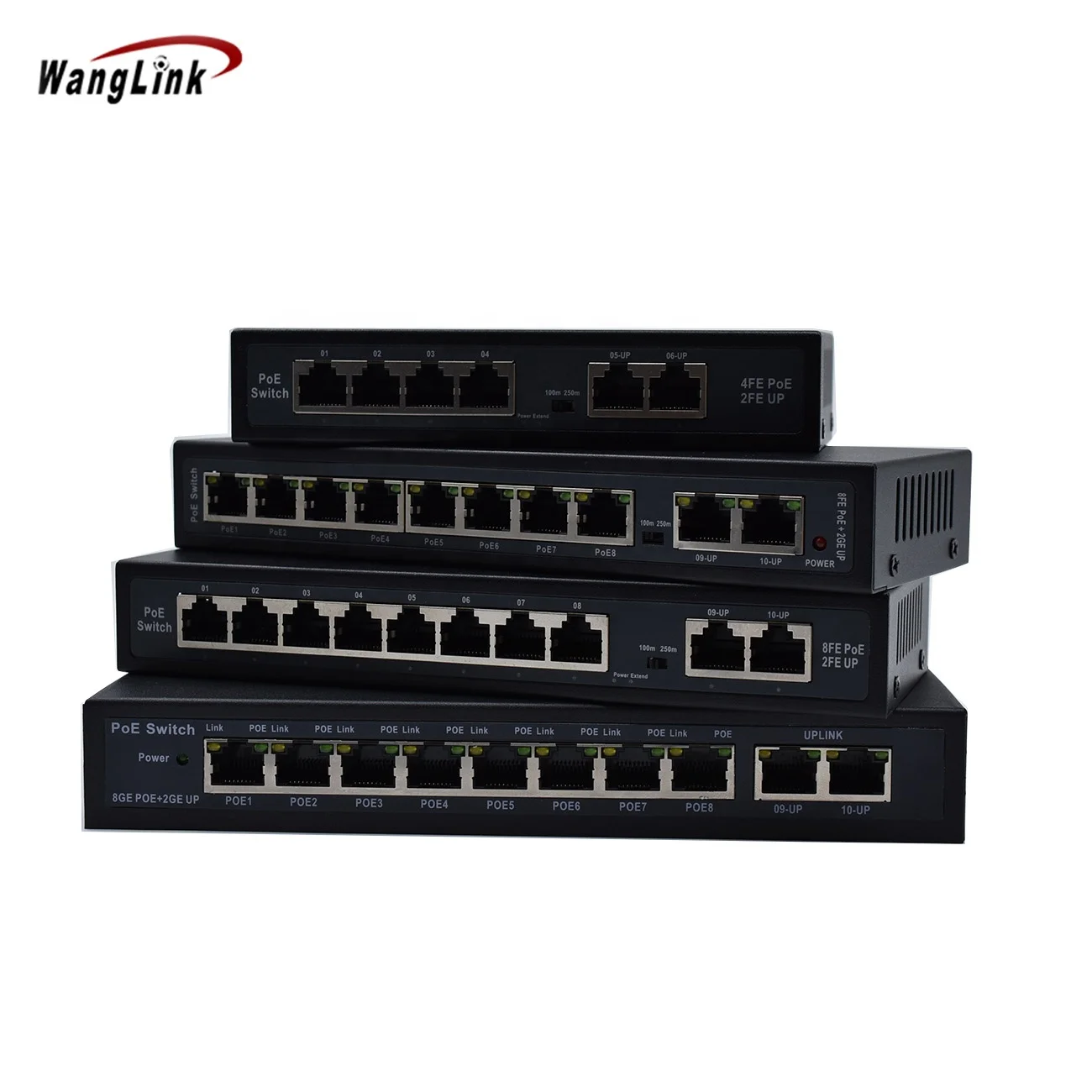

Неуправляемый коммутатор Ethernet 4*10/100Base-TX порты PoE (данные/питание) IEEE 802.3AF/AT Extend 250M/VLAN POE коммутаторы
