Product Overview

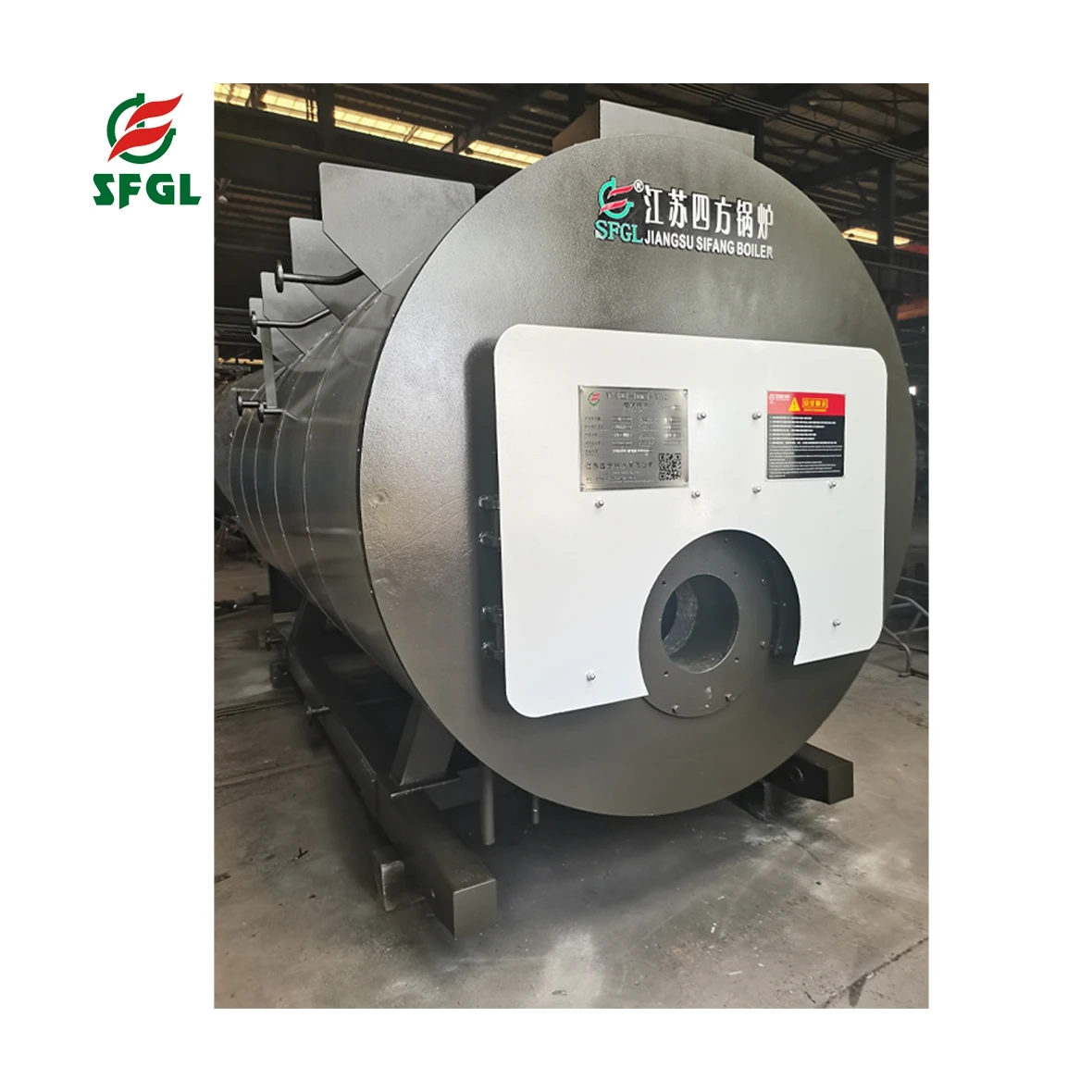

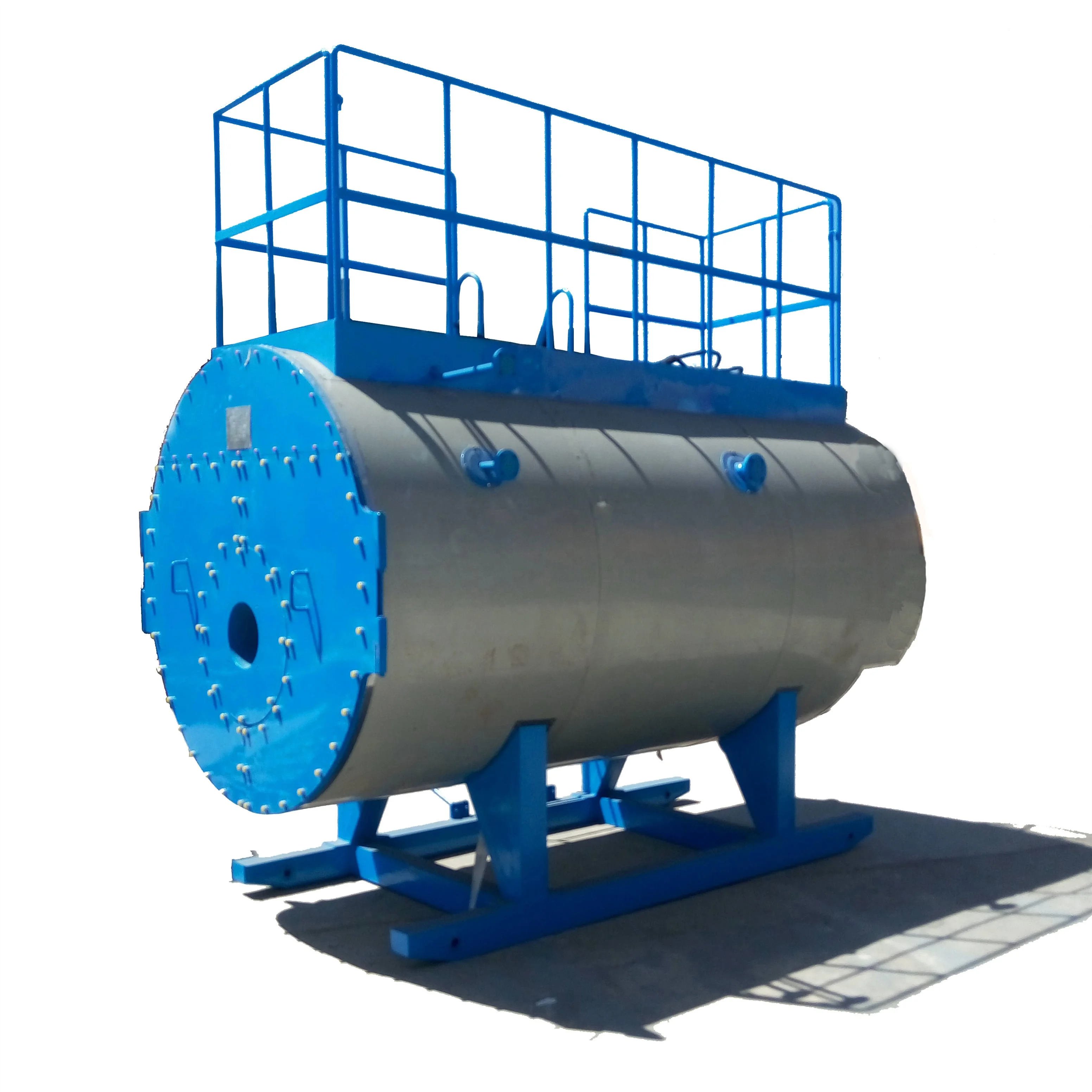

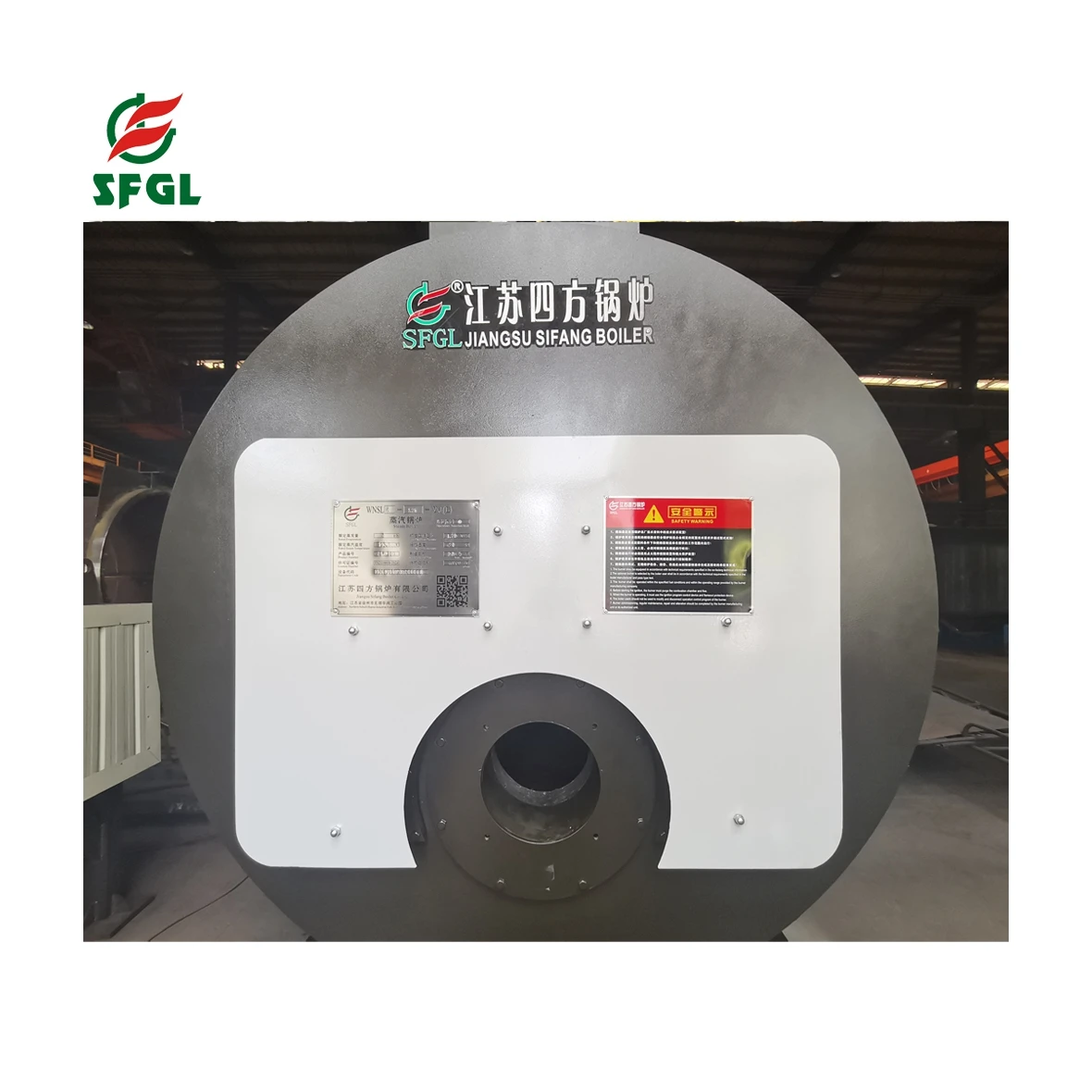

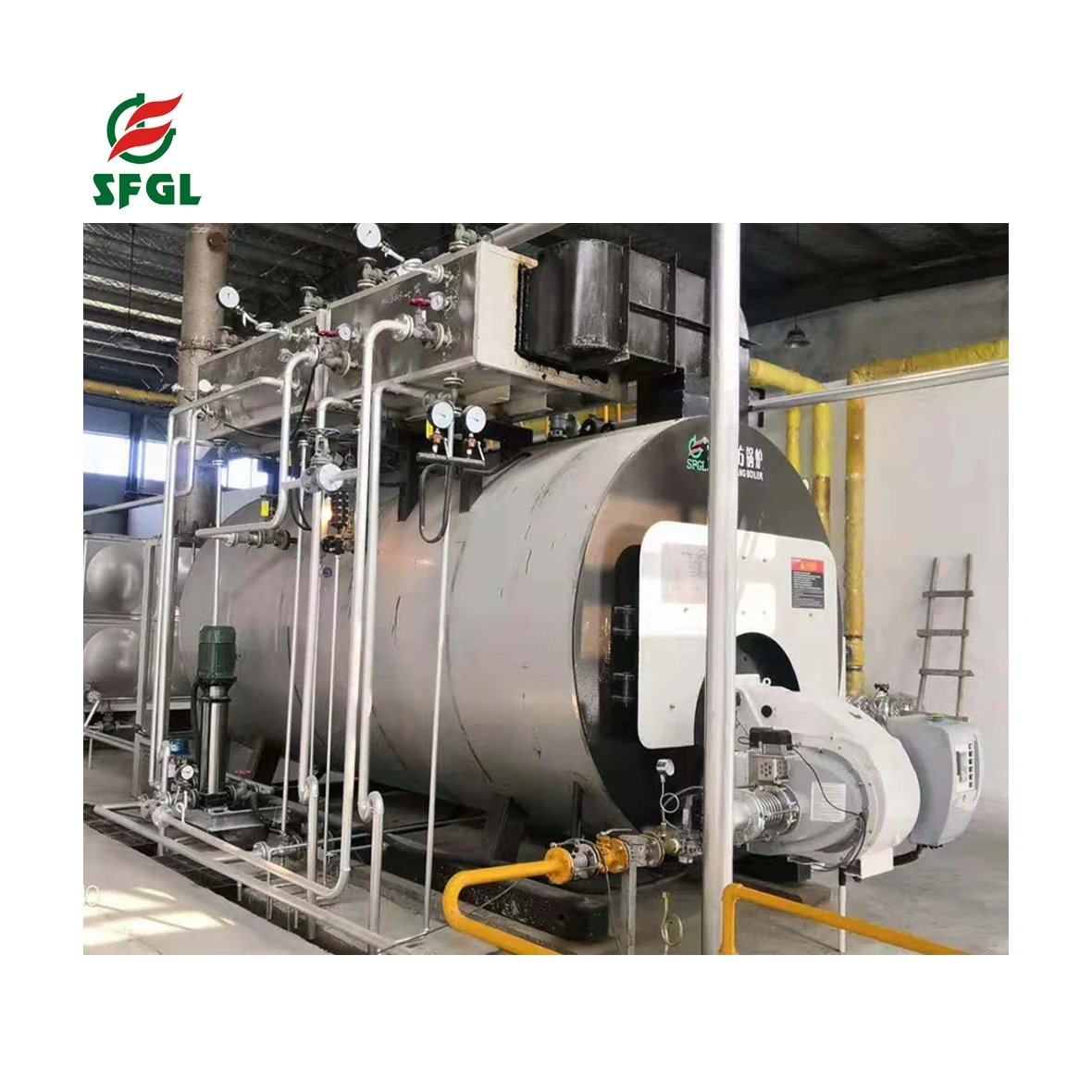

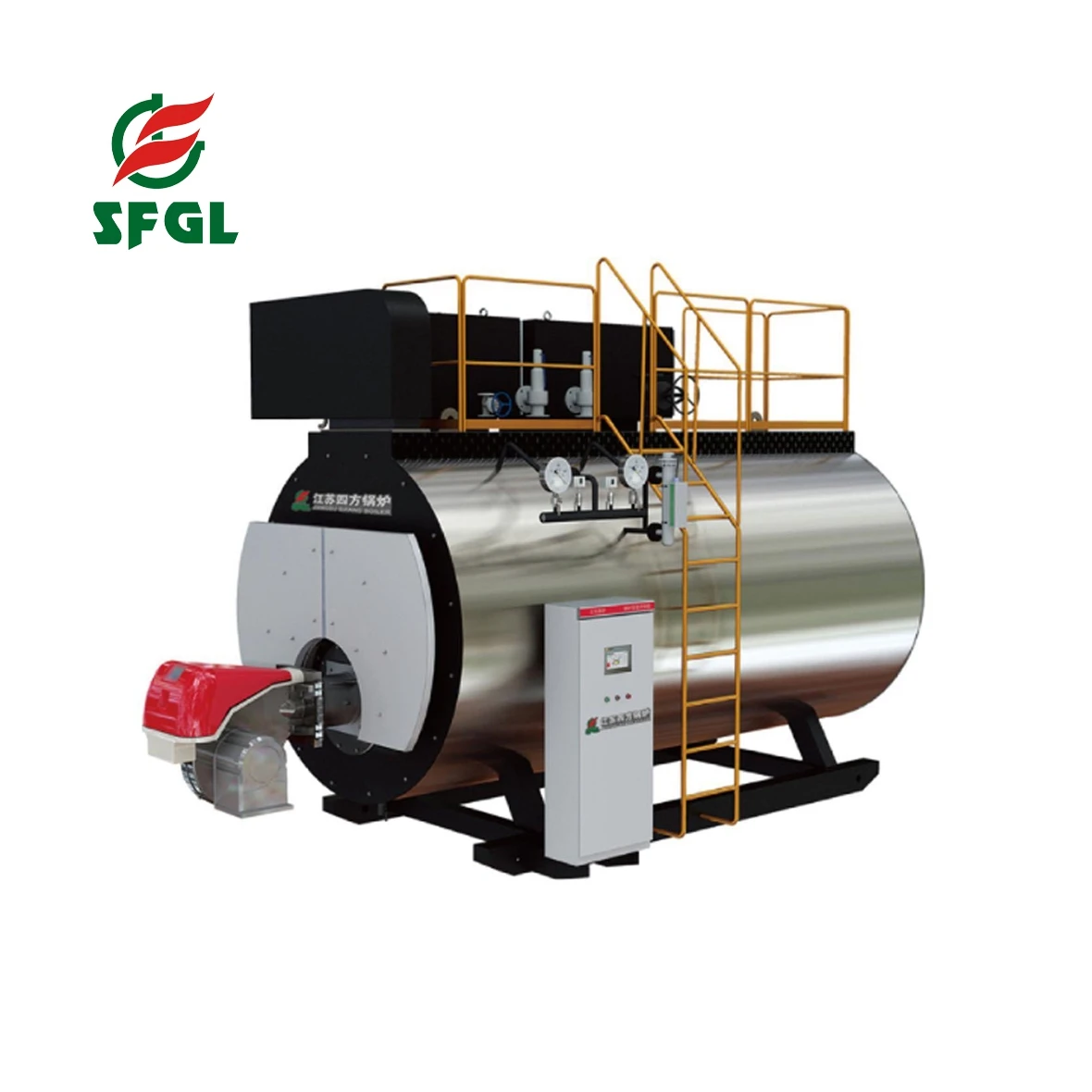

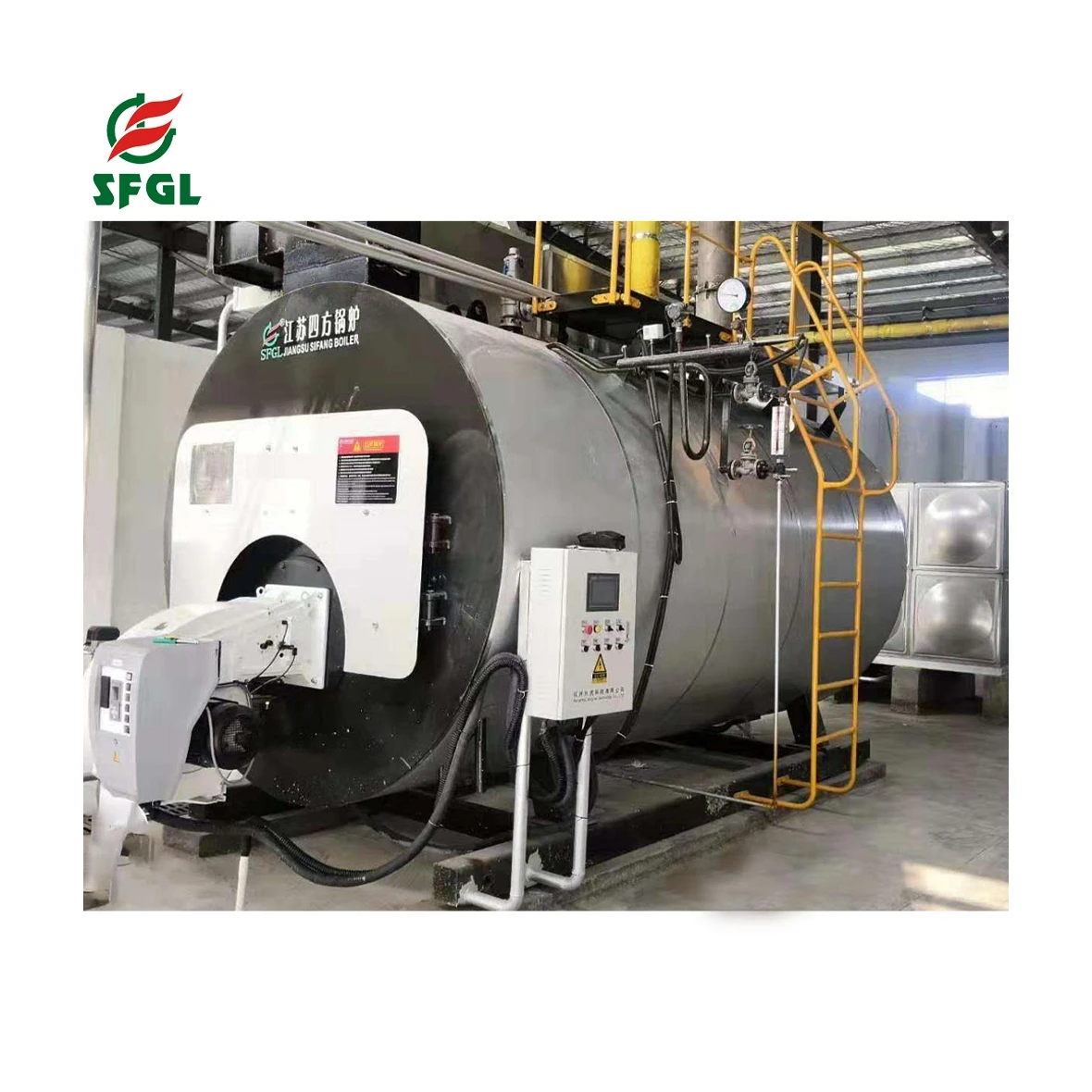

WNSL Oil Gas Fired Boiler
Based on sophisticated oil-gas fired boilers production experience, our WNSL sries oil-gas fired boilers are used for ecological power generation through years of cooperation with famous domestic scientific research institutions and universities. Based on the operation data of the company’s existing oil-gas fired boilers, we have developed the latest condensing oil-gas fired boilers which is high-efficient, energy-saving and environmental friendly. The latent heat of vaporization is recovered by using a large amount of water vapor contained in the flue gas after natural gas combustion, so as to improve the boiler efficiency to more than 100%. Suitable for natural gas, light oil, heavy oil and other fuels, it is widely used in garment factories, hospitals, schools, hotels, pharmaceutical factories, food factories, beverage factories, rubber factories, chemical plants, paper factories, building materials industry, etc. With the advantageous features of boiler such as high efficiency, energy saving and environmental protection, it is favored by more and more enterprises. Sifang Boiler has built a professional oil and gas furnace production line, which realizes the automation of boilers from feeding to processing, welding and then assembling, ensuring the quality of boiler products as well as the production cycle, escorting for the scale production of enterprises.
Product name | WNSL Oil Gas Fired Hot Water Boiler |
Type | Natural Circulation |
Structure | Fire Tube |
Application | Hotels, hospitals, medicine industry, restaurants, food industry, papermaking, heating, schools, mining, farms,clothing,manufacturing, machinery maintenance |
Technical Advantages
Unique Structural Design
1. The boiler adopts a unique two-way central reverse combustion, low arrangement in the center of the combustion chamber and the design idea of symmetrical distribution of heat exchange flue pipes on the left and right. The heat exchange load is uniform and stable, which is conducive to the steam water circulation and improve the safety of the boiler.
2. The reasonable application of corrugated furnace liner and threaded fire tube which enhances heat transfer can not only strengthen the turbulent heat transfer of high-temperature flue gas, but also effectively absorb the thermal expansion and contraction of furnace body.
3. The boiler adopts the design idea of large furnace, which has complete combustion and is not easy to accumulate carbon, featuring high efficiency and sufficient output and low NOx emission.
4. The economizer and condenser are arranged on the top of the boiler, with compact structure and no floor area.
5. The economizer and condenser adopt spiral fin tube and counter-flow arrangement to enhance heat transfer.
6. The condenser is made of special ND steel with good cold resistance and corrosion resistance, which greatly improves the service life of the boiler.
7. Reasonable flue structure and smoke box drainage structure help to make the condensate water easy to be discharged, collected and treated.
Energy Conservation and Environmental Protection
1. The boiler adopts the idea of furnace design to reduce the furnace volume heat release rate, and with the professional burner, the NOx emission is as low as less than 30mg/Nm³.
2. 99% of the natural gas is methane (CH4), which contains a large amount of hydrogen (H). The flue gas after combustion contains a large amount of water vapor. Through theoretical calculation, the share of water vapor in the flue gas is about 18%, if the water vapor is condensed into water to recover the latent heat of vaporization in it, the heat recovery is about 5%, and the boiler efficiency can be improved to more than 100%.
2. 99% of the natural gas is methane (CH4), which contains a large amount of hydrogen (H). The flue gas after combustion contains a large amount of water vapor. Through theoretical calculation, the share of water vapor in the flue gas is about 18%, if the water vapor is condensed into water to recover the latent heat of vaporization in it, the heat recovery is about 5%, and the boiler efficiency can be improved to more than 100%.
More Products
Company Profile
Jiangsu Sifang Boiler Co., Ltd.
Jiangsu Sifang Boiler Co., Ltd. was established in 1998, and is the first ASME accredited special equipment manufacturing enterprise of China Special Equipment Inspection and Research Institute. Through technological and innovative development, our company has become the leading boiler industry in China.
Our company is located in Xuzhou city, a major city in Jiangsu province, China, which is the birthplace of Han culture and awarded as UN Livable City. Xuzhou, as the second largest Chinese railway hub, 582 km away from Shanghai, is not only an economic, scientific, cultural, financial, healthcare and trade center, but also an important node city of the country’s Belt and Road Initiative.Our company covers an area of about 170,000 square meters and has more than 700 employees, including more than 200 people with professional and technical titles, and more than 70 people with middle and senior technical titles.
We have the manufacturing license of Class A boiler and Class A1 pressure vessel, ASME certification qualification, boiler installation, alteration, repair and maintenance license, and have passed IO9001 quality management system certification, ISO14001 environmental management system certification, ISO45001 occupational health and safety management system certification. Moreover, we has more than 40 technical patents of boiler products.
Main products: oil-fired (gas-fired) boilers, fluidized bed boilers (coal-fired, biomass-fired), pulverized-coal fired boilers, corner-tube boilers (coal-fired, biomass-fired), various types of waste heat utilization boilers for waste and hazardous waste incineration, large intelligent control autoclave and other products.
