Магнитный сепаратор магнитный семян сухой источник прямые поставки с
2 750,00 $ - 2 840,00 $

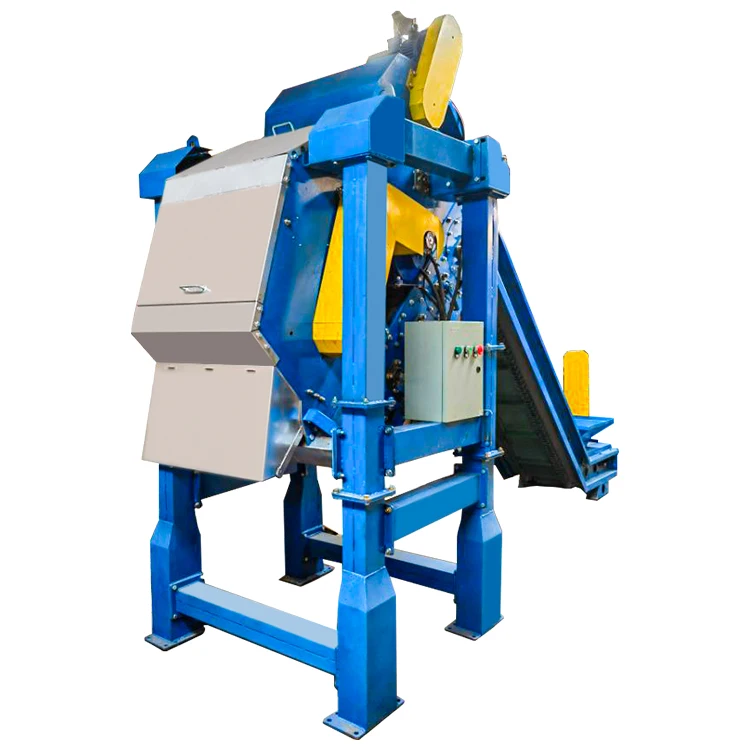

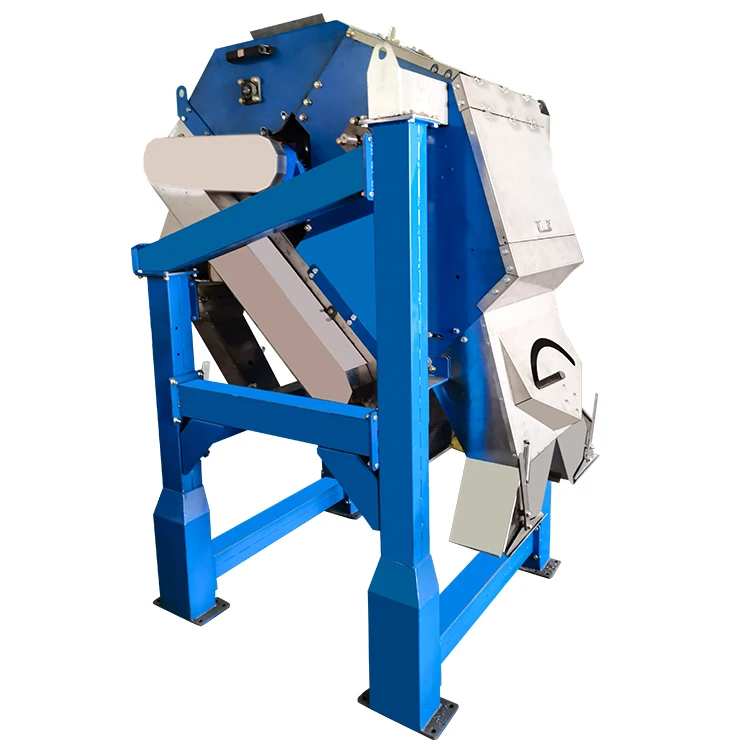

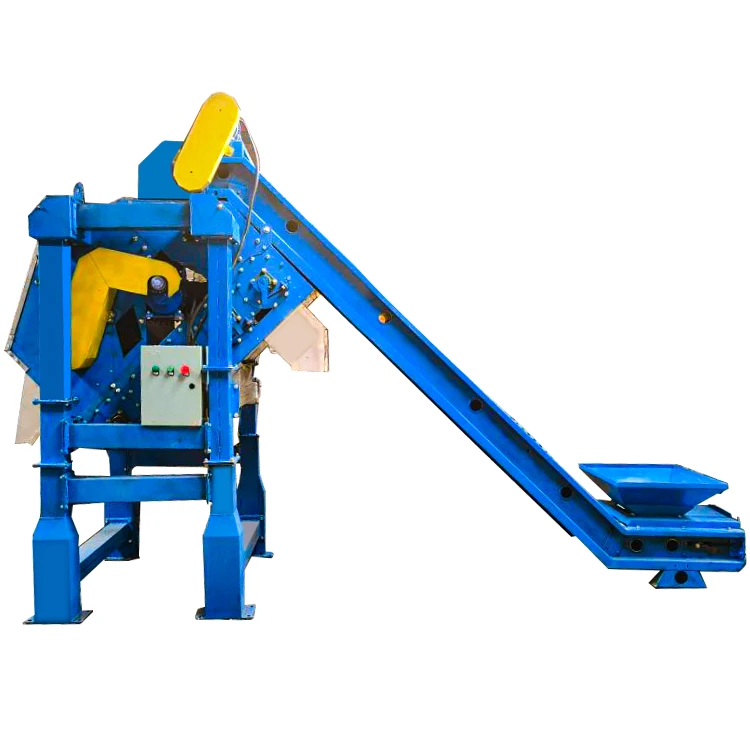

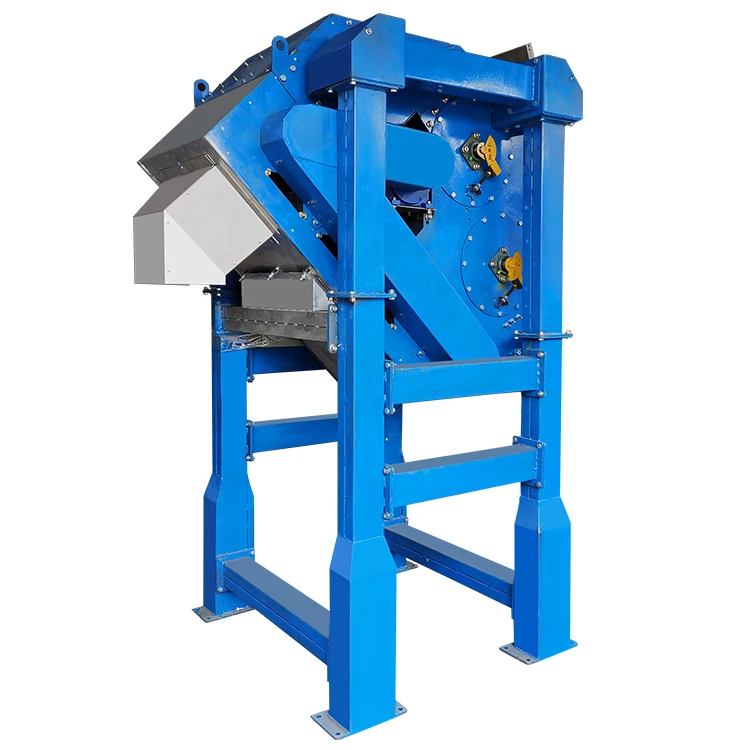

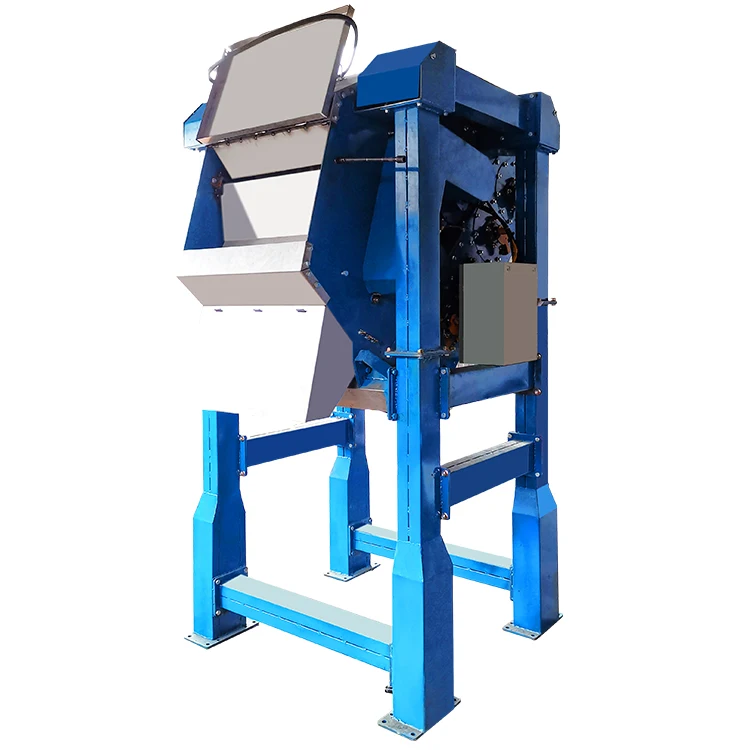

Пескоструйная машина порошковый барабан магнитный сепаратор для оборудования очистки
- Категория: Magnetic Separator >>>
- Поставщик: Baoding Lianchi Tengbo Mechanical Equipment Factory
Сохранить в закладки 1600544333465:
Описание и отзывы
Характеристики
Specification
model | 5 + 2 combined multi drum magnetic separator |
Magnetic drum specification | Two rollers with diameter of 35cm and length of 60cm 5 rollers with diameter of 22cm and length of 60cm |

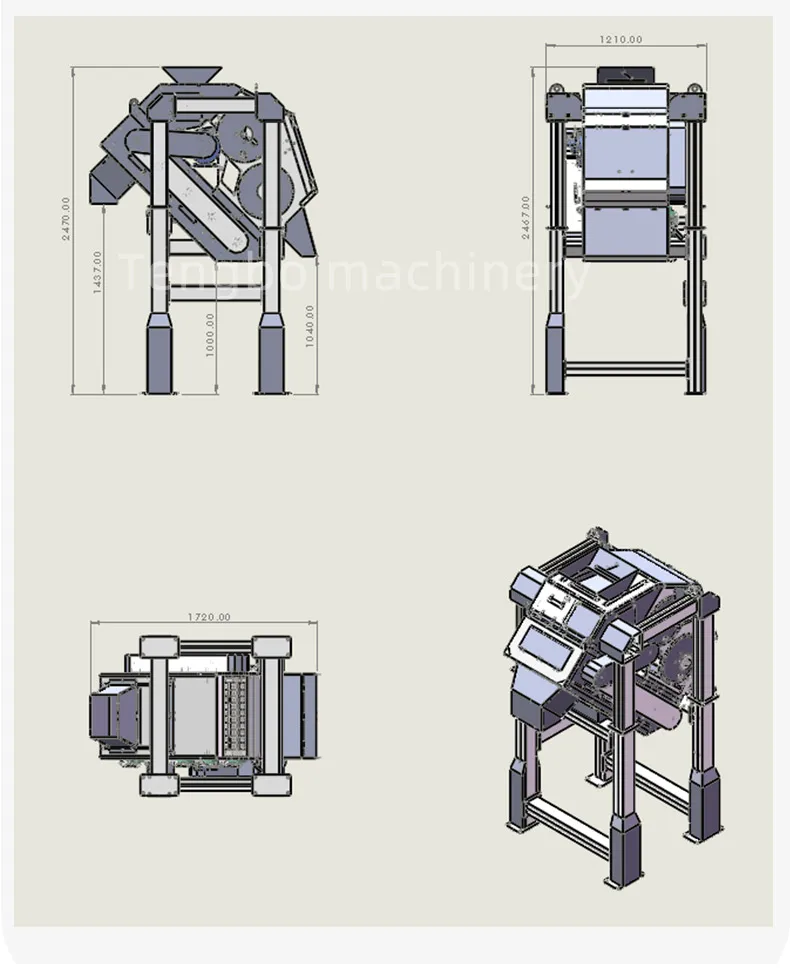

Appearance dimension | 4100*2346*2794mm |
weight | 500kg |
Motor power | 1.1KW stepless speed change, one for 5 drum drive. 2. One roller drive is used, One set is used for belt drive. |
Full magnetic / semi magnetic | 2 large half magnetic rollers + 5 small half magnetic rollers |
Magnetic range | 2 strong magnetic rollers, 1500-2500 gauss; 5 medium magnetic rollers 600-1500 Gauss |
Feed particle | ≤5cm |
Magnetic drum speed | 40-200r/min Adjustable speed |
Deceleration device | Stepless speed reducer |
Feed inlet | 796*725mm(it can be customized according to the customer's site) |
Product Description
working principle
After shaking and feeding, the product is evenly distributed to two large strong magnetic rollers. Firstly, the cleanliness of non-magnetic materials is ensured. Secondly, the purity of magnetic materials absorbed is not high, and non-magnetic materials and some intermediate products (non-magnetic materials containing iron - adhesive) will be mixed. Then, it will be purified by medium magnetic roller for five times. In the process of five times of purification, some mixed non-magnetic materials will fall back to the non-magnetic area in turn.

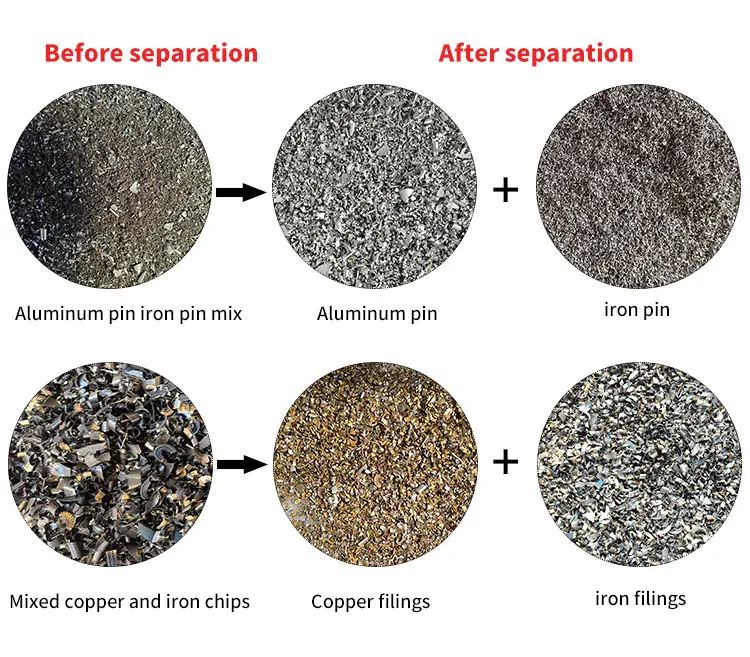

Separable Materials:

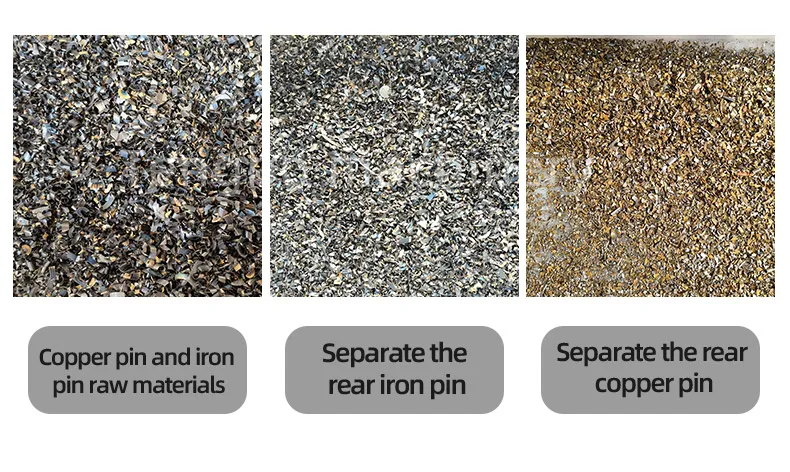

The iron powder content is high, and all crushing purification processes mixed with aluminum pin, aluminum chip, copper powder, copper wire, copper bran, grinding wheel ash and shot blasting ash are applicable to materials with high difficulty in purifying iron.
Recommend Products
Company Profile
Baoding Tengbo machinery equipment factory is a well-known enterprise specializing in magnetic separation equipment. Tengbo machinery has long-term practical experience. After years of exploration, it provides customers with professional technology and product services. Through years of experience accumulation, we have experimented with many products that need to be separated in the market, provided suitable products for our customers and won the trust of customers.
The company's products have been sold to many countries at home and abroad, and has established a complementary and considerate service system, which has won wide praise from customers.
The company's products have been sold to many countries at home and abroad, and has established a complementary and considerate service system, which has won wide praise from customers.
Main products:
At present, magnetic separation equipment is mainly used for aluminum pin, aluminum chip, aluminum shaving, aluminum foam and iron chip, pig iron pin, grinding wheel ash iron and impurity removal, copper meter, electronic foot, plastic, zinc ash, glass iron removal, casting, refractory, aluminum industry, renewable resources, nonferrous metal sorting and other industries.
At present, magnetic separation equipment is mainly used for aluminum pin, aluminum chip, aluminum shaving, aluminum foam and iron chip, pig iron pin, grinding wheel ash iron and impurity removal, copper meter, electronic foot, plastic, zinc ash, glass iron removal, casting, refractory, aluminum industry, renewable resources, nonferrous metal sorting and other industries.
According to the needs of customers, we can make all kinds of iron selection and iron absorption machines: Aluminum pin aluminum scrap iron absorption machine, aluminum ash aluminum powder copper meter electronic foot iron absorption machine, aluminum shaving iron absorption machine, broken material iron absorption machine, iron aluminum crushing separator, pig iron pin iron absorption machine, small magnetic separator, ground iron collector, iron absorber, magnetic sweeper, permanent magnet drum, strong magnetic separator, aluminum iron separator, copper iron separator, belt iron remover, hanging iron remover, Iron powder purification magnetic separator, etc.
Certifications

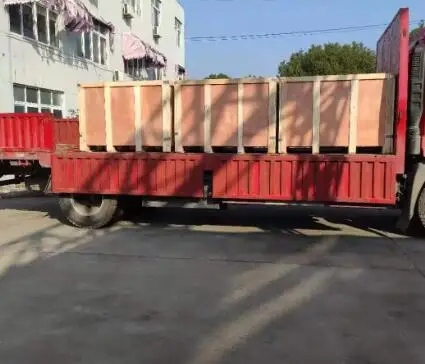

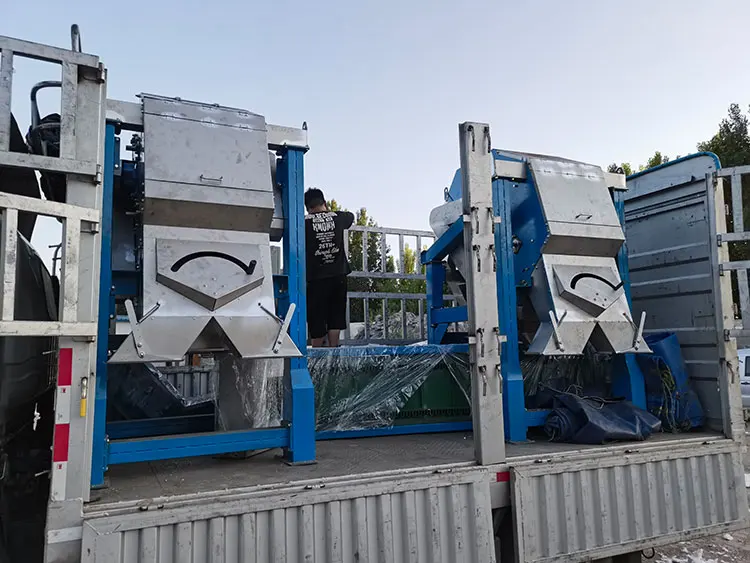

Packing & Delivery
FAQ
1. How about the quality of your products?
A: our products are produced in strict accordance with national and international standards. We will test each machine before delivery.
2、How about the warranty?
A: all our products are guaranteed for one year. An additional set of vulnerable parts can be brought to facilitate your replacement.
A: all our products are guaranteed for one year. An additional set of vulnerable parts can be brought to facilitate your replacement.
3. When is the delivery time?
A: according to the specific data provided by customers, the delivery time of our customized equipment is 15-30 days.
A: according to the specific data provided by customers, the delivery time of our customized equipment is 15-30 days.
4. Service and payment terms?
A: we can accept T / T and L / C; 30% deposit and 70% balance before ex works delivery, which is international trade practice;
The finished product pictures will be provided to the customer before delivery.
A: we can accept T / T and L / C; 30% deposit and 70% balance before ex works delivery, which is international trade practice;
The finished product pictures will be provided to the customer before delivery.
