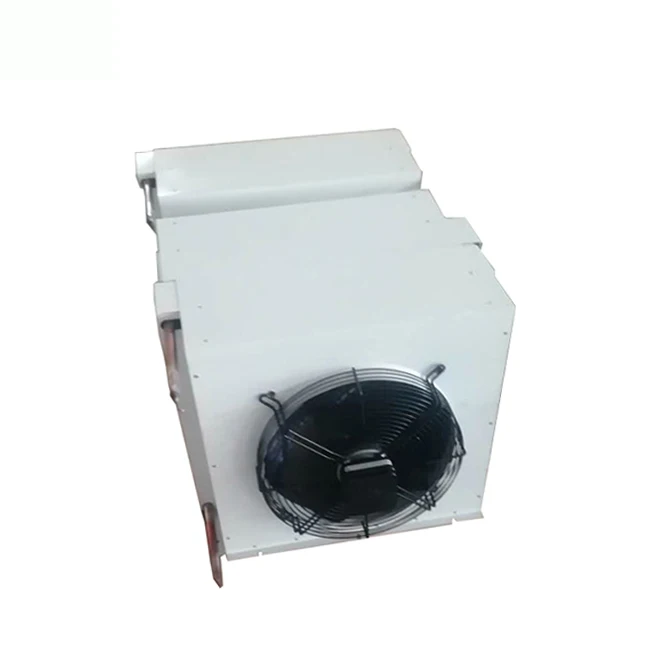

Shenglin, 2023 г., распродажа, антикоррозийные радиаторы для воздуходувки, сухие радиаторы на заводе/электростанции
7 488,00 $

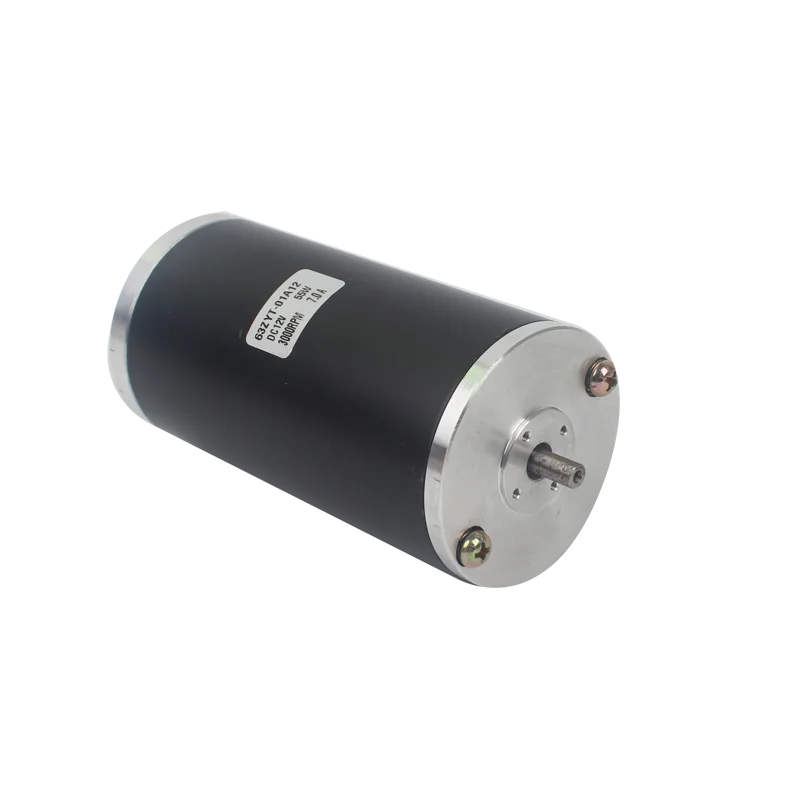

63ZYT высокая скорость по индивидуальному заказу 0 150W 12V 24V щеткой dc мотор редуктор для
- Категория: >>>
- Поставщик: Changzhou Modar Intelligent Technology Co. ltd.
Сохранить в закладки 1600544421324:
Описание и отзывы
Характеристики

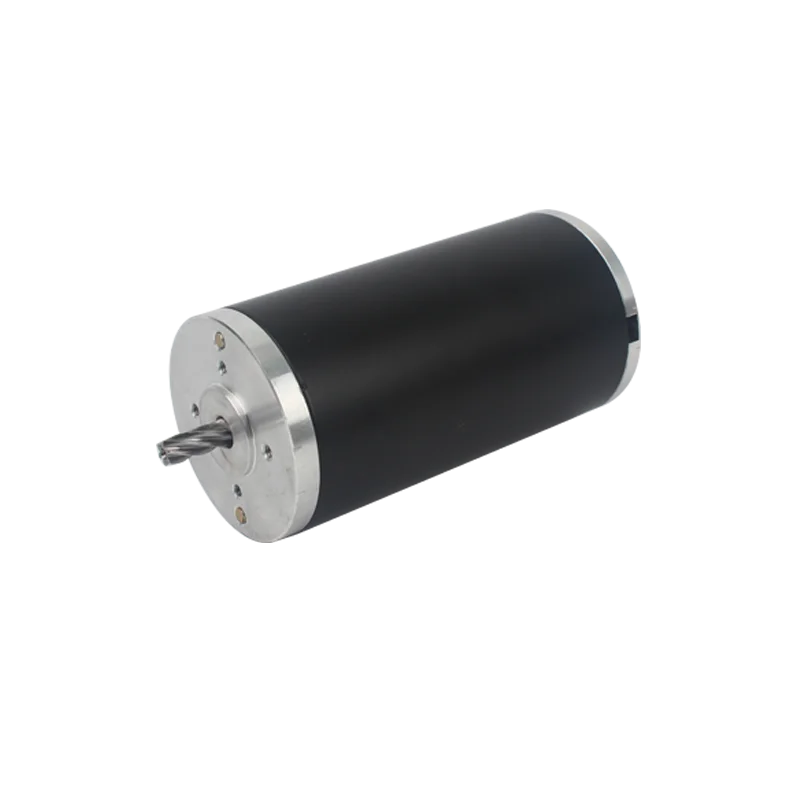

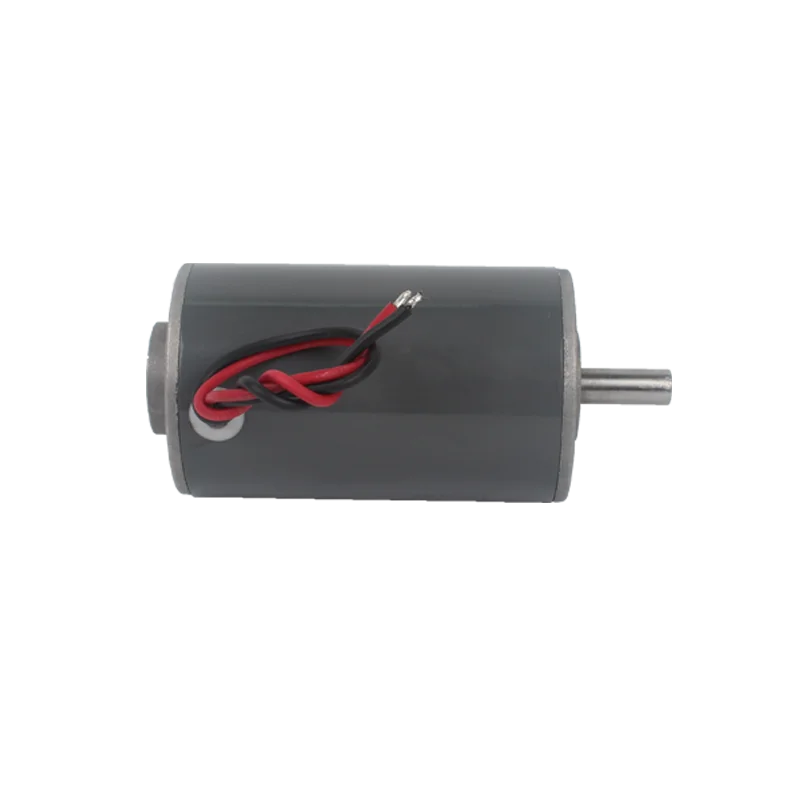

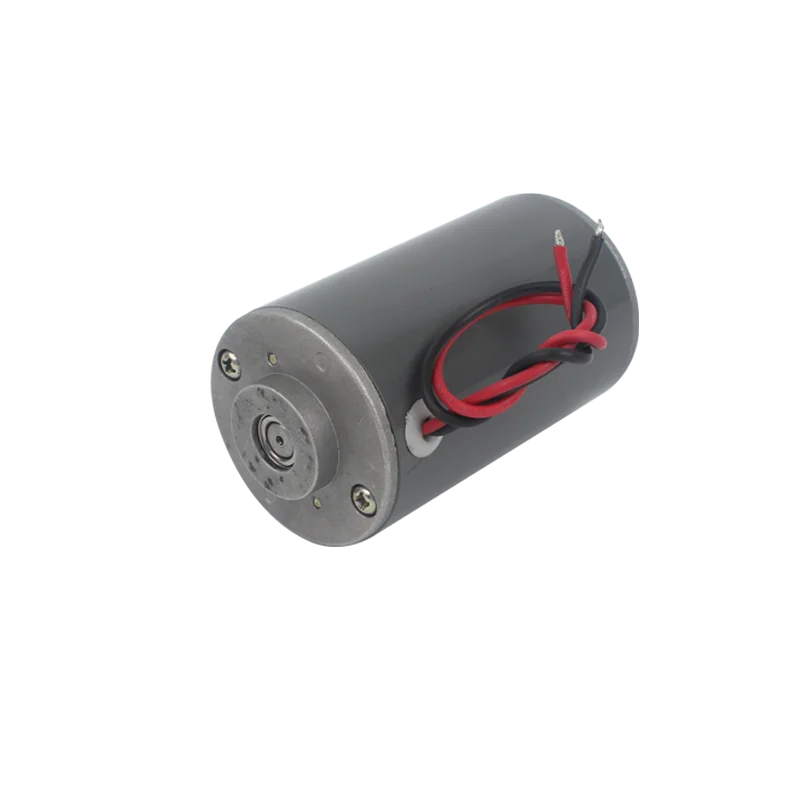

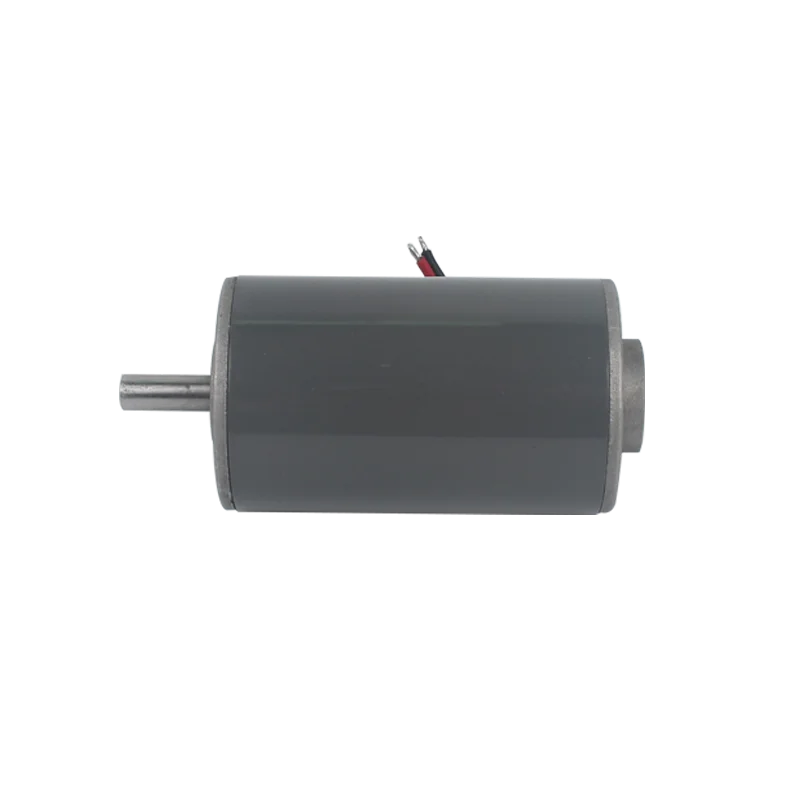

Brushed DC Motor
Brushed DC motors offer advantages like cost-effectiveness, reliability and suitability for extreme operating environments. One tremendous benefit they provide is their high ratio of torque-to-inertia. This makes many brushed DC motors well-suited to applications requiring high levels of torque at low speeds. Modar Motor offers high-quality and dependable brushed DC motors that suit a variety of applications.
If you don’t see something that meets your particular specifications, please contact us anyway! We take pride in offering products customized to meet a variety of requirements.
Products Description
Product Specifications
Model | Voltage | Speed | Torque | Current | Power | Length |
V | rpm | N.m | A | W | mm | |
63ZYT-01A24 | 24 | 1700 | 0.15 | 2 | 35 | 110 |
63ZYT-02A24 | 24 | 3000 | 0.15 | 2 | 30 | 115 |
63ZYT-03A24 | 24 | 2100 | 0.2 | 3 | 40 | 125 |
63ZYT-04A24 | 24 | 3200 | 0.4 | 10 | 130 | 170 |
63ZYT-05A24 | 24 | 3000 | 0.17 | 7.5 | 55 | 135 |
63ZYT-06A24 | 24 | 1600 | 0.1 | 1.5 | 25 | 95 |
item | value |
Warranty | 1year |
Place of Origin | China |
Jiangsu | |
Brand Name | Modar Motor |
Model Number | 63ZYT-01/02/03/04/05/06A24 |
Usage | Massage chair movement, straight push rod, elevator |
Type | Brush Dc Motor |
Torque | 0.15/0.2/0.17/0.4/0.1N.m |
Voltage | 24V |
Construction | Permanent Magnet |
Commutation | Brush |
Speed(RPM) | 0-5000RPM/min |
Continuous Current(A) | 2/3/10/7.5/1.5A |
Efficiency | Ie 3 |
Product Paramenters
Recommend Products
45ZYT-01/02/03/04A24
45mm brushed DC Motor
Voltage:12V/24V
power: 0-35W
power: 0-35W
speed: 0-5000rpm
rated torque: 0.07N.m-0.15N.m
length: 81mm
rated torque: 0.07N.m-0.15N.m
length: 81mm
60ZYT-01/02/03/04/05B24
60mm brushed dc motor
Voltage: 24V
power: 0-150W
speed: 0-5000rpm
rated torque: 0.25N.m-0.4N.m
length: 111mm-160mm
power: 0-150W
speed: 0-5000rpm
rated torque: 0.25N.m-0.4N.m
length: 111mm-160mm
Manufacturing Technique
Packing & Delivery
Company Profile
We are specialized in provide the DC motor, brushless motor, stepper motor, servo motor, AC motor, pump motor and other motors for medical equipments.
FAQ
1. Who are we?
We are based in Jiangsu, China, start from 2021, sell to Eastern Europe(20.00%), North America(15.00%), Southeast Asia(10.00%),South America(10.00%), South Asia(5.00%), Southern Europe(5.00%),Northern Europe(5.00%), Central America(5.00%),Western Europe(5.00%), Eastern Asia(5.00%), Mid East(5.00%), Oceania(5.00%), Africa(5.00%). There are total about 5-10 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment.
3.What can you buy from us?
DC MOTOR, BRUSHLESS MOTOR, PUMP MOTOR, STEPPER MOTOR, AC MOTOR
4. Why should you buy from us not from other suppliers?
Specialized in designing and making DC motors, brushless motors, pump motors, ac motors, gearbox motor and motors for medical machines, auto machines.
5. What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DDP, DDU, DAF, DES；
Accepted Payment Currency: USD, EUR, JPY, CAD, AUD, HKD, CNY;
Accepted Payment Type: T/T, L/C, D/P, D/A, MoneyGram, Credit Card, PayPal, Western Union, Cash, Escrow;
Language Spoken:English, Chinese, German
We are based in Jiangsu, China, start from 2021, sell to Eastern Europe(20.00%), North America(15.00%), Southeast Asia(10.00%),South America(10.00%), South Asia(5.00%), Southern Europe(5.00%),Northern Europe(5.00%), Central America(5.00%),Western Europe(5.00%), Eastern Asia(5.00%), Mid East(5.00%), Oceania(5.00%), Africa(5.00%). There are total about 5-10 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment.
3.What can you buy from us?
DC MOTOR, BRUSHLESS MOTOR, PUMP MOTOR, STEPPER MOTOR, AC MOTOR
4. Why should you buy from us not from other suppliers?
Specialized in designing and making DC motors, brushless motors, pump motors, ac motors, gearbox motor and motors for medical machines, auto machines.
5. What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DDP, DDU, DAF, DES；
Accepted Payment Currency: USD, EUR, JPY, CAD, AUD, HKD, CNY;
Accepted Payment Type: T/T, L/C, D/P, D/A, MoneyGram, Credit Card, PayPal, Western Union, Cash, Escrow;
Language Spoken:English, Chinese, German
Похожие товары
Конфиденциальности двойной профиль Thumbturn евро цилиндр дверного

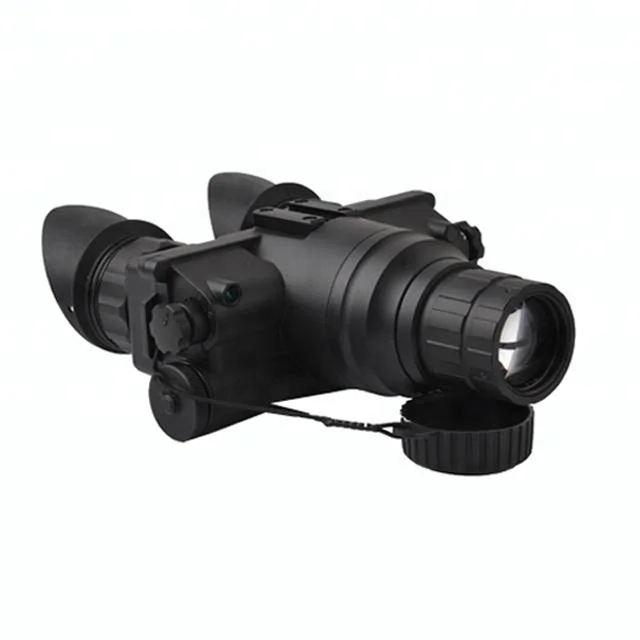

D-G2051 касок gen 3 очки ночного видения

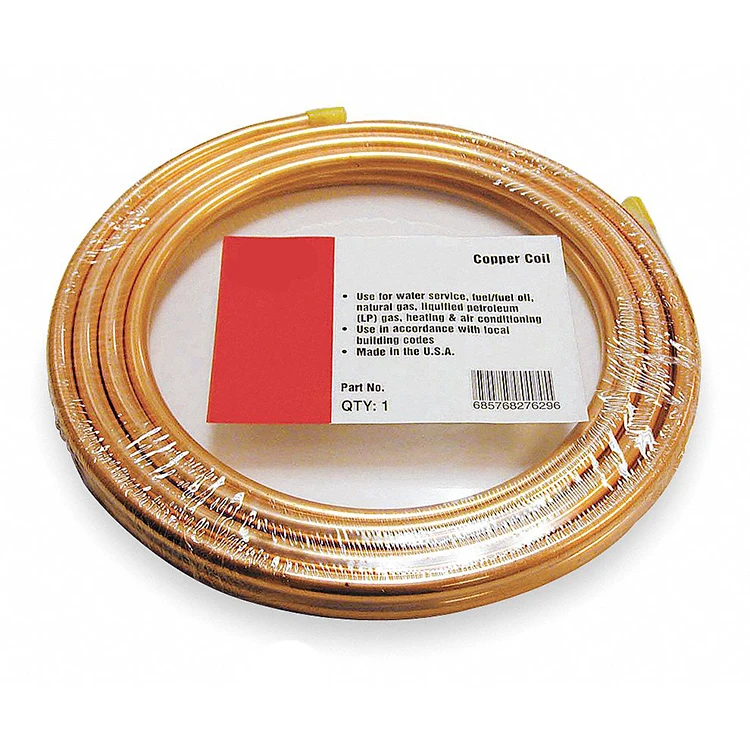

Медные спирали для блинов/гибкие медные трубки для кондиционеров
6,00 $ - 10,00 $

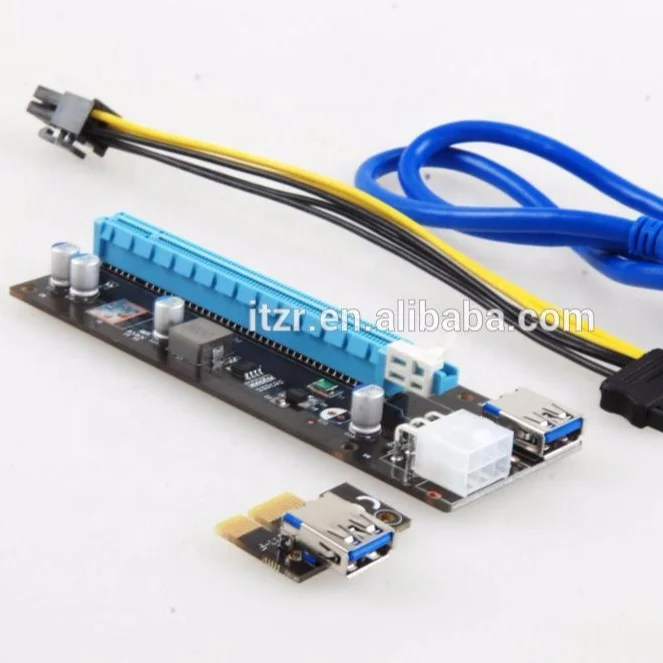

9th gen ricser card ver 9.02a Биткоин Майнер материнская плата Завод BTC pci-e 16x pci-e x1 x16 Райзер карта с индикатором
Высококачественная Сырая нефть (ESPO) Восточного Сибирского океана по прямой заводской цене

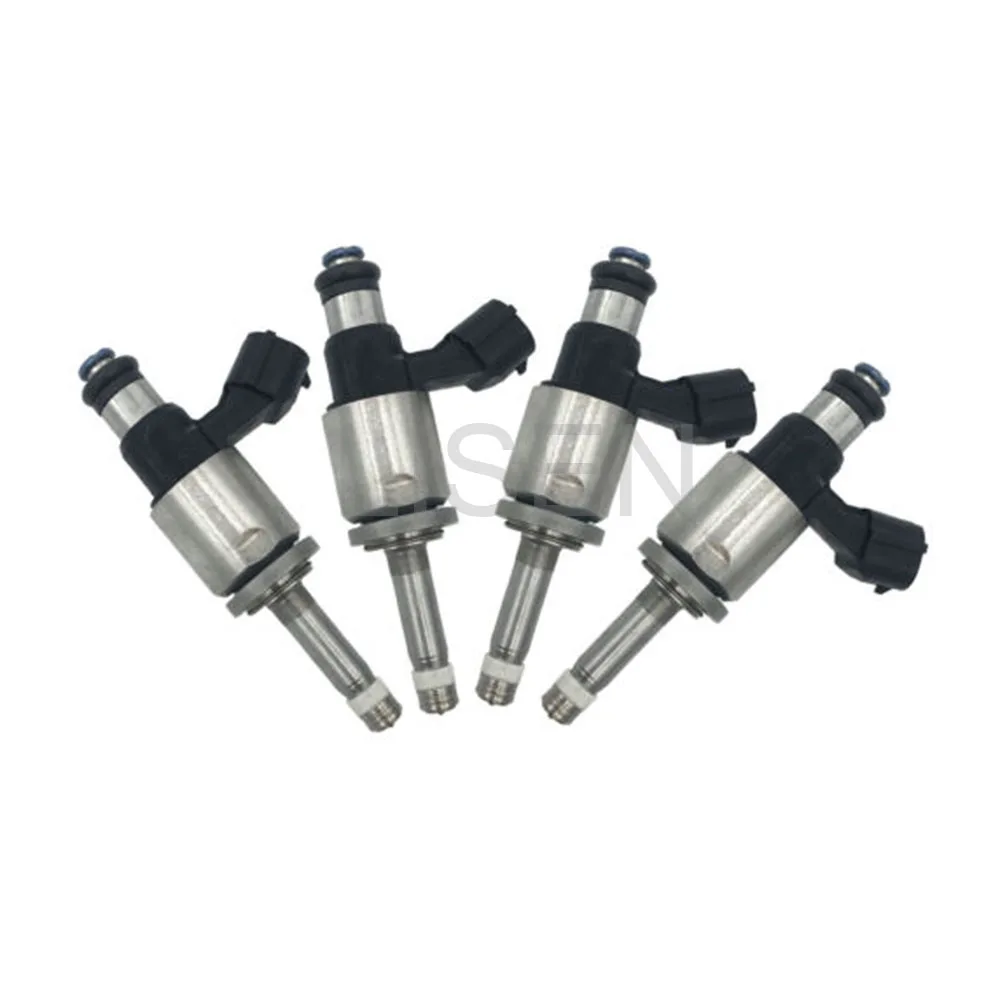

Топливные форсунки для T oyota Highlander Sienna Tacoma 16-18 Camry 2018 3.5L
10,00 $ - 15,00 $

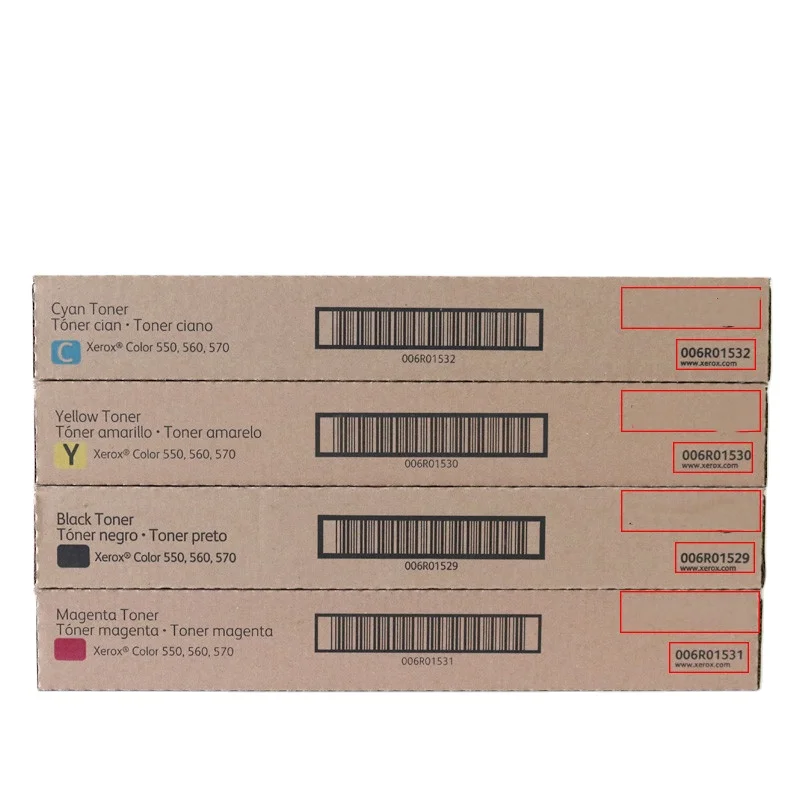

Тонеры хорошего качества для Xerox WorkCentre 550/560/570/5580/6680/7780, тонер-картридж для Xerox Copiers
