Распродажа по низкой цене Прямая поставка с завода машина для изготовления сумок компьютерным
9 800,00 $

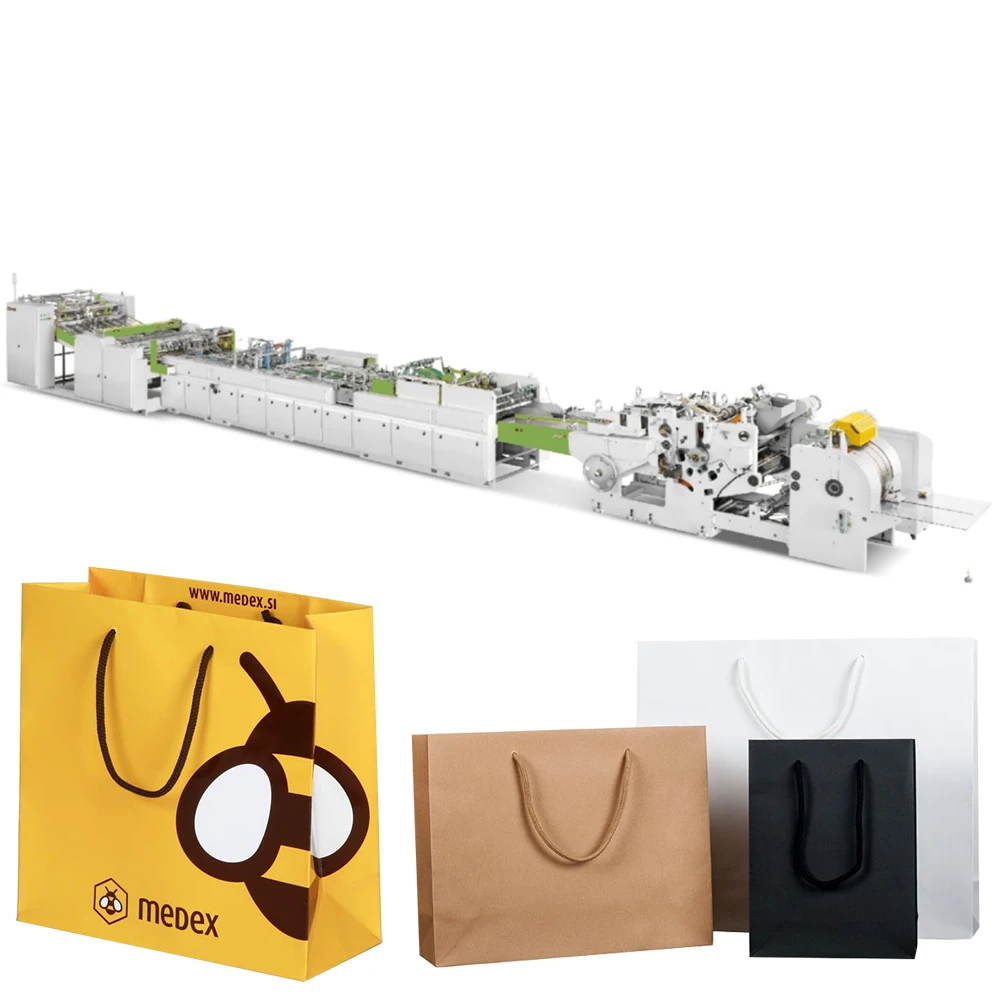

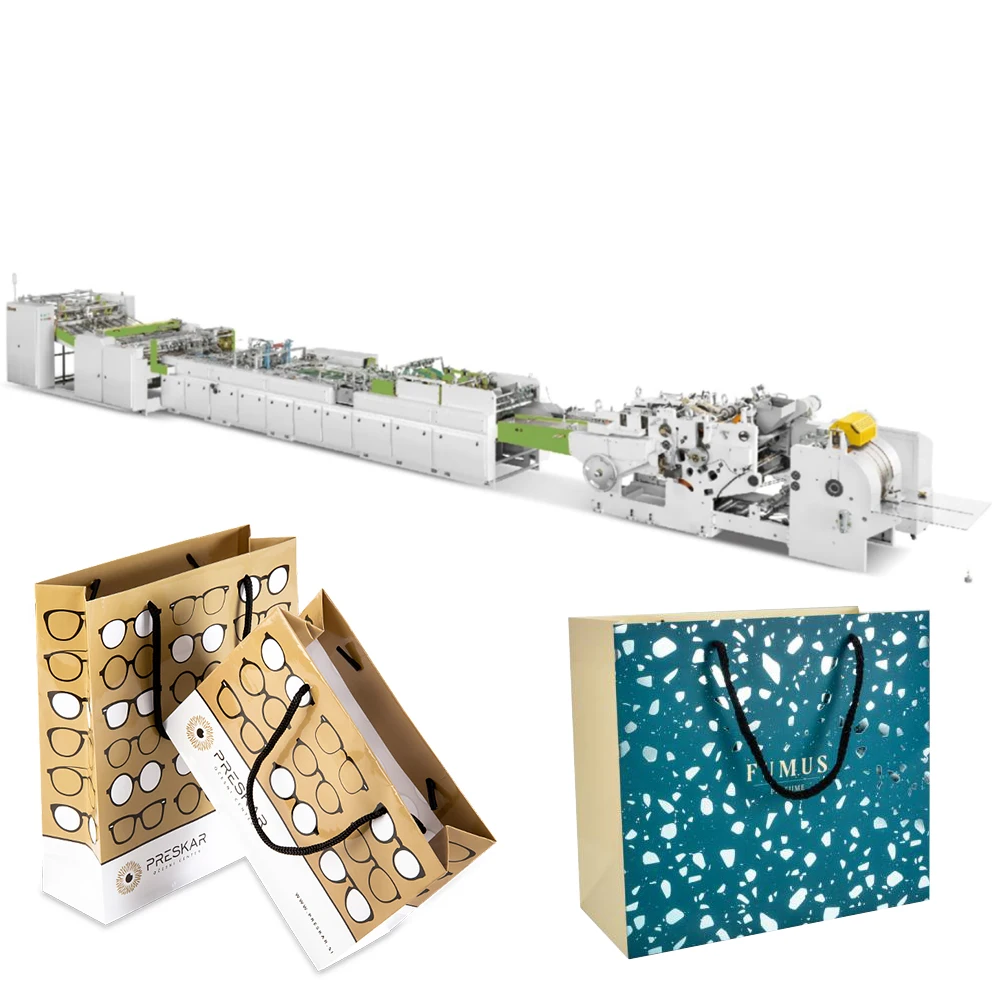

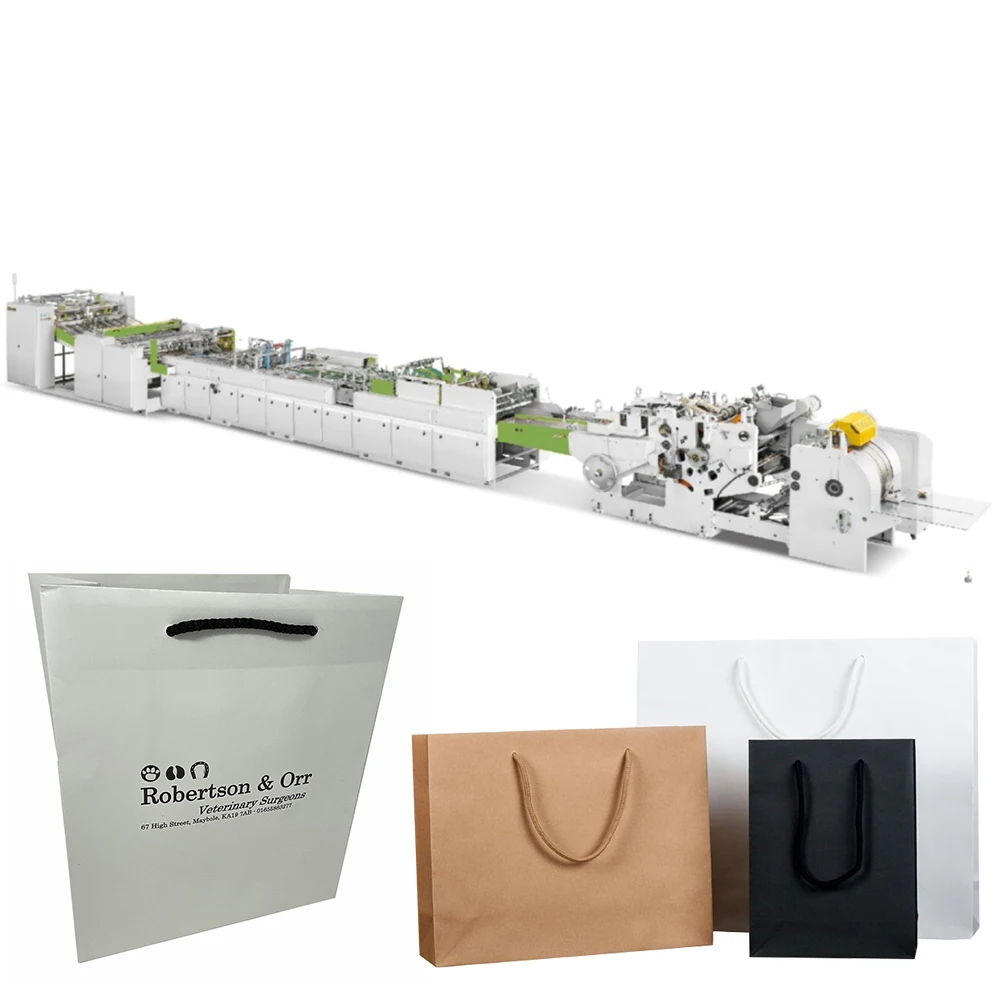

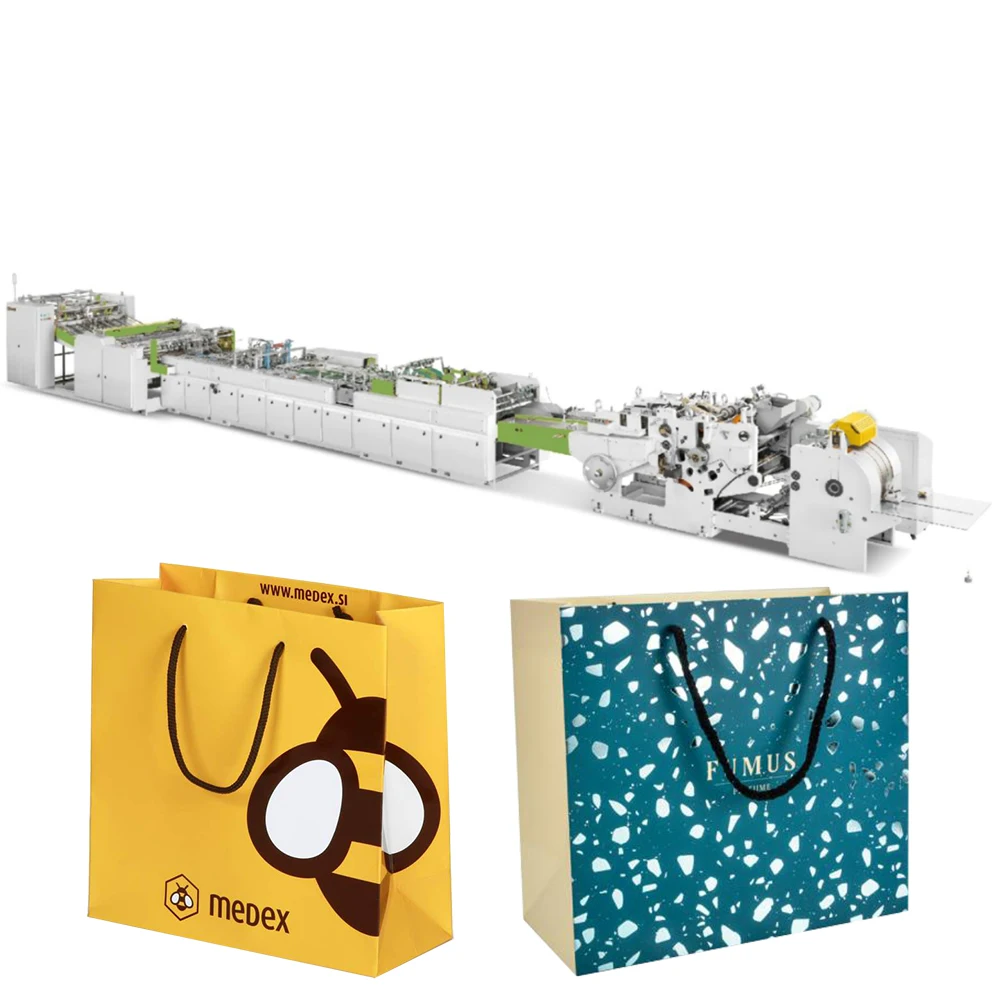

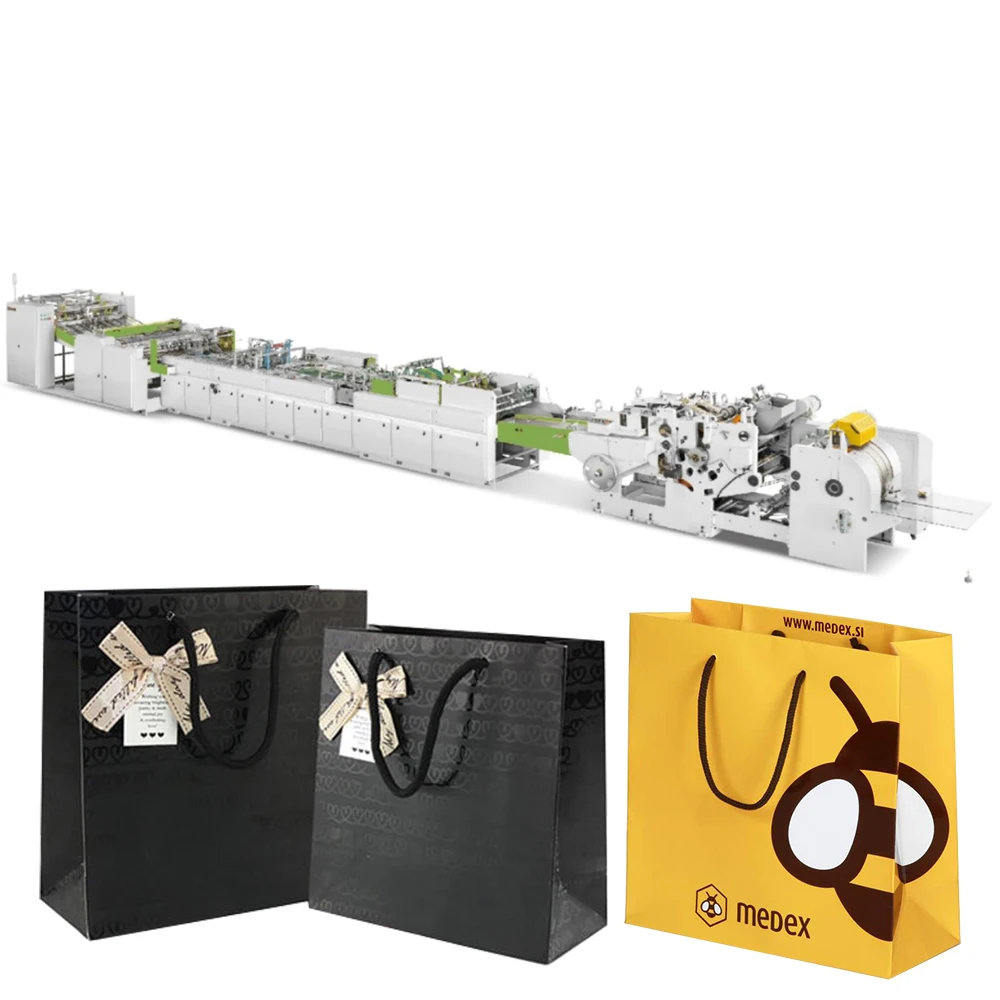

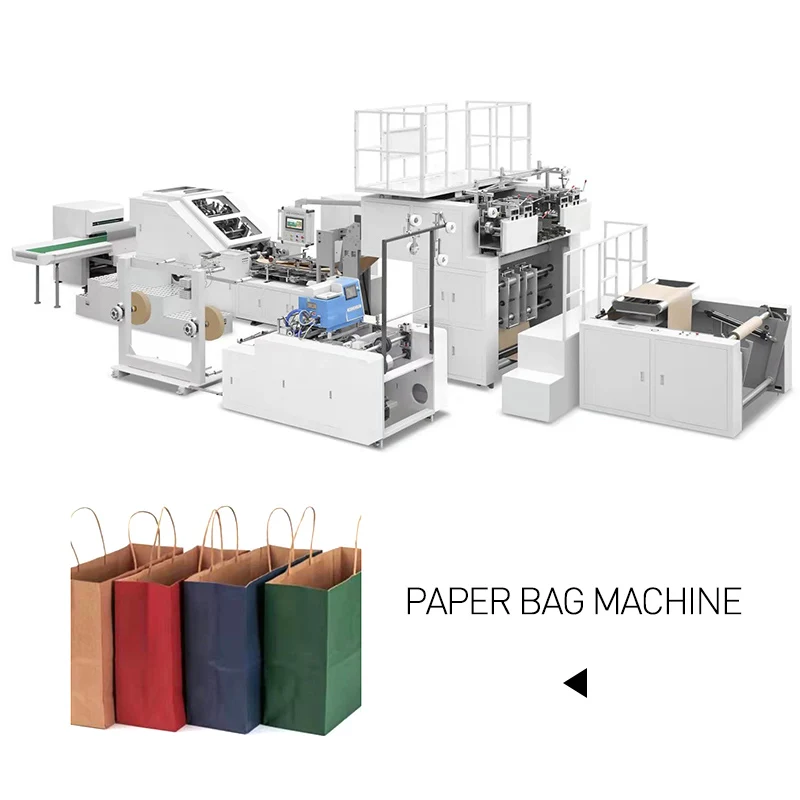

Автоматическая машина для производства бумажных пакетов с функцией поворота
- Категория: >>>
- Поставщик: Wenzhou Rokin Machinery Co. Ltd.
Сохранить в закладки 1600545015042:
Описание и отзывы
Характеристики
Products Description
Paper bag machine series is applied to produce many types of paper bags without handles, such as food paper bag, shopping bags and so on. It is an ideal equipment for producing mid-size and big-size paper bags fast. This machine is side gluing, roll folding,roll paper cutting, bottom folding, bottom gluing, bottom forming, bag out in one line. It is easy to operate, high efficient,stable and effectively save labor costs.The equipped photoelectric detector can correct cutting length, so as to ensure cutting precision. The equipped Yaskawa PLC system ensures that the machine can perform quickly and stably. Special bags collection platform and counting function, improve packing efficiency of paper bags packing. This machine can produce paper bags of varying greatly sizes at a high speed, thus is especially suitable for being applied in food and clothing industries.
Samples
Model | RKDZ-220P | RKDZ-350P | RKDZ-450P | |||
Paper bag width | 110-240mm | 180-350mm | 220-450mm | |||
Paper width | 380-700mm | 530-1040mm | 600-1240mm | |||
Paper length | 240-400mm | 290-600mm | 320-600mm | |||
Bag bottom width | 60-120mm | 70-150mm | 80-170mm | |||
Kraft paper thickness | 100-200g/m2 | 120-200g/m2 | 120-200g/m2 | |||
Art paper + PP Laminating | 120-230g/m2 | 120-230g/m2 | 120-230g/m2 | |||
Recommend that paper thickness above 200gsm, need die cutting before operation. | ||||||
Glue type | Water glue Hot glue system | Water glue Hot glue system | Water glue Hot glue system | |||
Punching hole distance | 60/100mm | 80/120mm | 100/140mm | |||
Punching hole diameter | Ø4/5/6mm | Ø4/5/6mm | Ø4/5/6mm | |||
Max. speed | 50-85pcs/min | 40-75pcs/min | 40-75pcs/min | |||
Power | 18KW | 18KW | 20KW, 380V/50HZ | |||
Weight | 13000KGS | 14000KGS | 15000KGS | |||
Dimension | L16000*W1930*H2900mm | L16000*W1930*H2900mm | L16300*W2100*H2900mm | |||
Product Features:
1. The human-machine touch screen interface, the work condition can be shown in real- time.
2. Equipped with accurate servo motor drive, it makes the machine run steadily and efficiently.
3. Material loading and unloading adopts pneumatic or hydraulic lifting structure.
4. Automatic constant tension control system. The tension will be just right from beginning to end.
5. Double photoelectric sensor limit automatic correction control system and deviation rectification stability, energy saving,long life.
2. Equipped with accurate servo motor drive, it makes the machine run steadily and efficiently.
3. Material loading and unloading adopts pneumatic or hydraulic lifting structure.
4. Automatic constant tension control system. The tension will be just right from beginning to end.
5. Double photoelectric sensor limit automatic correction control system and deviation rectification stability, energy saving,long life.
6.Thumb buttons, appressed bottom cutting device, bag type have many choices.
7. Don't stop machine adjust double bottom structure, the adjustment will become more intuitive, more simple, more time saving.
8. Glue roller air defense coating control,avoid gluing on besmear brushs hub surface directly, reduce unnecessary trouble.
9. Accurate color tracking system, automatic alarm prompt when color is wrong.
10. Adjustable forming mould structure (side sealing is above the forming mould).
11. Handle production unit, paper handle cutting and gluing are all controlled by servo motor
7. Don't stop machine adjust double bottom structure, the adjustment will become more intuitive, more simple, more time saving.
8. Glue roller air defense coating control,avoid gluing on besmear brushs hub surface directly, reduce unnecessary trouble.
9. Accurate color tracking system, automatic alarm prompt when color is wrong.
10. Adjustable forming mould structure (side sealing is above the forming mould).
11. Handle production unit, paper handle cutting and gluing are all controlled by servo motor
Product Details
Product Guide
Contact us
Company Profile
Wenzhou Rokin Machinery CO. Ltd.
Wenzhou Rokin Machinery CO. Ltd is the manufacturer of full automatic paper bag machine, square bottom paper bag machine, v bottom paper bag machine and related auxiliary equipment, etc. We have many professional engineers who have more than twenty years experience in the packaging equipment manufacturing industry. Therefore, we have obtained many certificates and patents, such as
design patent certificate, invention patent certificate, CE, information technology service management system certificate. We have cooperated with more than 150 countries and areas, such as USA, Canada, England, Spanish, Romania, Saudi Arabia, Egypt, Oman, United Arab Emirates, Algeria, Sri Lanka Russia, Ukraine, Colombia, Peru, Argentina，India, Vietnam, Bangladesh, Malaysia, Thailand, etc.
design patent certificate, invention patent certificate, CE, information technology service management system certificate. We have cooperated with more than 150 countries and areas, such as USA, Canada, England, Spanish, Romania, Saudi Arabia, Egypt, Oman, United Arab Emirates, Algeria, Sri Lanka Russia, Ukraine, Colombia, Peru, Argentina，India, Vietnam, Bangladesh, Malaysia, Thailand, etc.
Product packaging
FAQ
Q: Are you manufacturer or trading company?
A: We are the manufacturer and have over 200 workers.
Q: Where is your factory located? May I have a visit?
A: Warmly welcome! Our factory is located in Wenzhou city.
Q: How is the quality of your machine?
A: We are in machine manufacturer over 20 years and regard quality as the life of the enterprise.We choose the world famous manufacturers as our suppliers. And besides, we have our own quality inspector.Machine parts are checked one by one according to the drawings! Good quality and good after-sales help us obtain good reputation in the international market! We have a technical team of seven person and at the same time cooperate with other Research Institutes.We are committed to providing customers with the best packaging machine.
Q: What information should I let you know if I want to get a quotation?
A: First, Paper raw material: Reel paper or Sheet Paper.
Second, sizes of the paper bag, thickness of paper.
Send sample bag picture if available.
Then we will recommend the right machine to you!
A: We are the manufacturer and have over 200 workers.
Q: Where is your factory located? May I have a visit?
A: Warmly welcome! Our factory is located in Wenzhou city.
Q: How is the quality of your machine?
A: We are in machine manufacturer over 20 years and regard quality as the life of the enterprise.We choose the world famous manufacturers as our suppliers. And besides, we have our own quality inspector.Machine parts are checked one by one according to the drawings! Good quality and good after-sales help us obtain good reputation in the international market! We have a technical team of seven person and at the same time cooperate with other Research Institutes.We are committed to providing customers with the best packaging machine.
Q: What information should I let you know if I want to get a quotation?
A: First, Paper raw material: Reel paper or Sheet Paper.
Second, sizes of the paper bag, thickness of paper.
Send sample bag picture if available.
Then we will recommend the right machine to you!
Похожие товары
Полипропилен машина для производства бумажных пакетов цементового блока донный клапан мешка сплетенный pp мешок
330 000,00 $ - 370 000,00 $

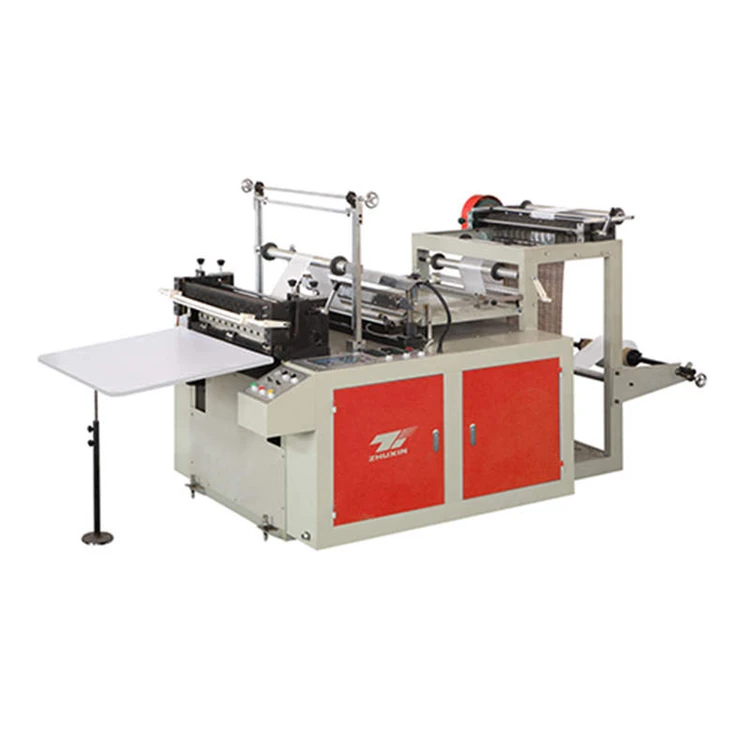

Автоматическая термоизоляция и Холодная резка машина для изготовления пластиковых пищевых пакетов фруктов хлеба цена в
6 500,00 $

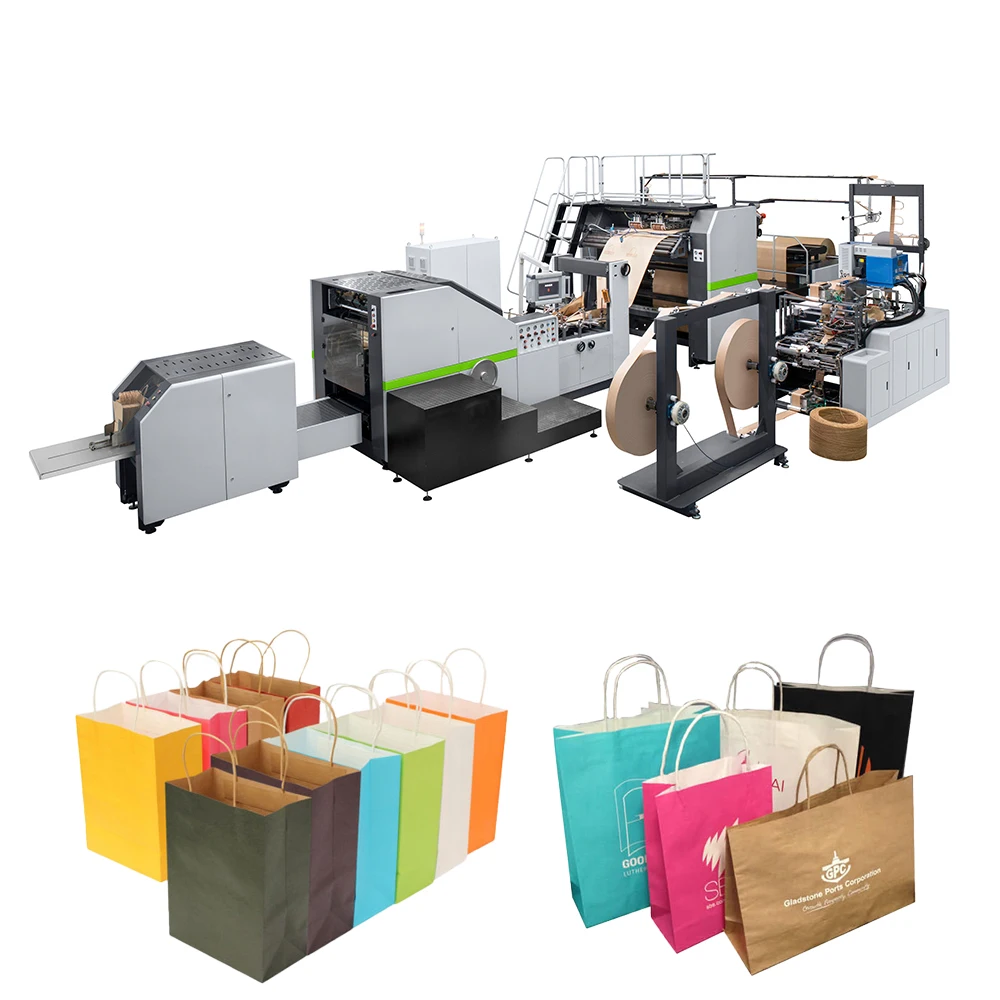

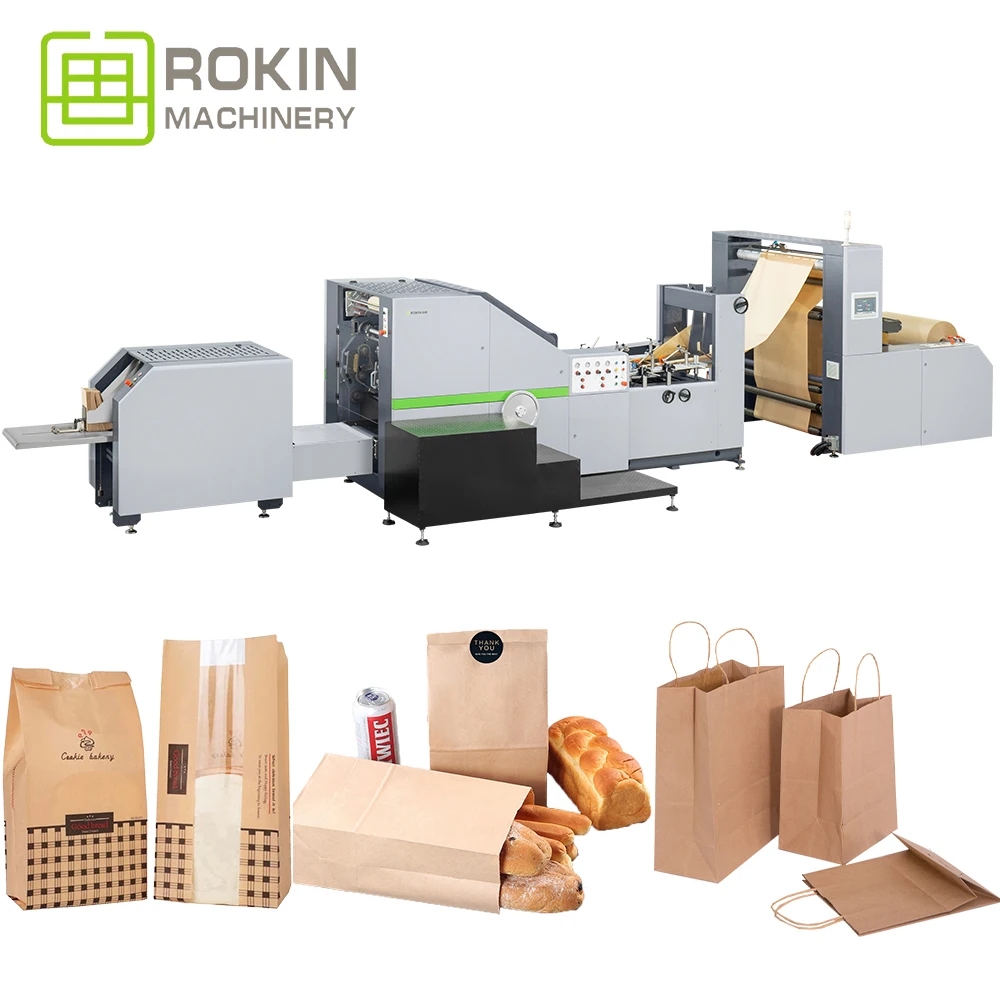

Высокоскоростная крафт-бумага с квадратным дном машина для производства пищевых
