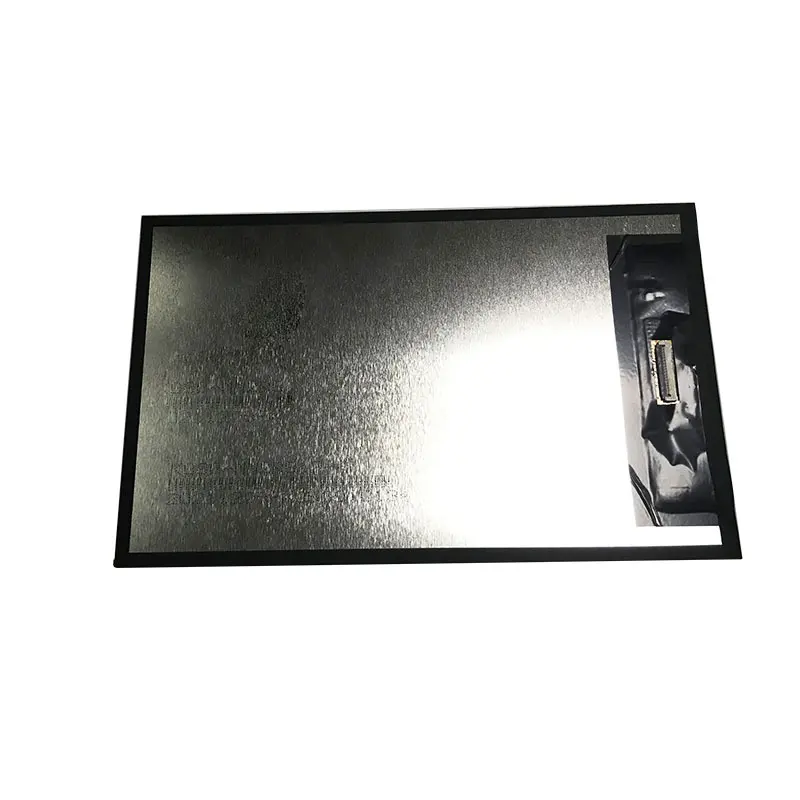

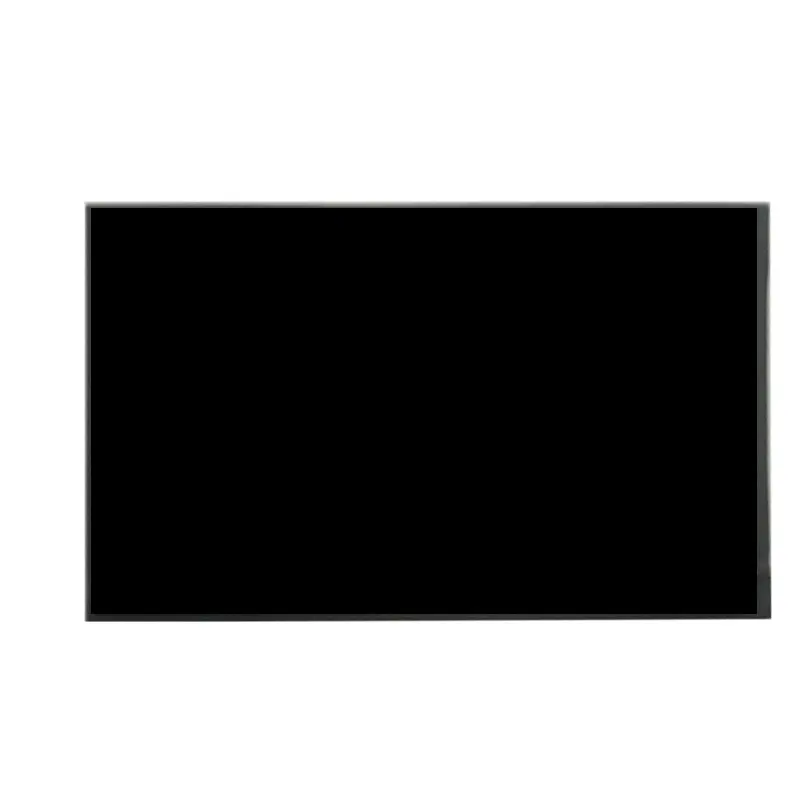

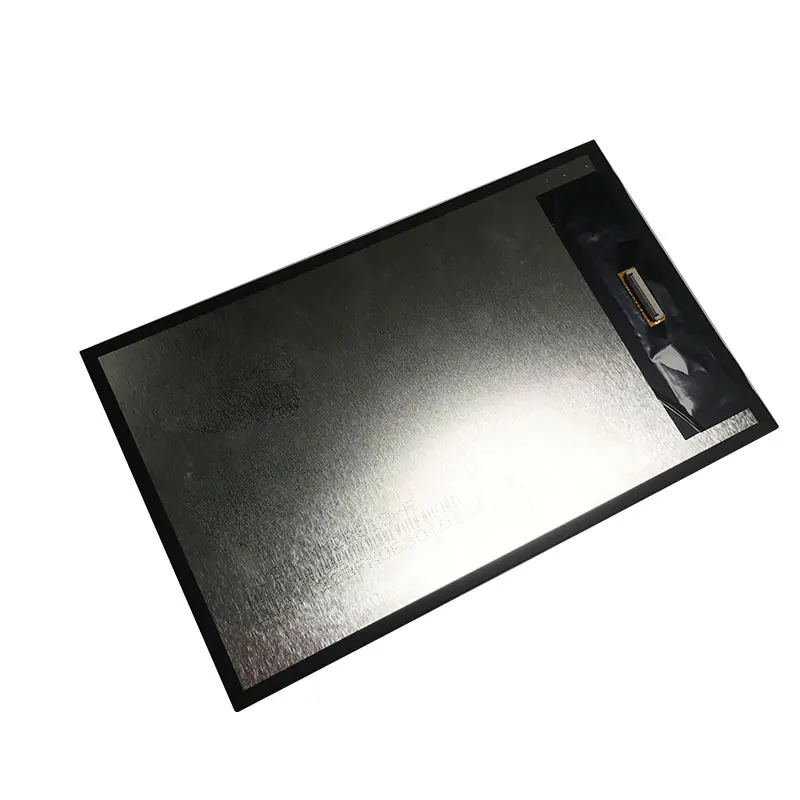

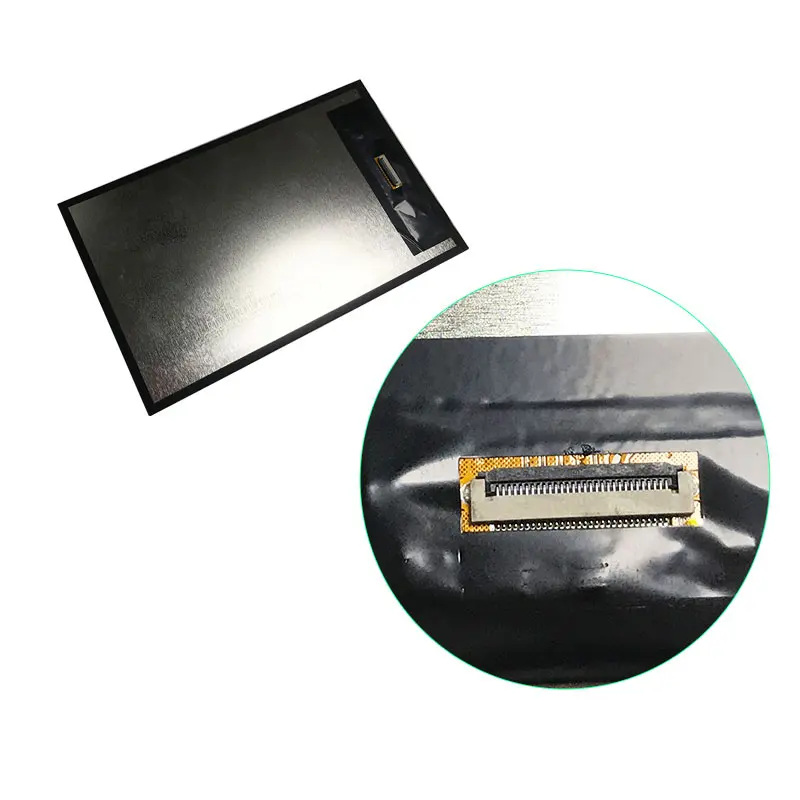

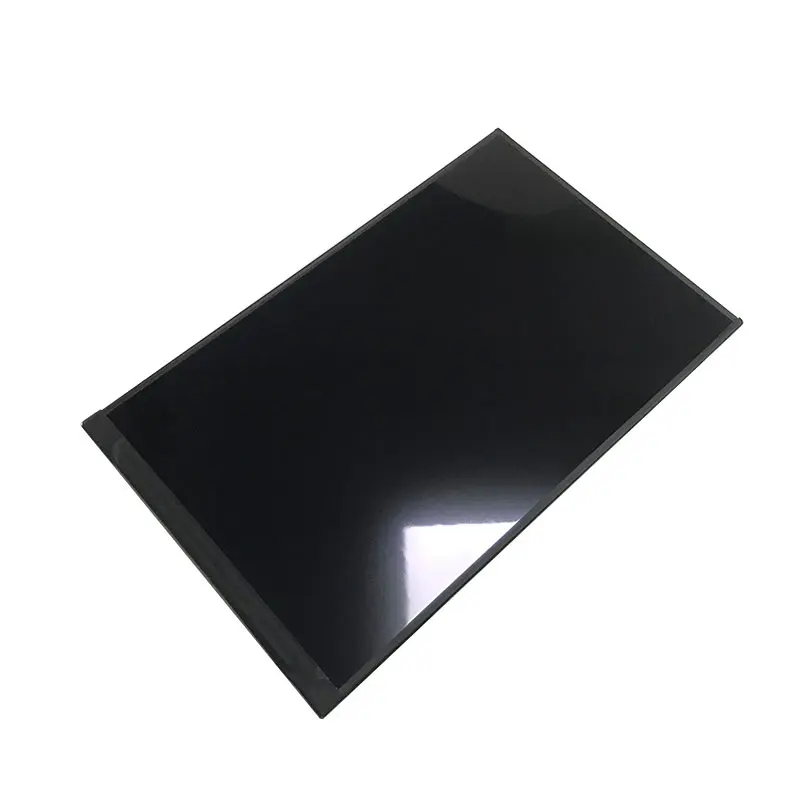

8 дюймовый дисплей 30pin 8 дюймов 1200*1920 разрешение Дифференциальная Сигнализация пониженного напряжения изготовленные на заказ модуль Tft ips MIPI интерфейс яркость 350
- Категория: >>>
- Поставщик: Shenzhen Mingfa Xingke Electronics Co. Ltd.
Сохранить в закладки 1600545605402:
Описание и отзывы
Характеристики
2.8'' TFT Screen Panel TFTIPS Display 40 PIN 2.8 inch Color TFT LCD Driver IC ST7789V Brightness 200
Specification
ITEM | Sandard value | Unit |
Model Number | （8inch）K080-MM2B803-R1 | -- |
Size | 8 | Inch |
LCD Type | IPS TFT | -- |
Interface Type | MIPI | -- |
Viewing Direction | All | -- |
Backlight | White LED | |
Display color | 16.7M | |
Dimensional outline | 184.1(H)*114.6(W)*2.3(D) | mm |
Resolution | 1200*1920 | Pixel |
Active area | 107.64(H)*172.224(V) | mm |
ASSYTYPE | COG+FPC | -- |
Weight | TBD | g |
LCM Surface brightness Luminance | 350 | Cd/㎡ |
Operating Temperature | -20~+70 | ℃ |
Storage Temperature | -30~+80 | ℃ |
Recommend Products
Size and Feature | Model No | Resolution | Interface | Driver | Brightness | Viewing angle | |
2.0" | 320*240 | 3-SPI+Serial RGB mode | ILI9342C | 280 | 6 O'clock | ||
2.0" IPS TFT | 240*320 | 4-line Serial interface | ST7789V2 | 450 | All | with TP | |
2.0" IPS TFT | 240*320 | 4-line Serial interface | ST7789V2 | 450 | All | ||
2.3" | 320*240 | 3-SPI+6 bits Serial RGB mode | ILI9342C | 300 | All | ||
2.7" | 320*240 | Support 8-bit RGB,8-bit Dummy RGB, CCIR601 and CCIR656 input | ILI8961 | 220 | 6 O'clock | ||
3.0" | 480*854 | MIPI Video Mode&RGB+3line SPI | ST7701S | 400 | All | ||
3.0" IPS TFT | 480*854 | MIPI Video Mode&RGB+3line SPI | ST7701S | 360 | All | with TP | |
3.5" | 480*800 | MIPI Video Mode&RGB16+3line SPI | ST7701S | 500 | All | ||
3.5" | 480*800 | MIPI Video Mode&RGB16+3line SPI | ST7701S | 500 | All | with TP | |
3.5" | 320*480 | Support MCU80808,16,18bits;RGB16,18bits;SPI3,4Line | ILI9488 | 360 | All | ||
3.92" | 320*320 | 4-line SPI& 8bits MCU & 16bits MCU interface | 280 | All | with TP | ||
3.95'' IPS TFT | 480*480 | 18bits RGB interface | ST7701S | 300 | All | ||
3.95'' IPS TFT | 480*480 | 18bits RGB interface | LCD-ST7701S CTP-FT5316 | 350 | All | with TP | |
3.97" IPS TFT | 480*800 | 8080MCU 16bit | R61408 | 400 | All | ||
4.3'' IPS TFT | 480*800 | MIPI Video Mode | ST7701S | 450 | All | ||
5.0'' IPS TFT | 800*480 | 24Bit RGB mode | ST7262 | 500 | All | ||
5.0'' IPS TFT | 800*480 | 24Bit RGB mode | ST7262 | 400 | All | with TP | |
5.0'' IPS TFT | 800*480 | 24Bit RGB mode | ST7262 | 380 | All | ||
5.0'' IPS TFT | 480*954 | 24Bit RGB mode | ST7701S | 400 | All | with TP | |
7.0" | 800*480 | 24Bit RGB mode | 350 | 6 O'Clock |
More other size tft can contact us for details
Application
Company Profile
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
FAQ
1. Q: Are you a manufacturer or a trading company? A: We are an ODM and OEM manufacturer in Shenzhen specializing in TFT and TP
Android motherboards with rich production experience! Our advanced full set of equipment ensures excellent quality and competitive
price!
2. Q: How can I get samples?
A: If you need samples, and the existing specifications meet the requirements, we can produce samples quickly or customize
according to your requirements. You can consult the online customer service and pay the relevant sample fee and shipping fee.
Sample delivery time is always within 3-7 days.
3. Q: What is the shipping fee for the sample?
A: Shipping costs depend on the total weight and volume and your address.
4. Q: How soon can I expect to receive the samples?
A: The samples will be ready for delivery within 5~7 days. Samples will be sent by express and arrive within 5~7 days.
5. Q: When can I get the data sheet?
A: When we receive your inquiry, you should tell us the part number you want first, then we can send the data sheet to you
immediately.
6.Q: Can you design LCD monitors according to our needs?
A: Of course. We can design LCD screen according to your needs and give you the best price.
7. Q: How to order LCD monitor?
A: Please send us your purchase order by email or fax or escrow, or ask us to send you an invoice. We need to know the following
information about your order.
1) Product Information - Quantity, Part Number 2) Delivery time required. 3) Shipping information - company name, street address,
telephone and fax numbers, destination seaport. 4) If you have a freight forwarder in China, please provide the contact
information of the freight forwarder.
Android motherboards with rich production experience! Our advanced full set of equipment ensures excellent quality and competitive
price!
2. Q: How can I get samples?
A: If you need samples, and the existing specifications meet the requirements, we can produce samples quickly or customize
according to your requirements. You can consult the online customer service and pay the relevant sample fee and shipping fee.
Sample delivery time is always within 3-7 days.
3. Q: What is the shipping fee for the sample?
A: Shipping costs depend on the total weight and volume and your address.
4. Q: How soon can I expect to receive the samples?
A: The samples will be ready for delivery within 5~7 days. Samples will be sent by express and arrive within 5~7 days.
5. Q: When can I get the data sheet?
A: When we receive your inquiry, you should tell us the part number you want first, then we can send the data sheet to you
immediately.
6.Q: Can you design LCD monitors according to our needs?
A: Of course. We can design LCD screen according to your needs and give you the best price.
7. Q: How to order LCD monitor?
A: Please send us your purchase order by email or fax or escrow, or ask us to send you an invoice. We need to know the following
information about your order.
1) Product Information - Quantity, Part Number 2) Delivery time required. 3) Shipping information - company name, street address,
telephone and fax numbers, destination seaport. 4) If you have a freight forwarder in China, please provide the contact
information of the freight forwarder.
Похожие товары
Белые фарфоровые керамические большие столовые приборы 9,75 дюйма для пасты, фруктов, супа, салата, набор тарелок на 4 или 6 персон
0,35 $ - 0,40 $
ICBROS TSUM1PLR-LF MST6M48RHS-LF-SJ новый оригинальный TSUMOL88BDC2-1 MSD6A638JSMG-8-000H MST6M30RS-LF интегральных схем QFP64
0,99 $ - 2,99 $
Спортивный скутер Longjia formula 125 lml vespa фотографии Euro4 EEC COC scooter Maple 50cc 125cc (Euro
Детали для банкомата, Diebold Opteva 368 PC Core Canyon PRCSR BASE CI5 2,9 ГГц 4 Гб SVR 49-24926-0291A 49249260291A
Сигнал поворота NAP, светодиодные Ксеноновые фары в сборе, подходит для GEELY Emgrand DIHAO, 2022 светодиодные фары в сборе, 12 В 72
126,00 $ - 135,00 $

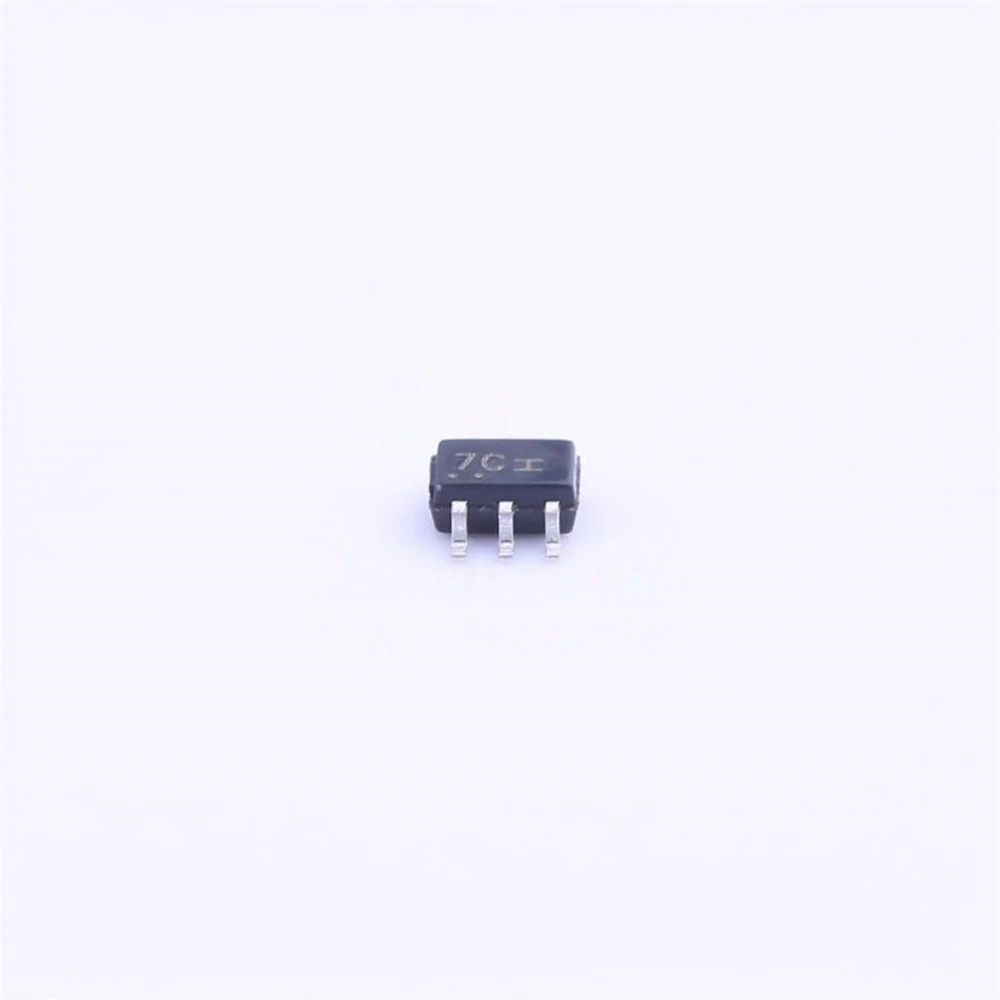

KWM Оригинальный Новый MUN5213 транзистор SC-70-6 (СОТ-363) MUN5213DW1T1G интегральная микросхема IC чип на складе
0,01 $ - 0,02 $

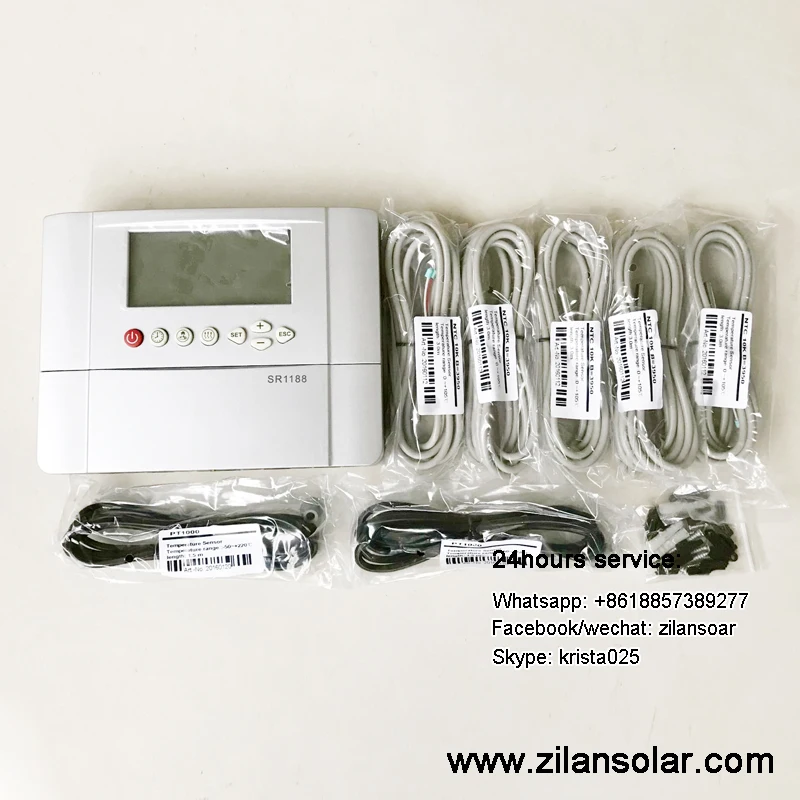

2015 Новый Регулятор солнечной батареи SR1188 110 ~ 240 В с Интернетом acces контроллер системы водонагрева 6 Датчик нагрева бассейна
