Китайская фабрика высокоточные неполяризационные кубические разветвители
- Категория: Prisms >>>
- Поставщик: Tian Cheng Optics Co. Ltd.
Сохранить в закладки 1600545907189:
Описание и отзывы
Характеристики
Our advantage
1. TianCheng optics co.,ltd. with over ten years experience, qualified ISO9001.
2. We produce high quality product with competitive price, and always have a good reputation.
3. We offer custom made production, we produce the lens according buyer's required.
4. Service Department: We have a complete after-sales service system, to help you from your worried.
2. We produce high quality product with competitive price, and always have a good reputation.
3. We offer custom made production, we produce the lens according buyer's required.
4. Service Department: We have a complete after-sales service system, to help you from your worried.
Product Description

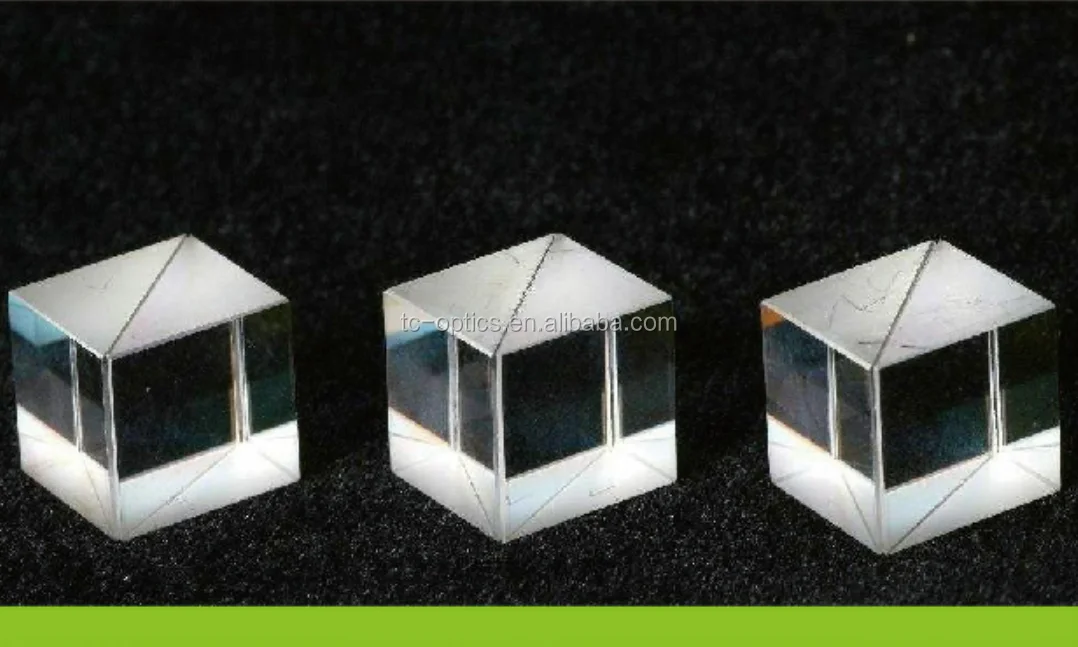

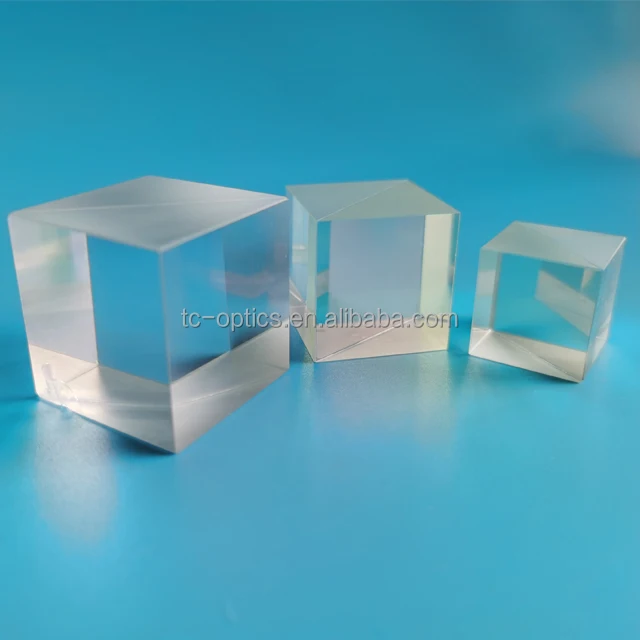

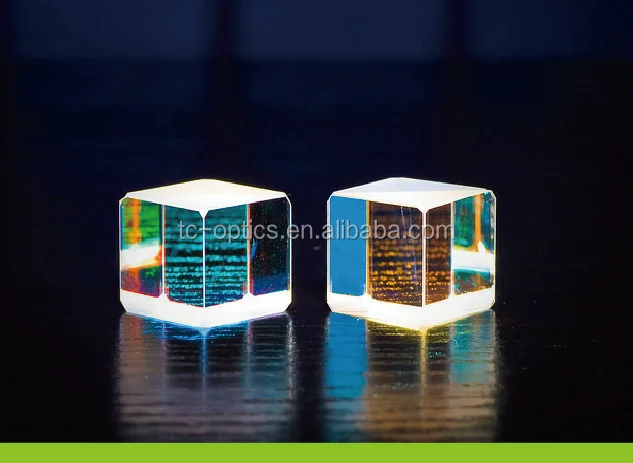

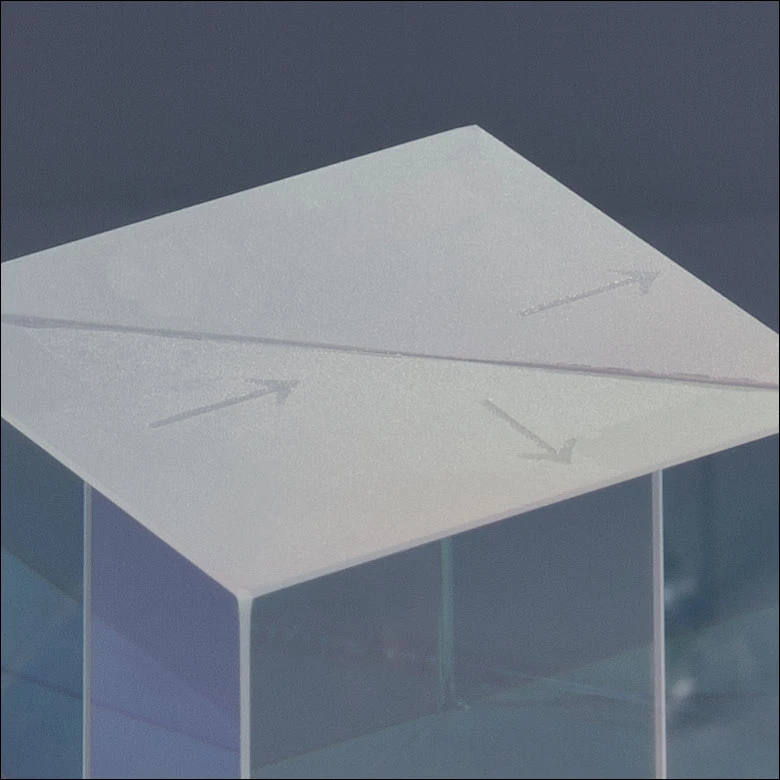

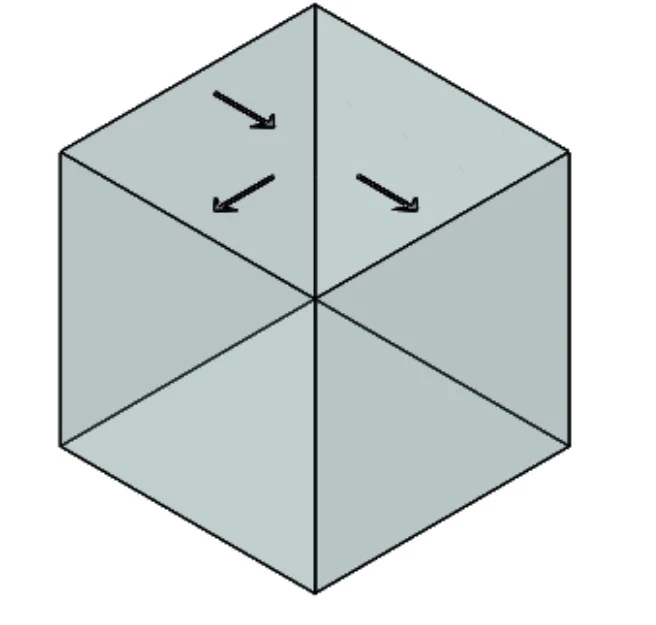

Beamsplitter Cube
coating.
Tian Cheng optics can supply narrowband and broadband wavelength beamsplitter cube. It is widely used in projection optics
systems, imaging optics systems, optical measurement systems & optical display systems.
Specification
Material | BK7 grade A optical glass | ||
Dimension Tolerance | ±0.1 mm | ||
Clear Aperture | >85% | ||
Surface Quality | 60-40 scratch and dig | ||
Beam Deviation | < 3 arc minutes | ||
Flatness | lambda/4 per 25 mm at632.8 nm | ||
T/R | 50/50+/-5%, for random polarization T=(Ts+Tp)/2, R=(Rs+Rp)/2 | ||
Protective Bevel | <0.25 mm x 45° | ||
Coating | Broadband partial reflectance: on hypotenuse face BBAR-coatings: on all input and output face |
The Standard beam splitter cube
BS-01 Series | ||||||||
Category | Model | Wavelength | Material | Cement | ||||
Beam Splitter cube | GU01 | 300-420nm | JGS1 | optical cement | ||||
GV01 | 400-700nm | H-K9L | Norland 61 | |||||
GN01 | 700-1100nm | H-K9L | ||||||
GC01 | 1100-1600nm | H-K9L | ||||||
GR01 | 1500-2000nm | H-K9L | ||||||
Non-polarizing beam splitter cube | DU01 | 250-500nm | JGS1 | optical cement | ||||
DV01 | 400-700nm | H-K9L | Norland 61 | |||||
DN01 | 700-1100nm | H-K9L | ||||||
DC01 | 1100-1600nm | H-K9L | ||||||
DR01 | 1500-2000nm | H-K9L | ||||||
Specification and Dimension（T/R=10%:90%） | 5mm/6.35mm/8mm/10mm/12.5mm/12.7mm/15mm/20mm/25mm/25.4mm/50mm | |||||||
BS-03 Series | ||||||||
Category | Model | Wavelength | Material | Cement | ||||
Beam Splitter cube | GU03 | 300-420nm | JGS1 | optical cement | ||||
GV03 | 400-700nm | H-K9L | Norland 61 | |||||
GN03 | 700-1100nm | H-K9L | ||||||
GC03 | 1100-1600nm | H-K9L | ||||||
GR03 | 1500-2000nm | H-K9L | ||||||
Non-polarizing beam splitter cube | DU03 | 250-500nm | JGS1 | optical cement | ||||
DV03 | 400-700nm | H-K9L | Norland 61 | |||||
DN03 | 700-1100nm | H-K9L | ||||||
DC03 | 1100-1600nm | H-K9L | ||||||
DR03 | 1500-2000nm | H-K9L | ||||||
Specification and Dimension（T/R=30%:70%） | 5mm/6.35mm/8mm/10mm/12.5mm/12.7mm/15mm/20mm/25mm/25.4mm/30mm/35mm/40mm/45mm/50mm | |||||||
BS-05 Series | ||||||||
Category | Model | Wavelength | Material | Cement | ||||
Beam Splitter cube | GU05 | 300-420nm | JGS1 | optical cement | ||||
GV05 | 400-700nm | H-K9L | Norland 61 | |||||
GN05 | 700-1100nm | H-K9L | ||||||
GC05 | 1100-1600nm | H-K9L | ||||||
GR05 | 1500-2000nm | H-K9L | ||||||
Non-polarizing beam splitter cube | DU05 | 250-500nm | JGS1 | optical cement | ||||
DV05 | 400-700nm | H-K9L | Norland 61 | |||||
DN05 | 700-1100nm | H-K9L | ||||||
DC05 | 1100-1600nm | H-K9L | ||||||
DR05 | 1500-2000nm | H-K9L | ||||||
Specification and Dimension（T/R=50%:50%） | 5mm/6.35mm/8mm/10mm/12.5mm/12.7mm/15mm/20mm/25mm/25.4mm/30mm/35mm/40mm/45mm/50mm | |||||||
BS-07系列 | ||||||||
Category | Model | Wavelength | Material | Cement | ||||
Beam Splitter cube | GU07 | 300-420nm | JGS1 | optical cement | ||||
GV07 | 400-700nm | H-K9L | Norland 61 | |||||
GN07 | 700-1100nm | H-K9L | ||||||
GC07 | 1100-1600nm | H-K9L | ||||||
GR07 | 1500-2000nm | H-K9L | ||||||
Non-polarizing beam splitter cube | DU07 | 250-500nm | JGS1 | optical cement | ||||
DV07 | 400-700nm | H-K9L | Norland 61 | |||||
DN07 | 700-1100nm | H-K9L | ||||||
DC07 | 1100-1600nm | H-K9L | ||||||
DR07 | 1500-2000nm | H-K9L | ||||||
Specification and Dimension（T/R=70%:30%） | 5mm/6.35mm/8mm/10mm/12.5mm/12.7mm/15mm/20mm/25mm/25.4mm/50mm | |||||||
BS-09 Series | ||||||||
Category | Model | Wavelength | Material | Cement | ||||
Beam Splitter cube | GU09 | 300-420nm | JGS1 | optical cement | ||||
GV09 | 400-700nm | H-K9L | Norland 61 | |||||
GN09 | 700-1100nm | H-K9L | ||||||
GC09 | 1100-1600nm | H-K9L | ||||||
GR09 | 1500-2000nm | H-K9L | ||||||
Non-polarizing beam splitter cube | DU09 | 250-500nm | JGS1 | optical cement | ||||
DV09 | 400-700nm | H-K9L | Norland 61 | |||||
DN09 | 700-1100nm | H-K9L | ||||||
DC09 | 1100-1600nm | H-K9L | ||||||
DR09 | 1500-2000nm | H-K9L | ||||||
Specification and Dimension（T/R=10%:90%） | 5mm/6.35mm/8mm/10mm/12.5mm/12.7mm/15mm/20mm/25mm/25.4mm/50mm | |||||||
Other More Optical Prism
Beamsplitter Cube
Beamsplitter Cube provide easy alignment and form no ghost images. These beamsplitters come with either metal or dielectric coating.
Tian Cheng optics can supply narrowband and broadband wavelength beamsplitter cube. It is widely used in projection optics systems, imaging optics systems, optical measurement systems and optical display systems.
Type
Beamsplitter Plate
Non-Polarizing Beamsplitter Plate
Beamsplitter cube
Polarization Beamsplitter cube
Non-Polarizing Beamsplitter Cube
Dimension Tolerance: +/-0.2mm
Beam Deviation: <5 minute
Surface Figure: lambda/4
Surface quality: 60-40
Splitting Ration: 50/50+/-5%, T=(Ts+Tp)/2, R=(Rs+Rp)/2
Coating:S1: Partial Reflectance Coating
S2: Anti Reflection coating AR , HR, Beamsplitter
Beamsplitter Cube provide easy alignment and form no ghost images. These beamsplitters come with either metal or dielectric coating.
Tian Cheng optics can supply narrowband and broadband wavelength beamsplitter cube. It is widely used in projection optics systems, imaging optics systems, optical measurement systems and optical display systems.
Type
Beamsplitter Plate
Non-Polarizing Beamsplitter Plate
Beamsplitter cube
Polarization Beamsplitter cube
Non-Polarizing Beamsplitter Cube
Capacity
Material: N-BK7 or N-SF1
Dimension Tolerance: +/-0.2mm
Beam Deviation: <5 minute
Surface Figure: lambda/4
Surface quality: 60-40
Splitting Ration: 50/50+/-5%, T=(Ts+Tp)/2, R=(Rs+Rp)/2
Coating:S1: Partial Reflectance Coating
S2: Anti Reflection coating AR , HR, Beamsplitter
About us
Tian Cheng optics co.,ltd.
was founded in 2007 and located in Changchun city where is very famous base of opitcs research and development in China, we have 1500 square meter factory and 55 employees including 3 optical engineers and 2 mechanical engineers, we have capability to make the full design, produce the optical components and assembe the complete of lens in our own factory.
We mainly manufacture high precision optical components such as spherical lens, cylindrical lnes, prism, filter, window, mirror, beamsplitter, waveplate, polarizer, rod lens and micro optics. Our products were approved by many special companies from United Kingdom, Germany, Austria, Switzerland, Italy, Ireland, Sweden, Australia, Israel, USA etc.
We mainly manufacture high precision optical components such as spherical lens, cylindrical lnes, prism, filter, window, mirror, beamsplitter, waveplate, polarizer, rod lens and micro optics. Our products were approved by many special companies from United Kingdom, Germany, Austria, Switzerland, Italy, Ireland, Sweden, Australia, Israel, USA etc.
We have completed production lines of raw material cuting, rinding, polishing, ultrasonic cleaning and opitcal coating, our test instruments include Trioptics Lens Measurement system, Lambda900 spectrophotometer, Spherical Interferometer, Plano Interferometer, Collimator, Goniometer etc. These advanced facilities ensure the bigh production capacity and high quality for OEM and customized products.
Exhibition
Laser World of Photonics
26th of 29th of June,2017
The SPIE Photonics West
At 29th of Jan to 1st of Feb, 2018
Optatec 2018 at 15th to 17th of May 2018
The SPIE Photonics West 2019 at 5th of Feb to 7th of Feb,2019
Packing and Delivery
1. Package Detail:
A. Standard carbon and envelop with plastic foam.
B. Safety green carton.
C. Customized.
2. Delivery Detail: Within 25 days.(Also depand on the quantity)
FAQ
Q1:Are you a factory?
A: Yes, we're a professional optical glass factory has more than 10 years experence.
Q2: What products can I get from your company？
A: Optical lens, prism, filter, protective window ect. Details pls contact us.
Q3: How will you control your quality?
A: Our QC will check the lens furface accuracy and surface quality during the product progress every step, and also our final QC
will test the surface quality, flatness, coating, tolerance for every lens after finished it.
Q4: What is your test instrument?
A: Our test instrument including the spherical interferometer, the Zygo, the plano interferometer, Collimatot, Goniometer,
Trioptics Lens Measurement system, Lambda900 Spectrophotometer.
Q5: What's the MOQ?
A: The MOQ is 10pcs
Q6: How can I get a sample?
A: Contact us for detailed requests on samples and we'll arrange them accordingly.
Q7: What's the delivery date?
A: Normally it takes 4-5 weeks.
A: Yes, we're a professional optical glass factory has more than 10 years experence.
Q2: What products can I get from your company？
A: Optical lens, prism, filter, protective window ect. Details pls contact us.
Q3: How will you control your quality?
A: Our QC will check the lens furface accuracy and surface quality during the product progress every step, and also our final QC
will test the surface quality, flatness, coating, tolerance for every lens after finished it.
Q4: What is your test instrument?
A: Our test instrument including the spherical interferometer, the Zygo, the plano interferometer, Collimatot, Goniometer,
Trioptics Lens Measurement system, Lambda900 Spectrophotometer.
Q5: What's the MOQ?
A: The MOQ is 10pcs
Q6: How can I get a sample?
A: Contact us for detailed requests on samples and we'll arrange them accordingly.
Q7: What's the delivery date?
A: Normally it takes 4-5 weeks.
Contact
Tian cheng Optics Co.,Ltd.
Contact: Lina
Skype: live:lina_tcoptics
Email: lina@tc-optics.com
Tel: 0086 0431 89851801
Fax: 0086 0431 89110171
Mobile: 0086 15164368126
Skype: live:lina_tcoptics
Email: lina@tc-optics.com
Tel: 0086 0431 89851801
Fax: 0086 0431 89110171
Mobile: 0086 15164368126
