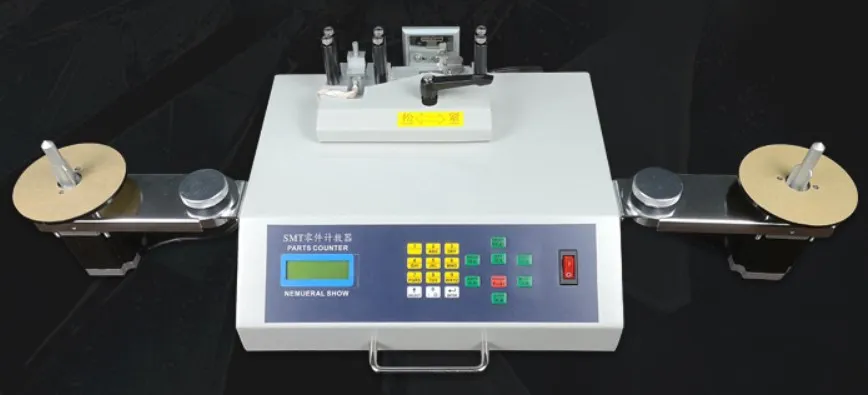

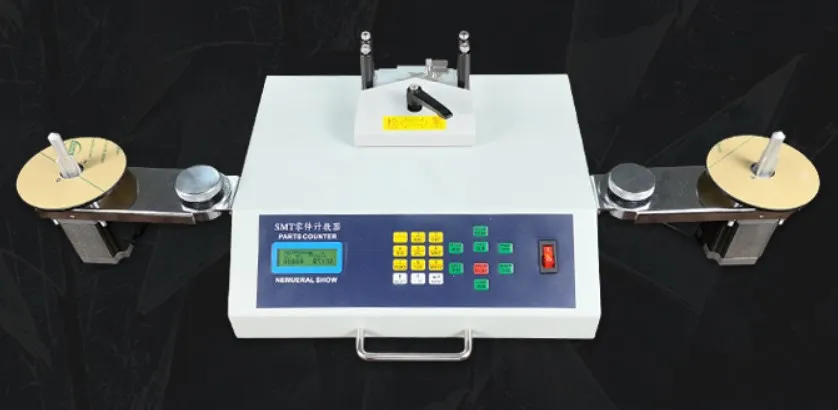

Автоматическая электронная SMD катушка счетчик деталей SMT

Автоматическая электронная SMD катушка счетчик деталей SMT

Категория: Counters >>>
Поставщик: Kunshan Xuxin Industrial Equipment Co. Ltd.

Цена:220,00 $ - 290,00 $*

Количество:

В избранное

Описание и отзывы

Характеристики

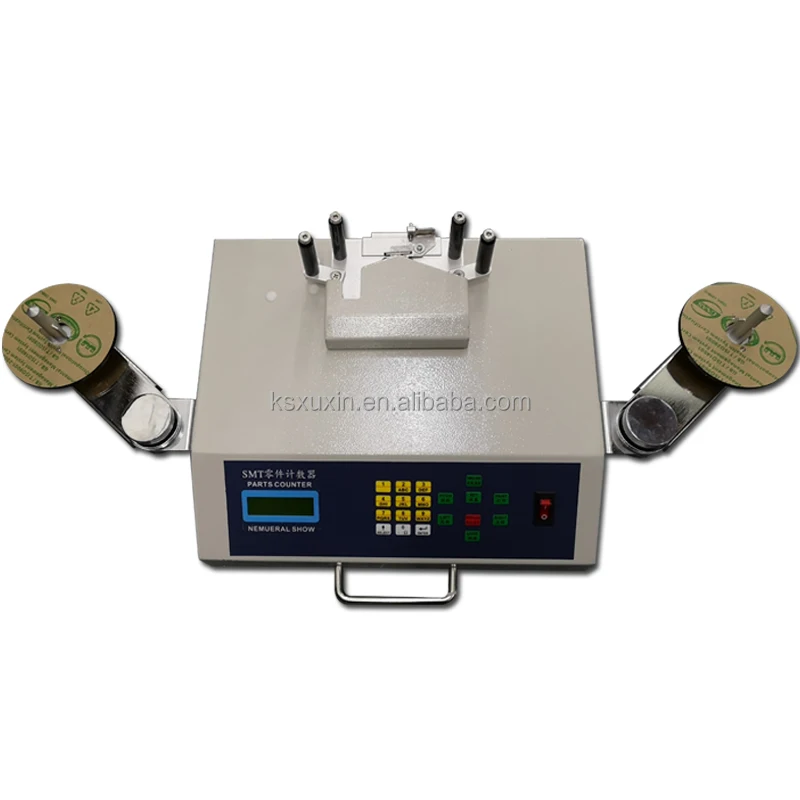

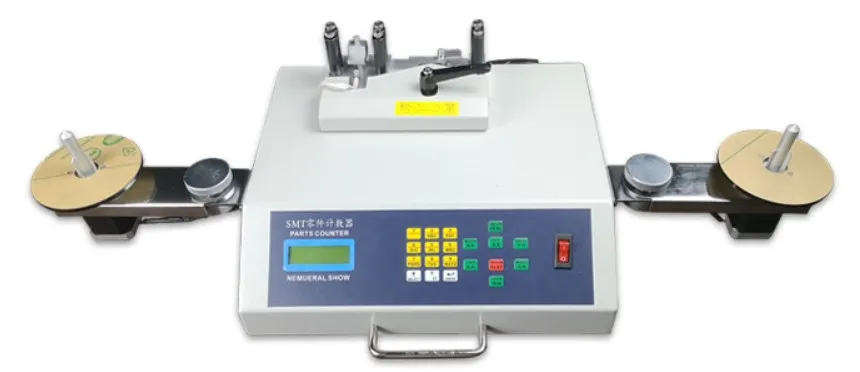

Automatic parts counter

Specification:

Using the principle of photoelectric sensing, using the corresponding relationship between the guide holes of the parts carrier tape and the parts, the number of parts can be accurately determined, which can realize convenient and fast counting. It is an efficient auxiliary equipment for material management in SMT factories and improves the efficiency of sending and receiving material points.

Features:

1. Automatically calculate the number of parts, which is convenient and reliable;

2. There are two modes of material delivery and inventory, and the number of points and the total number of points can be set;

3. Anti-material belt fall-off design, both forward and reverse can be counted, and the running noise is low;

4. Chinese and English bilingual operation panel, LCD display quantity;

5. Simple operation, high precision, and zero counting error.

Parameters:

Model	XX-108A
Power	AC220V
Function	200CM 24000PCS / min
Rated power	30W
Number of Total	-99999 ~ 99999pcs
Mechanical Dimensions	L350 * W774 * H184mm
Weight	10kg
The diameter of the pulley material	Any use of either size SMD pulley material
The strip interval	2,4,8,10,12,16,24,32,44,56mm cycle setting
The material width	8,12,16,24,32,44,56mm

Related models:

Model	XX-108A	XX-208A	XX-108	XX-208	XX-108S	XX-208S	XX-188H	XX-288H
Type	Economic	Economical leak detection	Ordinary	Ordinary leak test	Upgrade	Upgrade leak	Smart	Smart leak detection
Machine body structure	Profile structure		All steel structure
Function	Normal counting	Real-time detection of empty material function	Normal counting	Real-time detection of empty material function	tailings stop automatically	Real-time detection of empty material function, tailings stop automatically	Voice reminder , tailings stop automatically	Real-time detection of empty material function, tailings stop automatically, Voice reminder
Motor	42 stepped motor				57stepped motor
Speed	3-level speed regulation

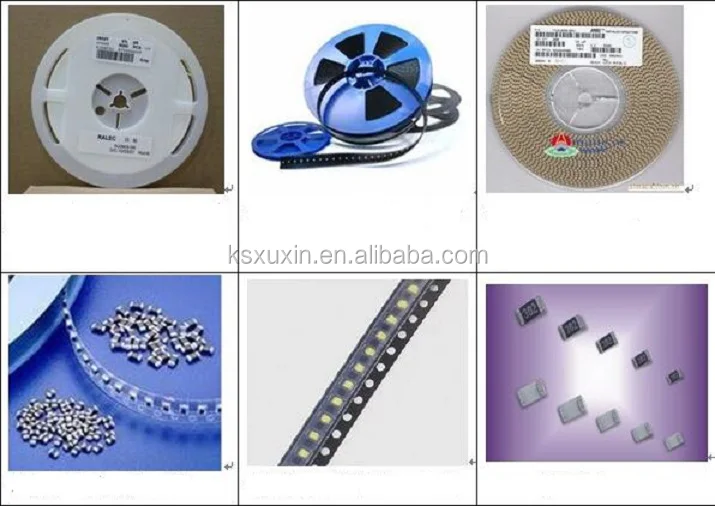

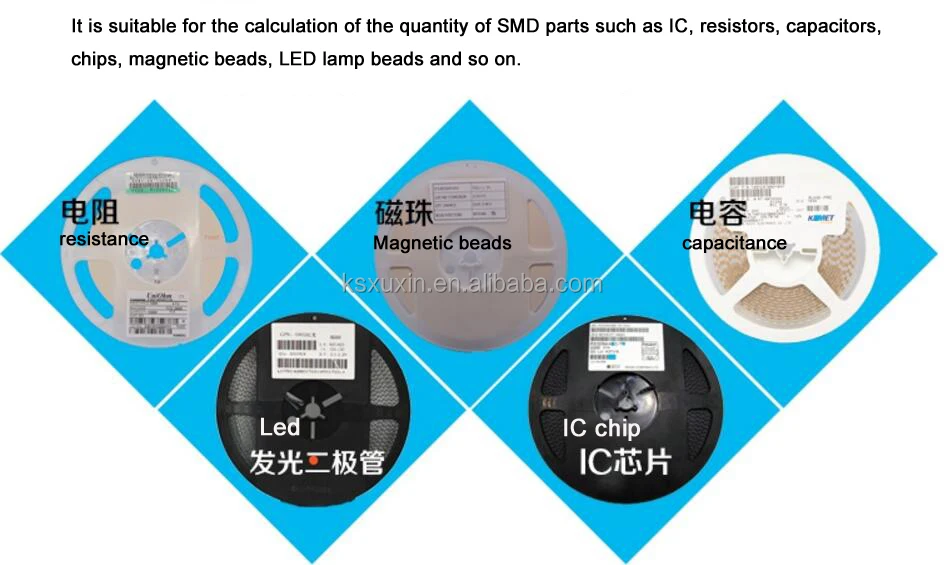

Application	All trays of electronic materials
Print function	Can print label
