10000N 1000 кг сверхмощный 12V 24V линейный привод с Датчик Холла обратной связи Мотор привода 12v 24v
- Категория: >>>
- Поставщик: Ningbo Limei Intelligent Technology Co. Ltd.
Сохранить в закладки 1600547338512:
Описание и отзывы
Характеристики
Product Description
Advantage

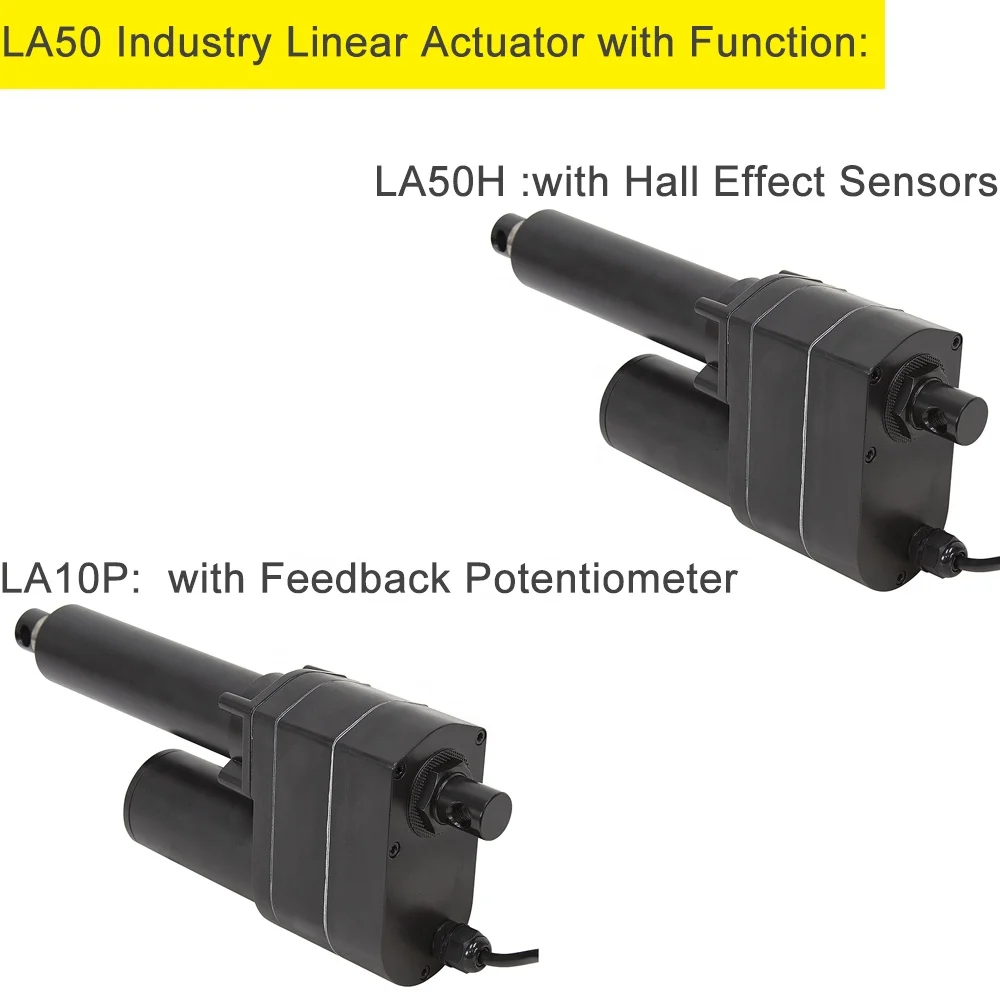

The LA50H linear actuator supplys advanced remote control function with the help of inner hall sensor.
The LA50H linear actuator supplys advanced remote control function with the help of inner hall sensor.

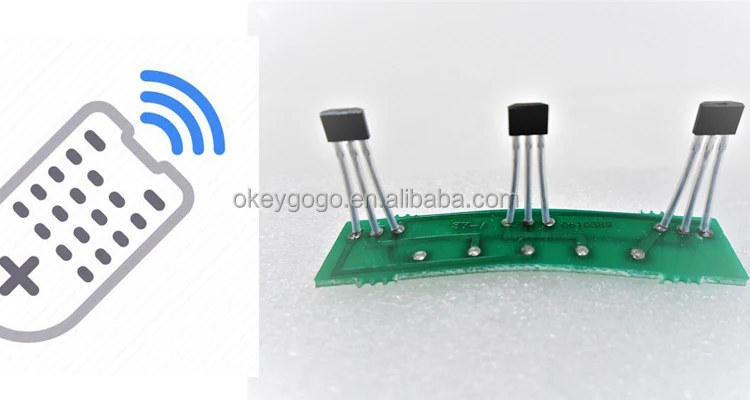

A Hall Effect Sensor is a widely used sensor that provides linear actuator position feedback to a central controller. It will
count the motor revolutions by using magnets installed on the motor shaft. A microcontroller acts as the brain that can drives the LA50H linear actuator.
count the motor revolutions by using magnets installed on the motor shaft. A microcontroller acts as the brain that can drives the LA50H linear actuator.
For full linear actuator pecifications and customization options,please contact with us.

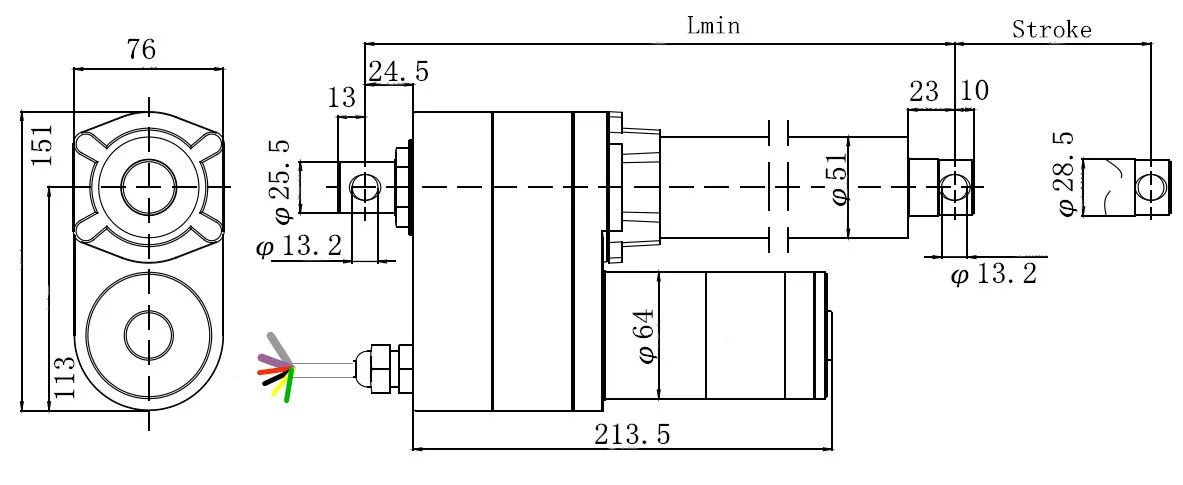

Dimension
Lmin means when the linear actuator completely retracts,the length between the front hole and rear hole. Lmin=250/10inch+Stroke For example 50mm stroke,Lmin=250+50=300mm=12inch
Lmax means when the linear actuator completely extends,the length between the front hole and rear hole.
Lmax=Lmin+Stroke For example 50mm stroke,Lmax=300+50=350mm=14inch
It has 6 cables,2 pcs for power+ and -,4pcs for hall sensor.
The customers have many different application for linear actuator. We can supply varies of front and rear connector to satisfy your requirements. Here is the drawing.
Force ,Speed &Current
Specification
Type | LA50H |
Input Voltage | 12VDC, 24VDC,36VDC,48VDC |
Load | 1000 - 12000N / 220lbs - 2640lbs |
Stroke | 20-1000mm / 0.8" - 40" |
Limit Switch | With |
Feedback | Hall Effect(Hall Sensor) |
Contro system | synchronous control unit options |
Unload Speed | 5mm/s - 160mm/s. 0.2"/s - 6.4"/s |
Load Speed | 3mm/s - 80mm/s 0.12"/s - 3.2"/s |
Retracted Length | 200/250mm+Stroke|8/10inch+Stroke |
Extended Length | 200/250mm+2*Stroke|8/10inch+2*Stroke |
Duty Cycle | 25% , Max 2mins. Continuous use , 18mins rest |
IP Grade | IP65 or customizable |
Operational Temperature | -25°C to 65°C (-13°F to 149°F) |
Color | Black |
Cable Length | 1000mm / 40inch (Customizable) |
Front Mounting Hole Size | 28.5mm|1.14inch customizable |
Rear Mounting Hole Size | 28.5mm|1.14inch customizable |
Mounting bracket | Yes |
Actuator Type | heavy duty,Industry |
Motor Type | Brushed DC Motor |
Screw Type | ACME or customizable |
Stroke Rod Material | Stainless Steel 304 |
Housing Material | Metal |
Gear Material | Metal |
Certificate | CE , Rohs |
Warranty | 12 Months |
Package Info
How to order linear actuator
How to order linear actuator
A linear actuator type LA50H
A Power Eg. 12V or 24V or 36V
B Load Eg. 1000N or 2000N or customizable
C Noload speed Eg 5mm/s or 10mm/s or customizable
D Stroke Eg 50mm or 100mm or customizable
E Retracted length or customizable
F Cable length 100MM or customizable
G Other customized technical data
FAQ
1 How can I control actuators to travel at the same time ?
To achieve synchronous motion control, you will require signal feedback. We offer position signal feedback in the forms of
potentiometer, or hall effect sensors.
2. Will temperature affect Linear Actuator?
Temperature may be a factor in the functionality of your linear actuator. Please ensure that you use your actuator within the
specifications advised in the product datasheet. If you have a specific query related to an actuator and temperature, please check
it with us before ordering.
3.I don't have a power source – What can I do?
We have a range of AC TO DC or DC TO DC power supplies to choose from in our catalog. As the majority of our actuators are powered
by 12 VDC, 12 VDC automotive battery is also a good solution,too. Please ensure the connected devices will provide sufficient
current to linear actuator.
4. Can you supply us AC adapter?
Yes,most of our power supplies can be converted up to 230 VAC. To browse our power supply range, click here.
5. Can you change rear hole direction?
Yes,we can supply customized direction.
6. Does my Linear Actuator come with Mounting Brackets ?
No, all of our mounting brackets are sold separately. We do produce compatible mounting brackets for each of our linear actuators.
7. How long is be shipped?
For sample order , We will shipping out the goods within 7 working days after we check your complete order
For Bulk order , the delivery time may take approximately 10 to 20 working days depending on your product specifications and quantity .
To achieve synchronous motion control, you will require signal feedback. We offer position signal feedback in the forms of
potentiometer, or hall effect sensors.
2. Will temperature affect Linear Actuator?
Temperature may be a factor in the functionality of your linear actuator. Please ensure that you use your actuator within the
specifications advised in the product datasheet. If you have a specific query related to an actuator and temperature, please check
it with us before ordering.
3.I don't have a power source – What can I do?
We have a range of AC TO DC or DC TO DC power supplies to choose from in our catalog. As the majority of our actuators are powered
by 12 VDC, 12 VDC automotive battery is also a good solution,too. Please ensure the connected devices will provide sufficient
current to linear actuator.
4. Can you supply us AC adapter?
Yes,most of our power supplies can be converted up to 230 VAC. To browse our power supply range, click here.
5. Can you change rear hole direction?
Yes,we can supply customized direction.
6. Does my Linear Actuator come with Mounting Brackets ?
No, all of our mounting brackets are sold separately. We do produce compatible mounting brackets for each of our linear actuators.
7. How long is be shipped?
For sample order , We will shipping out the goods within 7 working days after we check your complete order
For Bulk order , the delivery time may take approximately 10 to 20 working days depending on your product specifications and quantity .
Company Profile

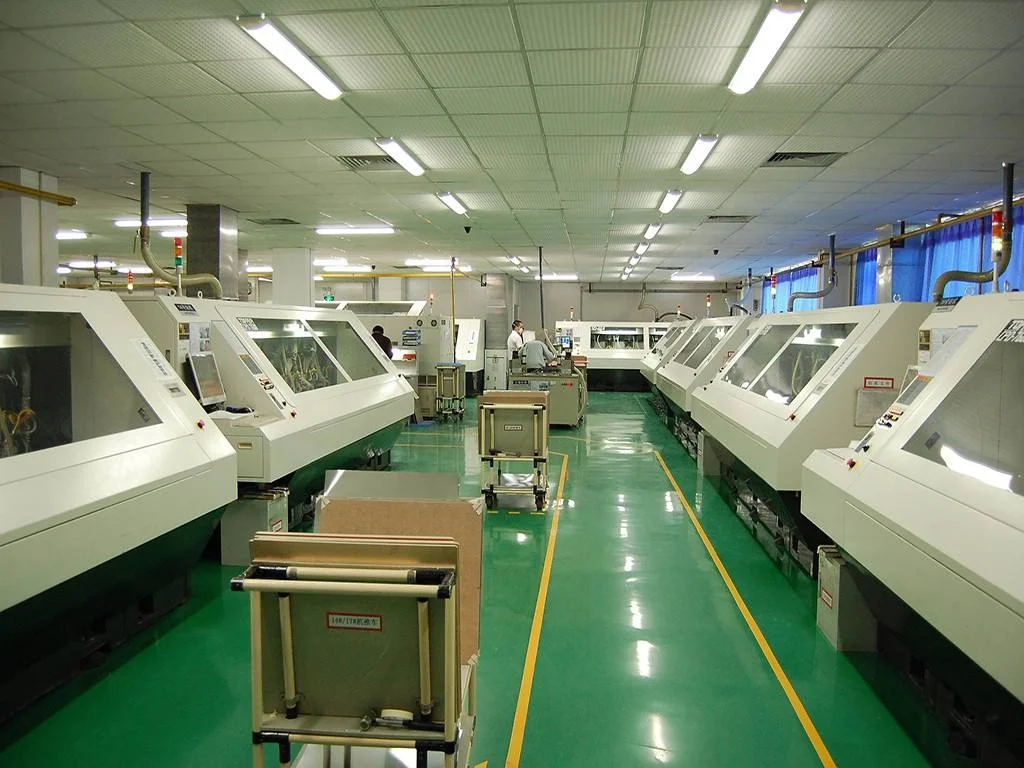

We are professional manufacturer of linear actuator,lifting column,TV lift and office desk. Our first factory was founded in 2006.We have rich experience engineer,big CNC machine and automatic production line and quality control machine. For heavy industry application,our linear actuator is up to 50000N/5000KG/11000LBS load. The max speed is 230mm/second. Many customers require linear actuator with potentiometer,hall sensor,encoder position signal feedback. We also supply linear actuator with quiet noise,less than 50 DB. For micro linear actuator,our hot sell type LA-T8,it is mini and smart. The body size is almost as same as one finger. In order to satisfy marine application,we have developed IP67 linear actuator,it is waterproof.
We are here for you. It is our honor if we can cooperate together.
Recommend Products
110V / 220V AC Wire Remote Control
Input Voltage :110VAC 60Hz
Out Voltage: 12V / 24VDC
Input Voltage :220VAC 50Hz
Output Voltage :12V / 24VDC
More Information , Click here
110V / 220VAC Wireless Remote Control
Input Voltage :110VAC 60Hz
Output Voltage: 12V / 24VDC
Input Voltage :220VAC 50Hz
Output Voltage :12V / 24VDC
Input Voltage :220VAC 50Hz
Output Voltage :12V / 24VDC
More Information , Click here
12V / 24V Wireless Remote Control
Input Voltage :12V / 24V DC
Output Voltage: 12V / 24VDC
More Information , Click here
Похожие товары
Чистая звезда 18K золото белый корпус/turpeacock камень/черный в виде ракушки любовь сердце кулон ожерелье из титановой стали ювелирные изделия для женщин стиль
3,60 $ - 4,60 $
Сэкономьте на стоимости! Картридж для принтера Noritsu D701 D703 D705 D1005
Светоотражающая лента коммерческого класса для дорожных знаков
1,00 $ - 2,00 $
Sinotruk HOWO 15 тонн холодильник фургон для мяса и рыбы
15 500,00 $ - 16 000,00 $

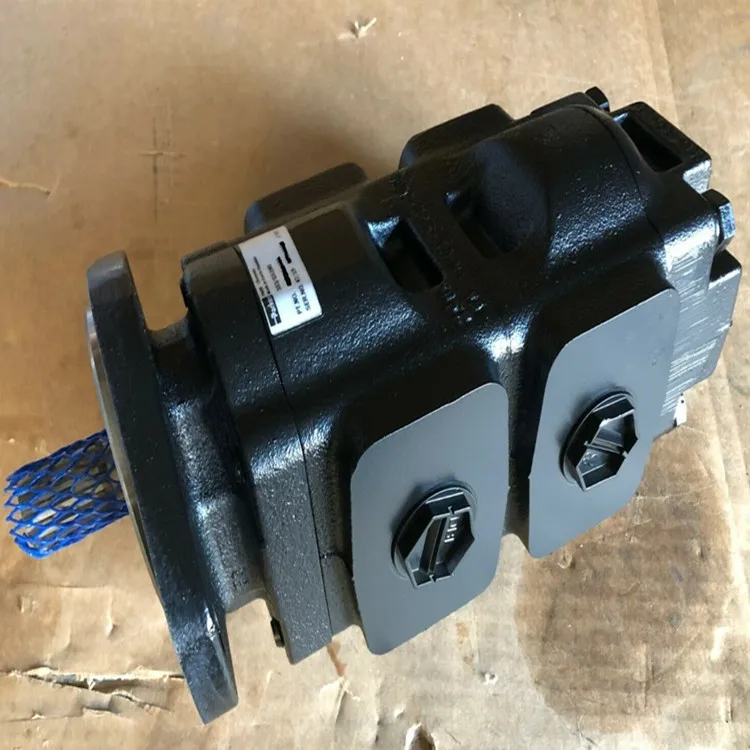

Высококачественный гидравлический Шестеренчатый насос 333/G5390 для экскаватора G5390 G333

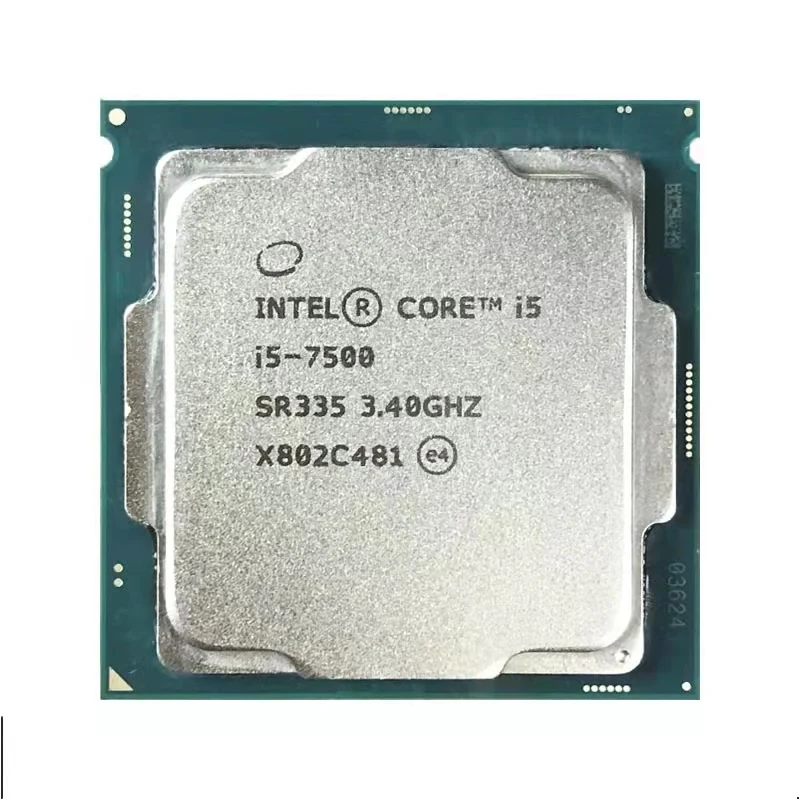

Для процессора Intel Core i5-7500 i5 7500 3,4 ГГц Quad-Core Quad-нить Процессор 6 м 65 Вт LGA 1151
