Экономичный плоский комплект контейнерный дом 20 футов сборные дома сборный 20-футовый Миниатюрный
87 718,72 ₽ - 131 578,08 ₽
Роскошная вилла плоский пакет доставка контейнер две спальни 40 футов роскошный сборный дом
- Категория: Prefabricated Buildings >>>
- Поставщик: Guangdong Uni-House Technology Co. Ltd.
Сохранить в закладки 1600548013546:
Описание и отзывы
Характеристики
Products Description
Accessories Name | Description |
Ground Beam | 14#/16# H-beam, 12# channel steel;100*100*3.0 /150*75*3.0 / 120*60*3.0galvanized steel tube;120*120*3.0 / 150*150*3.0 bending parts |
Pillar/Column | 100*100*3.0 /150*75*3.0 / 120*60*3.0galvanized steel tube;120*120*3.0 / 150*150*3.0 bending parts |
Floor beam | 100*100*3.0 / 150*75*3.0 / 120*60*3.0 / 60*60*2.0 galvanized steel tube;60*60*3.0 / 120*120*3.0 / 150*150*3.0 bending parts |
Floor Purlin | 8# channel steel;80*80*2.0 / 50*100*2.0 / 40*80*2.0 galvanized steel tube |
Stairs | 150*30 C-type steel |
Walkway Board | anticorrisive woods |
External Wall | 0.8mm/1.5mm/2.0mm Corrugated galvanized steel board;0.46mm pre-painted galvanized steel board |
Internal Wall | 0.46mm / 0.36mm / 0.26mm pre-painted galvanized steel board |
Roof Panel | 0.8mm/1.5mm/2.0mm Corrugated galvanized steel board;0.46mm pre-painted galvanized steel board |
Edge | PVC capping seal, bamboo and woods fiber capping seal |
Floor | Glass magnesium board, PVC composition tile, ceramic tiles |
Window | Sliding window, casement window, hanging window, double-glazed glass window（thickness can be customized) |
Door | Security door, plastic steel door, steel door, stainless steel door |
Product Features
Fast installation - an average of 4 workers can complete the installation of a single box in 3 hours, or the whole
container can be moved and relocated after assembly, which is convenient and fast.
Safe and durable - the service life is more than 15 years, the seismic intensity is 8 degrees, the wind resistance is 11,
and the snow bearing capacity is about 1.5 meters.
Save on shipping costs - After flattening and compressing, every 4 sets is equivalent to the size of a standard 20-foot
container, saving 3/4 of shipping costs; 1 40-foot high container can ship 8 sets.
container can be moved and relocated after assembly, which is convenient and fast.
Safe and durable - the service life is more than 15 years, the seismic intensity is 8 degrees, the wind resistance is 11,
and the snow bearing capacity is about 1.5 meters.
Save on shipping costs - After flattening and compressing, every 4 sets is equivalent to the size of a standard 20-foot
container, saving 3/4 of shipping costs; 1 40-foot high container can ship 8 sets.
Flat Pack Container-Circuit |
Product installation
Insulation Capability | λ=0.048W/m·K | Wind Resistance | 0.60kN/㎡ | |||||||
Soundproof Capability | ≥30dB | Fire Resistance | A | |||||||
Waterproof Capability | Rain≥16mm/min, 360° bite occlusion design | Earthquake Resistance | 8 level | |||||||
Floor Loading | 2.0 kN/㎡ | Roof Loading | 1.0 kN/㎡ | |||||||
PRODUCT | SPECIFICATION | Q'TY/ SET | Unit price/ USD | Amount/ USD | ||||||
Flat-pack Container 5800*2400*2896mm | Flat-pack Container | |||||||||
Frame | Bottom Beam: 2.3mm; 160*160mm Galvanized Steel Tube Buttom Purlin: 1.8mm; C100*50mm*9pcs Galvanized Steel Tube | |||||||||
Column: 2.75mm; 210*160mm Galvanized Steel Tube | ||||||||||
Roof Beam:2.5mm; 160*160mm Galvanized Steel Tube Roof Purlin:1.5mm; 80*40mm Galvanized Steel Tube With extra steel brace: 0.326mm | ||||||||||
Wall Board | Rock Wool Wall Board: 75mm, Width 1150mm, density 80kg/m³ Sandwich Panel: 0.476mm color steel plate with PE film Fireproof level: A Level | |||||||||
Ceiling | External Panel: 0.476mm color steel plate Insulation Layer: 40mm glass wool, density 14kg/m³ Interior Panel: 0.326mm color steel plate-Type 831 wave tile Ceiling Tile: 0.476mm color steel plate-Type 831 wave tile | |||||||||
Floor | Cement Board: 18mm PVC Floor Leather: 2.0mm | |||||||||
Door | Stainless Steel Door Size≥ W840×H2040mm | |||||||||
Decoration Line | PVC Skirting: 0.5mm (Default Brown Color) Column Line: 0.5mm color bending steel Roof Corner Line: 0.5mm color bending steel | |||||||||
Electricity | LED Light Bar:15W*2set Socket:10A*3pcs, 16A*1pcs for Air-condistioner One-touch Switch: 1pcs Distributor box: 1pcs with concealed wiring | |||||||||
Optional Equipment | Rooftop frame with handrail Size: 5800*2400mm | ||||
Stair with handrail Size: 6000*1200mm | |||||
Bar Counter only Size: 250*50*110cm Size can be customized | |||||
Awning Size：6.0*1.5m | |||||
5+9A+5 Floor Glass Door | |||||
Other Engineering Case Reference Design & Application |
Guizu Group, a modular container house manufacturer from China. |
With 12 years experience since company established in 2008, we've been dedicated ourselves to prefabricated structure buildings for countless number of local and international clients.
Guizu Group offers a complete solution for the prefabricated container houses including design, production, installation,after-sales service with multiple application such as: container office, worksite container camp, accommodation containers, storage containers, staff dormitory, Shopping mall, stores, coffee shop, display showroom container, multiple unit bathroom, portable toilet, swimming pools, etc.
Guizu Group offers a complete solution for the prefabricated container houses including design, production, installation,after-sales service with multiple application such as: container office, worksite container camp, accommodation containers, storage containers, staff dormitory, Shopping mall, stores, coffee shop, display showroom container, multiple unit bathroom, portable toilet, swimming pools, etc.
More Products
Company Profile
Our Advantages
Sample Room
Product packaging
FAQ
1.Q: Could you design a new and unique prefab house for me?
A: Of course! We have the most professional design team to integrate your demand to provide you with one-stop customization service.
2.Q: What do I need to provide to build a prefab house?
A: It would be better if you could provide a sketch. If not, you just need to tell us your demands, such as area, house use, etc., and we can make the corresponding design for you.
3.Q: How to get the quotation of the project?
A: If you can provide design drawings and required materials, we can quote according to your needs. Besides, If you don't have a drawing, we can also offer you a quotation after telling us the purpose and demand of your prefabricated house.
4.Q: How to control the cost of building a prefab house?
A: After confirming the design plan, you can choose the corresponding building materials according to your own need since each material has its own price.
5.Q: what are the advantages of prefab house?
A: It is prefabricated in the factory, which does not take up construction time on the site; it can be modularly assembled, which is convenient for transportation and can be moved to achieve recycled use.
6.Q: What are the uses of this type of house?
A: It has multiple applications and can be used as hotels, offices, shops, residences, etc.
7.Q: How long does it take to build a prefab house?
A: It depends on the size of the house and complexity of the house. Usually, a 50 square meters’ house takes 5 workers to complete in 1-3 days.
8.Q: What is the delivery time?
A: The delivery time depends on the quantity and the complexity of the house. Usually, the delivery time is 10-20 days after receiving the deposit.
9.Q: How to install?
A: We will provide you with installation instructions and videos, or send a technician to assist you if necessary. However, you are responsible for their wages, visa fees, airfare and accommodation.
10.Q: How do you guarantee the quality of the products?
A: We always put quality first. Every product produced in our factory must pass the strict quality test before it is delivered to the customer.
11.Q: What's your annual supply?
A: Annual Production: About 100000 square meters.
12. Q: What is your MOQ?
A：One set.
13. Q：What is your payment term?
A： 70% deposit by T/T in advance, 30% balance payment before shipment.
14.Q：What trade terms do you accept？
-A：EXW, FOB, CIF, etc.
A: Of course! We have the most professional design team to integrate your demand to provide you with one-stop customization service.
2.Q: What do I need to provide to build a prefab house?
A: It would be better if you could provide a sketch. If not, you just need to tell us your demands, such as area, house use, etc., and we can make the corresponding design for you.
3.Q: How to get the quotation of the project?
A: If you can provide design drawings and required materials, we can quote according to your needs. Besides, If you don't have a drawing, we can also offer you a quotation after telling us the purpose and demand of your prefabricated house.
4.Q: How to control the cost of building a prefab house?
A: After confirming the design plan, you can choose the corresponding building materials according to your own need since each material has its own price.
5.Q: what are the advantages of prefab house?
A: It is prefabricated in the factory, which does not take up construction time on the site; it can be modularly assembled, which is convenient for transportation and can be moved to achieve recycled use.
6.Q: What are the uses of this type of house?
A: It has multiple applications and can be used as hotels, offices, shops, residences, etc.
7.Q: How long does it take to build a prefab house?
A: It depends on the size of the house and complexity of the house. Usually, a 50 square meters’ house takes 5 workers to complete in 1-3 days.
8.Q: What is the delivery time?
A: The delivery time depends on the quantity and the complexity of the house. Usually, the delivery time is 10-20 days after receiving the deposit.
9.Q: How to install?
A: We will provide you with installation instructions and videos, or send a technician to assist you if necessary. However, you are responsible for their wages, visa fees, airfare and accommodation.
10.Q: How do you guarantee the quality of the products?
A: We always put quality first. Every product produced in our factory must pass the strict quality test before it is delivered to the customer.
11.Q: What's your annual supply?
A: Annual Production: About 100000 square meters.
12. Q: What is your MOQ?
A：One set.
13. Q：What is your payment term?
A： 70% deposit by T/T in advance, 30% balance payment before shipment.
14.Q：What trade terms do you accept？
-A：EXW, FOB, CIF, etc.
Похожие товары

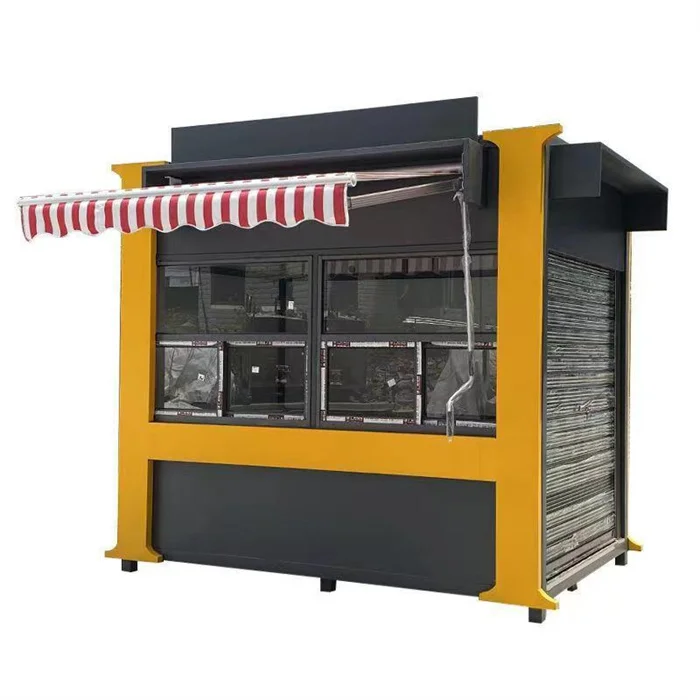

Прямая продажа с завода портативная Мобильная столовая кофейный разборный из стекловолокна уличный магазин киоск дом
185 305,80 ₽ - 269 735,07 ₽

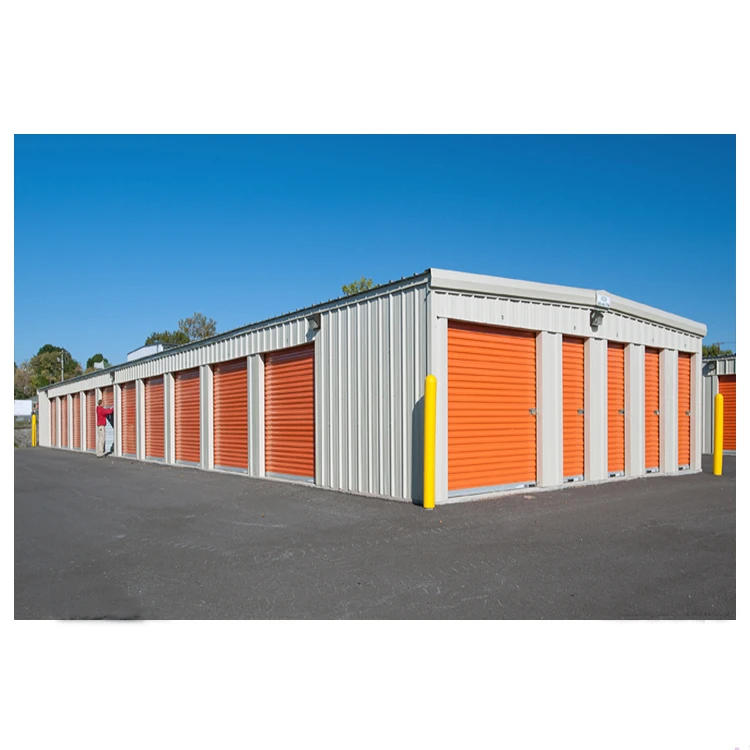

Сборный гараж для парковки автомобилей сборные квартиры современный лучший план низкая стоимость промышленный сарай самостоятельное размещение стальных зданий
5 482,42 ₽ - 6 578,91 ₽

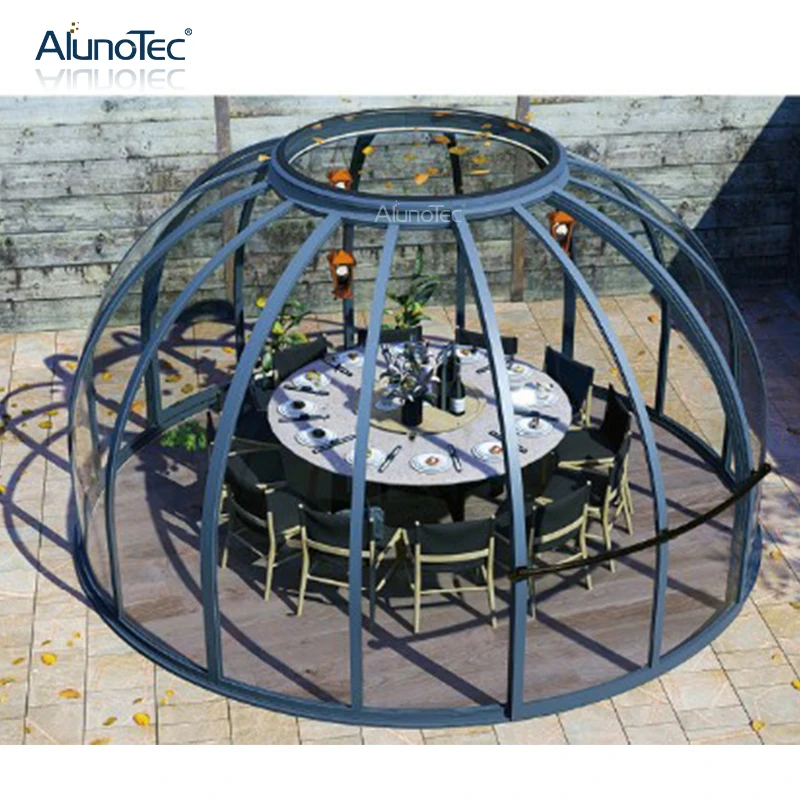

Зимняя уличная палатка прозрачная модульная тепличная конструкция Igloo пузырьковый купол круглый дом для кемпинга

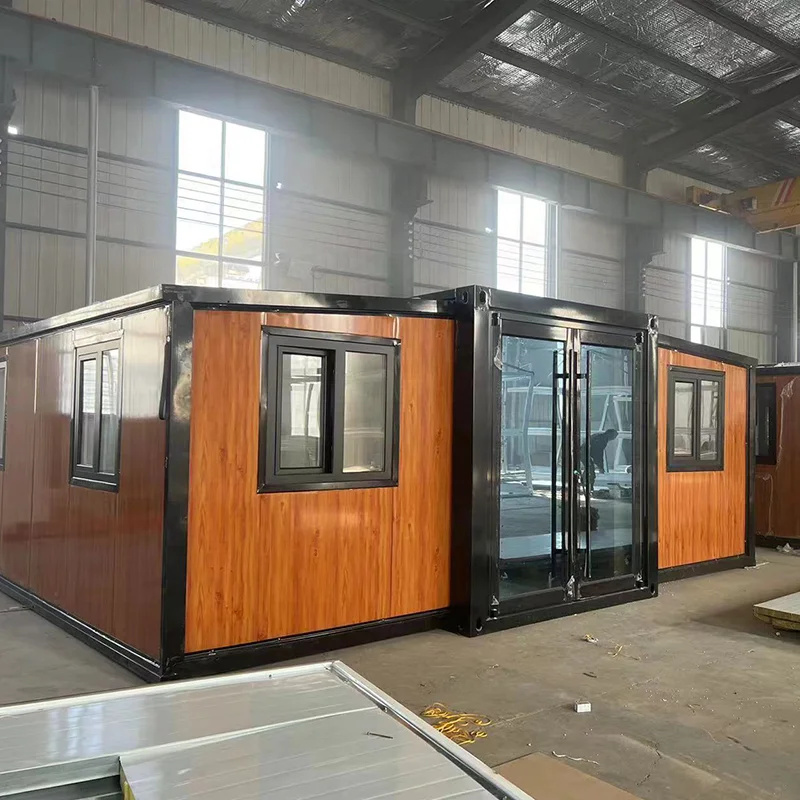

Роскошный складной дом 20 30 40 футов с возможностью расширения
526 312,32 ₽ - 866 222,36 ₽

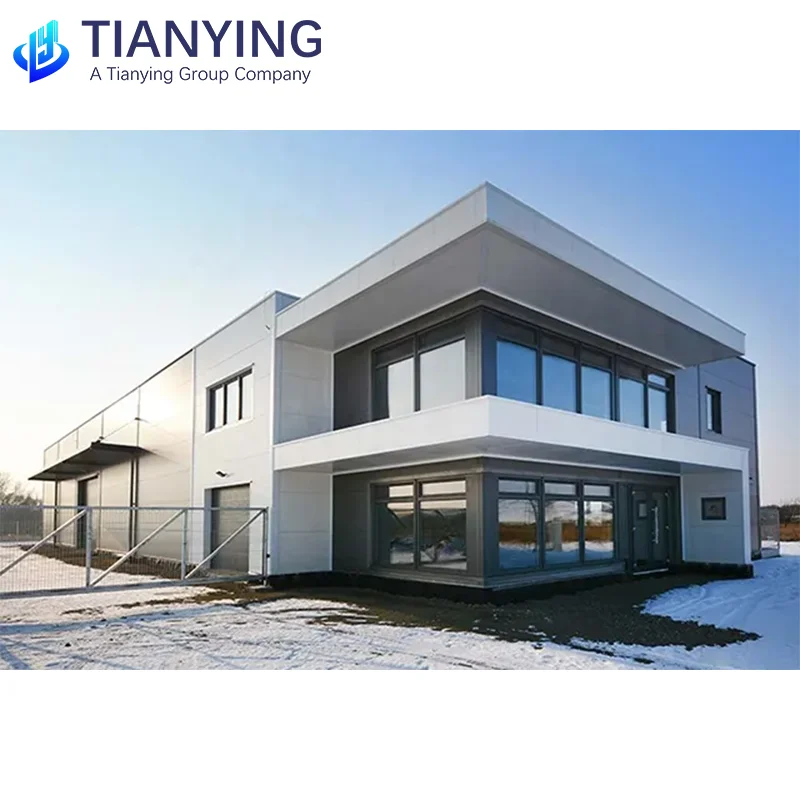

Современная сборная стальная конструкция для склада/цеха/по лучшей цене от производителя
2 192,97 ₽ - 3 289,46 ₽

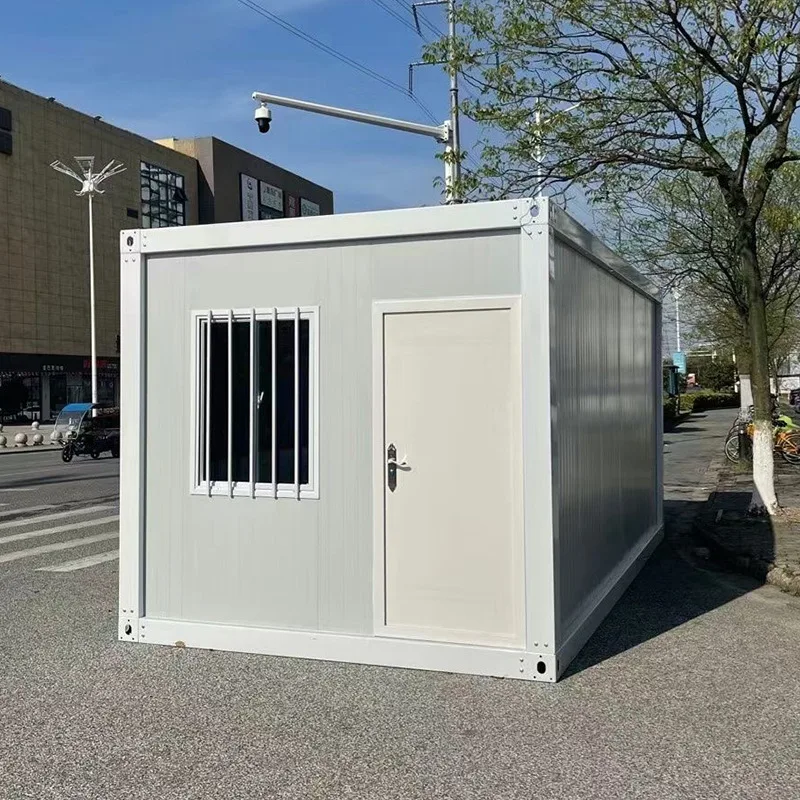

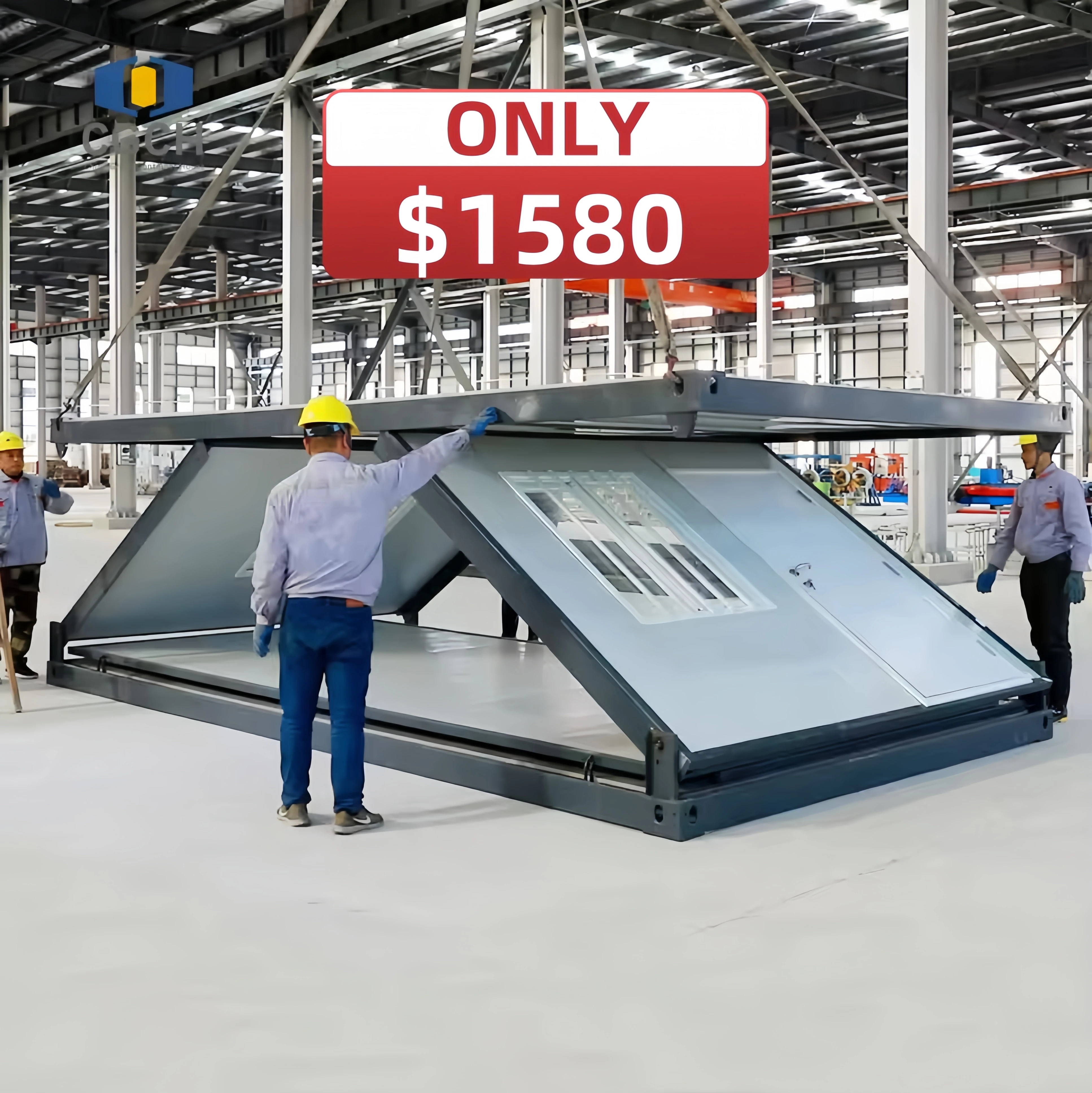

CGCH 20 футов быстрая установка Складывающийся контейнерный дом сборный складной крошечный передвижное временное
173 244,48 ₽ - 191 884,70 ₽

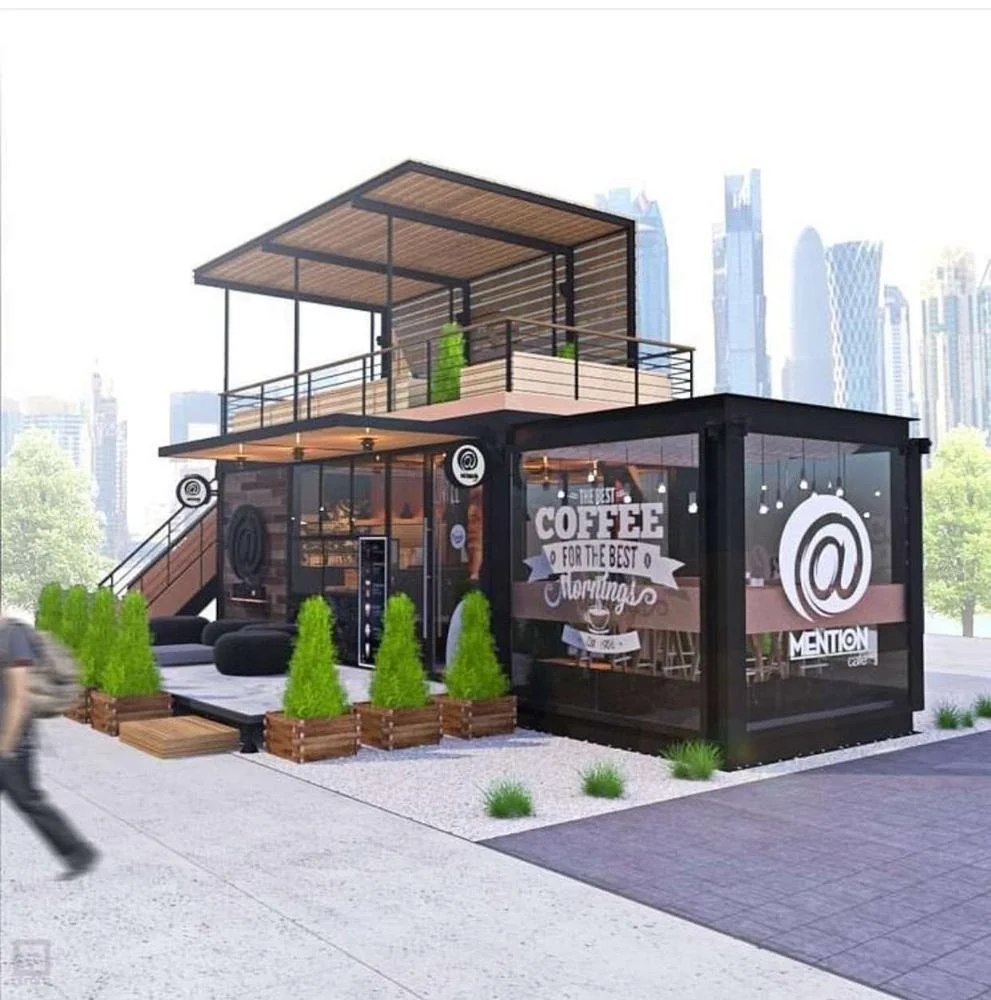

20-футовый мобильный каркасный кофейный
