Оборудование для обработки золота с активированным углем
1 753 277,92 ₽ - 1 754 264,76 ₽

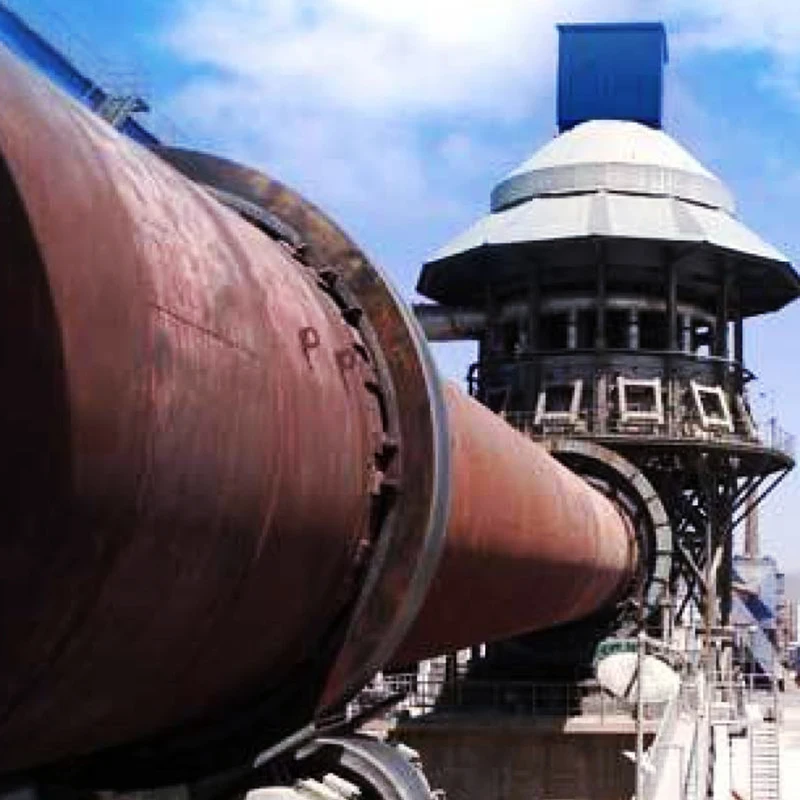

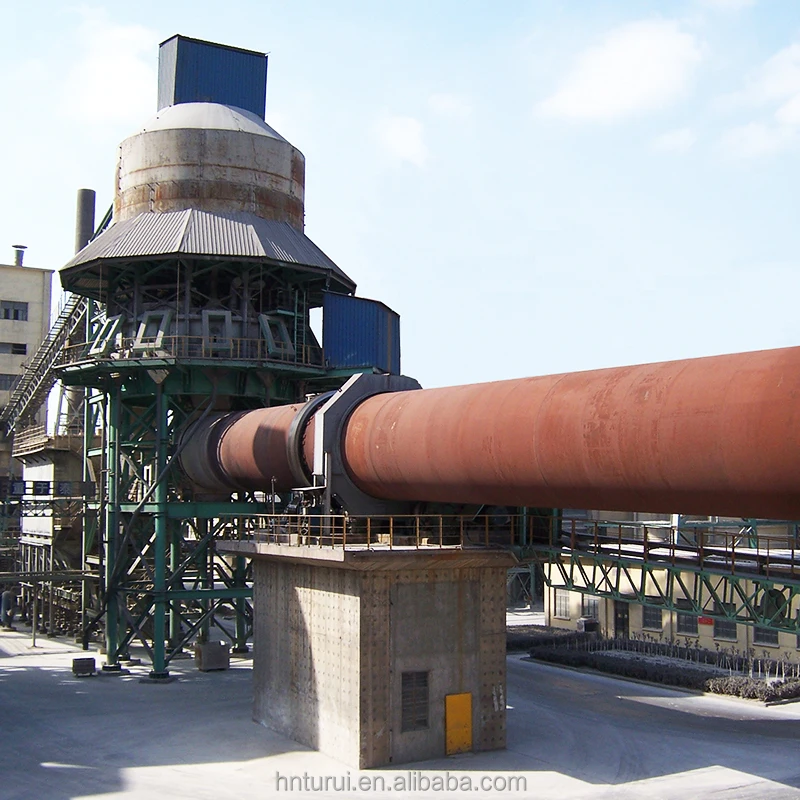

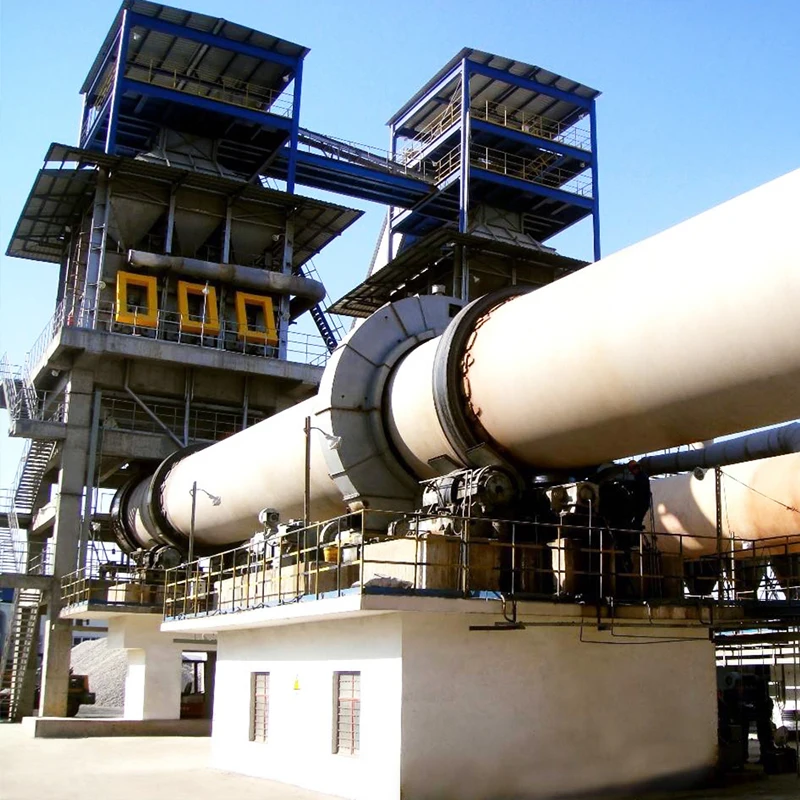

небольшая вращающаяся печь с активированным углем для продажи поставщики вращающейся печи китая
- Категория: >>>
- Поставщик: Henan Turui Machinery Co. Ltd.
Сохранить в закладки 1600548239035:
Описание и отзывы
Характеристики
Product Description
Product Description
Rotary kiln, also known as rotary calcining kiln, belongs to the category of building materials equipment. Rotary kiln can be divided into cement kiln, metallurgical chemical kiln and lime kiln according to different materials. Cement kiln is mainly used for cement clinker calcining, and is divided into two types: dry production cement kiln and wet production cement kiln. Metallurgical chemical kiln is mainly used for magnetization roasting of lean iron ore in iron and steel plants in the metallurgical industry; oxidative roasting of chromium and nickel iron ore; roasting of high alumina vanadium ore in refractory plants and of clinker and aluminum hydroxide in aluminium plants; and roasting of chrome ore powder and other minerals. Lime kiln (active lime kiln) is used for roasting of active lime and light-burning dolomite for iron and steel plants and ferroalloy plants.
Working Priciple

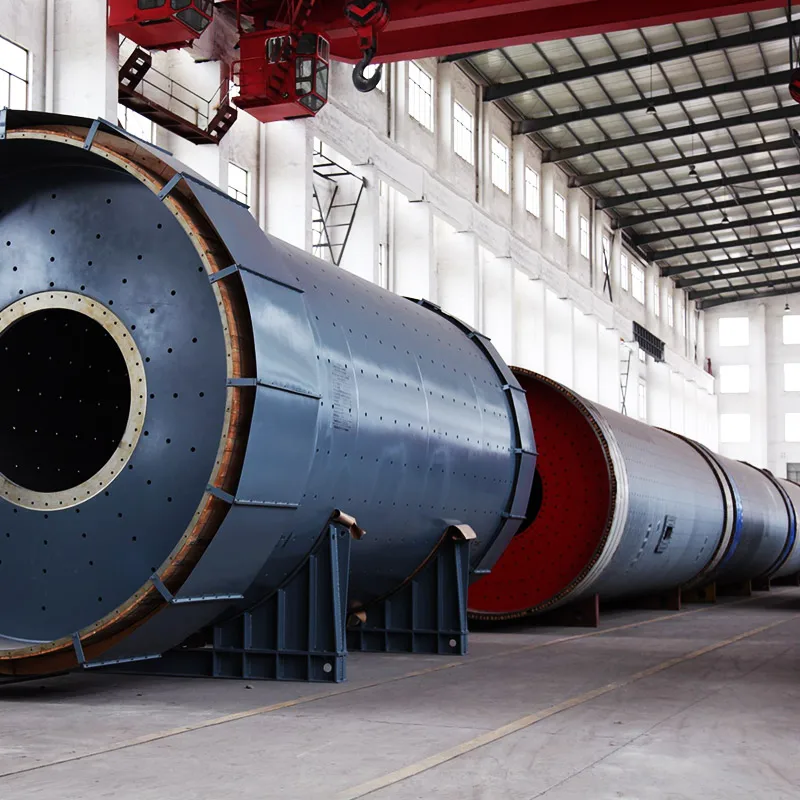

The rotary kiln from china professional manufacture Hongji Group Machinery is a cylindrical vessel, inclined slightly to the horizontal, which is rotated slowly around its axis. The material to be processed is fed into the upper end of the cylinder. As the kiln rotates, the materials gradually move down towards the lower end, and may undergo a certain amount of stirring and mixing. Hot gases pass along the kiln sometimes in the same direction as the process material (co-current), but usually in the opposite direction (counter-current). The hot gases may be generated in an external furnace, or may be generated by a flame inside the kiln. Such a flame is projected from a burner-pipe (or 'firing pipe') which acts like a large burner. The fuel may be gas, oil or pulverized coal.
Product Advantages
(1) It adopts the most advanced hydraulic stopper device at home and abroad, a metering plunger pump with high metering accuracy, a high-precision speed control valve and a contact-type graphite block sealing device and other domestic advanced technologies.
(2) In order to improve the degree of automation, the kiln head adopts an industrial TV to watch the fire, the process flow simulates a fluorescent screen, and the calcination belt adopts an infrared scanner to directly reflect the calcination status of the calcination belt on the computer. The use of these new technologies is intuitive, easy to operate, and reliable to use.
(3) The automation level is high. The adjustment, control and alarm of the production system operation are all controlled by PLC in the main control room. There are few on-site operators and high labor efficiency. It adopts full negative pressure production, smooth air flow, stable production operation and high safety.
(4) The pulse bag filter is used for dust removal, and the emission concentration is less than 50mg/Nm3, which is lower than the national emission standard, which effectively protects the environment of the production site.
(5) Compared with the equipment of the same specification, the operation rate is increased by 10%, the output is increased by 5%-10%, and the heat consumption is reduced by 15%.
Specification
Model | Capacity （t/h） | Speed (rpm) | Slope (%) | Support No. | Gearbox | Motor model | Power (kw) |
Ø1.6×32m | 2 | 0.58-2.85 | 4 | 3 set | ZQ75-50 | YCTZ50-4A | 18.5 |
Ø1.6/1.9×36m | 2.5~3 | 0.53-1.59 | 4 | 3 set | ZQ110-7 | YCTZ50-4B | 22 |
Ø1.9×39m | 3~3.5 | 0.53-1.59 | 4 | 3 set | ZQ125-7 | YCT315-4A | 37 |
Ø2.2×38m | 5~6 | 0.214-1.64 | 3.5 | 3 set | Main ZS125-5-II | Main YCT315-4A | 37 |
Auxiliary ZQ40-40 | Auxiliary Y112M-4 | 4 | |||||
Ø2.2×45m | 4~5 | 0.214-1.64 | 3.5 | 3 set | Main ZS125-5 | Main YCT315-4B | 45 |
Auxiliary ZQ40-40 | Auxiliary Y112M-4 | 4 | |||||
Ø2.5×40m | 6~7 | 0.62-1.5 | 3.5 | 3 set | Main ZS165-5 | Main YCT355-4A | 55 |
Auxiliary ZS50-1 | Auxiliary Y160M-6 | 7.5 | |||||
Ø2.5×50m | 5~6 | 0.62-1.5 | 3.5 | 3 set | Main ZS165-5 | Main YCT355-4A | 55 |
Auxiliary ZS50-1 | Auxiliary Y160M-6 | 7.5 | |||||
Ø2.8×43m | 7~8 | 0.62-1.5 | 3.5 | 3 set | Main ZS165-6 | Main YCT355-4B | 75 |
Auxiliary ZS50-1 | Auxiliary Y160L-6 | 11 | |||||
Ø2.8×55m | 6~7 | 0.62-1.5 | 3.5 | 3 set | Main ZS165-6 | Main YCT355-4B | 75 |
Auxiliary ZS50-1 | Auxiliary Y160L-6 | 11 | |||||
Ø3×50m | 9~10 | 0.5-1.5 | 3.5 | 4 set | Main ZS165-3 | Main ZSN-280-11B | 125 |
Auxiliary ZS50-1 | Auxiliary Y160L-6 | 11 |

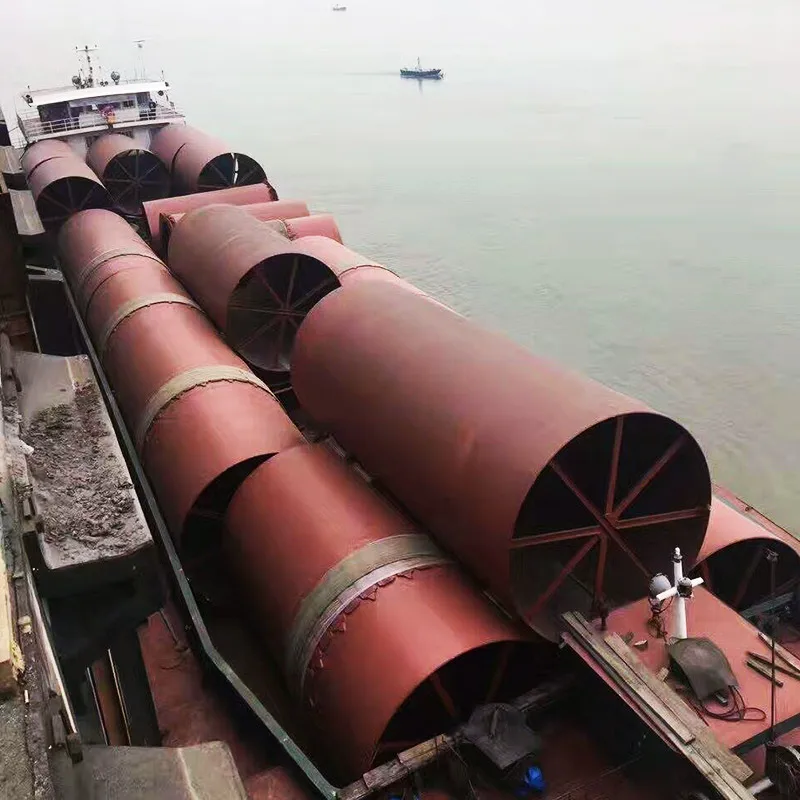

Packaging & Shipping
Packaging Details:

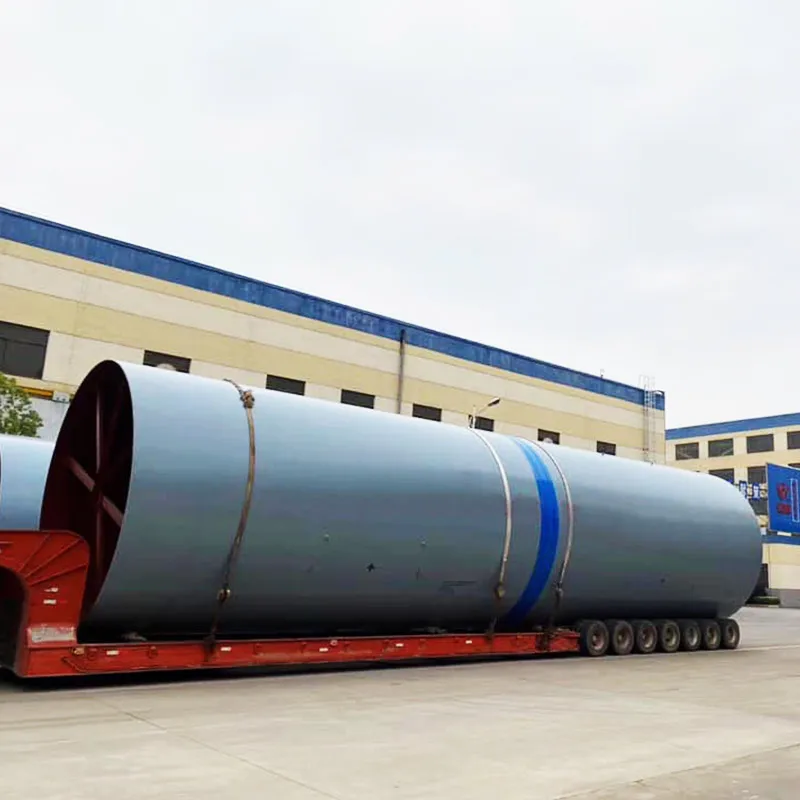

We will load different sizes of packing according to different machine sizes, and the normal packing is in wooden cases. If exported to European countries, wood frame will be fumigation. If the container is too tight, we will use the PE film according to the customer's special requirements.
Delivery Time:
We are based on the actual needs of customersto carryout tailor-made sales. By senior engineer to design scheme, after receipt of customer deposits began production, regardless of the size of the equipment we can deliver the goods in two weeks. delivered the balance after delivery.

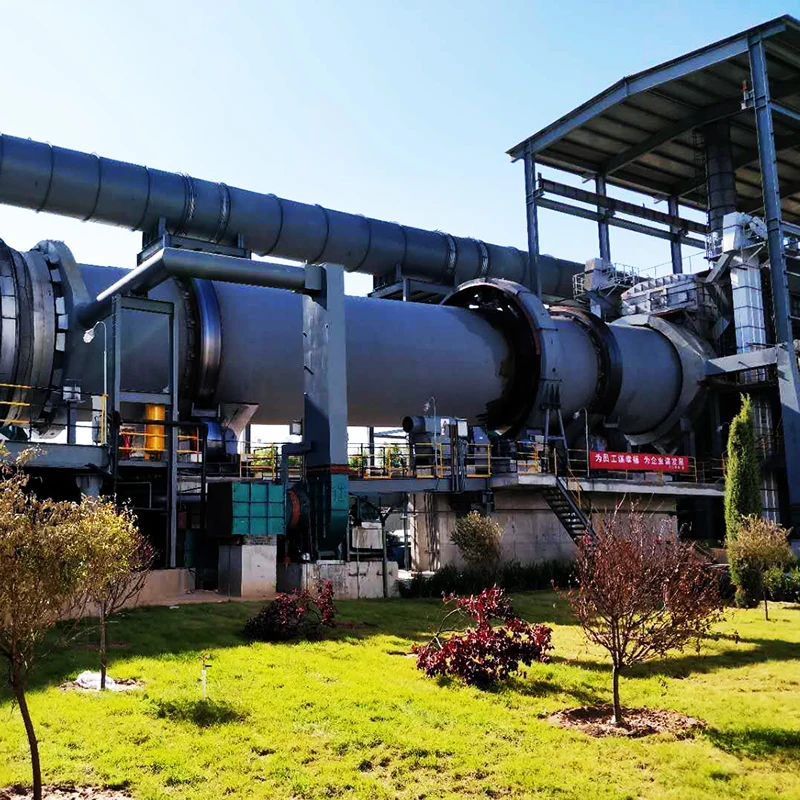

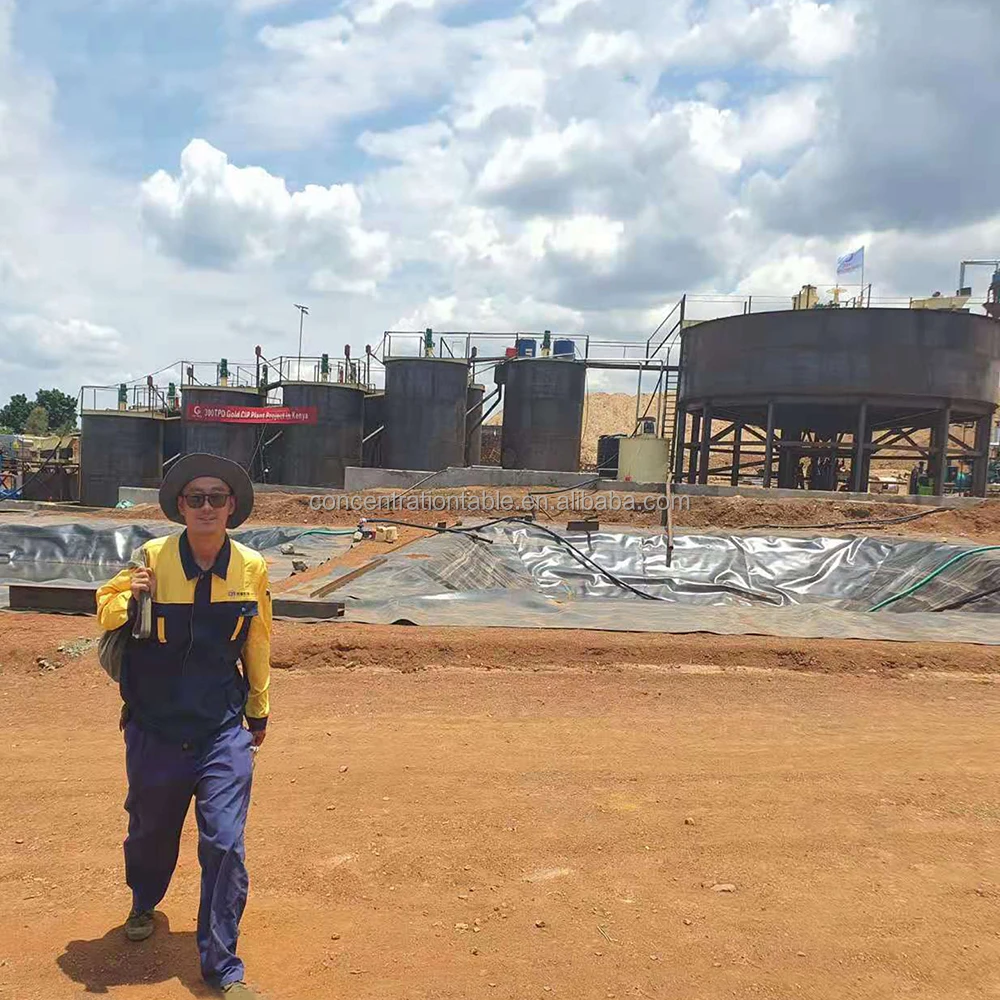

Project Cases
Indonesia
Zimbabwe
Vietnam
Tanzania
South Africa
Uganda
Hot-sale in many countries: Zimbabwe, Mozambique, Zambia, South Africa, Kenya, Philippines, Indonesia, Vietnam, Uganda, Ethiopia, Tanzania, Peru, Mexico.
Company Profile
Henan Turui Machinery Co., Ltd is a professional manufacturer of different mining machinery. It integrates the design, research, production, sales and installation together, guaranteeing the reliable and stable quality. Its main products includes calcining equipment, ore dressing equipment, crushing and screening equipment, drying and cooling equipment, and grinding equipment. There are more than hundred of customers using our products all over the world, such as in south-east Asia, south-Asia, middle Asia, middle-east area, Africa, Australia, South America. The company covers an area of 40,000 square meters, building area of 10,000 spare meters. There are more than forty sets of boring-milling machine, gear hobbling machine, vertical lathe, and travelling crane at the workshop.
Certifications
FAQ
1. How is the quality of your products?
Our products are manufactured strictly according to national and international standard, and we take a test on every grinder before delivery.
2. Guaranteed:
If products ‘quality is not consistent with the description as we described or the promise before you place order, we promise 100% refund.
3. How about price?
Yes, we are factory and are able to give you the lowest price than market one and we have a policy that “for saving time and absolutely honest business attitude, we quote as low as possible for any customer, and discount can be given according to quantity.
4. Service and Payment Terms?
Our products are manufactured strictly according to national and international standard, and we take a test on every grinder before delivery.
2. Guaranteed:
If products ‘quality is not consistent with the description as we described or the promise before you place order, we promise 100% refund.
3. How about price?
Yes, we are factory and are able to give you the lowest price than market one and we have a policy that “for saving time and absolutely honest business attitude, we quote as low as possible for any customer, and discount can be given according to quantity.
4. Service and Payment Terms?
A. We usually accept T/T, L/C, but other terms also workable.
B. We take pictures of finished products before delivery.
B. We take pictures of finished products before delivery.
Похожие товары

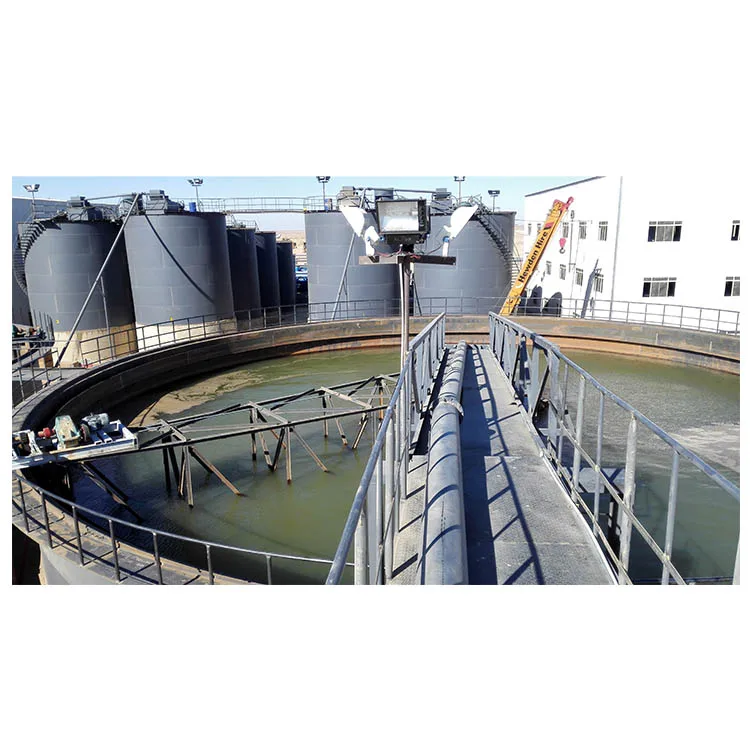

Энергосберегающее и высокоэффективное оборудование для обработки золота 500 т/д активированный уголь выщелачивание установка производства
27 412 100,00 ₽
Цепль для выщелачивания активированного угля
1 096 484,00 ₽ - 3 289 452,00 ₽

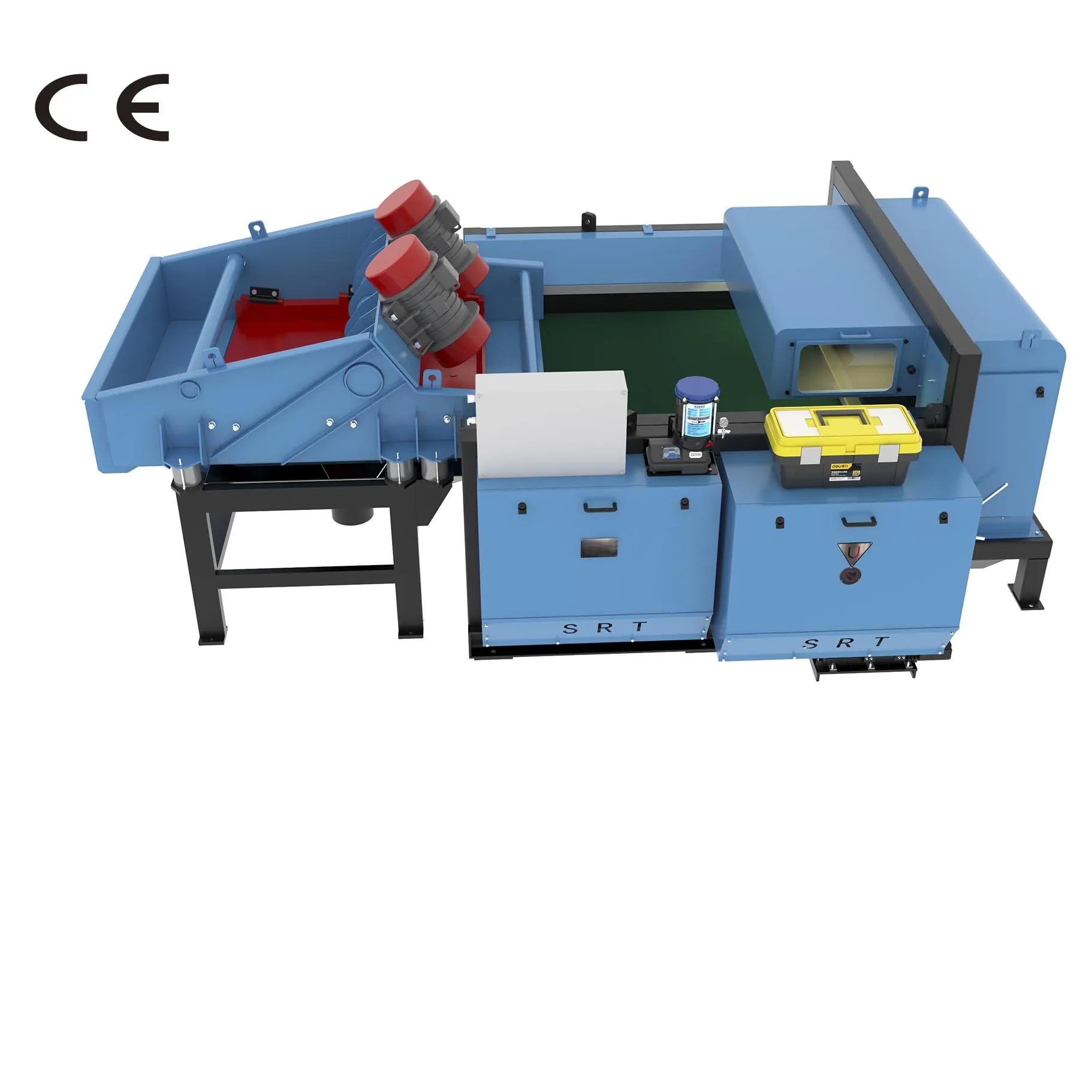

Двухпалубный вихремоточный сепаратор купить сортировочный аппарат для твердых отходов вихревого
1 973 671,20 ₽ - 2 192 968,00 ₽

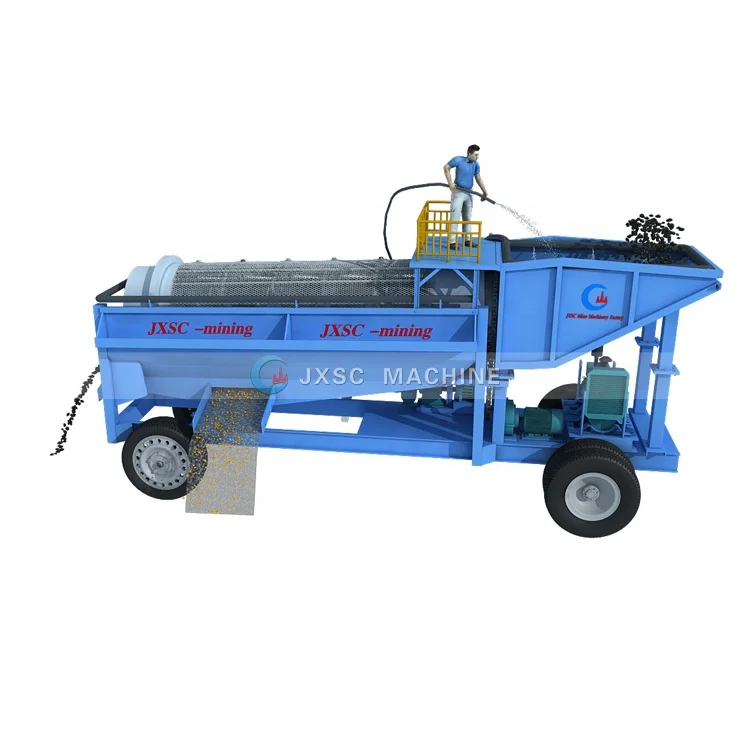

JXSC Барабанный грохот для золота
548 242,00 ₽
Флотационная Машина ячейка для разделения золото медь серебро свинец циркон
1 096 484,00 ₽

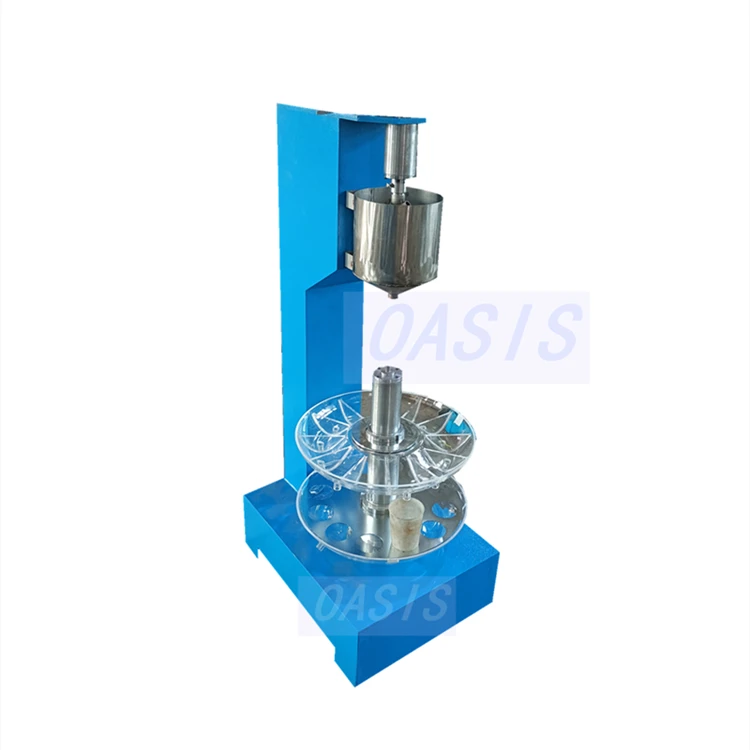

Высокоэффективный лабораторный роторный разделитель образцов для геологического испытания строительных материалов разделения руды
