2 4g беспроводной модуль TY24D TX/RX не должны быть запрограммированы с шестиходовая управления помощью пульта
- Категория: >>>
- Поставщик: Shenzhen Skydoor Technology Co. Ltd.
Сохранить в закладки 1600548686540:
Описание и отзывы
Характеристики
product properties
product properties

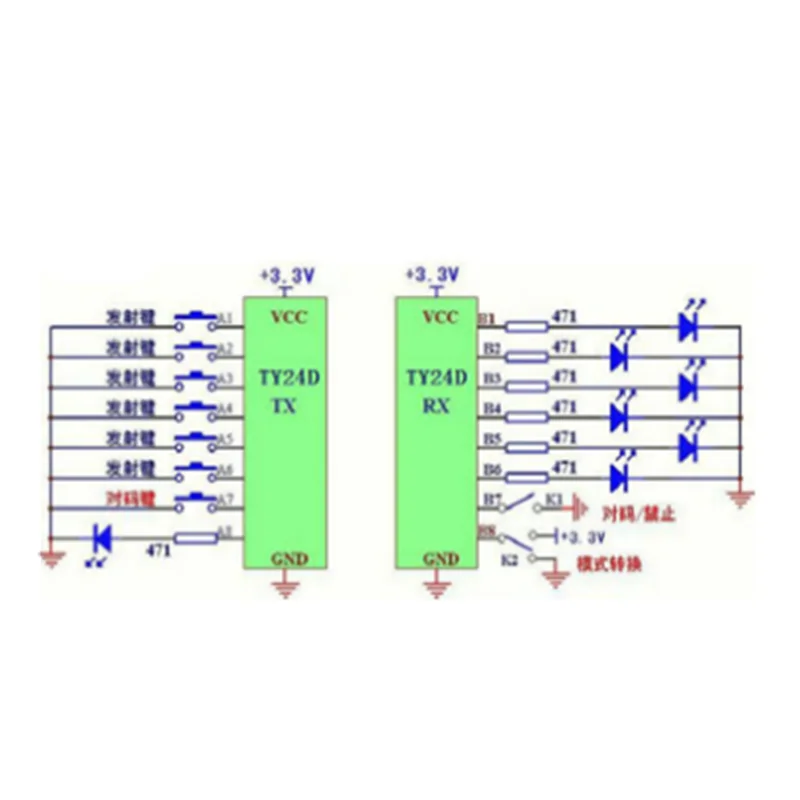

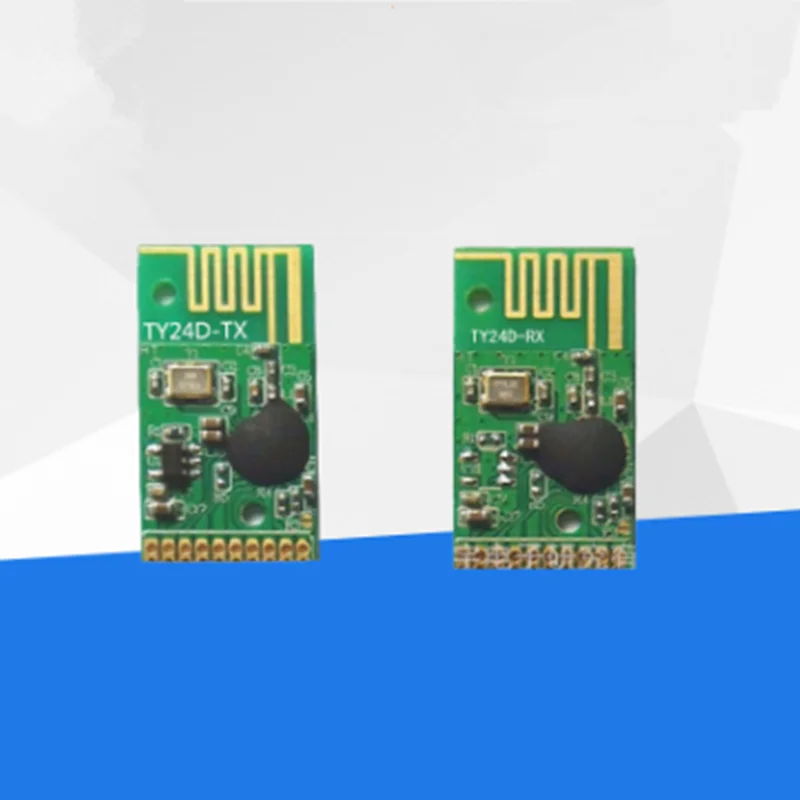

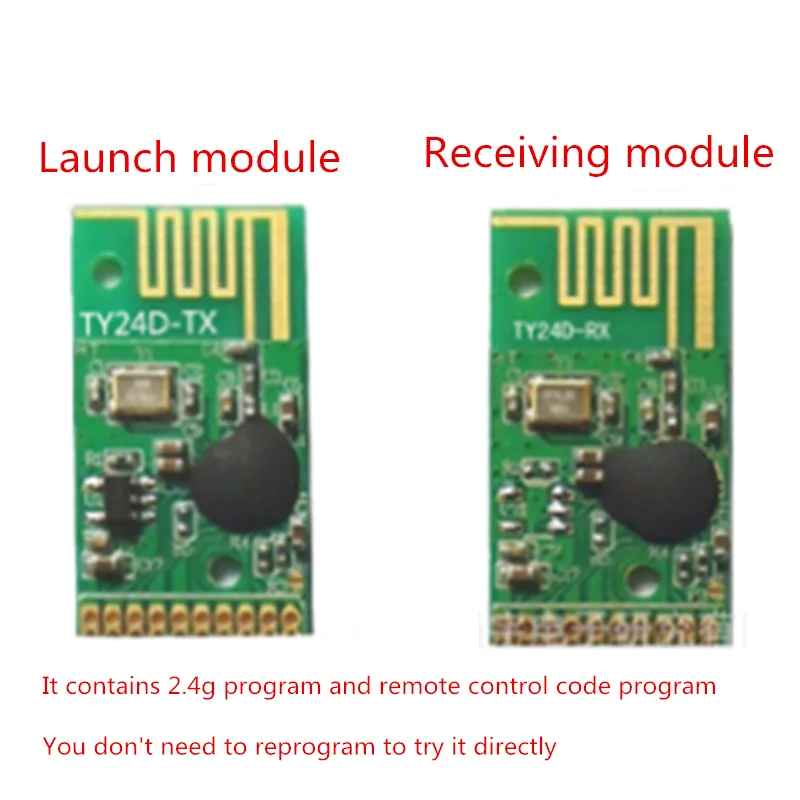

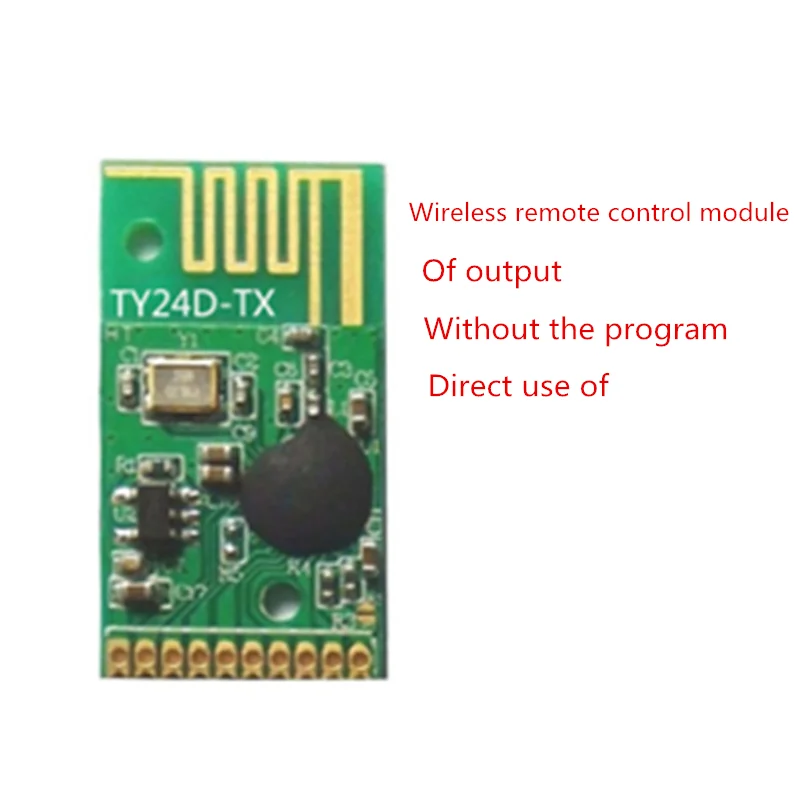

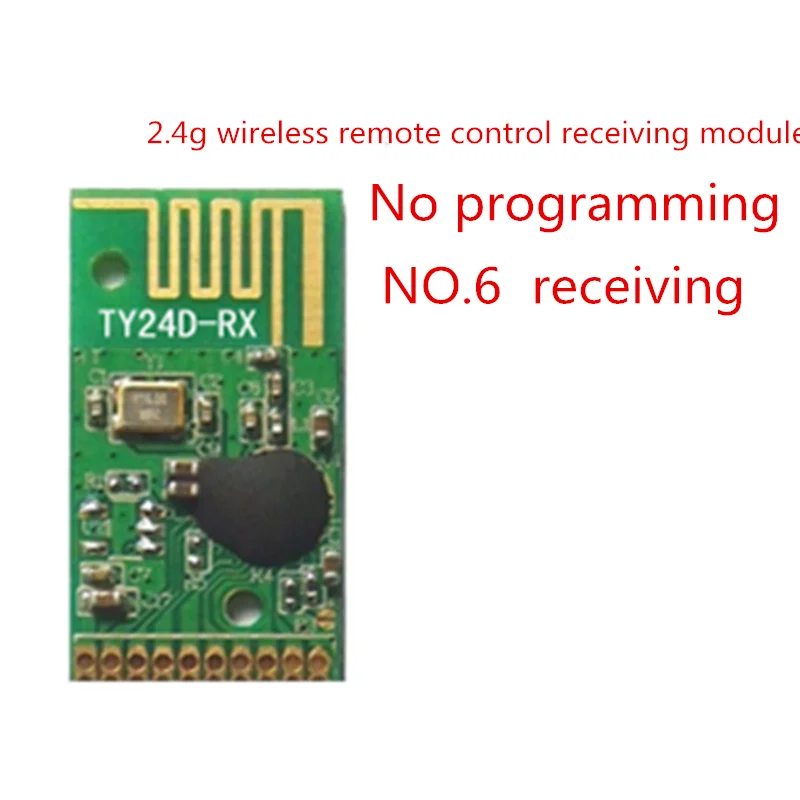

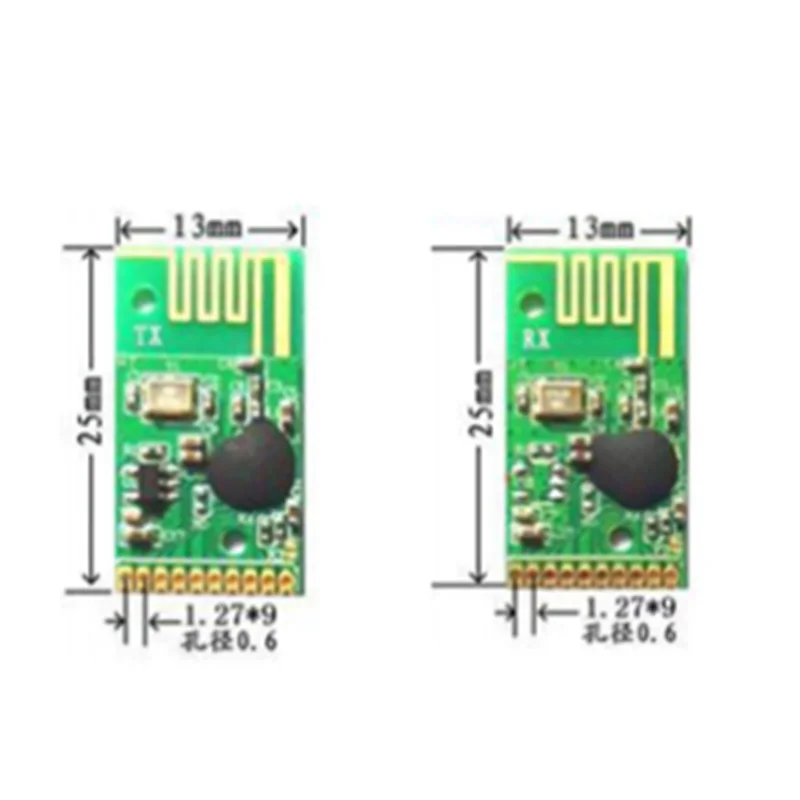

[Function Introduction] Ty24d-tx /RX wireless remote control module is a high-performance single chip microcomputer and program added by our company on the basis of 2.4g module TY24D, which does not need to be reprogrammed. The basic program and remote control learning code program of 2.4g have been written inside the module, which can be used without any programming. Ty24d-tx is the transmitting module, and TY24D-Rx is the receiving module. The transmitting module only needs to provide 3.3V power supply, the transmitting button and an LED as the transmitting state indicator. The output port of the receiving module can output the level signal. The transmitter has six input ports, corresponding to the six output ports received, and can be extended up to 64 channels. 6 can work independently or at the same time without interference. The module adopts the learning code mode. The module has a single ID number. A remote control can learn the ID address and data channel of a receiving module at will. Module of small size, low power consumption, easy to use, according to the remote control is needed to launch a module only a piece of shell design according to the keypad, receiving module without peripheral parts, also do not need any programming, encoding chip, use very convenient and simple, more sets of products can be used at the same time and noninterference, effectively solve the problem of 315/433 m remote control products can't launch at the same time. [Application Scope] Wireless remote control Intelligent home appliance remote control toy remote control socket remote control door lock wireless sensor intelligent home control system garage door control system [ characteristics ] 2.4g ISM frequency band can be used simultaneously without mutual interference. High performance baseband processing chip, fast remote control, high security level. 2.4g program and remote control code program are included in the program, which need no reprogramming and can be used directly. 6 input and output functions, can be extended, the output state can choose latched or non-latched. Highly integrated, small size, low power consumption design, no peripheral parts, easy to use. [Performance parameters] Ty24d-tx ty2D-RX (Receiving module) Working frequency: 2.4g Working voltage: 2.5-3.6V Working voltage: 2.5-3.6V Transmitting current: 0-15mA Receiving current: 23mA Output power: 5dB Receiving sensitivity: -85dbm Dormant current: 3.5uA modulation mode: GFSK Modulation: GFSK data channel: 6 channels Maximum rate: 1M Output status: latched/non-latched Control port: 6 keys input/output level: 0-high level Coding form: Learning code Coding form: learning code, automatic recognition of remote control address data Antenna: PCB antenna antenna: PCB antenna Reference distance: 50m (barrier-free) Module size: 25X13X2mm (length X width X thickness) module size: 25X13X2mm (Length X width X thickness)

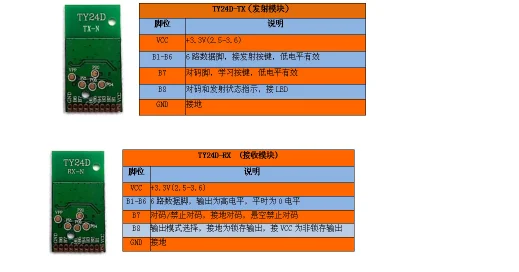

[RX mode Conversion function] Latch mode: RX output port is normally at level 0. Press the key once to receive output high level and latch. Press the key again to receive output at level 0. Non-latch mode: press and hold the transmit key to receive high output level, release the key to receive zero level. Port B8 needs to be connected to VDD. [Check code and forbid check code function] TX and RX can only be used with matching codes. RX can only recognize the TX with matching codes successfully. After matching codes are successful, the port of receiving B7 pairs should be disconnected (suspended) to prohibit other TX pairs, so as to prevent other remote controls from controlling your receiving device illegally. The receiving code port does not limit the number of remote control codes (multiple 1 receiving versions) in the allowed code state, allowing several remote control codes to be determined by the owner. If the receiving module (RX) is replaced after code matching, the original remote control (TX) needs to be re-coded. The remote control can only control its own receiving device. If a remote control codes with its own receiving device and then learns other receiving devices and learns successfully, the receiving device is willing to no longer receive the information of the remote control and automatically cleans up the remote control. If you need to use the remote control, you need to re-check the code with the receiving device. The password is a unique 32-bit address, which is sent to the other party when the code is checked. Each transmitting or receiving password can only store a unique password. If the password is checked again, the original password is erased [Test and Use] After the code is successfully matched, press the transmit key b1-B6 to receive port B1-B6 and output high level. The LED will display whether the output function is normal. The reference distance of the open ground is about 50m. The receiving module can provide 2mA output current to drive 3V LED. If the power drive circuit is needed to drive other large loads, the power supply of the module should not be connected backwards, and the voltage should not exceed 3.6V. Otherwise, to damage the device, the module needs to provide stable voltage. The module is a PCB built-in antenna. The antenna must leave the copper coating on the motherboard, otherwise the transmitting and receiving distance will be affected. The module can be welded with row needle wave, but the module cannot be reflow welded.
[Product Advantages] 2.4g wireless remote control module has the biggest advantage of simple use, fast speed and non-interference of simultaneous transmission. The receiver has six output functions. Six remote controls can be used to control the six output ports of the host respectively or simultaneously. The six remote controls can press several transmitting keys at the same time without interference.
Specification
Packing & Delivery
1.We can ship through DHL,UPS,FedEx, TNT,EMS, Post mail, sea freight or any other ways you like. 2.We will ship the items within 1-3 working days after the payment is reached . (Also can use your shipping account such as DHL/UPS/FedEx/TNT etc.)
Company Profile
WINSUN components co., Ltd. is a professional Electronic component distributor, which have over 12 years business experience.We specialize in the production of Modules and Electronic Components, IC Chips, Transistors, Diodes, Triodes, Rectifiers, Sensors,Thyristors, TACT switches, Connectors, Resistors and Capacitors, with well-equipped testing equipment and strong technical force.With a wide range good quality, reasonable prices and fast delivery, our products are extensively used in Civilian equipment,Military industry, Industrial Equipment and other industries.
FAQ
Q1. What is your terms of packing? And do you offer BOM list service?Can I send my bom list to you?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters. Of course, we offer BOM list service. Actually, we have been doing that many years.Welcome your bom list to us.
Q2. What is your terms of payment?
A: Full payment. Goods would be shipped in 3-5 work days after payment received, finally depends on quantities.
Q3. What is your terms of delivery? A: EXW. Q4. How about your delivery time?
A:Generally, goods would be shipped in 1-5 work days after payment received, finally depends on order quantities.
Q5. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the
courier cost.
courier cost.
Q6. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
A: Yes, we have 100% test before delivery
Q7: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and
we sincerely do business and make friends with them,no matter where they come from.
we sincerely do business and make friends with them,no matter where they come from.
Похожие товары
Экологически чистый биоразлагаемый сахарный тростник с пла-соломинкой
0,04 $ - 0,07 $
Detall опытное Производство промышленный шлифовальный станок с порошковым покрытием резиновым
400,00 $

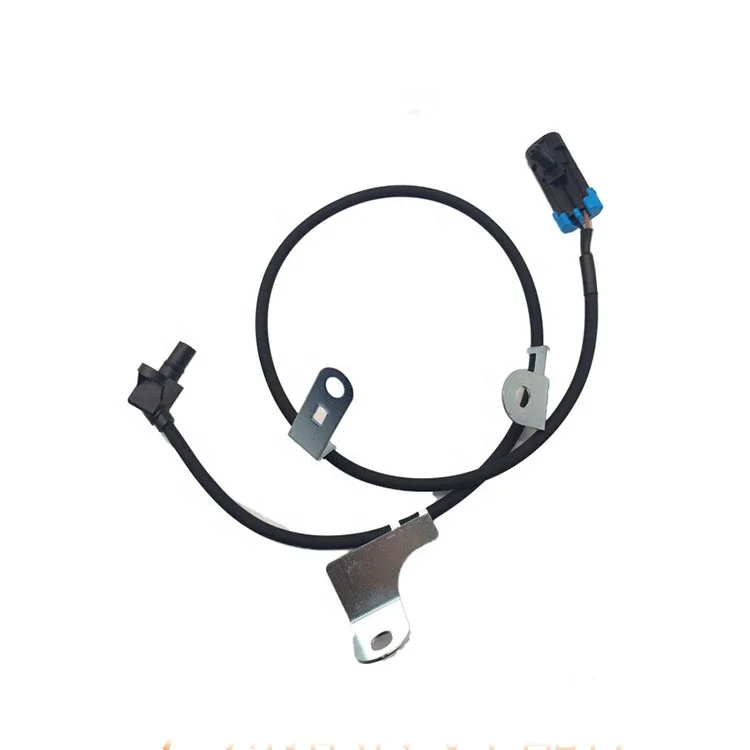

Передний левый и правый Abs Датчик замедления скорости вращения колеса 15990503 15990504 15991985 19181879 15991986 для Chevrolet Silverado
7,00 $ - 11,00 $

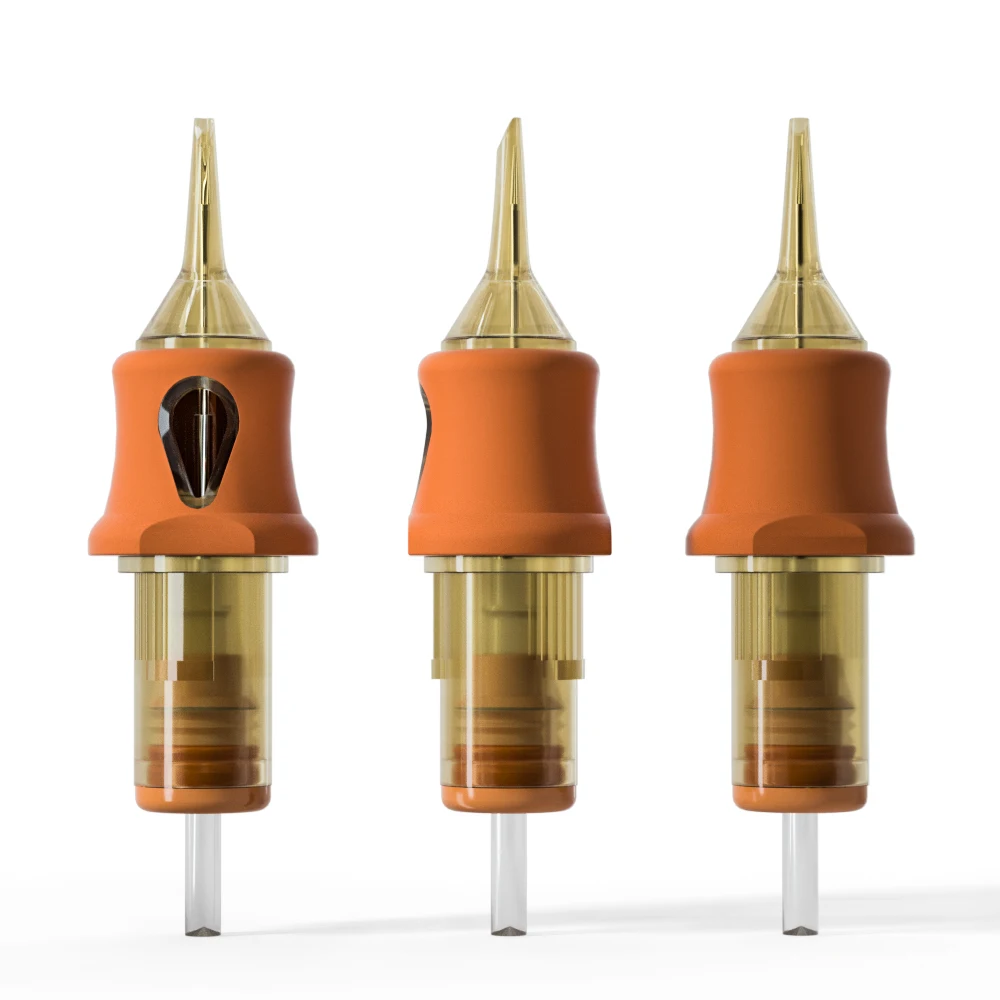

Популярный круглый защитный микро-картридж для ручки
8,10 $ - 9,30 $

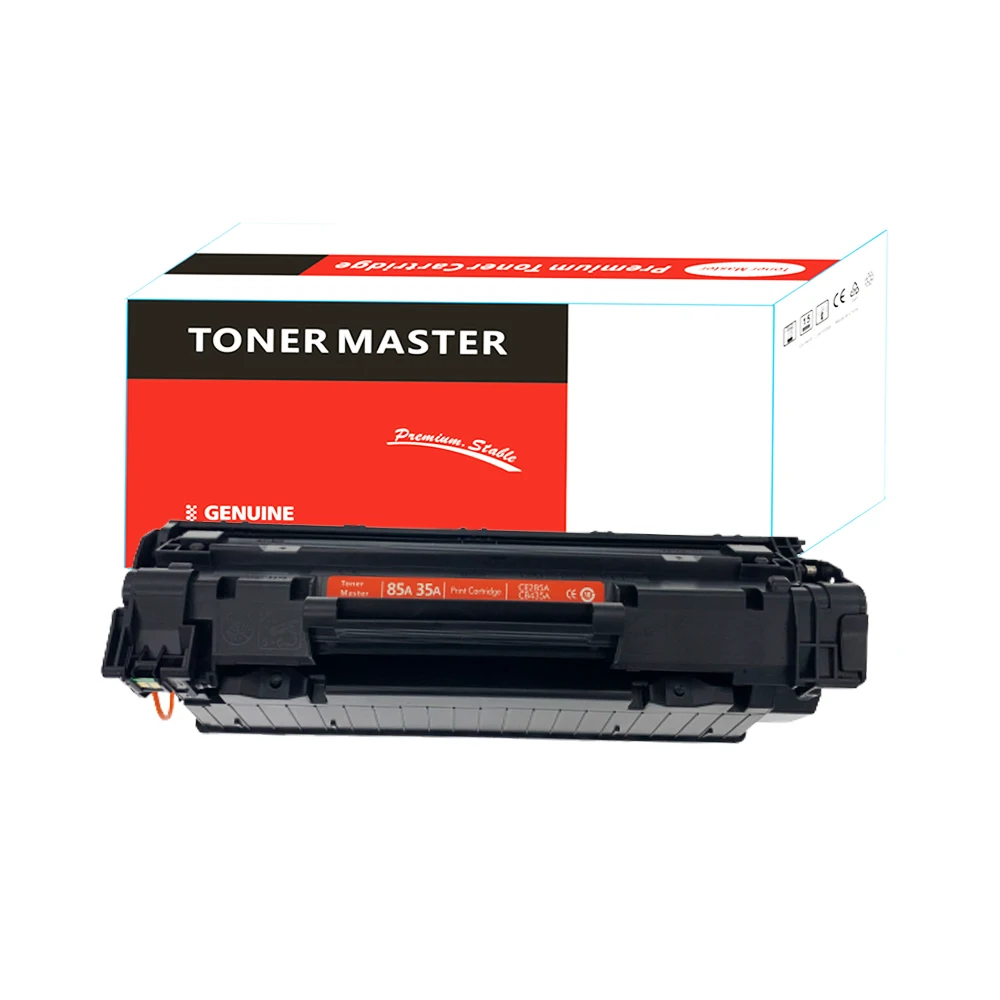

Дешевая цена на оригинальный картридж с тонером CE285A переработка картриджа для HP в
2,65 $ - 3,30 $

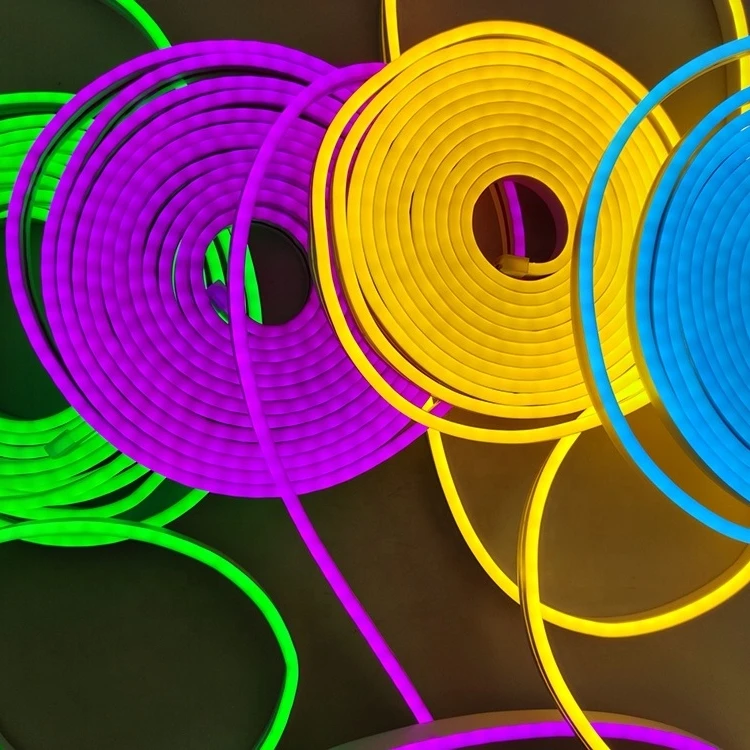

Неоновая Светодиодная лента 6*12 мм 8*16 мм 12 В постоянного тока SMD2835 120 светодиодов/м для украшения
4,90 $ - 6,10 $

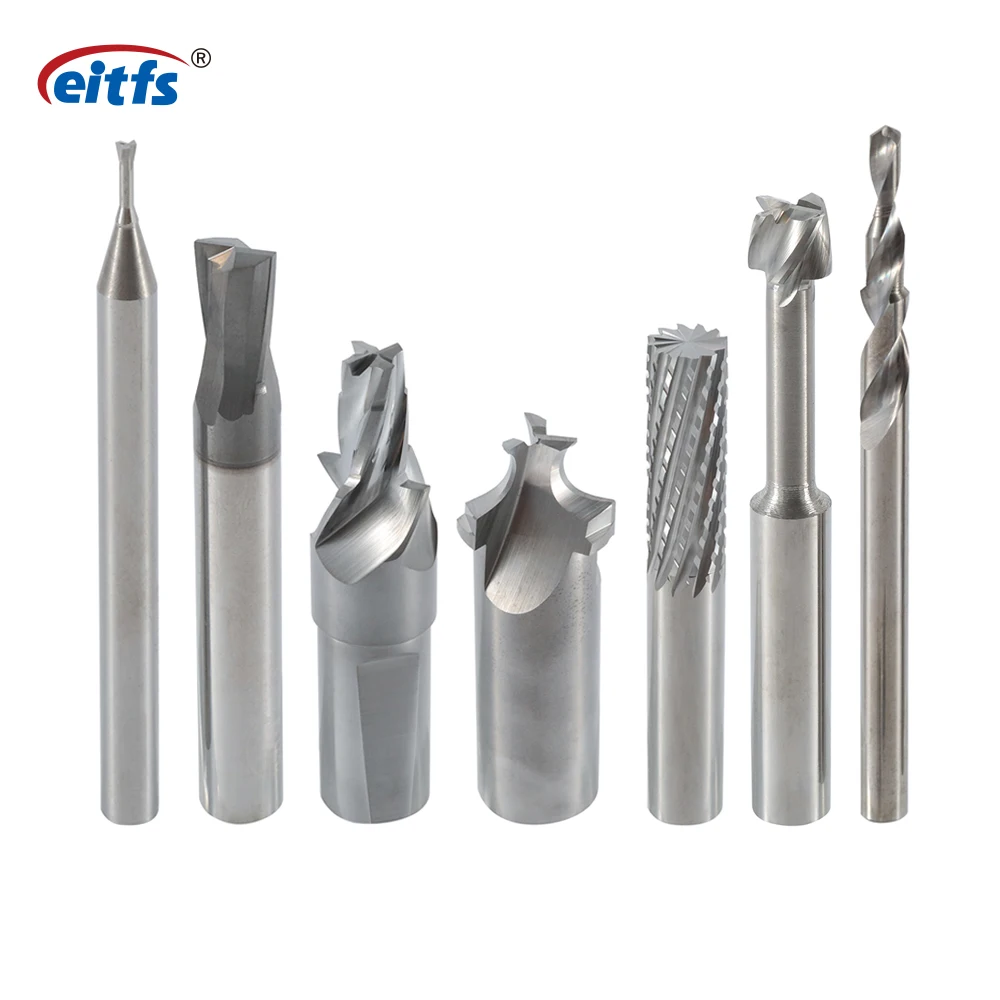

EITFS алюминиевая Концевая фреза с карбидным шариковым ножом вольфрамовая фаска шаговые концевые фрезы станок
