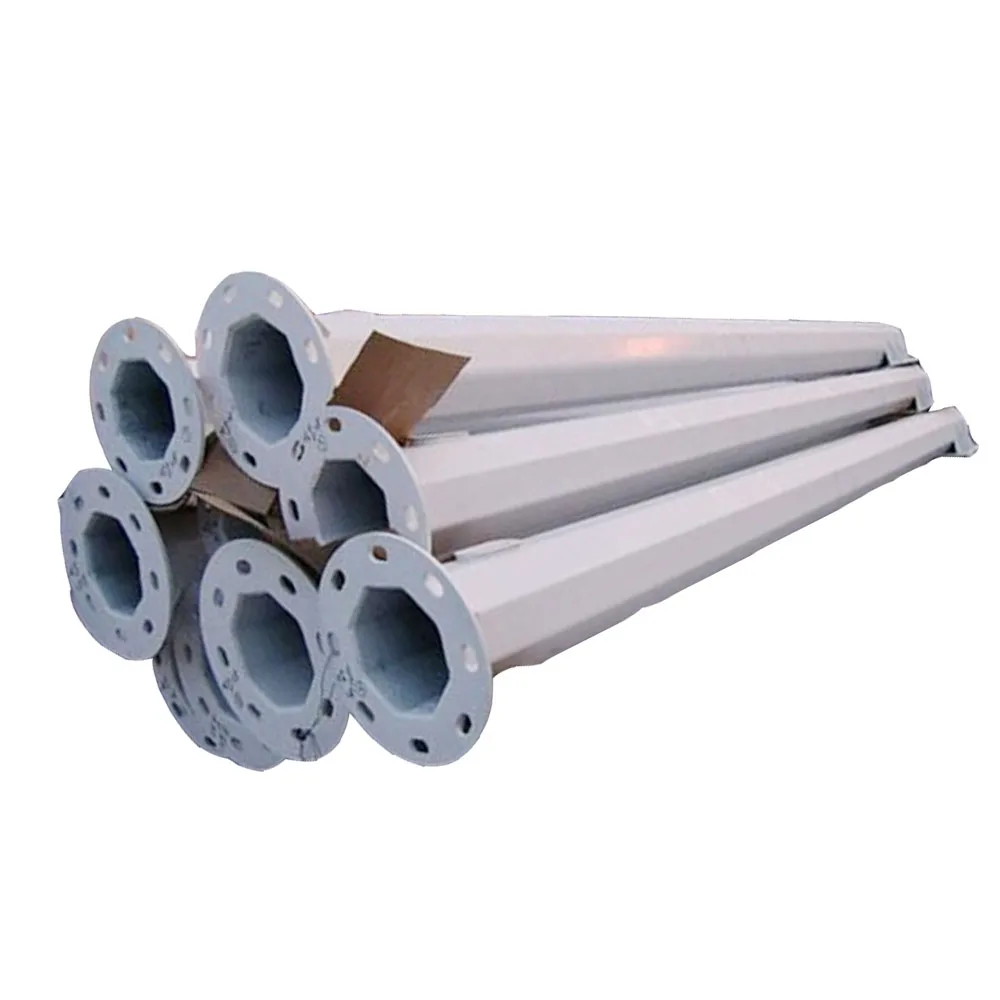

Башня ветряной турбины 1 м до 20
29 186,41-266 750,17 ₽
Ветряная турбина высокого качества и по хорошей цене магнитный генератор с постоянным магнитом мощностью 50 кВт
- Категория: >>>
- Поставщик: Qingdao Bluesky New Energy Co. Ltd.Qingdao Ltd.
Сохранить в закладки 1600548722093:
Описание и отзывы
Характеристики
Product Description

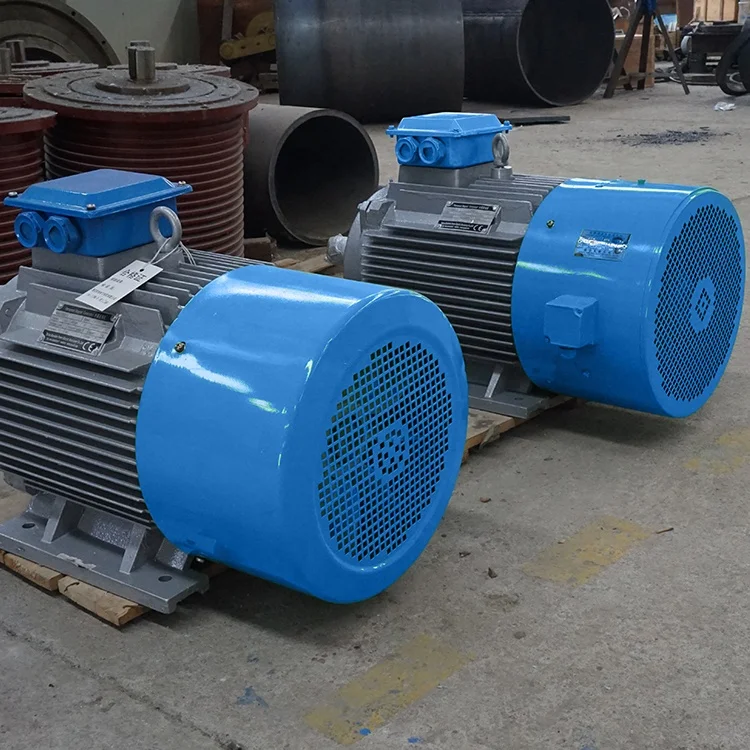

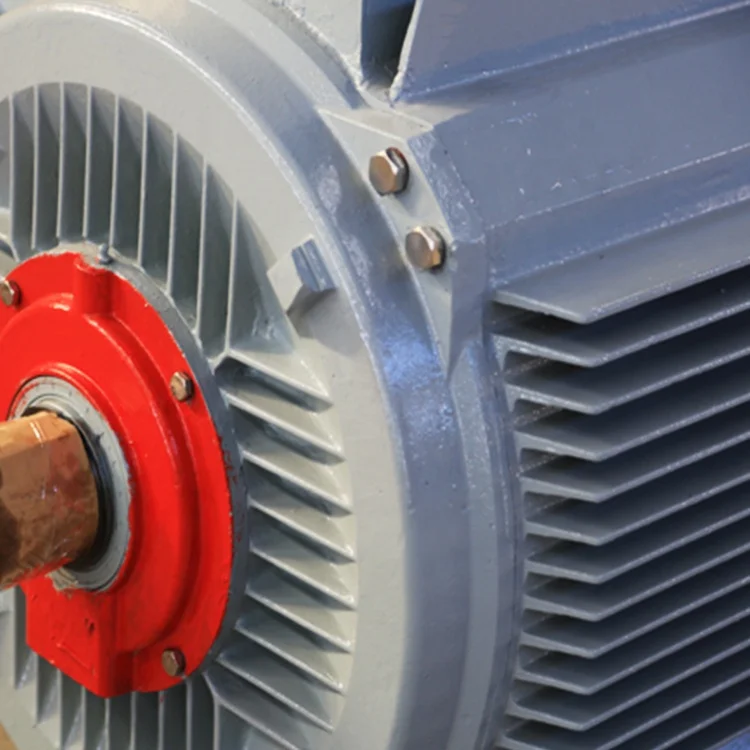

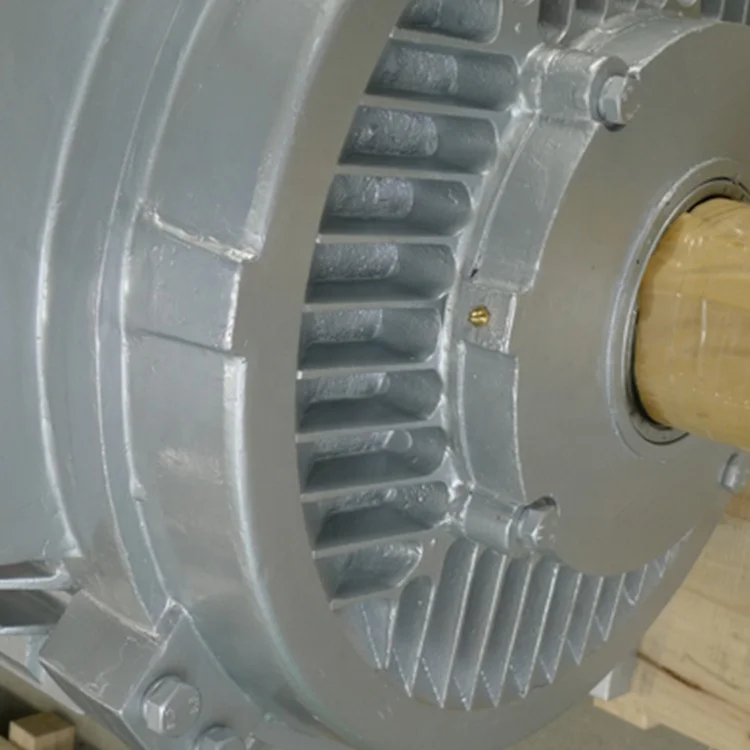

Radial flux Permanent magnet synchronous generator (PMSG)
The permanent magnet synchronous generator is such a device that transforms mechanical energy into the electrical energy delivered by the prime mover of the generator.
It is also known as an alternator, it called a synchronous generator because its rotation speed is equal to the rotating speed of the field at the stator of the generator called synchronous speed.
In permanent magnet synchronous generator, there is no need of the slip rings and carbon brushes, which make the machine less expensive, lightweight, and maintenance of the generator also decreases.
Product Application
20kW 300RPM 60Hz vertical mounting magnetic generator for water turbine.
A water turbine is a rotary machine that converts kinetic energy and potential energy of water into mechanical work.
500kW 60RPM Direct-driven Wind Turbine Generators.
The presence of gearboxes increases the price, energy losses, and cost of repairing the generator but without the gearbox price and weight of circuitry deceases but it also the best option for the offshore applications.
1000kW wave power energy generation.
Oscillating Water Columns (OWCs) are a type of Wave Energy Converter (WEC) that harness energy from the oscillation of the seawater inside a chamber or hollow caused by the action of waves.
200kW 250RPM permanent magnetic generator with gear-box for hydro power.
100kW 300RPM permanent magnetic synchronous generator for hydro power.
150kW 100RPM permanent magnetic generator for marine energy power.
50kW 300rpm 60Hz magnetic generator for flywheel civil science power generation.
600kW 1500rpm 50Hz magnetic generator for flywheel civil science power generation.
100kW 1800rpm 60Hz permanent magnetic synchronous generator application, a civil science research.
3D construction drawing

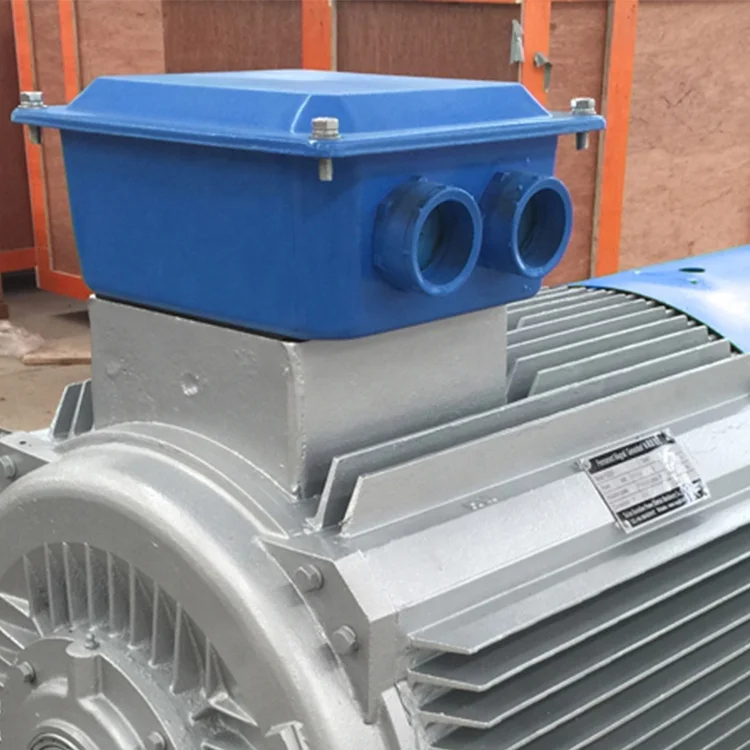

Main components: rear end cover, cooling fan, casing, rotor, terminal box, stator, bearing, front end cover.
Rotor comprises of the permanent magnet with the shaft connected with it.
Stator provides protection to internal structure from the exterior environment.
Permanent magnetic synchronous generator no need of the slip rings and carbon brushes, which make the generator less expensive, lightweight, and maintenance of the generator also decreases.
Stator provides protection to internal structure from the exterior environment.
Permanent magnetic synchronous generator no need of the slip rings and carbon brushes, which make the generator less expensive, lightweight, and maintenance of the generator also decreases.

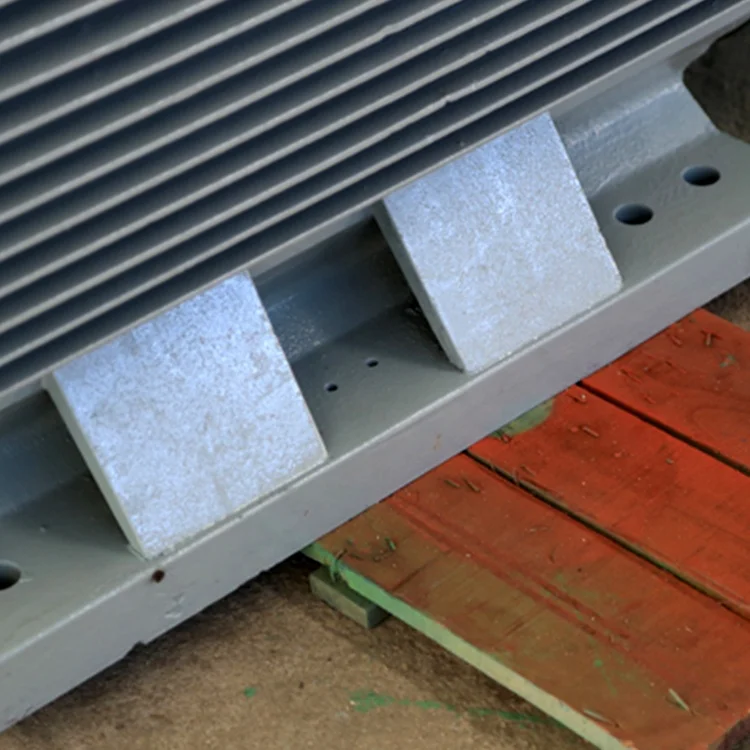

B3
Cooling fan is optional
It is standard type, if customer don't have any requirement, we will do this.
B35 (It has front flange plate)
Cooling fan is optional
B5 (No Base)
It is usually used for vertical installation method, for example of vertical kinetic turbine.
Specification
QingDao BlueSky New Energy-Permanent magnetic synchronous generator/alternator(PMSG) Specification | ||||||||||||||||
Model Distance from shaft center to ground (mm) | Rated Power | Rated RPM | Frequency | Rated Voltage 3 phase 3 phase with neutral wire | Rated Current | Start Torque | Rated Torque | Rated Efficiency (Full Load) | ||||||||
BLSK-90 | 1kW | 500RPM | 50Hz | 48V | 12A | 0.3N-m | 19N-m | 96% | ||||||||
BLSK-112 | 2kW | 500RPM | 50Hz | 96V | 12A | 0.6N-m | 38N-m | |||||||||
BLSK-132 | 5kW | 900RPM | 60Hz | 220V | 13A | 0.8N-m | 53N-m | |||||||||
BLSK-132 | 10kW | 1800RPM | 60Hz | 415V | 14A | 0.8N-m | 53N-m | |||||||||
BLSK-160 | 20kW | 1500RPM | 50Hz | 415V | 28A | 1.9N-m | 127N-m | |||||||||
BLSK-160 | 20kW | 1800RPM | 60Hz | 440V | 26A | 1.6N-m | 106N-m | |||||||||
BLSK-180 | 5kW | 250RPM | 50Hz | 220V | 13A | 2.9N-m | 193N-m | |||||||||
BLSK-180 | 7kW | 300RPM | 60Hz | 240V | 17A | 3.4N-m | 225N-m | |||||||||
BLSK-225 | 60kW | 900RPM | 60Hz | 380V | 91A | 9.6N-m | 637N-m | |||||||||
BLSK-250 | 10kW | 100RPM | 20Hz | 380V | 15A | 14.5N-m | 965N-m | |||||||||
BLSK-132 | 15kW | 1500RPM | 50Hz | 380V | 23A | 1.4N-m | 96N-m | |||||||||
BLSK-315 | 20kW | 50RPM | 10Hz | 400V | 29A | 57.9N-m | 3859N-m | |||||||||
BLSK-250 | 25kW | 200RPM | 40Hz | 400V | 36A | 18.1N-m | 1206N-m | |||||||||
BLSK-250 | 30kW | 300RPM | 60Hz | 380V | 46A | 14.5N-m | 965N-m | |||||||||
BLSK-280 | 40kW | 200RPM | 40Hz | 400V | 105A | 28.9N-m | 1929N-m | |||||||||
BLSK-280 | 50kW | 250RPM | 50Hz | 400V | 76A | 28.9N-m | 1929N-m | |||||||||
BLSK-355 | 75kW | 90RPM | 12Hz | 400V | 108A | 120N-m | 8039N-m | |||||||||
BLSK-280 | 100kW | 750RPM | 50Hz | 400V | 144A | 19.3N-m | 1286N-m | |||||||||
BLSK-355 | 150kW | 900RPM | 60Hz | 400V | 197A | 24.4N-m | 1608N-m | |||||||||
BLSK-280 | 200kW | 300RPM | 60Hz | 400V | 262A | 96.5N-m | 6431N-m | |||||||||
BLSK-315 | 200kW | 250RPM | 50Hz | 400V | 289A | 115N-m | 7470N-m | |||||||||
BLSK-355 | 250kW | 500RPM | 50Hz | 400V | 361A | 72.3N-m | 4823N-m | |||||||||
BLSK-355 | 300kW | 125RPM | 50Hz | 400V | 433A | 347N-m | 23152N-m | |||||||||
BLSK-355 | 400kW | 250RPM | 50Hz | 400V | 577A | 232N-m | 15434N-m | |||||||||
BLSK-450 | 500kW | 250RPM | 50Hz | 400V | 722A | 289N-m | 19293N-m | |||||||||
BLSK-355 | 700kW | 3000RPM | 50Hz | 400V | 1010A | 33.8N-m | 2251N-m | |||||||||
BLSK-560 | 800kW | 200RPM | 50Hz | 690V | 669A | 579N-m | 38586N-m | |||||||||
BLSK-400 | 1mW | 375RPM | 50Hz | 1140V | 506A | 386N-m | 25724N-m | |||||||||
BLSK-630 | 1.5mW | 300RPM | 60Hz | 690V | 1255A | 723N-m | 48232N-m | |||||||||
BLSK-710 | 2mW | 250RPM | 50Hz | 1140V | 1013A | 1157N-m | 77172N-m | |||||||||
BLSK-560 | 3mW | 750RPM | 50Hz | 1140V | 1519A | 579N-m | 38586N-m | |||||||||
BLSK-630 | 3.5mW | 900RPM | 60Hz | 1140V | 1773A | 563N-m | 37514N-m | |||||||||
BLSK-710 | 4mW | 500RPM | 50Hz | 1140V | 2026A | 1157N-m | 77172N-m | |||||||||
BLSK-1000 | 5mW | 500RPM | 50Hz | 1140V | 2532A | 1447N-m | 96465N-m | |||||||||
We can provide customize production according to customers' needs. 1kW-5000kW(5mW) 20rpm-3600rpm 3Hz-300Hz 24V-1140Vac, etc. Different cooling method, shell, color, etc for different application. Welcome to contact us for more details! | ||||||||||||||||
Company Profile
Certifications
Packing & Shipping
FAQ
Q1: Are you trading company or manufacturer ?
A1: We are manufacturer.
Q2: Do you have your own R&D team?
A2: Yes, we can customize products as your requirements.
Q3: How about the quality?
A3: We have the best professional engineer and strict QA and QC system.
Q4: What is the voltage and frequency of your permanent magnetic generator?
A4: 3 phase 220V 380V 400V 415V 440V 690V, 10Hz 20Hz 30Hz 50Hz 60Hz or requested voltage and frequency.
Q5: Do you offer OEM service?
A5: Yes.
Q6: What is your lead time?
A6: Average 15 days, but It depends on the quantity and model you order.
A1: We are manufacturer.
Q2: Do you have your own R&D team?
A2: Yes, we can customize products as your requirements.
Q3: How about the quality?
A3: We have the best professional engineer and strict QA and QC system.
Q4: What is the voltage and frequency of your permanent magnetic generator?
A4: 3 phase 220V 380V 400V 415V 440V 690V, 10Hz 20Hz 30Hz 50Hz 60Hz or requested voltage and frequency.
Q5: Do you offer OEM service?
A5: Yes.
Q6: What is your lead time?
A6: Average 15 days, but It depends on the quantity and model you order.
Q7: Do you have axial flux coreless disc permanent magnet generator for vertical wind turbine?
A7: Yes, we have both outer rotor and inner rotor 200W-10kW coreless disc permanent magnet generator, please contact us sales for details.
Похожие товары
Инверторная сетка для вертикального генератора 5 кВт 48 В небольшой полный турбинный контроллер 10 домашняя привязанная 240 часть ветряной турбины
182,14-339,38 ₽

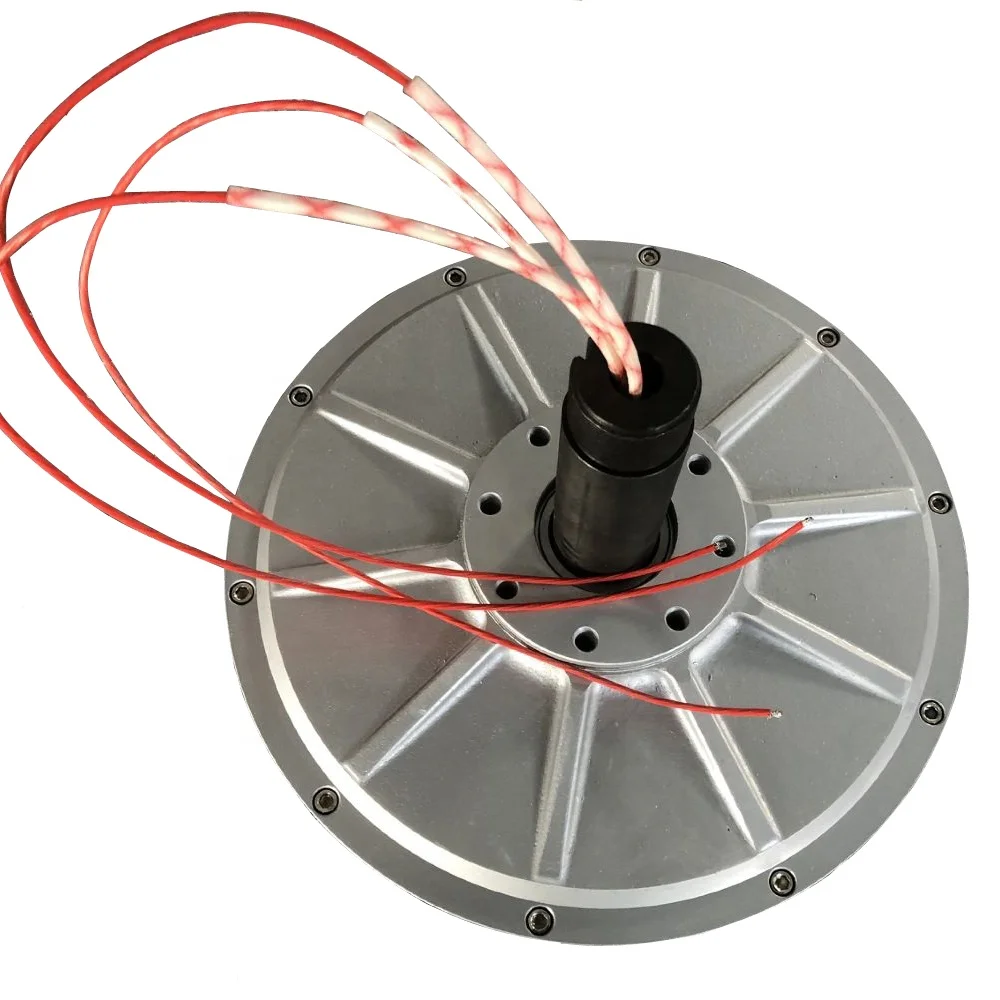

Maglev 300W200R/500W300RPM 300 Вт генератор постоянного магнита Dia. 260 мм дисковый Тип Низкий rpm постоянный магнит переменного тока
70 137,88 ₽

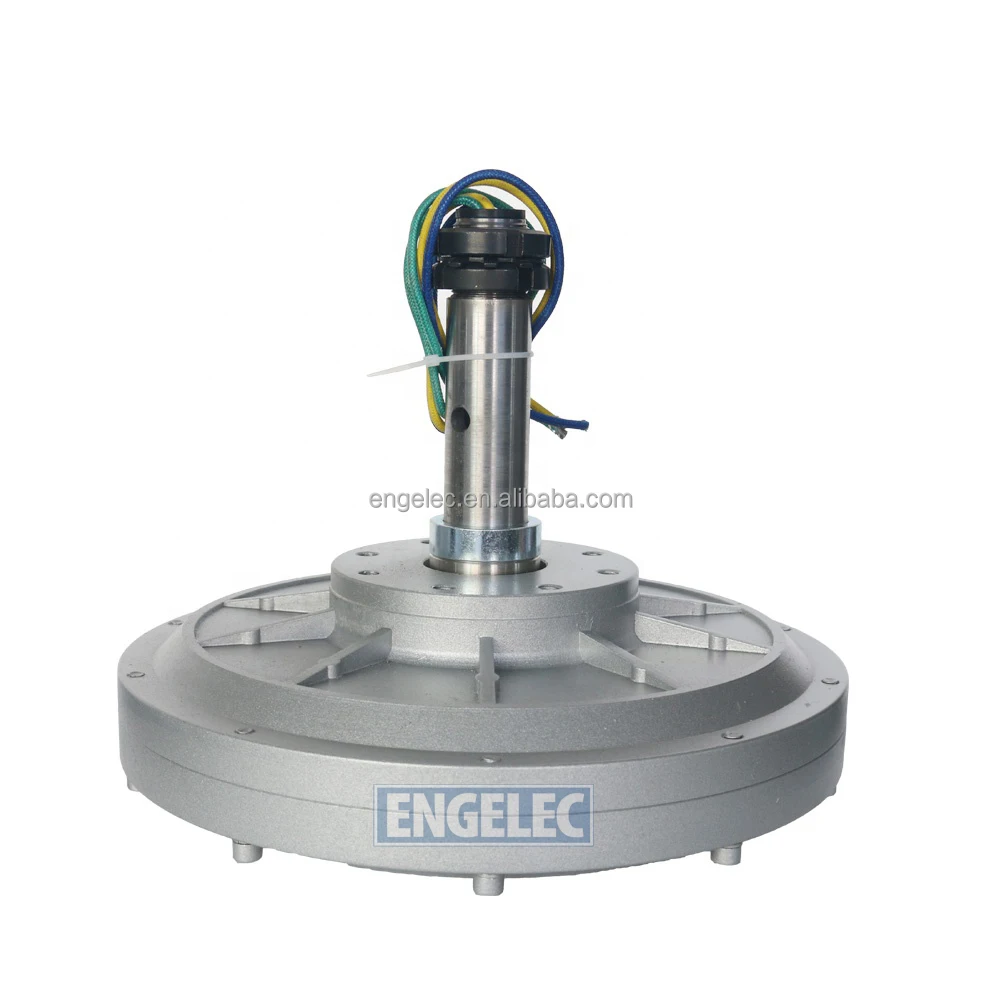

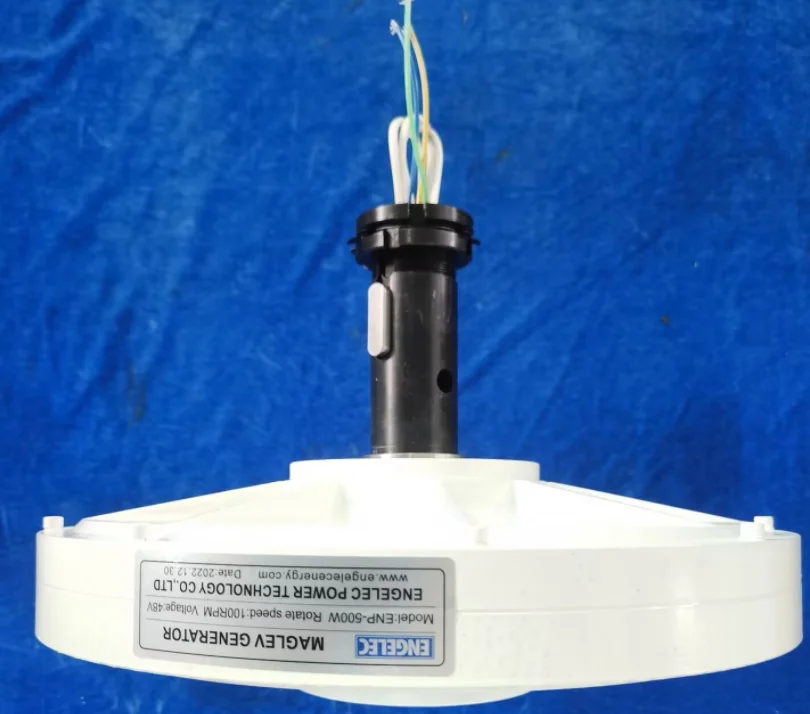

Генератор Маглев ENGELEC 500 Вт 350 об/мин Низкий стартовый крутящий момент для ветровой турбины высокоэффективный дисковый Магнитный левитационный генератор PMG
