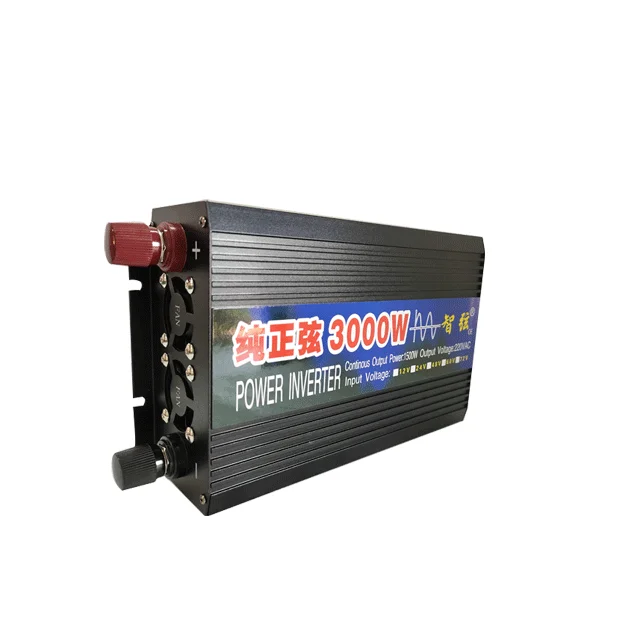

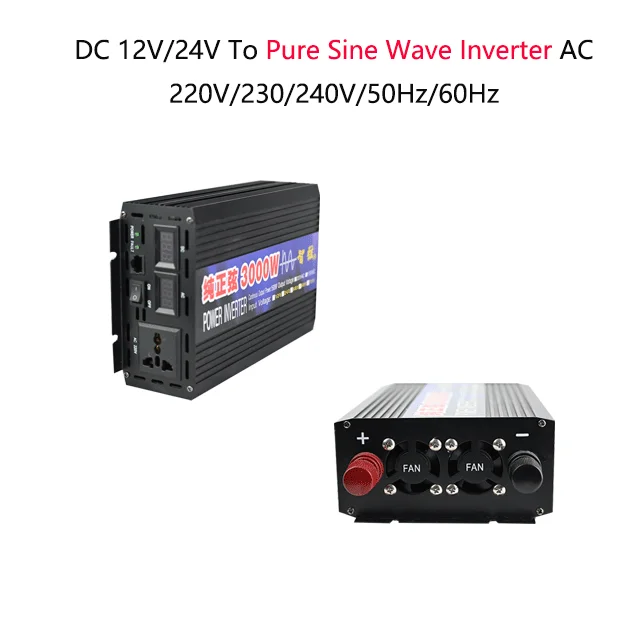

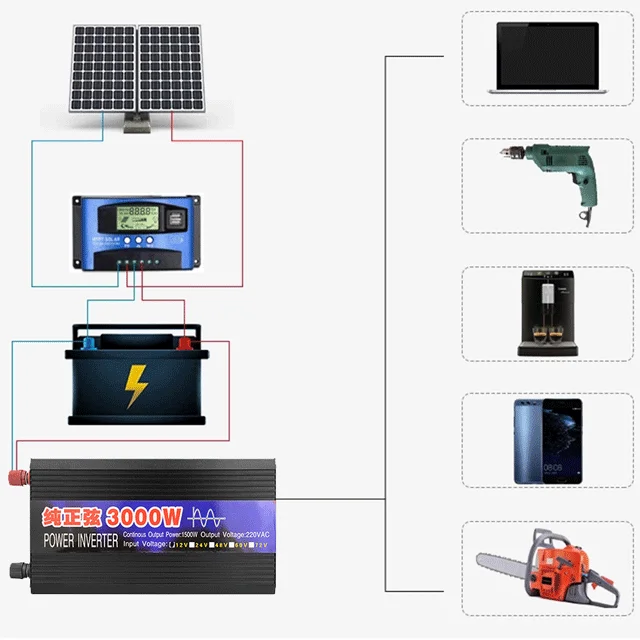

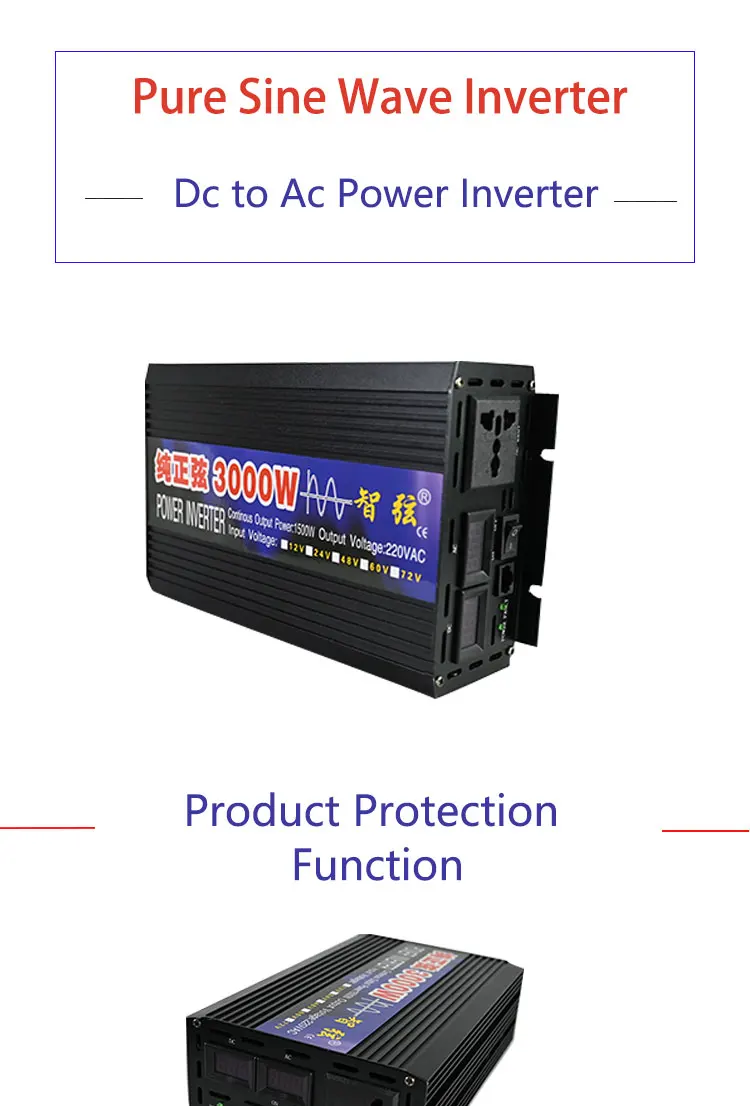

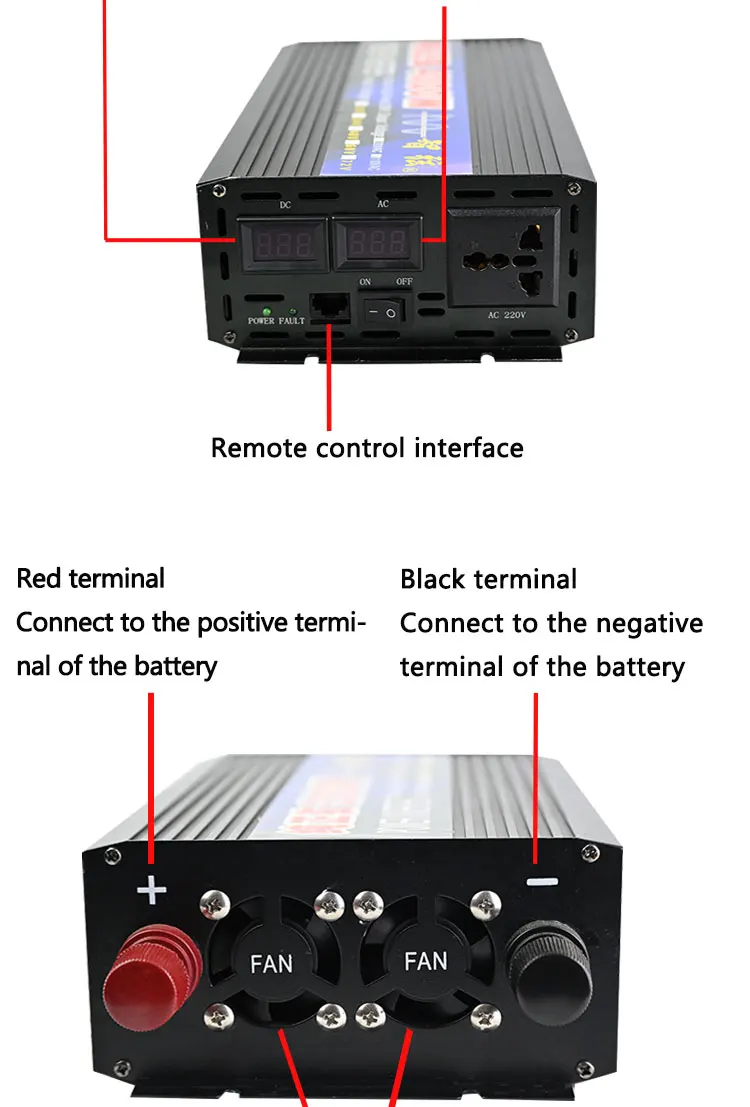

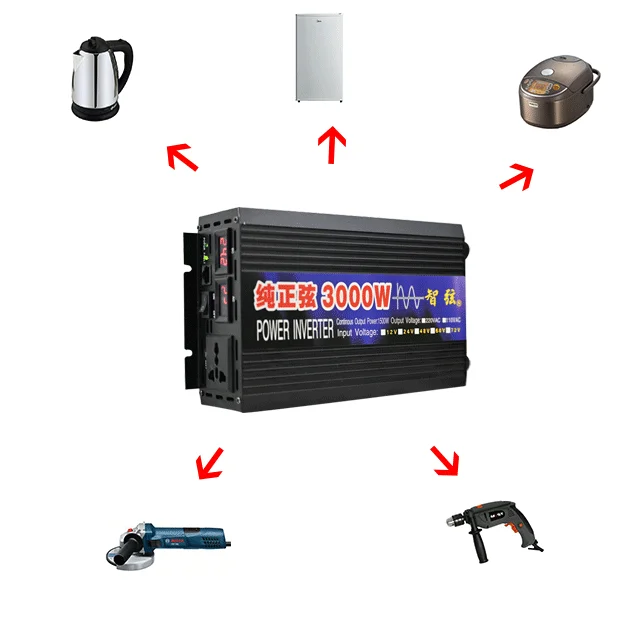

New Type Pure Sine Wave Converter of 3000W 12v 24v 48V 3kva Solar Inverter
| Product parameter | ||||||||
| Model | ZX_1000W | ZX_1600W | ZX_2000W | ZX_3000W | ZX_4000W | ZX_5000W | ZX_6000W | ZX_8000W |
| Rate power | 500W | 800W | 1000W | 1500W | 2000W | 2500W | 3000W | 4000W |
| Peak power | 1000W | 1600W | 2000W | 3000W | 4000W | 5000W | 6000W | 8000W |
Overload protection | 500W±100W | 800W±100W | 1000W±100W | 1500W±100W | 2000W±100W | 2500W±100W | 3000W±100W | 4000W±100W |
Input voltage | 12V24V48V60V Optional | |||||||
The output voltage | 220V/230V240V Optional | |||||||
Output frequency | 50Hz/60Hz | |||||||
Output waveform | Pure sine wave | |||||||
Waveform distortion | THD<3%(Linear load) | |||||||

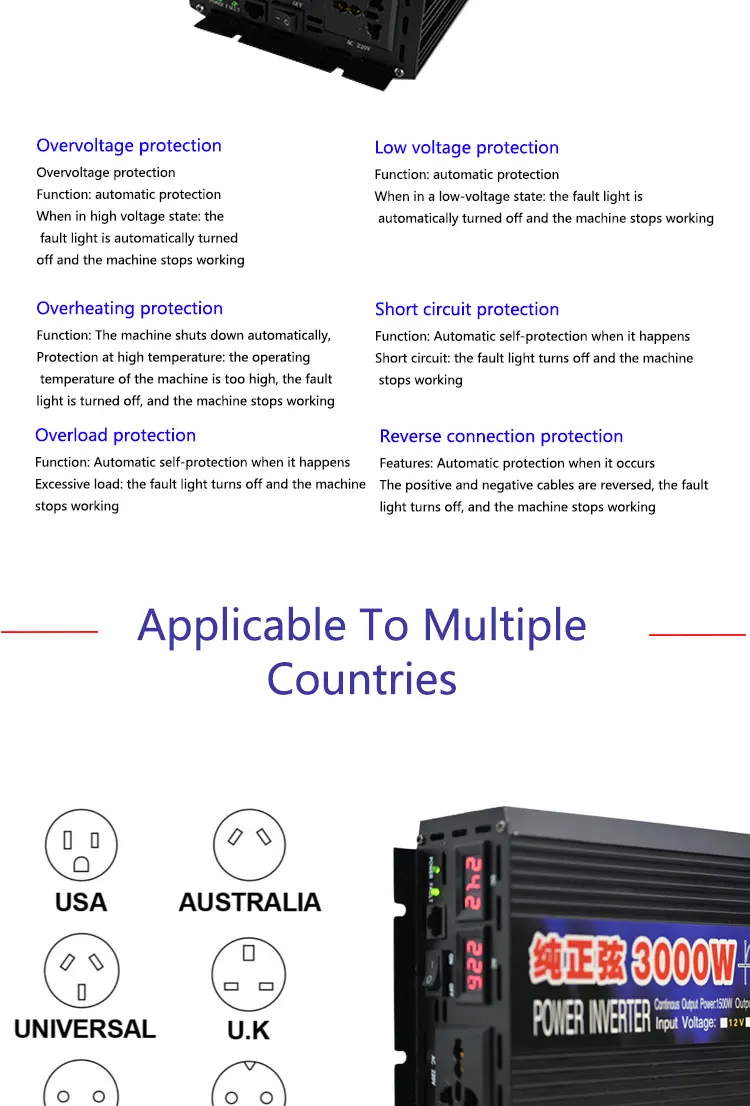

Overvoltage protection | 12V(9.5V_15.8V) 24V(19.5V_29.8V) 48V(39V_60V) 60V(53V_72.5V) | |||||||
| Temperature protection | Start up:45℃±5℃ | |||||||
Shut down:38℃±5℃ | ||||||||
Over temperature shut down:85℃±5℃ | ||||||||
Over temperature recovery:55℃±5℃ | ||||||||

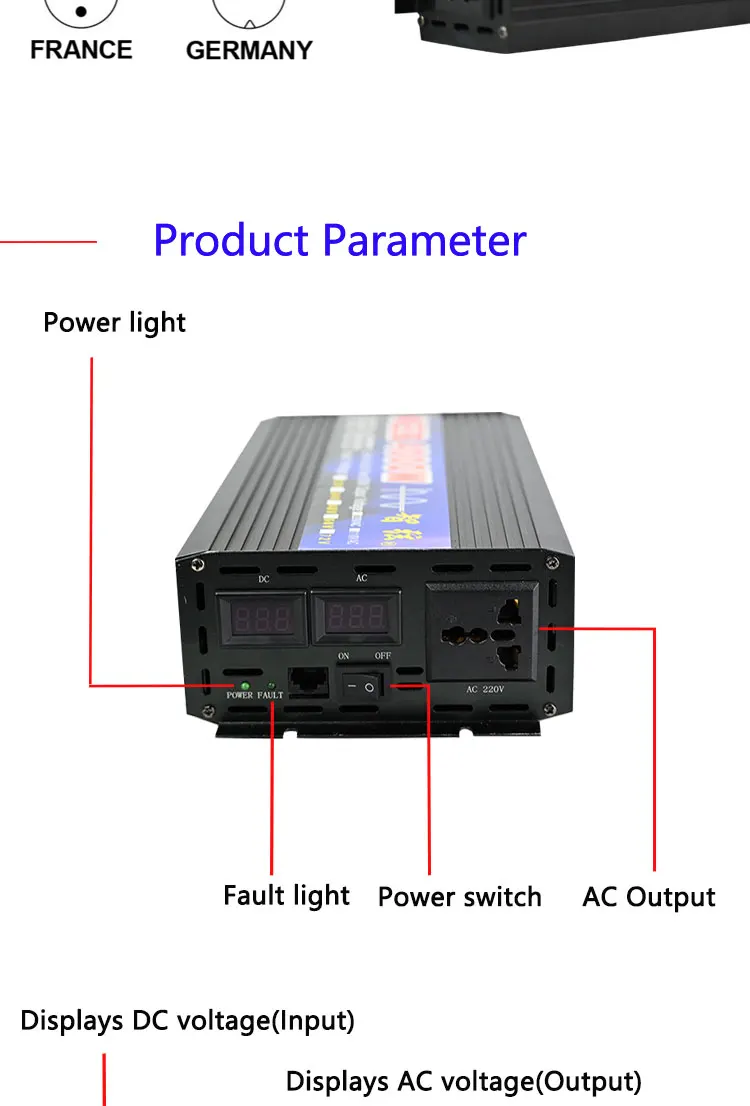

| Display mode | LED | |||||||
| Efficiency | 90% | |||||||
| Output socket | The default is the national standard socket(European standard, British standard, and American standard sockets can be selected) | |||||||
| Shell material | Iron | Iron | Iron | Iron | Iron | Aluminum | Aluminum | Aluminum |

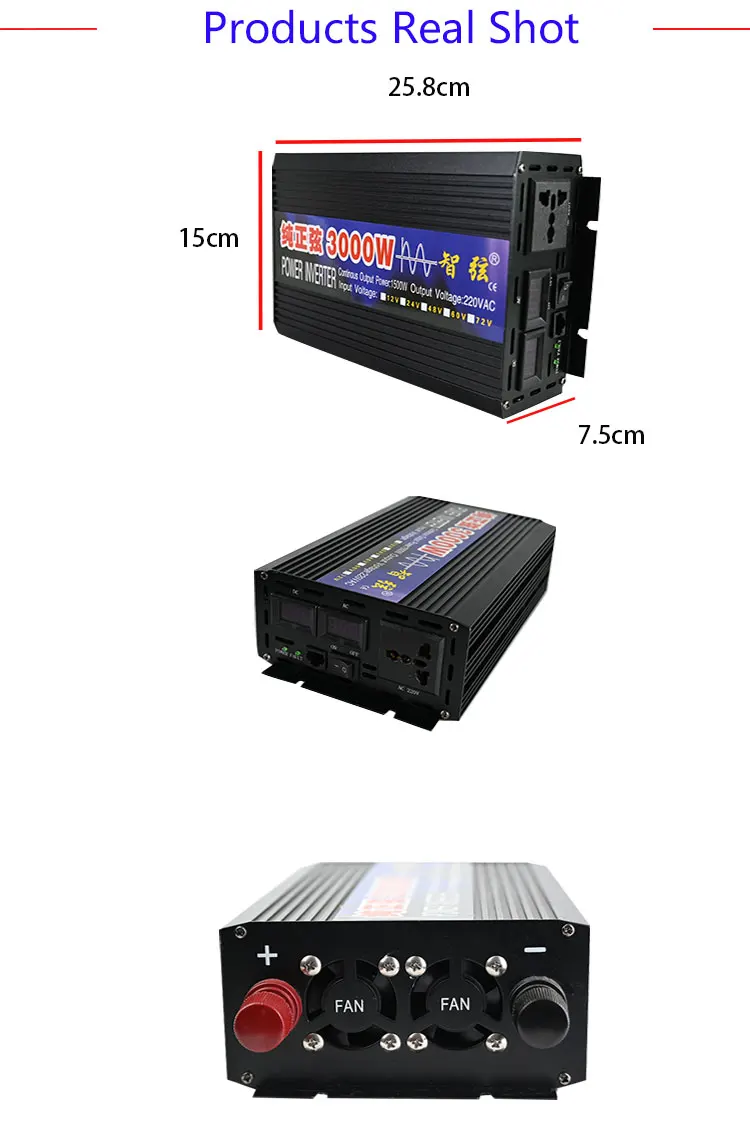

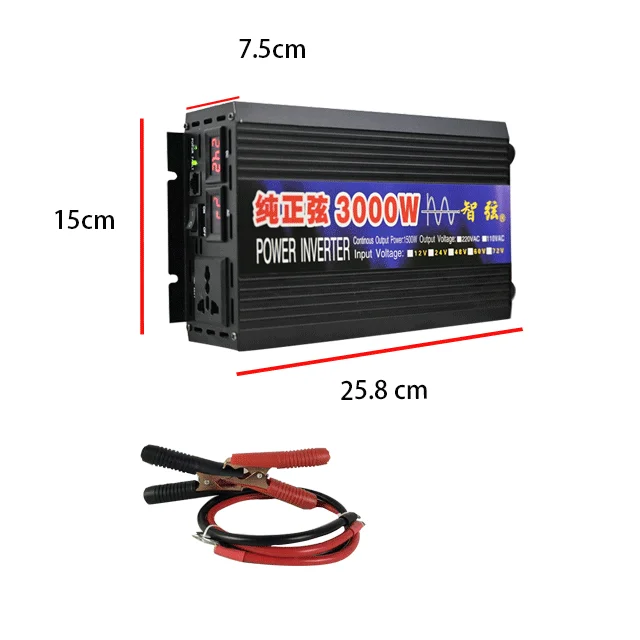

| Size(CM) | 21*10.3*6 | 24.5*10.3*6 | 28.6*10.3*6 | 25.8*15*7.5 | 27.7*15*7.5 | 28.5*18*14 | 32.5*18*14 | 43*18*14 |
| Weight(KG) | 0.8 | 1 | 1.2 | 1.8 | 2.2 | 4.3 | 4.8 | 6.1 |
click here for more information | ||||||||
