Ingersoll Rand (ингерсолл Рэнд YH65 T38/T45 500 переходника хвостовика для бурения скальных пород и горнодобывающей промышленности

ProDrill Shank Adapters cover world main drill rigs brands and drifter as follows : - Atlas Copco (COP1238, COP1840, COP1638, COP1838, COP2150, COP2550, COP2160, COP2560)
- Furukawa (HD609, HD709, HD612, HD712)
- Sandvik (HL500, HL600, HL700, HL800, HL1000, HL1500, HLX5)
- Ingersoll Rand (YH65, YH70, YH80, YH60, YH135)
- Montabert (HC109, HC158, HC120, HC150, HC80)
Rock drilling tools manufacturer Prodrill produces shank adapters for most models of current prevailing rock drill machines. All Prodrill shank adapters are carburized, CNC manufactured, and made from premium steel. Thus ensure them with superior toughness and anti-fatigue strength to meet the most demanding drilling conditions. Moreover, all shanks could be produced with ether male or female threads as per customer's requirement.

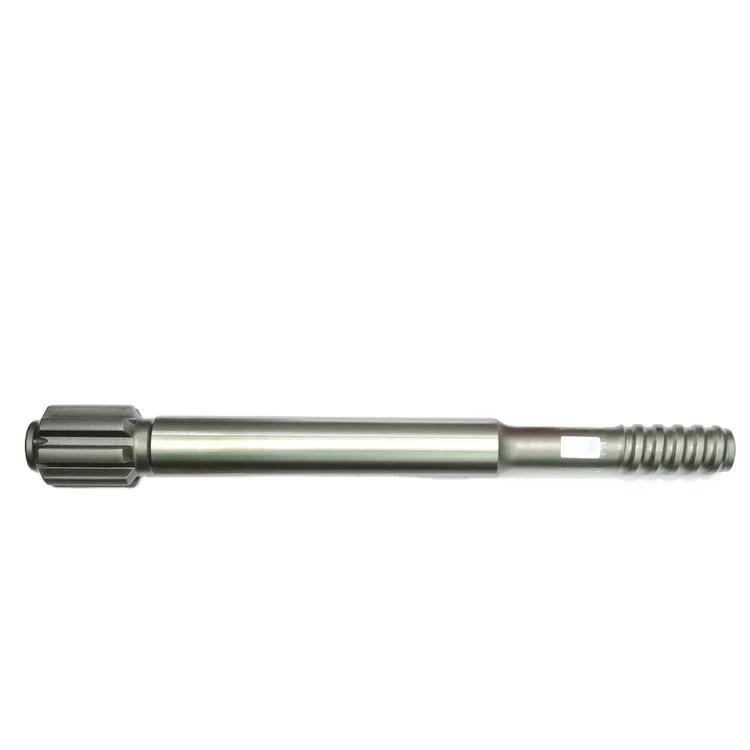

HLX5-T38-500 Shank Adapter:

• Code No.: YH65 T38/T45-500


• Thread Type: T38/T45


• Length: 500mm


• Rock Drill Type: YH65


• Rock Drill Manufacturer: Ingersoll-Rand

Male shank adapters are generally better suited for drifting, tunneling and extension applications where high bending stresses are present. While female shank adapters are used when the drilling space is limited and the total feed length is important, for example underground roof bolting.

The task of the shank adapter is to transmit rotation torque, feed force, impact energy and flushing medium to the drill string (extension drill rods, drifting drill steels).

Prodrill shank adapters are there fore designed to with stand the high impact power of modern rock drills and made from specially selected material which also is hardened through cauterizing. Around 300 different shank adapters suitable for different rock drills are currently available from Atlas Copco series drifters, Sandvik, Tam rock series drifters, Garden Diver series drifters etc.

Two flushing options of shank adapters: internal or external
— Internal flushing uses a water tube that fits through the center of the drill and into an o-ring seal in the end of the shank, to transfer flushing into the drill string
— External flushing, holes or a slot are required in the side of the shank adapter.These line up between seals inside the front head or water box of the rock drill, when the shank is installed. Flushing medium is supplied directly to this device and is introduced into the drill string through the shank
— External flushing is considered superior to internal flushing, as greater volumes of flushing agent can be delivered with less risk of leakage and hammer damage from water
The shanks for hydraulic drills and some pneumatic drills have external or front head flushing. Hydraulic shanks generally have at least 5 to 14-spline configuration,  Pneumatic shanks tend to have internal or through flushing and can generally be identified by their lugs or 4-spline configuration.

Other Products:

1-12 inch middle-low/high air pressure DTH hammers & bits
Big hole high air pressure DTH hammer using in water well, oil, gas and construction drilling
Eccentric overburden drilling Equipment
Hole opener bit
Rock thread bit (R22, R25, R28, R32, R35, R38, T38, T45,T51, ST58,GT60)

Extension Rod, M/F Rod, M/m Rod, Drift Rod,

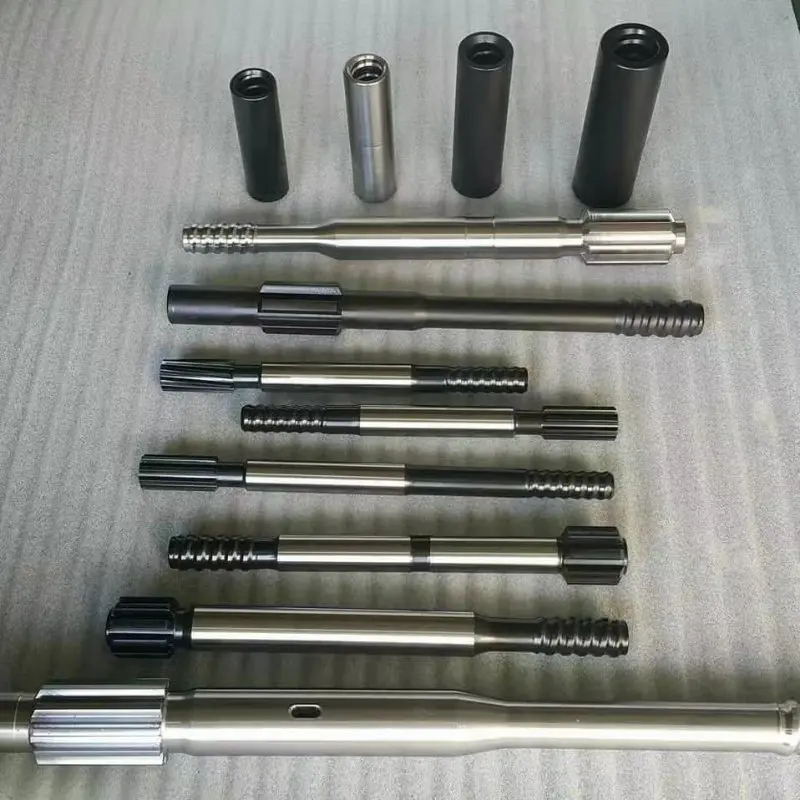

Shank adapter, coupling sleeves and all kinds of adapters

Advantages:

Compared with the oversea brands, our advantages are bellowing:

a. Our products can match over 85% against the original products

b. Price are competitive against the famous brands and best quality against the small factory

About Us:

1.    Our factory has been specialized in manufacturing drilling tools and spare parts for over 15 years.

2.    We have advanced technology and equipment.

3.    Our technician has more than 15 year’s professional working experience.

4.    Rock drilling tools are exported throughout the world. Main market: Norway, Turkey, USA, Canada, Australia, Brazil, Uruguay, Philippines, Thailand, India, etc.
