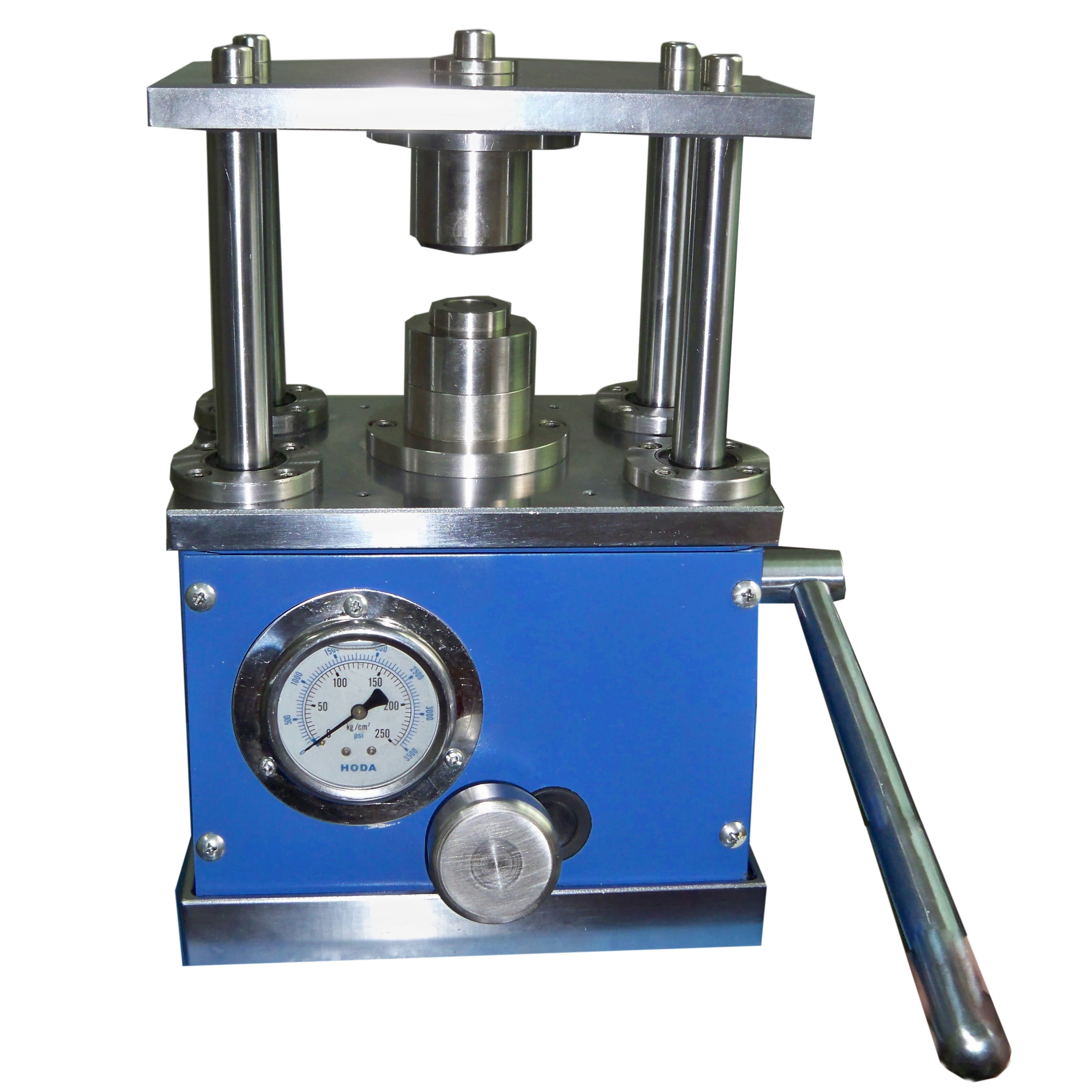

Лабораторная Ручная гидравлическая пресс-машина TMAX для порошка или хлопьев
980,00 $

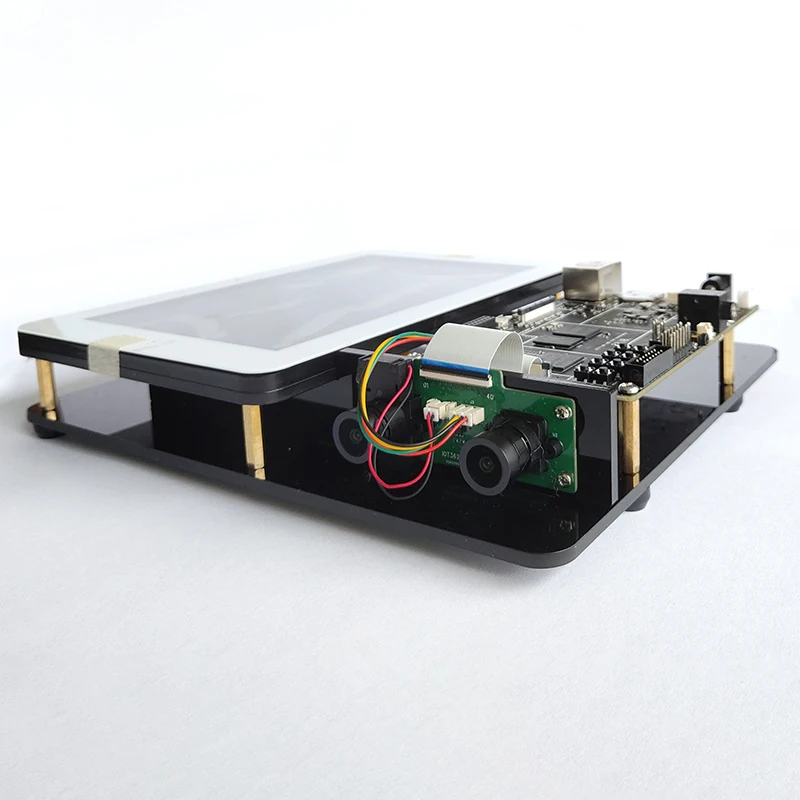

Allwinner new V853 smart AI Vision solution ic NPU 1 топы три ядра гетерогенная схема материнская плата макетная
- Категория: >>>
- Поставщик: Shenzhen Sochip Technology Co. Ltd.
Сохранить в закладки 1600549063899:
Описание и отзывы
Характеристики
Product Description
Please contact us for full datasheet
for the field of intelligent vision, it can be widely used in intellectually updated industries such as intelligent door lock,
intelligent attendance and access control, webcam, tachograph, and intelligent desk lamp.
V853/V853S integrates the single Cortex-A7 core and RISC-V core. It is also designed with a new generation of high performance ISP image processor and Allwinner Smart video engine with maximum 5M@25fps H.265/H.264 encoding and 5M@25fps decoding to achieve professional picture effect. It has built-in NPU with maximum 1T computing power and supports INT8/INT6 hybird operation and typical network models such as TensorFlow/MXNet/PyTorch/Caffe.
V853/V853S has advanced 22nm technics to support product miniaturization design. It also supports various special video input and output interfaces such as 1*4-lane MIPI/DVP/MIPI-DSI/RGB to meet the needs of all AI visual products. V853 supports 16-bit DDR3/DDR3L to meet the requirements of various products on high bandwidth. In addition, Allwinner provides the stable and easy-to use matching reference design for Linux SDK and software and hardware to assist clients in the rapid mass production of products.
Specification
Processor: A7 1.2H+RSIC-V 600Mhz
Memory: SIP 128MB DDR2/DDR3/External DDR
Enc/Dec: H.265/h.264 8M@15fps/5M@30fps
CSI: 2*2lane mipi/1*DVP 2lane/BT1120/BT656
AI:1T NPU 80+ operations
Display: RGB888/LVDS/MIPI-DSI/1080P@60
Others: SPI*4,TWI*5, UART*4,12*PWM,SDIP3
Package:
AXP2101(PMIC)
XR819S, 802.11n+BT4.2
XR871,802.11n+MCU
Key features
Various Video Interface
Support 1*4lane MIPI/2/2lane MIPI/MIPI+DVP
Support BT601/BT656/BT1120, Support 4*1080p
ISP Support TDM mode, max performance is 5M@30fps
Support 3*RawData Sensor
Image Quality
Allwinner Newest ISP engine: isp600
Allwinner Newest Enc/Dec engine: VE230
AI Performance
1T NPU
80+operations
Inference Framework: AWNN2.0
Extreme Cost-performance SoC Design
Sip DDR/External DDR
QFN88 9*9/BGA 12*12 Package
Sip LDO
Processor: A7 1.2H+RSIC-V 600Mhz
Memory: SIP 128MB DDR2/DDR3/External DDR
Enc/Dec: H.265/h.264 8M@15fps/5M@30fps
CSI: 2*2lane mipi/1*DVP 2lane/BT1120/BT656
AI:1T NPU 80+ operations
Display: RGB888/LVDS/MIPI-DSI/1080P@60
Others: SPI*4,TWI*5, UART*4,12*PWM,SDIP3
Package:
AXP2101(PMIC)
XR819S, 802.11n+BT4.2
XR871,802.11n+MCU
Key features
Various Video Interface
Support 1*4lane MIPI/2/2lane MIPI/MIPI+DVP
Support BT601/BT656/BT1120, Support 4*1080p
ISP Support TDM mode, max performance is 5M@30fps
Support 3*RawData Sensor
Image Quality
Allwinner Newest ISP engine: isp600
Allwinner Newest Enc/Dec engine: VE230
AI Performance
1T NPU
80+operations
Inference Framework: AWNN2.0
Extreme Cost-performance SoC Design
Sip DDR/External DDR
QFN88 9*9/BGA 12*12 Package
Sip LDO
Model number | SC1718V |
IC | Allwinner IC CPU V853 |
Function | V853 development board is a demo board specially for V853 AI Vision solution chip. |
Package | LFBGA |
Product performance description

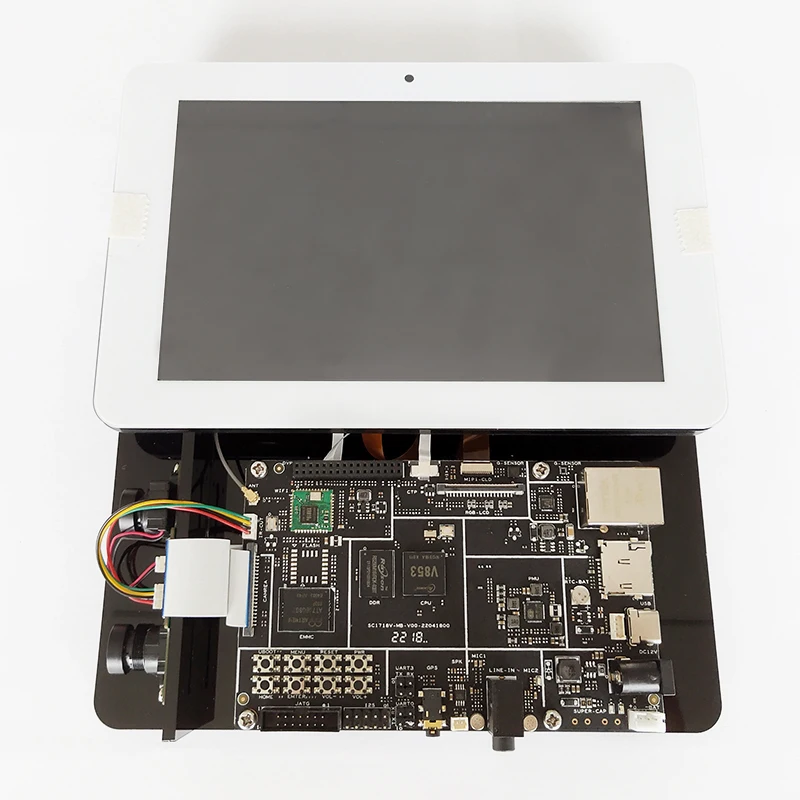

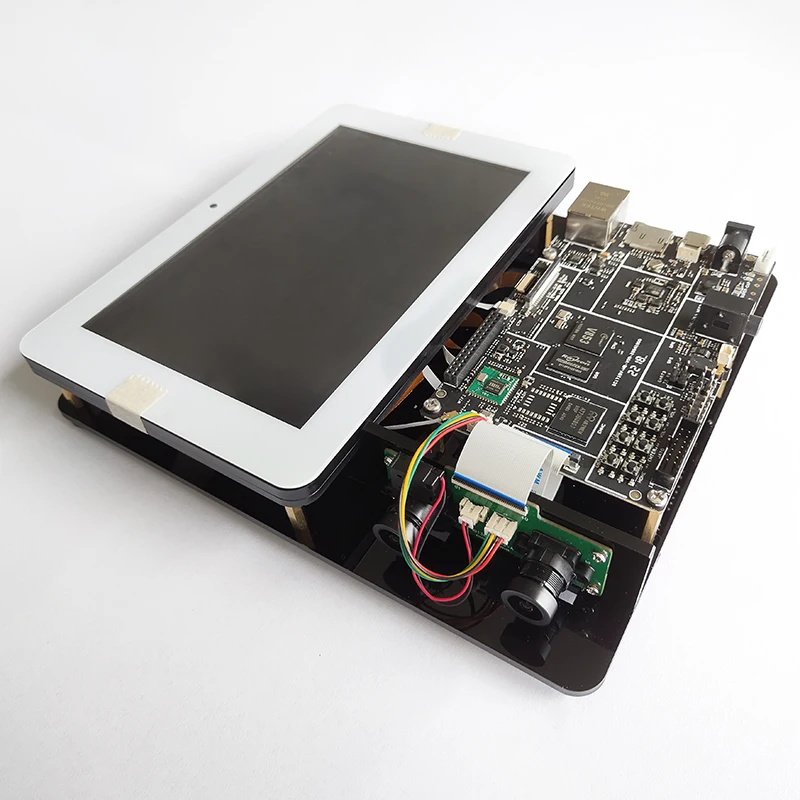

V853 development board is a demo board specially developed by Shenzhen Sochip Technology Co., Ltd. for
V853 media processing chip. It is used to show customers the powerful multimedia function and intelligent
video processing ability of V853, customer can also do pre-software development work on V853 development
board. Development board provides many of interfaces, and provides a reference for customer hardware
design, customers only need to add or delete the circuit of V853 development board to complete the
hardware design.
V853 media processing chip. It is used to show customers the powerful multimedia function and intelligent
video processing ability of V853, customer can also do pre-software development work on V853 development
board. Development board provides many of interfaces, and provides a reference for customer hardware
design, customers only need to add or delete the circuit of V853 development board to complete the
hardware design.

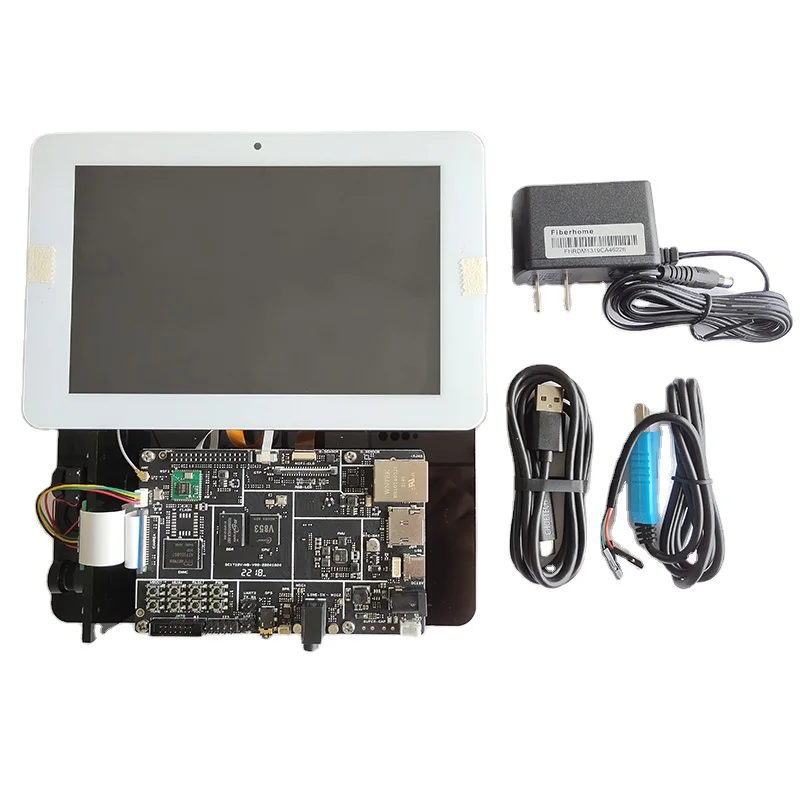

Details Images

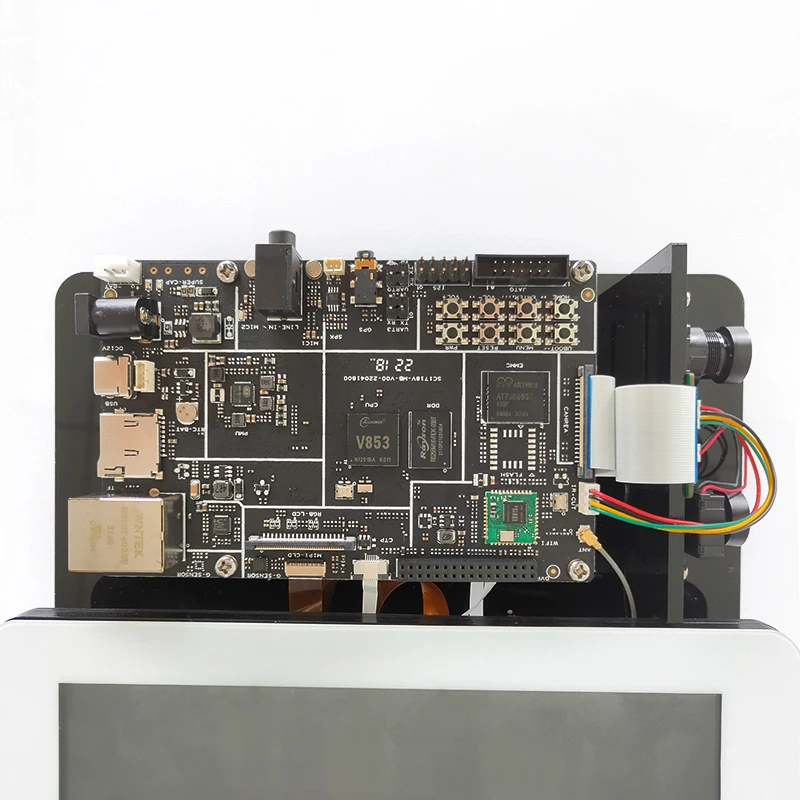

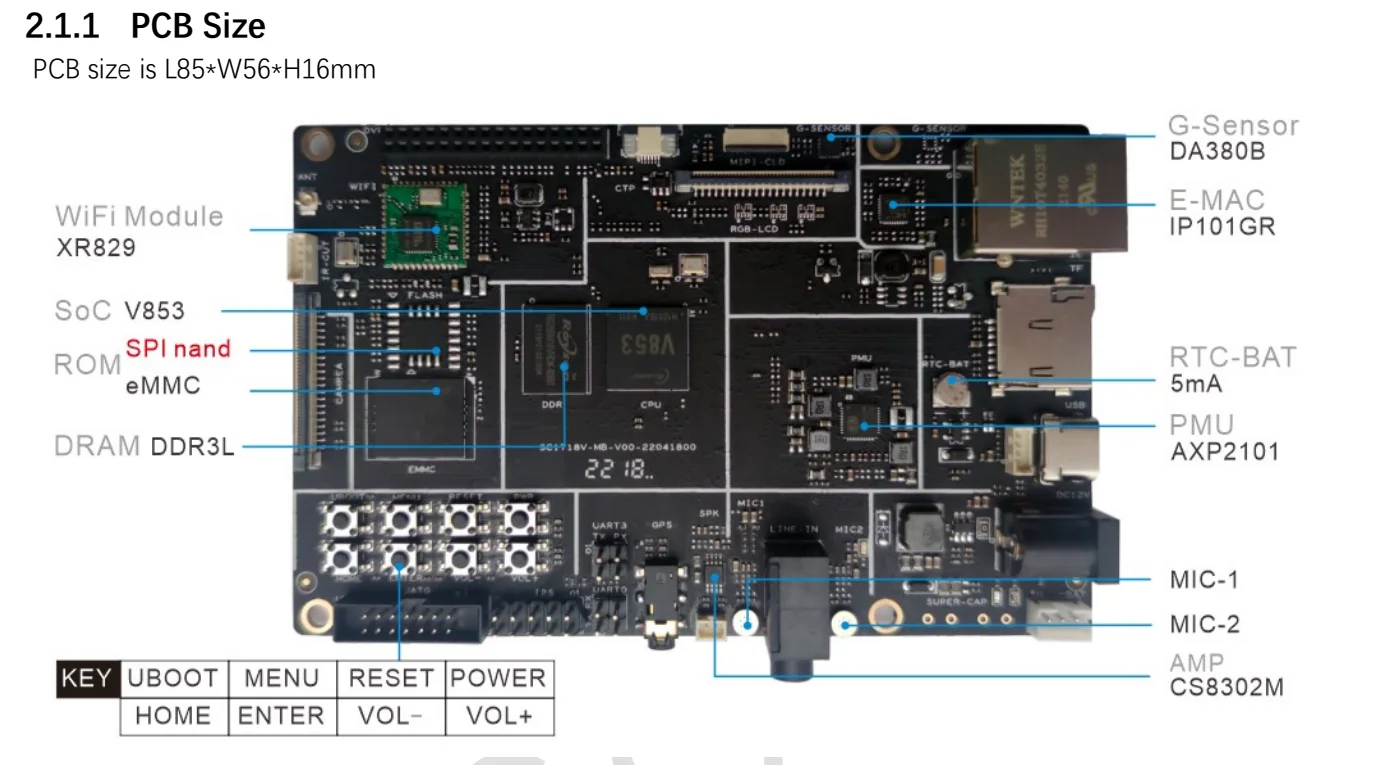

Item Features
CPU : Allwinner V853, Single Cortex-A7 core and RISC-V core Or V853S
RAM: V853 DDR3L 512MB*1, V853S SIP 128MB DDR
Memory NOR Flash, eMMC (5.0 interface), NAND Flash, optional.Development board
CPU : Allwinner V853, Single Cortex-A7 core and RISC-V core Or V853S
RAM: V853 DDR3L 512MB*1, V853S SIP 128MB DDR
Memory NOR Flash, eMMC (5.0 interface), NAND Flash, optional.Development board
default 8GB eMMC
Main power Power IC AXP2101，DC jack:DC12V1A, USB: 5V/2A,battery 3.7-4.4V
Audio Two MIC inputs (MIC1 and MIC2), one speaker output, and one line in input.
Network The development board uses XR829 by default.
Support RMII interface.
Display PD interface, used for MIPI or LVDS or RGB interface, the development board
uses MIPI interface by default.
USB 1pcs Type-C for SW upgrade，also can be used for OTG.
Camera 1pcs MIPI-CAM 4lane, or 2pcs MIPI-CAM 2lane.
Key VOL+/VOL-/Menu/Enter/Home/Uboot/Power/Reset
G-Sensor SC7A20, DA380 card issuing board defaults to DA380
Audio Two MIC inputs (MIC1 and MIC2), one speaker output, and one line in input.
Network The development board uses XR829 by default.
Support RMII interface.
Display PD interface, used for MIPI or LVDS or RGB interface, the development board
uses MIPI interface by default.
USB 1pcs Type-C for SW upgrade，also can be used for OTG.
Camera 1pcs MIPI-CAM 4lane, or 2pcs MIPI-CAM 2lane.
Key VOL+/VOL-/Menu/Enter/Home/Uboot/Power/Reset
G-Sensor SC7A20, DA380 card issuing board defaults to DA380
Related Products
Packing&Shipping
Sochip standard packing
Company Introduction
Sochip Technology was founded in 2006, it's a high-tech company engaged in the development and design of consumer electronics products. It focuses on the development of portable digital entertainment multimedia products. To provide clients with a complete product solutions, designed to focus on products innovation, new materials and the application of new technology, especially focus on the product design process rigor and stable quality. Sochip has a rich R&D experience, sophisticated technology, young and creative team.
Our Services & Strength
1, Major agent of Allwinner Full-series: could support you with the most competitive price.
2, Excellent R&D team: More than 10 years' rich experience, could provide the best technical support.
3, Preeminent sales team: Proficient in multiple languages and market rules.
4, Timely response: Your inquiry related to our products or price will be replied within 12 hours.
5, OEM&ODM: We can help you to design and put your good idea into products.
6, Lead time: we have Long-term stable inventory, could ship 3 to 5 days after got your payments.
2, Excellent R&D team: More than 10 years' rich experience, could provide the best technical support.
3, Preeminent sales team: Proficient in multiple languages and market rules.
4, Timely response: Your inquiry related to our products or price will be replied within 12 hours.
5, OEM&ODM: We can help you to design and put your good idea into products.
6, Lead time: we have Long-term stable inventory, could ship 3 to 5 days after got your payments.
Похожие товары

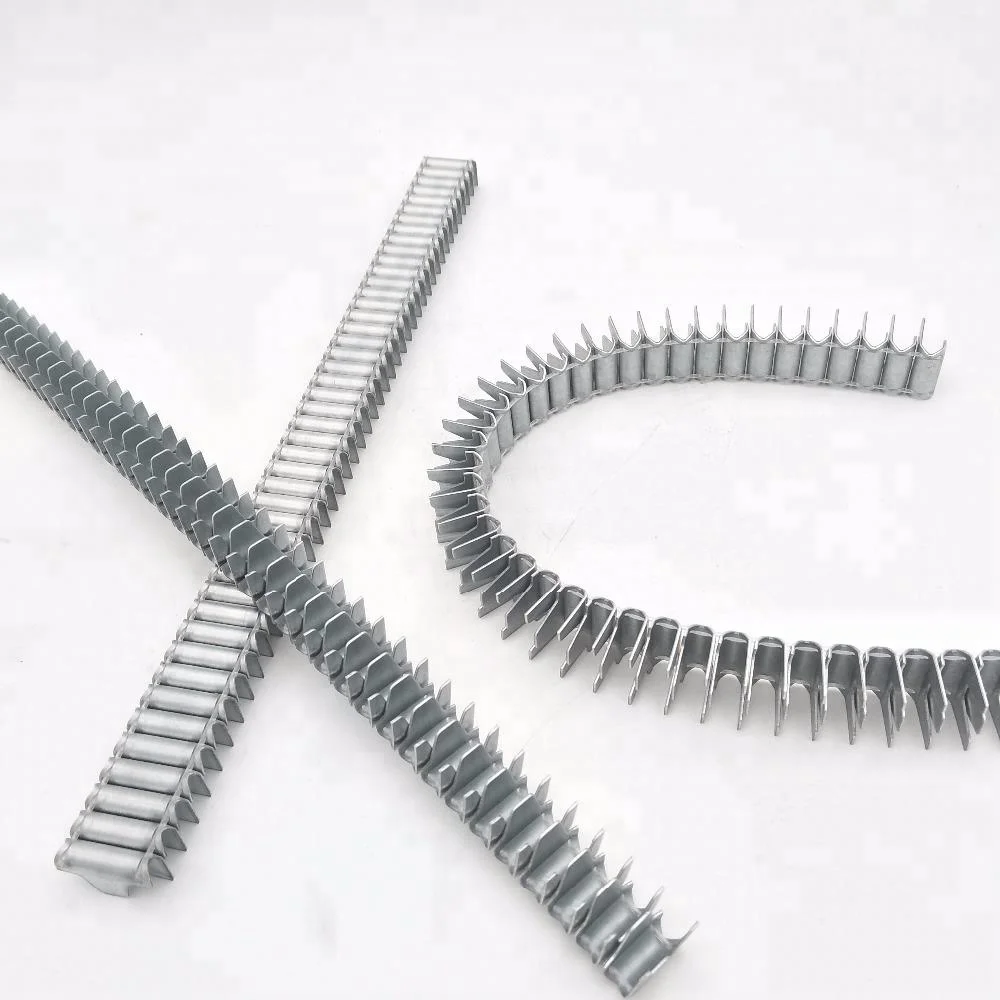

M66 серии CL-72 формования холодногнутых профилей проката с полимерным покрытием, сталь или оцинкованная Clinch крепжи и клёпки для harcto M66 заклепок для стрижки инструмент
12,70 $ - 12,90 $
13051931 B6PN538 BH6PN110R топливный насос высокого давления для двигателя WP6
36 120,04 ₽

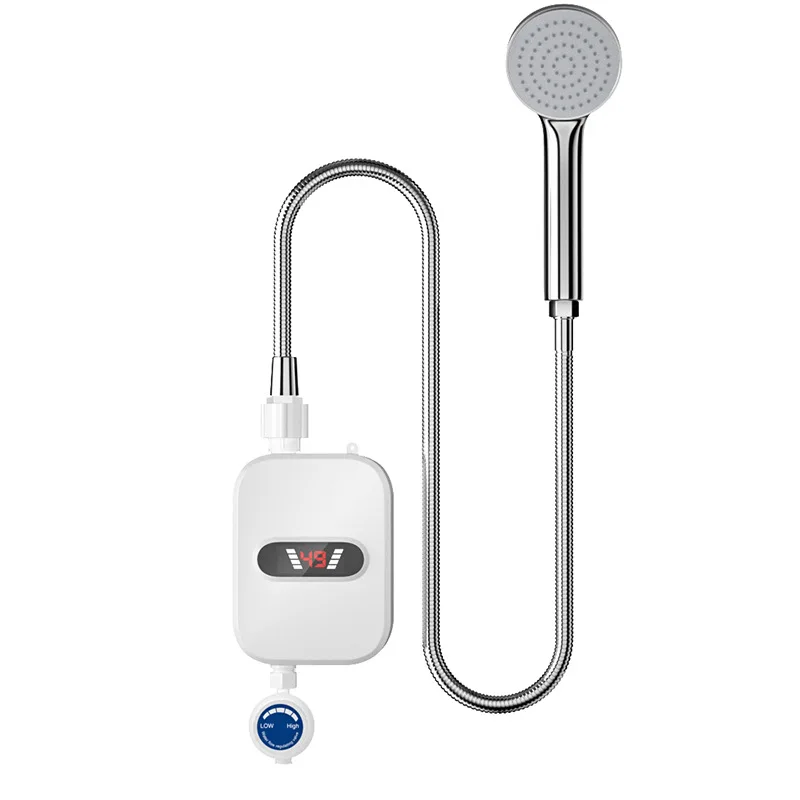

Оптом новые поступления 220 вольт мгновенный безрезервуарный Электрический нагреватель горячей воды кран быстро нагревающийся кран
1 360,02 ₽ - 1 569,26 ₽

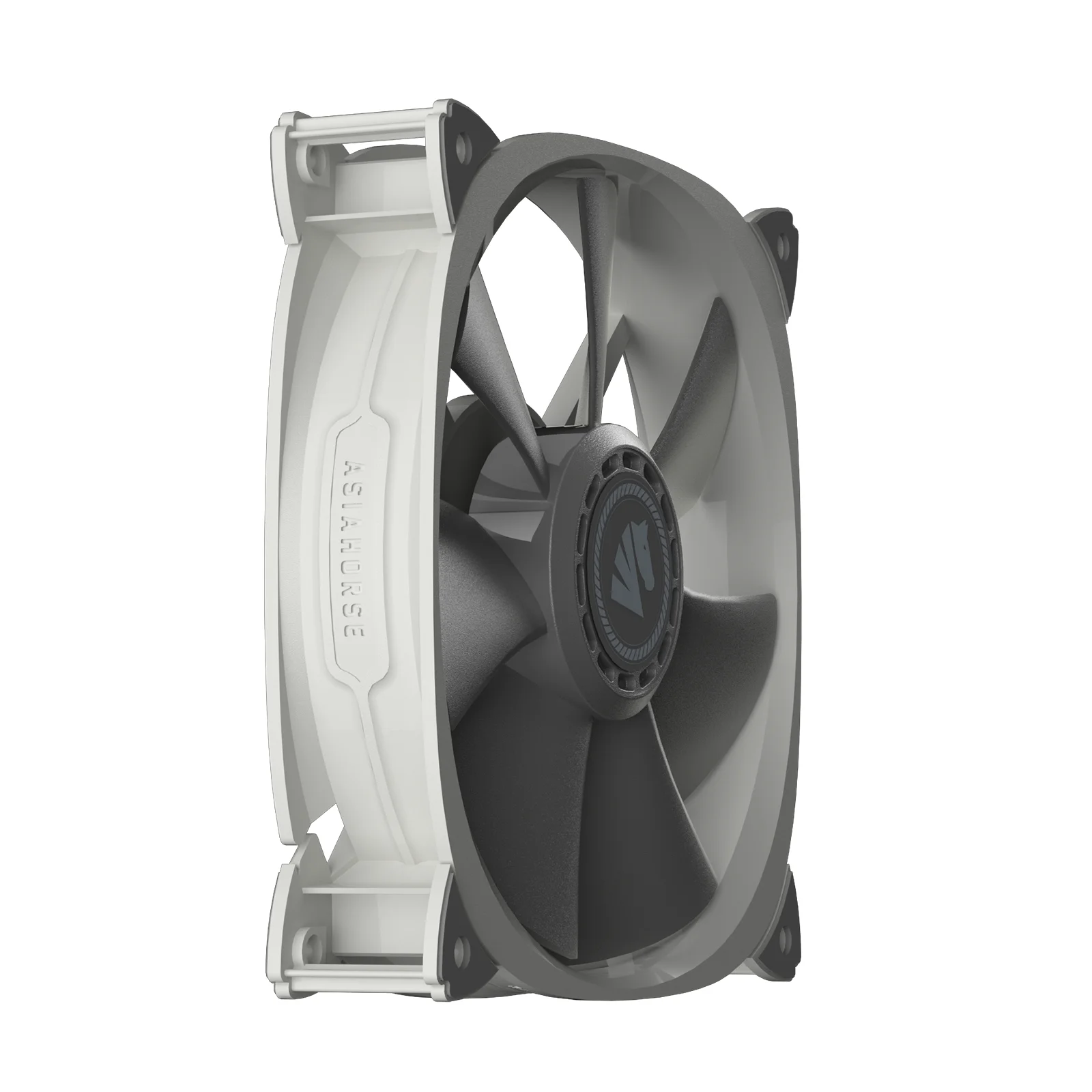

ASIAHORSE | Настольный корпус вентилятора Asiahorse, корпус компьютера, охладитель жидкости, вентиляторы для ПК
2,81 $ - 3,02 $

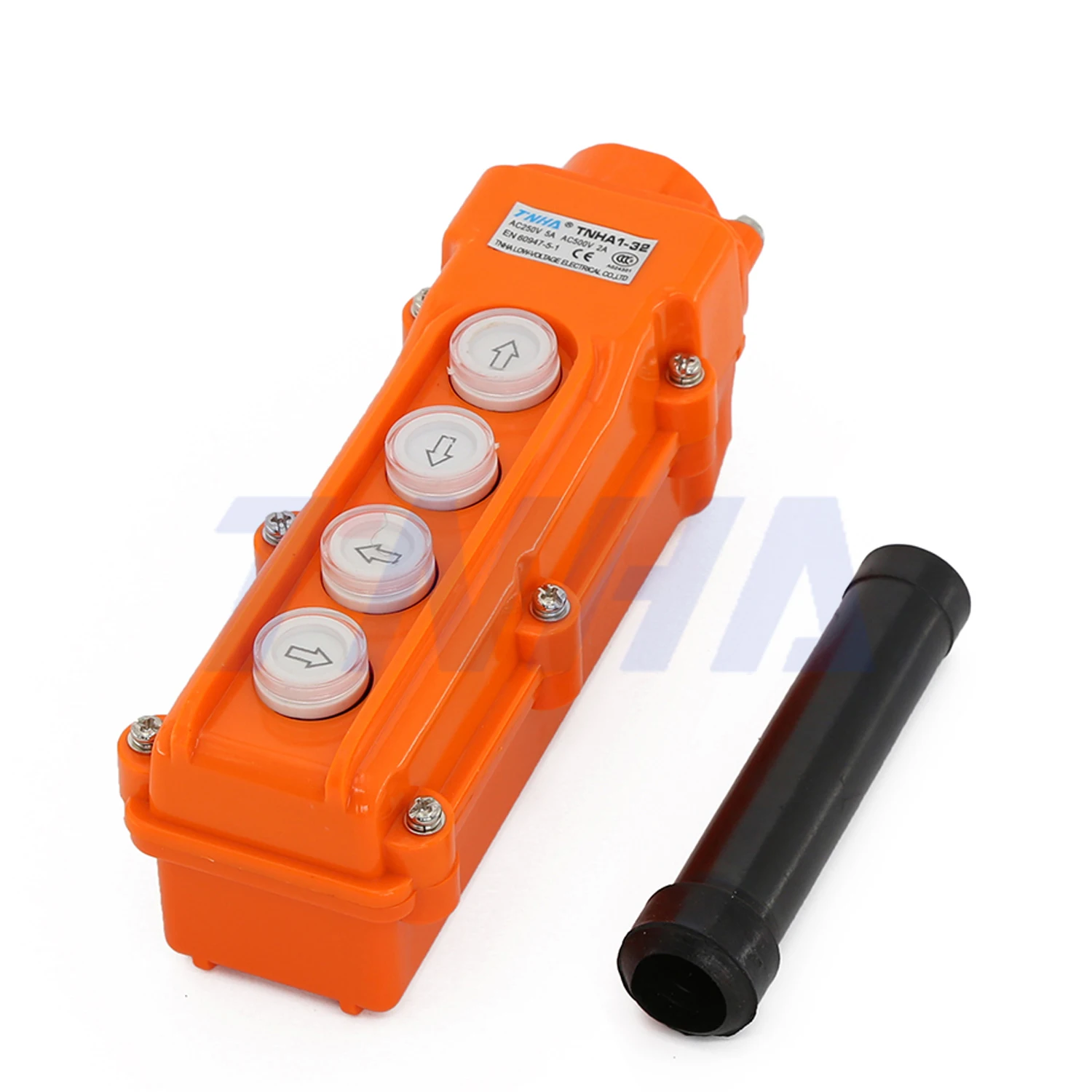

КС-32 опосредованная операция Электрический Подъемный Кран Подвесной пульт дистанционного управления
5,00 $ - 5,83 $

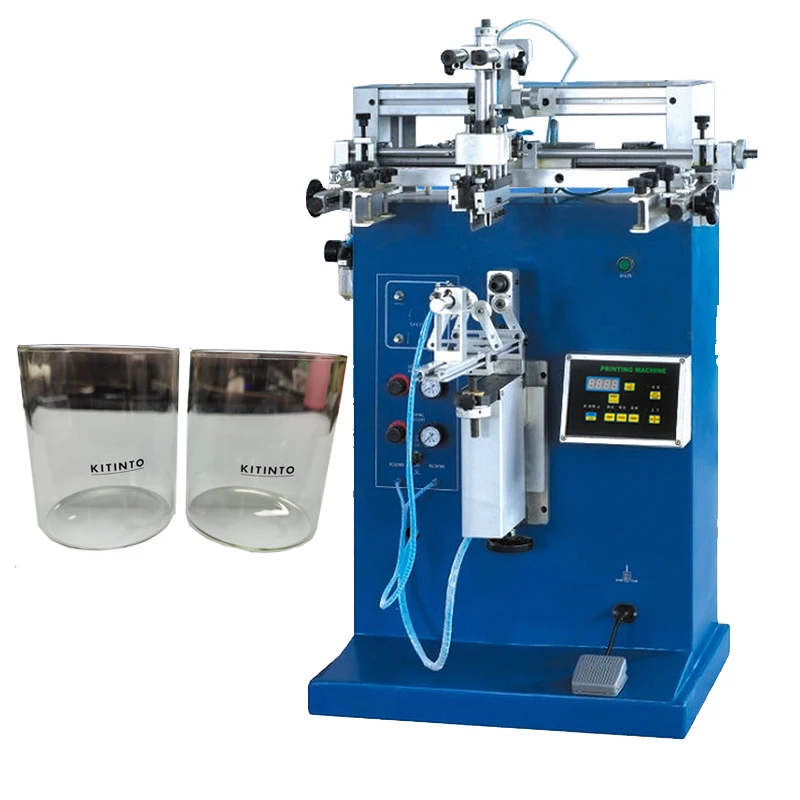

Машина для трафаретной печати восковых свечей стеклянных банок

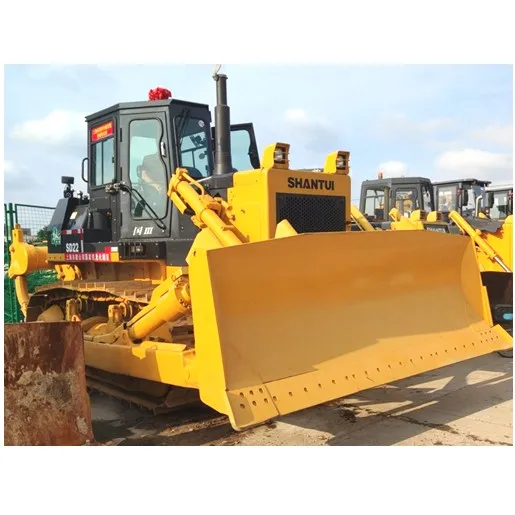

Б/у Бульдозеры SHANTUI SD22, оригинальные китайские высококачественные б/у бульдозеры для бульдозеров, распродажа
