1325 1530 2030 многоголовочный деревообрабатывающий фрезерный станок с ЧПУ для деревянных дверей по заводской
- Категория: Woodworking Machinery >>>
- Поставщик: Jinan Missile CNC Equipment Co. Ltd.
Сохранить в закладки 1600549155108:
Описание и отзывы
Характеристики
Product Description

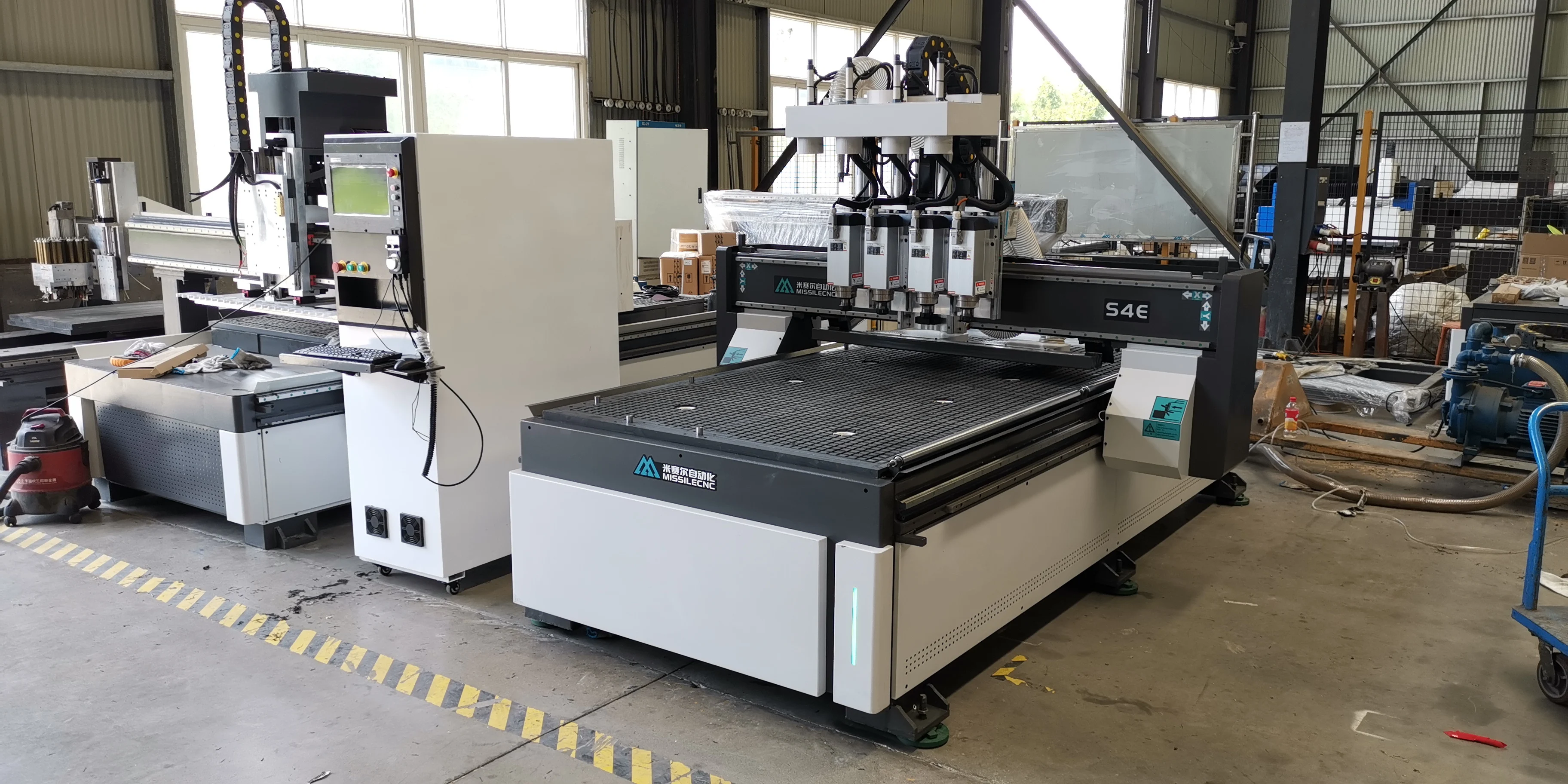

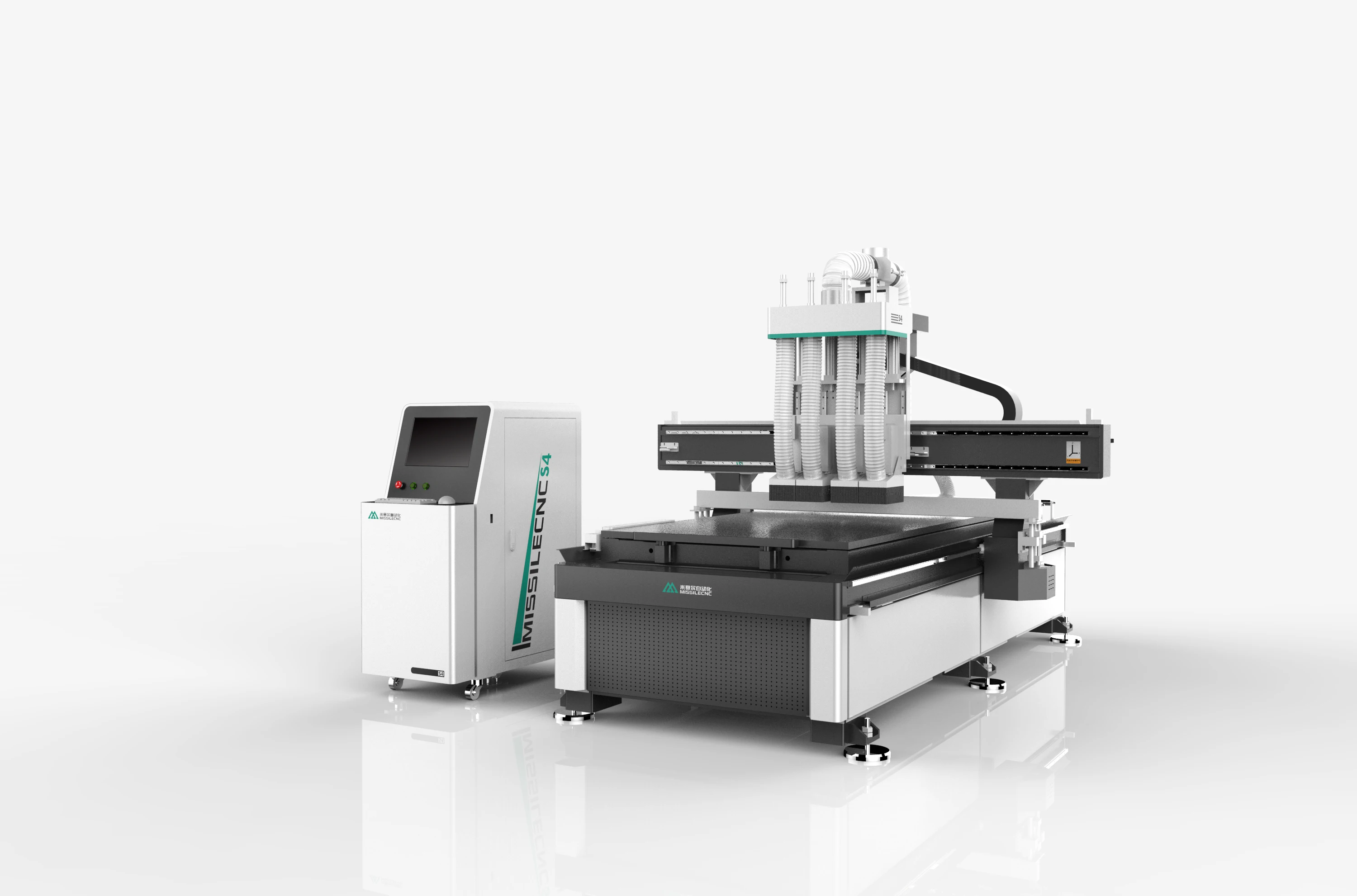

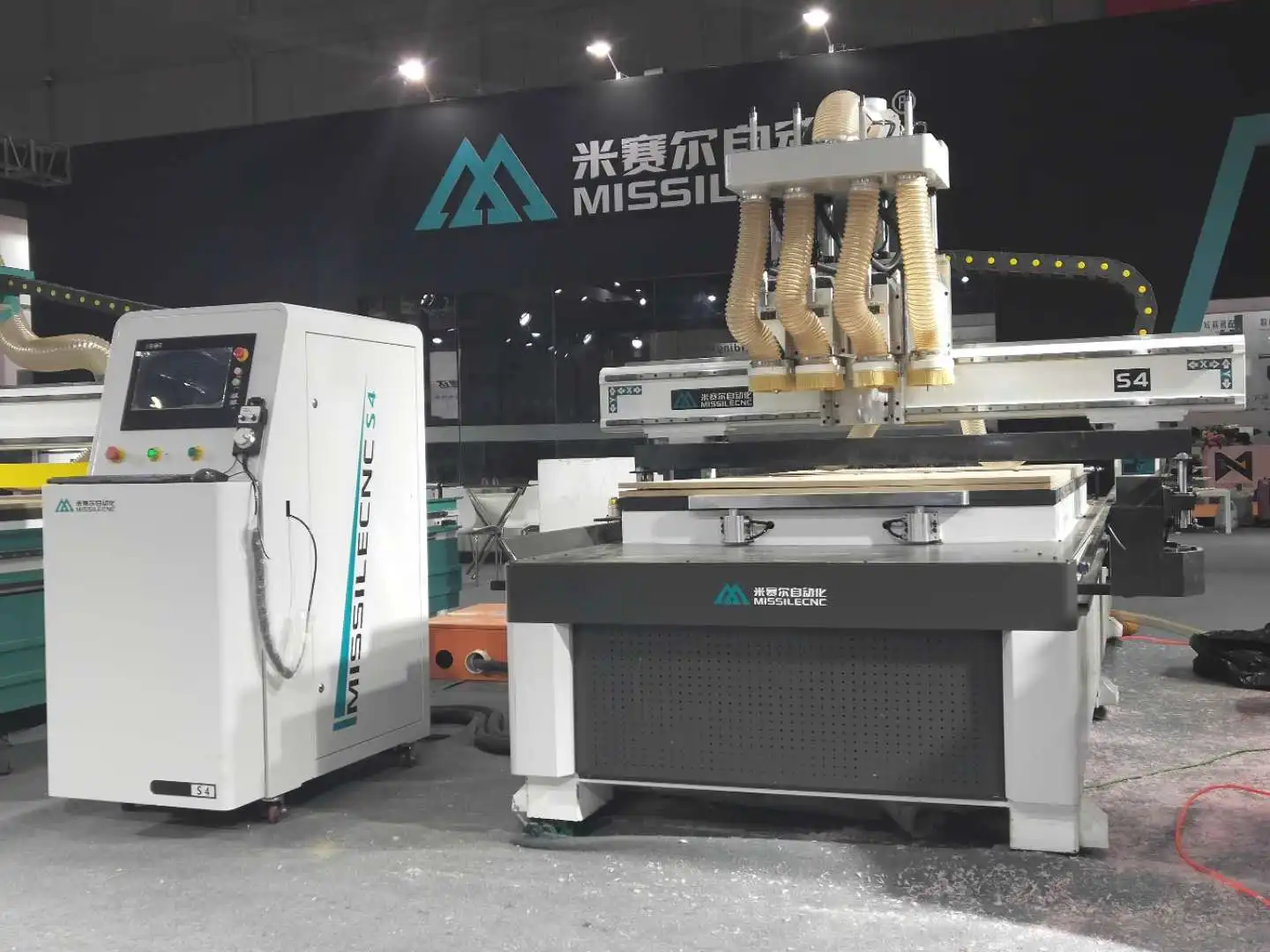

CNC NESTING ROUTER S4/S4E
Four spindle can be switched to work,the four tools can be automatic changed,Suitable for milling,cutting and drilling,compound processing production mode,S4 is a kind of high precision and high efficiency processing equipment.
The XY direction is equipped with positioning cylinder devices to help quickly fix the materials.
S4 comes with a pusher that pushes the worked pieces of the main work table and cleans the surface at the same time,which helps the operator easily discharge,and the new feed easily be firmly adsorbed.
Specification
Item | Value |
Condition | New |
Range of Spindle Speed(r.p.m) | 1000rpm - 18000rpm |
Positioning Accuracy (mm) | 0.02mm |
Number of Axes | 3 |
No. of Spindles | ATC |
Working Table Size(mm) | 1300×2500 |
Machine Type | CNC Router |
Travel (X Axis)(mm) | 1300mm |
Travel (Y Axis)(mm) | 2500mm |
Repeatability (X/Y/Z) (mm) | 0.02mm |
Spindle Motor Power(kW) | 3.5kw |
CNC or Not | CNC |
Control system | Syntec, DSP |
Place of Origin | China |
Province | Shandong |
Brand Name | Missile |
Voltage | AC380V/50HZ/3PH |
Weight (KG) | 3800 |
Warranty | 1 Year |
Key Selling Points | Multifunctional |

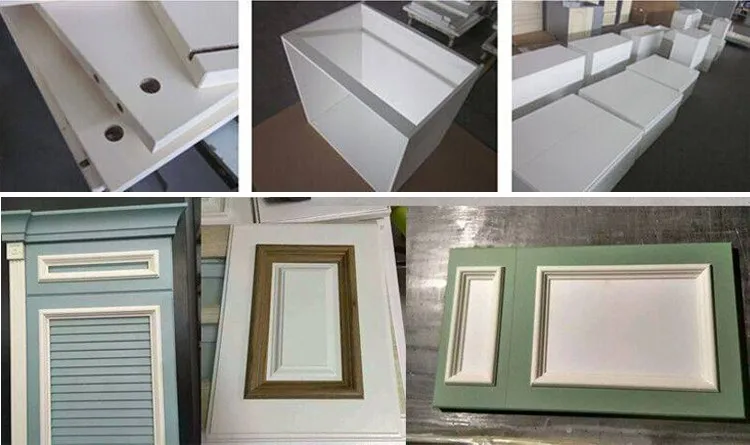

Applicable Industries | Retail, Advertising Company, Furniture making, Cabinet making |
Machinery Test Report | Provided |
Video outgoing-inspection | Provided |
Warranty of core components | 1 Year |
Core Components | Motor, Pump, Spindle, Guide, Rack, Inverter, Driver |
Model | S4/S4E |
Working area | 1300*2500*200 mm |
Table surface | Vacuum table |
Keywords | CNC nesting machine |
Drive&motor | Servo |
Working voltage | AC380V/50HZ/3PH |
Max.working speed | 25000mm/min |
Max.traveling speed | 60000mm/min |
Operating system | Weihong NK260/syntec |
Software | Ucancam / ArtCam/TYPE3 |
Company Profile
MISSILE CNC is a research and development manufacturer specializing in high precision, high quality and high standard CNC router machine. The main product line includes:
M series: aluminum& acrylic high-gloss processing cnc router, CCD automaticedge cutting cnc router, vibrating knife cutting machine
i series: low and medium power fiber laser cutting machine
S series: panel furniture production line, nesting cnc machine solution
E series: door&cabinet door cnc router machine, five-sided drilling mahine, six-sided drilling machine and other composite cnc machining centers

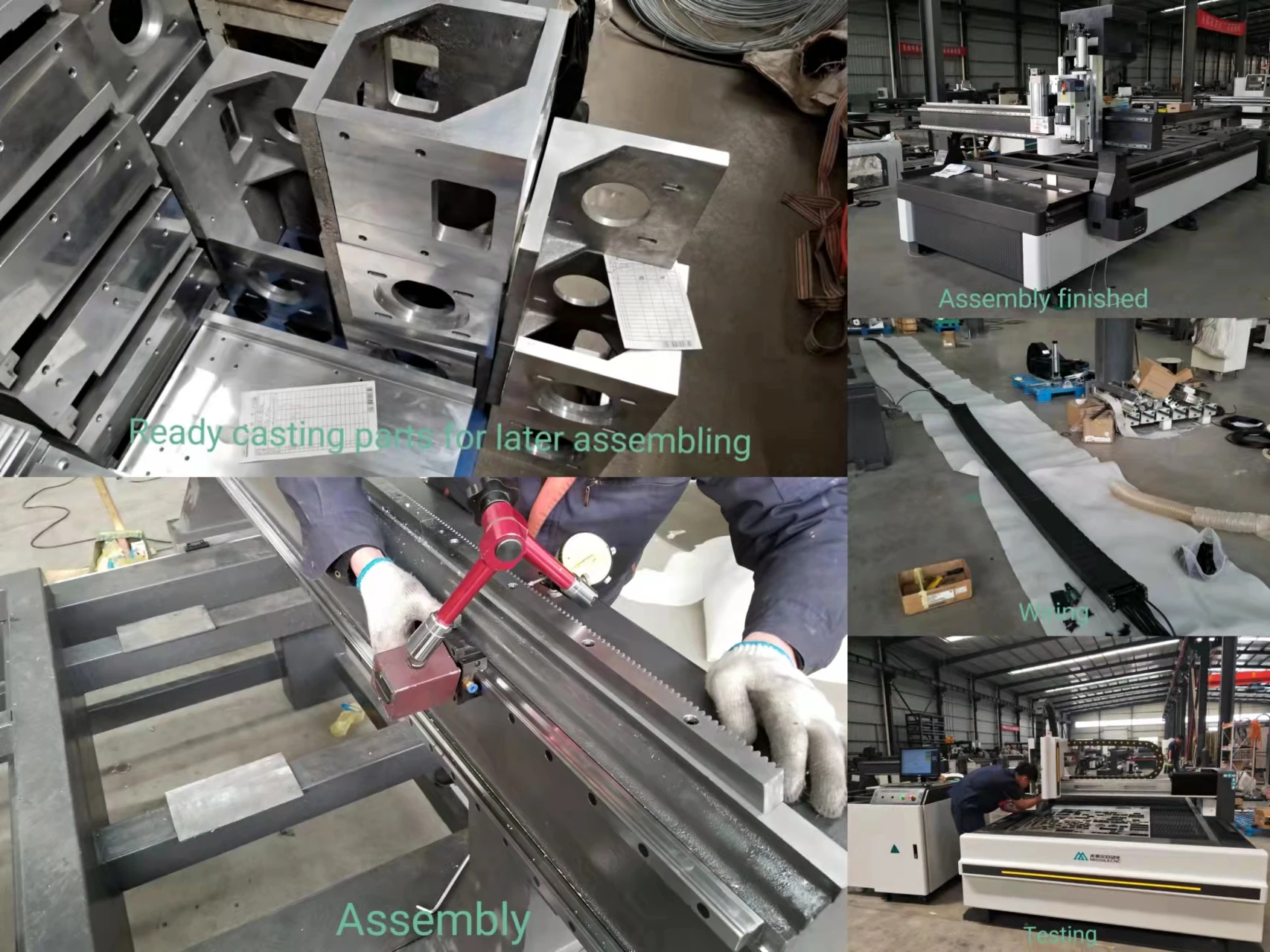

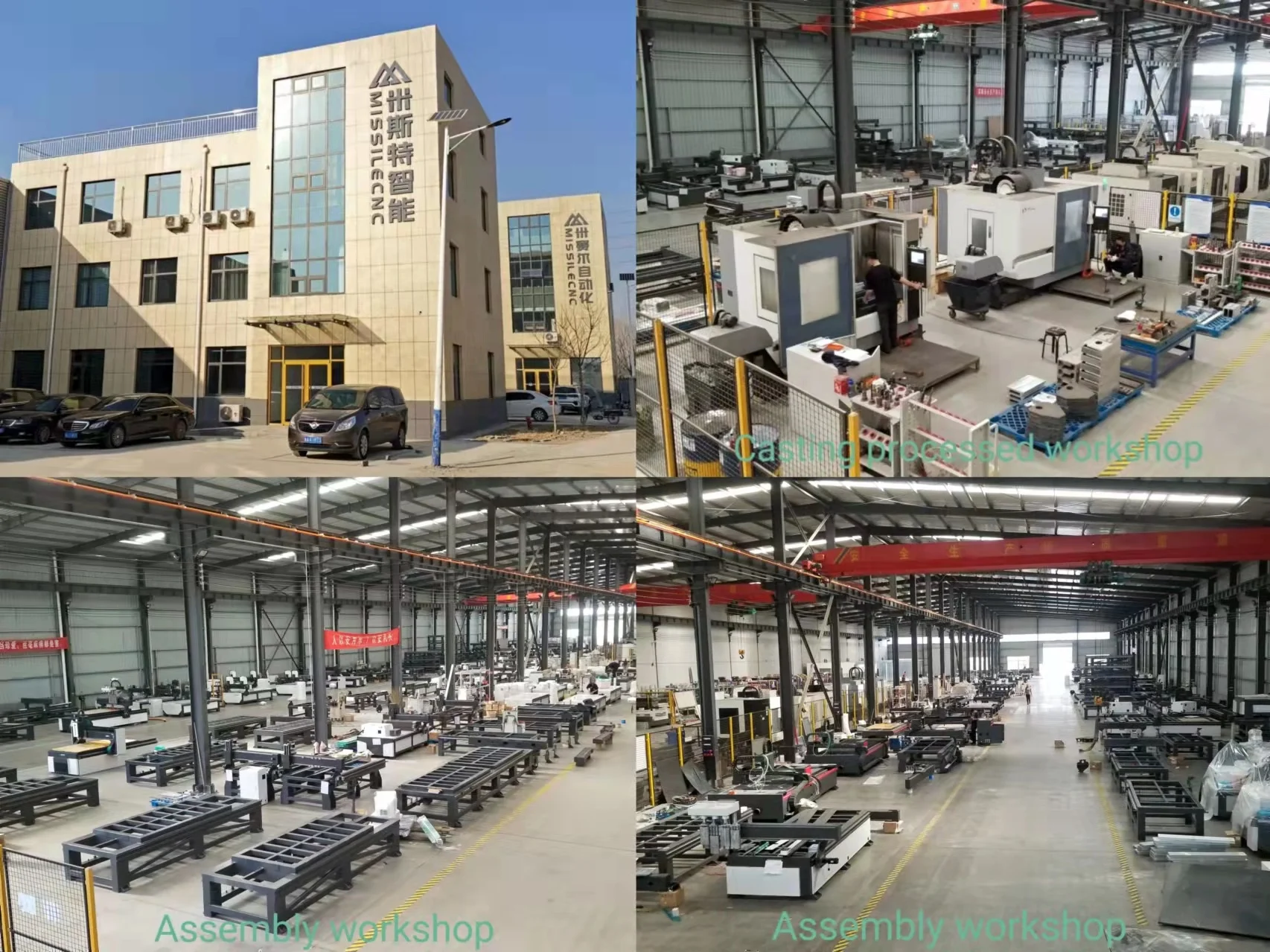

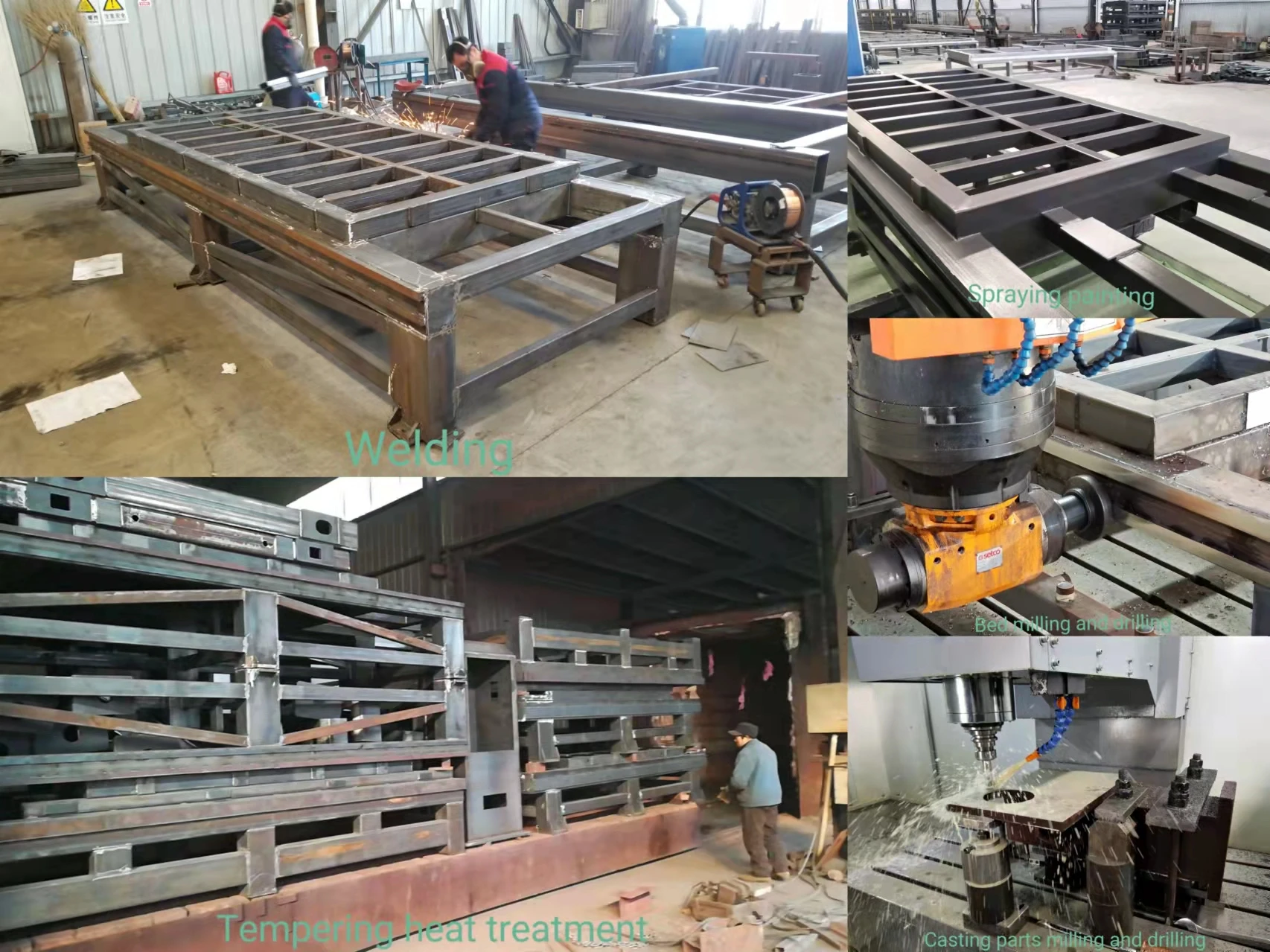

MISSILE CNC production area is nearly 20000 square meters, and we own three gantry moving machining centers ; five vertical machining centers ; one 150-meter semi-automatic welding spray production line and one 80-meter sandblasting tempering processing line . That's all ensuring every parts procession of the CNC router with higher standard requirements.
M series: aluminum& acrylic high-gloss processing cnc router, CCD automaticedge cutting cnc router, vibrating knife cutting machine
i series: low and medium power fiber laser cutting machine
S series: panel furniture production line, nesting cnc machine solution
E series: door&cabinet door cnc router machine, five-sided drilling mahine, six-sided drilling machine and other composite cnc machining centers
MISSILE CNC production area is nearly 20000 square meters, and we own three gantry moving machining centers ; five vertical machining centers ; one 150-meter semi-automatic welding spray production line and one 80-meter sandblasting tempering processing line . That's all ensuring every parts procession of the CNC router with higher standard requirements.
Our advantages
We keep most machines in stock and can typically dispatch equipment in 72 hours or less,so you can get working as soon as possible.We can provide on-site training and service for customers,All qround the world,all around the clock,we are always here for you.
Recommend Products
Table moving cnc router for acrylic 3D letters-M9
M9 is one of the flagship model of 3D
CNC router in our company.Adopted with table moving design;three-axis with Taiwan grilling level,high-speed,voice-less ball screw transmission;Taiwan grinding level square rail,imported servo motor and reducer from Japan;linear type 4 tools changing,it is one high precision machine,M9 is specifically designed for mini words making.
CNC NESTING MACHINE-S9
S9 is professional machine for panel furniture production.It is equipped with 9kw ATC spindle(12 carousel magazine);Italy FAM 5+4 boring heads which can meet all kind vertical holes drilling's requirements.S9 has multifunction:routing,drilling,cutting,
edge chamfering etc.
Automatic front conveyor belt,unloading table system,automatic rear pre-labelling device,safety fence enclousure,laser safety light curtains,can be optional.
Advertising ATC cnc router M5S
M5S mini words cnc router is one of the flagship model in our company,Adopted with gantry moving designs,with high precision German herion gear rack;high precision processed machine frame&machined parts.That makes the machine working effects stand out in the industries by advanced and precise assembly process,Linear type four tools changing,it is not only appiles to the advertising industry,also widely used for high precision woodworking industries or other industries.
Packing & Delivery
The machine control cabinet and other machine accessories are put on the machine bed,Then,the machine will be wrapped with PE stretch film in case of damage in transit.
All cnc machines are packaged with the plywood case and the wooden case will be fixon the pallet,the shipping mark will be labeled on the surface of the wooden case.
If the machine is customized even the size is bigger,the machine needs disassembling.
FAQ
1. who are we?
We are based in Shandong, China, start from 2015,sell to North America(30.00%),Western Europe(30.00%),Southeast Asia(20.00%),Mid East(5.00%),Eastern Asia(5.00%),Eastern Europe(3.00%),Africa(3.00%),South America(2.00%),Oceania(2.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
CNC Router,Wood Router,CNC Nesting Machine,CNC Router for Sign Making,CNC Router With CCD Camera and Knife,Fiber Laser Cutting Machine
4. why should you buy from us not from other suppliers?
MISSILECNC own three gantry moving machining centers ; five vertical machining centers ; one 150-meter welding spray production line and one 80-meter sandblasting tempering processing line .Missilecnc is a chinese fanous cnc router manufacturer
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,EUR;
Accepted Payment Type: T/T,L/C,D/P D/A,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese
We are based in Shandong, China, start from 2015,sell to North America(30.00%),Western Europe(30.00%),Southeast Asia(20.00%),Mid East(5.00%),Eastern Asia(5.00%),Eastern Europe(3.00%),Africa(3.00%),South America(2.00%),Oceania(2.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
CNC Router,Wood Router,CNC Nesting Machine,CNC Router for Sign Making,CNC Router With CCD Camera and Knife,Fiber Laser Cutting Machine
4. why should you buy from us not from other suppliers?
MISSILECNC own three gantry moving machining centers ; five vertical machining centers ; one 150-meter welding spray production line and one 80-meter sandblasting tempering processing line .Missilecnc is a chinese fanous cnc router manufacturer
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,EUR;
Accepted Payment Type: T/T,L/C,D/P D/A,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese
