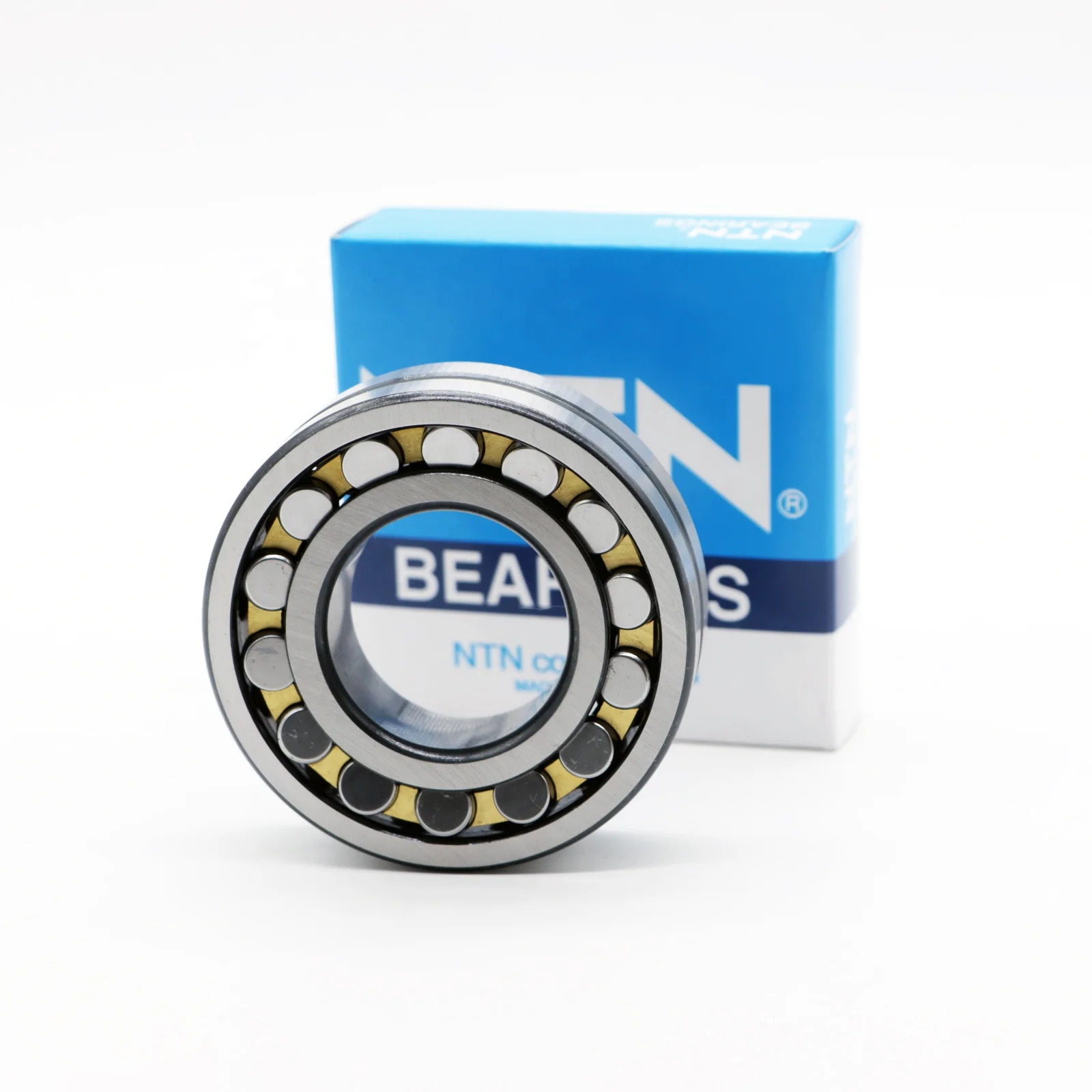

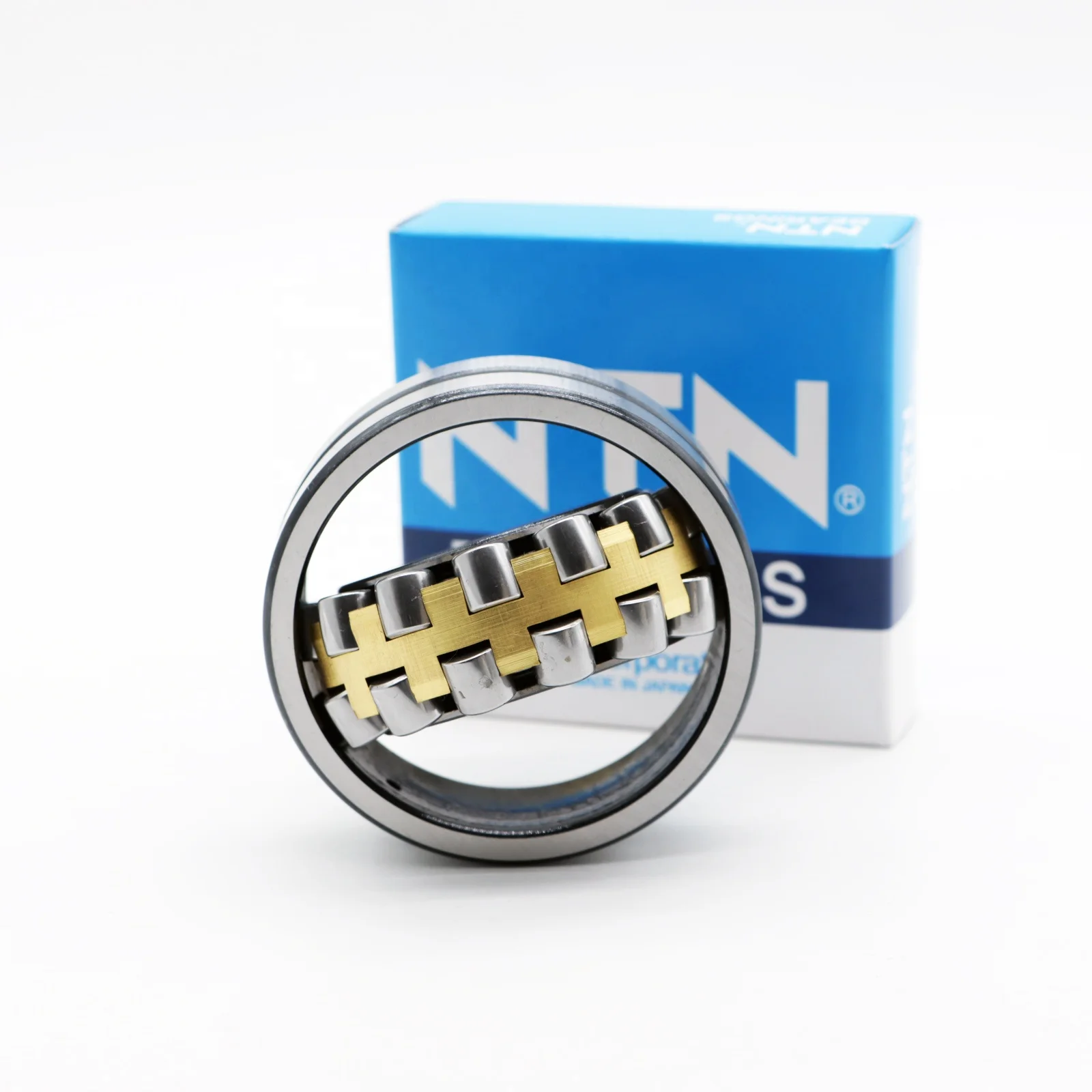

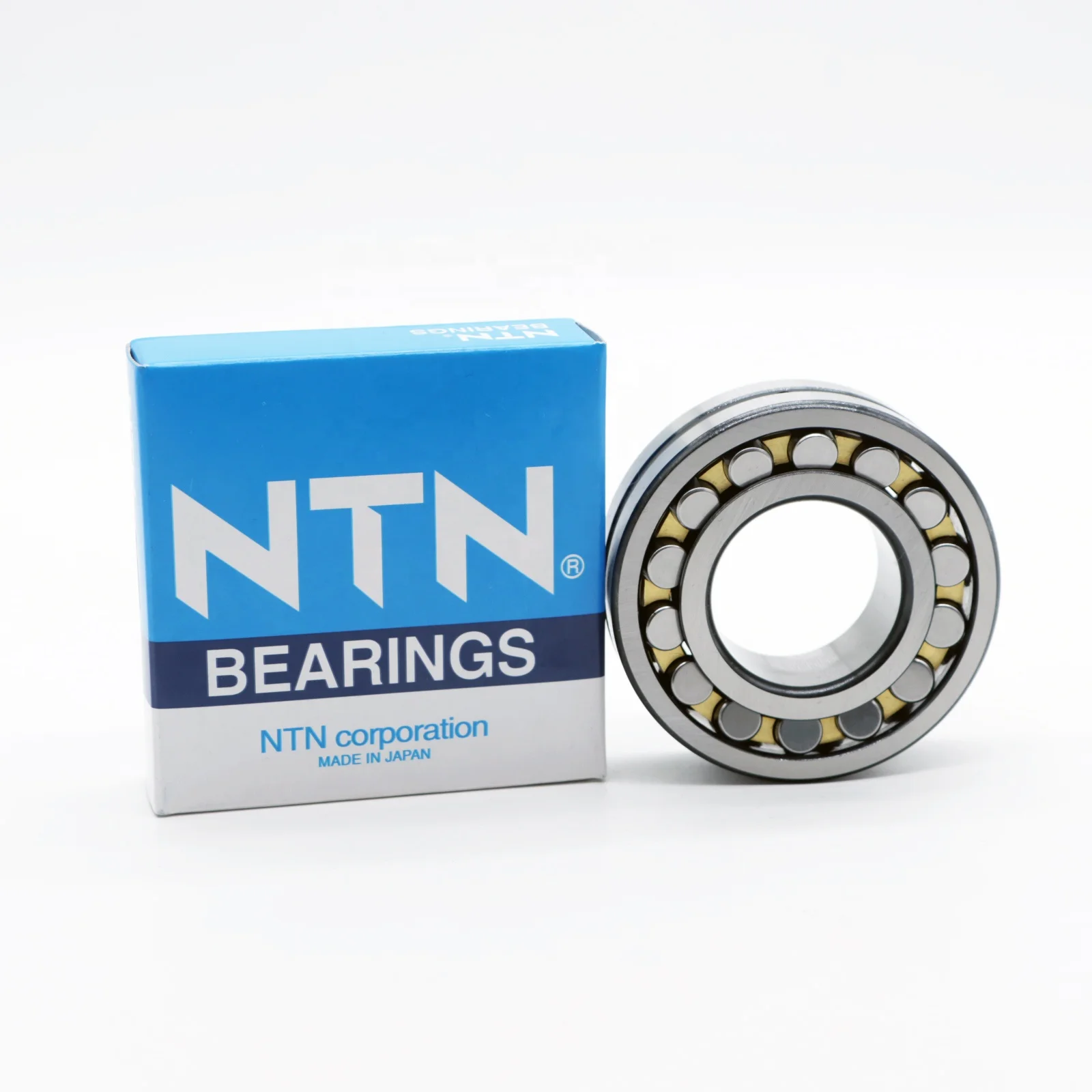

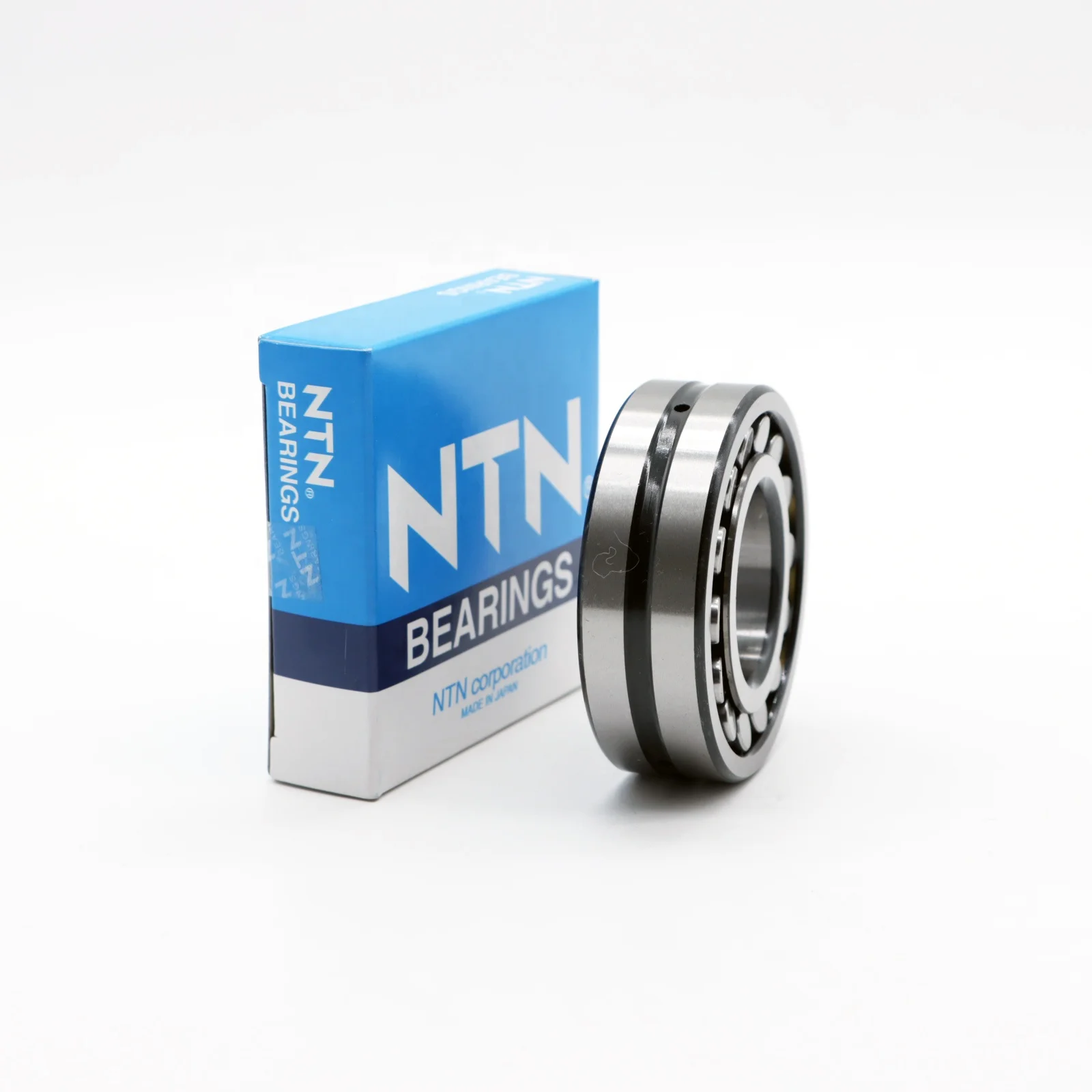

NTN Глубокий шаровой подшипник 21304 21305 21306 21307 21308 21309 Ca Cc Ma Mb Сферический

Сохранить в закладки 1600549672871:


Цена:8,00 $ - 10,00 $*

Количество:

  • В избранное

Описание и отзывы

Характеристики



BEARING DESCRIPTION


SPHERICAL ROLLER BEARING
Spherical roller bearings have double row rollers, the outer ring has a shared spherical raceway, and the inner ring has two raceways that are inclined at an angle relative to the bearing axis. This ingenious structure makes it have self-aligning performance, so it is not easily affected by the angle between the shaft and the bearing box seat on the error or the shaft bending, and is suitable for the occasions where the installation error or the shaft deflection causes the angle error. In addition to bearing radial load, the bearing can also bear axial load acting in both directions.


FEATURES AT A GLANCE


Features:1.Integration of industry and trade, low price and high quality 2.Fast delivery
3.Quality Assurance ServiceMain
Applications:
Papermaking machinery, reduction gears, railway vehicle axles, rolling mill gearbox bearing housings, rolling mill rolls, crushers, vibrating screens, printing machinery, woodworking machinery, various industrial reducers, vertical self-aligning bearings with seat.

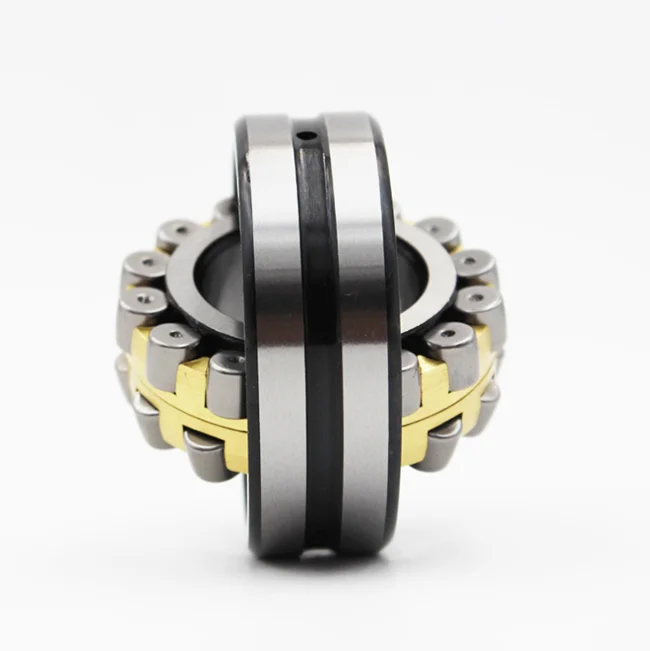

Right elevation
Left elevation
Front elevation




PRODUCT SPECIFICATIONS


PRODUCT NAME
SPHERICAL ROLLER BEARING


FEATURES
HIGH SPEED
LONG LIFE
LOW NOISE
APPLICATION
HIGH SPEED MACHINE
PACKAGE
ORIGINAL KOYO PACKAGE
SERVICE
OEM SERVICE
DELIVERY TIME
WITHIN 2-3DAYS

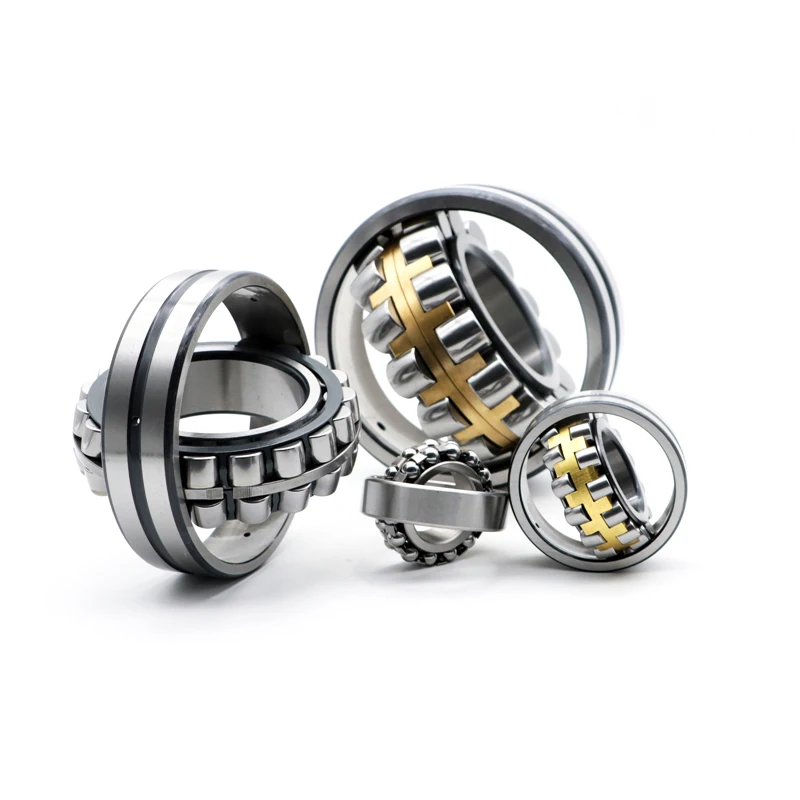

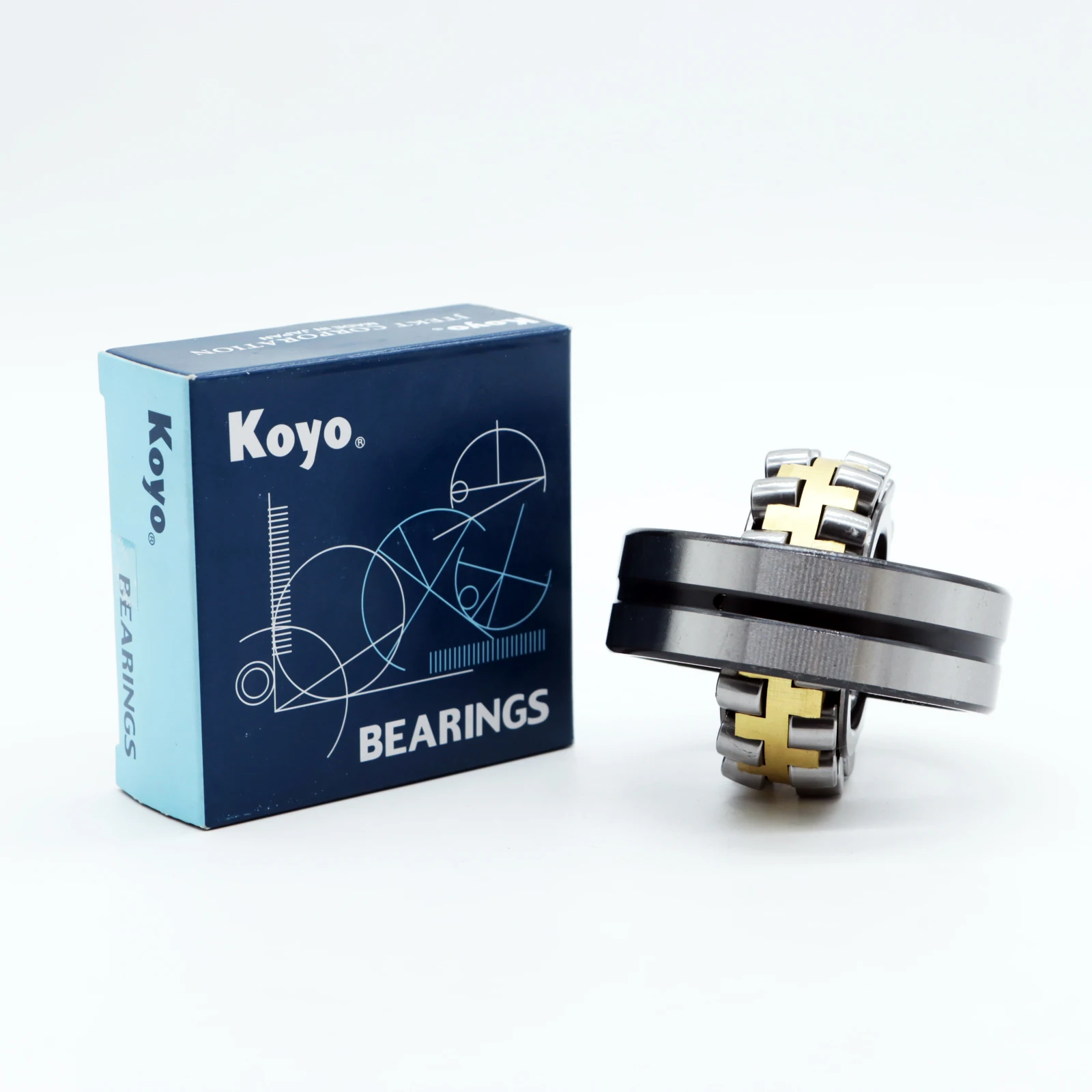

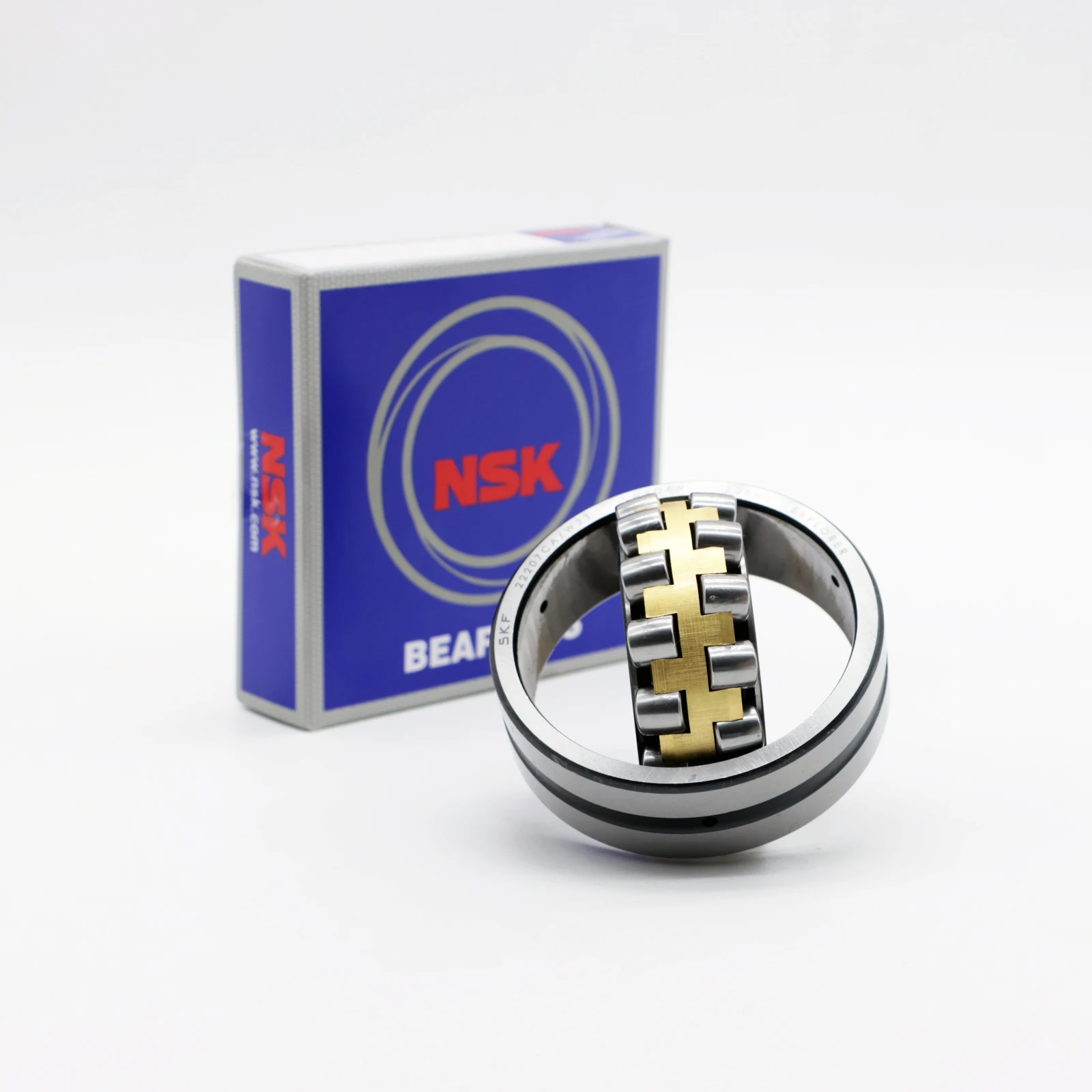

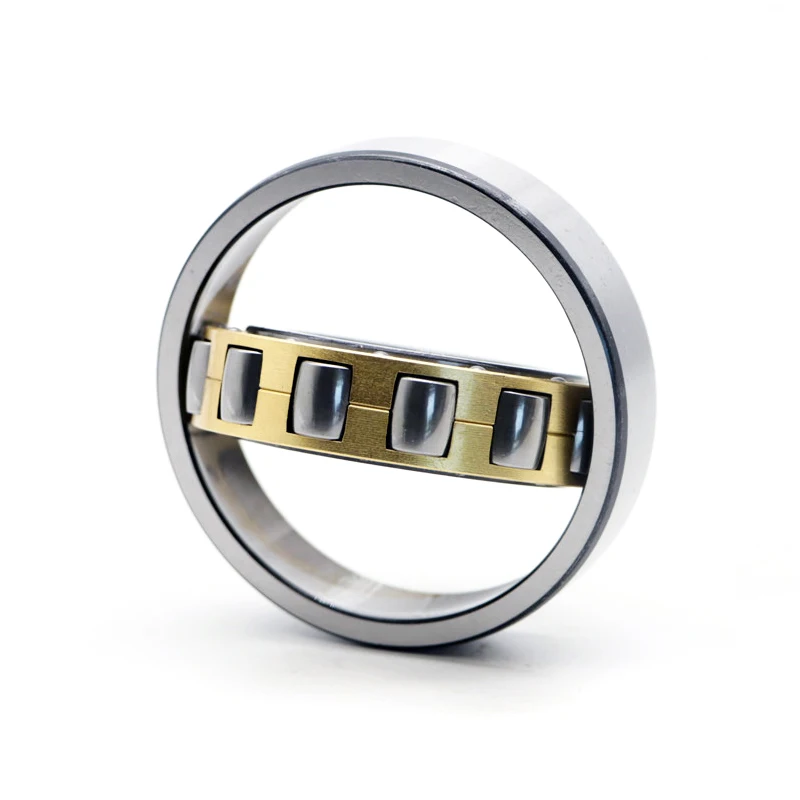

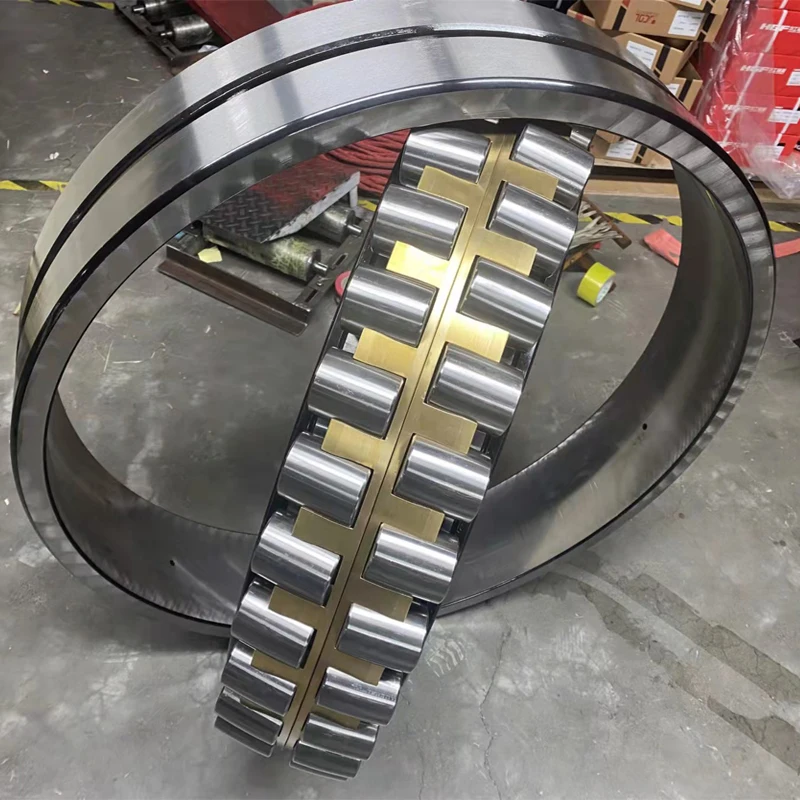

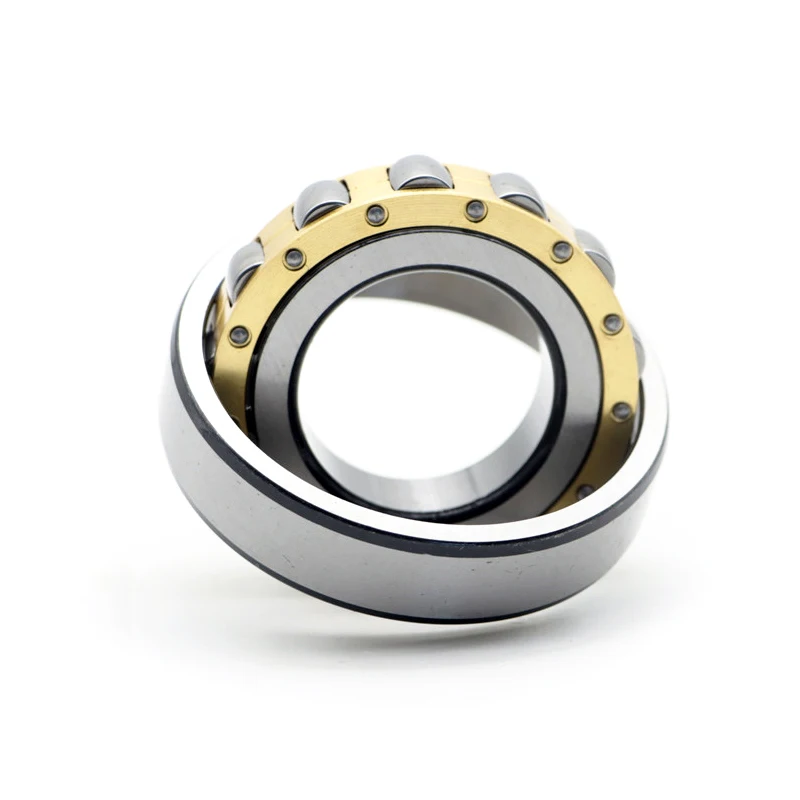

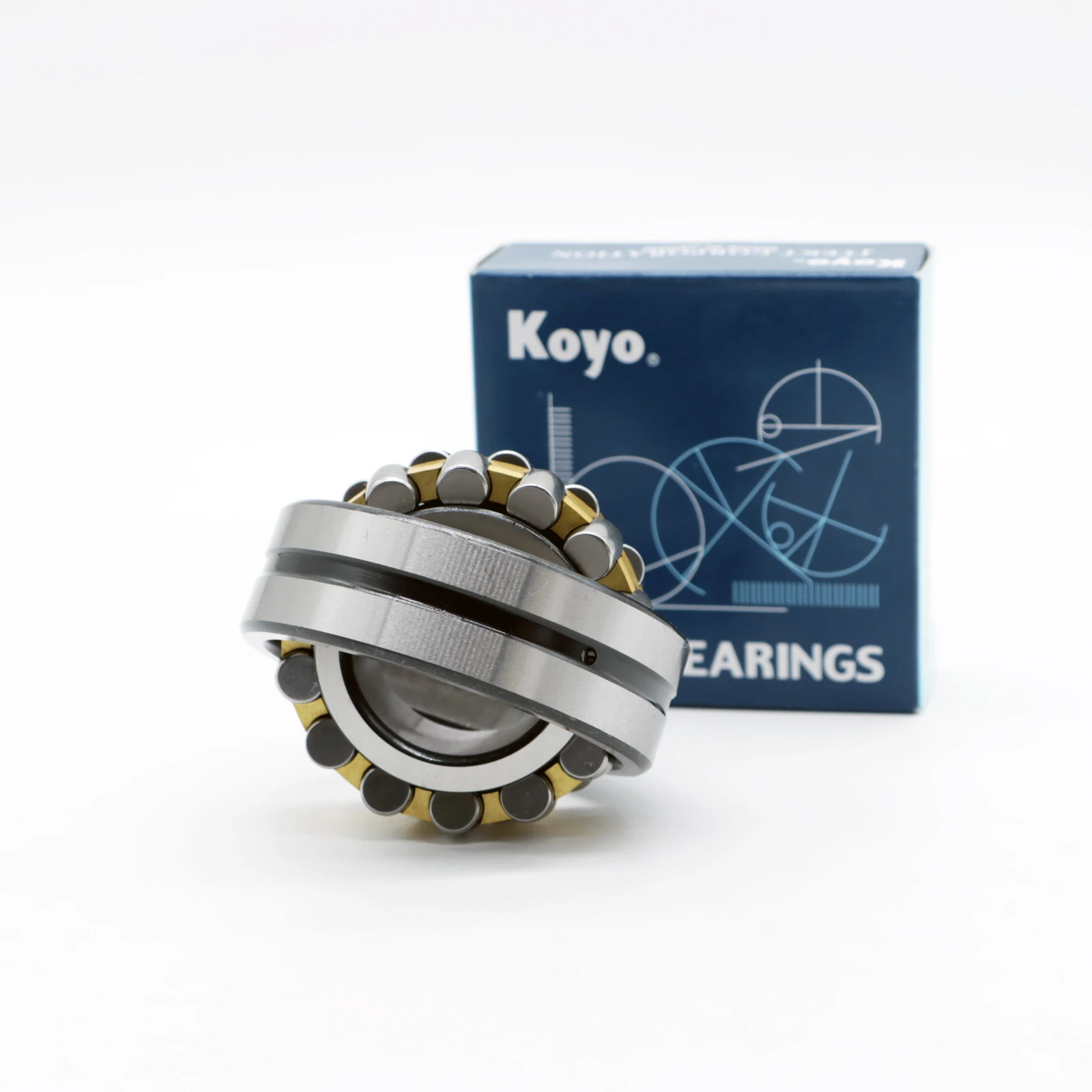

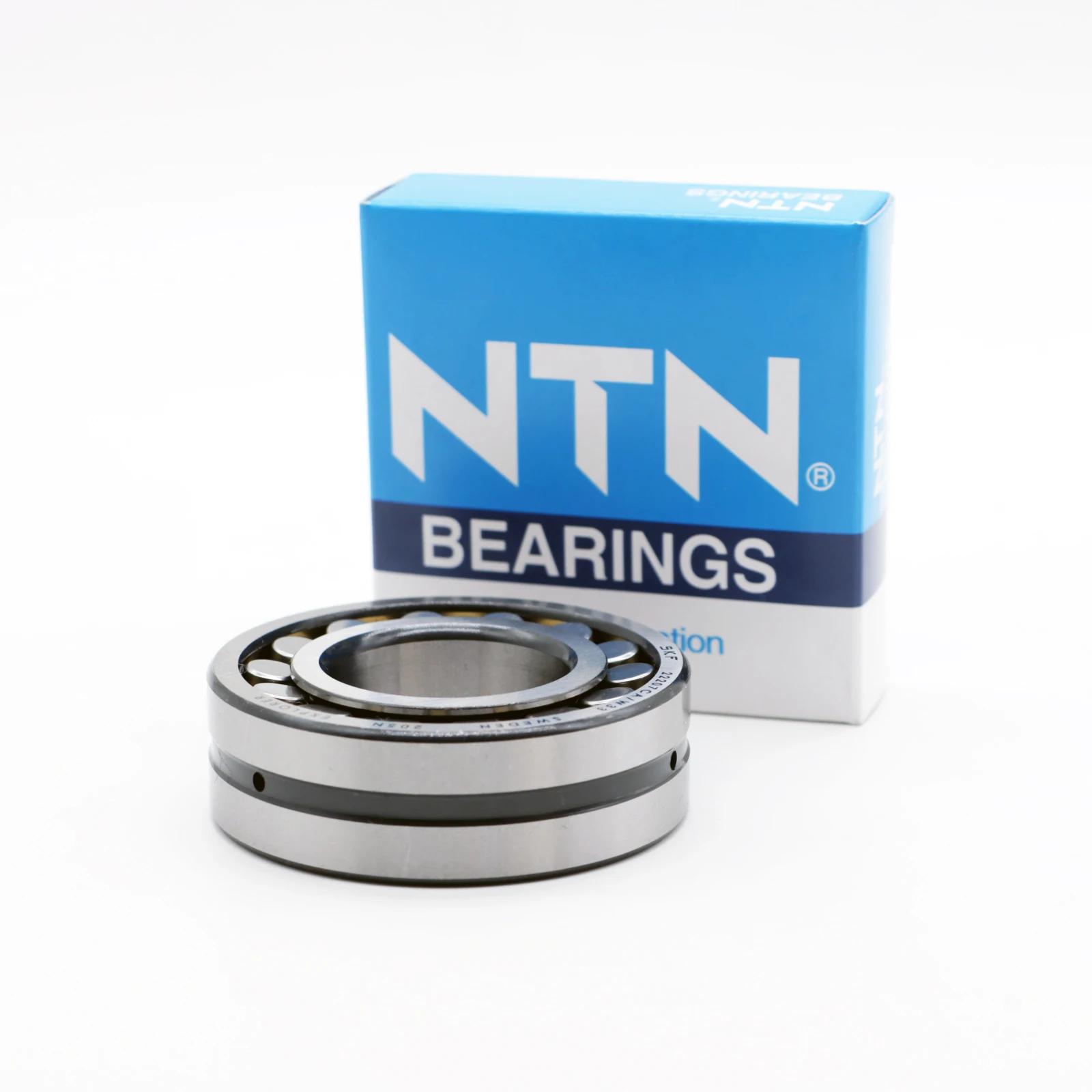

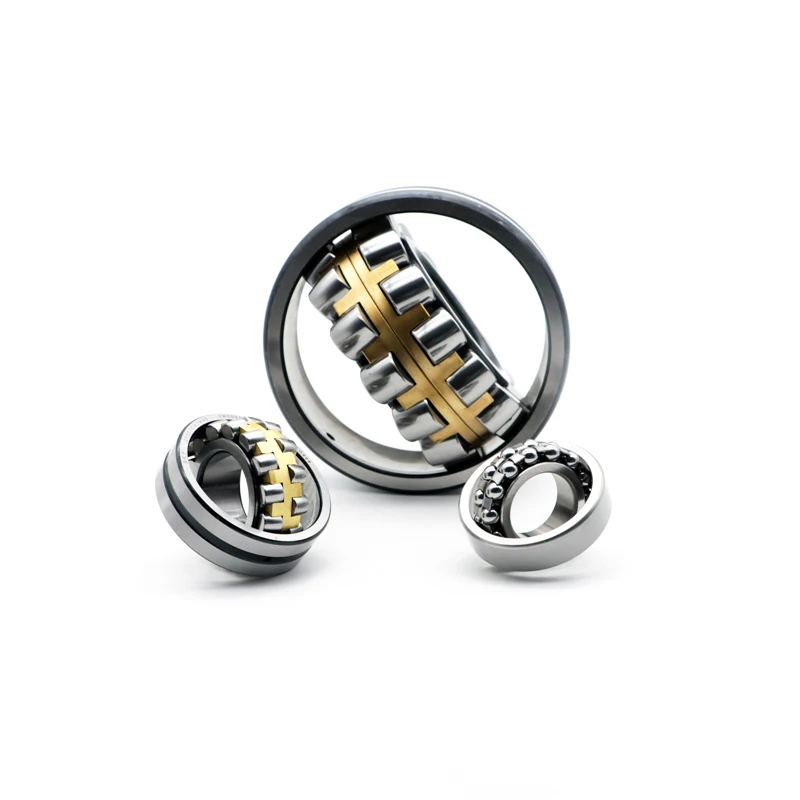

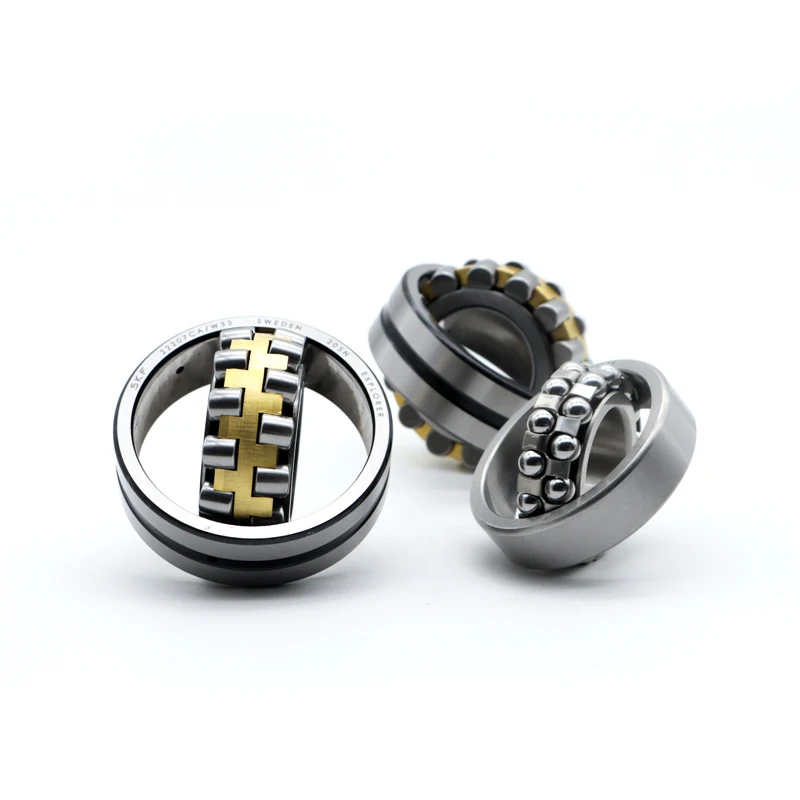

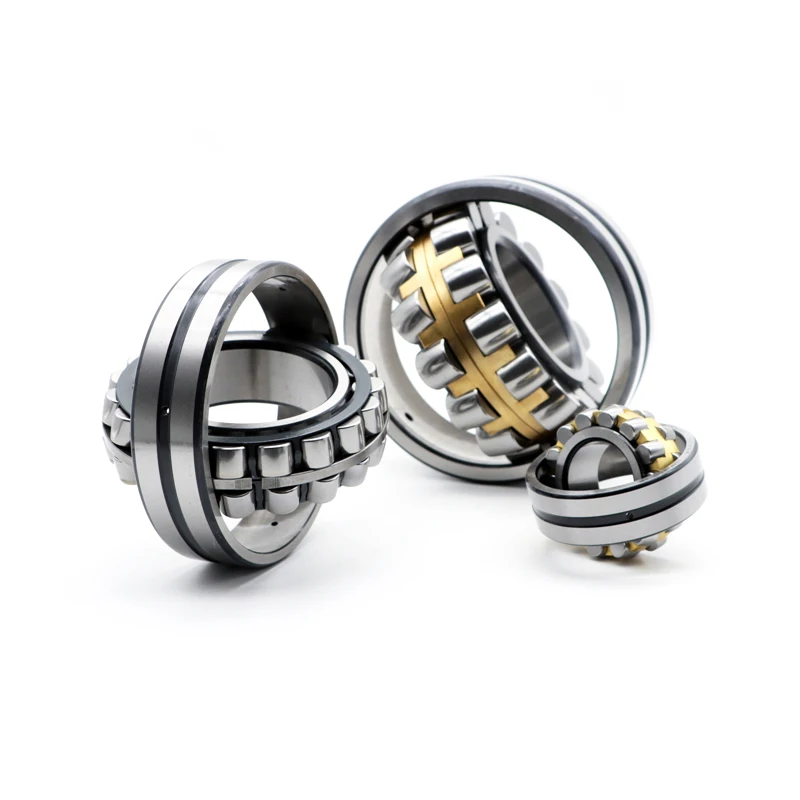

BEARING PICTURE




The models of spherical roller bearings are: spherical roller bearing (type 20000CC),spherical roller bearing with tapered hole (type 20000CCK), spherical roller bearing (type 20000CC/W33), spherical roller bearing with tapered hole (20000CCK/W33 type), Spherical roller bearing mounted on the adapter sleeve (20000CCK+H type), Spherical roller bearing mounted on the adapter sleeve (20000CCK/W33+H type) A total of 6 types.
Mainly applicable cage: stamped steel plate reinforced cage (suffix E). Stamped steel cage (suffix CC), glass fiber reinforced polyamide 66 cage (suffix TVPB), machined brass two-piece cage (suffix MB). Machined brass integral cage (suffix CA), stamped steel cage for vibration applications (suffix JPA). Brass cage for vibration (suffix EMA)






According to whether the inner ring has ribs or not and the different cages used, it can be divided into C type and CA type. The characteristics of C type bearings are that the inner ring has no ribs and the steel stamping cage is used. The characteristics of CA type bearings On both sides of the inner ring, there are ribs and a car-made solid cage. In order to improve the lubrication of the bearing, a spherical roller bearing with an annular oil groove and three oil holes in the outer ring can be provided to the user, which is represented by the bearing rear code /W33. Spherical roller bearings with inner ring oil holes can also be supplied according to user requirements. In order to facilitate customer loading, unloading and replacement of bearings, spherical roller bearings with tapered inner holes can also be provided. The taper hole taper is 1:12 , and the post code is K. In order to meet the requirements of special users, bearings with an inner hole taper of 1:30 can also be provided, and the post code is K30.


FACTORY






Shandong YOKO Bearing Co., Ltd. is located in Jinan, China. It has been developing rapidly for 15 years and has become a large-scale bearing enterprise integrating industry and trade.
YOKO's leading products include: deep groove ball bearings, tapered roller bearings, cylindrical roller bearings, spherical roller and spherical ball bearings, angular contact ball bearings, thrust roller and thrust ball bearings, non-standard bearings, etc.
YOKO has established a complete sales network and service system, and its products sell well both at home and abroad. YOKO is in the forefront of China's bearing industry in terms of financial strength, production scale, technical strength and sales performance.




PACKAGE






SHIPPING


Q:What are your shipping methods?
A:Rail transportation, road transportation, water transportation, air transportation
Q:What trade term you can provide for us?
A:EXW/FCA/CPT/CIP/DAT/DAP/DDP/FAS/FOB/CFR/CIF
Q:Why we can choose your shipping?
A:We have our own stable transportation channels for different countries and regions, and for some countries and regions we can provide customs clearance services at the port of destination.






FAQ


Q. Are you a factory or a trading company?
A : We are manufacturer
Q: Can I get some samples?
A: Yes, please send us an inquiry,we provide free samples
Q.What is your delivery time?
A: About 3 days
Q: what services can we provide?
A: OEM service
Q: How to get more details?
A: Send inquiry please, and left your contact information.
