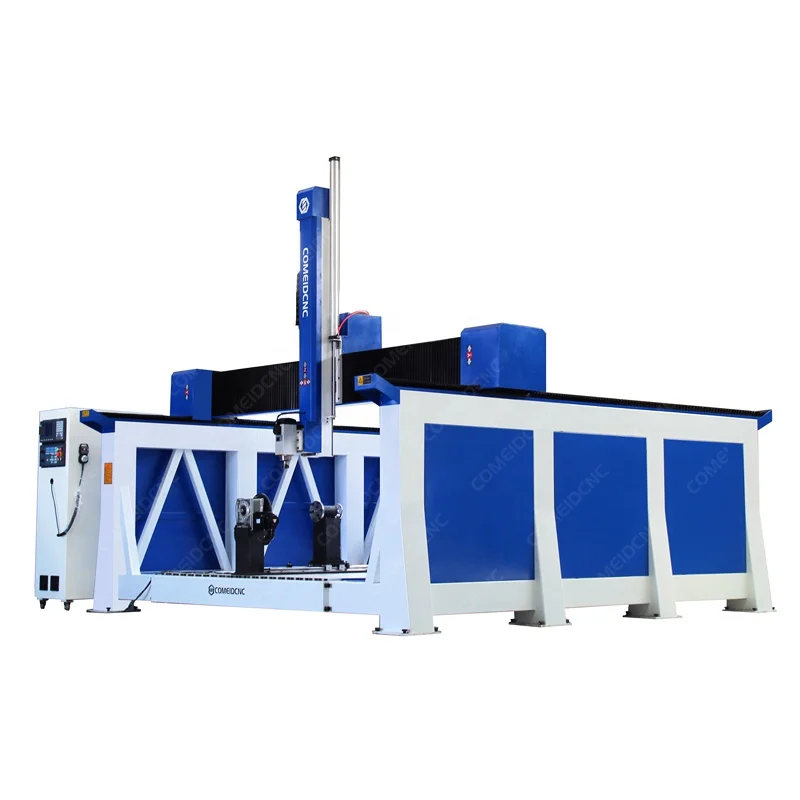

ATC ЧПУ маршрутизатор блоков EPS/ПСВ (вспенивающегося полистерола) Горизонтальный 3 оси полиуретановая пена вращения фрезерная резьба гравировальный станок
- Категория: >>>
- Поставщик: Jinan Comeid CNC Equipment Co. Ltd.
Сохранить в закладки 1600549738069:
Описание и отзывы
Характеристики
Products Description

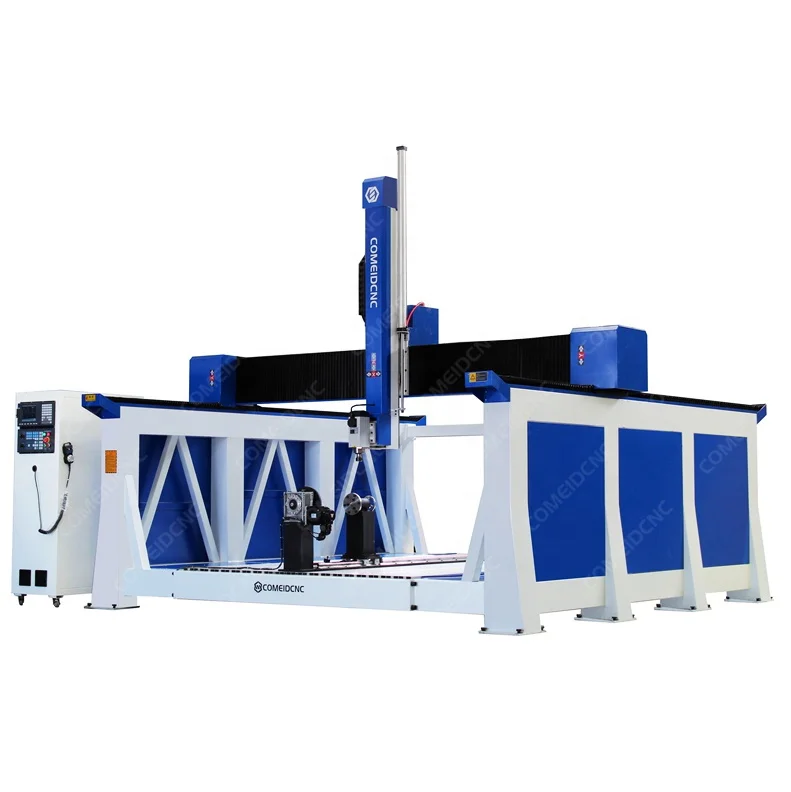

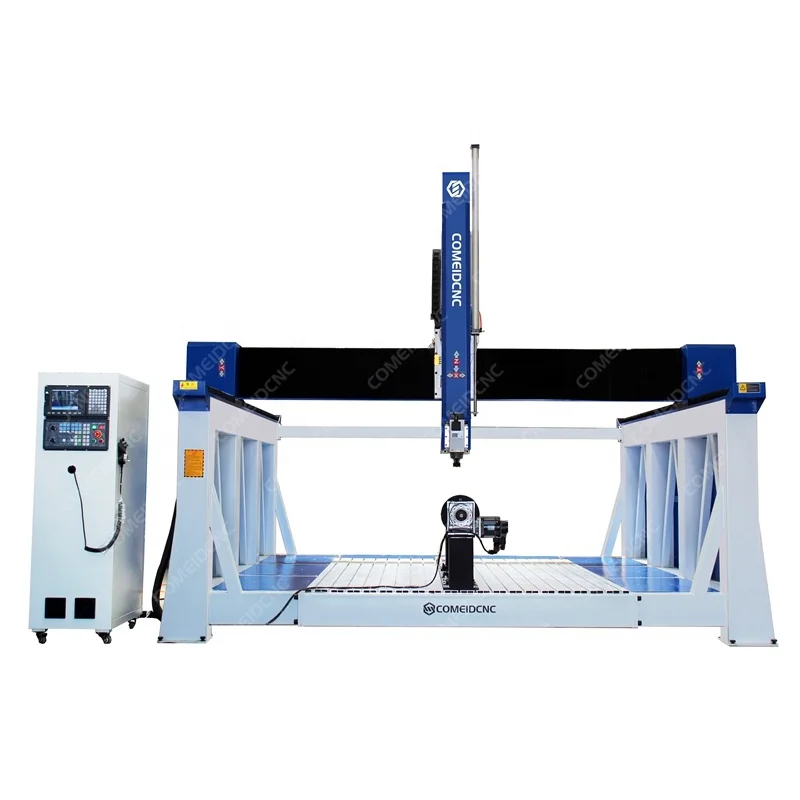

ATC CNC Router Foam EPS Horizontal 3 Axis PU Foam Rotational Milling Carving Engraving Machine
Standard Configuration of 5 Axis CNC Router
1.Working size:2000*3000*1000mm,
2.A Axis: ±360°with rotary device
3.B Axis ±90° with rotate swing head
4.5 Axis LNC or TAIYUAN control system
5.9KW or 6.0kw air cooling spindle
6.rotary device diameter 1000 mm
5. servo driver and motor
7.Taiwan HIWIN linear guide
8.Taiwan TBI ball screw for Z axis
4.5 Axis LNC or TAIYUAN control system
5.9KW or 6.0kw air cooling spindle
6.rotary device diameter 1000 mm
5. servo driver and motor
7.Taiwan HIWIN linear guide
8.Taiwan TBI ball screw for Z axis
Product Paramenters
Specification | 2030 foam CNC router |
Work Area | 2000×3000×1000mm |
Spindle power | 6KW Air cooling spindle |
Max working speed | 40m/min |
Positioning Accuracy | 0.05/2000mm |
Gears Rails | High precision helical gears rails |
Drive motor | 1.5KW servo motors and drivers |
Working Voltage | AC380V/3PH/50HZ |
Command Language | G code |
Spindle speed | 6000-18000rpm |
Inverter | 7.5KW Fulin inverter |
Interface | USB |
Tools | 3.175 / 6 / 12.7 / 16 / 20 |
Control | 5 Axis TAIYUAN Control System |
Oil lubricating | Electrical oil lubricating system |
Key word | horizontal 3 axis pu foam rotational milling |
Figure photos
Details Images

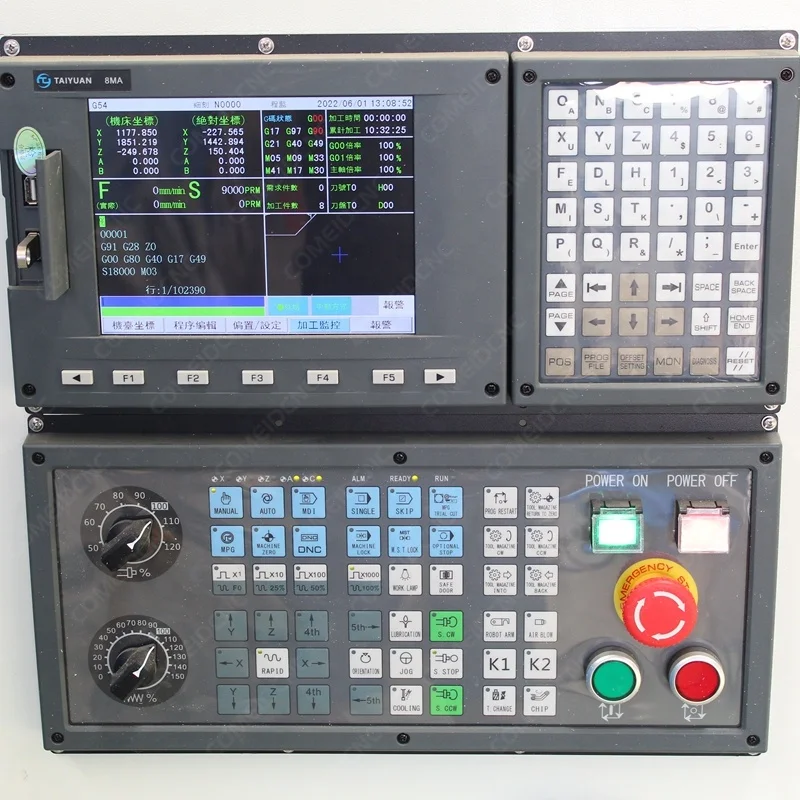

5 Axis Controller English Version
The TAIYUAN control system has the advantages of fast response speed, stable operation, man-machine interface, convenient keys, easy to learn.

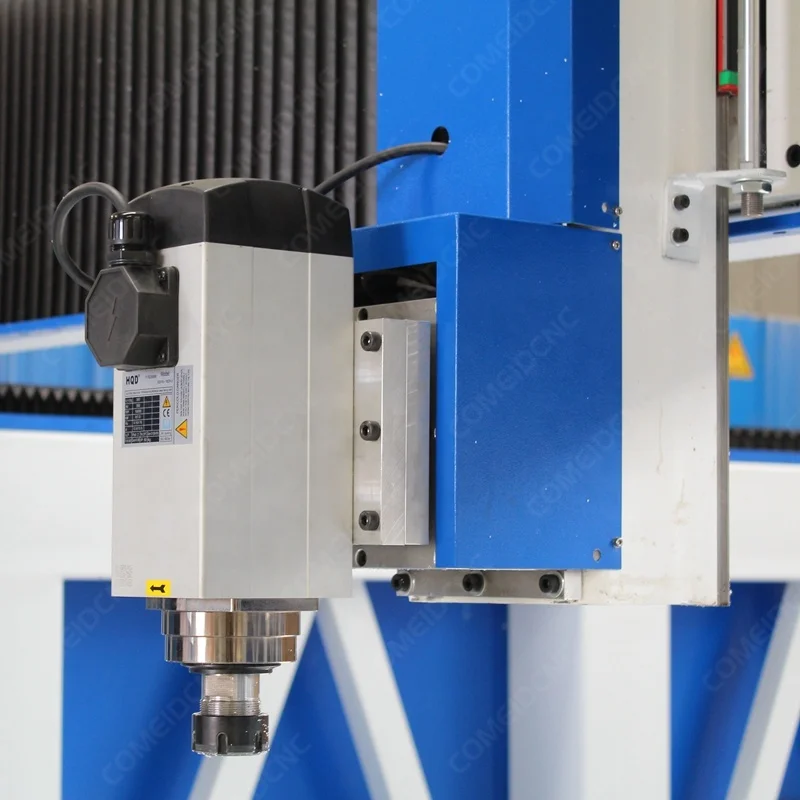

HQD 6KW air cooling
Adopt high power air-cooling spindle, with strong power for cutting and grooving, it rotate left and right for 180 degree.

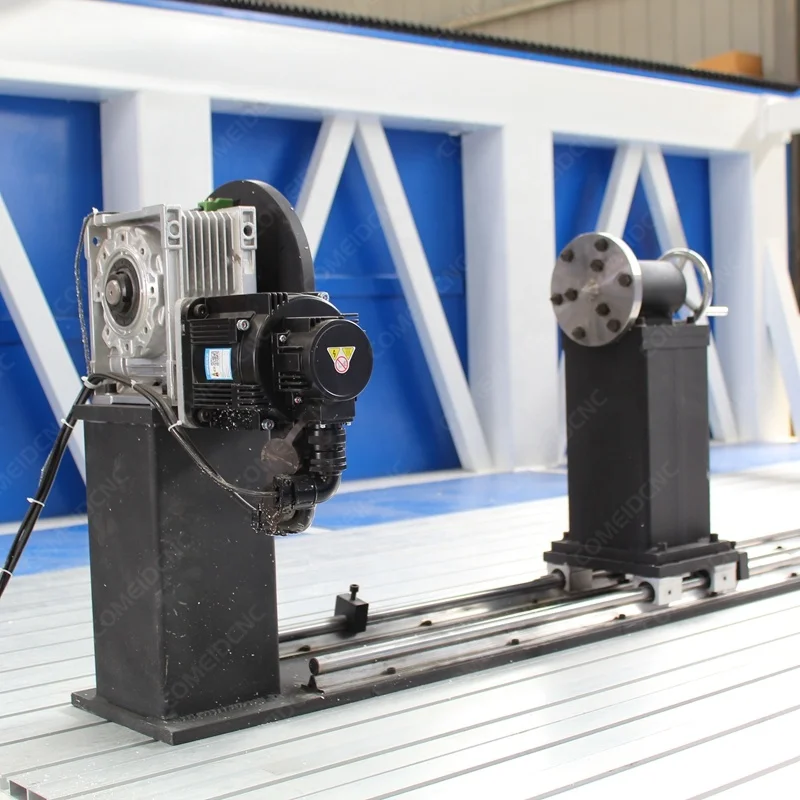

Rotary Device is moveable.
It use the large power servo motor driver for Rotary device.
1.5kw Servo drive motor
High torque make fast speed and work stability.
High precision, long service time, large contact surface, strong load-carrying capacity.
Inverter of FOlinn brand is famous brand , and it work very stable
Servo drivers for 5 axis, and it has numbers for each wire.
Application
It can cut various in 3D processing, such as Roam column , dragon column , figures ,animals , casper ,wedding foam and so on . Easy to carve and cut on EPS foam block and panel . Building components,European relief carving,cutting. production of foam moulds.
Company Information
Since 2009 our company began production and sales of CNC equipment. It accumulated customers and dealers from all around theworld.Their feedback help improving product value-added.Publicity, sales, production, inventory, quality control, R & D departments perForm their duties orderly. Product design with good operation, important parts carefully selected, low failure rate.Production of 50 per month production capacity, each machine manufactured before the rigorous testing and 8 hours uninterrupted operation.It provides excellent service. According to customer needs to choose the most suitable products. 24-hour telephone, mail, WeChat in a timely manner. Software and mechanical engineers accumulated years of experience, they offer quick and effective after-sale problem-solving.
FAQ
1.How about the documents after shipment?
After shipment, we will send original documents to you by DHL which including Packing List,
Commercial Invoice, Bill of Landing, and other certificates as required by Clients.
After shipment, we will send original documents to you by DHL which including Packing List,
Commercial Invoice, Bill of Landing, and other certificates as required by Clients.
2.How long is the delivery time?
For standard machines, it would be 7-10 days; For special ordered machines, it would be 15 to 30 days depends on the factory arrangement.
For standard machines, it would be 7-10 days; For special ordered machines, it would be 15 to 30 days depends on the factory arrangement.
3.Do You Arrange Shipment For The Machines?
Yes, we will arrange shipment for you with FOB and CIF tem as you required.
Yes, we will arrange shipment for you with FOB and CIF tem as you required.
4.How is the packing?
Waterproof plastic film package with foam protection in each corner. Plywood Wood Case Package with Steel Belt. It save space as much as possible for container loading.
Waterproof plastic film package with foam protection in each corner. Plywood Wood Case Package with Steel Belt. It save space as much as possible for container loading.
5.Payment terms:
--TIT : 30% TIT in advance and pay the balance 70% against goods ready before shipping.
—Western Union :Total amount should be below than $5000USD Warranty: 1 year except consumables as the cutting nozzles.
Skype ID: rose.huango7 Leave me message please. I will reply you as soon as possible.
--TIT : 30% TIT in advance and pay the balance 70% against goods ready before shipping.
—Western Union :Total amount should be below than $5000USD Warranty: 1 year except consumables as the cutting nozzles.
Skype ID: rose.huango7 Leave me message please. I will reply you as soon as possible.
Похожие товары
Украшения для телефона в европейском стиле ретро из смолы, винтажные модели телефонов, украшения для дома, гостиной, рабочего стола
3,20 $ - 3,60 $
Стеклянные двери и окна без перфорированных ручек присоски для ванной комнаты поручни туалетных
0,77 $ - 1,08 $
Волоконно-оптическая алмазная шлифовальная пленка 1um 3um 9um 15um 30um волоконно-оптический коннектор
0,30 $ - 0,40 $

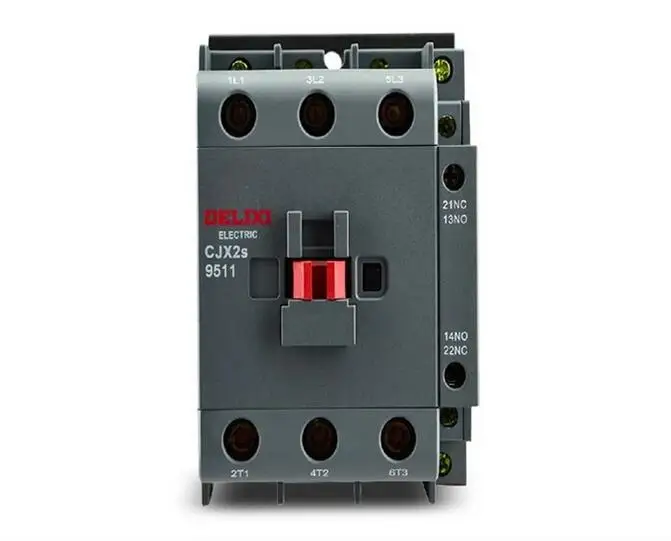

3-фазные замыкатели переменного тока DELIXI CJX2s 95A, промышленное управление с сертификатом ccc ce, электрические замыкатели
48,09 $ - 60,90 $

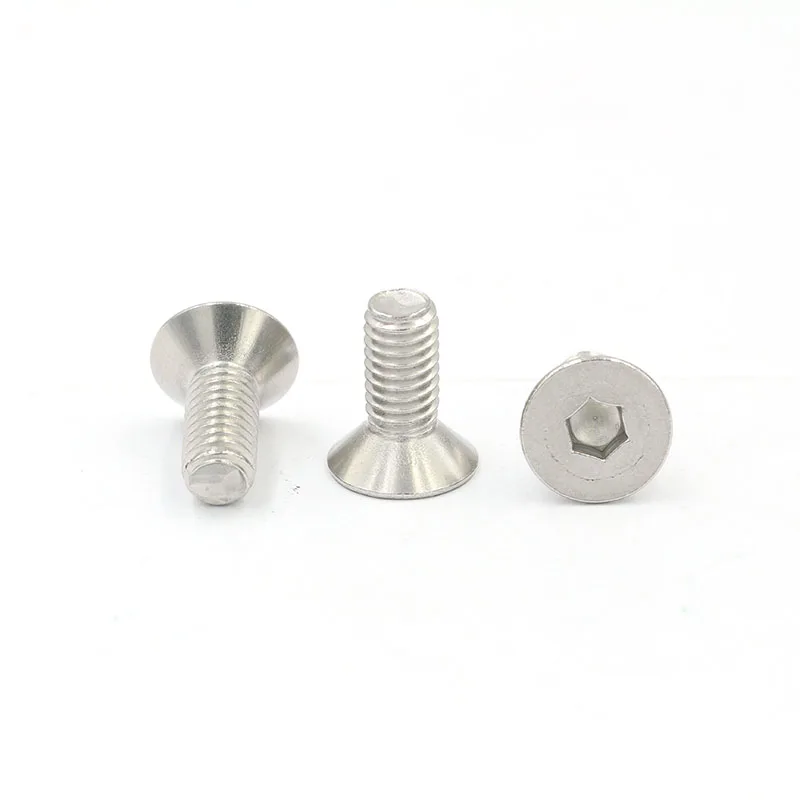

M8-1.25 х 25 мм плоской головкой кепки винты из нержавеющей стали и A2-70 DIN 7991 винт
