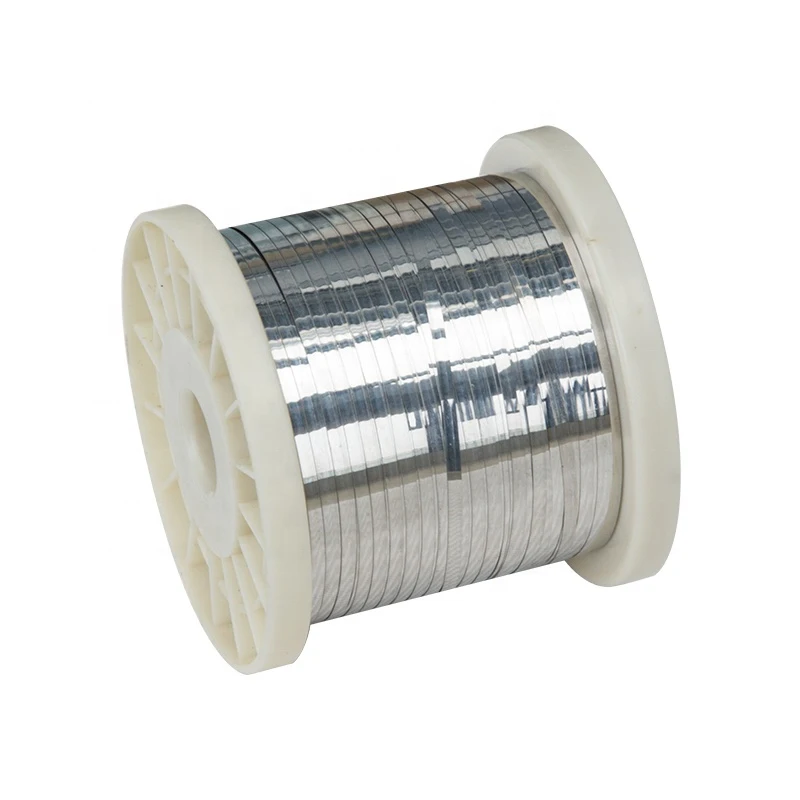

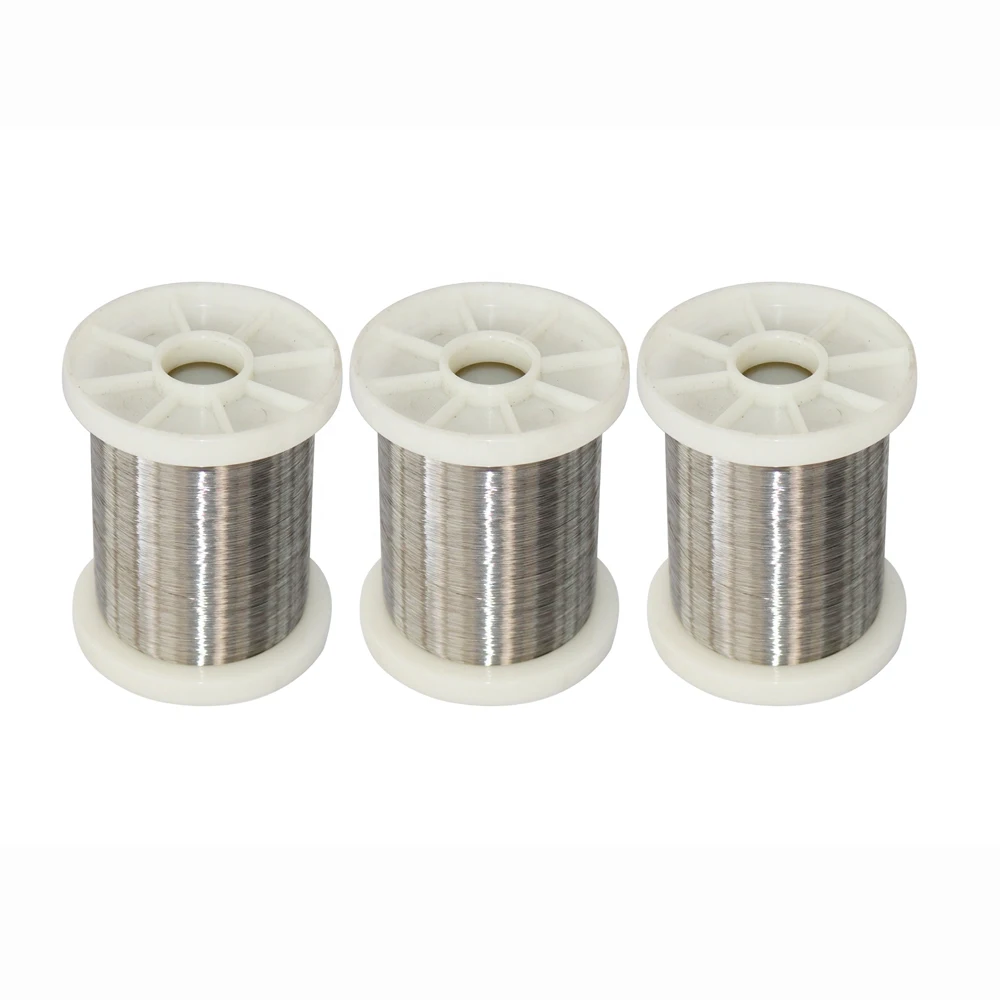

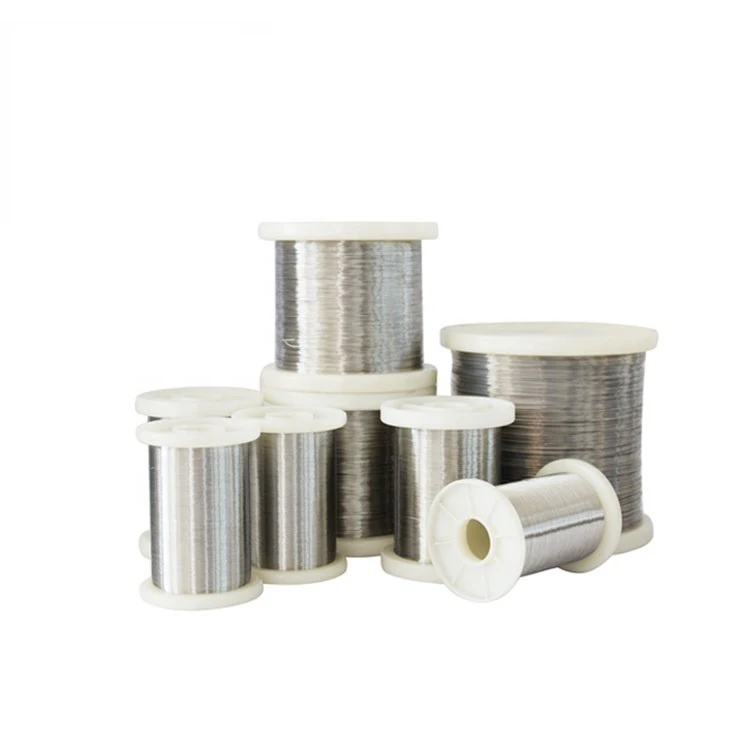

Катушка Micr Ni 80/ Cr20ni80 80/20 нагревательное сопротивление Ni80 44 г сверхтонкий нихромовый 80

Катушка Micr Ni 80/ Cr20ni80 80/20 нагревательное сопротивление Ni80 44 г сверхтонкий нихромовый 80

Категория: Nickel >>>
Поставщик: Jiangsu DZX Technology Co. Ltd.

Цена:25,00 $ - 35,00 $*

Количество:

В избранное

Описание и отзывы

Характеристики

产品图片

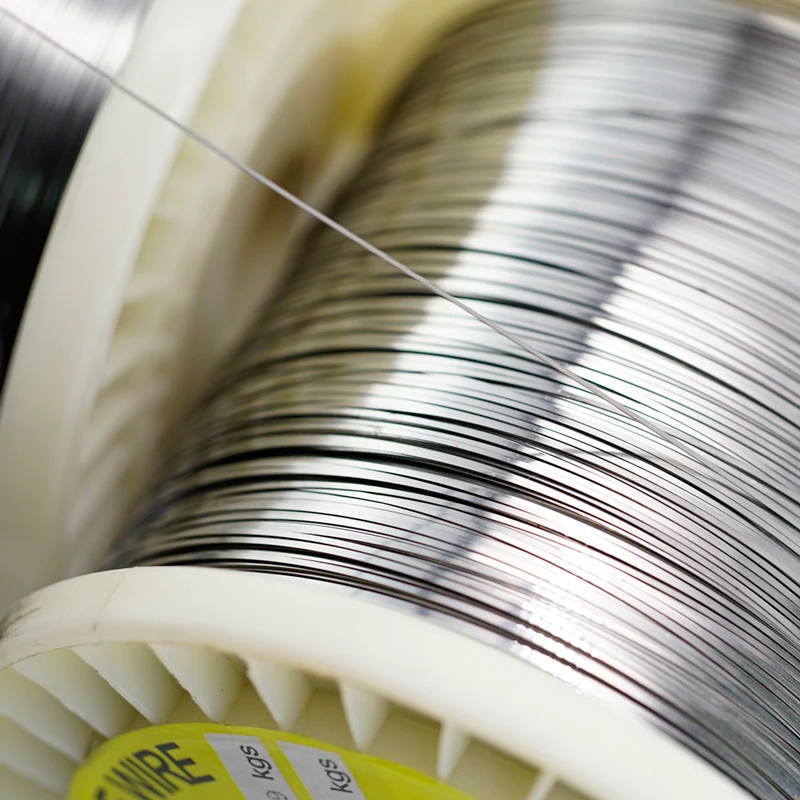

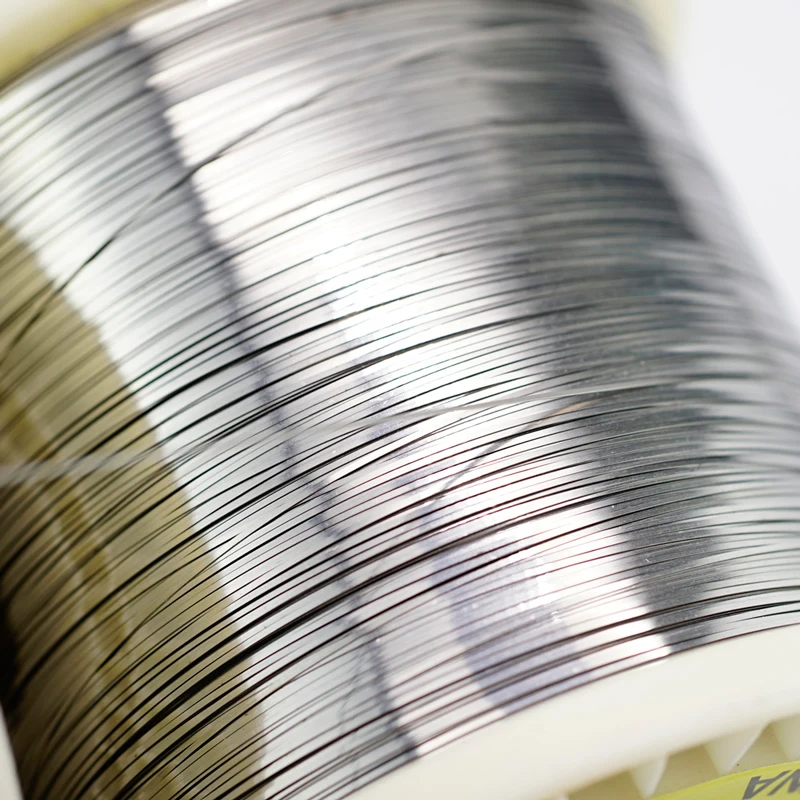

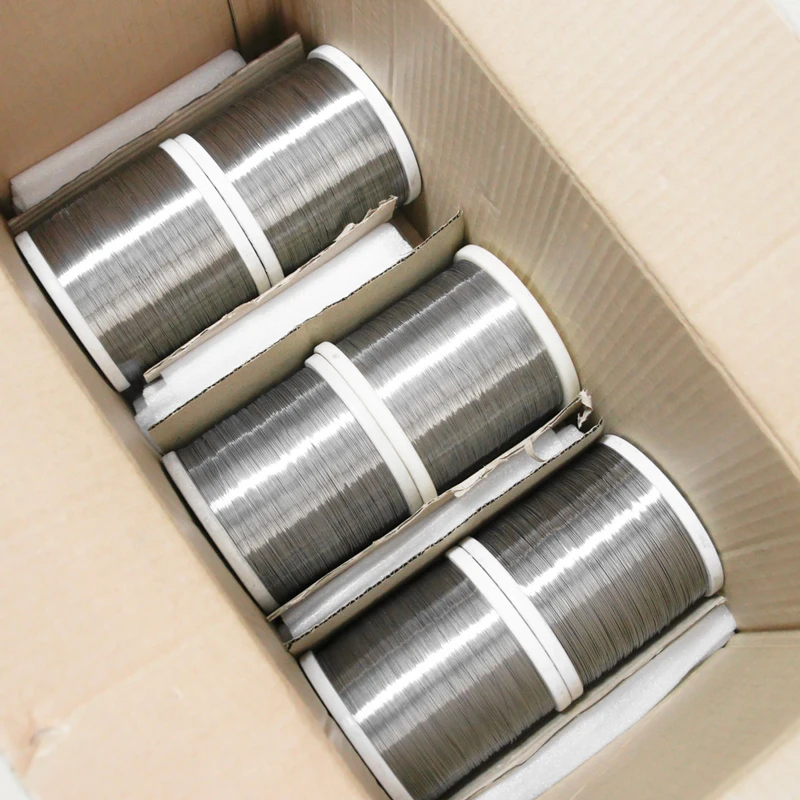

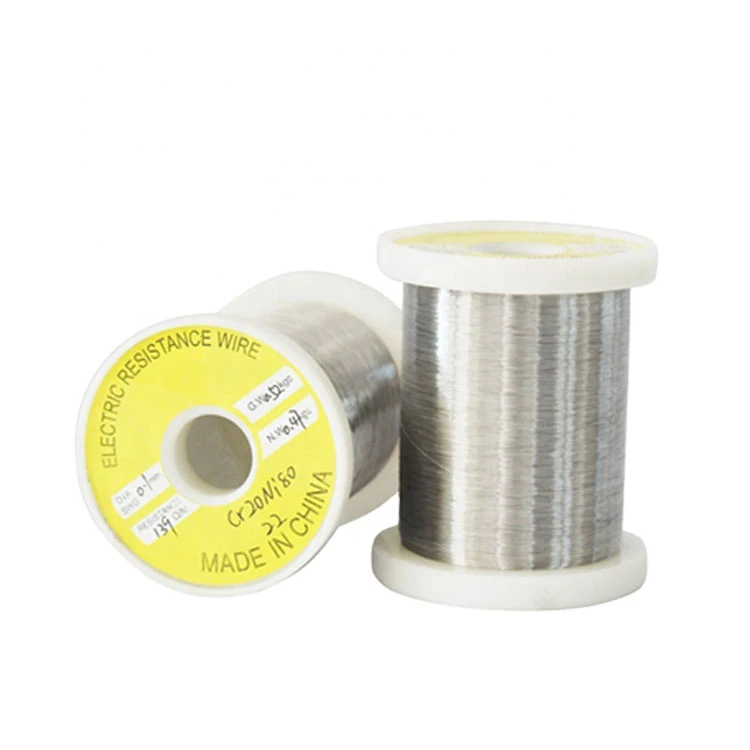

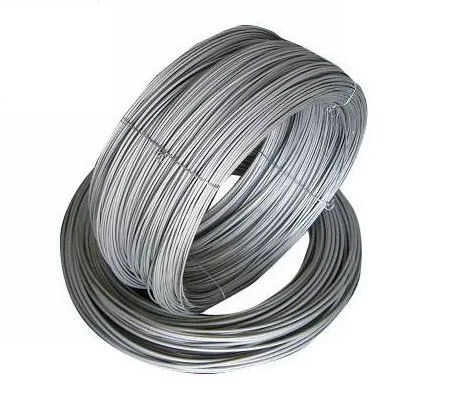

nichrome80 flat wire coil

Nickel-chromium, nickel, ferrochrome alloy wire with electric high temperature oxidation resistance, high strength, not soften and a series of advantages. When used in a long time, the same type and the permanent elongation is very small, which is more Cr20Ni80 alloy with excellent comprehensive properties, is to produce high-quality varieties of choice for electric components.

Performance\\ material		Cr10Ni90	Cr20Ni80	Cr30Ni70	Cr15Ni60	Cr20Ni35	Cr20Ni30
Composition	Ni	90	Rest	Rest	55.0~61.0	34.0~37.0	30.0~34.0
	Cr	10	20.0~23.0	28.0~31.0	15.0~18.0	18.0~21.0	18.0~21.0
	Fe		≤1.0	≤1.0	Rest	Rest	Rest
Maximum temperature℃		1300	1200	1250	1150	1100	1100
Meltiing point ℃		1400	1400	1380	1390	1390	1390
Density g/cm3		8.7	8.4	8.1	8.2	7.9	7.9
Resistivity at 20℃((μΩ·m)			1.09±0.05	1.18±0.05	1.12±0.05	1.00±0.05	1.04±0.05
Elongation at rupture		≥20	≥20	≥20	≥20	≥20	≥20
Specific heat J/g.℃			0.44	0.461	0.494	0.5	0.5
Thermal conductivity KJ/m.h℃			60.3	45.2	45.2	43.8	43.8
Coefficient of lines expansion a×10-6/ (20~1000℃)			18	17	17	19	19
Micrographic structure			Austenite	Austenite	Austenite	Austenite	Austenite
Magnetic properties			Non-magnetic	Non-magnetic	Non-magnetic	Weak magnetic	Weak magnetic
