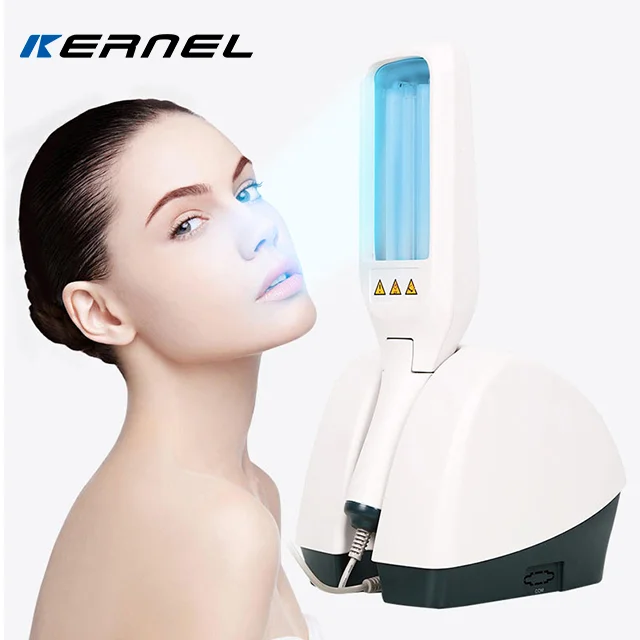

KN 4006 ультрафиолетовых лучей спектров осветительное оборудование лечения витилиго медицинского оборудования УФ фототерапия 311 nb уфв лампы для псориаза экземы
- Категория: >>>
- Поставщик: Kernel Medical Equipment Co. Ltd.Kernel Ltd.
Сохранить в закладки 1600552529567:
Описание и отзывы
Характеристики
Products Description
Decades Manufacturing experience of UV Phototherapy
-------Kernel MED
We have been engaged in this area as early as in 2005,and all of these uv phototherapy devices have cleared EU CE in 2012,and got USA 510K approval in 2014. They all meet the world’s strictest standard for medical equipment.You can get them easily and resell to any market all over the world. Through 15 years efforts,we have developed a complete series of uv phototherapy devices:different light sources from uvb lamp to LED;different wavelength from 311nm to 308nm;different structure from uvb wand,panel,all in one
trolley,half body,special scalp part to whole body cabinet.
trolley,half body,special scalp part to whole body cabinet.
We have all solutions for your skin problems.
Scope of application
It is suitable for clinical units or under the guidance of doctors, for skin disease patients to treat vitiligo, psoriasis, pityriasis rosea, eczema skin diseases at home by themselves.
Features\t
*** Using the special ultraviolet lamp produced by Philips in the Netherlands as the treatment light source, which has the characteristics of high stability and long life;
*** The irradiation angle of the irradiator can be adjusted according to the needs of the treatment, and it can also be placed on the base or hand-held to operate the irradiator, and the irradiation site is more flexible;
*** Lightweight, compact and easy to carry;
*** Easy to operate and also suitable for home treatment;
*** Reflector design can improve radiation efficiency and make the light source illuminate more evenly;
*** Electromagnetic anti-interference technology to ensure that the equipment can work normally in complex electromagnetic environment;
***Fashionable blue LCD display, with microcomputer timing function, eliminates the trouble of time calculation and improves the accuracy.
*** The warm voice prompt function reminds patients and medical staff of the treatment time, making the treatment process more humane;
Product Certification System Certification: Passed ISO 9001: 2008, ISO 13485: 2003 Certification
Product certification: Obtained China USA food and Drug administration, CE product registration certification;
It is suitable for clinical units or under the guidance of doctors, for skin disease patients to treat vitiligo, psoriasis, pityriasis rosea, eczema skin diseases at home by themselves.
Contraindications
The following patients should not use UV radiation therapy: patients with solar dermatitis, lupus erythematosus, patients with malignant tumors, patients with xeroderma pigmentosum, patients with Bloom syndrome, patients with dermatomyositis, pregnant women and other patients who are not suitable for UV radiation therapy Wait.
The following patients should not use UV radiation therapy: patients with solar dermatitis, lupus erythematosus, patients with malignant tumors, patients with xeroderma pigmentosum, patients with Bloom syndrome, patients with dermatomyositis, pregnant women and other patients who are not suitable for UV radiation therapy Wait.
Features\t
*** Using the special ultraviolet lamp produced by Philips in the Netherlands as the treatment light source, which has the characteristics of high stability and long life;
*** The irradiation angle of the irradiator can be adjusted according to the needs of the treatment, and it can also be placed on the base or hand-held to operate the irradiator, and the irradiation site is more flexible;
*** Lightweight, compact and easy to carry;
*** Easy to operate and also suitable for home treatment;
*** Reflector design can improve radiation efficiency and make the light source illuminate more evenly;
*** Electromagnetic anti-interference technology to ensure that the equipment can work normally in complex electromagnetic environment;
***Fashionable blue LCD display, with microcomputer timing function, eliminates the trouble of time calculation and improves the accuracy.
*** The warm voice prompt function reminds patients and medical staff of the treatment time, making the treatment process more humane;
Product Certification System Certification: Passed ISO 9001: 2008, ISO 13485: 2003 Certification
Product certification: Obtained China USA food and Drug administration, CE product registration certification;
Techinical parameters
Kernel KN-4006AL/BL Home use UVB Phototherapy Vitiligo Light Psoriasis Lamps
Indications | treatment for psoriasis vitiligo | ||||||
Style | physical therapy equipments UVBphototherapy | ||||||
Dimension | 180mm x190mmx400mm（L×W×H） | ||||||
Radiantion Area | 104cm2±10% | ||||||
UVB Lamp specification | Peak Value 311nm±3nm PL-S9W/01/2P * 2pcs | ||||||
UVA Lamp specification | Peak Value 368nm±3nm PL-S9W/10/2P * 2pcs | ||||||
Working Distance | 3cm±0.5cm | ||||||
Maximum Exposure Time | ≤30min | ||||||
Real test intensity | 5.5mW/cm2 | ||||||
Product Features
Precise Treatment KN-4006AL/BL
Kernel UV PHOTOTHERAPY
*** Two Philips Lamps Larger Irradiation Area
*** Suitable for large skin lesions with 104cm2 irradiation area
*** 90° Free Bending DesignMore Suitable for feet,hands treatment
*** Two Philips Lamps Larger Irradiation Area
*** Suitable for large skin lesions with 104cm2 irradiation area
*** 90° Free Bending DesignMore Suitable for feet,hands treatment

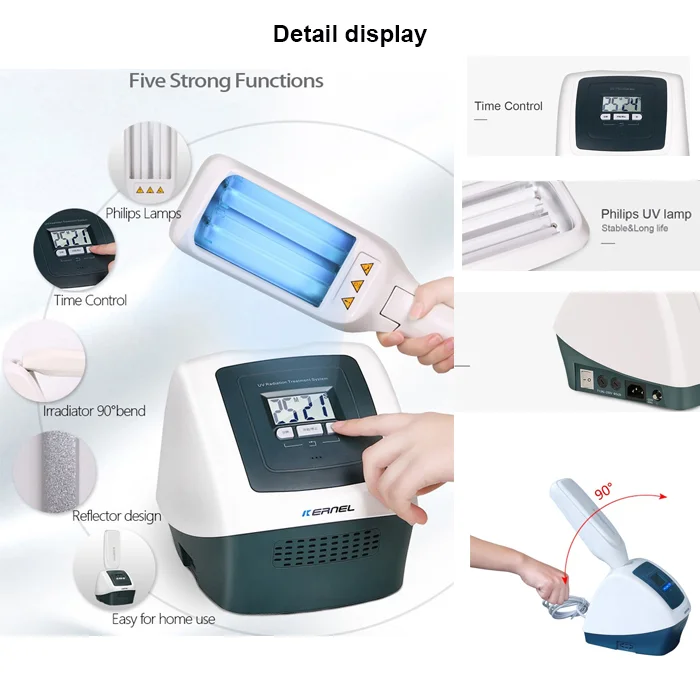

6 Major functions, take you to know the UV Kernelmed
Ultraviolet Phototherapy instrument
Ultraviolet Phototherapy instrument
1. Philips tube

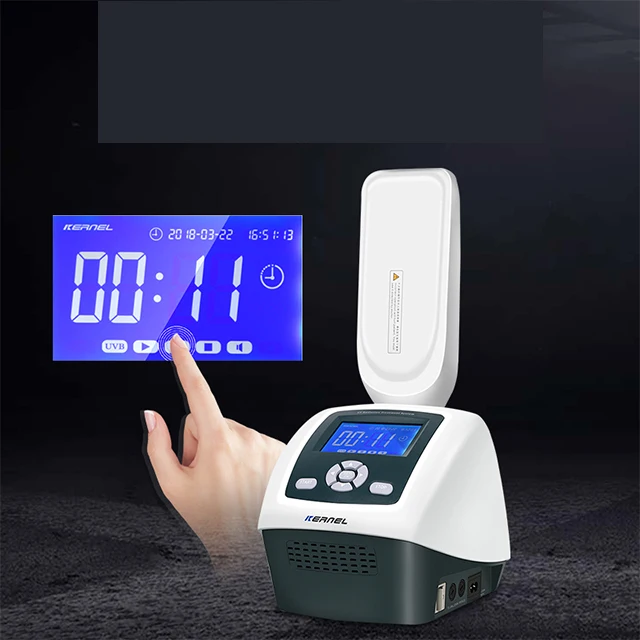

2. LCD display，time is controllable
3. The 90 degree Free bend
4. Reflector design
3. The 90 degree Free bend
4. Reflector design
5. Voice Prompt
6. Convenient for home using
6. Convenient for home using

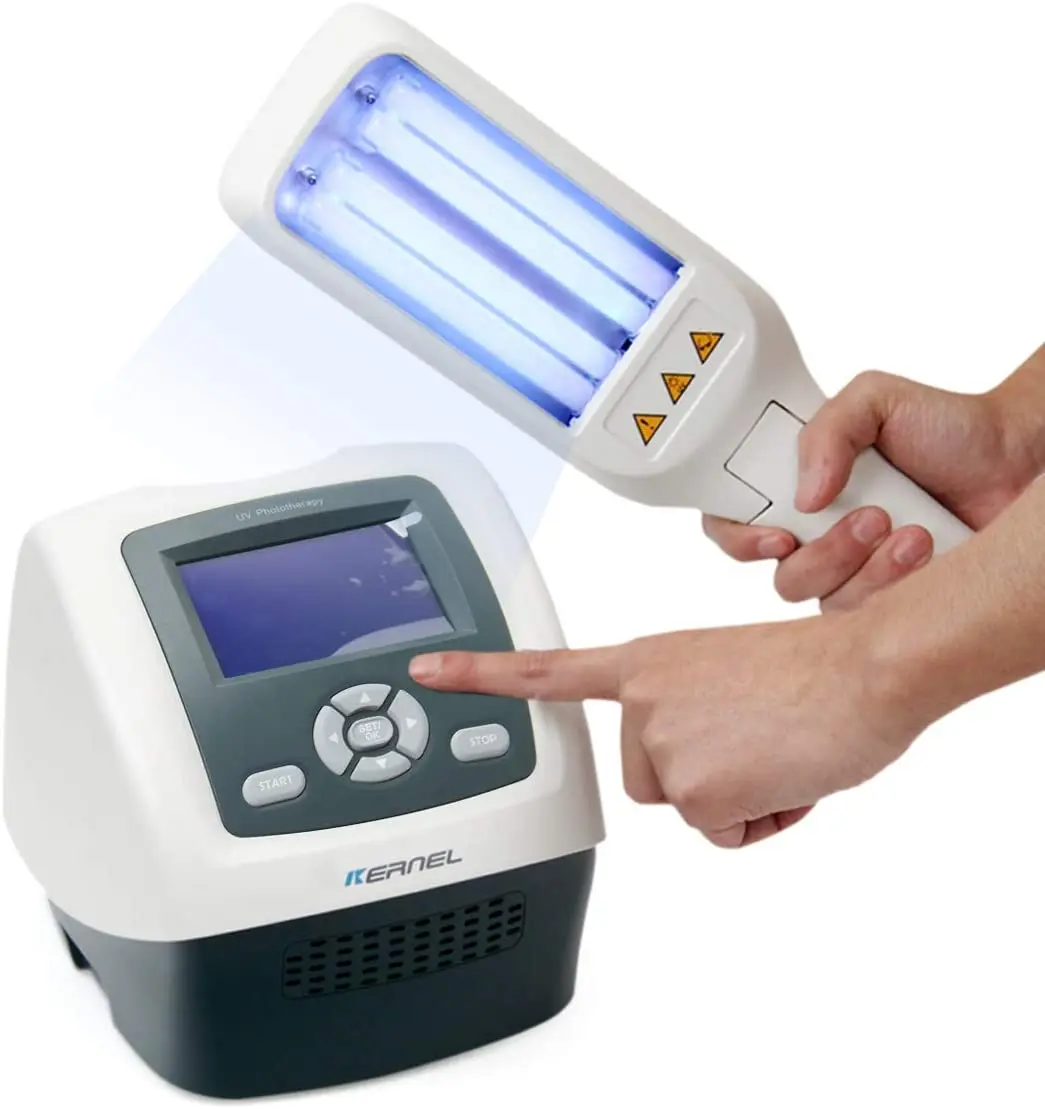

KN-4006 is divided into two parts: Irradiator and host.
Can be used together or separately
Irradiator Size 25.4* 10.2cm, Host Size 18.2cm*13.9cm
Host composition: LED display， Set up/Confirm key, Start Key, Mobile/modify key, Pause/stop key
Can be used together or separately
Irradiator Size 25.4* 10.2cm, Host Size 18.2cm*13.9cm
Host composition: LED display， Set up/Confirm key, Start Key, Mobile/modify key, Pause/stop key
Application and treatment
KN-4006A/B(Ecnomic Model)
UVA/B lamp home UV phototherapy for vitiligo psoriasis treatment
*Simple Time Count down
*104cm² iiradiation area
*Free switch from table-top to hand-held,suitable for feet ,hands,legs,back treatment.
KN-4006AL/BL(Premium Model)
UV lamp phototherapy treatment for Vitiligo psoriasis
*Intelligent Voice Prompt
*Backlight function,simple and convenient operation.
*More safe to use at Home.
USE NB-UVB TO Treat Psoriasis
**Treatment Frequency:3 time per week.
**If the interval between two treatments is maintained within 3 days,no erythema,then increase dose as per below sheet.
Treatment Session | Dose Increase by | ||||||
1-20 times | 10% MED | ||||||
21-X times | Depend on skin response to treatment | ||||||

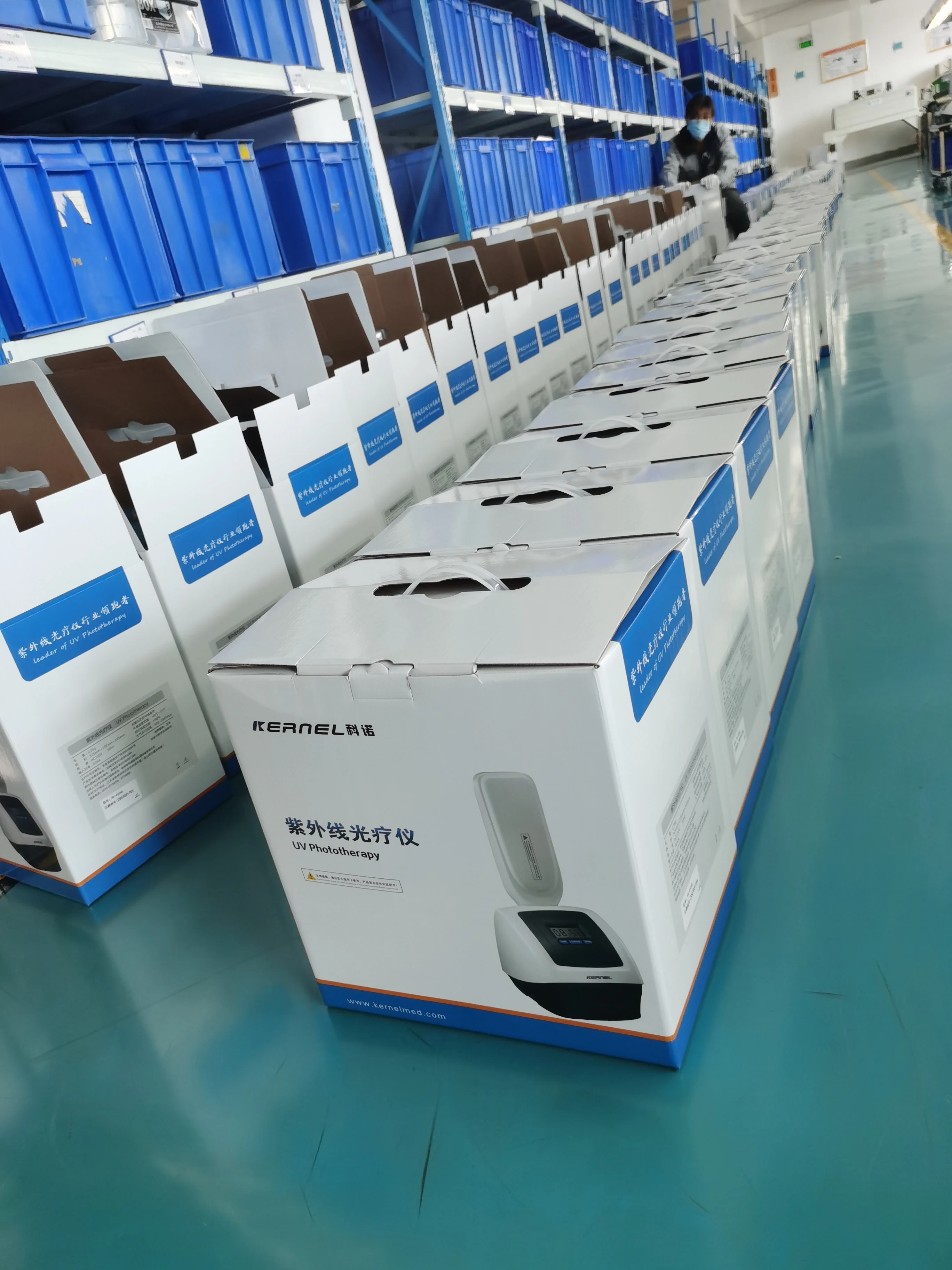

Packing Delivery
Company Profile
Kernel Medical Equipment CO.,Ltd , a global leader in the development, manufacture and sale of advanced medical equipment,including 311/308nm UV phototherapy, PDT LED light therapy beauty machine, LLLT hair regrowth system,Digital&Optical video colposcope with 23 years experience.
We develop fresh, original ,state-of art solutions by converting concepts that often appear to be opposed into real products. Means to develop ,upgrade and reshape. To engineer, build, deliver and support products that best serve the marketplace by providing what you need.
