Гибридные энергетические системы SCU солнечная аккумуляторная система хранения энергии решения для зарядной станции электромобилей новая зарядная станция
- Категория: >>>
- Поставщик: Sicon Chat Union Electric Co. Ltd.
Сохранить в закладки 1600553706589:
Описание и отзывы
Характеристики
Overview

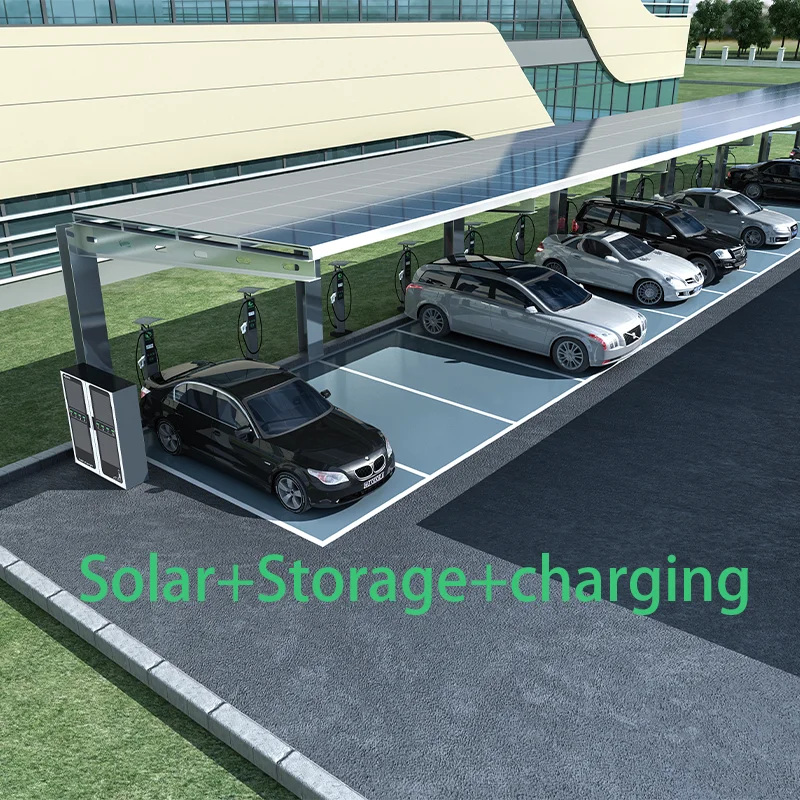

New energy charging charging station is a set of standard one-for-eight charging solution by modular and standardized designing philosophy. It is composed of PV modules, energy storage batteries, PCS and charging facilities. It can realize dynamic growth according to the needs of users and the priority of using new energy.
Charging facilities, energy storage facilities, power distribution, monitoring and temperature control system are integrated in the container. A charging parking space is arranged outside the container, and the charging terminal is embedded on the outer wall of the container,which the user can operate conveniently. The equipment has high reliability and safety, high integration, low cost and low energy consumption, which can realize rapid and flexible deployment. It is a standard and integrated solution for new energy charging station.
Charging facilities, energy storage facilities, power distribution, monitoring and temperature control system are integrated in the container. A charging parking space is arranged outside the container, and the charging terminal is embedded on the outer wall of the container,which the user can operate conveniently. The equipment has high reliability and safety, high integration, low cost and low energy consumption, which can realize rapid and flexible deployment. It is a standard and integrated solution for new energy charging station.
Product Details
EVMS-30 DC Wallbox Charger
The EVMS DC Wallbox charger is able to charge all current and next generation vehicles with CCS and CHAdeMO. The 30kW charging station is a configurable single or dual outlet wall mounted DC fast charger, supporting the changing needs of each customer. With compact, space-saving and attractive design, it is ideal for a wide range of installations, both indoors and outdoors available.
Model | EVMS-30 | |
System capacity | 30kW | |
Input parameters | ||
Voltage | 400Vac, 3P+N+PE | |
Voltage rage | 304V~456Vac | |
Power factor | >0.99 | |
Frequency | 50/60Hz | |
Output parameters | ||
Connectors | Single output CCS1/CCS2/ CHAdeMO | |
Voltage | 50-1000Vdc | |
Current | Maximum 100A, maximum 30kW | |
Power | 30kW | |
Overall efficiency | 95% | |
Other parameters | ||
Display | 10.4’’ TFT Touch screen | |
RFID system | ISO/IEC14443A, Mifare | |
Network connection | 4G (GSM or CDMA) | LAN | WI-FI | |
Communication Protocols | OCPP1.6J (OCPP 2.0 upgradable) | |
Operating temperature | -20℃～ 60℃ | |
Storage Temperature | -40ºC ～ +70ºC | |
Working Humidity | 5%~95%, non-condensing | |
Altitude | 2000 meters | |
Protection | IP54, IK10 | |
Acoustic noise | ＜ 55dB | |
Environment | Outdoor/indoor | |
System protection | Leakage detection and protection; Over-voltage and Under-voltage protection; Self-checking recover; Over-temperature protection; Double Lightning protection; Emergency stop button protection; Power failure data records. | |
Compliance and safety | CE, IEC EN61851, EN62196, DIN70121, ISO15118 | |
Dimension(W*D*H) | 460*345*735MM | |
The power covers 60KW ～ 150KW, and can be configurable single, dual or triple connectors to meet the changing charging needs of customers.
Model | EVMS-60 | EVMS-150 | ||
AC input for the DC Output | ||||
Power connection | 50 Hz or 60 Hz | |||
Voltage range | 400 Vac ± 20 % | |||
Frequency | 50 Hz or 60 Hz | |||
Nominal input current & power | 87A, 60kW | 217A, 150kW | ||
Power factor | > 0.99 | |||
Overall efficiency | 95% | |||
DC Output | ||||
Voltage | 50Vdc-1000Vdc | |||
Max Current | 200A | 250A(200A optional) | ||
Nominal Power | 0-60kW | 60-150kW | ||
AC Output | ||||
Voltage | 400 Vac | - | ||
Current | 63 A(default) / 32 A(optional) | - | ||
Nominal Power | 43 kVA(default) / 22 kVA(optional) | - | ||
General Specifications | ||||
Output mode | Multi-standard DC outputs (Mode-4), with AC (Mode-3) | |||
Connectors | CCS2, CHAdeMO, AC Type 2 | |||
AC-Interface | Type 2 Plug 43kW (default) Type 2 Plug 22kW (optional) Type 2 Socket 22kW (optional) | |||
Display | 10.4’’ TFT Touch screen | |||
RFID system | ISO/IEC14443A, Mifare | |||
Network connection | 4G (GSM or CDMA) | LAN | Wi-Fi | |||
Communication Protocols | OCPP1.6J (OCPP 2.0 upgradable) | |||
Environment | Indoor / outdoor | |||
Operating temperature | -35ºC-60ºC ( -20ºC to -35ºC, heating required) | |||
Operating humidity | ≤95% non-condensing | |||
Altitude | Up to 1000 m | |||
Protection | IP54 , IK10 | |||
Acoustic noise | ＜55dB | |||
Compliance and safety | CE, IEC EN 61851, EN 62196, DIN 70121, ISO 15118 | |||

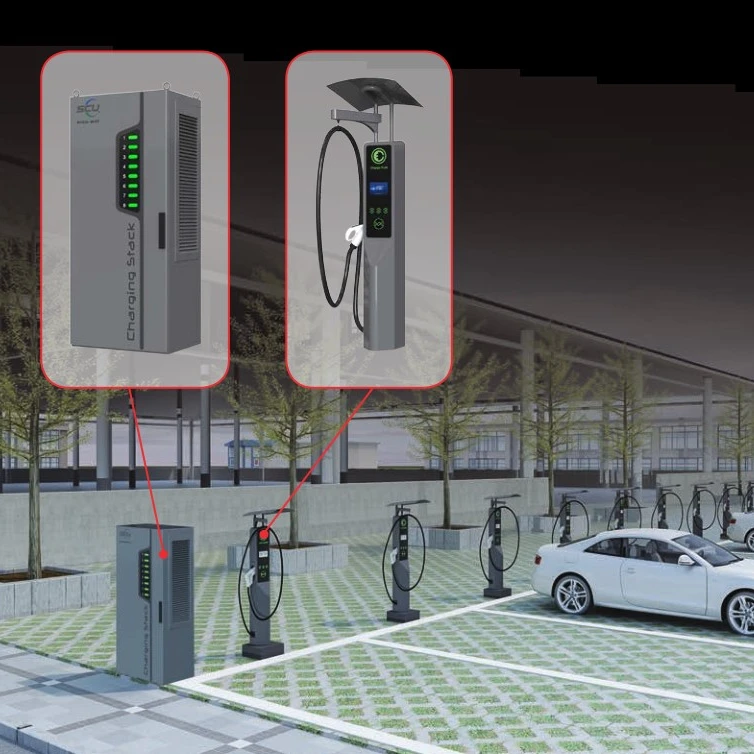

(Power Stack+Charge Post)
EVMS series EV charging stack is a split-type charging system meeting multiple standards CCS, CHAdeMO, GB/T. Adopting modular design concept and forefront power electronic technology, consists of power stack, control units and charge posts. Can be installed both outdoor and indoor.
Model | EVMS-240 | EVMS-360 | |||
Environment | Outdoor / Indoor | ||||
System capacity | 240KW | 360KW | |||
Maximum outlets | 8 | 12 | |||
Output capacity of each route | 0~60KW or 0~120kW | 30~180kW | |||
Input voltage | 400VAC±20% | ||||
Input voltage range | 260V~530V (260V~304VAC, output power derating 50%) | ||||
Power factor | ＞ 0.99 | ||||
Working frequency | 50/60Hz | ||||
Output voltage | 50VDC-1000VDC | ||||
Overall efficiency | 95% | ||||
RFID system | ISO/IEC14443A, Mifare | ||||
Network connection | 4G (GSM or CDMA) | LAN | WI-FI | ||||
Communication Protocols | OCPP1.6J (OCPP 2.0 upgradable) | ||||
Operating temperature | -35ºC-60ºC (-20ºC ～ -35ºC, heating required) | ||||
Operating humidity | ≤ 95%, non-condensing | ||||
Altitude | Up to 1000 meters | ||||
Protection | IP54, IK10 | ||||
Acoustic noise | ＜ 55dB | ||||
Compliance and safety | CE, IEC EN61851, EN62196, DIN70121, ISO15118 | ||||
Dimension(W*D*H) | DC power stack | 800*650*1850 MM | 800*650*2250 MM | ||
Charge post | 320*320*2300 MM | ||||

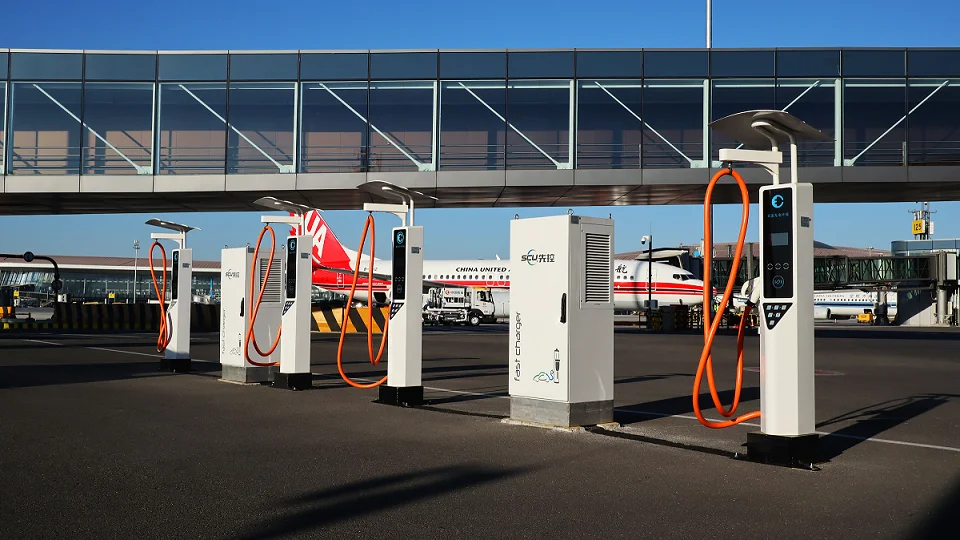

Cases
Recommend Products

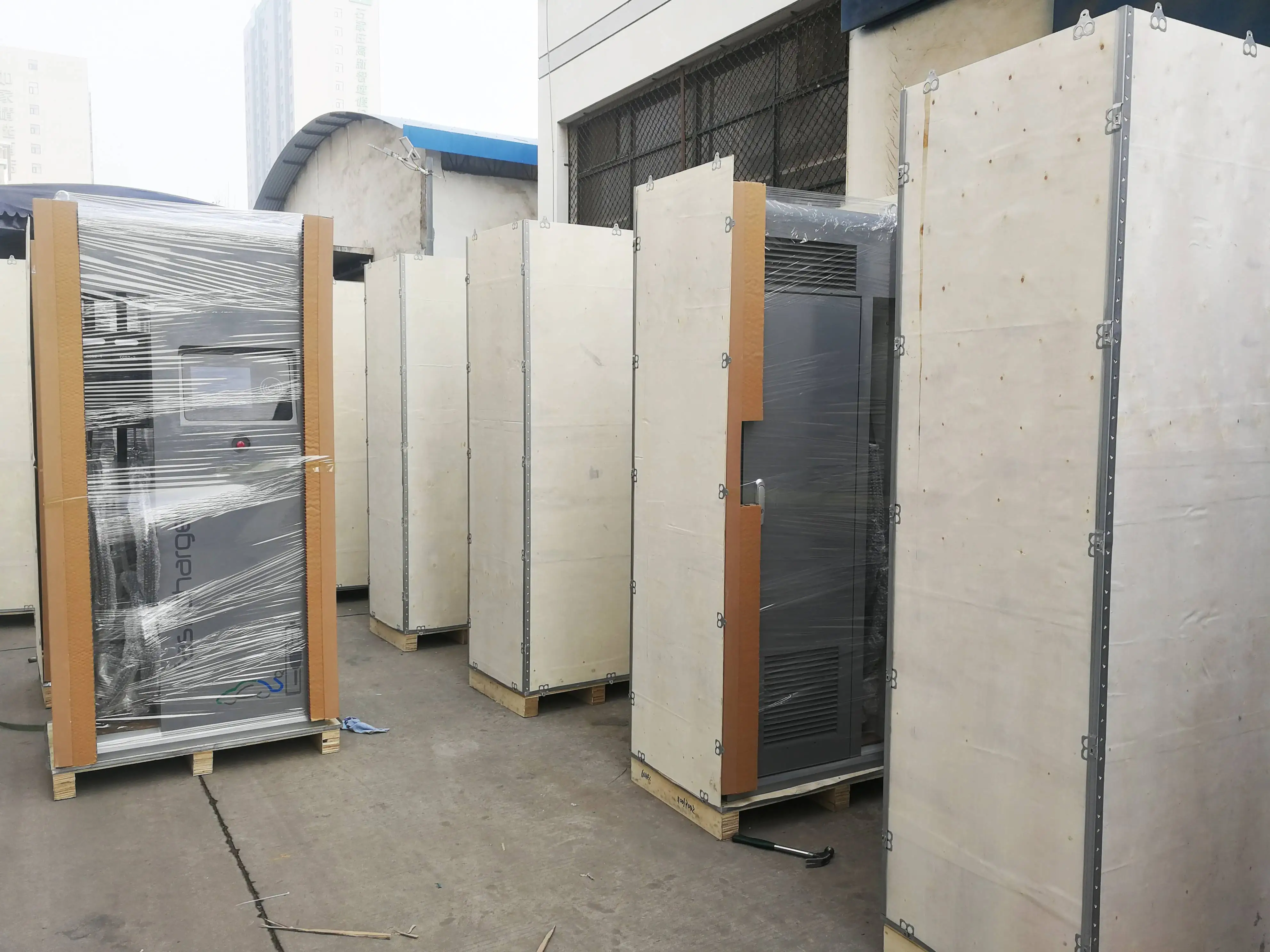

Packing & Delivery
Company Profile
FAQ
1. Who are we?
Founded in 2003, SCU has a lifetime experience in research, development and production of electrical and power electronic solutions for the global industry.
2. What is the MOQ?
The MOQ for battery module is 10 pcs.
3. How can we guarantee the quality?
There is always a pre-production sample before mass production;
And there is always a final inspection before shipment;
4. What certificates do you have?
CE, TUV, UN38.3, etc.
5. What can you buy from us?
UPS, EV Charger, PCS, Lithium battery, ESS.
6. What services can we provide?
Accepted Delivery Terms: FOB, CIF, EXW;
Accepted Payment Currency: USD;
Accepted Payment Type: T/T, L/C;
Language Spoken: English, Spanish, Russian
Founded in 2003, SCU has a lifetime experience in research, development and production of electrical and power electronic solutions for the global industry.
2. What is the MOQ?
The MOQ for battery module is 10 pcs.
3. How can we guarantee the quality?
There is always a pre-production sample before mass production;
And there is always a final inspection before shipment;
4. What certificates do you have?
CE, TUV, UN38.3, etc.
5. What can you buy from us?
UPS, EV Charger, PCS, Lithium battery, ESS.
6. What services can we provide?
Accepted Delivery Terms: FOB, CIF, EXW;
Accepted Payment Currency: USD;
Accepted Payment Type: T/T, L/C;
Language Spoken: English, Spanish, Russian
Похожие товары
Оптовая продажа, удлинительная труба высокого давления BOSCH AQT/UA с соединительной внутренней головкой для расширения оригинальной трубы
5,50 $
Нетканая фотобумага Lotus Design с цифровой печатью
4,00 $ - 7,00 $
Приводной роликовый барабан, алмазные вращающиеся роликовые конвейерные шкивы, керамический резиновый лист
19,00 $
2023 новый тренд 8 ячеек легко снимается многоразовая кристально прозрачная силиконовая форма для льда изготовления шариков Круглый США
Фоновая заставка для фотомоделей Y колпак колеса шины аксессуары 4 шт. колпаки 19 дюймовый подшипник ступицы автомобиля (крышка Tesla оптовая продажа от
75,80 $ - 86,90 $

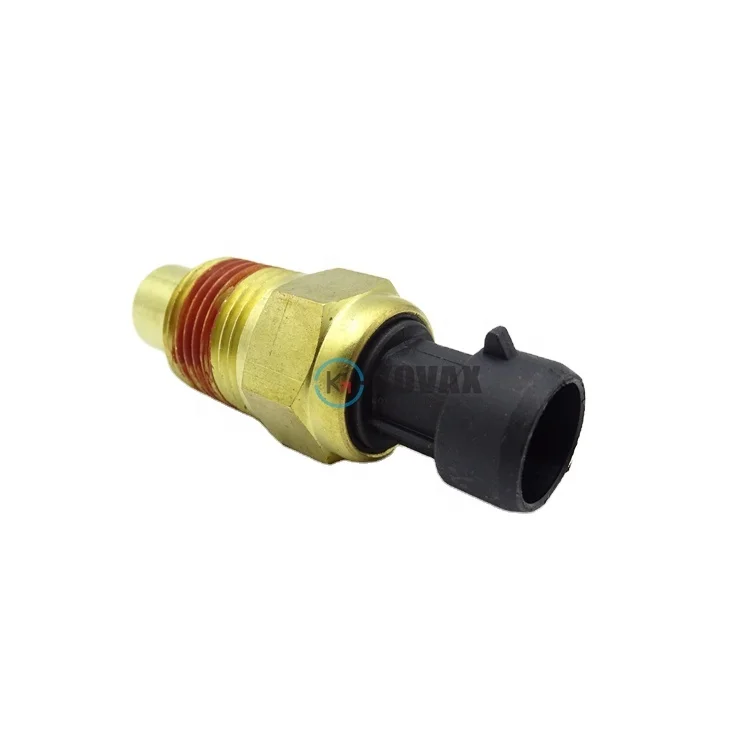

87439535 высококачественный датчик температуры для трактора MXU100-130 TD5040 детали двигателя
10,00 $ - 15,00 $

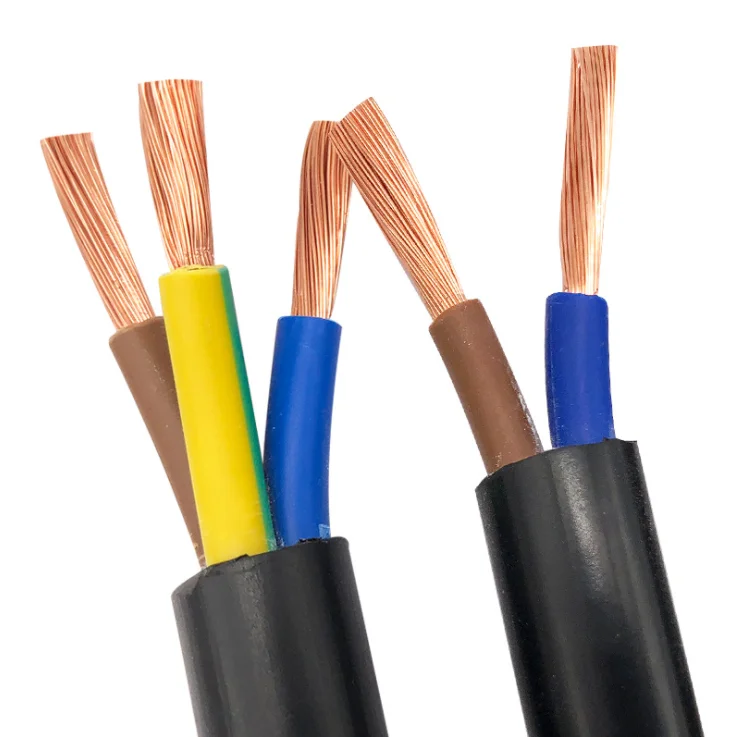

Прочный медный многожильный гибкий или твердый кабель 2,5 мм Электрический кабель питания
