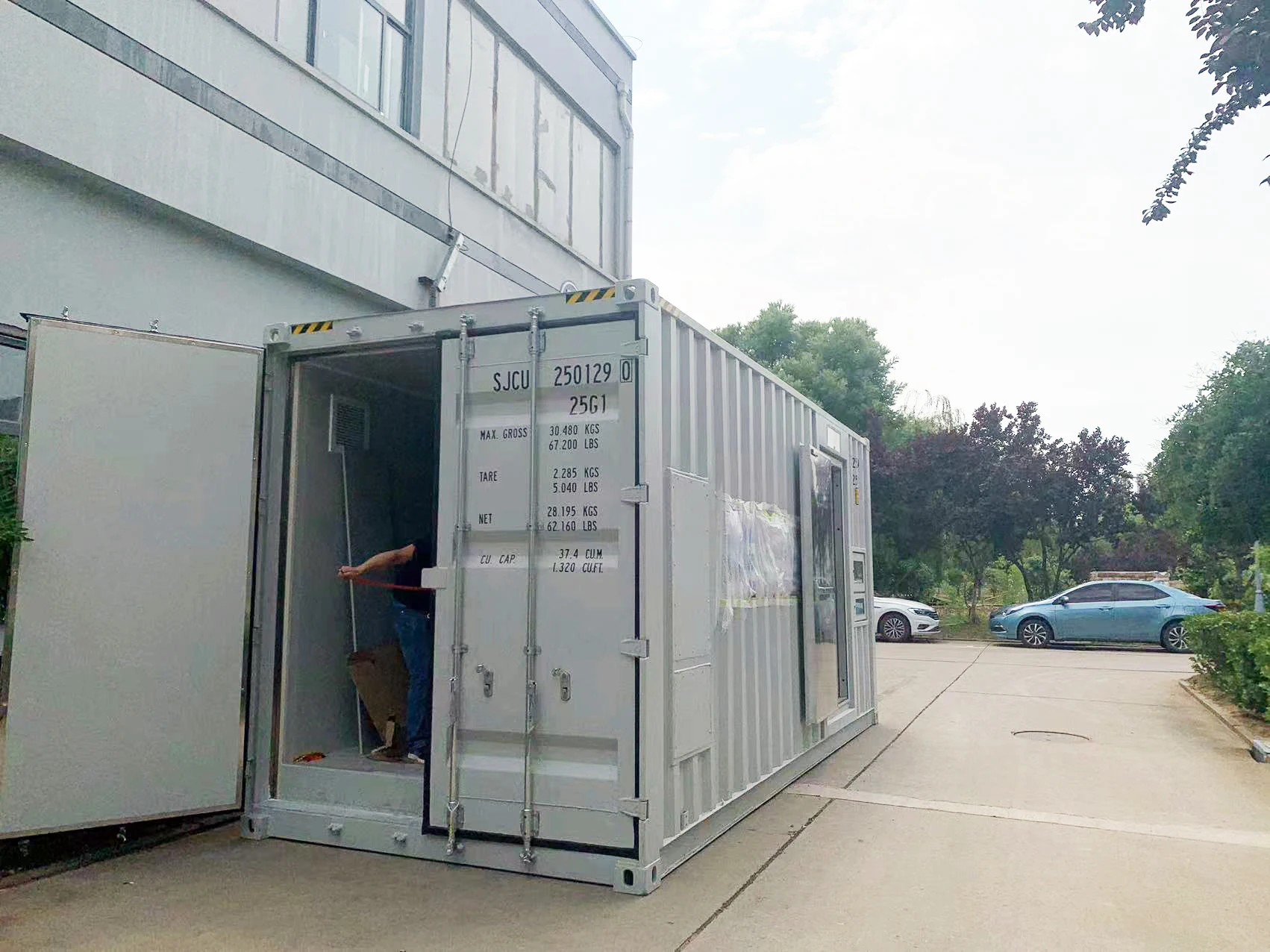

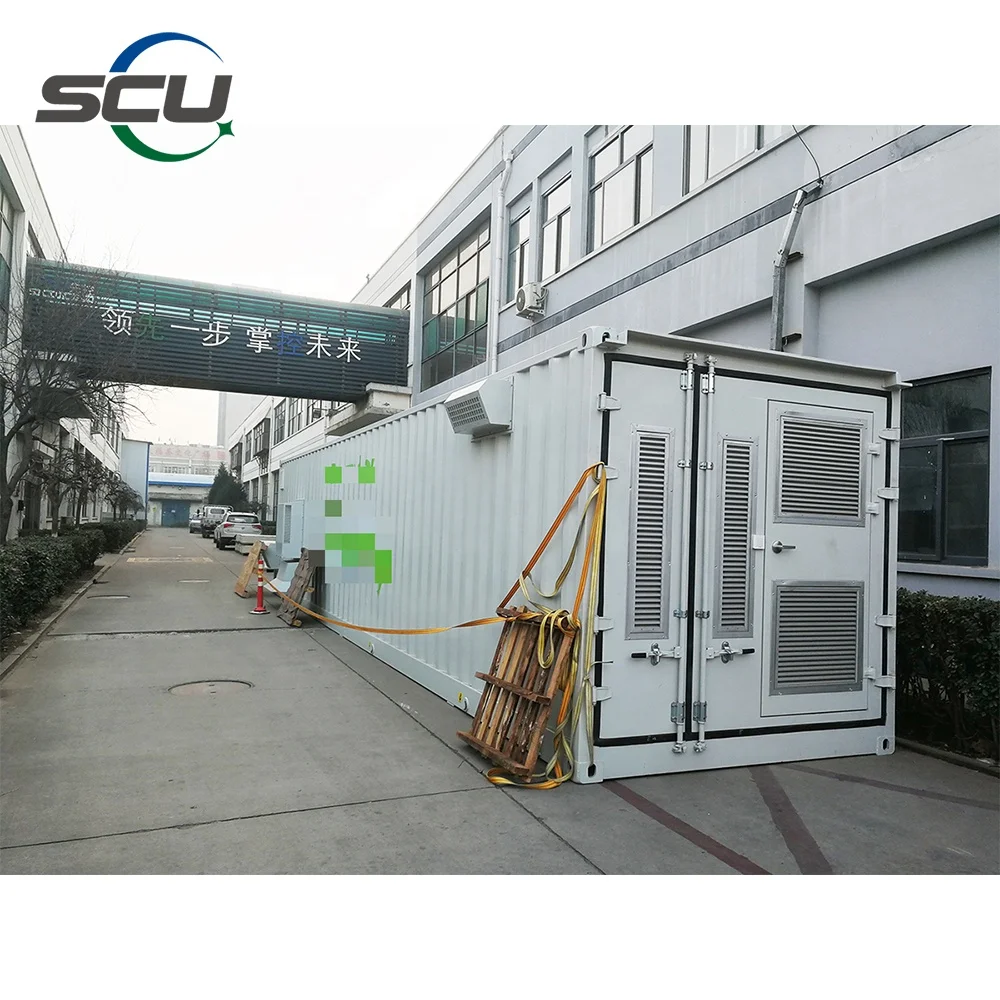

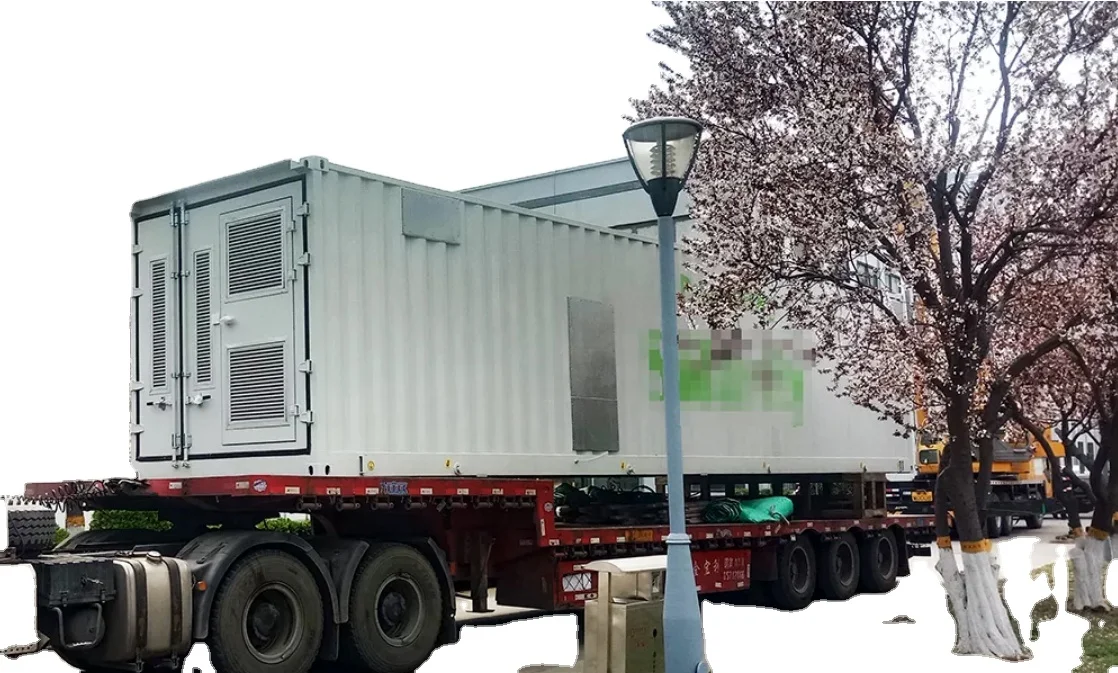

Хранилище энергии аккумулятора кВтч контейнер системы хранения 1 МВтч
- Категория: >>>
- Поставщик: Sicon Chat Union Electric Co. Ltd.
Сохранить в закладки 1600558350155:
Описание и отзывы
Характеристики
Product Overview
Battery Energy Storage System
All in one BESS container solution integrates bi-directional power conversion system (AC/DC to charge the battery, DC/AC feedback to Grid), Static Transfer Switch for on/off grid switching, MPPT module configured for access to solar, Battery energy storage (Lithium-ion battery), air conditioning, fire control system, and cabling.
We also supply PCS and lithium-ion battery as separate product according to project demand.
We also supply PCS and lithium-ion battery as separate product according to project demand.
FEATURES AT A GLANCE
High quality LFP cells for battery module
Standard cabinets for transportationMultiple capacity for choose from 75-300kWH
Modular structure for PCS and battery
Easy for maintenance and capacity expansion
IP54 for outdoor environment
Easy access to PV and diesel generator
One investment, multiple benefits

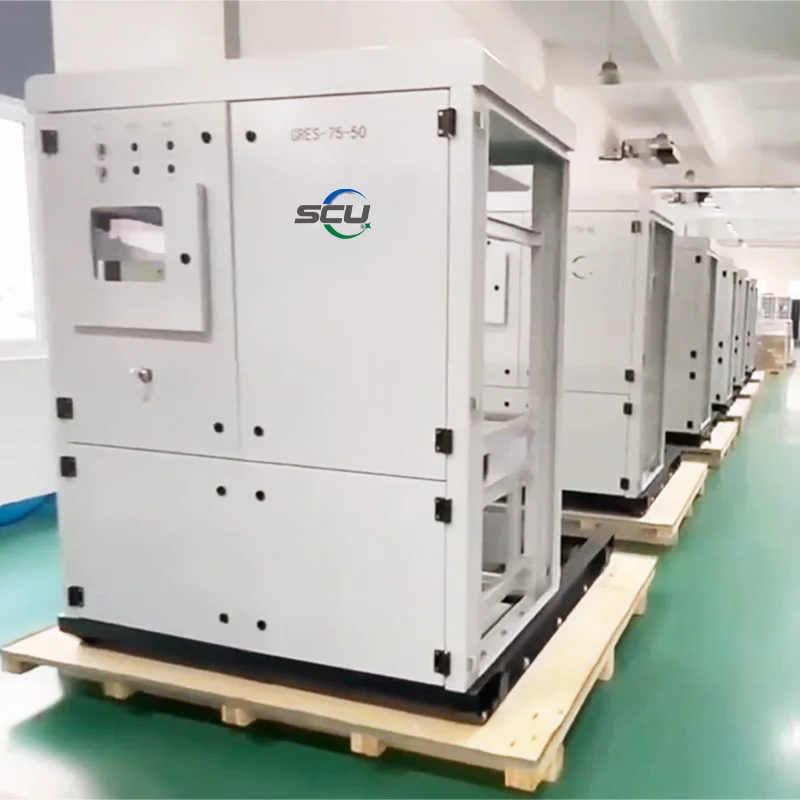

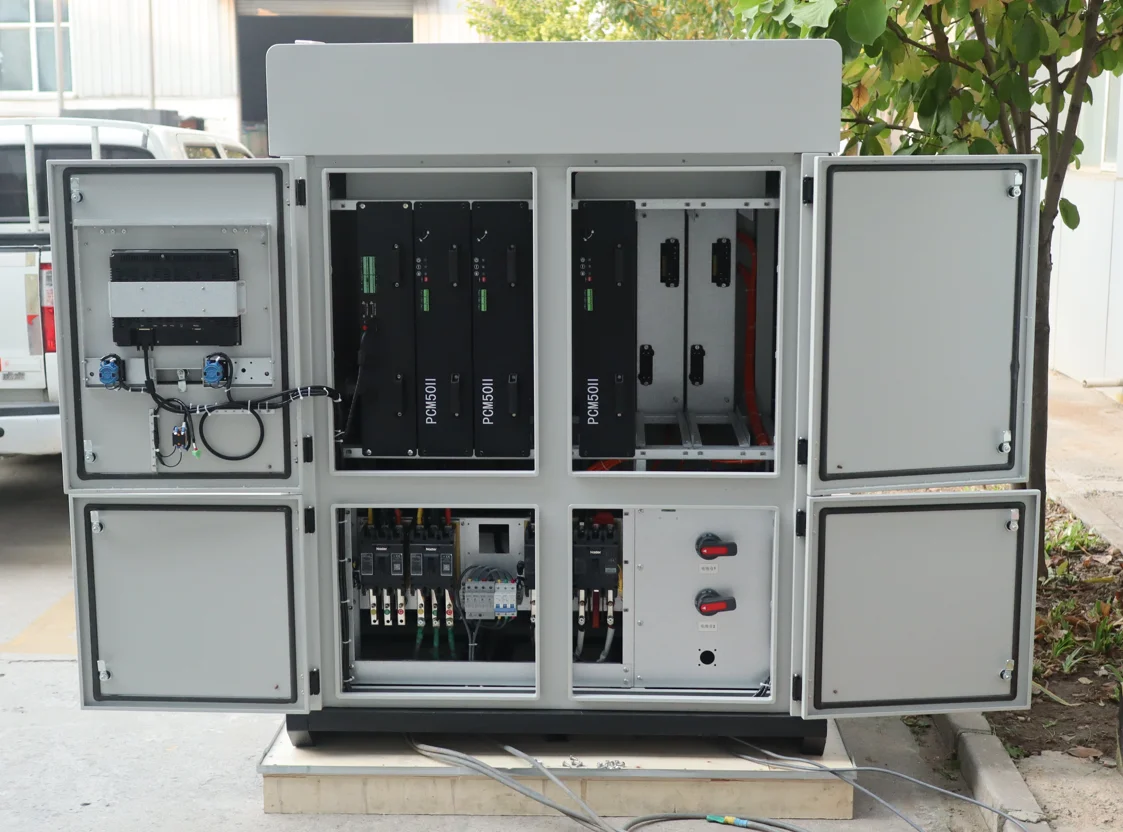

150kWH battery, 100kW PCS
inside the door
GRES=PCS + Battery system
PRODUCT SPECIFICATIONS
Model | GRES-75-50 | GRES-150-100 | GRES-225-150 | GRES-300-200 | |||
Battery/Power | 75kWH /50kW | 150kWH /100kW | 225kWH /150kW | 300kWH /200kW | |||
Grid input voltage | 3W+N+PE, 380 (±15%) | ||||||
Battery type | Lithium iron phosphate | 125Ton | |||||
Running Time (h) | 1.5hour | 96kN | |||||
Cycle life | 25℃ 0.5C/0.5C 100% DOD EOL80% ≥4000 cycles | 96kN | |||||
System efficiency | 95% | 60kN | |||||
Dimension | 1680*1500*1700 | 1680*2270*1700 | 1680*3050*1700 | 1680*3830*1700 | |||
Weight (kg) | 1395 | 2470 | 3545 | 4620 | |||
Working temperature | -20 ～ 55℃ (>45℃ derating) | ||||||
Protection | IP54, outdoor | ||||||
Note | for bigger capacity demand, we use 20ft / 40ft container for the cabinet, estimated 2MWH each 40ft container. standard container easy for shipping. | ||||||

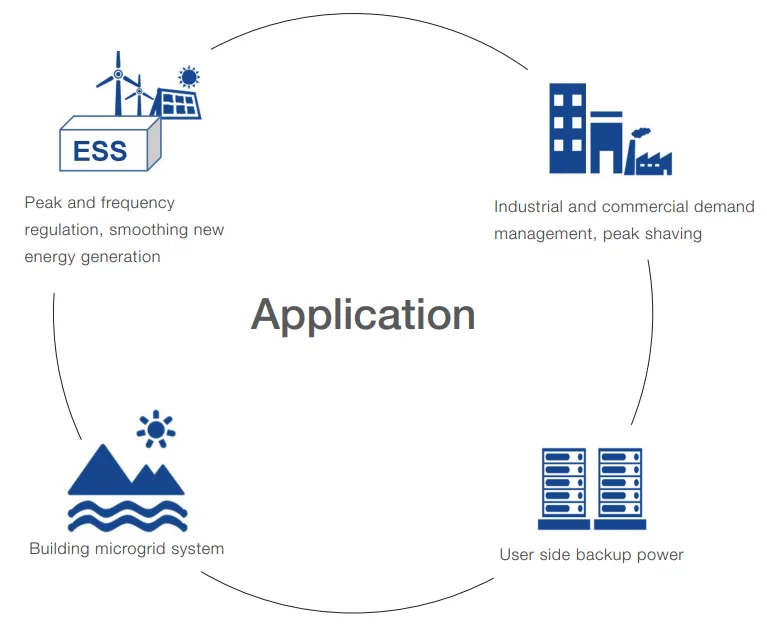

Applications
Application scenarios:
* Distributed photovoltaic /wind power
* Micro grid in islands or remote areas
* Factory for peak shaving during a day
* House use for back up power
* Green energy in EV Charging Station
* Mobile ESS for emergency power supply

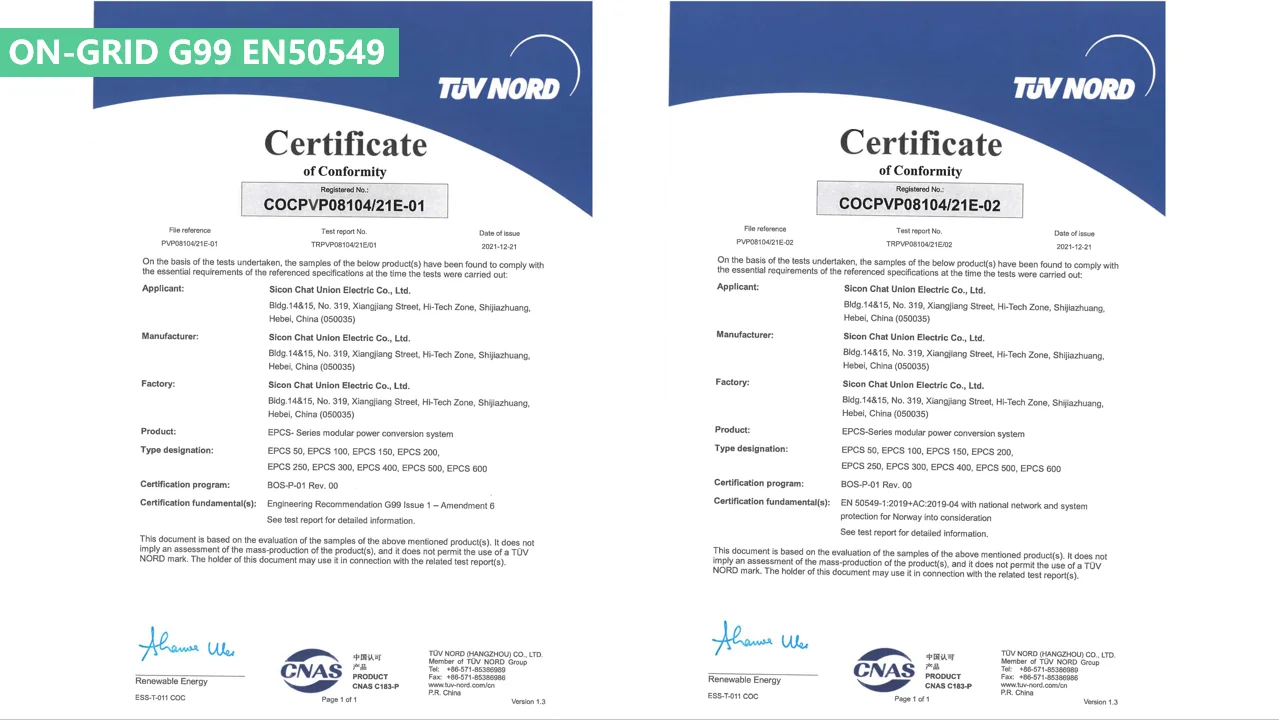

Certifications
Successful Project
in Holland Solar + GRES BESS
1.8MWH Container BESS in Bulgaria
Microgrid project in Singapore

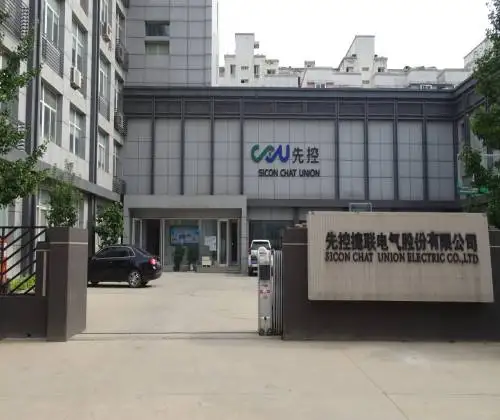

About SCU
Company information
Sicon Chat Union Electric Co., Ltd. (Stock code: 833426, referred to as: SCU), is industry leading electrical and power electronic product designer and manufacturer since 2003.
SCU provides complete solutions for data center infrastructure, electric vehicle charging and ESS green energy storage sectors. We have professional R&D team, factory with complete production line and quality control department, professional technical and commercial team to support you before/after sales.
For ESS, we provide a full range of products and solutions such as lithium battery system (BMS), bidirectional converter (PCS) and energy management system (EMS), and support your energy storage business in all directions and change the world energy pattern together!
SCU provides complete solutions for data center infrastructure, electric vehicle charging and ESS green energy storage sectors. We have professional R&D team, factory with complete production line and quality control department, professional technical and commercial team to support you before/after sales.
For ESS, we provide a full range of products and solutions such as lithium battery system (BMS), bidirectional converter (PCS) and energy management system (EMS), and support your energy storage business in all directions and change the world energy pattern together!
FAQ
1. About Sicon Technology?
Sicon R&D Staff ratio exceeds 30%, annual investment exceeds 10% of sales. As the core of Sicon, R&D team shoulders crucial responsibilities in research, developing new products, and perfecting existing products. As the power leader, Sicon is dedicated in not only electrical and power electronic technology, but also social responsibility of building a green, sustainable and intelligent world.
.....................................................................................................................................................................................................
2. About Quality Control?

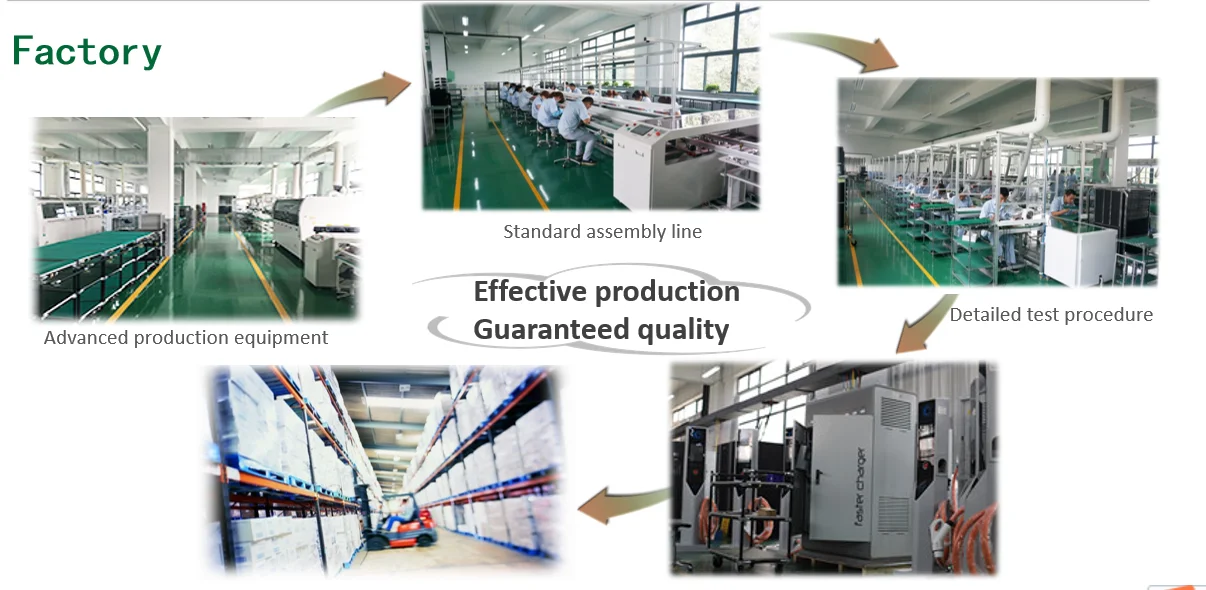

We make use of automatic and visual inspection throughout the complete production process. To ensure our ongoing quality, Sicon operations are certified to ISO9001:2001 and ISO14001:2004 standard. All our product solutions carry TLC and CE Certification.
.....................................................................................................................................................................................................
3. About Warranty?
The manufacture warrants its products to be free from defects in materials and workmanship for a period of two years from the date of purchase.
....................................................................................................................................................................................................
4. About Service?
We promise to react to any service demands within 2 hours, and solve the problem within 48 hours, to satisfy customers with the best perfect service.
.....................................................................................................................................................................................................
Sicon R&D Staff ratio exceeds 30%, annual investment exceeds 10% of sales. As the core of Sicon, R&D team shoulders crucial responsibilities in research, developing new products, and perfecting existing products. As the power leader, Sicon is dedicated in not only electrical and power electronic technology, but also social responsibility of building a green, sustainable and intelligent world.
.....................................................................................................................................................................................................
2. About Quality Control?
We make use of automatic and visual inspection throughout the complete production process. To ensure our ongoing quality, Sicon operations are certified to ISO9001:2001 and ISO14001:2004 standard. All our product solutions carry TLC and CE Certification.
.....................................................................................................................................................................................................
3. About Warranty?
The manufacture warrants its products to be free from defects in materials and workmanship for a period of two years from the date of purchase.
....................................................................................................................................................................................................
4. About Service?
We promise to react to any service demands within 2 hours, and solve the problem within 48 hours, to satisfy customers with the best perfect service.
.....................................................................................................................................................................................................
5. Customized available?
Sure, we can make customized solution according to requirements and site situation.
Please contact:
Lucy Jia
Похожие товары

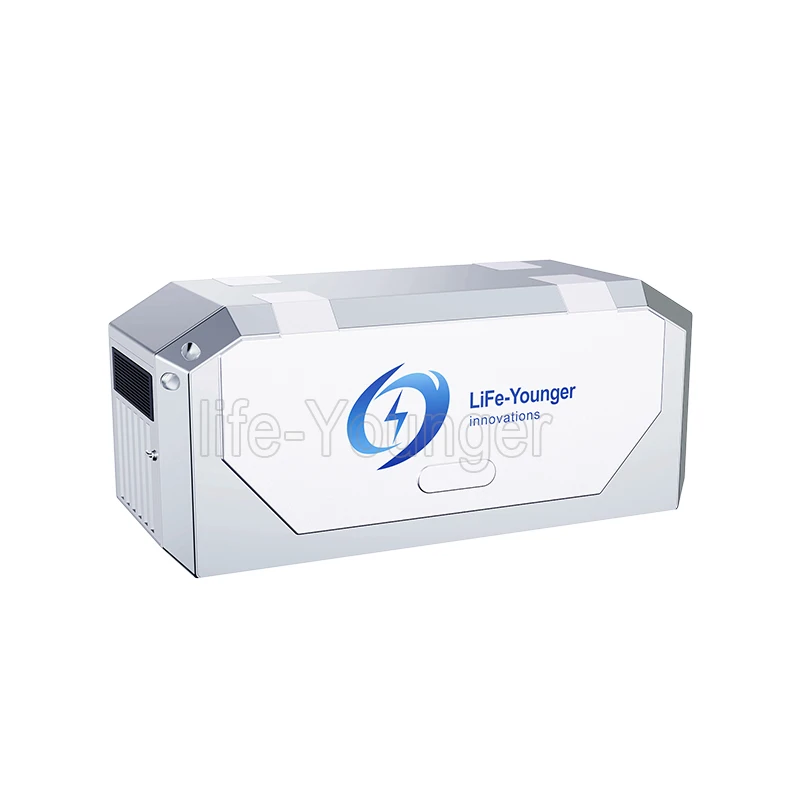

Life-Younger 105kwh 210kwh 50KW все в одном литиевая батарея решение для хранения энергии
3 972 013,29 ₽ - 4 893 059,85 ₽
1 мВт 2 мвч 20 футов 40 промышленный большой контейнер аккумулятор для системы аккумулирования энергии пакет микросетка Lifepo4
13 157 808,00 ₽ - 21 929 680,00 ₽

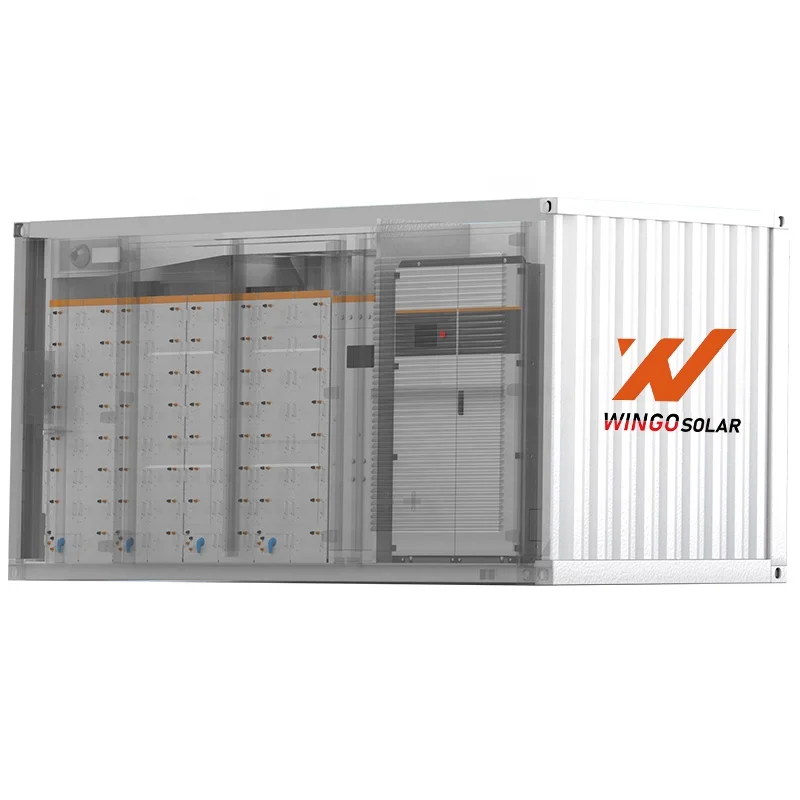

Wingosolar BESS промышленный 500 кВт 10 шт. 215 кВтч аккумуляторные батареи шкаф 40 футов контейнер для хранения энергии с Megarevo инвертор
