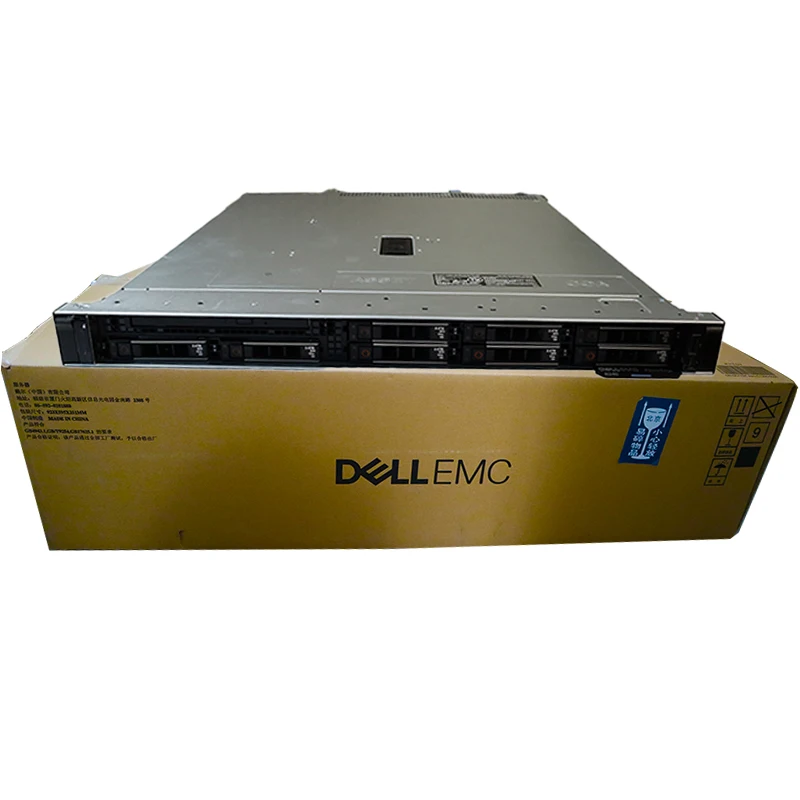

1u amd epyc стойка Сервер Dell EMC PowerEdge
12 699,00 $ - 12 999,00 $
8x DP серверные вычислительные узлы сервер подходит для высококлассных предприятий центров данных HPC облачных вычислений и других приложений
- Категория: Servers >>>
- Поставщик: Shenzhen Guoxin Hengyun Information Security Co. Ltd.
Сохранить в закладки 1600560370247:
Описание и отзывы
Характеристики
Products Description
▶ Fully modular design for hyper-converged application.
▶ Multiple node modules configured on demand, easy & flexible re-configuration on CPU computing and storage capacity.
▶ Up to 4U 8-nodes with16pcs Xeon processors or 72-disk high-density storage mode.
▶ Perfectly compatible with multiple hyper-converged software, providing an integrated solution.
▶ Suitable for high-end enterprises, data centers, HPC, cloud computing and other application.
▶ Multiple node modules configured on demand, easy & flexible re-configuration on CPU computing and storage capacity.
▶ Up to 4U 8-nodes with16pcs Xeon processors or 72-disk high-density storage mode.
▶ Perfectly compatible with multiple hyper-converged software, providing an integrated solution.
▶ Suitable for high-end enterprises, data centers, HPC, cloud computing and other application.

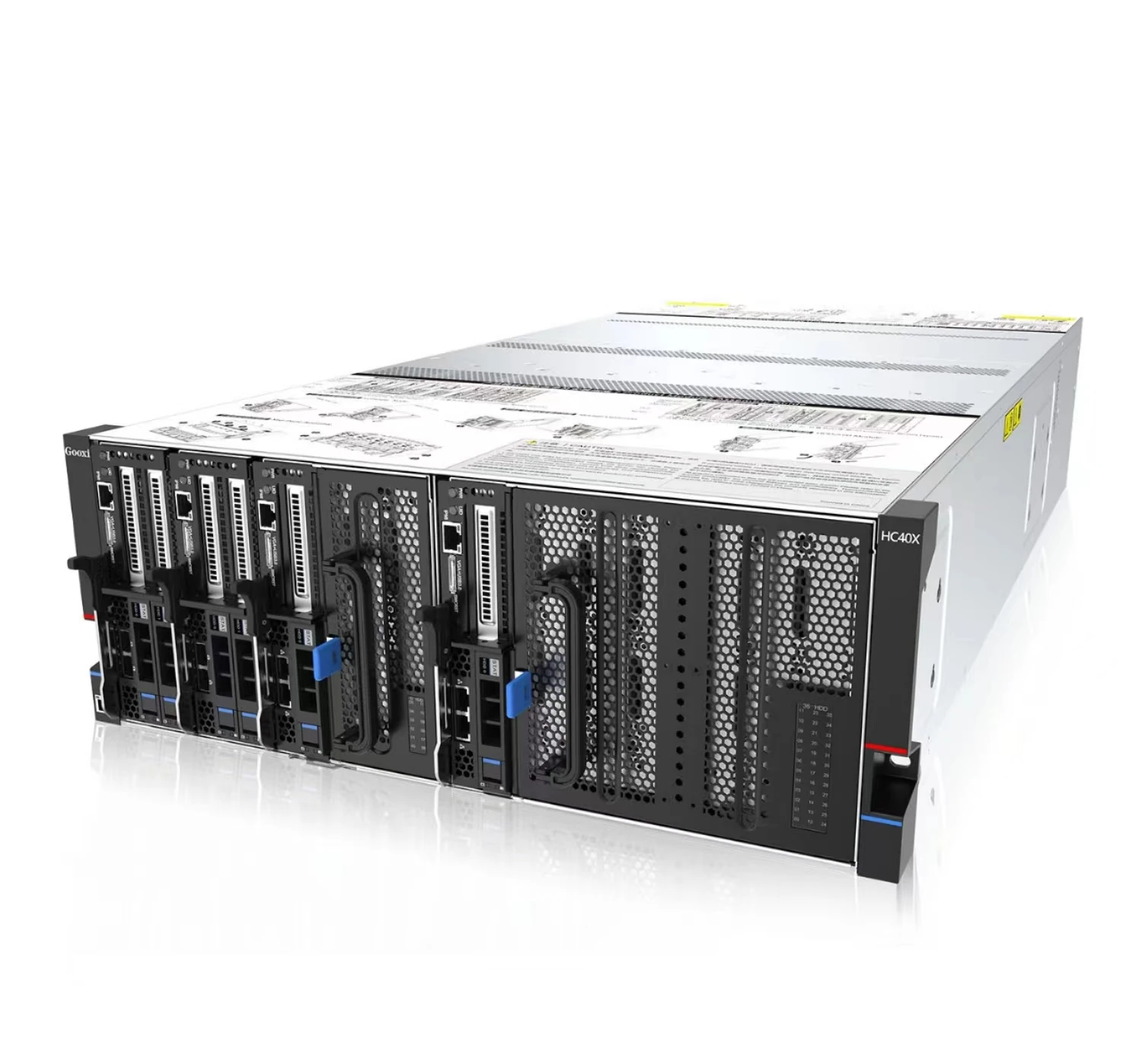

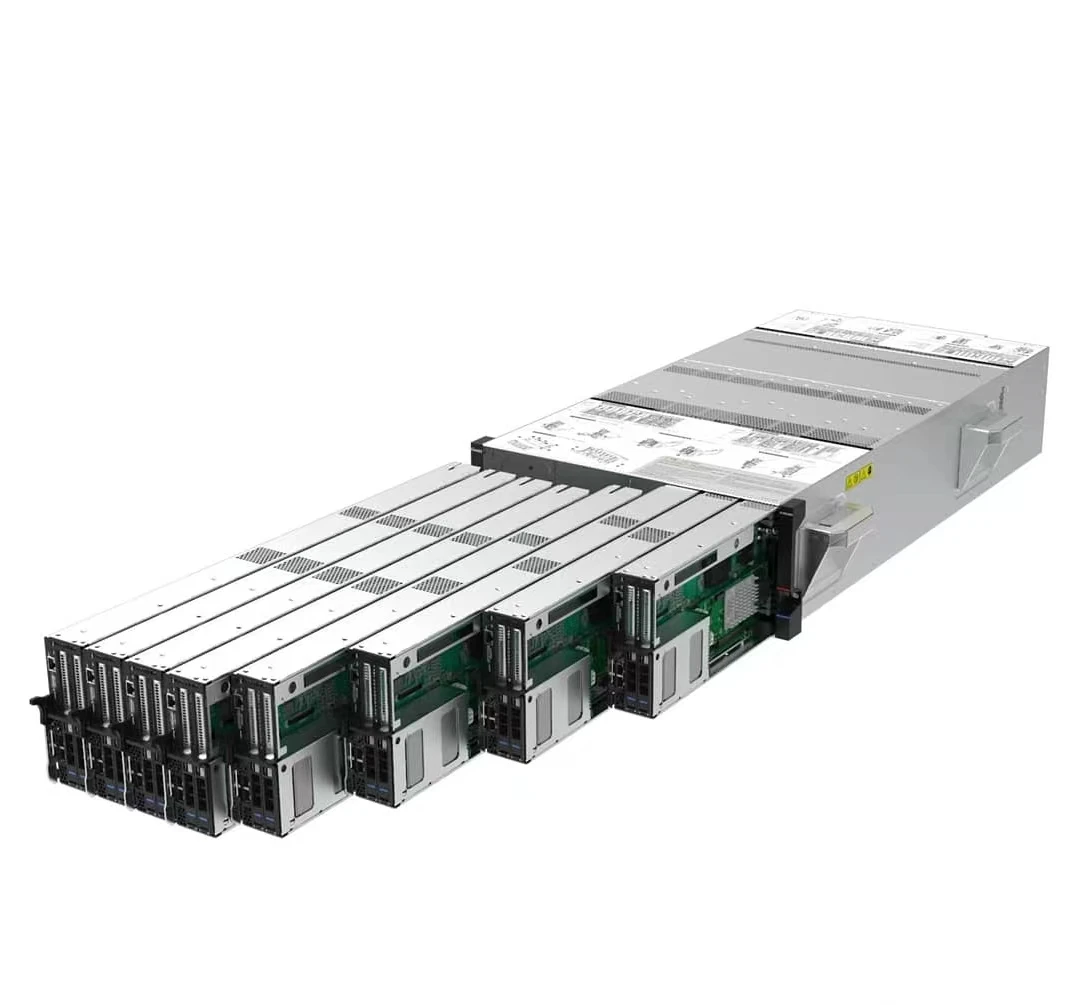

Modular Design, Configure on Demand
HC408 adopts a fully modular design, including multiple module units such as chassis, computing module, balance module, storage module, power module, fans module, I/O, CMC centralized management and network. Matches different modules as needed to achieve a variety of combinations, quickly and flexibly deploys services and easily realizes rapid customization of IT infrastructure. Unified management through a minimalist interface effectively reduces the overall TCO.
High Performance & Density
The whole system supports 16 Intel® Xeon® Scalable series processors, and single node supports "2PCIe + 2HDDs" pure computing node module.
Single node can be flexibly matched with "4HDDs" or "3PCIe" pure computing node module.
Maximum 5 PCIe slots per node, providing multiple network interface options, providing flexible network structure for
applications.
The hardware system uses load balancing design. PCIe expansion devices can be evenly deployed under two CPUs to achieve the ultimate optimization of application performance.
Single node can be flexibly matched with "4HDDs" or "3PCIe" pure computing node module.
Maximum 5 PCIe slots per node, providing multiple network interface options, providing flexible network structure for
applications.
The hardware system uses load balancing design. PCIe expansion devices can be evenly deployed under two CPUs to achieve the ultimate optimization of application performance.
Energy-Saving Technology
The HC408 power supply and heat dissipation system use Redundant design and intelligent temperature control to ensure
energy-saving and stable operation of the system.
The Multi-nodes Modular Design allows the HC408 to easily integrate multiple nodes and is suitable for rapid delivery of
large-scale data centers.
energy-saving and stable operation of the system.
The Multi-nodes Modular Design allows the HC408 to easily integrate multiple nodes and is suitable for rapid delivery of
large-scale data centers.
Easy Maintenance & High Reliability

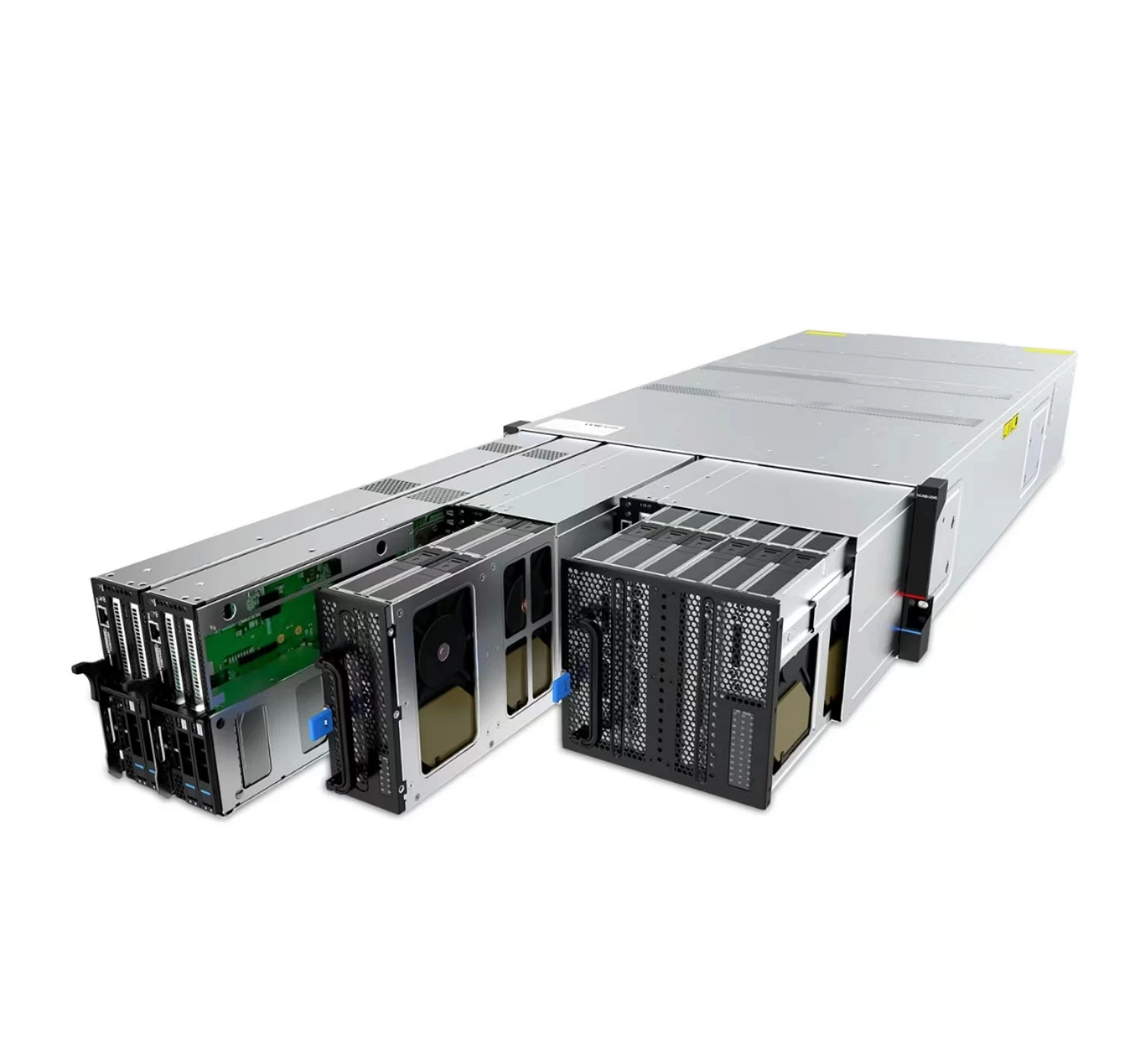

Unique hard drive drawer design and rail reinforcement technology. System supports total 72 large-capacity drivers, through two 36-HDD storage nodes. Each 36 hard drives are deployed in a separate module. The power supply and hard disk controller are connected through the tank chain structure, and the system can keep running stably when the HDDs module is independently drawn out. Hot-swap maintenance can be performed without pulling out the server. These technologies have greatly improved maintainability, reduced disk resonance effects and optimized overall heat dissipation.
Specification
System | ||
Model | HC408 Series | |

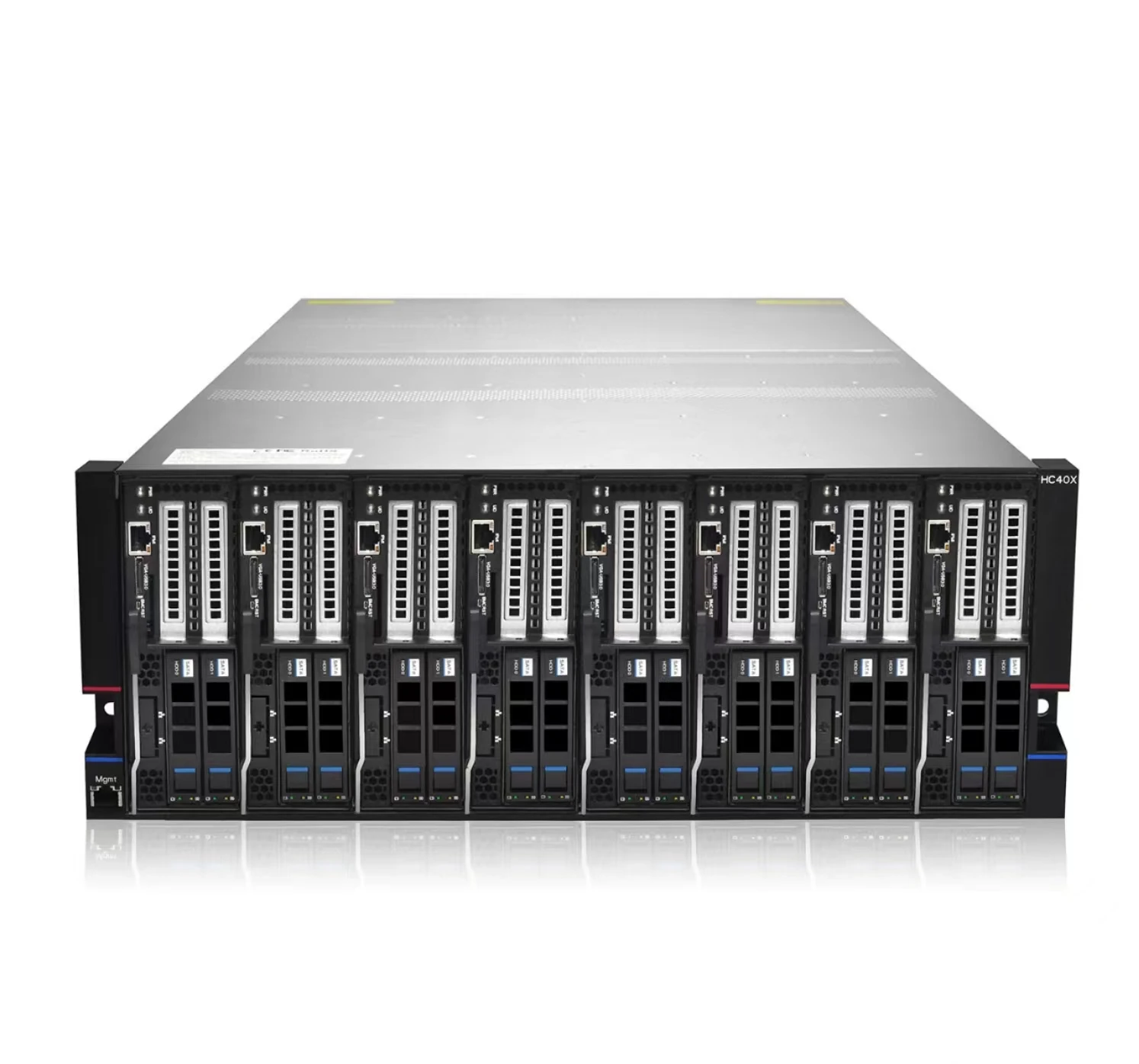

Nodes | 8x DP server computing nodes | |
Network | Single node supports OCP2.0 Type1 network card and 1x dedicated IPMI Gigabit network port | |
CPU | Single node supports 2 Intel® Xeon® Scalable processors | |
Memory | Single node supports 16 DDR4, the full system supports up to 128 DIMMs | |
Dimension | 899x 448x 175mm (Lx Wx H） | |
Motherboard | ||
MB Model | G2DHN | |
CPU | Intel® Xeon® Scalable processors | |
PCH | Intel® PCH C621 | |
DIMMs | Single node supports 16 DDR4 DIMM slots | |
Memory | AEP：128/256/512GB； LRDIMM：32/64GB； RDIMM：4/8/16/32GB； 3DS LRDIMM：64/128GB； 3DS RDIMM：64/128GB | |
RAID | Intel® RSTe 5.0 supports software RAID 0, 1, 10 & 5 | |
Graphic | Aspeed AST2500 | |
Managerment | Onboard iBMC management module, supports management features such as IPMI, SOL, KVM Over IP, virtual media, etc. Support centralized management | |
PCIe | Single node supports 3 PCIe x16 | |
Network | OCP2.0 | |
USB/VGA | 1 built-in USB3.0 interface; 1 VGA and 2 USB3.0 expansion through the front dedicated connector | |
M.2 | 1x M.2 (PCIe X4, : 2242,2280,22110) | |
Dimension | 638.5x 160.0x 2.50mm (Lx Wx H） | |
Power Supply | ||
Power Quantity | Up to 4 power modules（factory default: 2 modules） | |
Features | 1200W CRPS 1 + 1 redundant platinum efficiency power supply, optional 1200W CRPS 3 + 1 redundant power supply | |
Voltage | Input：100-240V 47Hz~63Hz / Output：+12V_SB, +12V | |

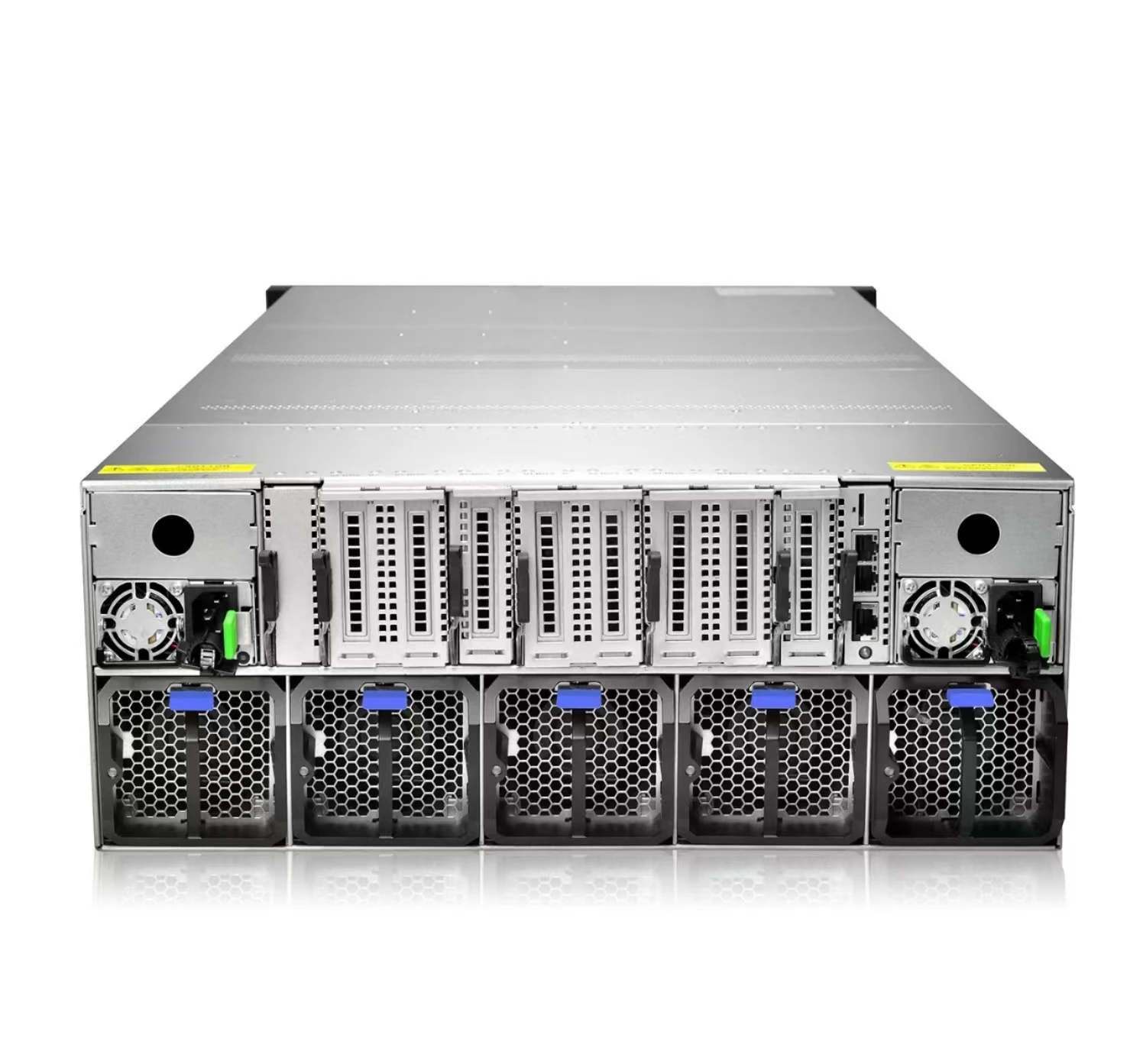

Fans | ||
Fans Quantity | 5x hot-swap 8080 temperature-controlled fans | |
Speed | Up to 16000 RPM | |
Software | ||
OS | Windows Server 2008 R2(64bit) Windows SBS 2011 (64bit) Windows Server 2012/2012 R2 (64bit) Redhat Enterprise Linux Server (32bit/64bit) Suse Enterprise Linux Server (32bit/64bit) Ubuntu Server (32bit/64bit) | |
Vitrulization | VMWare ESXi Microsoft Hyper-V Citrix Xen Server Linux KVM | |
Operating Environment | ||
Temperature | OP：10℃ ~ 35℃; NON-OP：-40℃ ~ 70℃ | |
Humidity | OP：35% ~ 80%; NON-OP：20% ~ 90% | |
Company Profile
Gooxi, as a leading Chinese Server Solutions Provider, with independent R&Dand production abilities of intact industry chain, is currently one of the few software and hardware manufacturers in server and storage in China that integrates R&D, production, sales and service. Our products have been expanded to over 10 series of servers and storage platforms, barebones, motherboards, chassis, accessories, etc., and are extensively used in cloud computing, cloud storage, datacenter, Internet, AI, security, telecom, radio&television, finance, government, education, blockchain, etc.
We own a complete integrated manufacturing system of production, processing and quality inspection, 2 production bases in Shenzhen and Dongguan of a total area over 30,000 m2, 12 productionlines, 3 SMT placement lines and an entire set of stamping, CNC, and other structural production platforms. As a server supplier for manifold Listed and large-scale enterprises, annual output of servers exceeds 300,000 units.
We own a complete integrated manufacturing system of production, processing and quality inspection, 2 production bases in Shenzhen and Dongguan of a total area over 30,000 m2, 12 productionlines, 3 SMT placement lines and an entire set of stamping, CNC, and other structural production platforms. As a server supplier for manifold Listed and large-scale enterprises, annual output of servers exceeds 300,000 units.
With an all-round&precise global marketing service system, we established 6 branches in Shenzhen, Beijing, Dongguan, Shanghai, Taipei(overseasbusinessdevelopmentdept), Silicon Valley in the U.S. and offices in Chengdu, Xi'an, Japan, SouthKorea, and Hamburg, Germany, core agents and distribution channels in Shenzhen, Beijing, Tianjin, Canton, Chengdu, Shanghai, Hangzhou, Nanjing,etc., cooperative dealers and joint insurance outlets in globe.
We commit to becoming the world's leading Server Solutions Provider by adhering to the customer-demand guide, win-win strategy, as well as the vision of integrity, collaboration, innovation and win-win.
We commit to becoming the world's leading Server Solutions Provider by adhering to the customer-demand guide, win-win strategy, as well as the vision of integrity, collaboration, innovation and win-win.
Exhibition
Qualification & Honor
Gooxi Corporation owns 250 patents:
108 patents of invention
79 utility models
31 outward appearance patents
32 software copyrights
108 patents of invention
79 utility models
31 outward appearance patents
32 software copyrights
Business Partners
Contact Us
Susana Lu - Overseas Business Department
Email：susana@gooxi.com
Email：susana@gooxi.com
Whatsapp: +86 15227838505
Addr：Room 1808, Jinquan Time, Building NO.317, Chaoyang District, Beijing, China.
Addr：Room 1808, Jinquan Time, Building NO.317, Chaoyang District, Beijing, China.
Похожие товары

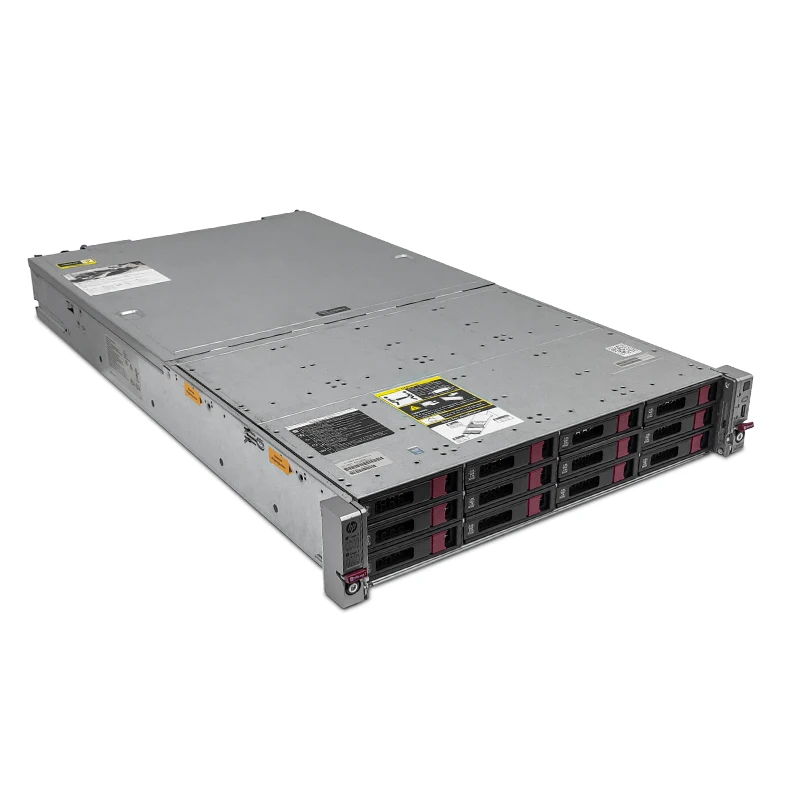

2U стоечный сервер для HP 4200G9 3 5 диск с креплением на стойку двухъядерный процессор 2 4 ГГц оптовая продажа
1 312,00 $ - 1 499,00 $

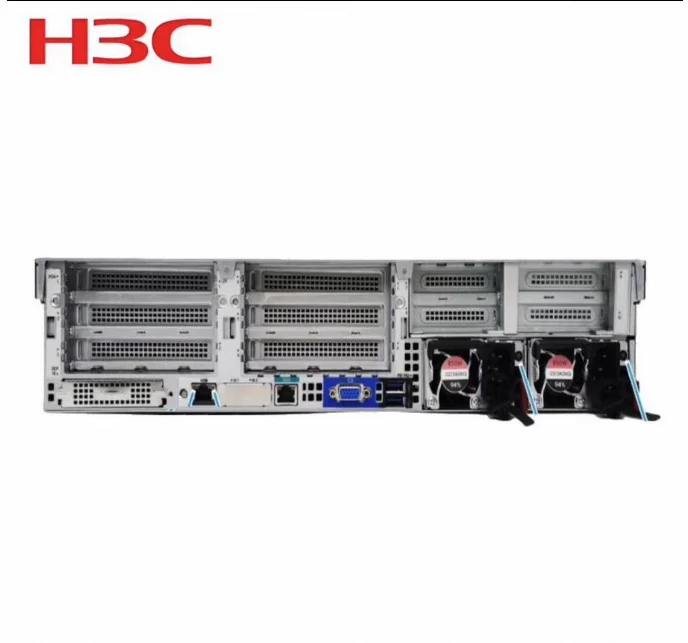

H3C UniServer R4900 G5 4310 32 ГБ 8SFF BTO 16 2Rx8 DDR4-2933P-R серверное окно
1 000,00 $ - 1 500,00 $

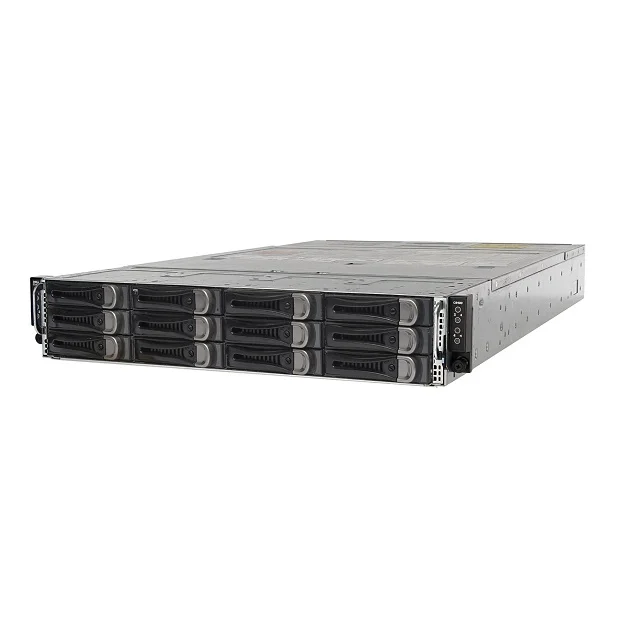

Экономически эффективным Dell PowerEdge C6420 4 узел ультра-плотные 2U стоечный

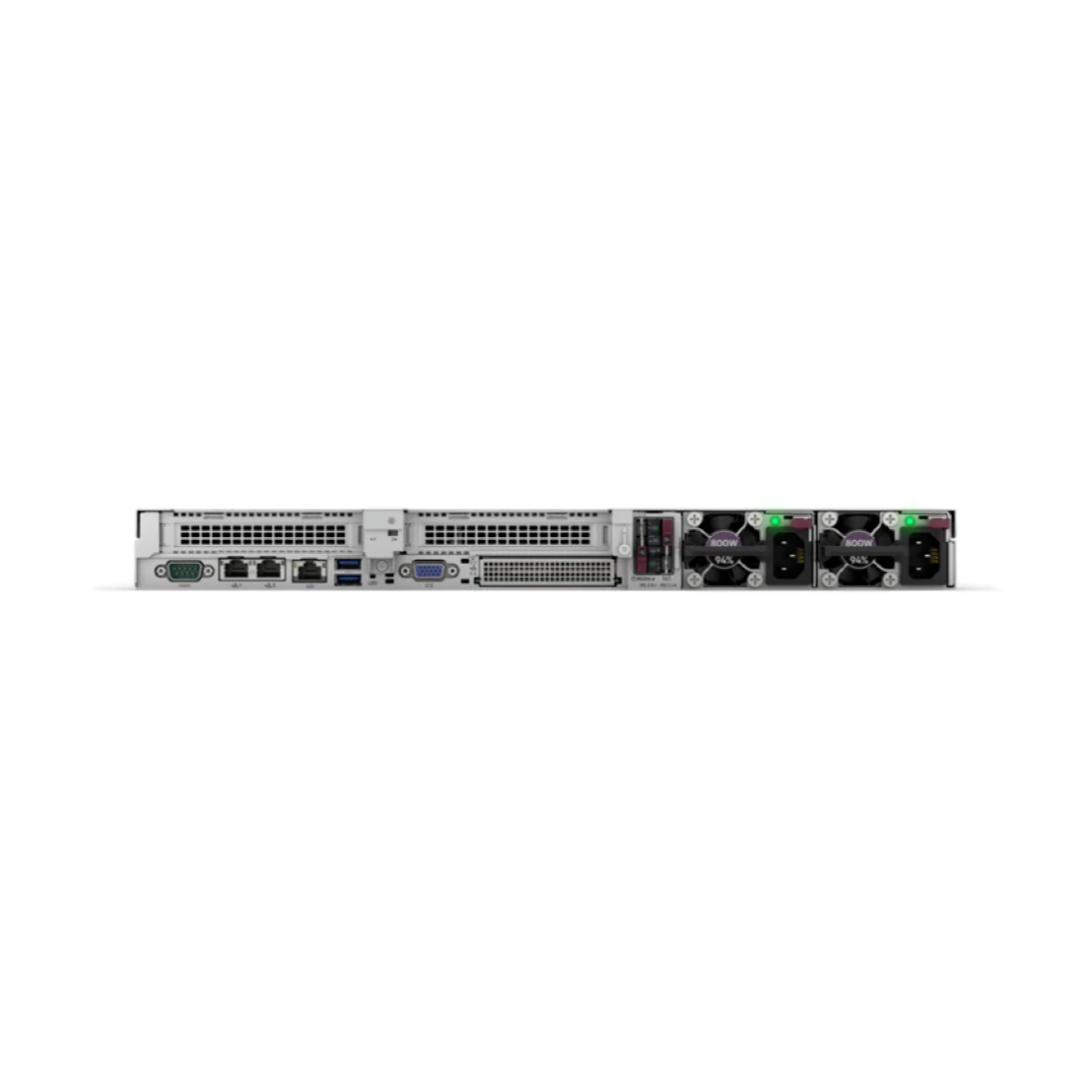

HP б/у сервер dl320 G11 Intel Xeon Gold 5416S (16 core 2 0 GHz 30 MB L3 150W)
2 488,89 $ - 5 289,99 $

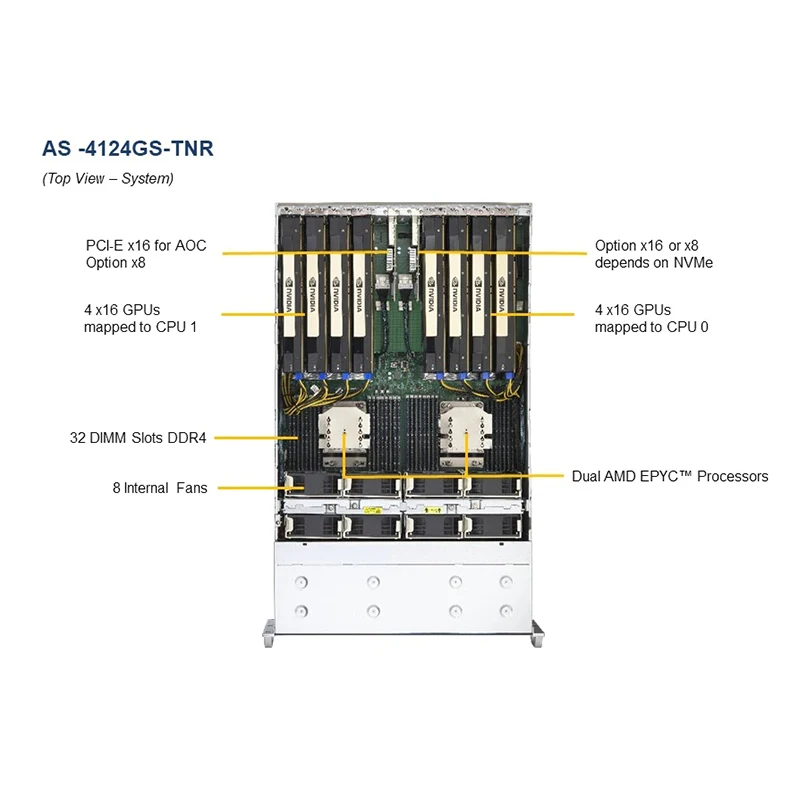

Сервер Ultramicro 4124GS-TNR почти system AMD8 card GPU поддерживает EPYC 7002 глубокое
