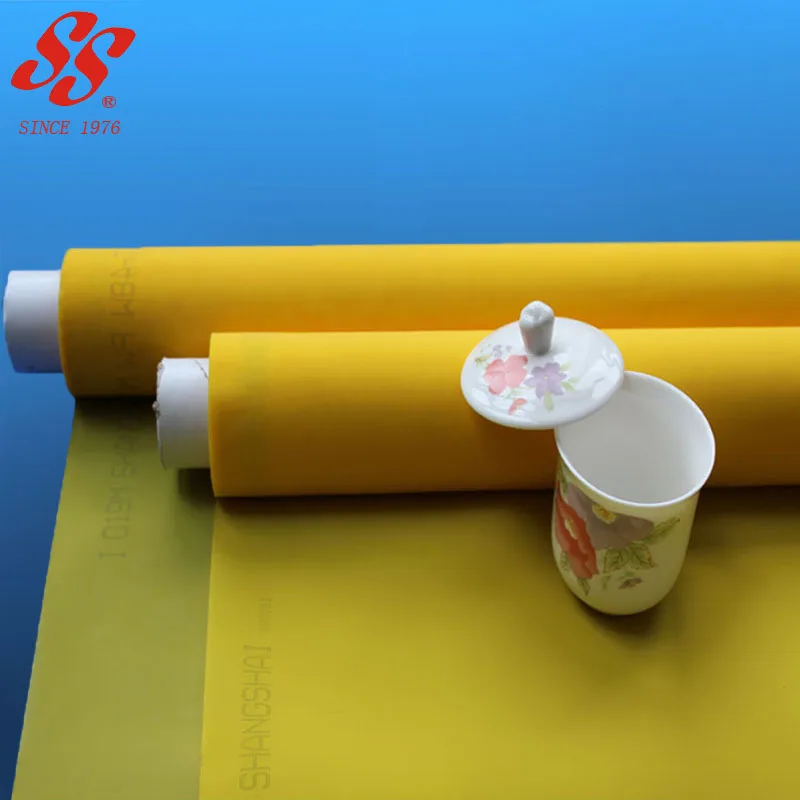

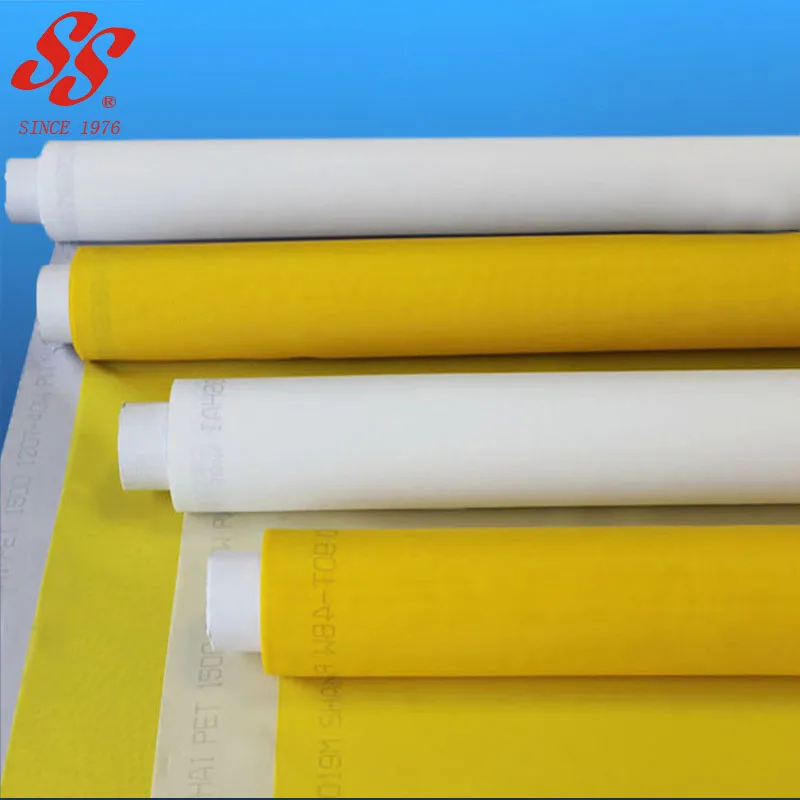

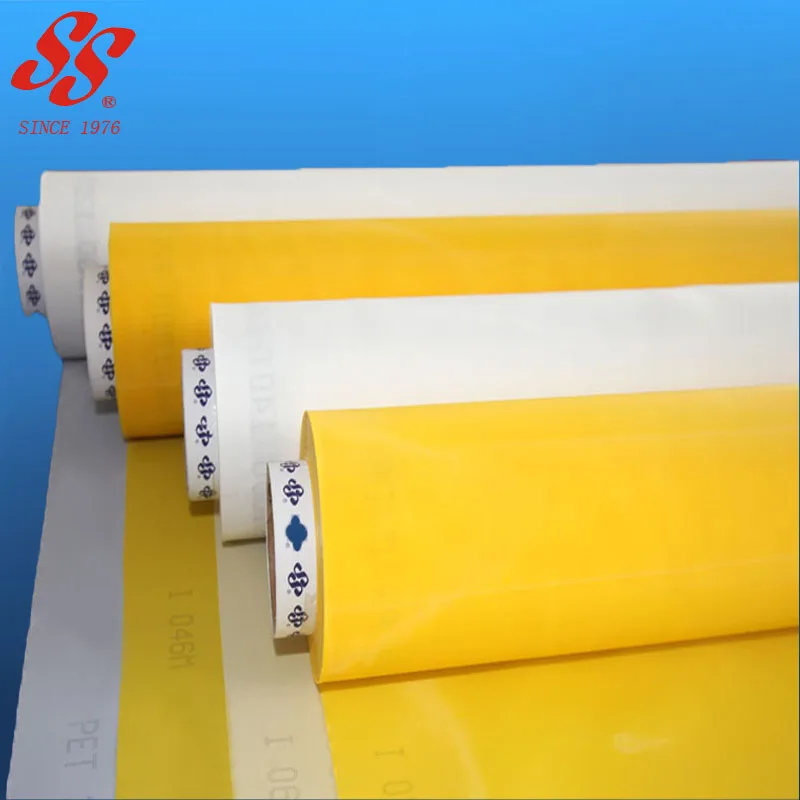

53/135 сетка 48 мкм 55 64 ПЭТ полиэфирная шелкография/трафаретная печать сетчатая ткань для печати
- Категория: >>>
- Поставщик: Shanghai Shangshai Bolting Cloth Manufacturing Co. Ltd.
Сохранить в закладки 1600561036282:
Описание и отзывы
Характеристики
bolting cloth/silk screen/Free Shipping 165- 420 polyester nylon silkscreen /screen printing mesh bolting cloth for printing
Product Description
Product description:![X3_01.jpg]()
Specifications table:
polyester silk screen printing mesh fabric | |
| Weave type | plain |
Material | 100% polyester |
Monofilament Style | Yes |
Width | 0.6-3.65m |
Mesh Count | 18-420 mesh/inch |
| Thread Diameter | 27-350 micron |
| Mesh Opening | 25-1068 micron |
| Thickness | 46-693 micron |
| Printing | polyester screen printing, silk screen printing |
| Type | mesh fabric |
| Elasticity | low |
Images Show:
polyester silk screen printing mesh for ceramic

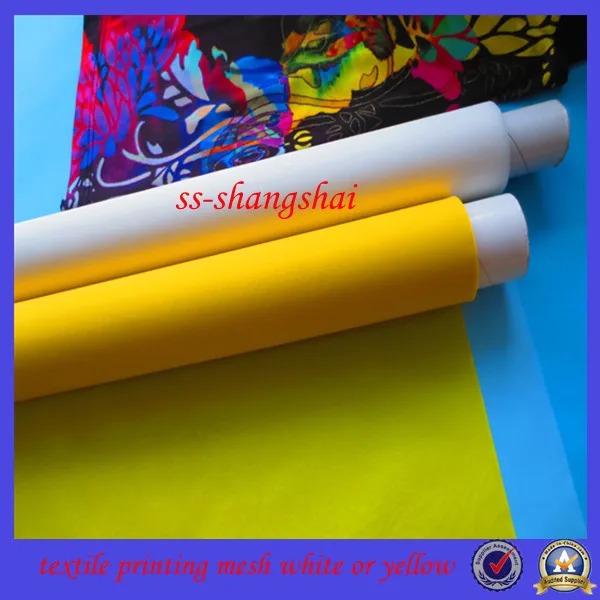

polyester silk screen printing mesh for textile or T-shirt
polyester silk screen printing mesh for membrane switch
polyester silk screen printing mesh for membrane switch
Details sheet:
| Specification | Mesh count | Thread Dia.(/um) | Mesh opening (/um) | Open area(%) | Thickness(/um) | |
| (/cm) | (/inch) | |||||
| PET7/1068 | 7 | 18 | 350 | 1068 | 56 | 693 |
| PET8/941 | 8 | 20 | 300 | 941 | 57 | 594 |
| PET10/743 | 10 | 25 | 250 | 743 | 55 | 495 |
| PET12/686 | 12 | 30 | 140 | 686 | 68 | 277 |
| PET12/578 | 12 | 30 | 250 | 578 | 48 | 495 |
| PET14/489 | 14 | 36 | 200 | 489 | 50 | 340 |
| PET15/443 | 15 | 40 | 200 | 443 | 47 | 340 |
| PET16/461 | 16 | 40 | 140 | 461 | 58 | 238 |
| PET16/404 | 16 | 40 | 200 | 404 | 44 | 340 |
| PET16/356 | 16 | 40 | 250 | 356 | 34 | 425 |
| PET18/385 | 18 | 45 | 150 | 385 | 51 | 255 |
| PET18/357 | 18 | 45 | 180 | 357 | 44 | 306 |
| PET20/399 | 20 | 50 | 80 | 399 | 69 | 136 |
| PET20/380 | 20 | 50 | 100 | 380 | 62 | 170 |
| PET20/333 | 20 | 50 | 150 | 333 | 47 | 255 |
| PET20/304 | 20 | 50 | 180 | 304 | 39 | 306 |
| PET21/319 | 21 | 54 | 140 | 319 | 48 | 238 |
| PET22/356 | 22 | 56 | 80 | 356 | 66 | 136 |
| PET24/320 | 24 | 60 | 80 | 320 | 63 | 136 |
| PET24/301 | 24 | 60 | 100 | 301 | 56 | 170 |
| PET24/282 | 24 | 60 | 120 | 282 | 49 | 204 |
| PET24/263 | 24 | 60 | 140 | 263 | 42 | 238 |
| PET24/253 | 24 | 60 | 150 | 253 | 39 | 255 |
| PET28/263 | 28 | 70 | 80 | 263 | 58 | 136 |
| PET28/244 | 28 | 70 | 100 | 244 | 50 | 170 |
| PET29/214 | 29 | 74 | 120 | 214 | 41 | 204 |
| PET30/203 | 30 | 76 | 120 | 203 | 39 | 204 |
| PET32/236 | 32 | 80 | 64 | 236 | 61 | 109 |
| PET32/221 | 32 | 80 | 80 | 221 | 53 | 136 |
| PET32/202 | 32 | 80 | 100 | 202 | 44 | 170 |
| PET32/183 | 32 | 80 | 120 | 183 | 36 | 204 |
| PET34/184 | 34 | 86 | 100 | 184 | 42 | 170 |
| PET36/188 | 36 | 90 | 80 | 188 | 49 | 136 |
| PET36/178 | 36 | 90 | 90 | 178 | 44 | 153 |
| PET36/169 | 36 | 90 | 100 | 169 | 39 | 170 |
| PET39/191 | 39 | 99 | 55 | 191 | 60 | 94 |
| PET39/183 | 39 | 99 | 64 | 183 | 54 | 109 |
| PET39/176 | 39 | 99 | 71 | 176 | 50 | 121 |
| PET39/168 | 39 | 99 | 80 | 168 | 45 | 136 |
| PET39/149 | 39 | 99 | 100 | 149 | 35 | 170 |
| PET43/160 | 43 | 110 | 64 | 160 | 51 | 109 |
| PET43/145 | 43 | 110 | 80 | 145 | 41 | 136 |
| PET47/150 | 47 | 120 | 55 | 150 | 53 | 94 |
| PET47/141 | 47 | 120 | 64 | 141 | 47 | 109 |
| PET47/135 | 47 | 130 | 71 | 135 | 42 | 121 |
| PET51/134 | 51 | 130 | 55 | 134 | 50 | 94 |
| PET51/119 | 51 | 135 | 71 | 119 | 39 | 121 |
| PET53/127 | 53 | 135 | 55 | 127 | 48 | 94 |
| PET53/118 | 53 | 135 | 64 | 118 | 42 | 109 |
| PET53/112 | 53 | 135 | 71 | 112 | 37 | 121 |
| PET56/117 | 56 | 142 | 55 | 117 | 45 | 94 |
| PET56/109 | 56 | 142 | 64 | 109 | 38 | 109 |
| PET59/109 | 59 | 150 | 55 | 109 | 42 | 94 |
| PET59/100 | 59 | 150 | 64 | 100 | 36 | 109 |
| PET61/103 | 61 | 155 | 55 | 103 | 41 | 94 |
| PET61/95 | 61 | 155 | 64 | 95 | 34 | 109 |
| PET64/96 | 64 | 163 | 55 | 96 | 39 | 94 |
| PET64/88 | 64 | 163 | 64 | 88 | 32 | 109 |
| PET68/87 | 68 | 173 | 55 | 87 | 36 | 94 |
| PET68/79 | 68 | 173 | 64 | 79 | 29 | 109 |
| PET72/89 | 72 | 183 | 45 | 89 | 42 | 77 |
| PET72/86 | 72 | 183 | 48 | 86 | 40 | 82 |
| PET72/80 | 72 | 183 | 55 | 80 | 34 | 94 |
| PET77/71 | 77 | 195 | 55 | 71 | 31 | 94 |
| PET80/76 | 80 | 200 | 45 | 76 | 38 | 77 |
| PET80/73 | 80 | 200 | 48 | 73 | 35 | 82 |
| PET90/68 | 90 | 230 | 40 | 68 | 38 | 68 |
| PET90/63 | 90 | 230 | 45 | 63 | 33 | 77 |
| PET90/60 | 90 | 230 | 48 | 60 | 28 | 82 |
| PET100/51 | 100 | 250 | 40 | 51 | 30 | 85 |
| PET110/48 | 110 | 280 | 34 | 48 | 33 | 58 |
| PET110/43 | 110 | 280 | 40 | 43 | 26 | 68 |
| PET120/44 | 120 | 305 | 31 | 44 | 33 | 53 |
| PET120/42 | 120 | 300 | 34 | 42 | 29 | 58 |
| PET120/37 | 120 | 300 | 40 | 37 | 18 | 68 |
| PET130/31 | 130 | 330 | 40 | 31 | 17 | 68 |
| PET130/36 | 130 | 330 | 34 | 36 | 26 | 58 |
| PET140/34 | 140 | 350 | 31 | 34 | 25 | 53 |
| PET140/32 | 140 | 350 | 34 | 32 | 19 | 58 |
| PET150/34 | 150 | 380 | 27 | 34 | 30 | 46 |
| PET150/31 | 150 | 380 | 30 | 31 | 23 | 51 |
| PET150/28 | 150 | 380 | 34 | 28 | 16 | 58 |
| PET165/29 | 165 | 420 | 27 | 29 | 22 | 46 |
| PET165/25 | 165 | 420 | 31 | 25 | 16 | 53 |
Our factory
Our factory:
SHANGHAI SHANGSHAI BOLTING CLOTH MANUFACTURING CO., LTD is a professional manufacturer of all kinds of Screen Printing Mesh, Filter Mesh and Flour Mesh, established in 1997.
Head Office: Room101, Building#5, No.1220, Jiangning Road, Shanghai, 200060, China.
Manufacture Address:
1. No.8, Faxiang Road, Jiangqiao Industrial Park, Jiading Area, Shanghai China.
2. Xutuan Industrial District, Anping County, Hebei, China.
Professional inspections:
Working Process:
Packaging & Shipping
Packaging and shipping:
The common packaging:
1.30-70m/roll in PVC bag
2.2-8 rolls per carton
3.waterproof bags outside
4.package belt strengthen
The common shipping:
1.for small quantity, shipped by courier.
2.for large quantity, shiped by air or by sea.
3.tracking number will be emailed to you after order has been shipped.
4.If you have forwarder in China, we can send to your forwarder for free. ![X3_07.jpg]()
Certifications
Partners
Our friends: We have many friends from all over the world.
Product applications
Main applications:
Our Services
1. We are prosessional manufacture for polyester silk screen printing mesh, nylon mesh series, polyester mesh series, stainless steel mesh series and other metal mesh.
2. Polyester mesh series are widely applied in high-density printed circuit boards, CDs, ceramics, and textile industry as screen printing mesh.
3. And we also served nylon mesh series into bags, cutting disc, round pieces, ribbon and any customized shapes for filtering.
4. We always adopt the international advanced technology in our production line, and through more than 12 years development, now we have 215 advanced machines, including Sulzer Ruti weaving machine, Benninger high speed warping machines, JW3600 polyester mesh machines etc. which enable us to provide high quality mesh to you.
Похожие товары

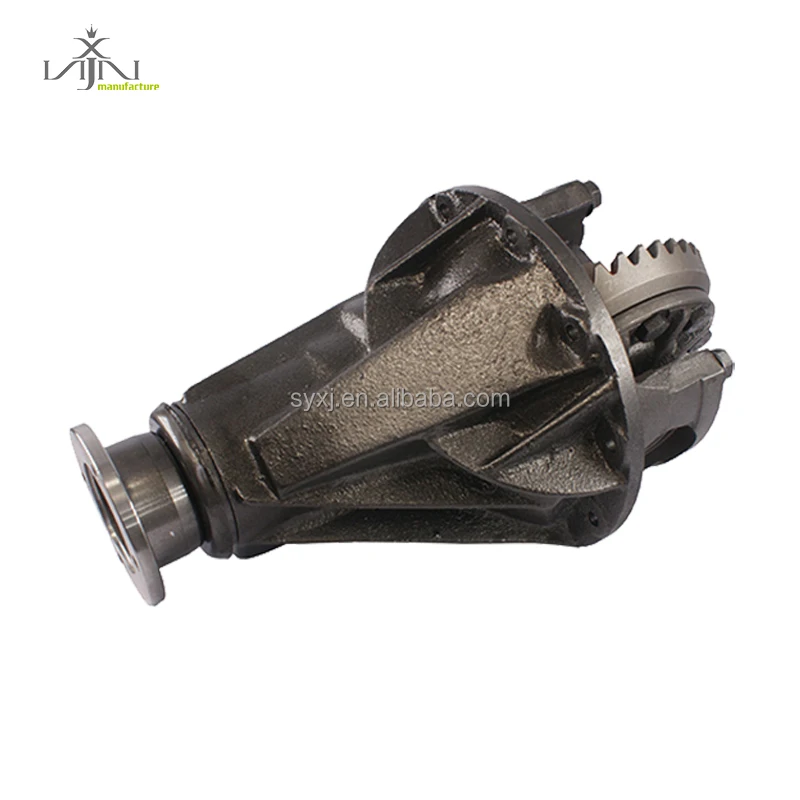

Высококачественный набор дифференциальных передач для FSR NPR NQR 4HK1 SAH088
130,00 $ - 200,00 $
Горячая Распродажа, запатентованный продукт, набор мебели для спальни, туалетный столик с зеркалом в форме кошки
15 мм 16 мм Pig Nose в форме бабочки аксессуары КУБИНСКИЙ звено цепи ожерелье, продажа по оптовым ценам; Принт кубического циркония ювелирные изделия с бриллиантами

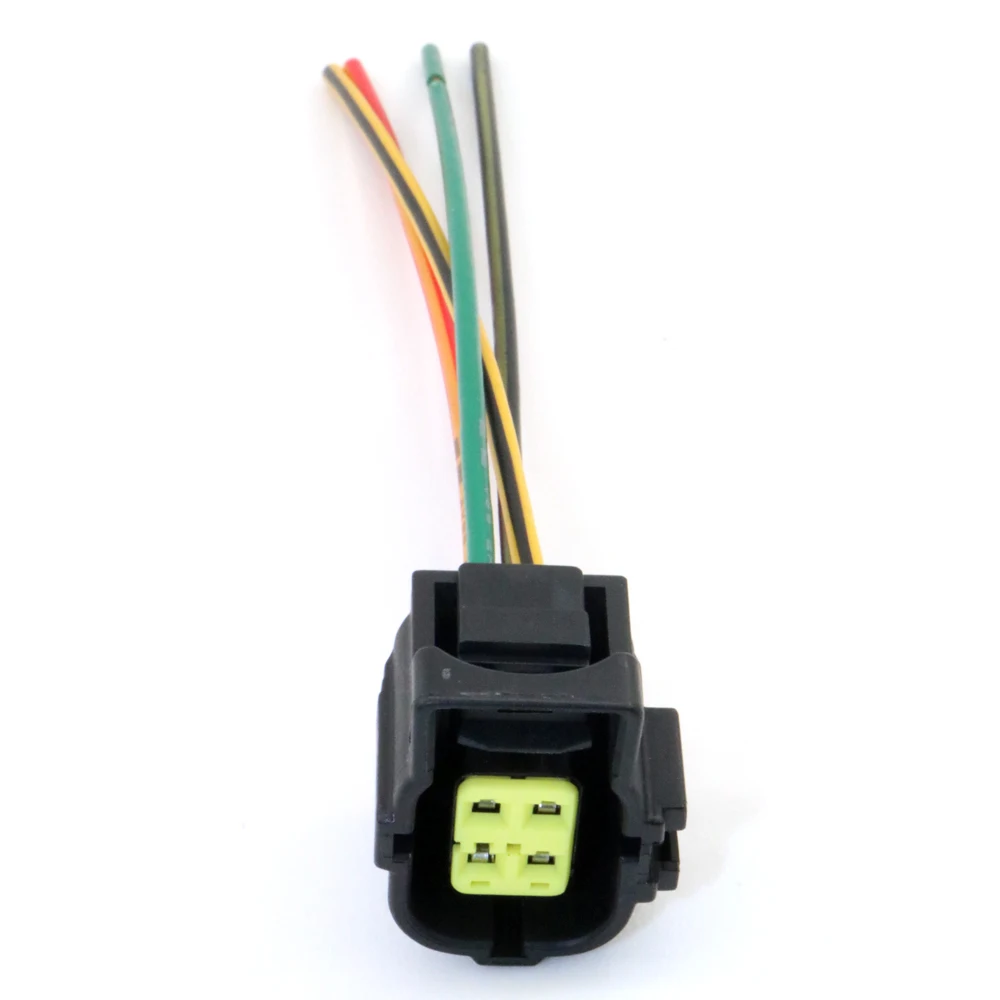

Новое поступление, 4-контактный Электрический провод с расширенным лучом воздуха DT Molex EV ABC для автомобильных магнитных разъемов с амфенолом

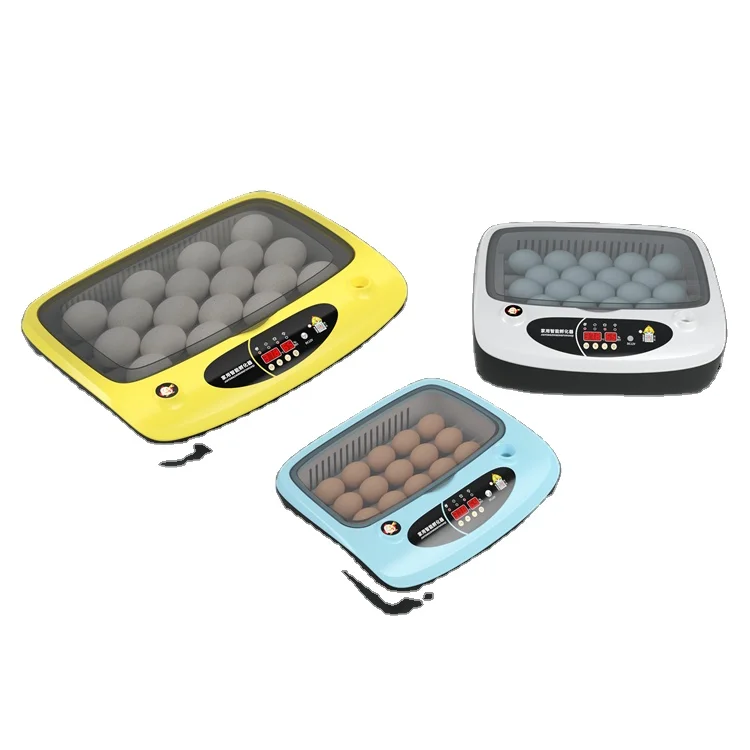

Инкубатор WEIQIAN для куриных яиц, 16 куриных яиц, 24 куриных яица
17,00 $ - 19,00 $

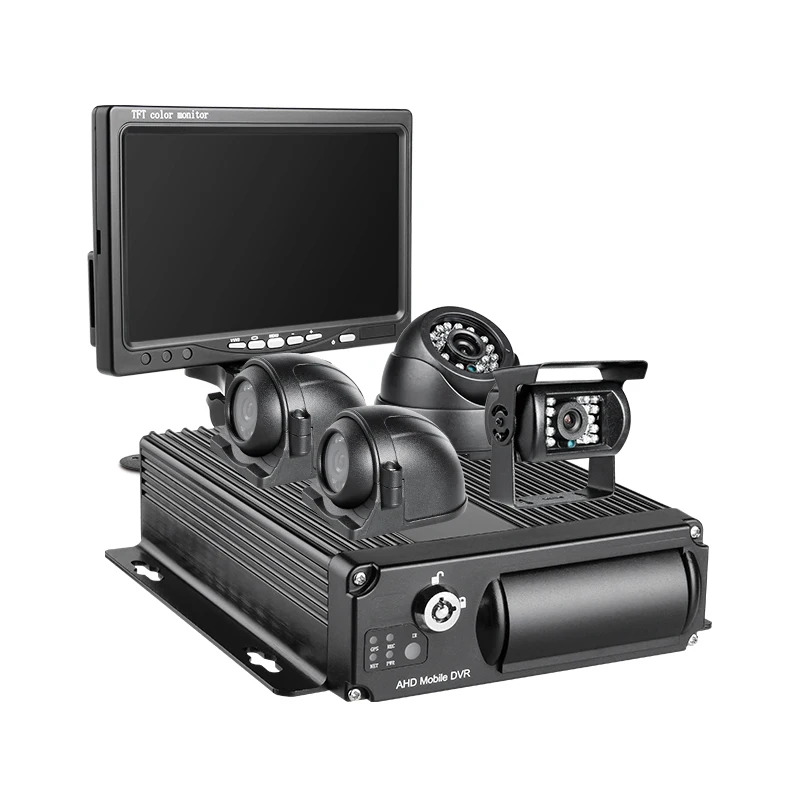

Двойная SD карта MDVR комплект 4G, Wi-Fi, GPS, Bluetooth, 1080P AHD мобильный машинный DVR с 4 ИК ночного видения водонепроницаемые камеры и 7-дюймовый монитор с видеографической матрицей
