Product Overviews

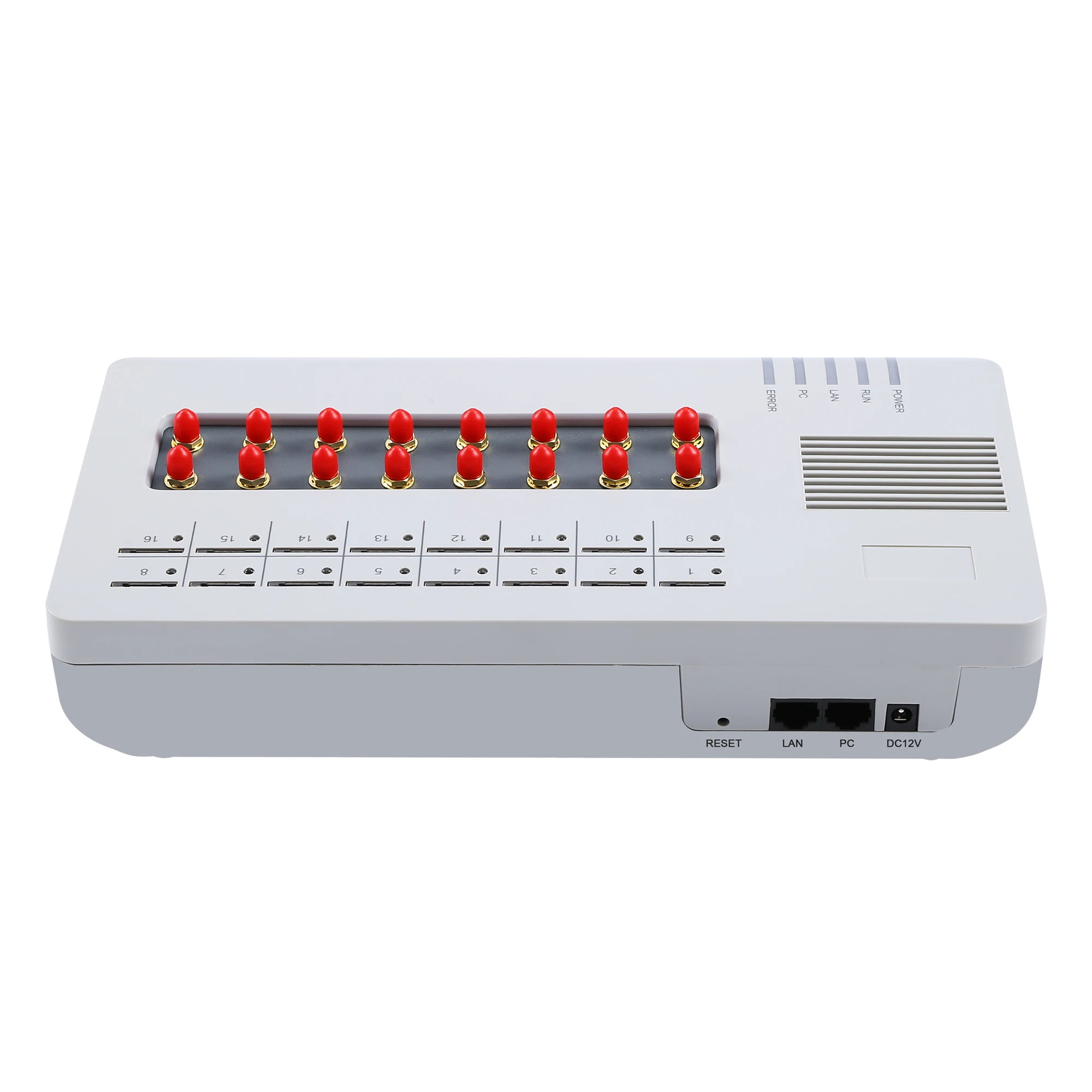

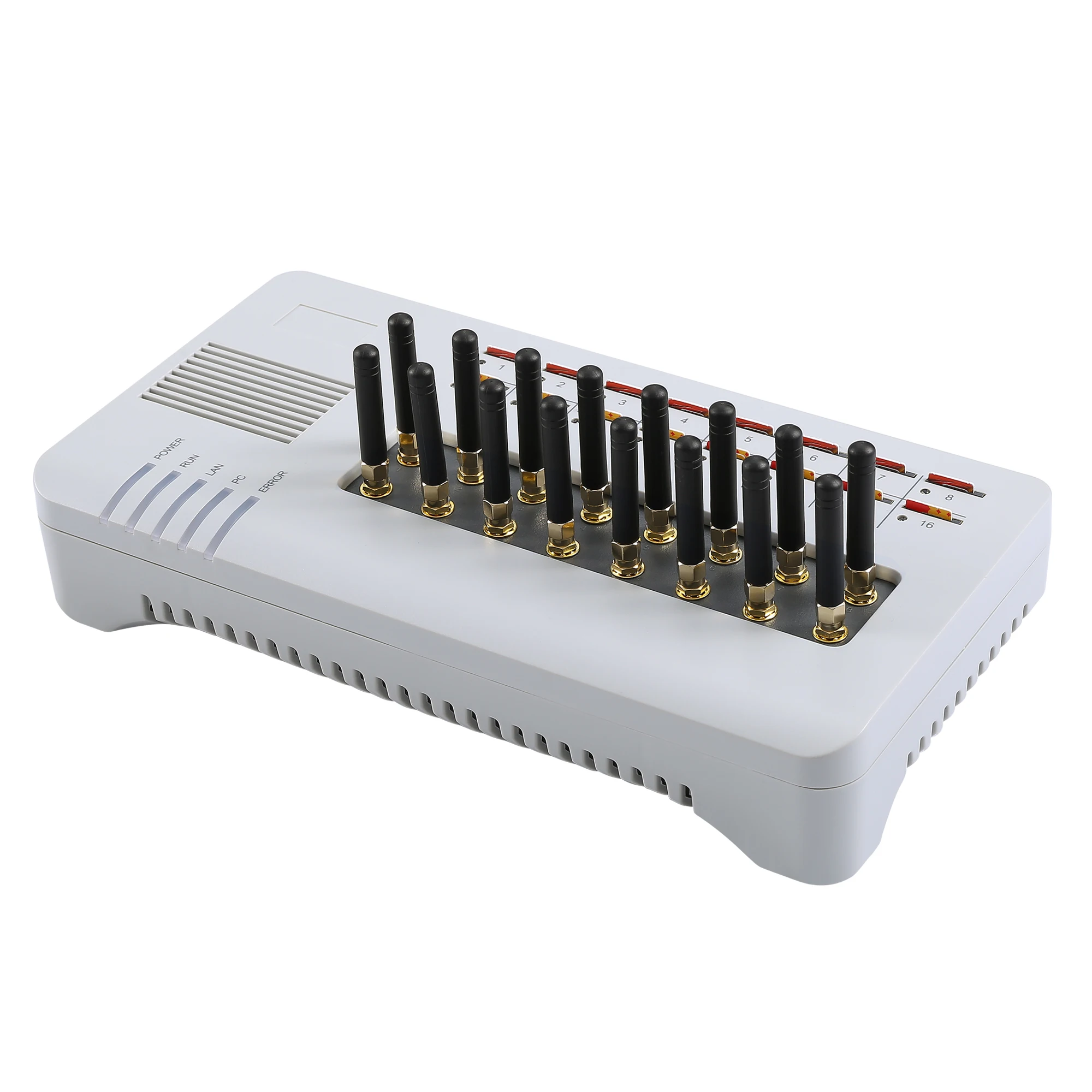

Goip 16 Ports Brief introduction
GoIP is abbreviated from GSM over IP and WCDMA over IP respectively. This is new types of VoIP gateway that allows call terminations from a VoIP network to cellular networks and vice versa. Call connections between IP networks and cellular networks are now bridged seamlessly to extend the voice communication coverage significantly. As the traditional PSTN lines are starting to disappear in developed countries and are not going to be built extensively in under-developed countries, GSM/WCDMA phones are getting more and more popular all over the world with lower and lower service charges, the emergence of GoIP and WoIP bridge the gap between the traditional telephone networks and VoIP networks as shown in the diagram below. As a result, local and worldwide voice communications are more convenience, lower cost, and broader coverage.
You can now make a call from anywhere in the world via a VoIP network and then terminate the call via a GoIP/ WoIP to the local telephone network (PSTN). On the other hand, you can also make a call from the local telephone network to a GoIP/ WoIP (the GSM phone number) and then dial another number via a VoIP network
to anywhere in the world. In these two cases, a VoIP Service provider is required for one side of the call termination. For two fixed locations, it is possible to setup GoIPs at both ends for call terminations without subscribing to a VoIP Service provider.
to anywhere in the world. In these two cases, a VoIP Service provider is required for one side of the call termination. For two fixed locations, it is possible to setup GoIPs at both ends for call terminations without subscribing to a VoIP Service provider.
For office environment, GoIP / WoIP offers a quick way to replace the traditional PSTN lines or T1/E1 lines to your IP PBX. There
is no initial installation/reallocation charge and no need to wait for installation. Depending on our usage, you can add or remove
lines as per your requirement. You can even configure the system so that everybody calls the same number regardless the number of
lines available.
is no initial installation/reallocation charge and no need to wait for installation. Depending on our usage, you can add or remove
lines as per your requirement. You can even configure the system so that everybody calls the same number regardless the number of
lines available.
Hardware Features
①ARM processor
②DSP for voice signal processing
③Two 10/100MB Ethernet ports (IEEE 802.3 standard) with status LEDs
④GoIP: Quadband GSM module (850 / 900 / 1800 / 1900 MHz)
⑤WoIP: UMTS (WCDMA/FDD): 850/900/1900/2100 MHz
GSM: 850/900/1800/1900 MHz
⑥External Antenna (Internal Antenna option for selected models)
②DSP for voice signal processing
③Two 10/100MB Ethernet ports (IEEE 802.3 standard) with status LEDs
④GoIP: Quadband GSM module (850 / 900 / 1800 / 1900 MHz)
⑤WoIP: UMTS (WCDMA/FDD): 850/900/1900/2100 MHz
GSM: 850/900/1800/1900 MHz
⑥External Antenna (Internal Antenna option for selected models)
Software Features
√LINUX OS
√Built-in Web Server for device configuration
√Built-in SIP Proxy (Simplified)
√PPPoE Dial Up
√Router function
√DHCP client & Server
√QoS (VLAN)
√VPN (PPTP)
√LINUX OS
√Built-in Web Server for device configuration
√Built-in SIP Proxy (Simplified)
√PPPoE Dial Up
√Router function
√DHCP client & Server
√QoS (VLAN)
√VPN (PPTP)
√Remote Control Mechanism for remote technical support
√Proprietary Auto Provisioning Mechanism
√Remote SIM function
√Short Messages (SMS) support (standalone and server based)
√Call Management and Routing
Quick Start

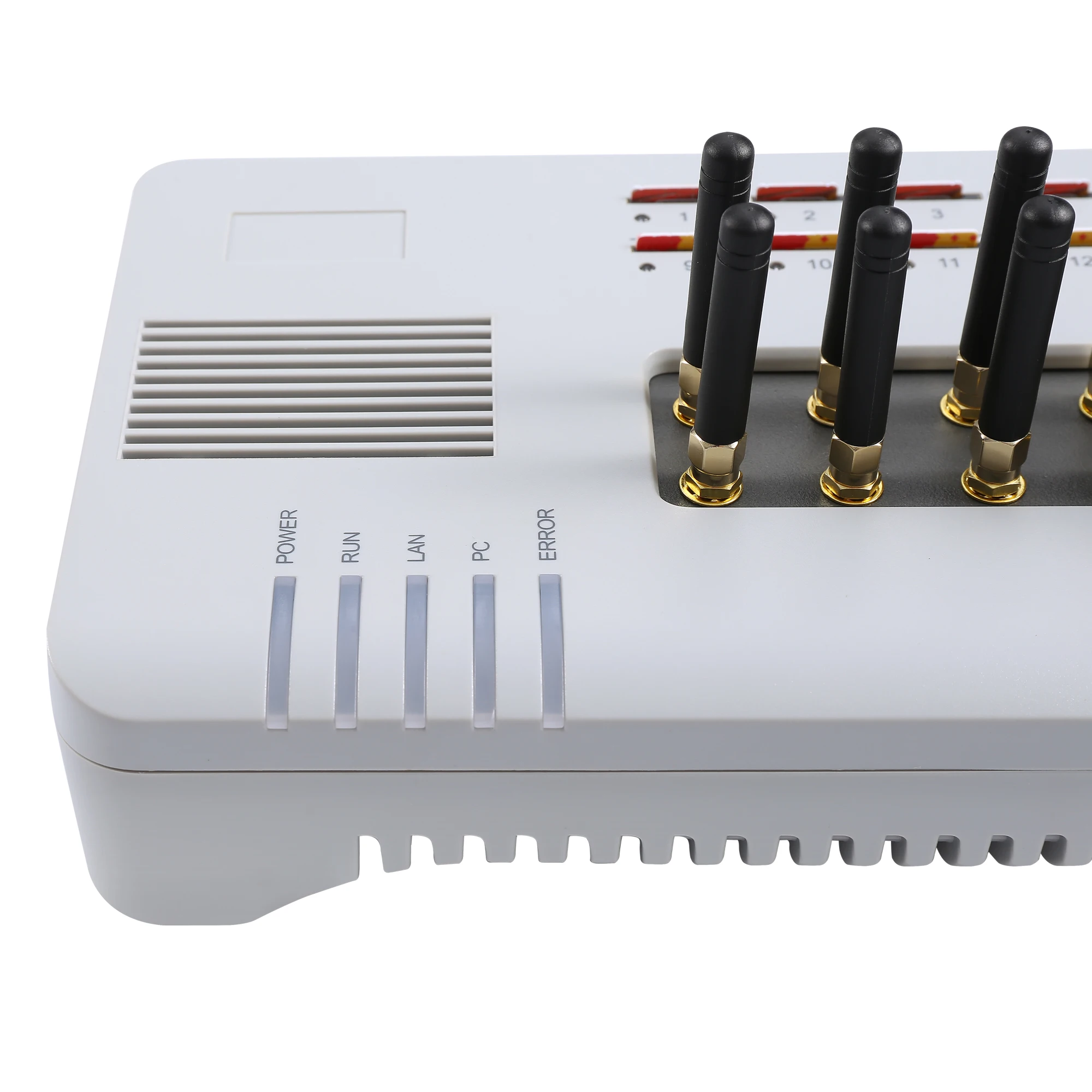

LED indicators (shown above for GoIP-8) are used to show the current status of the device. They are often used to determine if the device is working normally or not.
LED Label | Description | ||||||
Power | This LED is red and illuminates when power is connected. | ||||||
LAN | This LED is red and illuminates when the LAN port is connected and blinks when data transmission occurs. | ||||||
PC | This LED is red and illuminates when the PC port is connected and blinks when data transmission occurs. | ||||||
RUN | This LED is green and blinks at a rate of every 100ms when VoIP is not ready for making calls. (Fast Blink) It blinks at a rate of every second when VoIP is ready for making calls (Slow Blink). | ||||||
Channel “x” | Each cellular channel has its own status LED and its color is green. 1. It blinks at a rate of every 100ms (Fast blink) when the corresponding cellular channel is not yet registered to a GSM network. 2. It blinks at a rate of every second (Slow blink) when the corresponding cellular channel is ready for making or receiving calls (registered to a Cellular network). 3. It illuminates when cell call activities occur (in use, ringing). | ||||||
1. SIM card slots are located either at the bottom (for old hardware) or at the back (for new hardware) of the main unit.
For the models with the SIM card slots located at the back, just insert a SIM card to each slot as shown in the drawing on the right. Please make sure that the orientation of the SIM Card is correct before inserting the card.
For GoIP-16, the SIM card insertion orientation is shown in the figure below. The cut corner is pointing downward with the metal contacts facing the front of the GoIP.

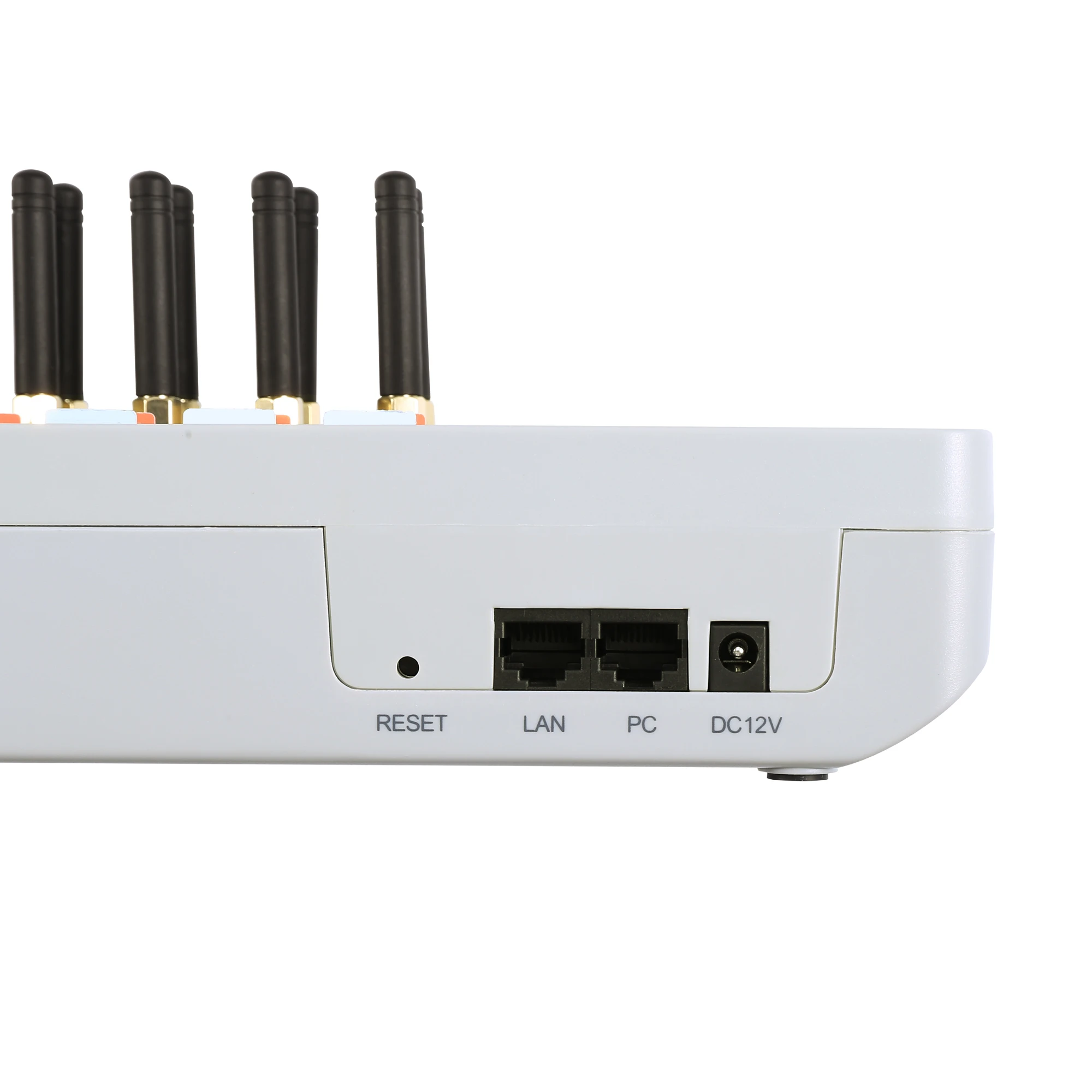

2. The RJ-45 port, labelled “LAN”, is intended for intranet or internet connection. Depending on your network environment, it can be connected various type of network equipment, such as network router, network switch / Hub, xDSL/Cable modem, etc.
3. The RJ-45 port, labelled “PC”, is intended for network sharing and it supports both bridge and router modes. In Bridge mode, the PC port is connected to the same network segment as the LAN port. In Router mode, the PC port is set to a different network segment. In this case, please make sure that the PC network
segment IP (192.168.x.) is different from the one in the LAN port network.
segment IP (192.168.x.) is different from the one in the LAN port network.
4. The DC port is for power connection. Please only use the AC/DC adapter provided. Adapter with different rating or vendor may damage the device or affect its performance.
5. The Reset button is recessed inside the device cabinet. You need to use a sharp pointer to access the reset button. Press it momentarily to reboot the device. Press it for 15 seconds or more to reset the device settings including login password to its factory defaults.
Related Product
Company Profile
About Our Company
SKYLINE INTERNATIONAL COMMUNICATION Co., Ltd. was founded in 2002.We have 200+ employees,15 departments and more than 10 production lines. More than 200 companies have established business with us, and they are from 40 different countries. Our company is a manufacturer of VoIP Gateways, GSM VoIP gateways, with well equipped testing equipment and strong technical force. With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in communication industry and other industries.Our products are widely recognized and trusted by users and can meet continuously developing economic and social needs. We welcome new and old customers from all walks of life to contact us for future business relationships and achieving mutual success!
China Skyline Attend ACC 2017 Attending ITW 2018 as Prime Sponsor
Shipping and Package
Shipping: FedEx、DHL、EMS、UPS、TNT or Freight Forwarder.

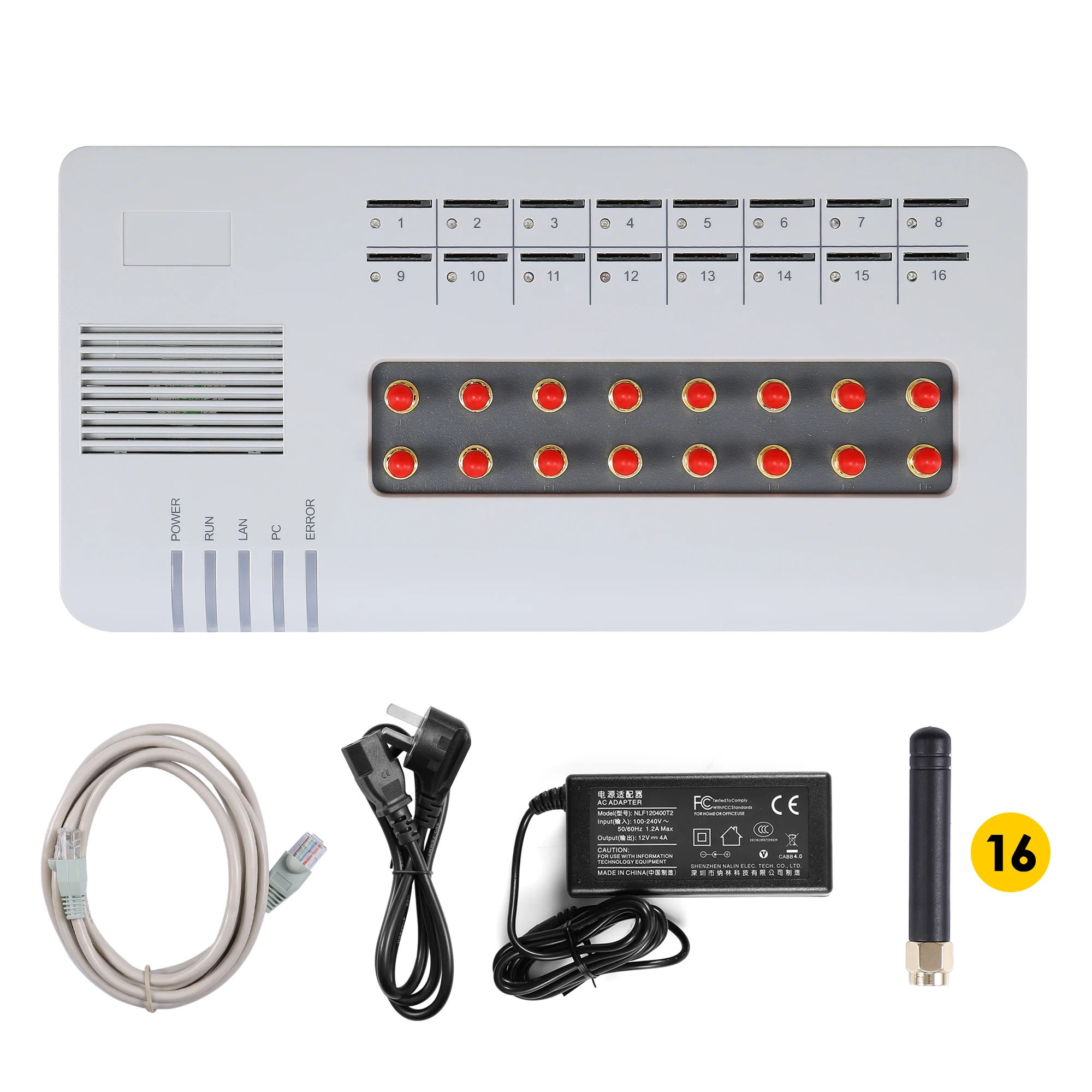

Packing Contents:
Payment:
bank transferShop on Alibaba directly
Paypal
Western Union
Credit Cards
Our Services
Our Services & Strength
1. Strong Relationship
2. Featured Products
3. Supporting Quality Policy
2. Featured Products
3. Supporting Quality Policy
4. Provide 24/7 hours free tech support
5. Awesome Reputation6. Company Insights Client good feedback
FAQ
1.What is main funtion of the GOIP?
For call terminal
2.What is the software can be supported by GOIP?
GOIP Website
3. What is the hardware can be supported by gateway?
IPPBX and so on
4. What is the bandwidth requested by gateway?
It is up to your voice code.G723 need 23kbps per channel,G729 need 34kbps,G711 need 90 kbps
5.What is the communication network can be supported by gateway?
we have gsm gateway,they can support gsm network respectively
6. How about our service?
We have professional engineer to help you about all your tech problems anytime,the satisfaction of our customers is our greatest desire.
7.What is our main express shipment?
DHL,UPS,FEDEX,TNT,EMS(can ship to anywhere all over the world)
For call terminal
2.What is the software can be supported by GOIP?
GOIP Website
3. What is the hardware can be supported by gateway?
IPPBX and so on
4. What is the bandwidth requested by gateway?
It is up to your voice code.G723 need 23kbps per channel,G729 need 34kbps,G711 need 90 kbps
5.What is the communication network can be supported by gateway?
we have gsm gateway,they can support gsm network respectively
6. How about our service?
We have professional engineer to help you about all your tech problems anytime,the satisfaction of our customers is our greatest desire.
7.What is our main express shipment?
DHL,UPS,FEDEX,TNT,EMS(can ship to anywhere all over the world)
