Лидер продаж дорожный каток 8 тонн дорожное строительное оборудование асфальтовый уплотнительный заземления по конкурентоспособной цене
- Категория: >>>
- Поставщик: Shandong China Coal Industrial & Mining Supplies Group Co. Ltd.Shandong Ltd.
Сохранить в закладки 1600561194484:
Описание и отзывы
Характеристики
Company Profile
Details Images

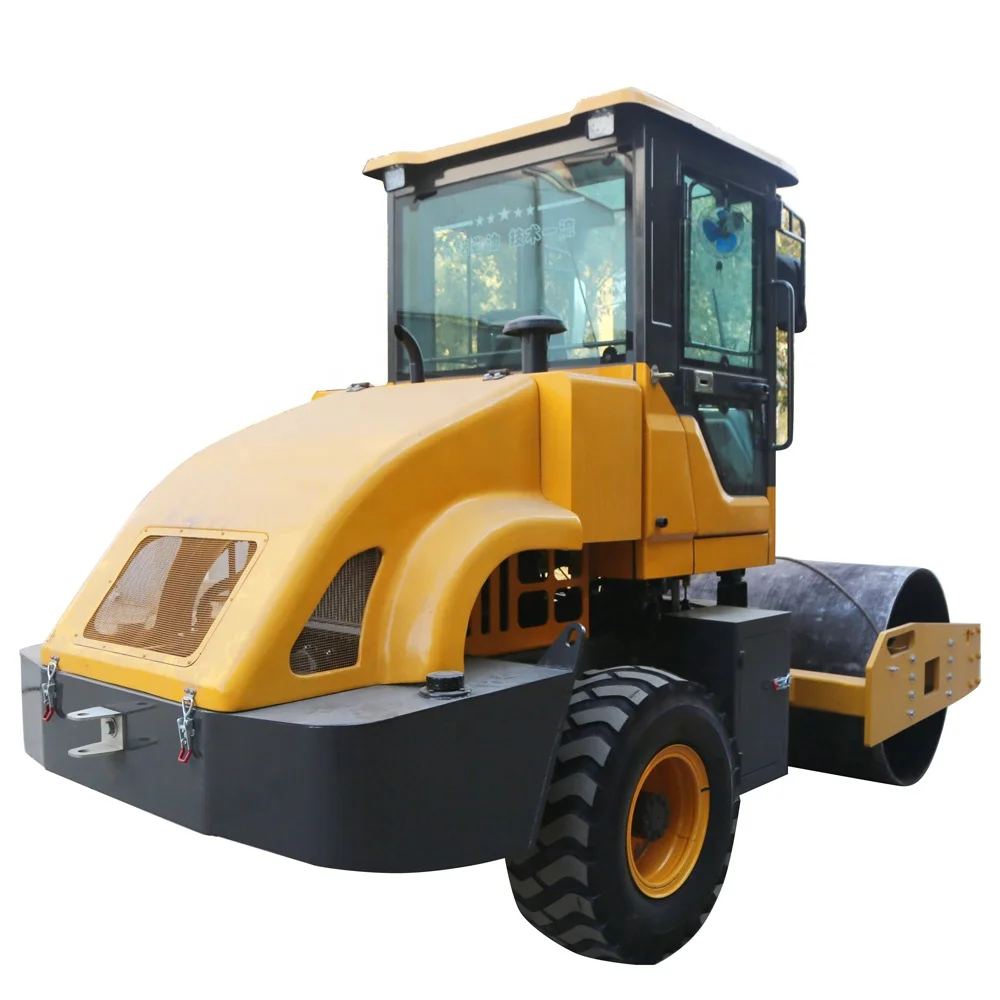

Photos of Hot Sale 8 Ton Road Roller 8t Road Construction Equipments Asphalt Road Roller Earth Compactor Roller With Competitive Price
Products Description
Introduction of Hot Sale 8 Ton Road Roller 8t Road Construction Equipments Asphalt Road Roller Earth Compactor Roller With Competitive Price
1. Hydraulic pump design :
Adopt double hydraulic pump, the main pump for vibration, small pump for steering, no vibration hydraulic oil directly low pressure return, thus reducing oil pressure, reduce oil temperature, suitable for long time operation.zmwm02
2. Brand engine :
Equipped with 4g33TC turbocharged engine, rated power 110 horsepower, abundant power, power surplus, stable performance.
3. Hydraulic oil overflow :
Adopting double high-pressure overflow and one low-pressure return mode, the steering motor has a constant oil pressure of 16Mpa and the vibration motor has a constant oil pressure of 20Mpa.The oil pressure is 20Mpa, which is beyond the return tank to ensure normal pipeline pressure.
4. shock absorbing block design :
Adopt four columns bearing rubber shock absorber, four points damping, soft damping, wide amplitude, large vibration force. Conventional road rollers generally use multiple damping blocks to damp the vibration.Generally 16 or so.
5. Air brake:
This machine adopts air brake, which has the characteristics of short braking distance and light operation.
6. torque converter:
This machine has no clutch and is easy to operate with steplessly variable speed and high efficiency.
7. Wheel-side reduction axle :
The rear axle is equipped with a large wheelside axle with wheelside reduction, which has a strong load capacity, low failure rate and long life.The 8-ton roller is mainly used in the compaction of auxiliary roads, backfilling of pipeline earth, underground car parks, rural roads and gravel.Its front steel wheel and rear rubber wheel construction, with a strong climbing capacity and strong power, can be transferred within 5 km, saving freight costs for the user.
Adopt double hydraulic pump, the main pump for vibration, small pump for steering, no vibration hydraulic oil directly low pressure return, thus reducing oil pressure, reduce oil temperature, suitable for long time operation.zmwm02
2. Brand engine :
Equipped with 4g33TC turbocharged engine, rated power 110 horsepower, abundant power, power surplus, stable performance.
3. Hydraulic oil overflow :
Adopting double high-pressure overflow and one low-pressure return mode, the steering motor has a constant oil pressure of 16Mpa and the vibration motor has a constant oil pressure of 20Mpa.The oil pressure is 20Mpa, which is beyond the return tank to ensure normal pipeline pressure.
4. shock absorbing block design :
Adopt four columns bearing rubber shock absorber, four points damping, soft damping, wide amplitude, large vibration force. Conventional road rollers generally use multiple damping blocks to damp the vibration.Generally 16 or so.
5. Air brake:
This machine adopts air brake, which has the characteristics of short braking distance and light operation.
6. torque converter:
This machine has no clutch and is easy to operate with steplessly variable speed and high efficiency.
7. Wheel-side reduction axle :
The rear axle is equipped with a large wheelside axle with wheelside reduction, which has a strong load capacity, low failure rate and long life.The 8-ton roller is mainly used in the compaction of auxiliary roads, backfilling of pipeline earth, underground car parks, rural roads and gravel.Its front steel wheel and rear rubber wheel construction, with a strong climbing capacity and strong power, can be transferred within 5 km, saving freight costs for the user.
Product Paramenters
Parameters of Hot Sale 8 Ton Road Roller 8t Road Construction Equipments Asphalt Road Roller Earth Compactor Roller With Competitive Price
Compaction | ||
Static linear load | 285N/cm | |
Nominal amplitude | 1.8mm | |
Vibration frequency | 50Hz | |
Excitation force | 160KN | |
Engine | ||
Model | 4g33TC | |
Type | Diesel water-cooled four-stroke, four cylinders | |
Power | 75kw/2400r/min | |
Fuel tank volume | 130L | |
Lubricating oil volume | 9.6L | |
Fuel consumption | 246g/kw/h | |
Travel | ||
Speed | 0-15km/h | |
Turning radius | 2980mm | |
Theoretical climbing capacity | 55% | |
Size specification | ||
Wheel width | 1850mm | |
Wheel diameter | 1200mm | |
Wheel spacing | 2980mm | |
Overall length | 5100mm | |
Overall width | 2010mm | |
Overall height | 2670mm | |
Package size | 5300*2200*2800mm | |
