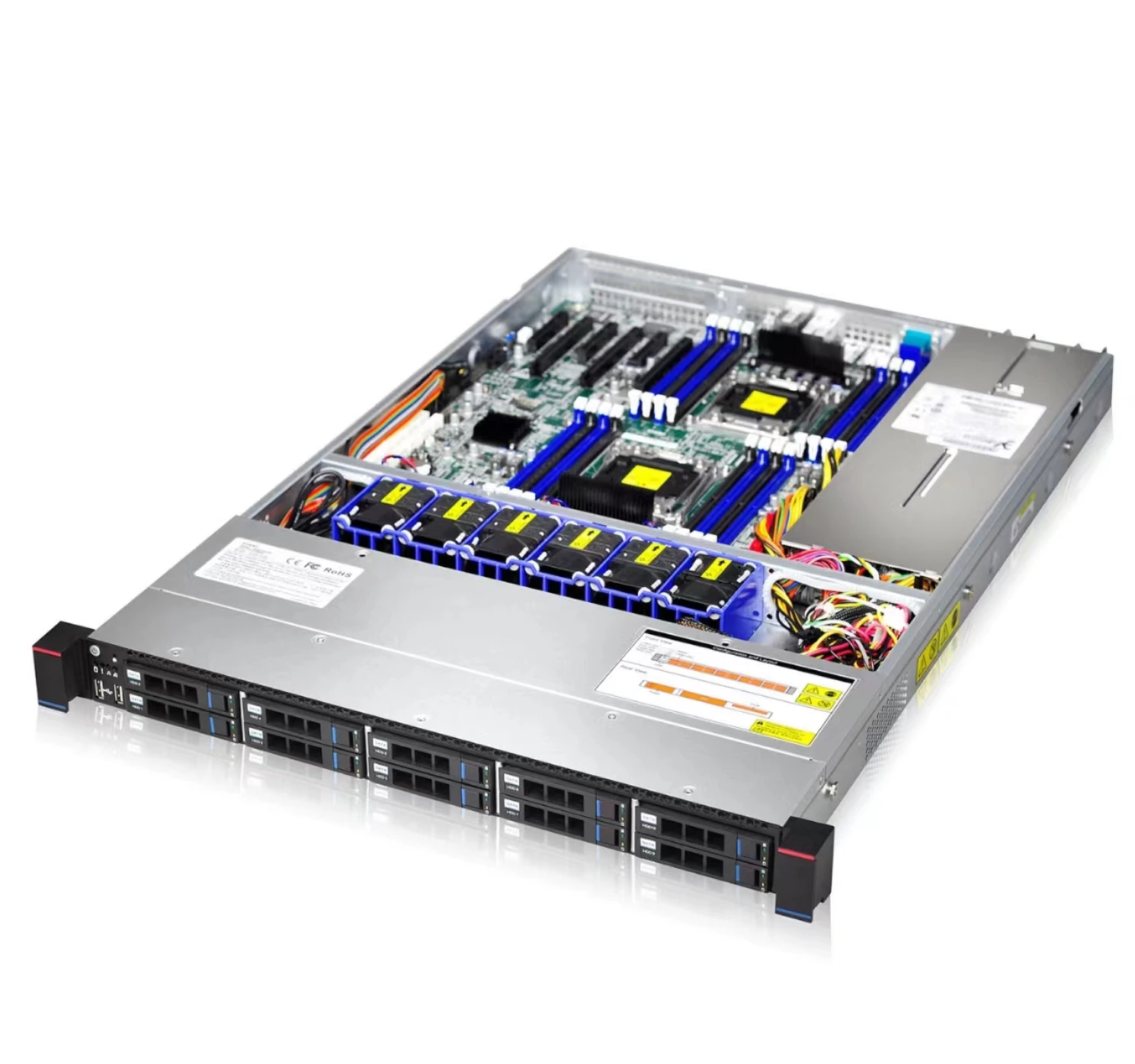

1U 10 секций Серверный корпус стойка шасси с глубиной 640 мм для хранения
- Категория: >>>
- Поставщик: Shenzhen Guoxin Hengyun Information Security Co. Ltd.
Сохранить в закладки 1600561314968:
Описание и отзывы
Характеристики
Products Description

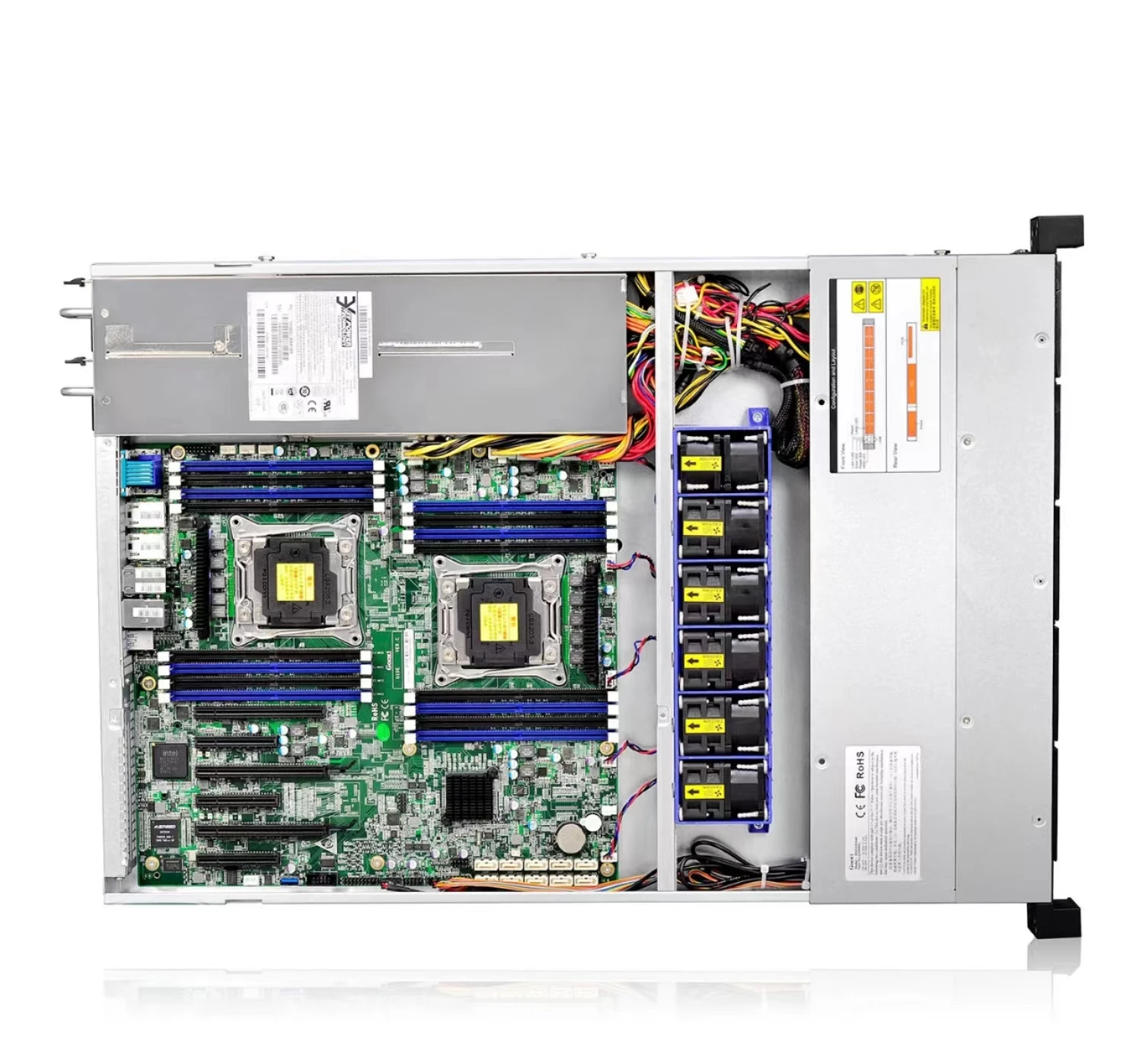

● 1U Rackmount server chassis series with 640mm depth
● Serverboard supports up to standard EEB 12"x13", backward supports to CEB and below
● Supports 1x full-height full-length PCIe cards

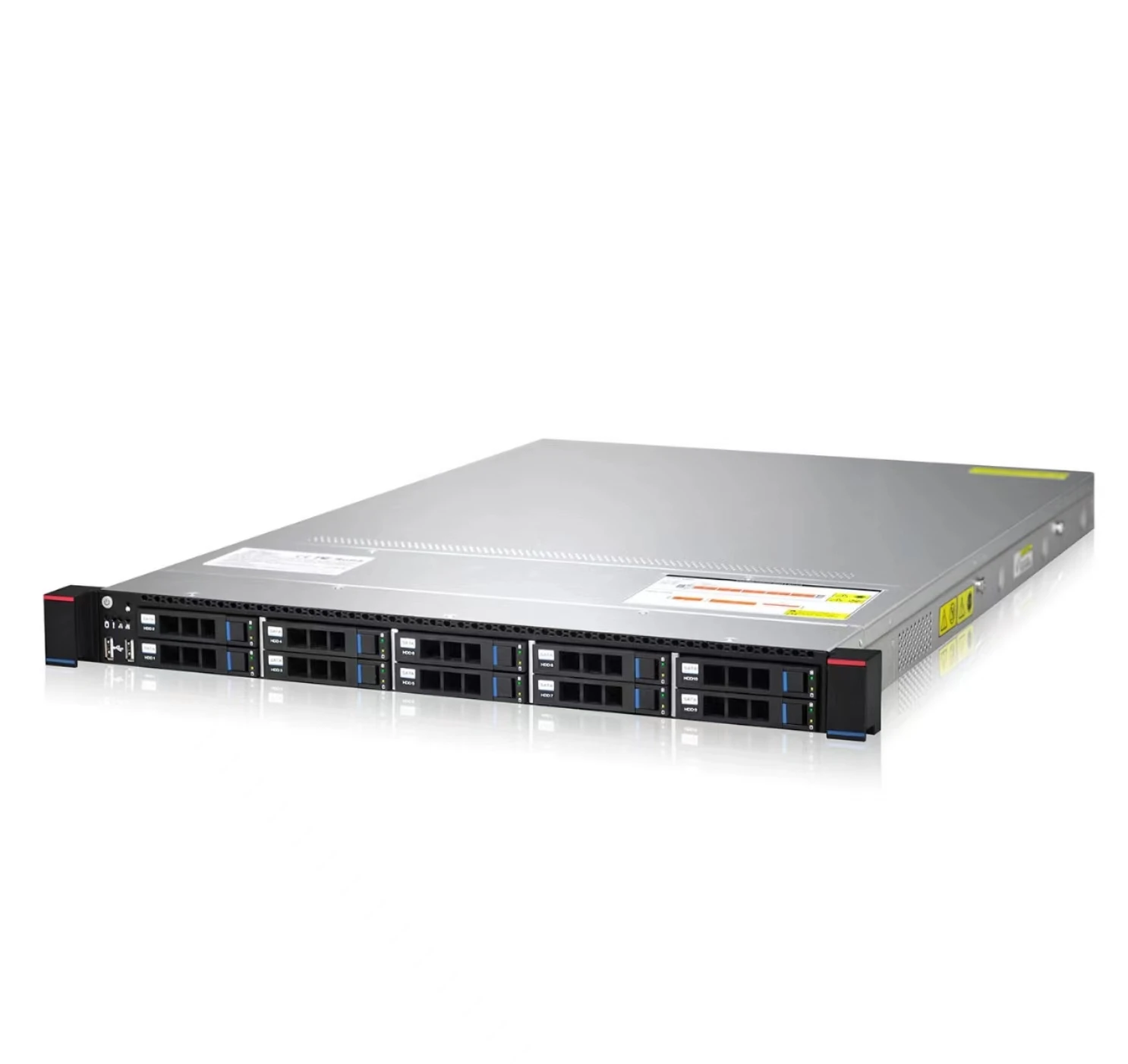

● Front 10x2.5" hot-swap HDDs
● High-performance 5x4028 cooling fans with anti-vibration mechanism and optional up to 6x4056 middle fans
● Smart system fan controlled by intelligent temperature managemant

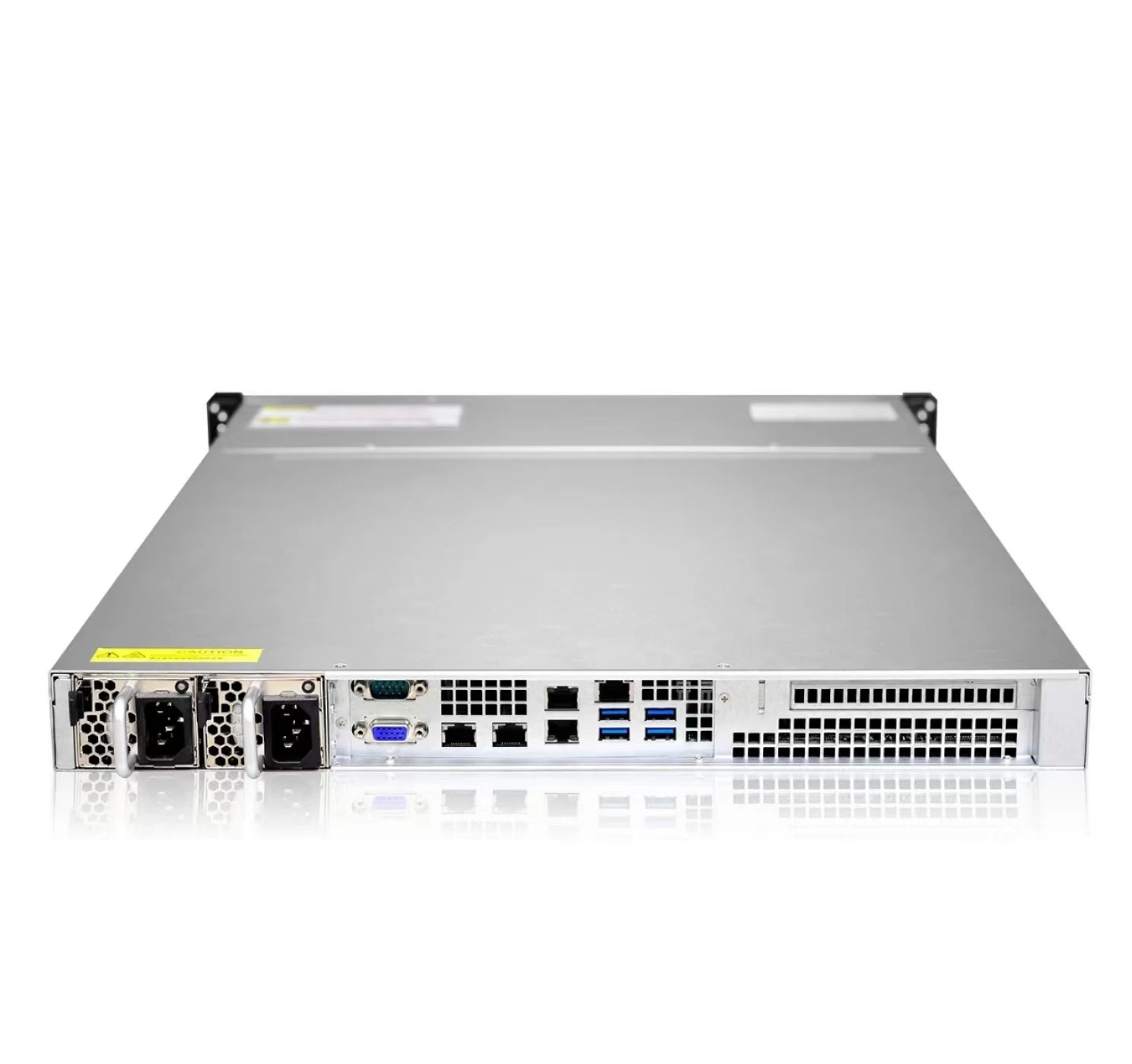

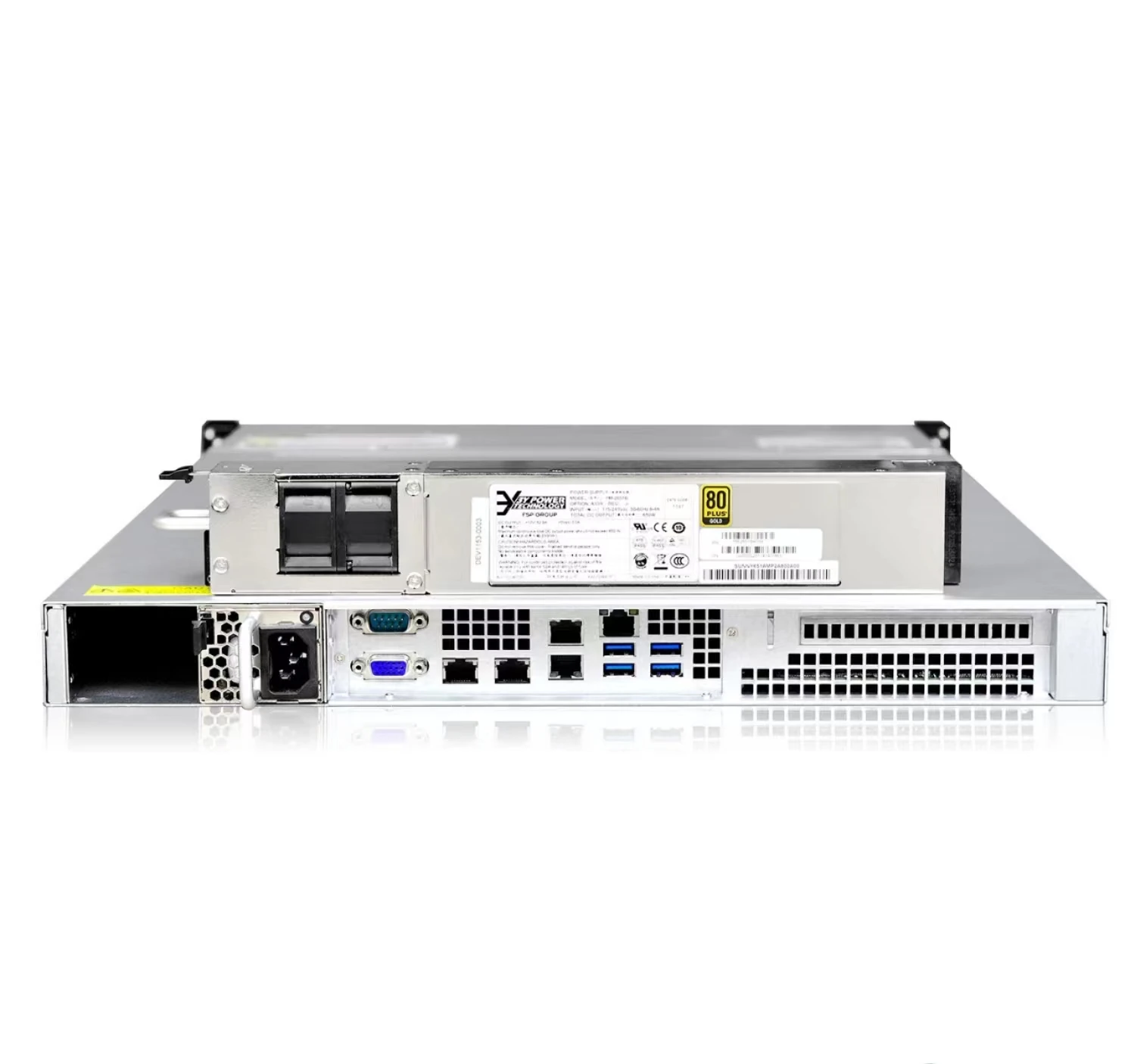

● Supports 1U Single PSU or 1+1 Redundant PSU
● 12Gb/s SAS passive backplane with SGPIO, compatible with SAS and SATA HDDs
● Serverboard supports up to standard EEB 12"x13", backward supports to CEB and below
● Supports 1x full-height full-length PCIe cards
● Front 10x2.5" hot-swap HDDs
● High-performance 5x4028 cooling fans with anti-vibration mechanism and optional up to 6x4056 middle fans
● Smart system fan controlled by intelligent temperature managemant
● Supports 1U Single PSU or 1+1 Redundant PSU
● 12Gb/s SAS passive backplane with SGPIO, compatible with SAS and SATA HDDs
Specification
Chassis | Rackmount |
Form Factor | 1U |
Serverboard | EEB(12"x13"), CEB(12"x10.5"), ATX(12"x9.6") and micro ATX (9.6"x9.6") |
PSU Form Factor | 1U Single or 1+1 Redundant |
Backplane SGPIO | Supports |
HDD Backplane | 10-port 12Gb/s SAS passive backplane |
HDD Hot-swap | Supports SAS and SATA HDD |
Hot-swap Fans | N/A |
HDD Drive | Front 10x2.5" Hot-swap HDDs |
Other Drive Bay | N/A |
Cooling Fans | Default 5x4028 middle fans (Max. 6x4056 by option) |
Temperature Control | Supports system smart fan controlled by Serverboard |
Air Duct | Optional |
Expansion Slots | Default 1x full-height PCIe cards |
Slide Rail | Optional |
Indicators | 2x USB2.0, 1x Power Switch, 1x Reset, 1x Power LED, 1x HDD LED, 2x LAN Indicators |
Tool-less | N/A |
Metal Thickness | 1mm SGCC |
Chassis Dimensions | 640*433*43.5mm (DxWxH) |
Net Weight | 7.3 KG |
Carton Dimensions | 902*591*183mm (DxWxH） |
Gross Weight | 9.7 KG |
Certification | CE, FCC, RoHS |
Company Profile
Gooxi, as a leading Chinese Server Solutions Provider, with independent R&Dand production abilities of intact industry chain, is currently one of the few software and hardware manufacturers in server and storage in China that integrates R&D, production, sales and service. Our products have been expanded to over 10 series of servers and storage platforms, barebones, motherboards, chassis, accessories, etc., and are extensively used in cloud computing, cloud storage, datacenter, Internet, AI, security, telecom, radio&television, finance, government, education, blockchain, etc.
We own a complete integrated manufacturing system of production, processing and quality inspection, 2 production bases in Shenzhen and Dongguan of a total area over 30,000 m2, 12 productionlines, 3 SMT placement lines and an entire set of stamping, CNC, and other structural production platforms. As a server supplier for manifold Listed and large-scale enterprises, annual output of servers exceeds 300,000 units.
We own a complete integrated manufacturing system of production, processing and quality inspection, 2 production bases in Shenzhen and Dongguan of a total area over 30,000 m2, 12 productionlines, 3 SMT placement lines and an entire set of stamping, CNC, and other structural production platforms. As a server supplier for manifold Listed and large-scale enterprises, annual output of servers exceeds 300,000 units.
With an all-round&precise global marketing service system, we established 6 branches in Shenzhen, Beijing, Dongguan, Shanghai, Taipei(overseasbusinessdevelopmentdept), Silicon Valley in the U.S. and offices in Chengdu, Xi'an, Japan, SouthKorea, and Hamburg, Germany, core agents and distribution channels in Shenzhen, Beijing, Tianjin, Canton, Chengdu, Shanghai, Hangzhou, Nanjing,etc., cooperative dealers and joint insurance outlets in globe.
We commit to becoming the world's leading Server Solutions Provider by adhering to the customer-demand guide, win-win strategy, as well as the vision of integrity, collaboration, innovation and win-win.
We commit to becoming the world's leading Server Solutions Provider by adhering to the customer-demand guide, win-win strategy, as well as the vision of integrity, collaboration, innovation and win-win.
Qualification & Honor
Gooxi Corporation owns 250 patents:
108 patents of invention
79 utility models
31 outward appearance patents
32 software copyrights
108 patents of invention
79 utility models
31 outward appearance patents
32 software copyrights
Business Partners
Contact Us
Susana Lu - Overseas Business Department
Email：susana@gooxi.com
Email：susana@gooxi.com
Whatsapp: +86 15227838505
Addr：Room 1808, Jinquan Time, Building NO.317, Chaoyang District, Beijing, China.
Addr：Room 1808, Jinquan Time, Building NO.317, Chaoyang District, Beijing, China.
Похожие товары
KRR030DED1119NNN3C3A4A6NLBNNNNNN гидравлический насос KRR025 KRR030 KRR038 поршневые двигатели Sauer Danfoss высокоскоростной гидравлический двигатель
Серводвигатель переменного тока 110 мм 1200 Вт с Драйвером
Easy run бизнес мини кинотеатр 5d симуляторы 10d cienma для

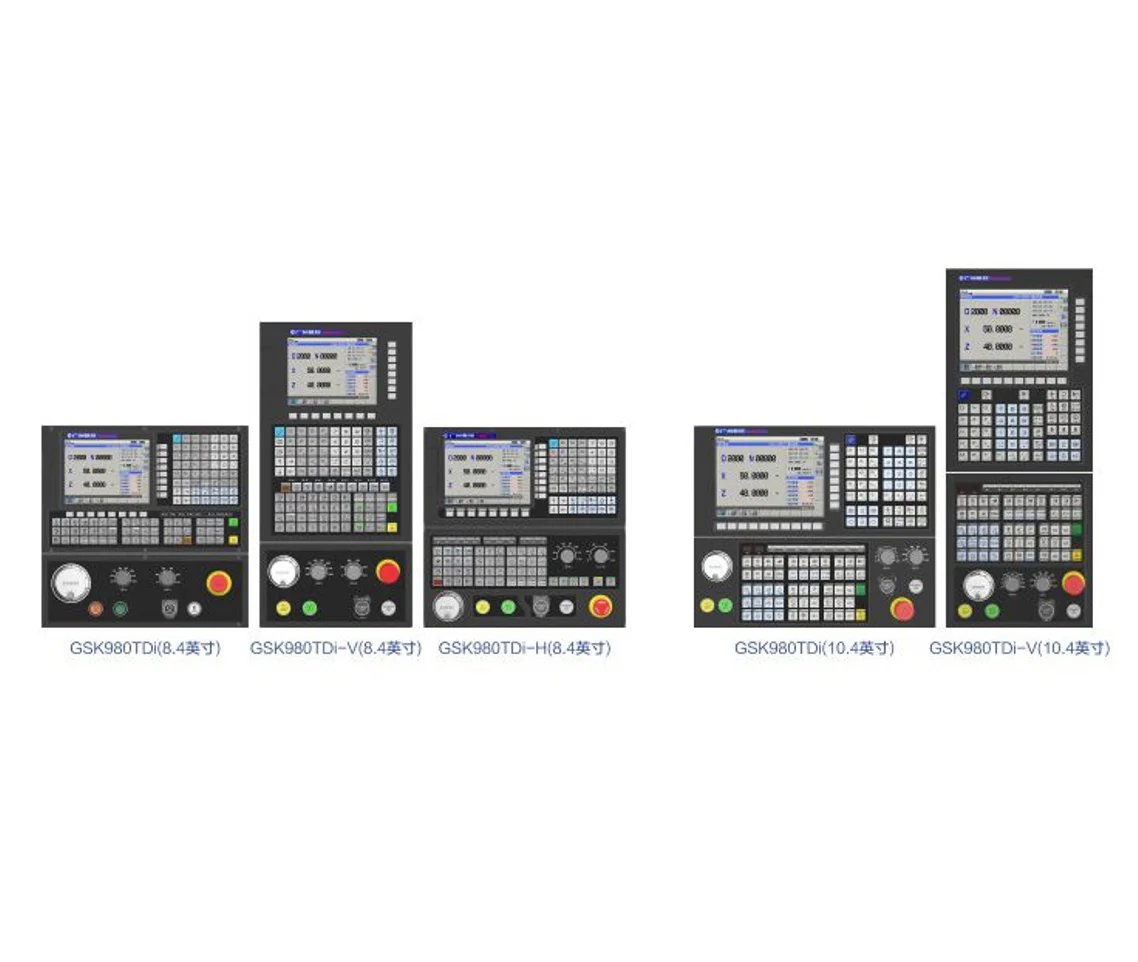

GSK 980TDi поддерживает сервопараметр онлайн-конфигурации, сервопривод состояния мониторинга в реальном времени контроллер cnc
1 500,00 $
8 лет гарантии, автомобильная Тонировочная пленка VEGO 4K, прозрачная пленка для окон на солнечных батареях, нано-керамическая УФ-пленка для тонирования, Тонировка автомобиля
107,00 $ - 138,00 $

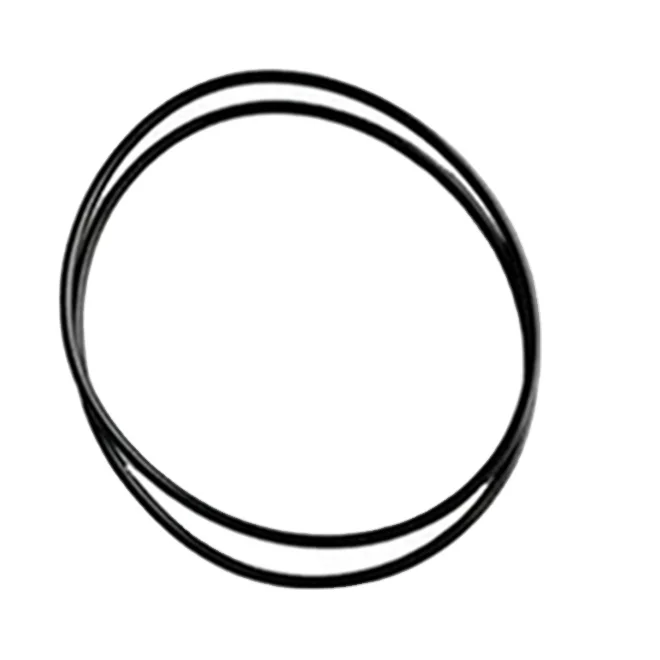

Совершенно новое уплотнительное кольцо Bk, уплотнительное кольцо от производителя Parker, уплотнительные кольца и уплотнительные кольца
1,20 $

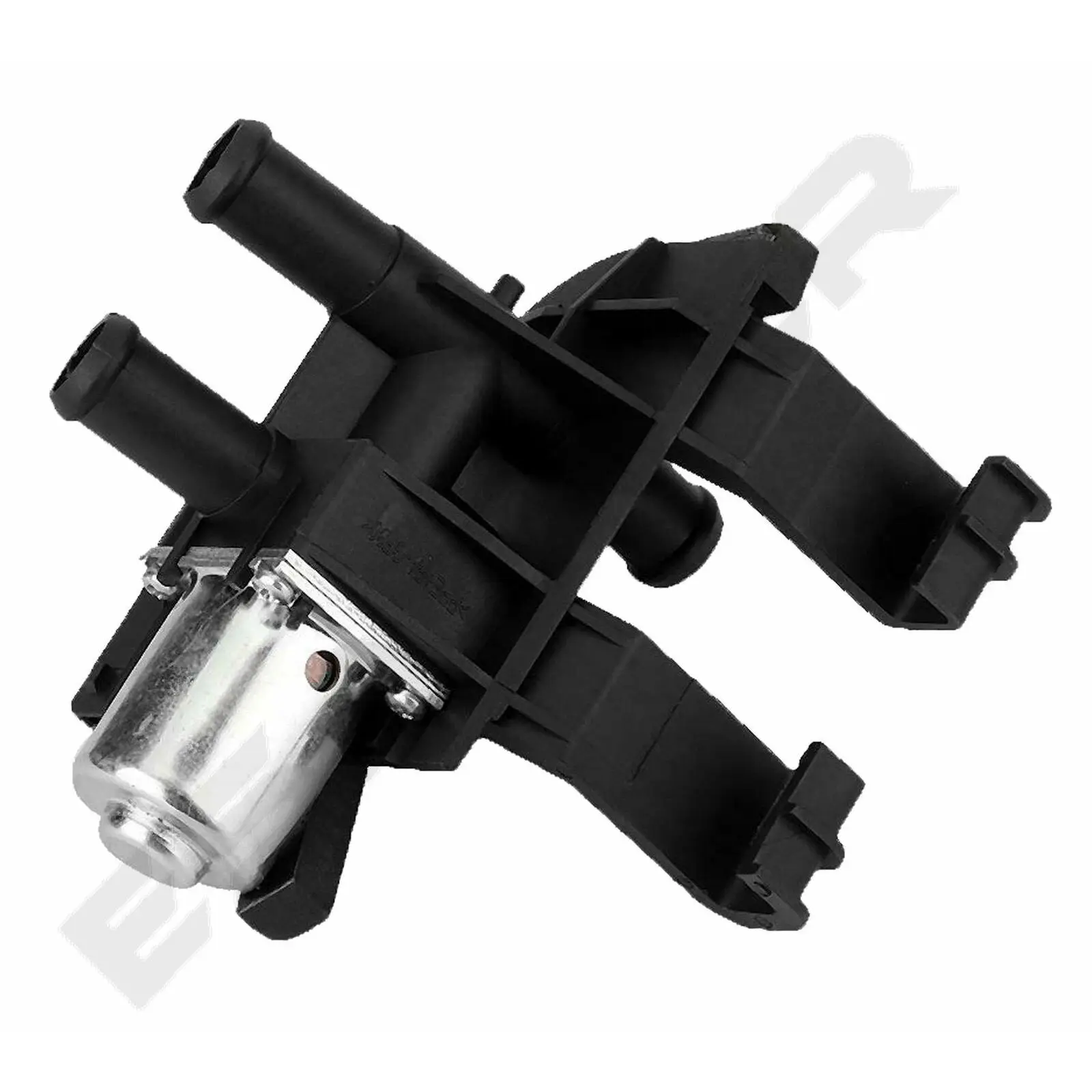

Esaever клапан управления отопителем TN21-18495AB для FORD TRANSIT COURIER
