Зерноуборочные комбайны обрабатывающие автоматически 2/3/4 вида цветов флексо принтер для печати на бумажных slotter резьбонарезная фреза встроенный папка склеивающие машины

Specifications :

•







  Machine features:

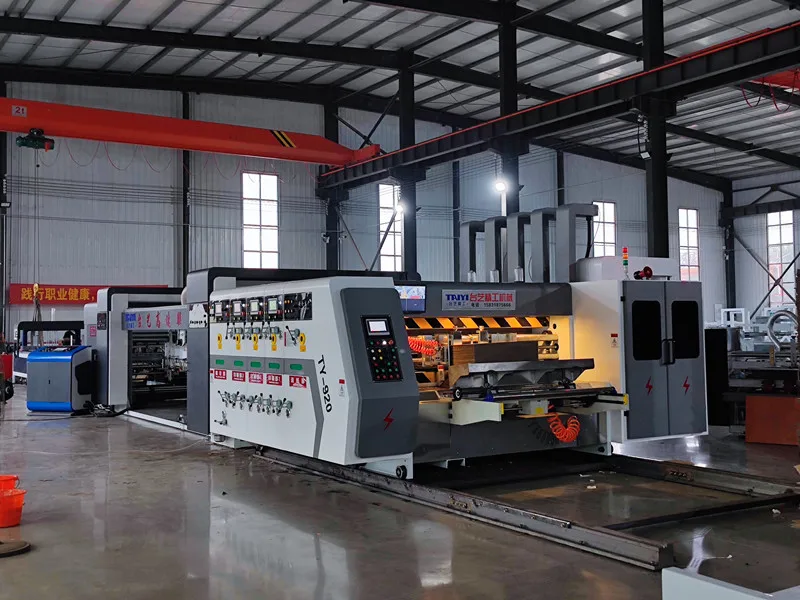

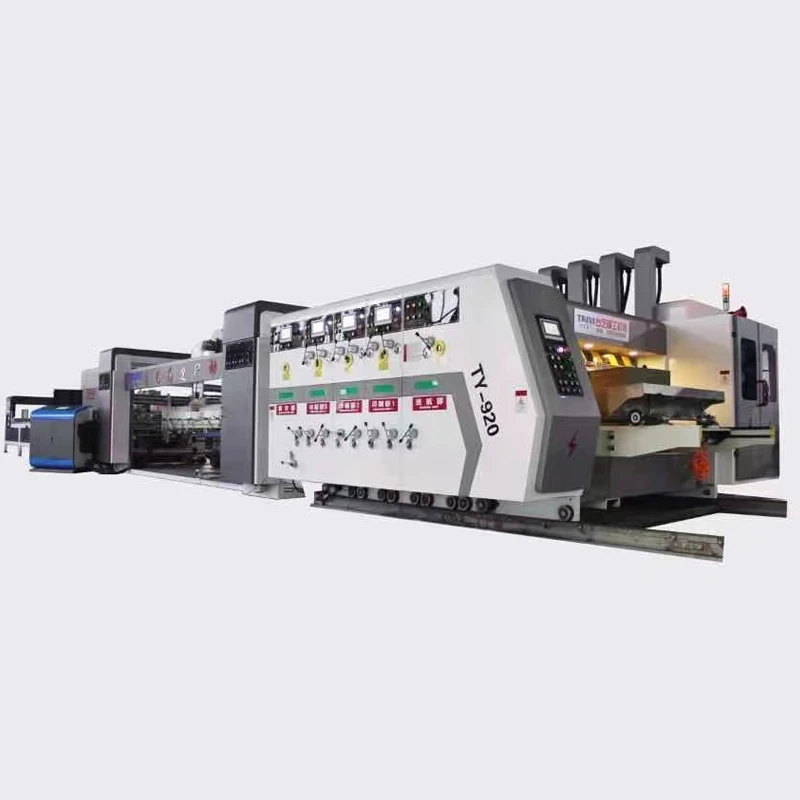

  Fully automatic high-speed bottom folding printing and gluing box production line is a high-automation, high-speed, high-intelligence carton production line. It has a simple, fast, reliable and accurate control mode, high-speed energy saving and labor cost saving. The color LCD touch screen can simplify the size setting of the carton, and can display various operation information.





  Feeding department :

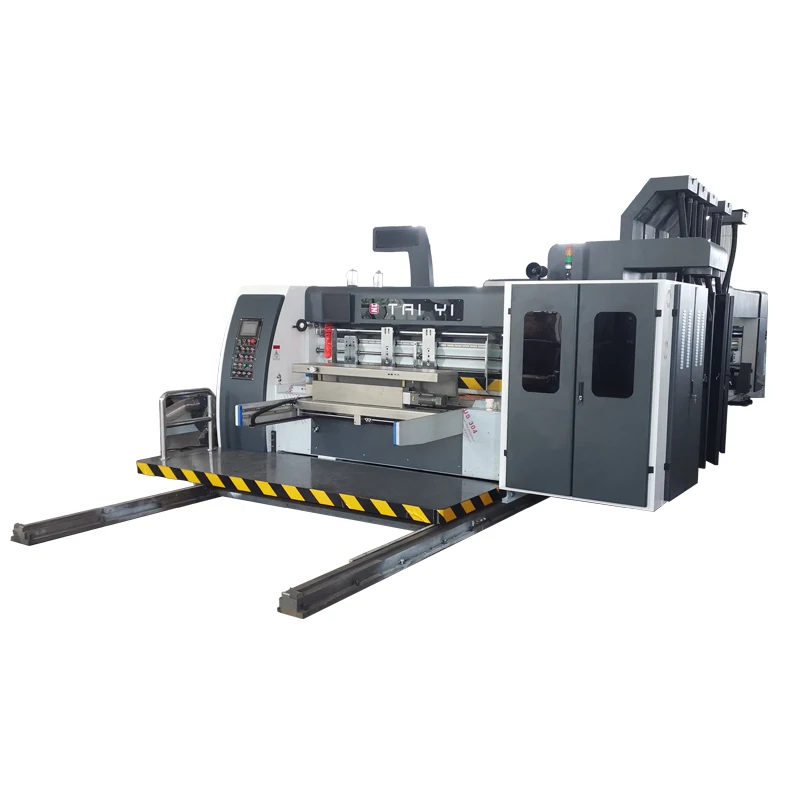

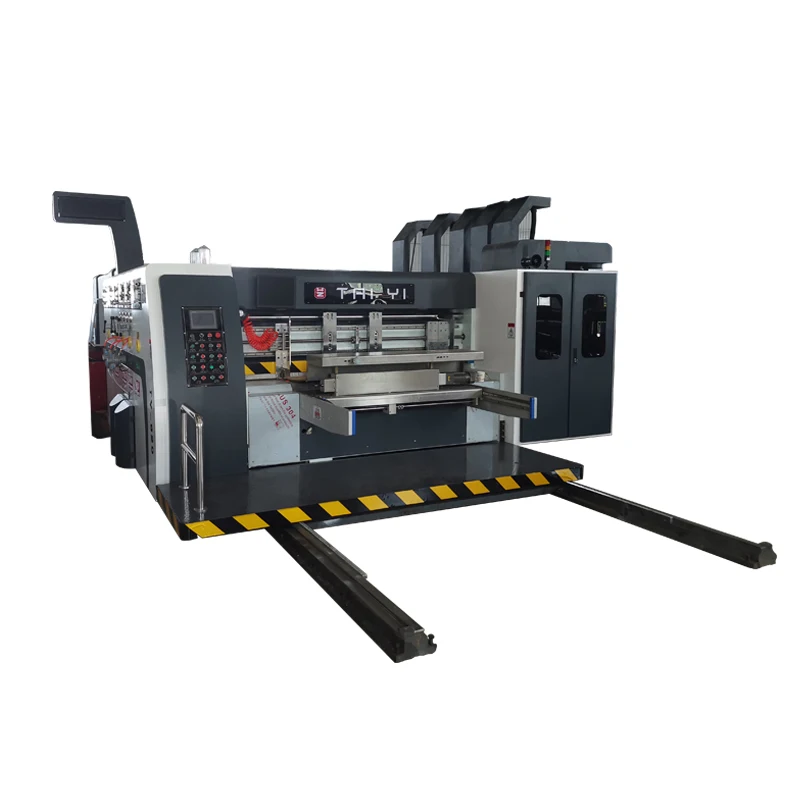

  1 Advanced leading edge feeding system .




  2 The position of the left and right baffles is electrically adjusted by the lead screw, and right baffle is pneumatically aligned.




  3. Interlaced paper feeding function .




  4 Install a 7-inch true color touch screen,  preset 200 groups of order inquiry, zero position, order input.




  5 Phase automatic/manual adjustment, machine parameter management.




  6 The rear paper holder is electrically controlled front and rear to speed up the setting speed.














  printing department




  1. The ratchet-fixed plate reel is equipped with locking positions on the left and right sides .




  2 Install the foot switch to control the forward and reverse rotation of the plate-loading drum.




  3 The printing phase adopts PLC touch screen control and electric digital 360-degree adjustment (running and stopping can be adjusted)




  4. Automatic zeroing device .




  5. Air pressure type anilox roller automatic lifting device and idling device.









  slotted parts




  1 Use electric control to adjust the axial, longitudinal and box height dimensions of each tool seat.




  2 The gap adjustment adopts high-precision turbine box self-locking adjustment,




  3 Planetary gear structure, long service life.




  4 Slotting phase adopts PLC touch screen control and electric digital type.




  5 360-degree adjustment (running, stop can be adjusted) phase zero device.




  6 Single-axis double-knife grooving,




  7. It adopts a unique elastic chip type chip removal device, which is easy to operate.









  die cutting




  1 Automatic compensation of line speed ensures that the die-cutting size of each batch of cartons is exactly the same.




  2. The cam-type soft stick travels 40mm laterally, the pad wears evenly,




  3. Die-cutting pressure adjustment adopts high-precision turbine box self-locking adjustment,




  4 The die-cutting phase adopts PLC touch screen control and electric digital 360 degrees (running and stopping can be adjusted)




  5 upper paper feed shaft, polished and ground, hard chrome plating, dynamic balance correction,




         Folding/Counting Section

         1 Using mechanical gluing and automatic multi-stage gluing system.

         2. Mechanical gluing adopts private server motor control to ensure the accuracy of gluing.

         3 Automatic multi-stage glue spraying system

         4. The glue spraying position can be adjusted electrically, and can be adjusted automatically with the order. T

        5 High-strength folding box beams .
