Портативная установка PW260 для бурения скважин легкая в эксплуатации диаметр отверстия 140 305 мм глубина 260 м
- Категория: >>>
- Поставщик: Henan Power Machinery Equipment Co. Ltd.
Сохранить в закладки 1600562018390:
Описание и отзывы
Характеристики
Product Description

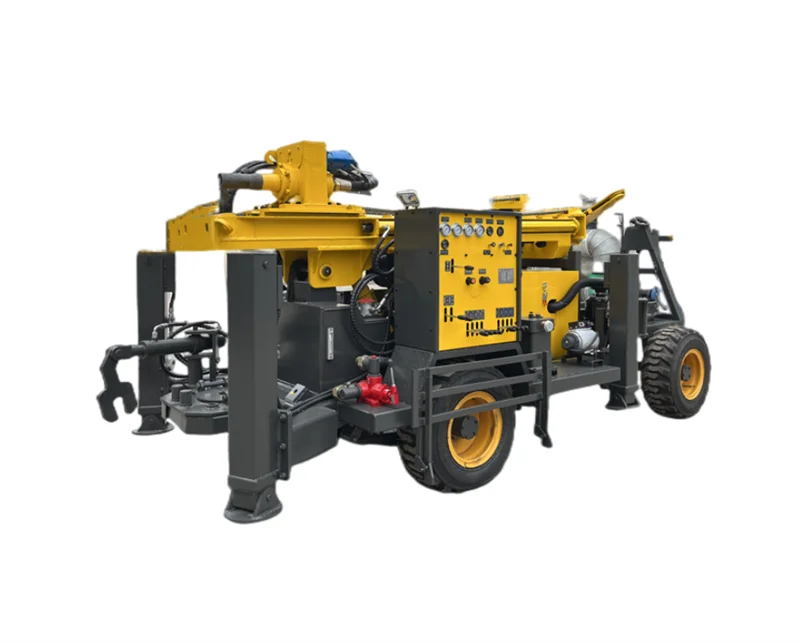

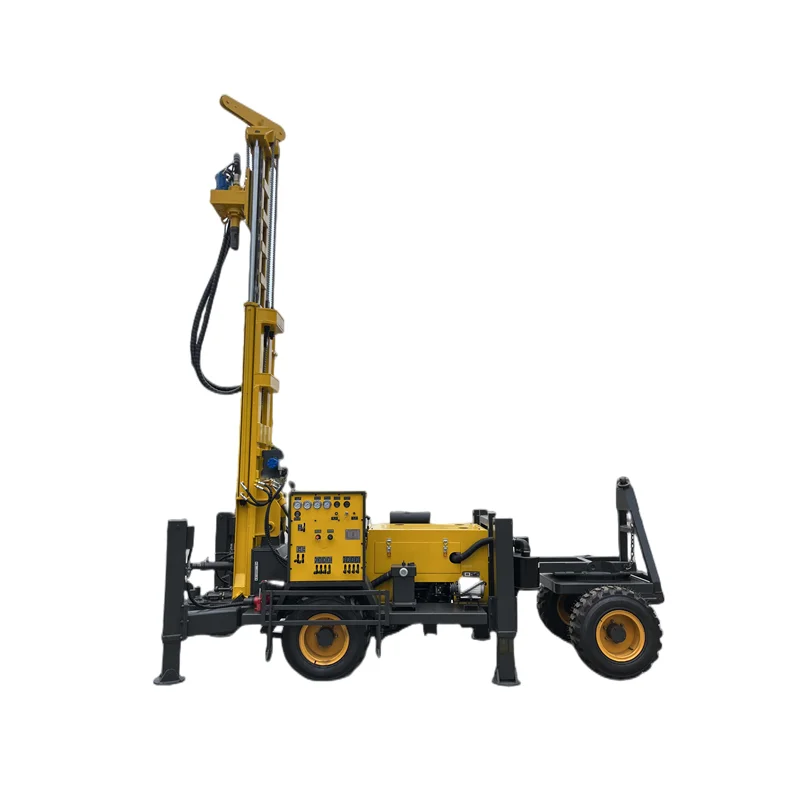

Product Description of PW260 Easy operation 140-305mm hole diameter 260m depth portable trailer mounted water well drilling rig machine
PW260 is an efficiency and versatile drilling equipment. The drilling rig adopts four-wheeled trailer type, which makes the transition convenient and quick.It mainly suitable for drilling small-aperture wells, geothermal air-conditioning holes and other wells, especially for water intake projects in mountainous and rock formations. With the flowing features, the economic benefits created for the users are extremely impressive.
1.Centralized operating system
2.Matching triple pump
3.Strong lifting capacity
2.Matching triple pump
3.Strong lifting capacity
4.Famous brand engine ,stable performance
5.Standard winch,easy to use,high speed regulation performance
6.The paint surface adopts laser rust removal process, brighter and more durable
5.Standard winch,easy to use,high speed regulation performance
6.The paint surface adopts laser rust removal process, brighter and more durable
7.The chassis used trailer type,has wheels and traction, can be pulled directly by a tractor or truck, achieve rapid turnarounds, very convenient
8.The chassis have four high strength hydraulic legs,quick and convenient to install, while working to support reliable stability
9.The four outriggers are equipped with oil pipe guards, which protect the oil pipe joints on the one hand, and prevent dust and mud on the other, so as to increase the service life
9.The four outriggers are equipped with oil pipe guards, which protect the oil pipe joints on the one hand, and prevent dust and mud on the other, so as to increase the service life
10.Competitive in price, low cost of maintain
Product Parameters
Product Parameters of PW260 Easy operation 140-305mm hole diameter 260m depth portable trailer mounted water well drilling rig machine
The Weight(T) | 5.5 |
The hole diameter(mm) | 140--305 |
Drilling depth(m) | 260 |
One-time advance length(m) | 3.3 |
Equipped capacitor(KW) | 75 |
Using air p pressure(MPA) | 1.7-3.0 |
Air consumption(m³/min) | 17-31 |
Rotary speed(r/min) | 45-70 |
The penetration efficiency(m/h) | 10-35 |
The engine brand | Yuchai engine |
Drill pipe diameter(mm) | Φ76 Φ89 |
Drill pipe length (m) | 1.5m 2.0m 3.0m |
Rig lifting force(T) | 15 |
Rapid rise speed ( m/min ) | 24 |
Rapid feeding speed (m/min) | 28 |
Width of loading(m) | 2.73 |
Hoisting force of winch(T) | 2 |
Rotary torque(N.m) | 4000-5300 |
Dimension | 4800×1900×2200mm |
Equipped with hammer | Medium and high wind pressure series |
High leg stroke(m) | 1.4 |

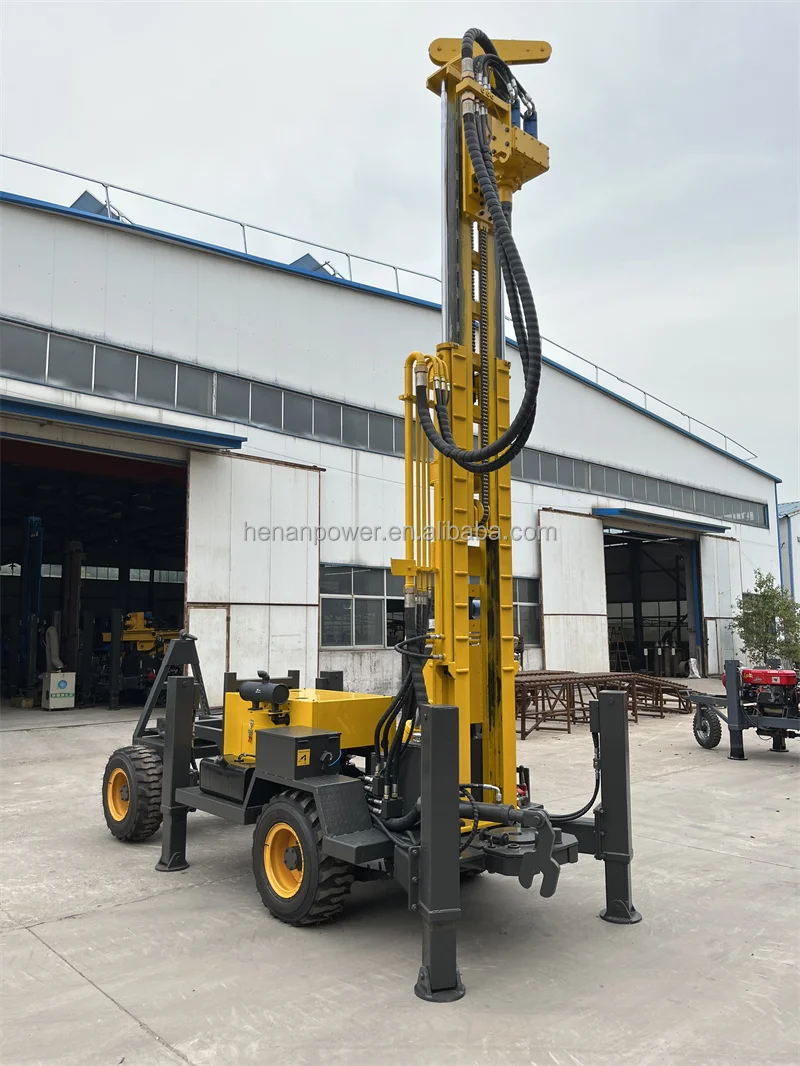

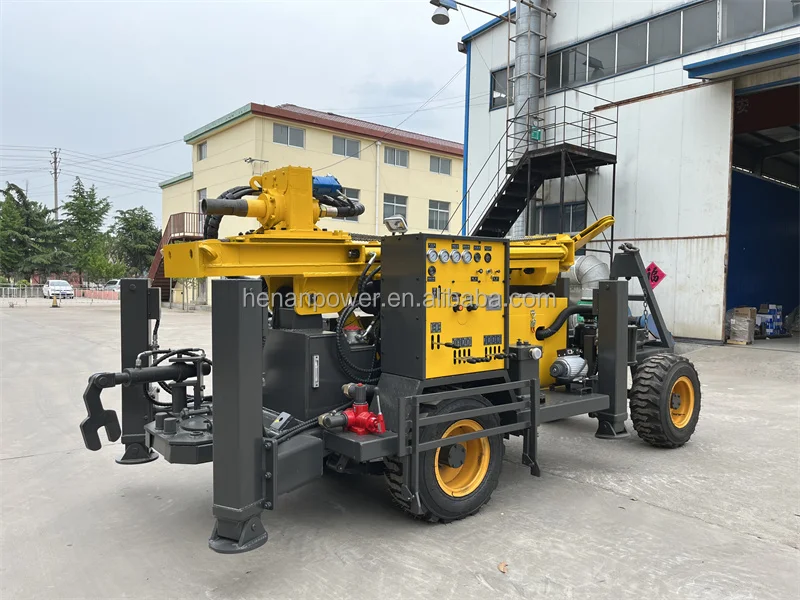

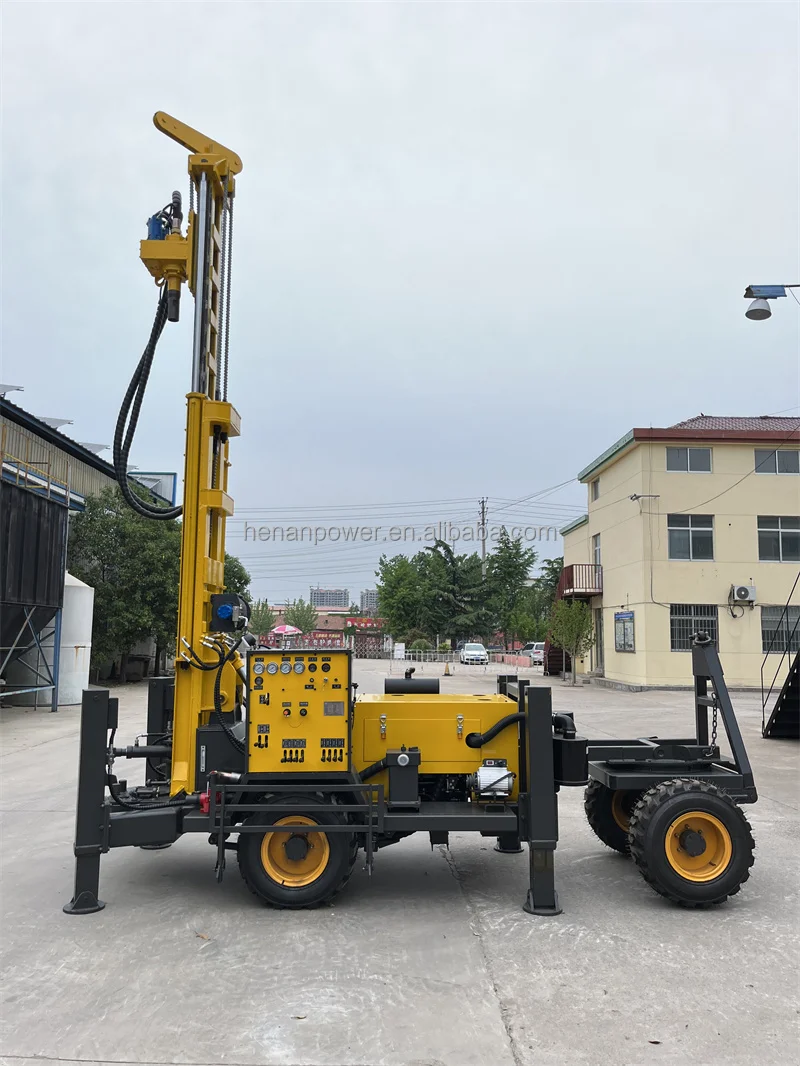

Product Details
Product Details of PW260 Easy operation 140-305mm hole diameter 260m depth portable trailer mounted water well drilling rig machine
Optional Accessories for PW260 Easy operation 140-305mm hole diameter 260m depth portable trailer mounted water well drilling rig machine
Product Application
Product Application of PW260 Easy operation 140-305mm hole diameter 260m depth portable trailer mounted water well drilling rig machine
PW260 is an efficient and versatile drilling and drilling equipment. It is mainly used for drilling wells,agricultural irrigation wells, geothermal air-conditioning holes and other wells. It is especially suitable for water intake projects in mountainous and rock formations.
Company Profile
Henan Power Machinery Equipment Co., Ltd is a integrated mining and engineering machinery manufacturer and trader. The company is committed to developing the professional production of DTH drilling rig, water well drilling rig, drilling tool and air compressor. The drilling rig has passed ISO9001 international quality management system certification. Power drilling equipment and air compressor have export to over 30 different nations and regions such as United States, Germany, Japan, South Korea, Russia, African and Latin American countries and so on. We welcome customers, business associations and friends from all parts of the world to contact us and seek cooperation for mutual benefits.
Why Choose Us
FAQ
1. Who are we?
We are based in Henan, China. We sell products to South America(35.00%),Eastern Asia(20.00%),South Asia(15.00%),Africa(15.00%),Eastern Europe(5.00%),Western Europe(4.00%),Oceania(3.00%),Northern Europe(3.00%). There are total about 51-100 people in our office.
2. How can we guarantee quality?
Always final Inspection before shipment;
3.What can you buy from us?
Water well drilling rig,mining drilling rig,screw air compressor,construction machine,drilling tools
4. Why should you buy from us not from other suppliers?
We are a leading company specialized in various water well drilling rigs,mining blasting drilling rigs,air compressors, construction machines etc.Our products are high quality which meet international standards.
5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,FCA,Express Delivery；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Western Union,Cash;
Language Spoken:English,Chinese,Spanish,Russia;
We are based in Henan, China. We sell products to South America(35.00%),Eastern Asia(20.00%),South Asia(15.00%),Africa(15.00%),Eastern Europe(5.00%),Western Europe(4.00%),Oceania(3.00%),Northern Europe(3.00%). There are total about 51-100 people in our office.
2. How can we guarantee quality?
Always final Inspection before shipment;
3.What can you buy from us?
Water well drilling rig,mining drilling rig,screw air compressor,construction machine,drilling tools
4. Why should you buy from us not from other suppliers?
We are a leading company specialized in various water well drilling rigs,mining blasting drilling rigs,air compressors, construction machines etc.Our products are high quality which meet international standards.
5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,FCA,Express Delivery；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Western Union,Cash;
Language Spoken:English,Chinese,Spanish,Russia;
Похожие товары
Гидравлический испытательный стенд YST380 для гидравлического гидроусилителя рулевого насоса

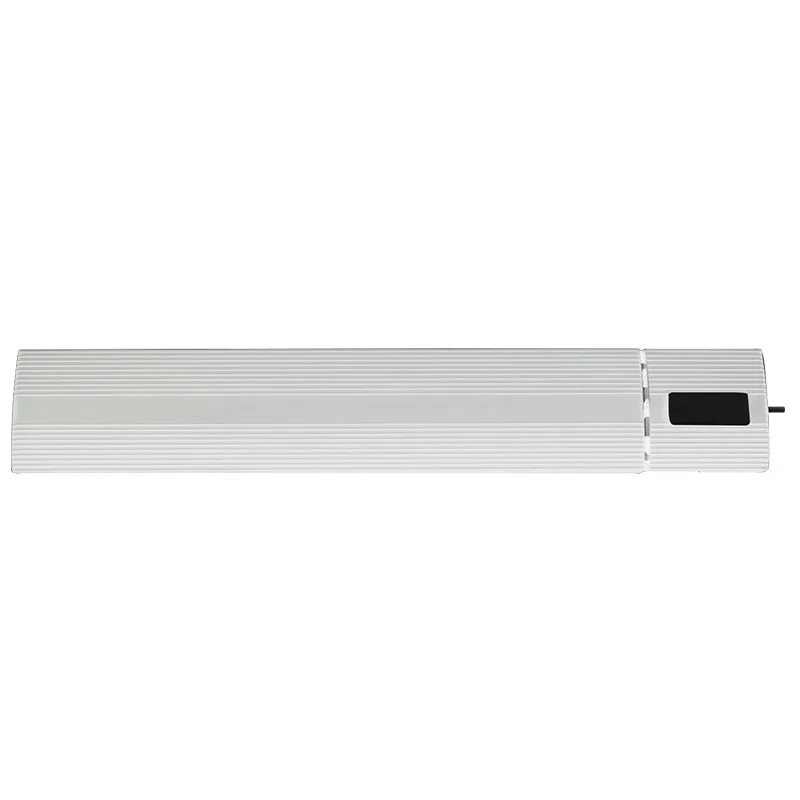

Низкая цена пульт дистанционного управления электрическая дальняя инфракрасная панель производство
12 402,62 ₽ - 13 502,85 ₽

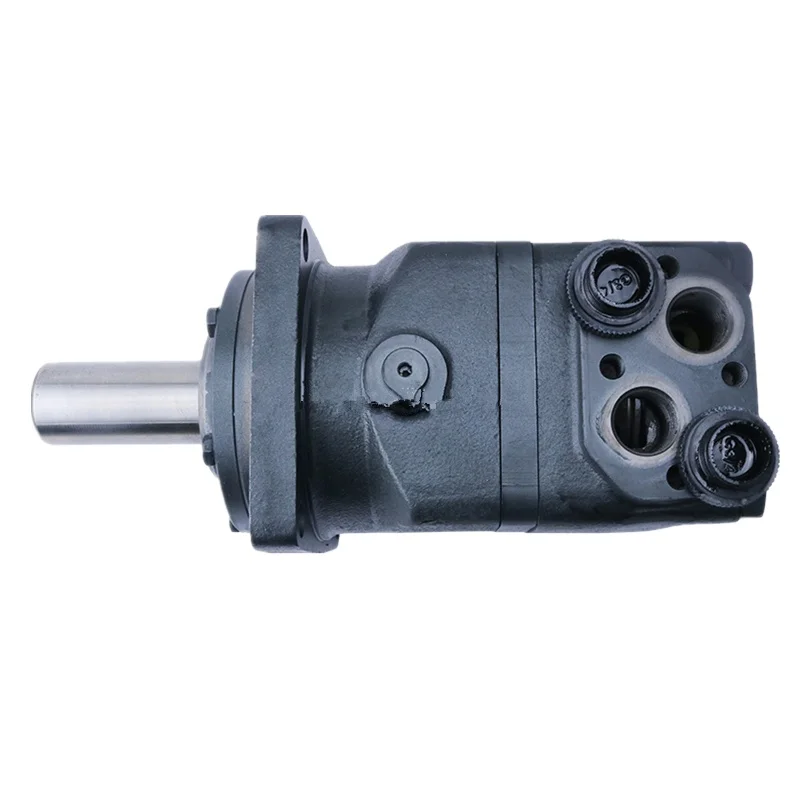

Гидравлический двигатель Sauer Danfoss OMS100 151F0501 OMT160 151B-3000 OMP125 151B-0313, гидравлический двигатель OMS OMT OMP

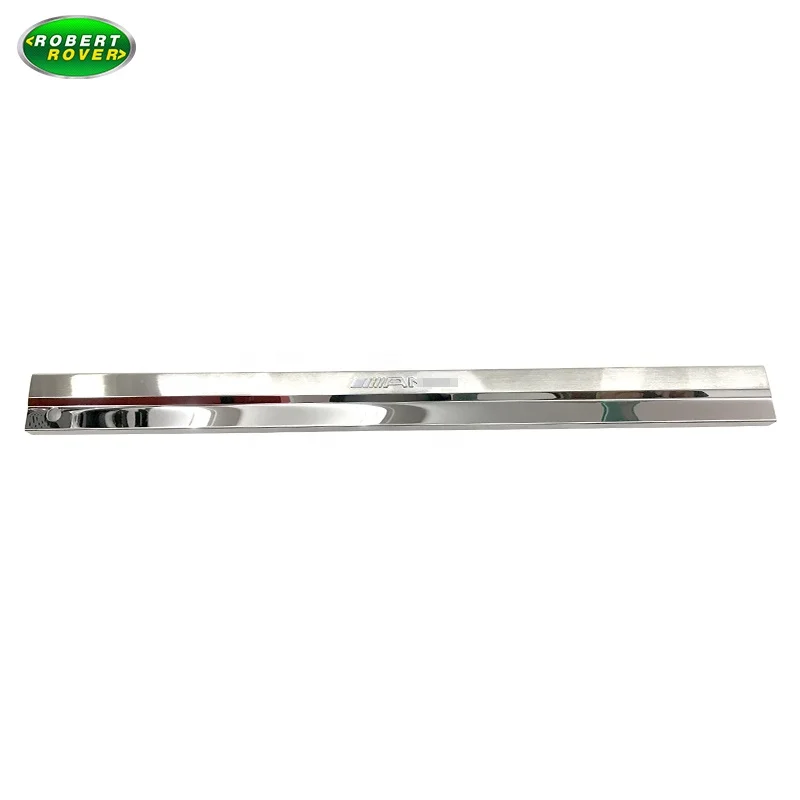

W463 g класс Нержавеющая сталь Накладки на пороги для задней двери g500 g63 g65 g55 g обшивки двери фургона
165,00 $
Роскошный чехол для телефона Laser Aurora для iPhone 13 pro max 14 12 11, гибридный противоударный чехол с градиентом для iPhone, аксессуары для сотовых телефонов
1,19 $ - 1,49 $
Алюминиевая стеклянная алюминиевая дверь pt/pd четыре двойные открытые Складные и раздвижные входные двери алюминиевая Pt Pd современная дверь
145,00 $ - 165,00 $

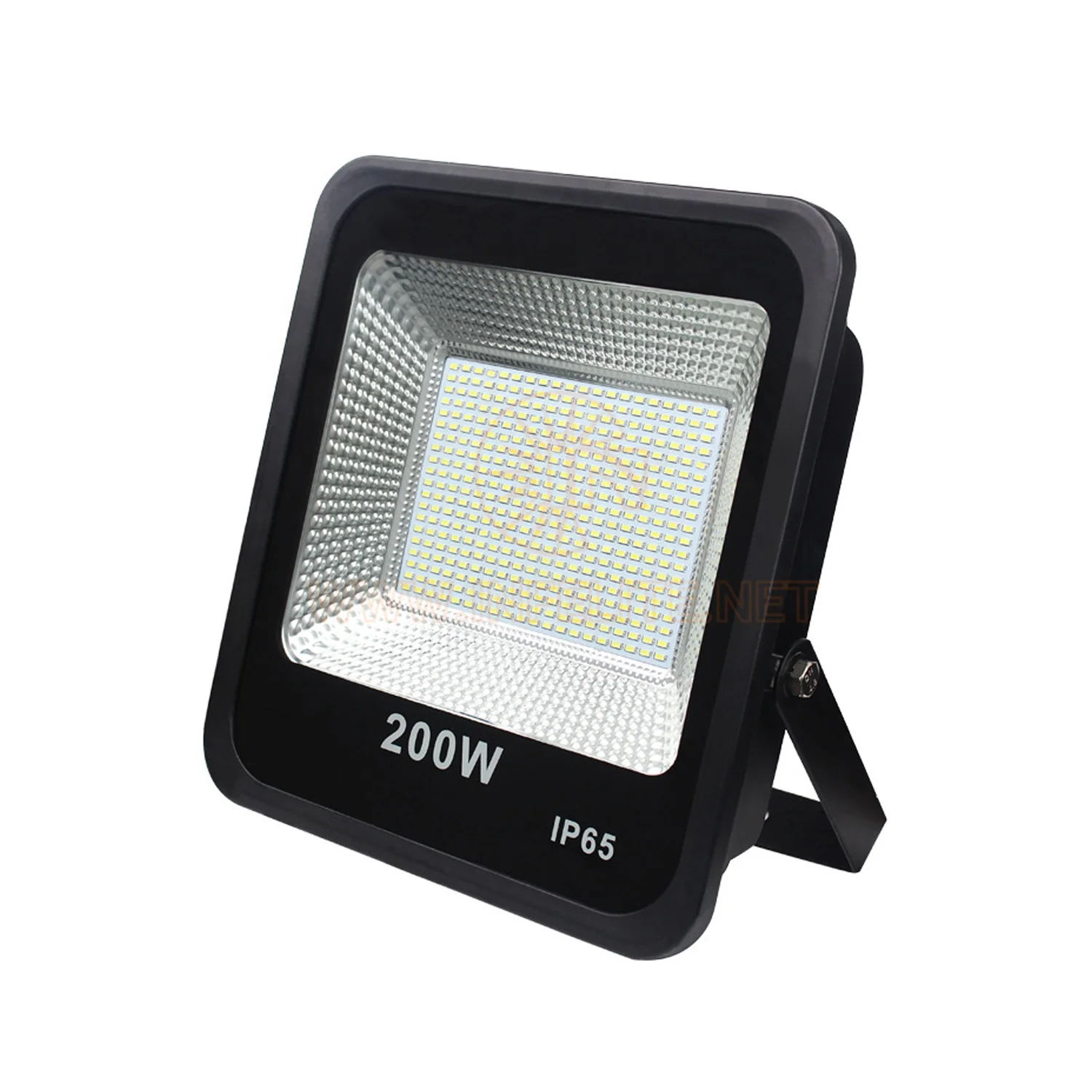

Водонепроницаемый светодиодный прожектор 20 Вт 100 150 200 для футбольного поля epistar mini smd5730 30
