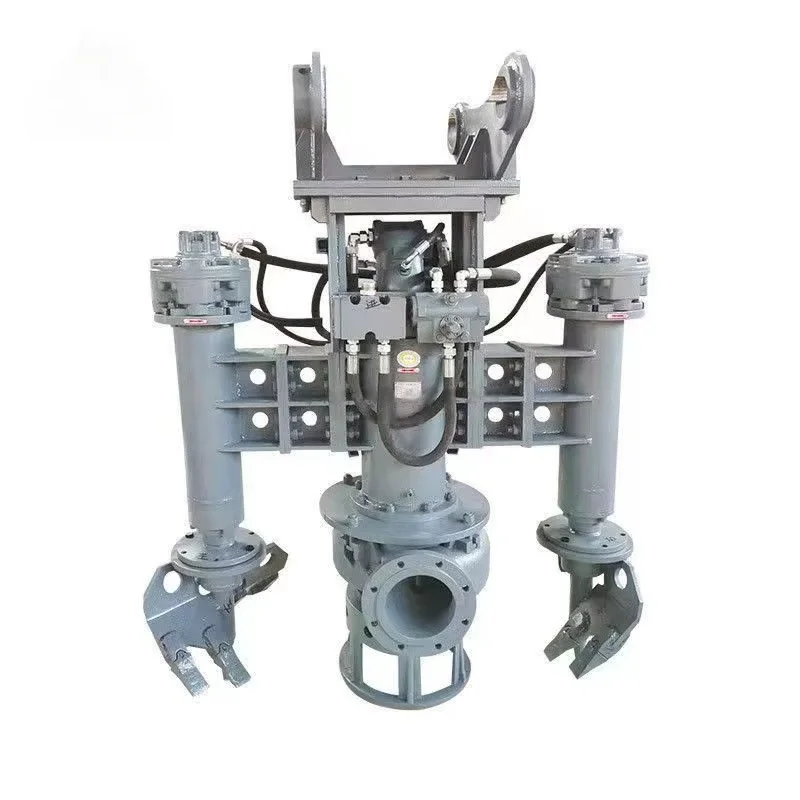

Центробежный экскаватор гидравлический электромотор Горнодобывающий привод износостойкий шламовый насос
850,00-888,00 $
Модель USUN: AB05T 20L 5:1 20 40 бар полный усилитель давления воздуха с баком 20 литров и регулятором
- Категория: >>>
- Поставщик: DongGuan Usun Fluid Control Equipment Co LtdDongGuan Ltd
Сохранить в закладки 1600562779971:
Описание и отзывы
Характеристики
WHY CHOOSE OUR PUMP?
This brochure introduces pneumatic driven air /Hydraulic boosters and Complete booster system.
These air booster pump offer a flexible and efficient source for delivering high pressure gases.
1. Costing savings: An alternative to the purchase of High Pressure compressor ,our air amplifiers are
Compact and Require no electrical or mechnical drive connections ,Are powered by the same air that they amplify
and can mounted in any position
2. High Flow rates at High pressure: When High flow rates at high pressure are needed ,the Air booster
can charge a receiver to an even higher pressure level ,thus storing a volume of air aviable for rapid release at a constant
pressure through a pressure reducing valve

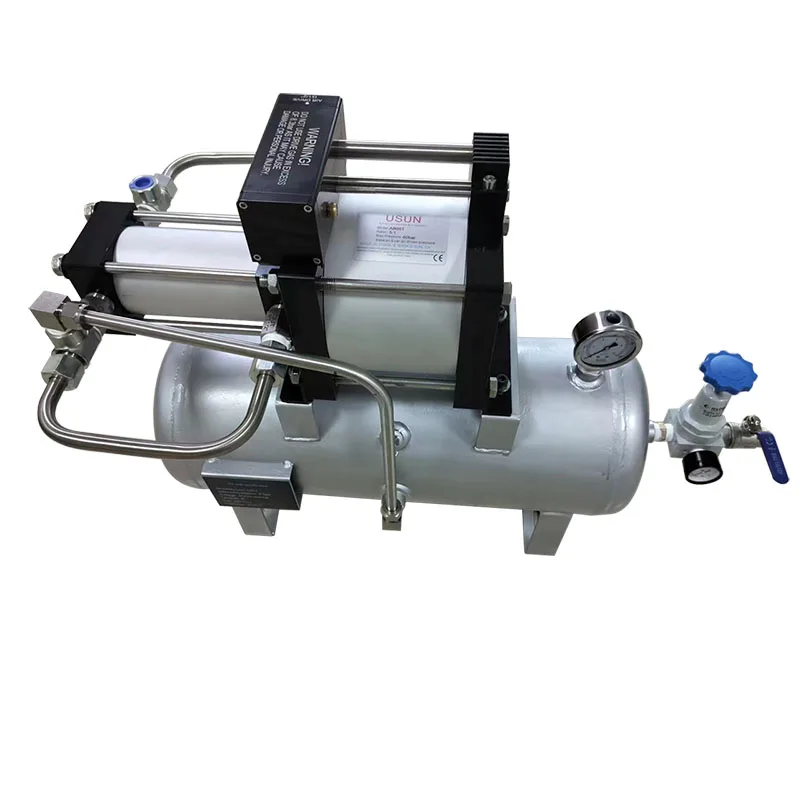

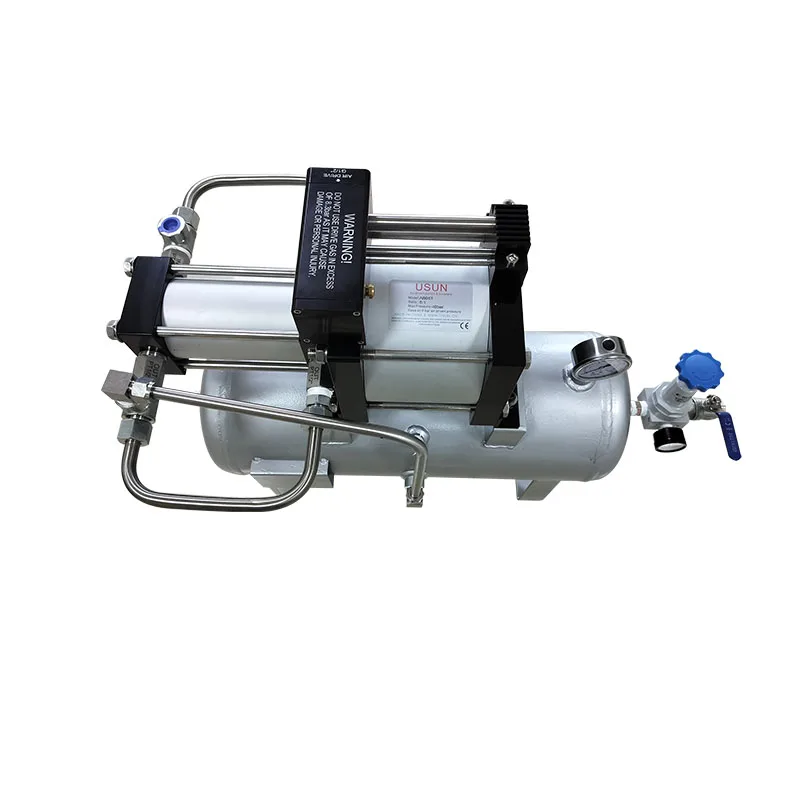

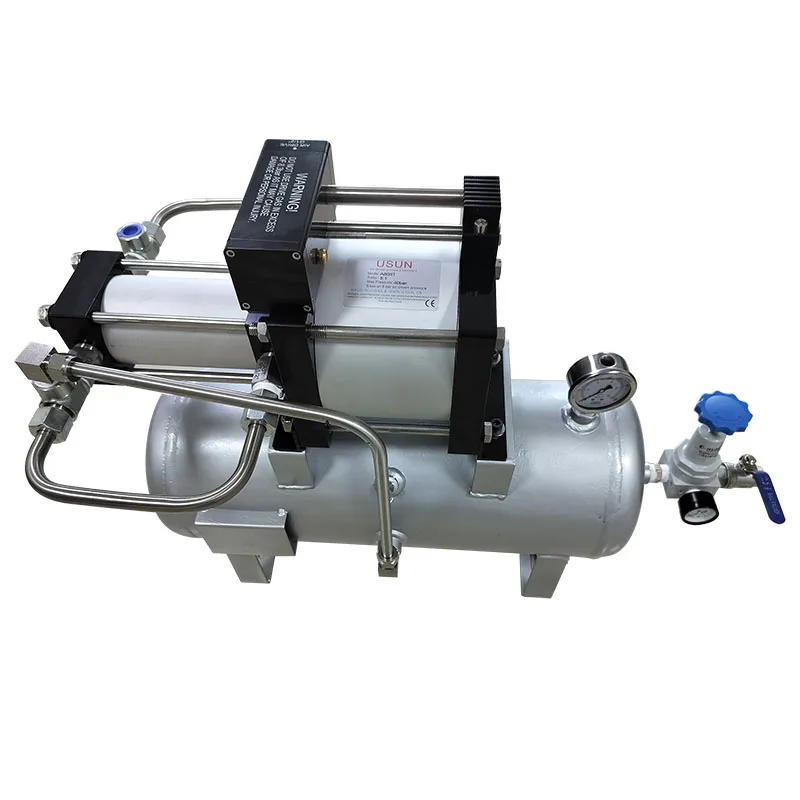

Usun Model:AB05T-20L air pressure amplifier system with 40 liters tank
It Can be used for pressure testing , valve actuators ,Air drills ,Blow moulding pet ,Increase
pressure capacity ,for air cylinder charging .
Product Description
Item Model
| AB05T-20L air pressure booster system with 20 liters tank |
|
Action type
| double acting ,single air driven | |
Air driven
pressure | 3-8 Bar | |
Dealing with
air source | Compressed and dry air and air regulator on air driven port | |
Lubrication
| Yes | |
Operating
temperature | -4-65 degree for air driven section and Maximum temperature for air barrel ection is not more than 115 degrees | |
| Theory of operation | The Air booster consist of a large reciprcating air driven piston directly and coupled by a connecting rod to small area Air piston.The Air piston operates in a high pressure air barrel section .Each air barrel end contains high pressure inlet and outlet check valves |
Product features
1. Realiable ,Easy to Maintain ,compact and robust
2. No heat,flame or spark risk
3. Infinitely variable output pressure and flow capability
4. Air driven Models do not require electrical connection ,easy to apply automatic controls
5. Wide range of models and controls and o[tions
6.Seals system designed for long working life,No airline lubricated required
7. Wide range of standard and customized systems
Main technical parameter
Product name | AB05T-20L air Pressure booster station |
|
Core components | 1 piece of AB05T air booster | |
Max. outlet pressure | 40bar base on 8 bar air driven pressure | |
Inlet pressure | 3-8bar | |
Max.flow rate | 360 Liters per min | |
Air drive pressure | 3-8 bar | |
Operating medium | normal air | |
Driving medium | Compressed air | |
Structure material | Carbon steel cabinet |
PA= Air driven pressure PI=Inlet pressure Po=Outlet pressure
Those data is theoretical and it is just for reference .
Product outview drawing
Packaging & Shipping
Shipping
| By sea | Cheapest but longest option 18~30 days by sea delivery for mass shipment |
| By air | More expensive than sea delivery, But cheaper than express 5~7 days by air to airport. |
| By express | door to door service,the fastest and most expensive one, 3~5 day for DHL /Fedex /UPS/TNT express |
Company Information
Dongguan Usun Fluid Equipment Co Ltd Ltd, its a machinery factory, was founded in DongGuan,GuangDong
Province in 2007 which Specializing in making Hydro-Pneumatic product such as Air driven gas booster
,hydro-pneumatic pump ,air hydro pump ,High pressure stainless needle valve ,high pressure complete
gas/hydraulic booster system for many hydro-pneumatic machinery and automatical
Having worked in numerous industries for years, our various experiences benefit us by knowing how to
provide customers with the most efficient solutions.
Having worked in numerous industries for years, our various experiences benefit us by knowing how to
provide customers with the most efficient solutions.We have also already exported for many countries
for our High pressure pump and high pressure system to USA ,North America ,Europe ,Middle east
and south America and so on .
FAQ
How do I select a correct model
1. Free to inform us that your Inlet gas Pressure range
2. Kindly advise your needed output pressure for connecting machine
3. Should be kindly informed the Gas flow at the rated pressure for calculating the suitable pressure
ratio base on customer"s requirement
4.Feel kindly advise us the avaible air driven pressure
5.Then we can suggest a suitable model base on above Technical data
What is the warranty for product
1.We have 1 Year Warranty for product and can send some easy wear out repairing parts for fixing
the pump such as important seal kits
2.Customer should cover the to-and fro shipping cost for repairing if goods is out of warranty peroid
Похожие товары

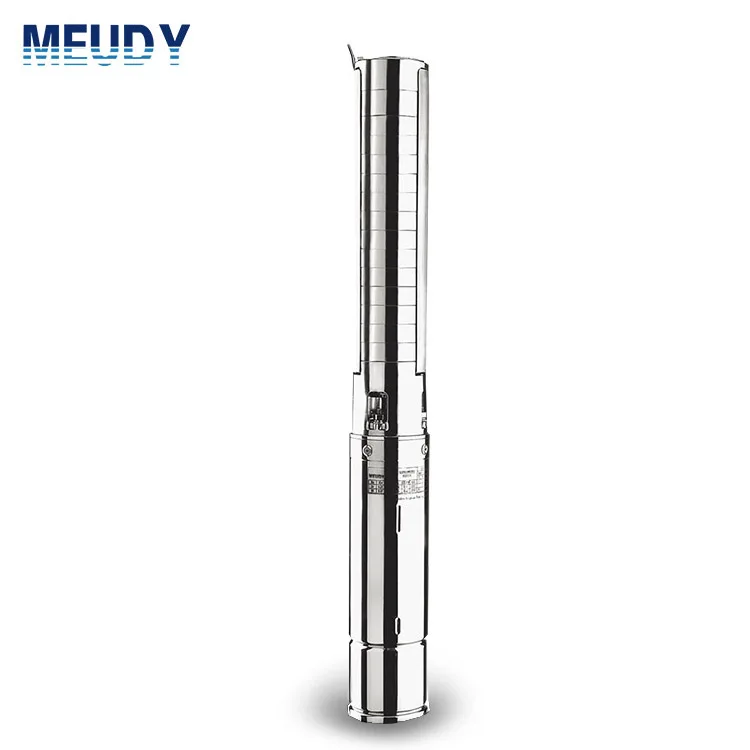

Meudy 4SP(M) 4-дюймовый с высоким подъемом нержавеющая сталь электрическая погружные глубинные насосы
100,00 $
Насос для надувного матраса с быстрым наполнением переменного тока/DC110-220V можно настроить логотипом/упаковочной коробкой/адаптером питания гимнастического коврика воздушным Рельсом
4,59-8,90 $

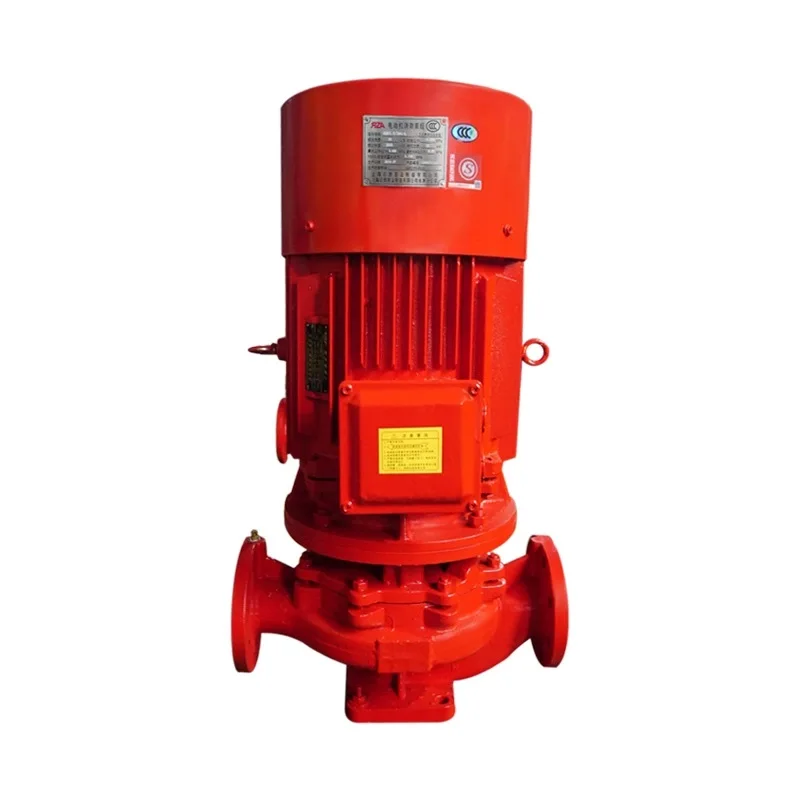

5 11 15 18 кВт вертикальный одноступенчатый центробежный пожарный насос OEM ODM поддерживаемое оборудование для стабилизации давления
799,00-1 319,00 $

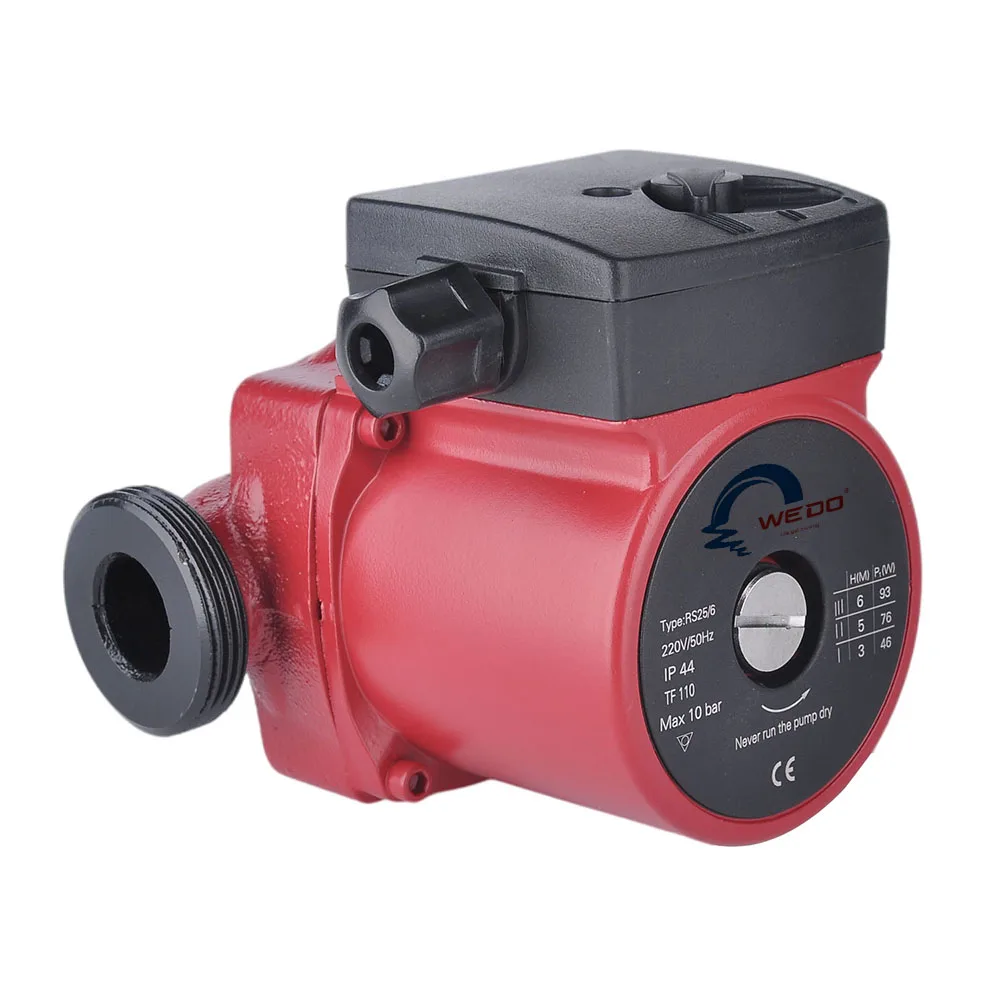

WEDO бытовой 230 В 50 Гц мини нагревательный водяной бустер циркуляционный насос
11,00-11,84 $
Высоконапорный 3-ступенчатый ручной насос 4500psi с небольшой подкладкой для ног
19,00-21,00 $

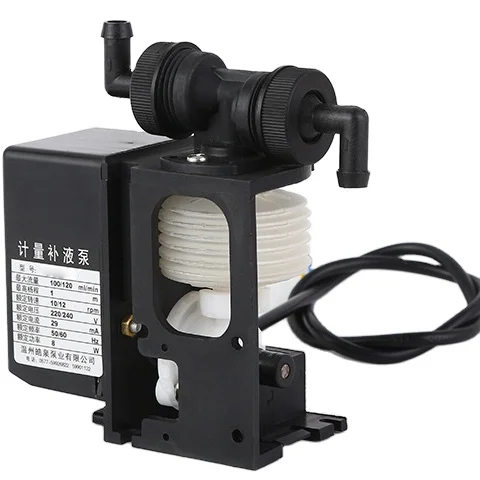

Dzr-3zu2 классический насос устойчивый к коррозии сильфон микродозирующий инфузионный для мини-лабораторного принтера
30,00-41,00 $

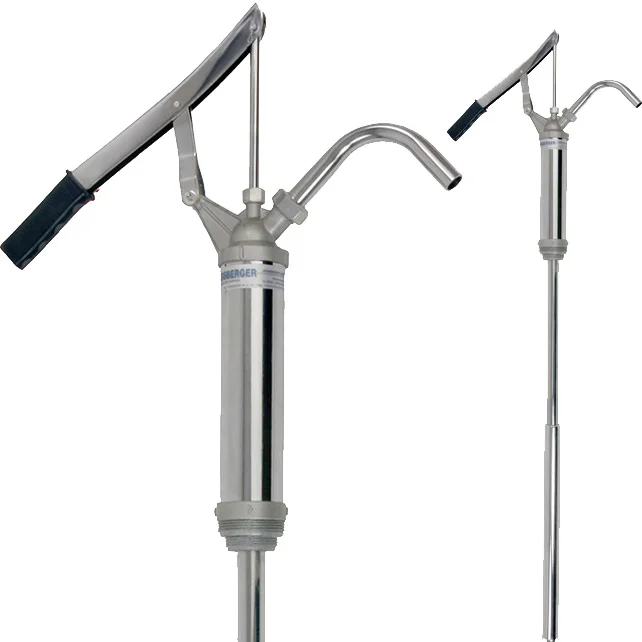

Масляный и дизельный рычажный ручной насос
