16S 100A 48V BMS Battery Protection Board with w/Balance LiFePO4 Lithium Iron Phosphate Charging Controller LFP4





Feature:


1. Protection circuit board is the heart of battery pack, must to have to avoid battery pack from explosion, fire and damage;
2. It will protect battery pack from overcharging, over-discharging over-current and short circuit;
3. With equilibrium function to keep each cell in balance and good service life;
4. Used for 4 series 12V LiFePO4 batteries, comes with 5P-250mm wires;
5. Choosing the correct protection board and applying it appropriately is vital to the longevity your batteries;





































































































Model



LifePO4 16S 48V 100A common port UART



Size:



166mm×65mm×24mm



Common Version :



common port for charge/discharge



Continue discharge current



100A



Sparkle current



300±50A



Inner Resistance



≤20



Charge voltage



62.05V



Charge current



50A



Over charge detect voltage



3.75±0.05V



Over charge protection delay



1S



Over charge release voltage



3.55±0.05V



Balance detect Voltage



3.5V



Balance release voltage



3.5V



Balance current



300±5A



Over discharge detect voltage



2.2±0.1V



Over discharge detect delay



Off load



Short Circuit protection condition



Short Circuit of external load



Short Circuit delect delay



960 uS



Short Circuit protection release condition



Off load



Working current



500 uA



Sleeping current (when in discharge)



0 uA



Working Temp range



-20~70℃



Storage Temp range



-40~80℃












Note: the cable color is random, please take the real one as standard.

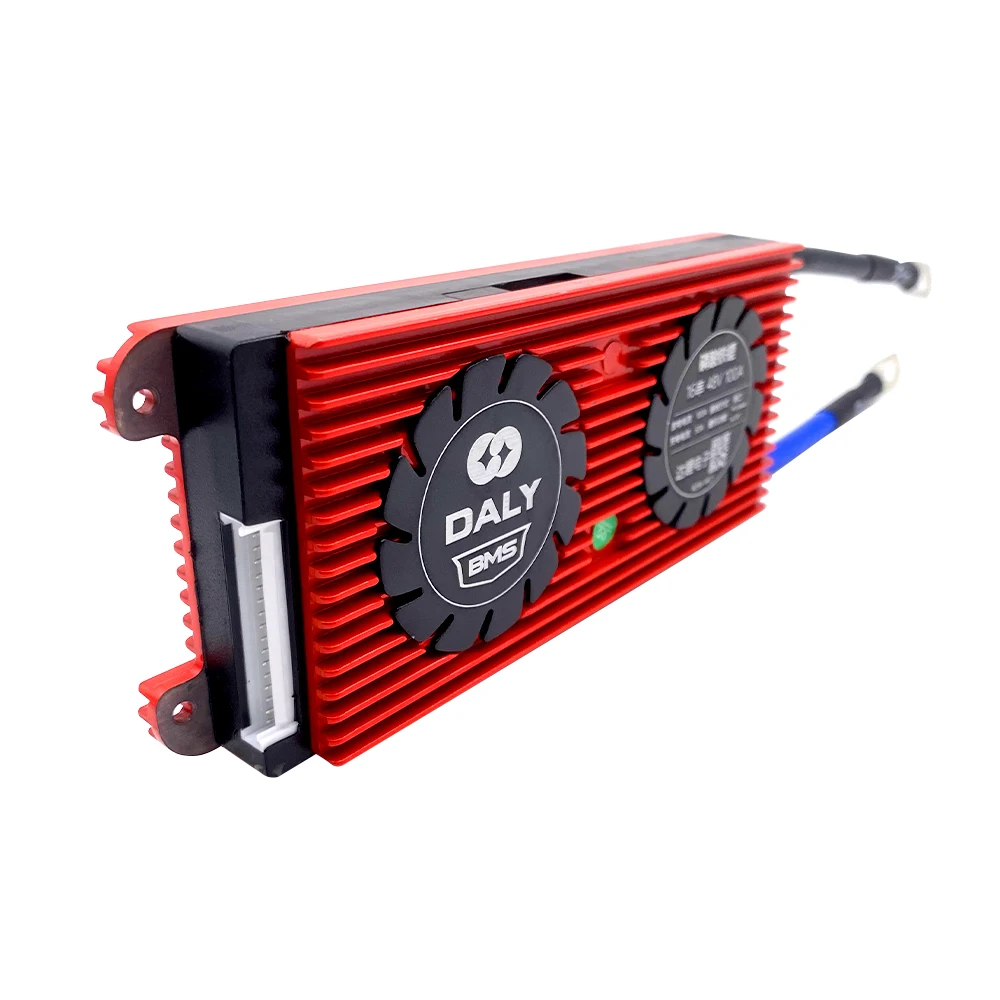

Product Images

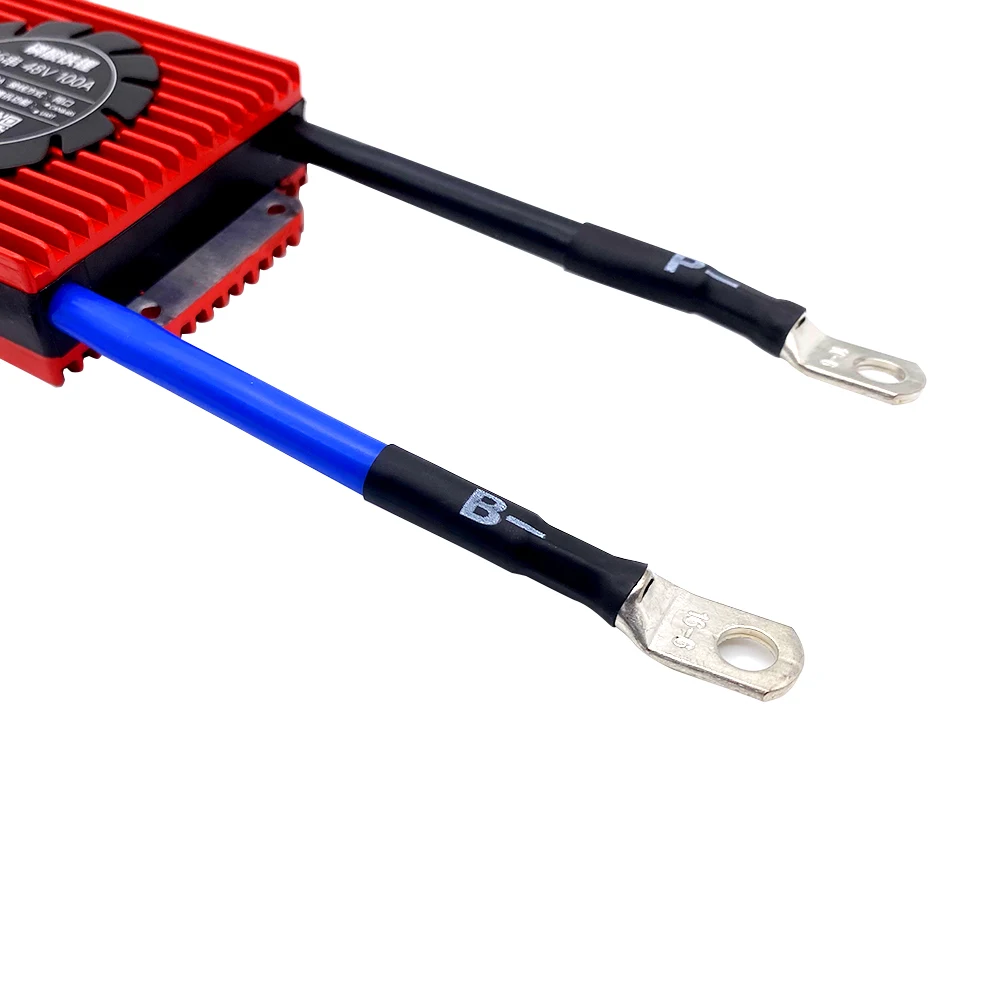

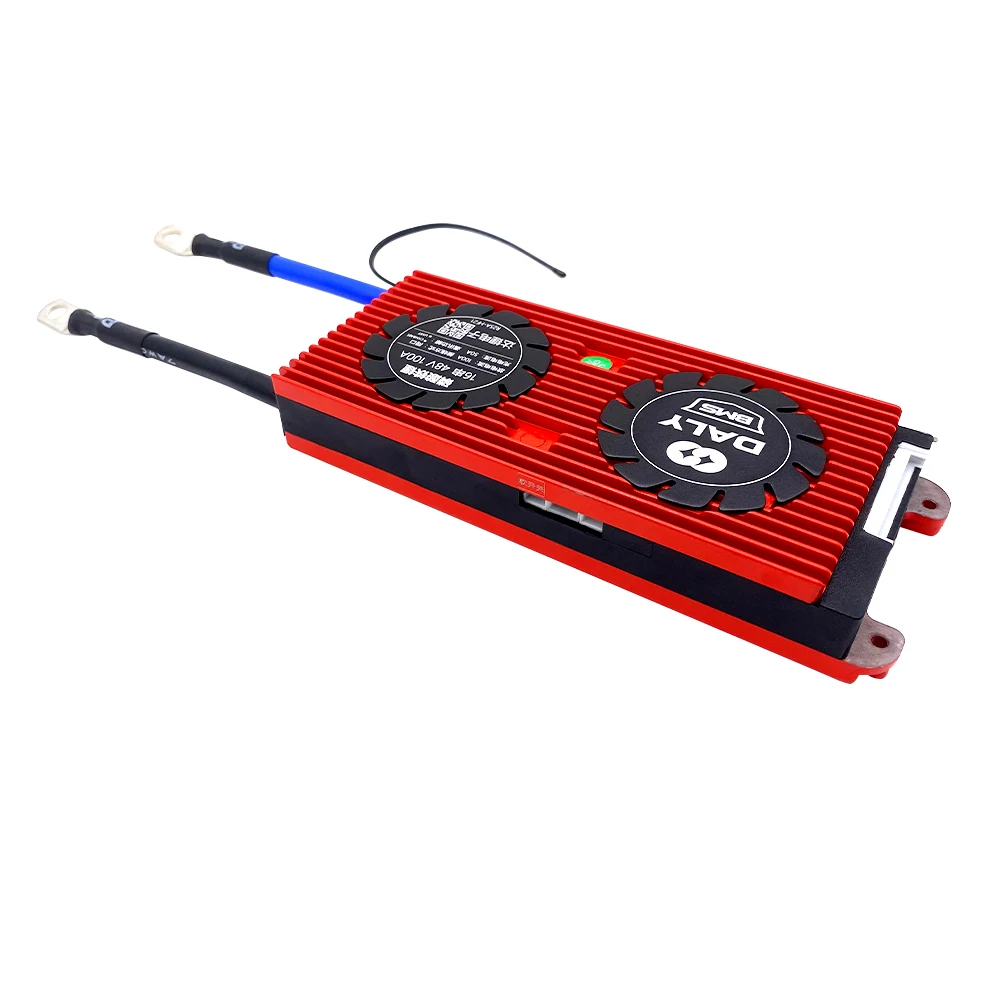

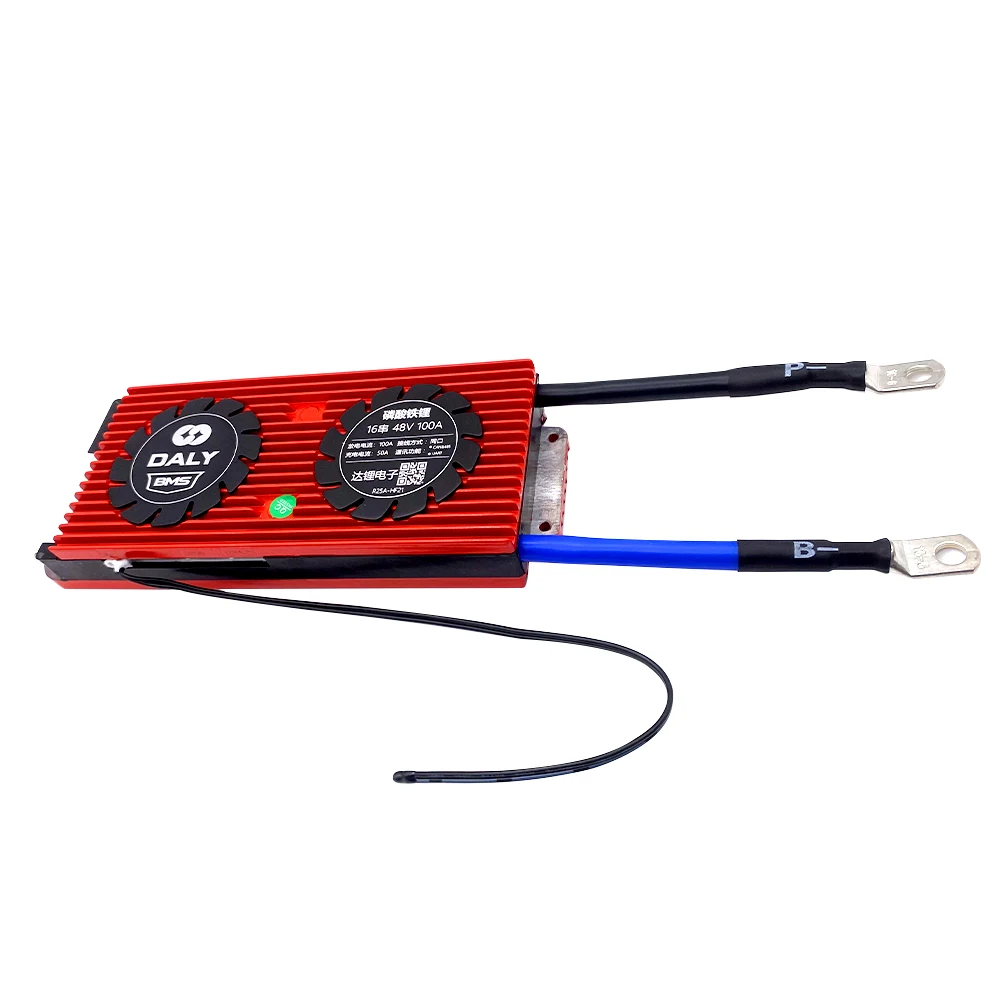

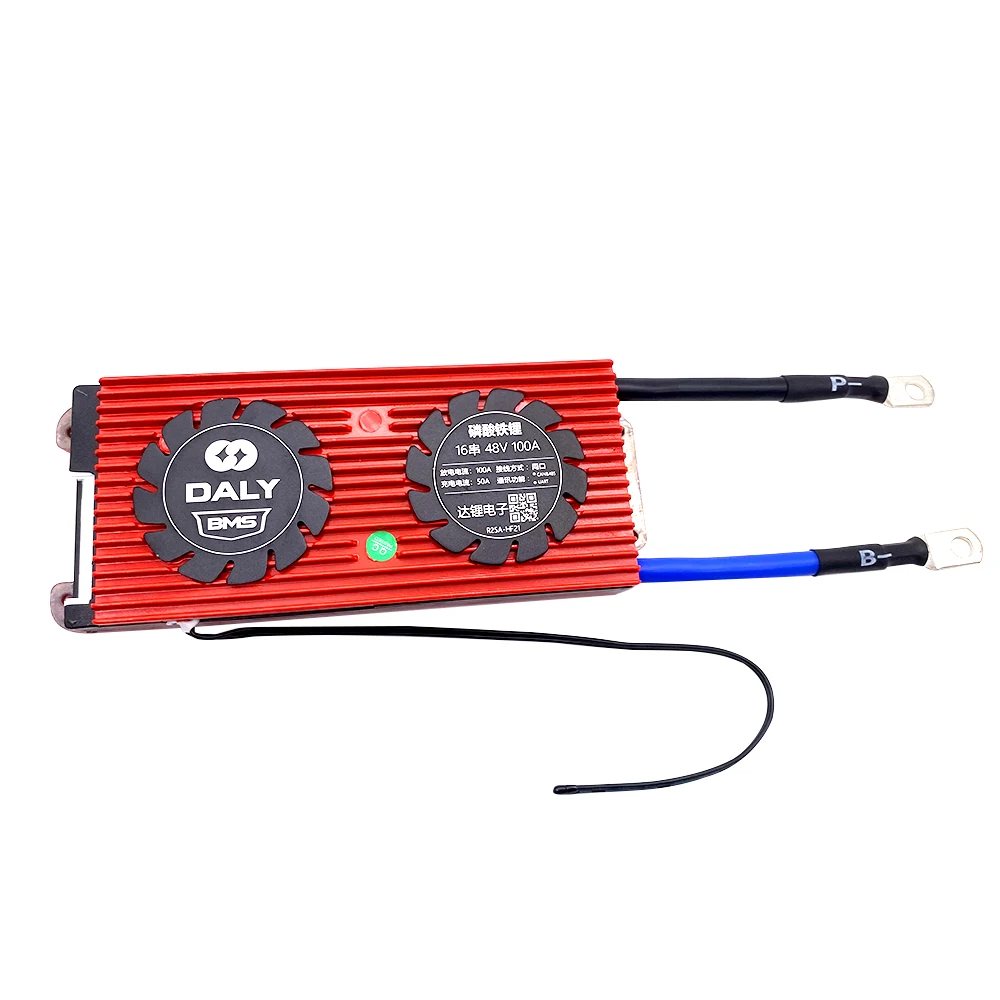

 DALY48V100BMSeDALY48V100BMScDALY48V100BMSaDALY48V100BMSdDALY48V100BMSb





About LiFePO4


12v300ah_0312v300ah_0412v300ah_0512v300ah_0712v300ah_0812v300ah_09





Company Profile


_08_09_10_11





Packaging & Shipping


_13





FAQ


Q1: What are there included for a battery or pack, may I buy charger from you?
A1: Battery case, BMS, battery pack, can buy customzied connector, charger.





Q2: How long frequency does recharge the battery?
A2: Usually per 2 months to recharge the battery pack , to charge full the battery depends on the charger


current you use. 20A charger can charge full for 12V 100Ah battery in 5 hours, fast charger 50A in 2 hours.





Q3: What's the sample lead time, and bulk order delivery. How long I can get it?
A3: Fast delivery: If small quantity, can be finished in 3-5 days days after payement, bulk in 10-25 days depends on the quantity.
Shipping: sample order or small battery packs, we can ship by express through Fedex, UPS, TNT etc. If whole parcel over 50KG, can ship by air or by sea, sea shipping is more cheaper. Customer can tell your nearest airport name and sea port name for sales person to check the best option for you.





Q4. What is your warranty?
A4: We offer 1-5 years warranty for all our battery pack for different situation. We ensure at least 3000 cycle life for the LiFePO4 battery pack, which means, after 3000@80% DOD, there will still around 60% capacityt left. You can use it for at least 10 years for normal 1 time charge and discharge everyday.





Q5: Can I customize the size of battery?
A5: Of course yes if yourquantity MOQ workable.





Q6: Can you print my logo on the battery cover?
A: Yes, OEM is available,we can print your logo on the battery case freely. Welcome to send us your logo design and dicuss with us about the details.





Q7: How’s the package?
A7: Normally are cartons, but also we can pack it according to your requirements.








Q8. Can we put different LiFePO4 battery pack in parallel or series by ourself?
A8: Yes. The battery can be put in parallel or series by customers. But there are few tips we need to pay attention;
1> Make sure the voltage of each battery are same before put inparallel. If they are not same, charge them to the same rate.
2> Don't not put discharged battery and undischarged battery in parallel. This may reduce the capacity of the whole battery pack.
3> Advise us the target capacity of the whole pack if you would like to put them in series. We will choose the suitable BMS for each battery.
4> If you are not professional in parallel and series batteries, please don't handle the battery by yourself. It may cause danger and hurt the cycle life of battery.





Q9. Can we use it for car engine?
A9: Yes, our battery pack include BMS, you can use it for low speed car only or aux. power for standard car. Do not use it for standard car directly, that will need more complex design BMS for the pack.
