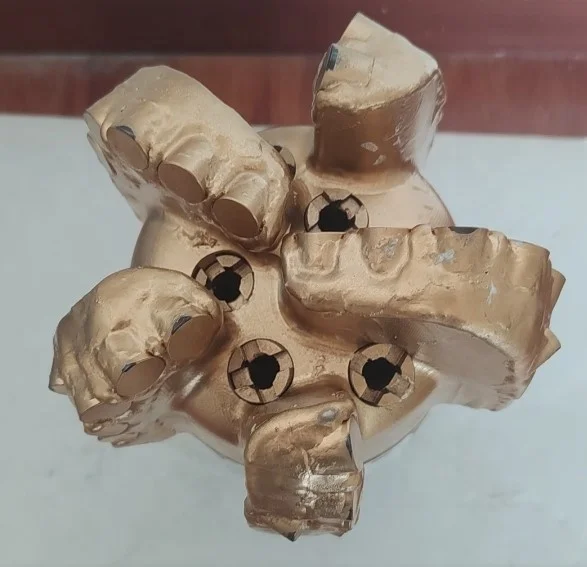

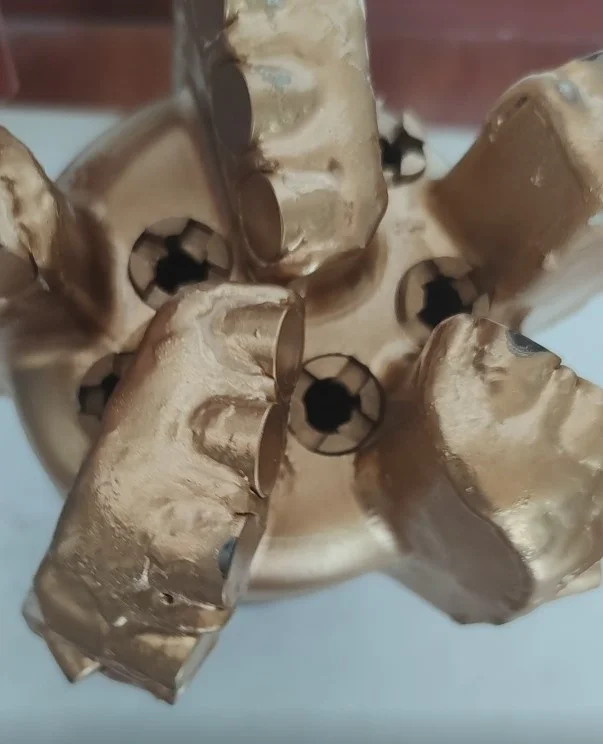

PDC Drill Bit
Product Description
Glorytek Industry (Beijing) Co., Ltd., is the professional manufacturer and exporter of various of PDC bits. Since its mass
production and marketing, Glorytek’s market share keeps increasing, and perfect after sales service and maintenance network to provide strong support, Glorytek PDC bits have been winning confidence of overseas customers from Canada,
Australia,Nigeria,Russia, Kazakhstan etc.Our products are widely used in geological exploration,coal mining, water conservancy and hydropower,construction of road, railway,bridge and building domains etc.
We have been dedicated in the drilling products manufacturing and supplying for decades,based on the team working spirit & strict quality management & customer oriented principle, we are capable to supply high quality PDC bits for the customer all around the world.
Technical Parameter
Size | 8 1/2" |
IADC Code | M323 |
Blade | 5 |
Body Type | Matrix Body |
Cutter size | φ19mm |
Nozzle Qty | 6 |
Connection | 4 1/2" API REG |
Torque | 24.1-26.5KN.m |
Weight on bit | 20-100KN |
MAX. WOB | 130KN |
Flow Rate | 22-35 l/s |
Rotation Speed | 60-250rmp |
Applicable Formations | High compressive strength, medium hard, thick hard interlayer, such as hard shale, limestone, sandstone, dolomite, etc. |
Size | 8 1/2" | ||
IADC Code | M332 | M332 | |
Number of Blades | 24 | 24 | |
TFA | 0.2~1.0 in² | 0.2~0.6 in² | |
Primary Cutter Size | 8mm | 8mm | |
Standard Gauge Length | 1"-1.5"(25~38mm) | 1"(25mm) | |
Size of coring tools | 6 3/4" *4" | 4 3/4" *2 5/8" | |
Bit Size | 8 1/2" *4" | 6" *2 5/8" | |
Hydraulic Flow Rate | 180~300GPM/11~20 L/S | 100~200GPM/6~12L/s | |
Rotation Speed | 60~500 rpm | 60~500 rpm | |
Weight on Bit | 15~30Klbs/67~134KN | 8~25Klbs/35~100KN | |
1. MEDIUM TO HARD FORMATION DRILLING
Medium to short parabolic profile with medium to heavy cutters desity helps to obtain better ROP in medium to hard formations with lower compressive strength and small abrasive layers.
2. DURASET GAUGE
Medium to short parabolic profile with medium to heavy cutters desity helps to obtain better ROP in medium to hard formations with lower compressive strength and small abrasive layers.
2. DURASET GAUGE
Super strong material promotes gauge wear resistance to provide long bit life

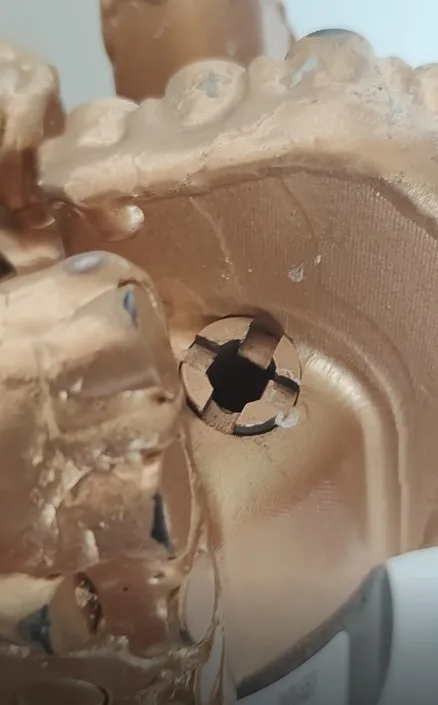

3. HYDRAULICS
3. HYDRAULICS
Cuttings removal and bit cooling for bits are optimized by matching the volume of rock removed by the cutter on each
blade with the proportional fluid flow.
4.UNIQUE BACKRACK DESIGN
blade with the proportional fluid flow.
4.UNIQUE BACKRACK DESIGN
The cutter’s back rake has been unique design, reducing the bit torque and increasing aggressiveness.
Packing & Delivery
Our Company & Servce
Glorytek Industry (Beijing) Co., Ltd. is an integrated corporation specialized in manufacturing and exporting top quality drilling equipment and drilling parts for more than 20 years. We are supported and assisted by highly experienced R&D team and enginners that enable us to complete all the assigned projects successfully as per clients' requirements.
Our factory covers an area of 250,000 square meters, construction area is about 150,000 square meters, having machining machinery, CNC processing center, friction welding machine, testing equipments etc. over 200 sets and more than 600 employees.
Our products have been exported more than 60 countries, including Australia, Russia, Soutn Africa, Zimbabwe, Malaysia, Indonesia, South Korea, France, Sweden, USA, Canada, Haiti etc.
Service
Pre-sale service:
1.Select the right most suitable products.
2. According to the rock types, choosing the face type, button tooth type.
3. According to the different purpose, choosing the different body type
2. According to the rock types, choosing the face type, button tooth type.
3. According to the different purpose, choosing the different body type
After-sale Service:
Delivery Time: Based on order quantity, normally it takes 20 days for production.Only 2 or 3 days if we have stock on your request size.Quality Control: We have our professional QC and all the products will be strict inspection and testing for every order before shipping out.
Technical Support will be available in any time. We could provide the professional suggestion for you.
Technical Support will be available in any time. We could provide the professional suggestion for you.
Online support to help solve the problem.
Shipping spare parts immediately if requested,
FAQ
Q: Are you manufacturer or trading company?
A: We are professional manufacturer with 20+ years experience.
A: Mining, hdd drilling, foundation pit, quarry, oil, well, etc.
Q: What is the MOQ?
A. The MOQ is 1 Piece
A. The MOQ is 1 Piece
Q: What is the payment terms?
A: We can accept payment by T/T, Credit Card, West Union etc.
