Силовой Электрический трансформатор 40 МВА 500 кВ испытательная подстанция Kema 138 20 мощности
- Категория: >>>
- Поставщик: Beijing Daelim Green Ep Technology Co. Ltd.
Сохранить в закладки 1600564245164:
Описание и отзывы
Характеристики
Product Description
Beijing Daelim is a professional manufacturer of transformers. It can produce Single phase transformer. Three-phase transformer, Pad mounted transformers, Dry transformer,Distribution transformer and High voltage transformer of 69KV and above. It can meet IEEE/ANSI/DOE/CSA and IEC standards. Moreover, Daelim has nearly 20 years of transformer export experienc., DAELIM transformer have at least two-year warranty, moreover Daelim have very good after-sales installation service team abroad, so if you have transformer needs, you can contact us.
Production Detail
Furnace Transformer is power equipment which is supporting for EAF. There are many kinds of furnace transformers. The company mainly produce the following products: High impedance furnace transformer, DC arc furnace transformer, ladle refining furnace transformer, submerged arc furnace transformer (including ferroalloy furnace transformer, calcium carbide furnace transformer, yellow phosphorus furnace transformer,single-phase titanium slag furnace transformer, etc.), electro slag furnace transformer, frequency induction furnace transformer, single-phase graphite furnace transformer, etc.

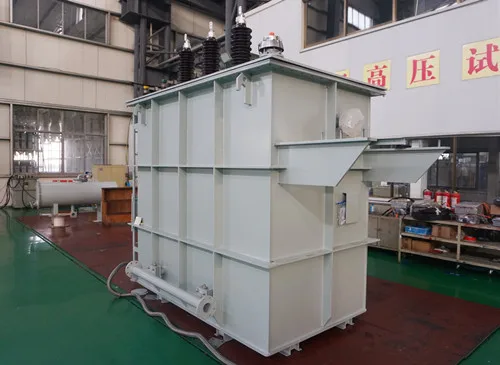

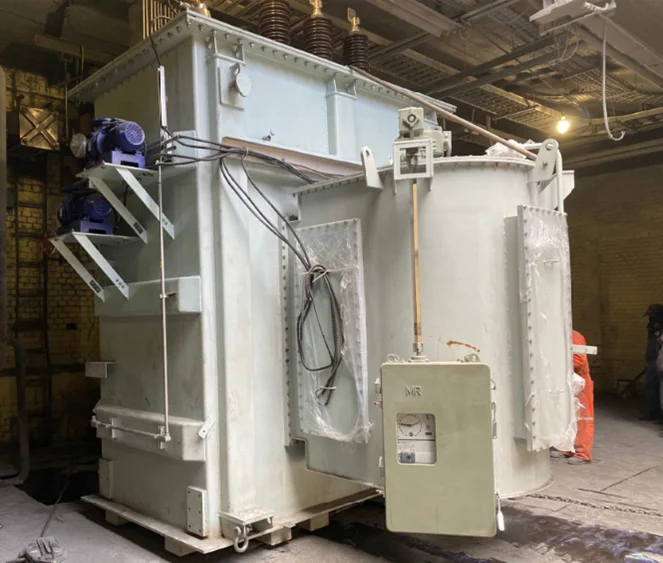

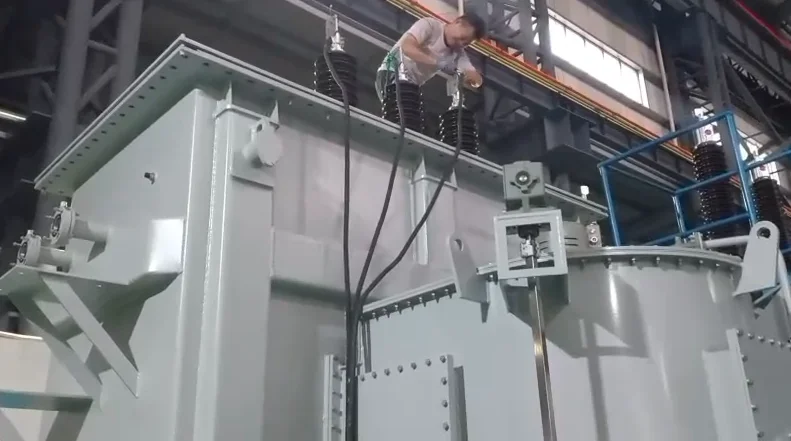

The Mexican customer in the picture below came to our factory to inspect and accept two electric furnace transformers. At present, these two electric furnace transformers are in normal use in Mexican steelmaking plants.
Main Functions and Features
1.high efficiency and environmental rotection.
2.low noise.
3.low partial discharge.
4.low loss
Installation:
All the parts or components dispatched separately should be properly cleaned from inside and outside before being fitted to the
transformer body. Special attention, to be given if, the interior surface of any component is found rusty.
Installation:
All the parts or components dispatched separately should be properly cleaned from inside and outside before being fitted to the
transformer body. Special attention, to be given if, the interior surface of any component is found rusty.
Transformer accessories

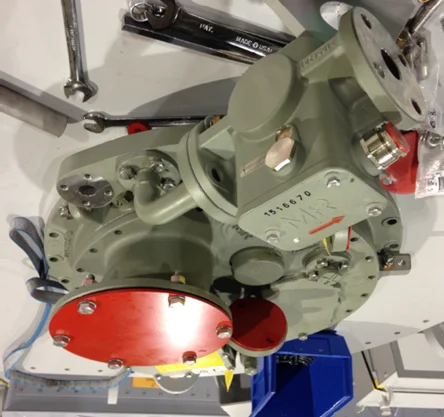

Dalin's transformers can be assembled with internationally renowned brand accessories such as Qualitrol remote installation thermometers and tap changers, ABB bushings..
Technical Specification
Rated Power (kva) | High Voltage (kv) | H.V.Tap range | Low Voltage (kv) | Connection symbol | Short Circuit Impendence | No-load loss(KW) | On-load loss(KW) | No load current (%) | ||||||||
6300 | 63 66 69 110 132 138 220 | ±8x 1.25% | 6.3 6.6 10.5 11 33 69 | YNd11 YNyn0 others | 10-14 | 9.4 | 34 | 0.63 | ||||||||
8000 | 11.2 | 40.4 | 0.63 | |||||||||||||
10000 | 13.1 | 47.6 | 0.75 | |||||||||||||
12500 | 15.4 | 56.5 | 0.53 | |||||||||||||
16000 | 18.5 | 69.5 | 0.49 | |||||||||||||
20000 | 21.8 | 84.2 | 0.49 | |||||||||||||
25000 | 25.6 | 99.5 | 0.4 | |||||||||||||
31500 | 30.4 | 120 | 0.4 | |||||||||||||
40000 | 36.2 | 140.3 | 0.39 | |||||||||||||
50000 | 42.6 | 174.3 | 0.39 | |||||||||||||
63000 | 52 | 210 | 0.39 | |||||||||||||
75000 | 60 | 238 | 0.49 | |||||||||||||
90000 | 69 | 274 | 0.49 | |||||||||||||
120000 | 85 | 328 | 0.46 | |||||||||||||
150000 | 101 | 385 | 0.42 | |||||||||||||
160000 | 105 | 404 | 0.42 | |||||||||||||
180000 | 115 | 436 | 0.42 | |||||||||||||
240000 | 144 | 539 | 0.4 | |||||||||||||
Certifications
Through years of international engineering experience, our factory is capable of producing transformers meeting various international standards, such as IEC, IEEE, ANSI, CSA.
Customer visit
Sales Record
Factory Profile
BEIJING DAELIM GREEN EP TECHNOLOGY CO., LTD. Locates in Beijing, China,is a professional transformer manufacturer and international electrical engineering contraction company. The expert team of DAELIM controls each process from product development to design , production and manufacturing in order to achieve its goals. They have strong R&D team and they have more than 20 years of transformer design experience and are familiar with lots of international transformer standards, such as IEC, IEEE / ANSI,CSA, etc. The technical team of DAELIM are experts, electrical engineers, CAD first-class draftsmen, etc. They also use the latest technology, machines and other modern facilities to produce transformers, but meanwhile DAELIM transformers are made of qualified standard materials which meets the standards of world-renowned suppliers through international procurement as well.
Recommend Products
Contact Information
BEIJING DAELIM GREEN EP TECHNOLOGY CO.,LTD
Tel: 86-10-65001715
Phone: 86-13051965423
Email： info7@daelim-electric.com
Skype: info7@daelim-electric.com
Whatsapp： 86-15932232071
Phone: 86-13051965423
Email： info7@daelim-electric.com
Skype: info7@daelim-electric.com
Whatsapp： 86-15932232071
Websites: www.padmountedtransformer.cn
www.daelimtransformer.com
www.daelimtransformer.com
Похожие товары
Оптовая продажа, пластиковый светящийся меч, игрушки, светодиодное оружие для детей, Подарочные игрушки для мальчиков
1,13 $ - 1,39 $
ASTM никелевый сплав inconel 686 UNS NO6686 листовая пластина
30,00 $ - 38,00 $
Нитрат алюминия нонагидрат с чистотой 99% + CAS 7784-27-2 промышленный класс AlNO3
12,5 мл пустая бутылочка для лака для ногтей FD0669 прозрачный лак для ногтей в упаковке бутылка более 2000 дизайнов бутылок на выбор

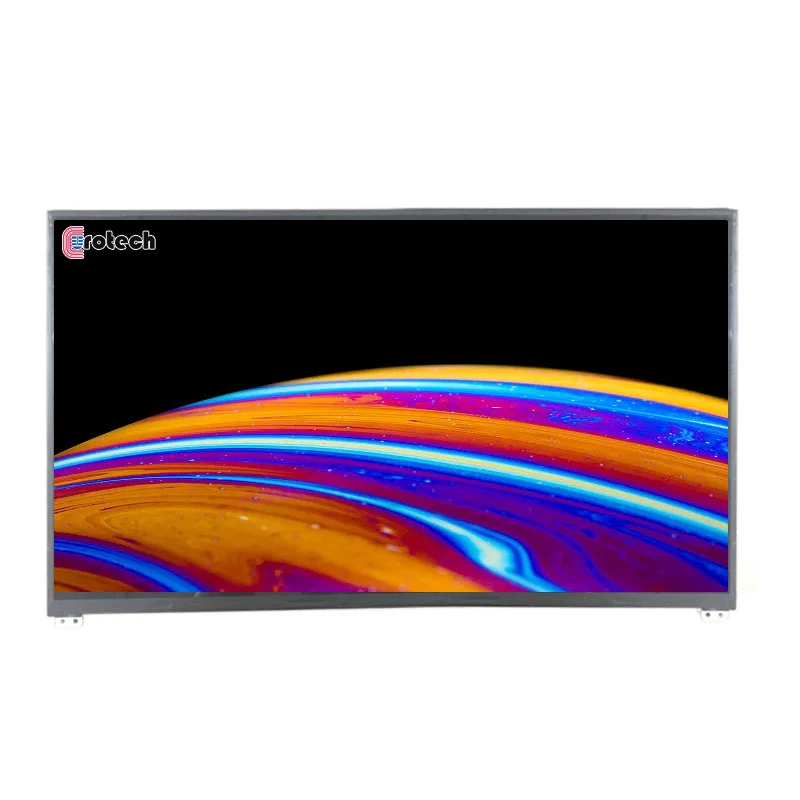

Оптовая продажа 14,0 дюймов B140HAN03.3 eDP 1920(RGB)* 1080 Высокое разрешение полный угол обзора ЖК-дисплей ЖК-панель

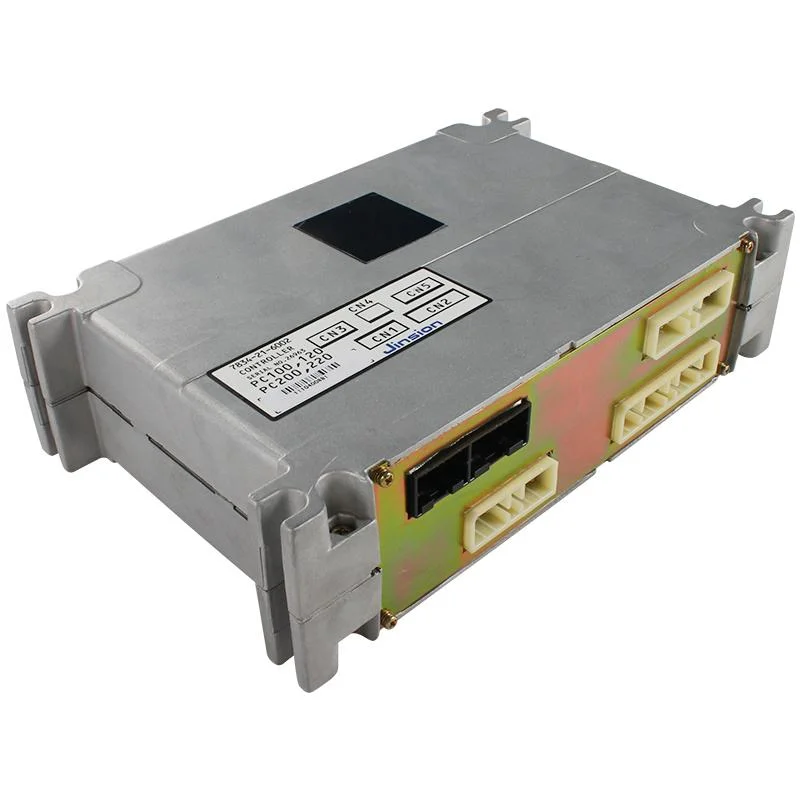

Экскаватор запасной части 7834-21-5002 управления двигателем 6d102 7834-30-2000 7834-21-6002 для Pc200-6 6d102 Komatsu
