Feature
|
OptiPlex 7780 All-in-One Technical Specifications
|
Processors
|
10th Generation Core™ i3-10100, 6 MB Cache, 4 Cores, 8 Threads, 3.6 GHz to 4.3 GHz, 65 W 10th Generation Core™ i3-10300, 8 MB Cache, 4 Cores, 8 Threads, 3.7 GHz to 4.4 GHz, 65 W 10th Generation Core™ i5-10400, 12 MB Cache, 6 Cores, 12 Threads, 2.9 GHz to 4.3 GHz, 65 W 10th Generation Core™ i5-10500, 12 MB Cache, 6 Cores, 12 Threads, 3.1 GHz to 4.5 GHz, 65 W 10th Generation Core™ i5-10600, 12 MB Cache, 6 Cores, 12 Threads, 3.3 GHz to 4.8 GHz, 65 W 10th Generation Core™ i7-10700, 16 MB Cache, 8 Cores, 16 Threads, 2.9 GHz to 4.8 GHz, 65 W 10th Generation Core™ i9-10900, 20 MB Cache, 10 Cores, 20 Threads, 2.8 GHz to 5.2 GHz, 65 W
|
Chipset
|
Q470 Chipset
|

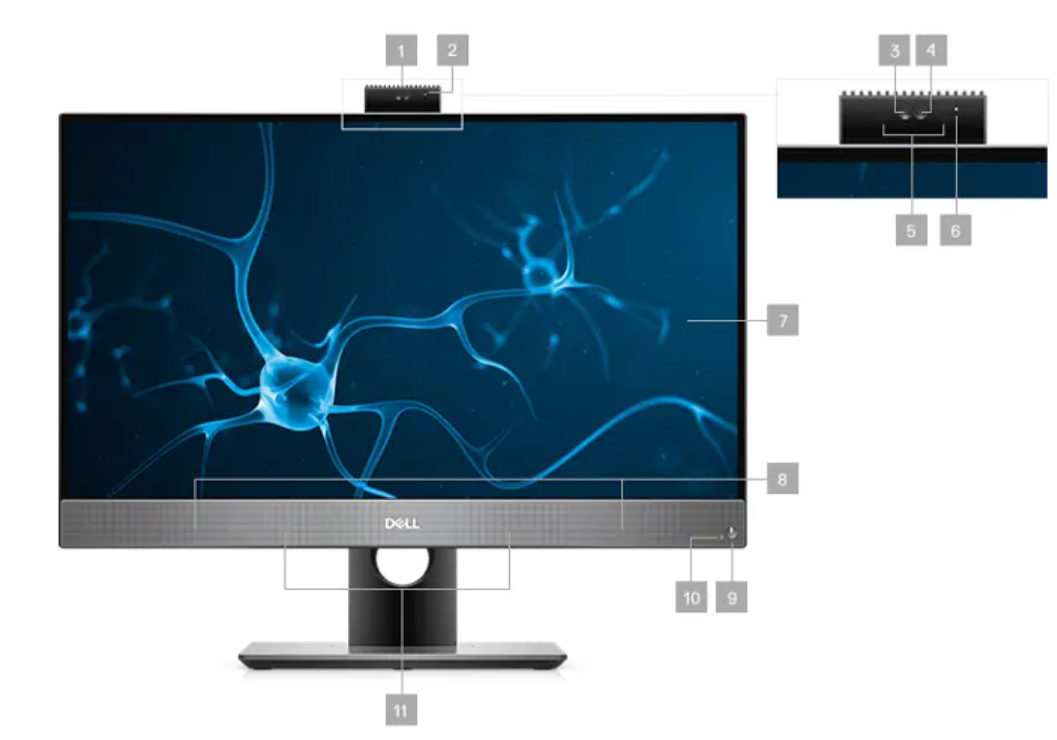

Display
|

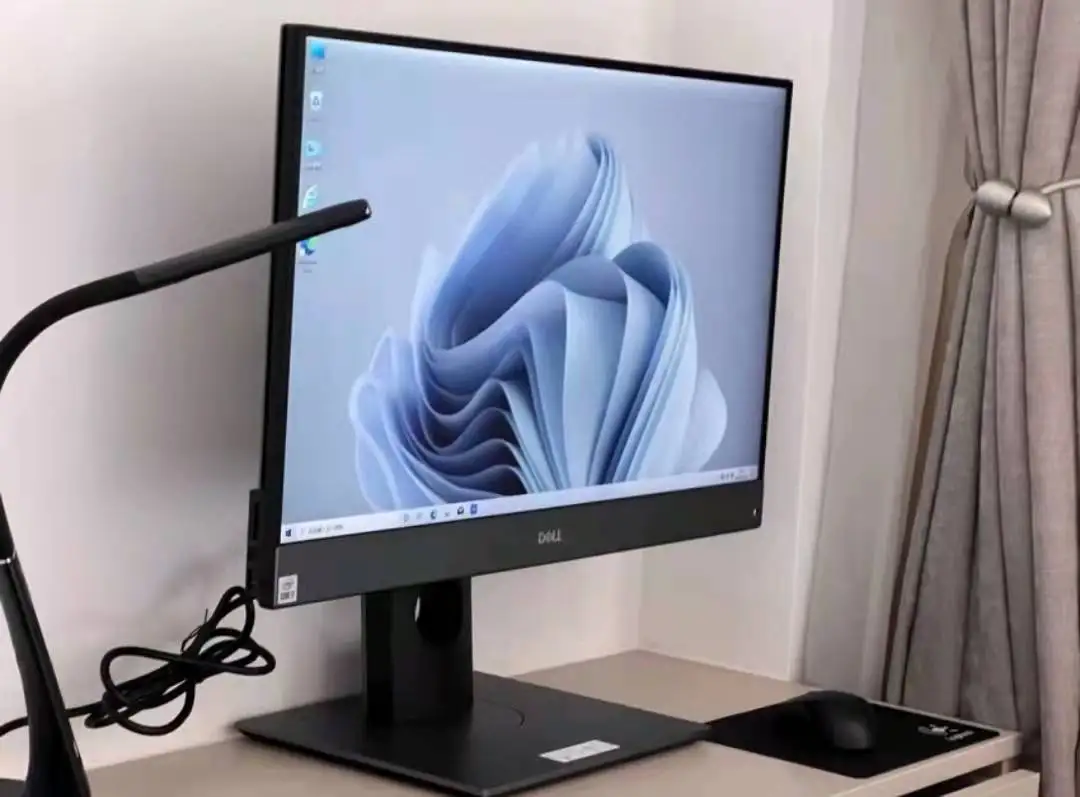

27-inch, FHD, 1920 x 1080, 60 Hz, Anti-Glare, WLED, Non-Touch, 72% NTSC typical, 250 Nits, IPS, Wide Viewing Angle
|
Video Card
|
UHD 630 Graphics GeForce GTX 1650, 4 GB, GDDR5 (optional)
|
Memory
|
4 GB, 1 x 4 GB, DDR4, 2666 MHz for Core™ i3/i5 processors, 2933 MHz for Core™ i7/i9 processors 8 GB, 1 x 8 GB, DDR4, 2666 MHz for Core™ i3/i5 processors, 2933 MHz for Core™ i7/i9 processors 8 GB, 2 x 4 GB, DDR4, 2666 MHz for Core™ i3/i5 processors, 2933 MHz for Core™ i7/i9 processors 16 GB, 1 x 16 GB, DDR4, 2666 MHz for Core™ i3/i5 processors, 2933 MHz for Core™ i7/i9 processors 16 GB, 2 x 8 GB, DDR4, 2666 MHz for Core™ i3/i5 processors, 2933 MHz for Core™ i7/i9 processors 32 GB, 1 x 32 GB, DDR4, 2666 MHz for Core™ i3/i5 processors, 2933 MHz for Core™ i7/i9 processors 32 GB, 2 x 16 GB, DDR4, 2666 MHz for Core™ i3/i5 processors, 2933 MHz for Core™ i7/i9 processors 64 GB, 2 x 32 GB, DDR4, 2666 MHz for Core™ i3/i5 processors, 2933 MHz for Core™ i7/i9 processors
|

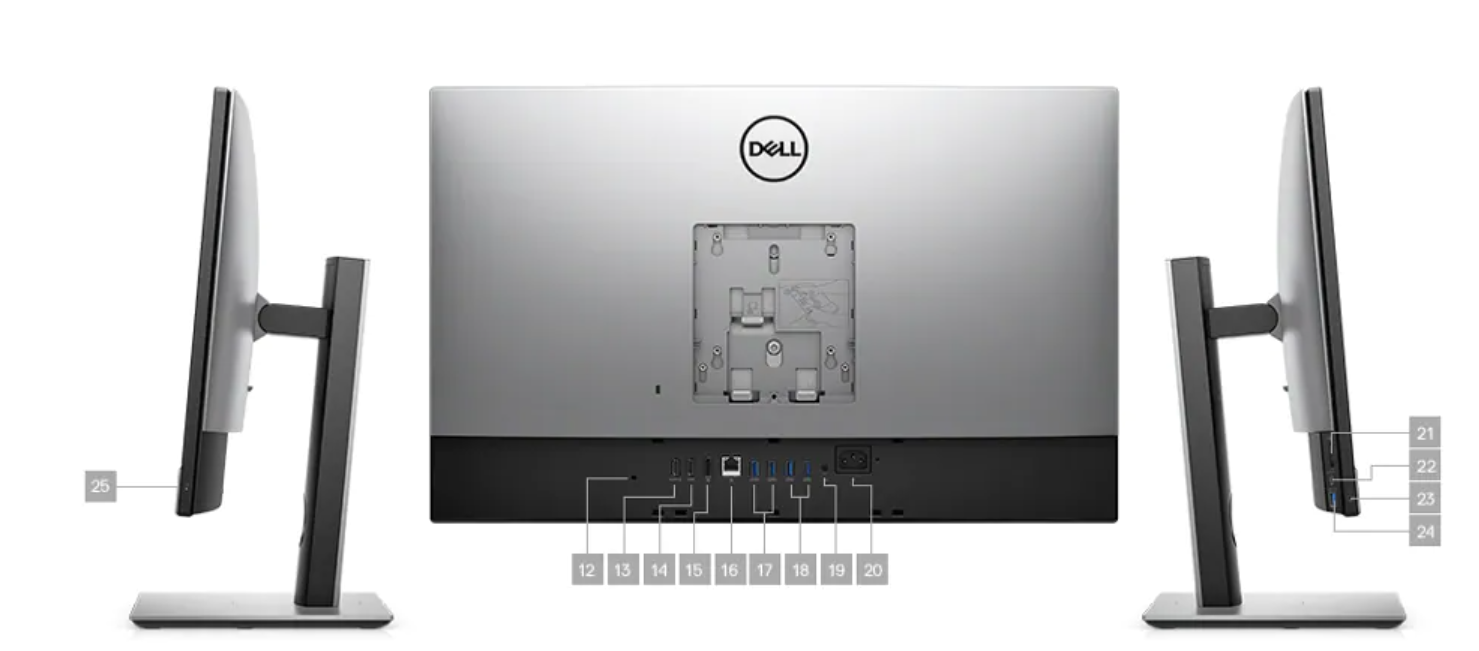

Ports
|

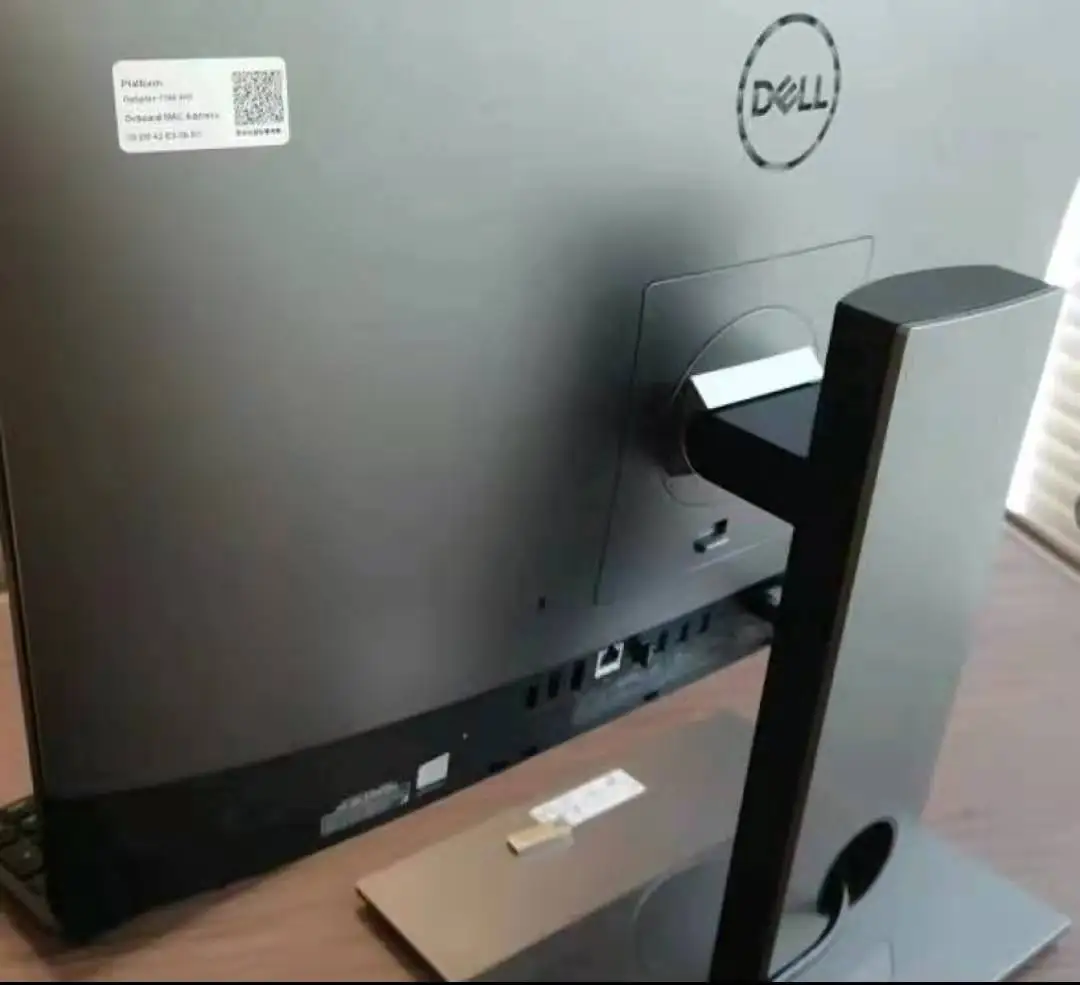

1 RJ-45 port 10/100/1000 Mbps (rear) 1 USB 3.2 Gen 2 Type-C port (side) 1 USB 3.2 Gen 1 Type-A port with PowerShare (side) 1 Universal audio jack (side) 2 USB 3.2 Gen 2 Type-A ports with Smart Power On (rear) 2 USB 3.2 Gen 2 Type-A ports (rear) 1 Line-out audio port (rear) 1 DP++ 1.4/HDCP 2.3 port (rear) 1 HD In port (rear) 1 HD Out port (rear)
|
Slots
|
1 SD 4.0 card slot 1 M.2 2230 slot 2 M.2 2230/2280 slots for SSD/ Optane 1 Kensington security-cable slot
|
Number of Bays
|
One internal 2.5 inch
|
Primary Hard Drive
|
2.5-inch, 500 GB, 5400 RPM, SATA HDD 2.5-inch, 1 TB, 5400 RPM, SATA HDD 2.5-inch, 2 TB, 5400 RPM, SATA HDD 2.5-inch, 500 GB, 7200 RPM, SATA HDD 2.5-inch, 500 GB, 7200 RPM, Opal Self-Encrypting FIPS SATA HDD 2.5-inch, 1 TB, 7200 RPM, SATA HDD M.2 2230, 128 GB, Gen 3 PCIe x4, NVMe, Class 35 SSD M.2 2230, 256 GB, Gen 3 PCIe x4, NVMe, Class 35 SSD M.2 2230, 512 GB, Gen 3 PCIe x4, NVMe, Class 35 SSD M.2 2230, 256 GB, Gen 3 PCIe x4, NVMe, Opal Self-Encrypting Class 35 SSD M.2 2280, 256 GB, Gen 3 PCIe x4, NVMe, Class 40 SSD M.2 2280, 512 GB, Gen 3 PCIe x4, NVMe, Class 40 SSD M.2 2280, 1 TB, Gen 3 PCIe x4, NVMe, Class 40 SSDM.2 2280, 2 TB, Gen 3 PCIe x4, NVMe, Class 40 SSD M.2 2280, 256 GB, Gen 3 PCIe x4, NVMe, Opal Self-Encrypting Class 40 SSD M.2 2280, 512 GB, Gen 3 PCIe x4, NVMe, Opal Self-Encrypting Class 40 SSD M.2 2280, 1 TB, Gen 3 PCIe x4, NVMe, Opal Self-Encrypting Class 40 SSD
|
Camera
|
2.0 MP Full HD Webcam with Pop-up privacy feature Full HD Infrared Webcam
|
Power
|
80 PLUS internal Power Supply Unit (PSU) 220 W typical 92% Efficient PSU (80 PLUS Platinum)
|

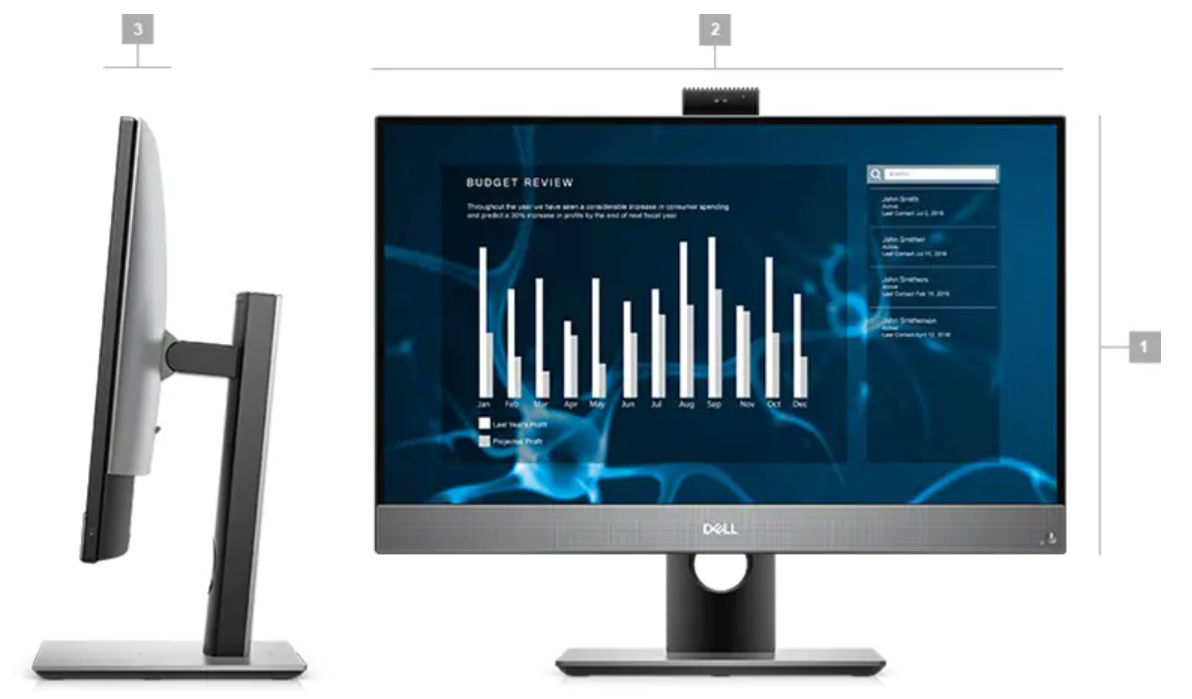

Dimensions
|

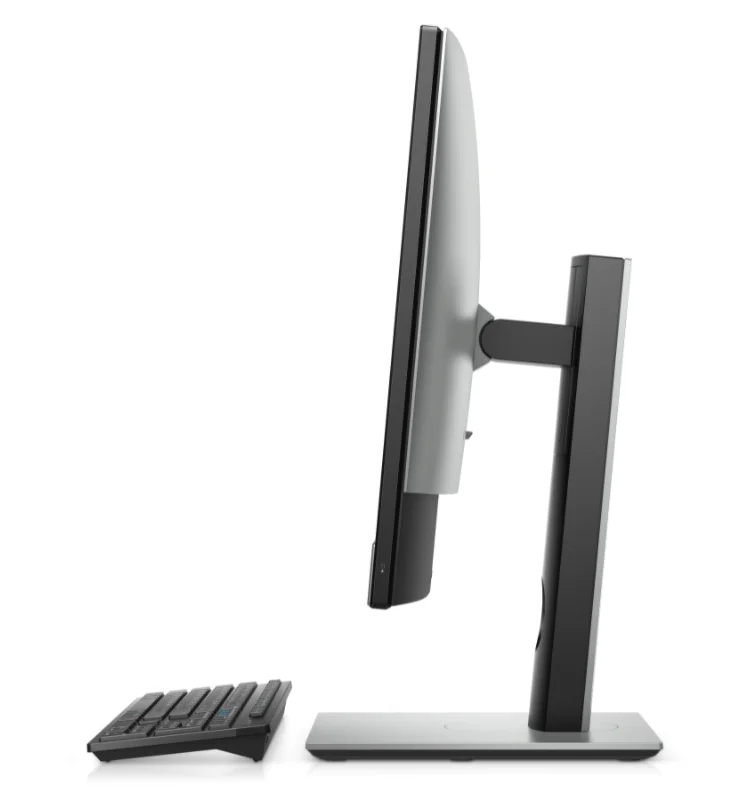

Full HD Touch - Height: 15.31 in. (389.00 mm) Width: 24.17 in. (614.00 mm) Depth: 2.28 in. (58.00 mm) Full HD Non-Touch - Height: 15.31 in. (389.00 mm) Width: 24.17 in. (614.00 mm) Depth: 2.28 in. (58.00 mm)
|
