Полная солнечная система из алюминиевого сплава

Сохранить в закладки 1600565217858:


Цена:46,80-51,00 $*

Количество:

  • В избранное

Описание и отзывы

Характеристики


N Types Aluminum Solar Mounting System Ground Mount Solar Panel Racking System for Solar Energy System

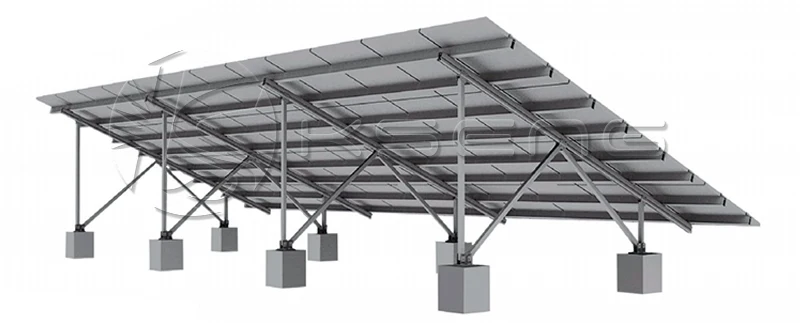

Concrete Foundation solar mounting system is typically applied on flat open field, such as flat roof or ground. The concrete base is easy to build regardless of various soil conditions.

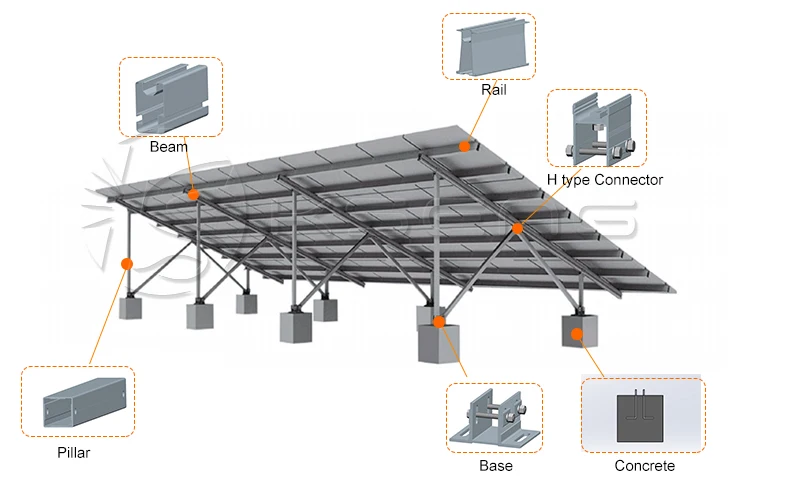

1. W Types solar mounting system

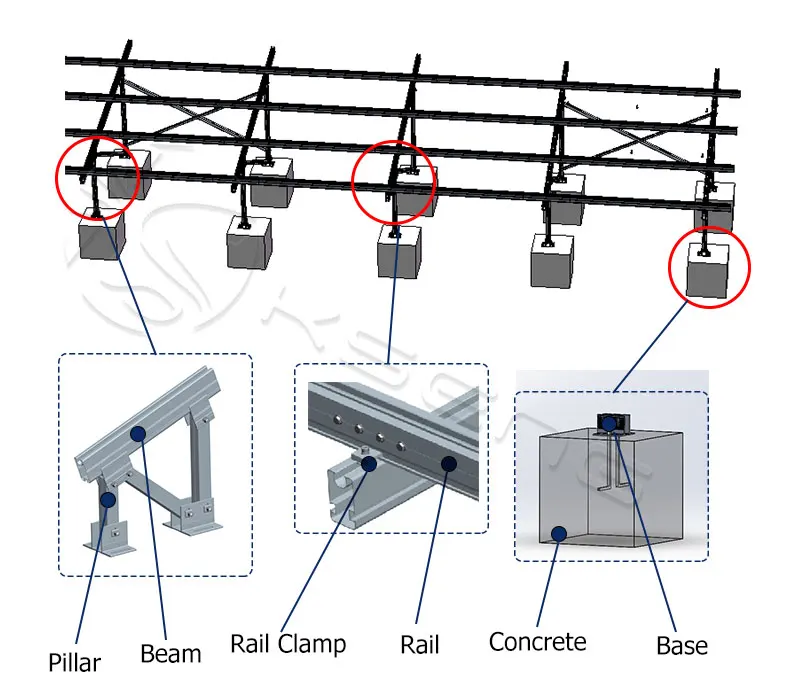

2. N Type Photovoltaic Mounting System


N type.jpg





Technical Details









































Product Name W Types N Types Flat Roof Solar Mounting Bracket Concrete Foundation Solar PV Ground Mounting System
Install SiteOpen Filed(flat roof or ground)
Max Wind Load 216km/h = 60m/s
Snow Load ≤1.4KN/M2
Applicable Module  Framed or Frameless
Standard  AS/NZS 1170
Material AL6005-T5 & SUS 304
Anti-Corrosive  Anodized
Warrabty  10 years and 25 years service life




 Installation Steps(N type for example)

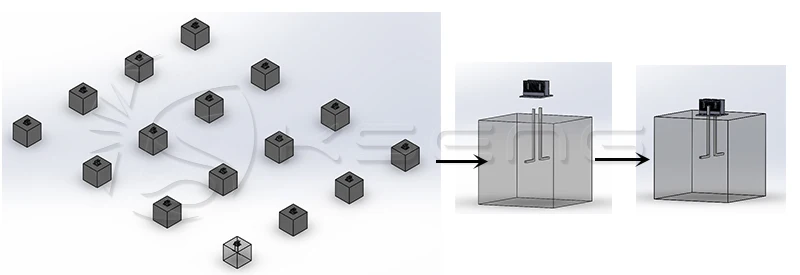

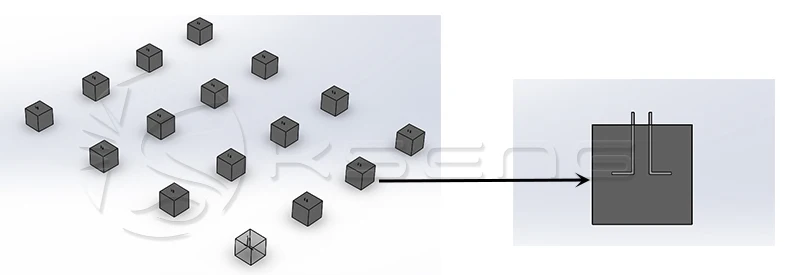

1. Place the concrete foundation, and embedded bolts.

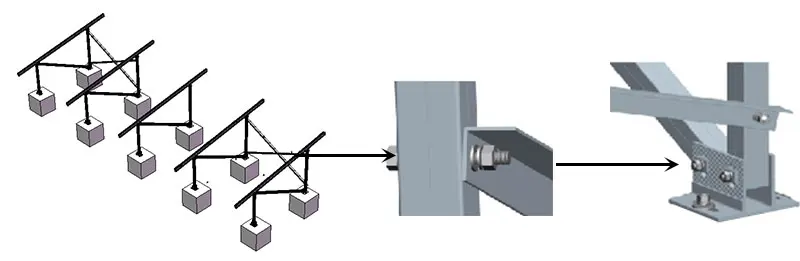

2. Installing the aluminum base on the concrete foundation.

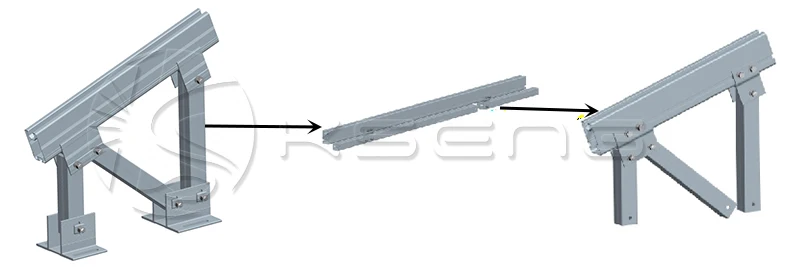

3. Install the pre-assembly solar bracket(For Save customer's installation time and labor cost, this step usually completed by our workers before product leaving our factory)




4.  Install stiffener(If your photovoltaic project don't need to use stiffener, just ignore this step).

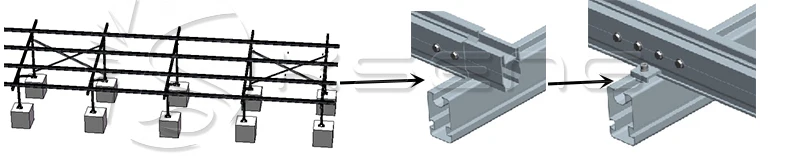

5. Install solar rail..

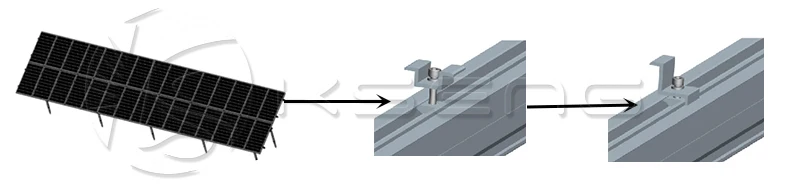

6. Install solar panel, use end clamp and middle clamp to fixing the solar panel.

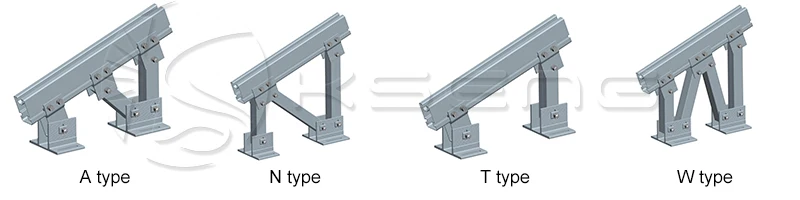

Type of Ground Mounting System

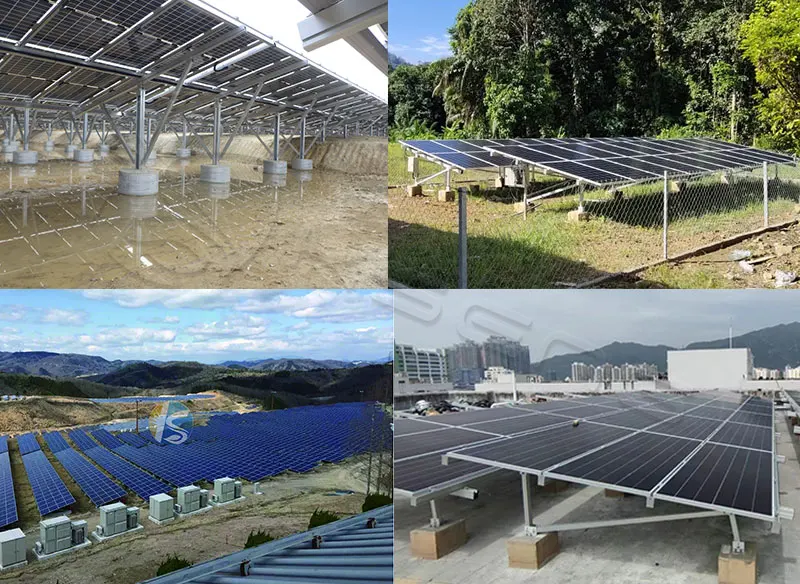

Project Cases


There are some of Kseng's solar mounting system with concrete foundation as below.




Certificates


Our company has obtained nearly 100 utility model patents, the products are also approved  AS/NZS 1170,TUV, UL, CE, CPP, and ISO 9001 quality management system and other international authorized certification.




About Kseng


ROOF-MOUNTING-SYSTEM_05ROOF-MOUNTING-SYSTEM_06


Production Line


For now, Kseng have two main production line, one is for solar mounting bracket, another is for galvanized ground screw.

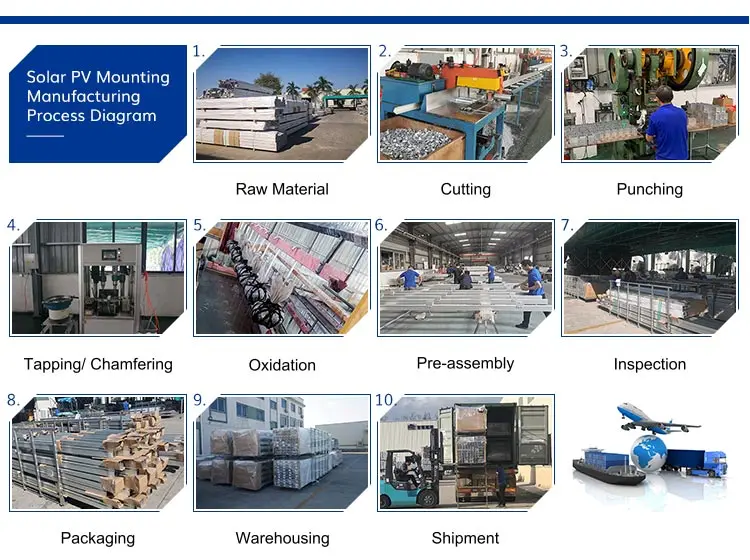

1. solar mounting bracket production line


production process.jpg

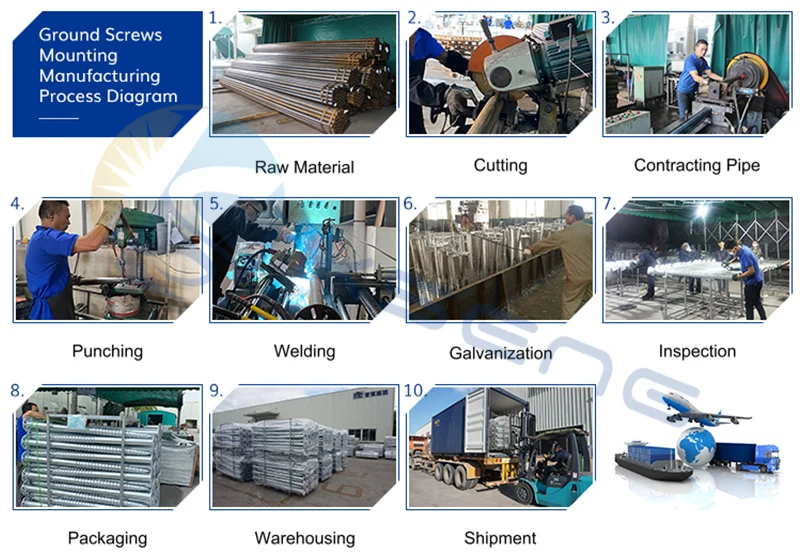

2. Ground screw production line

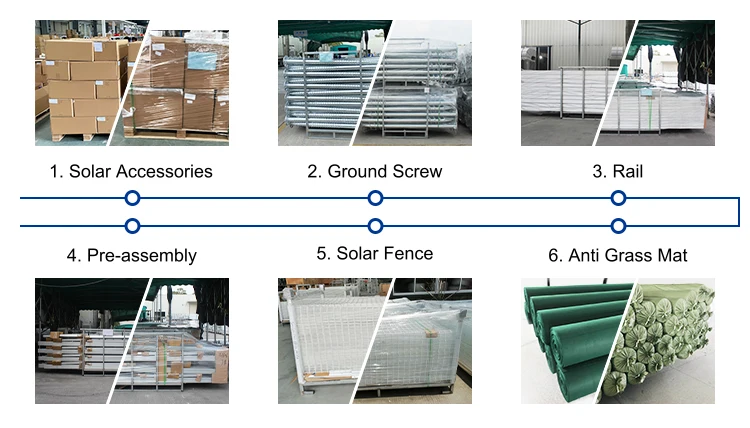

Package


For our products, we all use standard expo package.




Any other questions or if you want to know more about our products, please contact us.


Welcome inquiry.
