Папа Клеммная колодка IDC14 разрывная плата соединитель релейный адаптер PLC монтажная на
- Категория: Relays >>>
- Поставщик: Shenzhen Hualian Technology Co. Ltd.
Сохранить в закладки 1600565352639:
Описание и отзывы
Характеристики
Specification
item | value |
Place of Origin | China |
Brand Name | ARYAR |
Model Number | HL-IDC-14-TB |
Certification | NONE |
Gender | Male |
Product Name | Flower |
Application | Lighting, Breakout board |
Type | IDC14 |
Product Description

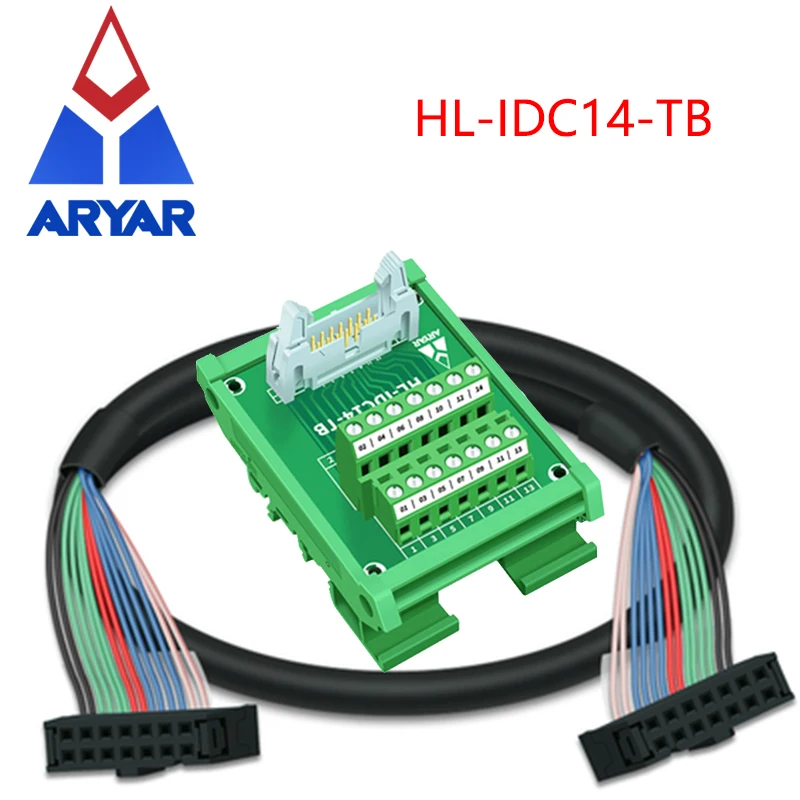

* IDC-14 DIN Rail Mounted Interface Module.
* IDC pin pitch 2.54mm/0.1" male header connector.
* Pitch 5.08mm screw terminal block.
* Din rail mountable - for width 35 / 32 / 15mm rails.
* Din mount case can be taken apart for panel mount use.
* High quality PCB housing/carrier.
* FR-4 fiber glass PCB, dual copper layers.
* 100% new, never used.
* Rated voltage: 60V.
* IDC pin pitch 2.54mm/0.1" male header connector.
* Pitch 5.08mm screw terminal block.
* Din rail mountable - for width 35 / 32 / 15mm rails.
* Din mount case can be taken apart for panel mount use.
* High quality PCB housing/carrier.
* FR-4 fiber glass PCB, dual copper layers.
* 100% new, never used.
* Rated voltage: 60V.
* Rated current: 1A / per pin.
* Operating Temperature: -20ºC to 50ºC
Terminal block specifications:
Wire range - 26-16AWG.
Strip length - 5mm.
Screws - M2,steel,Cr3+ Zn plated.
Torque - 0.2Nm (1.7Lb-In.).
Pin header and Cage - Brass.
* Operating Temperature: -20ºC to 50ºC
Terminal block specifications:
Wire range - 26-16AWG.
Strip length - 5mm.
Screws - M2,steel,Cr3+ Zn plated.
Torque - 0.2Nm (1.7Lb-In.).
Pin header and Cage - Brass.
Company Profile
Our company is a manufacturer of cable ID printer, wire marker, LED spare, CCTV spare, relay module and so on, with well-equipped testing facilities and strong technical force.
With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in industrial LED, CCTV and other industries.
Our products are widely recognized and trusted by users and can meet continuously changing economic and social needs.
We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success!
With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in industrial LED, CCTV and other industries.
Our products are widely recognized and trusted by users and can meet continuously changing economic and social needs.
We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success!
FAQ
1. who are we?
We are based in Guangdong, China, start from 2010,sell to Domestic Market(30.00%),South America(15.00%),Southeast Asia(12.00%),Mid East(10.00%),Eastern Asia(10.00%),South Asia(9.00%),Western Europe(5.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
cable ID pinter,wire marker,ink ribbon,tape cassette,connector
4. why should you buy from us not from other suppliers?
null
5. what services can we provide?
Accepted Delivery Terms: FOB；
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,MoneyGram,PayPal,Western Union,Escrow;
Language Spoken:English,Chinese
We are based in Guangdong, China, start from 2010,sell to Domestic Market(30.00%),South America(15.00%),Southeast Asia(12.00%),Mid East(10.00%),Eastern Asia(10.00%),South Asia(9.00%),Western Europe(5.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
cable ID pinter,wire marker,ink ribbon,tape cassette,connector
4. why should you buy from us not from other suppliers?
null
5. what services can we provide?
Accepted Delivery Terms: FOB；
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,MoneyGram,PayPal,Western Union,Escrow;
Language Spoken:English,Chinese
Похожие товары
Omron Реле MY4N-GS AC220/240 маленький реле общего назначения промежуточное от
2,50 $ - 3,00 $
Реле утечки заземления Acrel ASJ10-LD1A din
LSR светочувствительный датчик реле оптический релейный модуль 5V для
0,09 $
Твердотельное реле AA 80A 90A 100A 120A Однофазное AC 70-280V вход к 24-480V Выход
Реле видоискателя 62.33.9.024.0040 62.33.6.024.0300 62.33.9.110.0300 реле 44.52.9.024.0000
2,00 $ - 7,90 $
Китайские производители реле Лидер продаж 30 А 40 50 миниатюрные 3 В 5 6 в 9 12 24 48 110 мощности для печатных плат
0,20 $ - 0,22 $

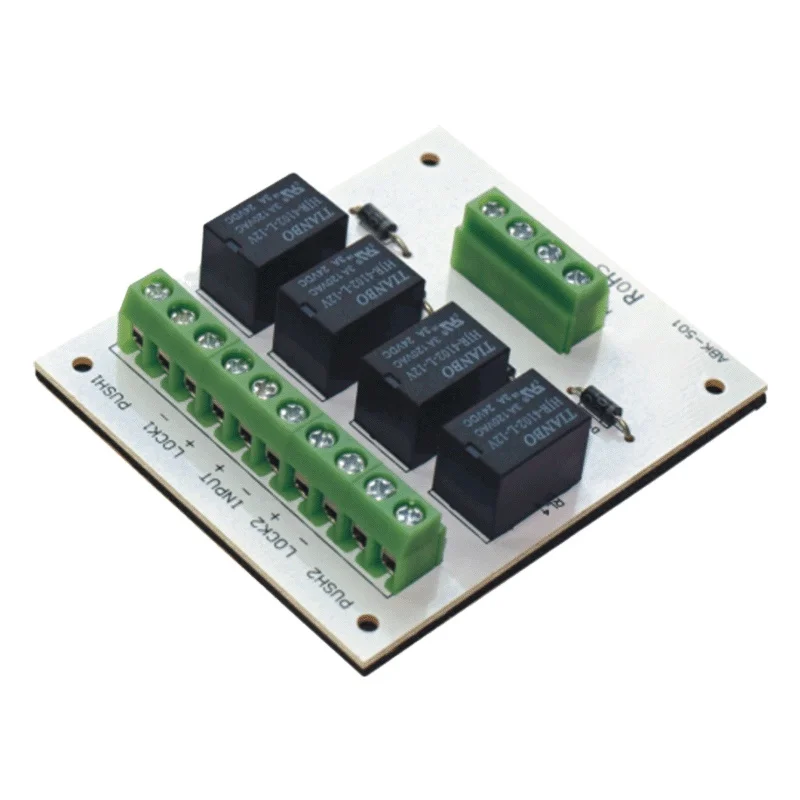

Goldbridge новый дизайн ACM-501 кирпечей из глины контроля доступа по отпечаткам триггерный релейный модуль для двух дверей выходной контроль 5A/24V
