Product Description

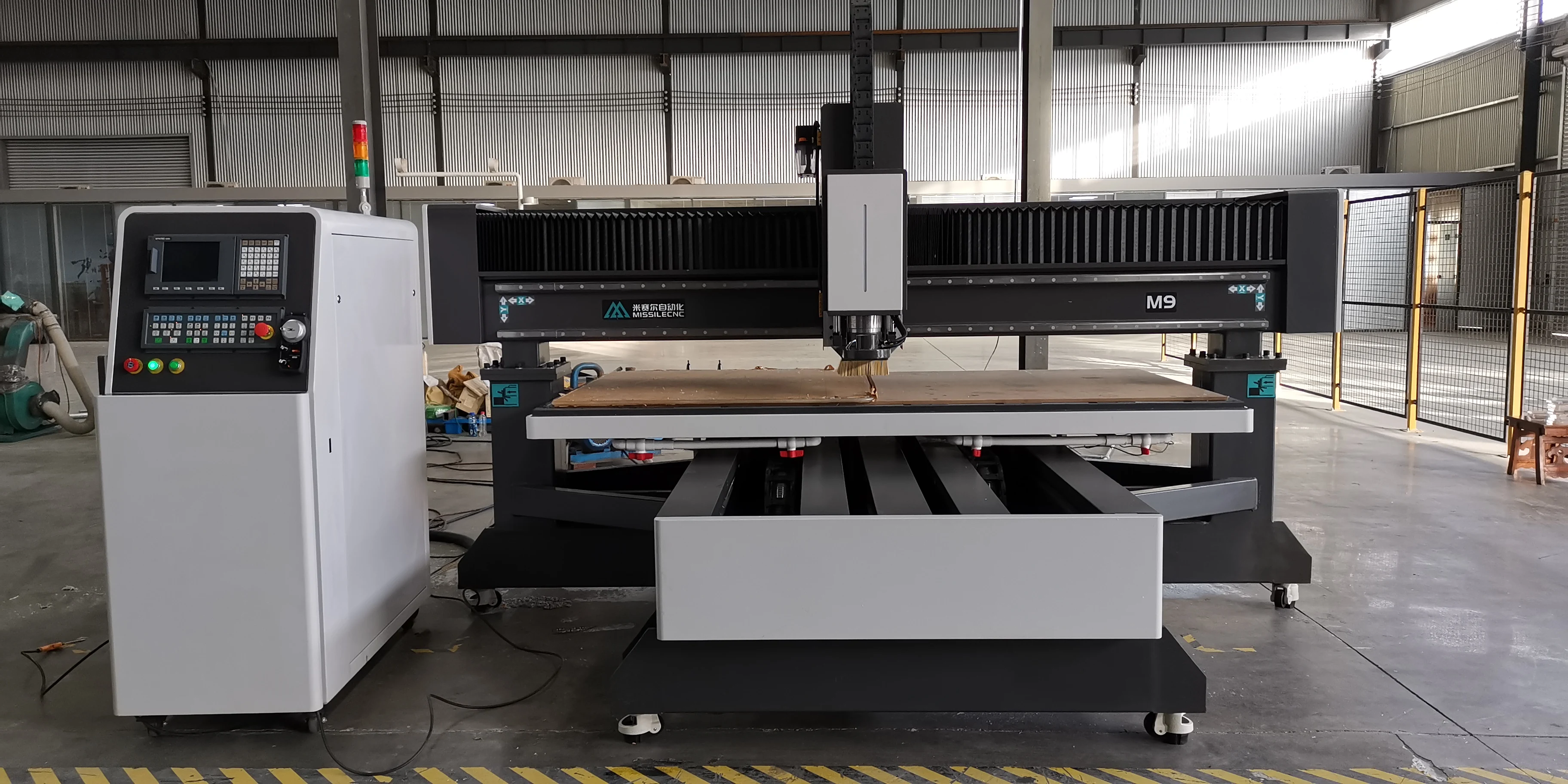

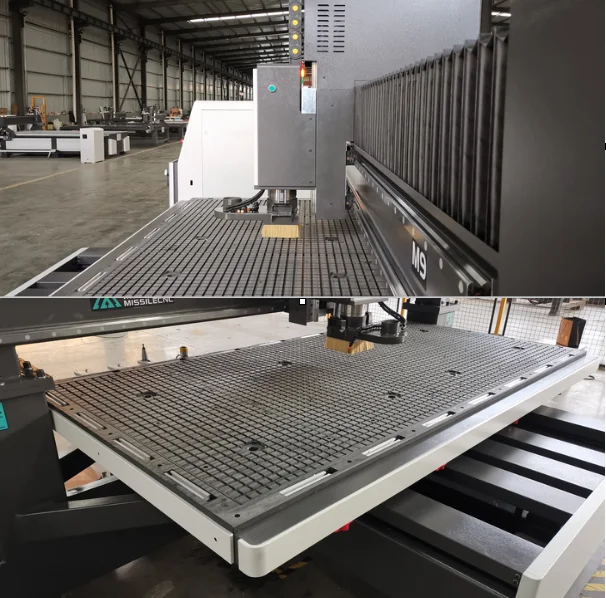

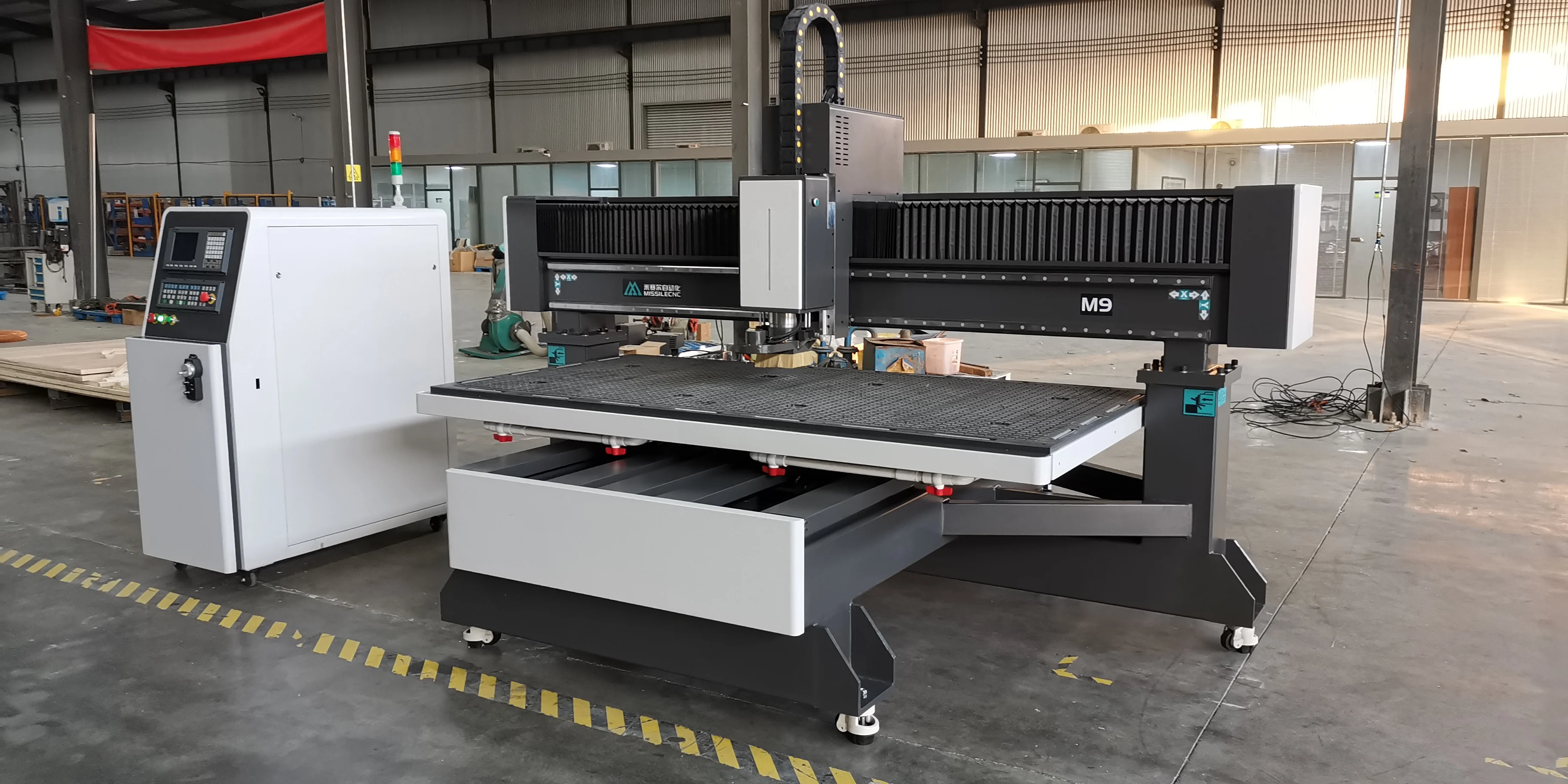

Table moving cnc router for acrylic 3D letters M9
M9 is one of the flagship model of 3D letters cnc router in our company.Adopted with table moving design,three-axis with Taiwan griding level,high-speed,voice-less ball screw transmission;Taiwan griding level square rail;imported servo motor and reducer from Japan;linear type 4 tools changing.It is one high precision machine,M9 is specially designed for mini words making
Applications

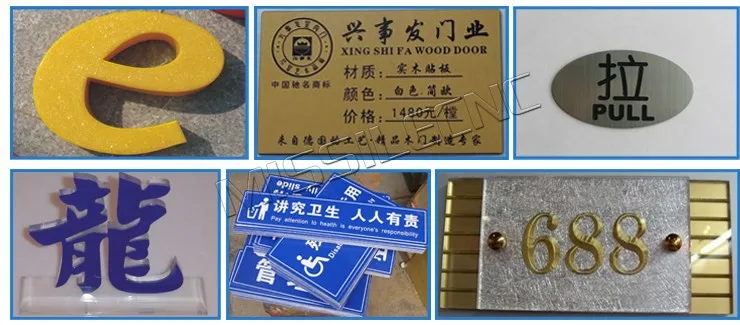

Advertising products industry:sign making,acrylic cutting and engraving
Wood industry:wood furniture making,3d wood relief carving,wooden craftwork production speakers,game consoles cabinets,computer tables,sewing machine table etc.
Board processing industry:insulation piece,acrylic board,plastic chemical products,PCB,compact grade laminate,ABS,PP,PE and other cementitious mixtures's milling process.
Decoration industry:folding screen,wave plates,advertising boards,sign making and logo's processing.
Art&crafts industries:engrave on artificial stones,woods,bamboos,marbles.
Specification
Item | Value |
Condition | New |
Range of Spindle Speed(r.p.m) | 1000rpm - 18000rpm |
Positioning Accuracy (mm) | 0.02mm |
Number of Axes | 3 |
No. of Spindles | ATC |
Working Table Size(mm) | 1300×2500 |
Machine Type | CNC Router |
Travel (X Axis)(mm) | 1300mm |
Travel (Y Axis)(mm) | 2500mm |
Repeatability (X/Y/Z) (mm) | 0.02mm |
Spindle Motor Power(kW) | 7.5kw |
CNC or Not | CNC |
Control system | NC Studio, DSP |
Place of Origin | China |
Province | Shandong |
Brand Name | Missile |
Voltage | AC380V/3PH/50HZ |
Power (kW) | 7.5 |
Weight (KG) | 2500 |
Warranty | 1 Year |
Key Selling Points | Mulitifunction |
Applicable Industries | Retail, Advertising Company, Furniture making |
Machinery Test Report | Provided |
Video outgoing-inspection | Provided |
Warranty of core components | 1 Year |
Core Components | Motor, Pump, Spindle, Guide, Rack, Inverter |
Model | M9 |
Working area | 1300*2500*200 mm |
Traveling positioning accuracy | 0.02mm |
Repositioning accuracy | 0.02mm |
Max.traveling speed | 50000mm/min |
Max.working speed | 20000mm/min |
Spindle power | 7.5kw |
Drive&Motor | YASKAWA servo |
Tool storage capacity | AC380V |
Operating system | NC STUDIO FOR ATC |
Company Profile
MISSILE CNC is a research and development manufacturer specializing in high precision, high quality and high standard CNC router machine. The main product line includes:
M series: aluminum& acrylic high-gloss processing cnc router, CCD automaticedge cutting cnc router, vibrating knife cutting machine
i series: low and medium power fiber laser cutting machine
S series: panel furniture production line, nesting cnc machine solution
E series: door&cabinet door cnc router machine, five-sided drilling mahine, six-sided drilling machine and other composite cnc machining centers

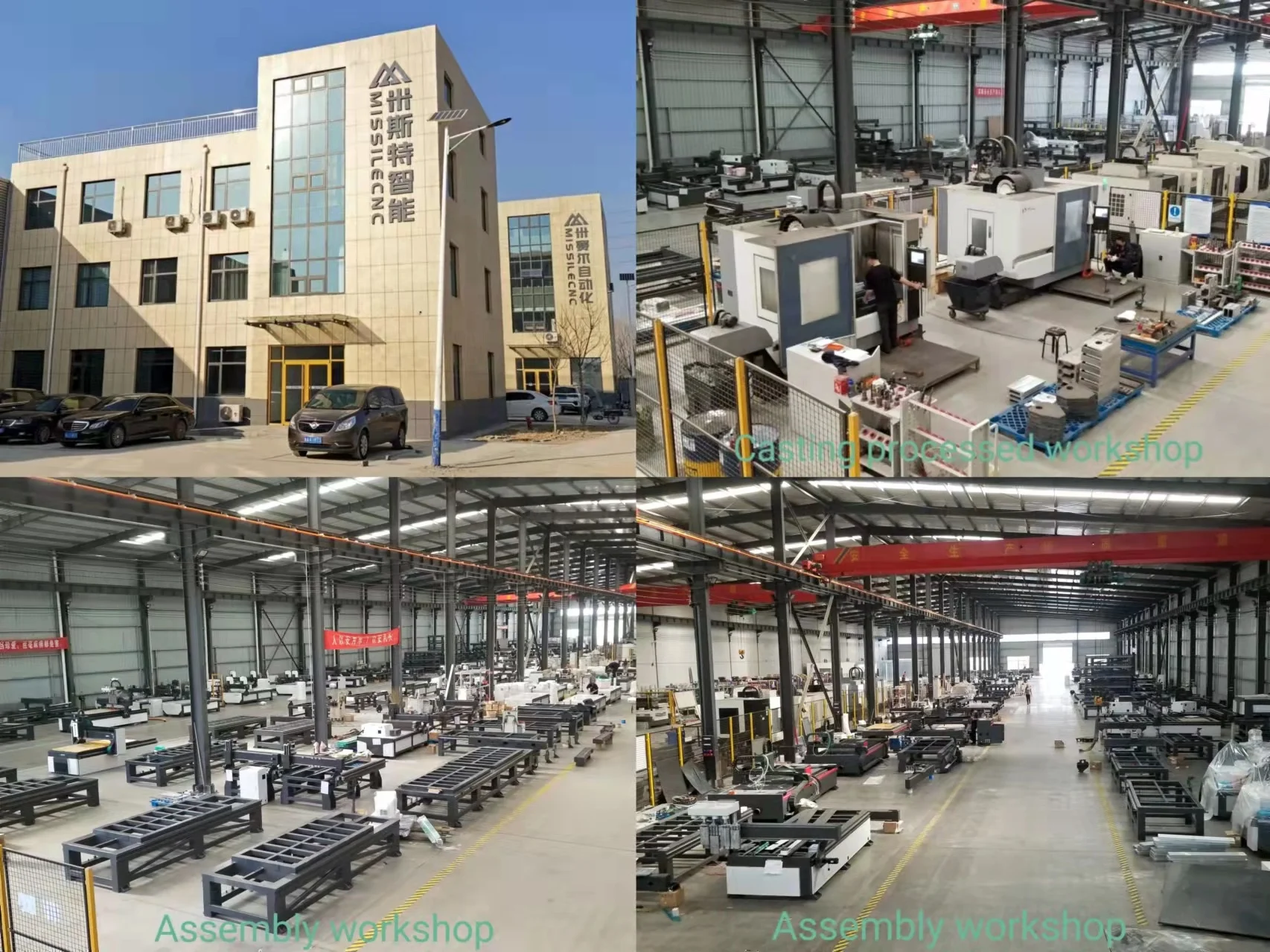

MISSILE CNC production area is nearly 20000 square meters, and we own three gantry moving machining centers ; five vertical machining centers ; one 150-meter semi-automatic welding spray production line and one 80-meter sandblasting tempering processing line . That's all ensuring every parts procession of the CNC router with higher standard requirements.
M series: aluminum& acrylic high-gloss processing cnc router, CCD automaticedge cutting cnc router, vibrating knife cutting machine
i series: low and medium power fiber laser cutting machine
S series: panel furniture production line, nesting cnc machine solution
E series: door&cabinet door cnc router machine, five-sided drilling mahine, six-sided drilling machine and other composite cnc machining centers
MISSILE CNC production area is nearly 20000 square meters, and we own three gantry moving machining centers ; five vertical machining centers ; one 150-meter semi-automatic welding spray production line and one 80-meter sandblasting tempering processing line . That's all ensuring every parts procession of the CNC router with higher standard requirements.
OUR ADVANTAGES
We keep most machines in stock and can typically dispatch equipment in 72 hours or less, so you can get working as soon as possible.We can provide on-site training and service for customers,All around the world,all around the clock,we are always here for you.
Recommend Products

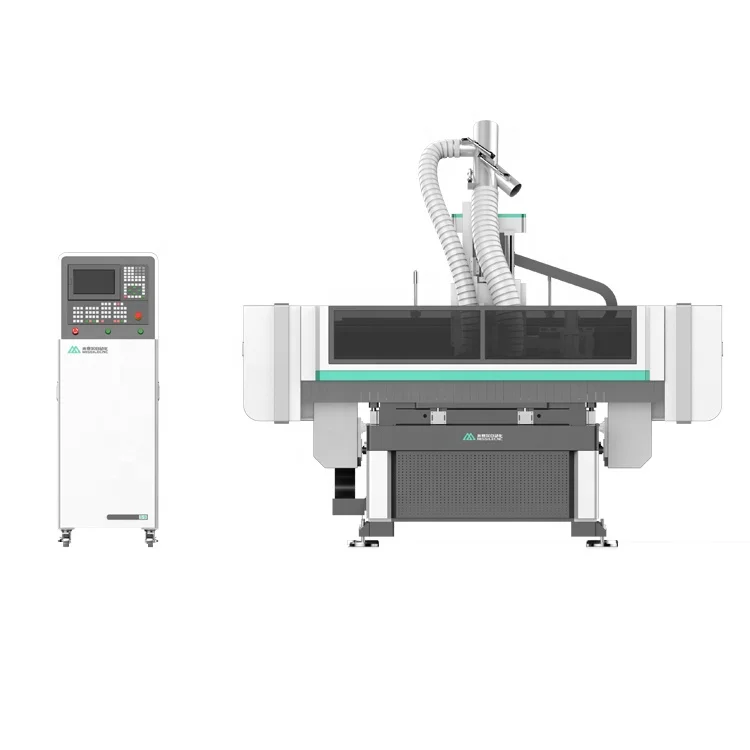

Advertising cnc router-M5S
M5S mini words cnc router is one of the flagship model in our company,Adopted with grantry moving designs,with high precision German Herion gear rack;high precision processed machine frame&machined parts.That makes the machine working effects stand out in the industries by advanced and precise assembly process.Linear type four tools changing,it is not only applies to the advertising industry,also widely used for high precision woodworking industries or other industries.
M series can also add CCD automatic edge cutting function,vibration knife cutting function.

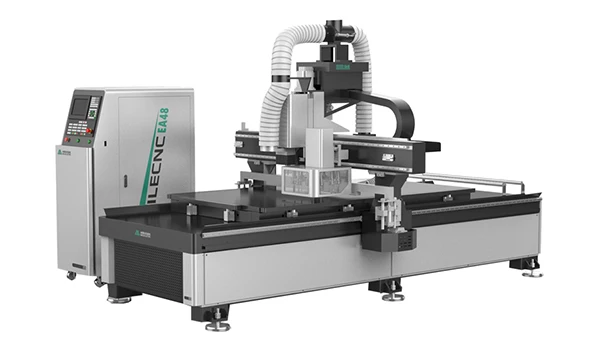

CNC NESTING MACHINE-EA48
EA48 comes with 9.0kw ATC spindle with 12 carousel magazines,So EA48 has versatile functions:routing,drilling,cutting,edge chamfering ,etc.
EA48 comes with cylinder positioning system,EA48 equipped with pusher which can push finished material down from the main working table and clean the table surface at the same time,in this situation,operator can downloading easily,and the new loading materisl can be also firmly adsorbed.
HIGH PRECISION CNC MACHINING CENTER EHP48
MISSILECNC offers EHP48 model specifically designed for cutting and engraving aluminum composite,metal composite and solid aluminum sheets,EHP48 can also be used for sign-making of 0.5-50mm acrylic.When cutting aluminum and acrylic,it can achieve particularly smooth cutting surface.
Packing & Delivery
The machine control cabinet and other machine accessories are put on the machine bed,Then,the machine will be wrapped with PE stretch film in case of damage in transit.All cnc machines are packaged with the plywood case and the wooden case will be fixon the pallet,the shipping mark will be labeled on the surface of the wooden case.
If the machine is customized even the size is bigger,the machine needs disassembling.
If the machine is customized even the size is bigger,the machine needs disassembling.
FAQ
1. who are we?
We are based in Shandong, China, start from 2015,sell to North America(30.00%),Western Europe(30.00%),Southeast Asia(20.00%),Mid East(5.00%),Eastern Asia(5.00%),Eastern Europe(3.00%),Africa(3.00%),South America(2.00%),Oceania(2.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
CNC Router,Wood Router,CNC Nesting Machine,CNC Router for Sign Making,CNC Router With CCD Camera and Knife,Fiber Laser Cutting Machine
4. why should you buy from us not from other suppliers?
MISSILECNC own three gantry moving machining centers ; five vertical machining centers ; one 150-meter welding spray production line and one 80-meter sandblasting tempering processing line .Missilecnc is a chinese fanous cnc router manufacturer
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,EUR;
Accepted Payment Type: T/T,L/C,D/P D/A,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese
We are based in Shandong, China, start from 2015,sell to North America(30.00%),Western Europe(30.00%),Southeast Asia(20.00%),Mid East(5.00%),Eastern Asia(5.00%),Eastern Europe(3.00%),Africa(3.00%),South America(2.00%),Oceania(2.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
CNC Router,Wood Router,CNC Nesting Machine,CNC Router for Sign Making,CNC Router With CCD Camera and Knife,Fiber Laser Cutting Machine
4. why should you buy from us not from other suppliers?
MISSILECNC own three gantry moving machining centers ; five vertical machining centers ; one 150-meter welding spray production line and one 80-meter sandblasting tempering processing line .Missilecnc is a chinese fanous cnc router manufacturer
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,EUR;
Accepted Payment Type: T/T,L/C,D/P D/A,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese
Похожие товары
Автоматическая высокопроизводительная сушильная машина для шпона/сушильная шпона производства
Машина для обрезки углов обрезка алюминиевых кромок профиля МДФ облицовочная машина
200,00 $ - 299,00 $
TT-306D хит продаж высокое качество автоматический кромкооблицовочный станок для облицовывания кромок
3 800,00 $ - 4 100,00 $

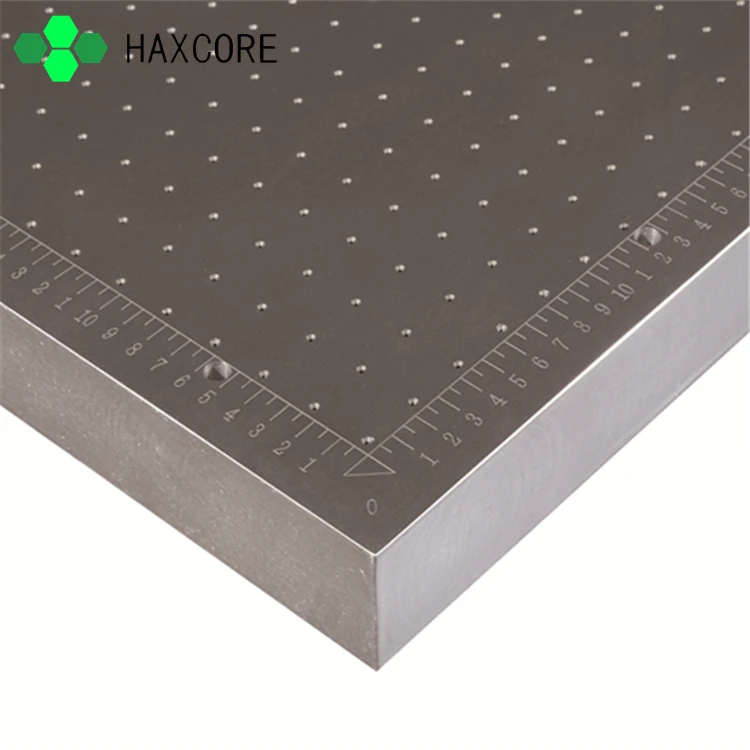

Алюминиевая вакуумная платформа на

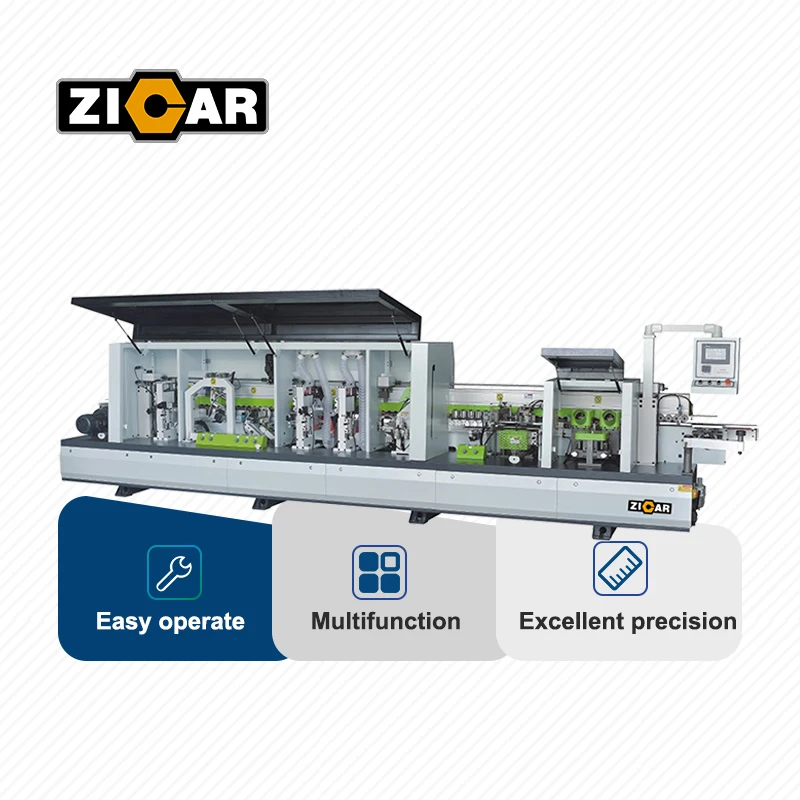

Автоматический кромкооблицовочный станок ZICAR с предварительно фрезерным шкафом производственная линия макияжные
12 500,00 $ - 16 500,00 $
Деревообрабатывающий ПВХ автоматический кромкооблицовочный станок
4 860,00 $ - 4 980,00 $

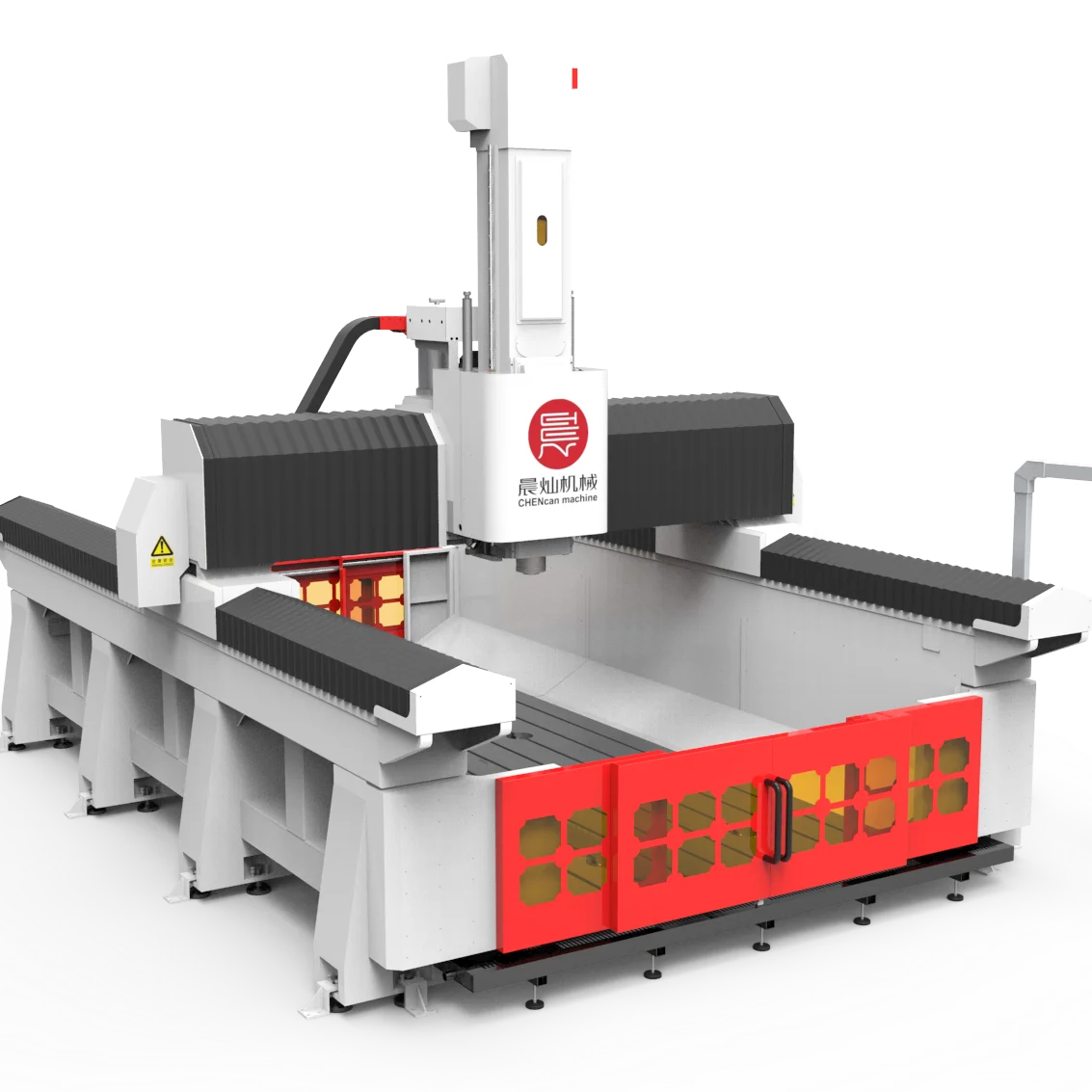

Фрезеровочный станок с ЧПУ для вертикальной обработки
