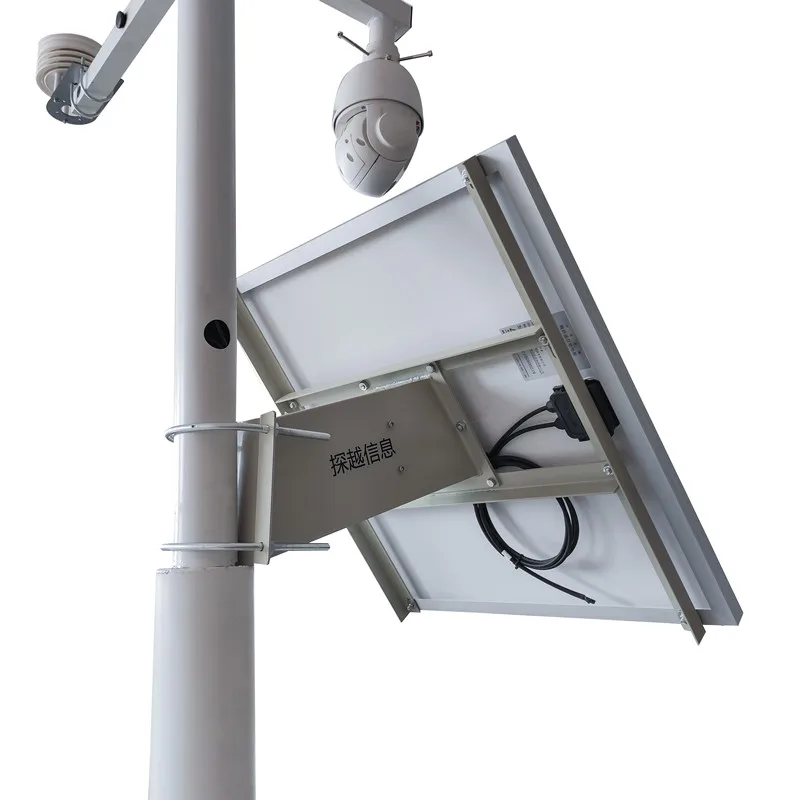

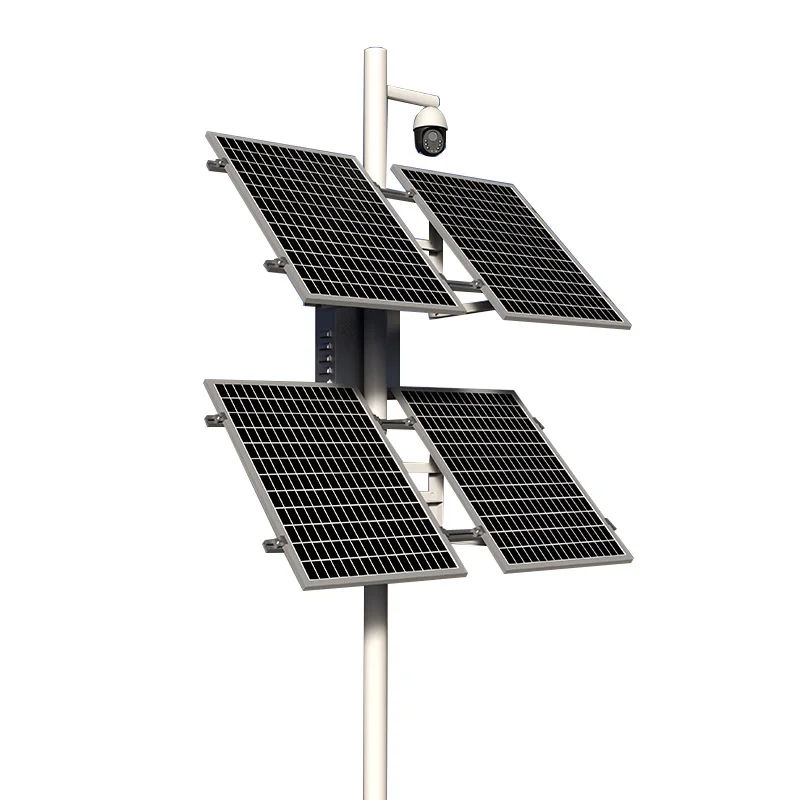

Комплект солнечной панели камера безопасности система видеонаблюдения на энергии наружная беспроводная Солнечная все в
- Категория: Solar Energy Products >>>
- Поставщик: Shandong Tanyue Internet of Things Technology Co. LTD
Сохранить в закладки 1600565473908:
Описание и отзывы
Характеристики
Product Specification
The main parts | ||
Solar Panel | 100 W monocrystalline silicon solar panel*1 | |
Battery | 60 AH Lithium battery*1 | |
Controller | 10 A pmw solar charge controller*1 | |

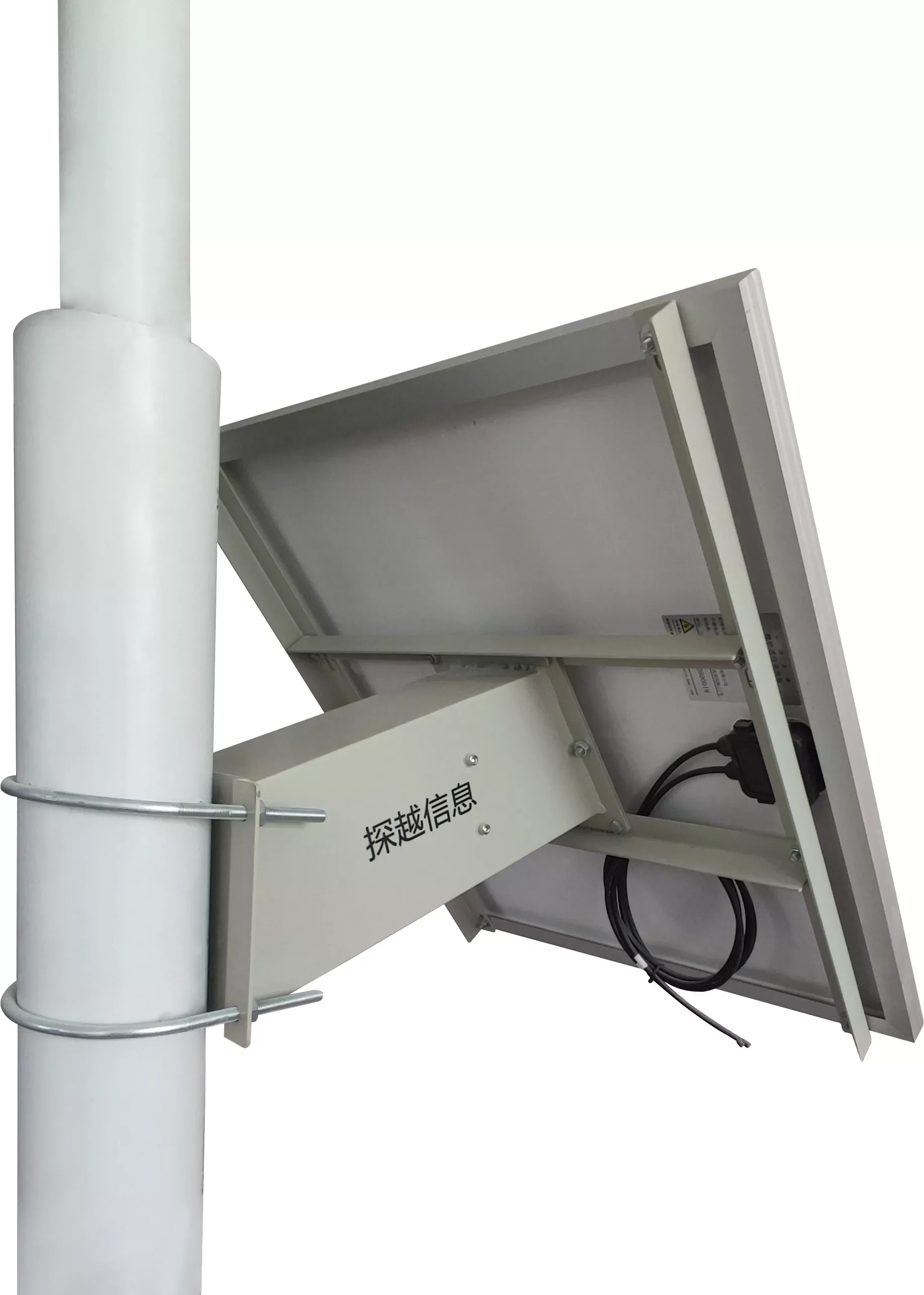

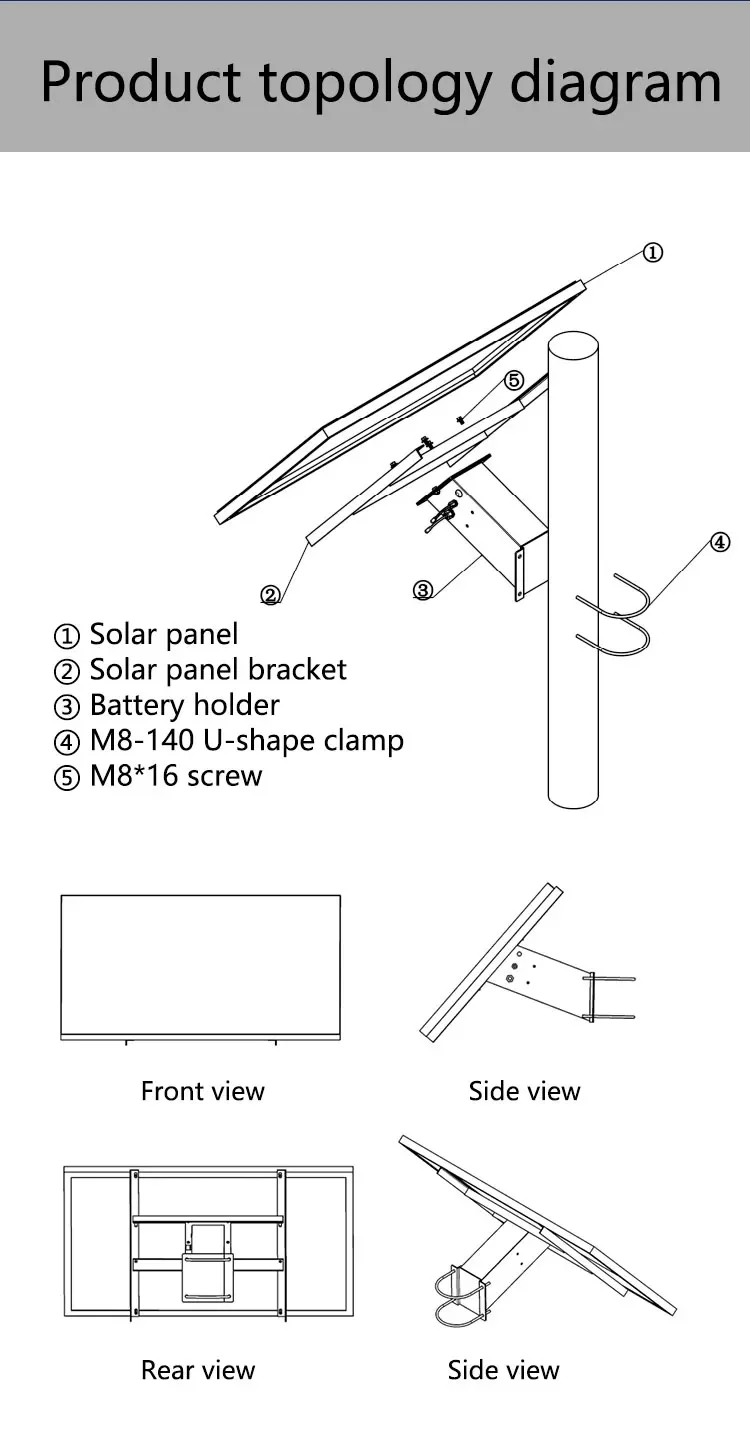

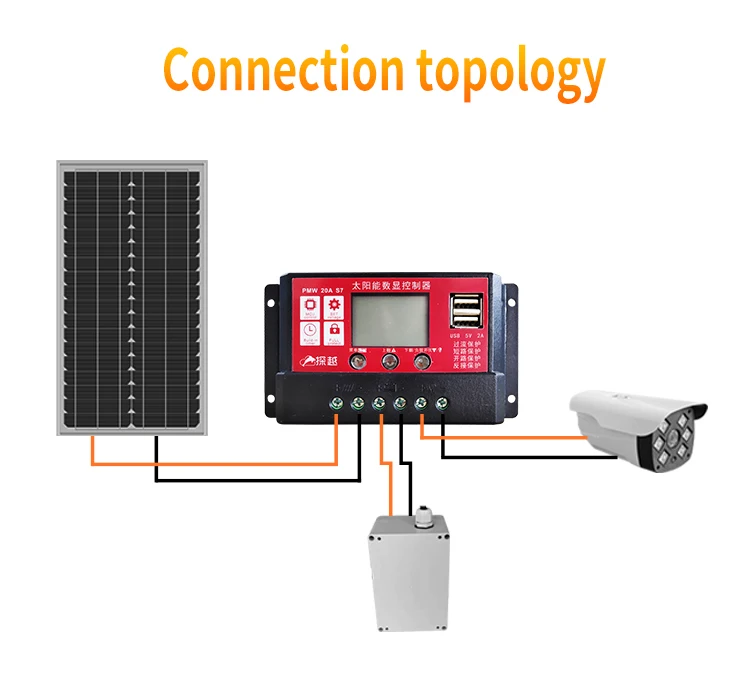

Product assembly diagram(As is shown in).
The product specification | ||||
System output voltage | Default 12V (24V, 36V, 48V Customized ) | |||
System output current | Max 10AMP | |||
Solar panel Pmax | 100W 18V | |||
Battery capacity | 12V 60AH | |||
Controller | 10A PWM solar charge controller | |||
Waterproof size | 280*190*100mm | |||
Mounting brackets | Included | |||
Mounting pole | Not included | |||
Shipping way | Sea freight CIF & DDP | |||
Packing size | 900*725*285mm | |||
Weight | 35kg | |||
OEM service | Supported | |||
Packing list | ||||
Items | Explanation | Quantity | ||
Solar panel | 100W 18v mono solar panel | 1 Piece | ||
Battery | 12V 60AH lithium battery | 1 Piece | ||
Solar controller | 10A PWM solar charge controller | 1 Piece | ||
Solar panel bracket | Bracket for mounting solar panel | 1 Set | ||
U shape clamp | U shape clamp for mounting solar bracket to pole | 2 Pieces | ||
Waterproof box | Waterproof box for mounting solar controller | 1 Piece | ||
Hose clamp | Hose clamp for moungting waterproof box to pole | 2 Pieces | ||
DC wire | 1m DC wire | 1 Piece | ||
Packing box | Packing box | 1 Piece | ||
This solar system is equipped with a 100W solar panel, a 60AH lithium battery and PWM charge controller. Output of this system is 12V DC.
We also provide other solar systems, like 30W , 60W , 80W , 100W , 150W , 200W , 300W , 400W , 500W , 1000W , 3000W , 5000W , 10KW and so on.
Feel free to contact us if you have any requirements about power iusse.
ATTN : Owen
WhatsApp / WeChat / Mobile : +8615315237072
Email : Owen@tenyir.com
WhatsApp / WeChat / Mobile : +8615315237072
Email : Owen@tenyir.com
Product Details
No need power ,Installation becomes easier
With the advancement of technology, many scenarios require the installation of a monitoring system. The monitoring system can view the situation in the area in real time, and can also store the video. But what if there is no electricity supply? Our solar system can help you solve the problem of power supply.
With the advancement of technology, many scenarios require the installation of a monitoring system. The monitoring system can view the situation in the area in real time, and can also store the video. But what if there is no electricity supply? Our solar system can help you solve the problem of power supply.
The latest Solar Energy System set of 2022 is already integrated with a 60ah battery and a PWM solar charge controller.
So when we install this solar power system, it becomes very easy.
Because the rest of the job is as simple as putting the building blocks together.
The latest Solar Energy System set supports the open-hole design of the display position of the digital display controller on the cuboid cylinder.
Toughened glass withstand 5400Pa wind and rain impact
PPF backboard waterproofing and sealing
IP65 junction box
※ Multi Busbar Techinology
※Reduced Hot Spot Loss
※Enhanced mechanical load
※Long Life-time Power Yield
※Durability against extreme environmental confitions
※Reduced Hot Spot Loss
※Enhanced mechanical load
※Long Life-time Power Yield
※Durability against extreme environmental confitions
Model | SIY-SP100W |
Max Power at STC (Pmax) | 100W |
Max Power Voltage (Vmp) | 18V |
Max Power Current (Imp) | 5.55A |
Module Efficiency STC(%) | 21% |
Max System Voltage | 1000V |
Operating Temperature | -40 ℃~85 ℃ |

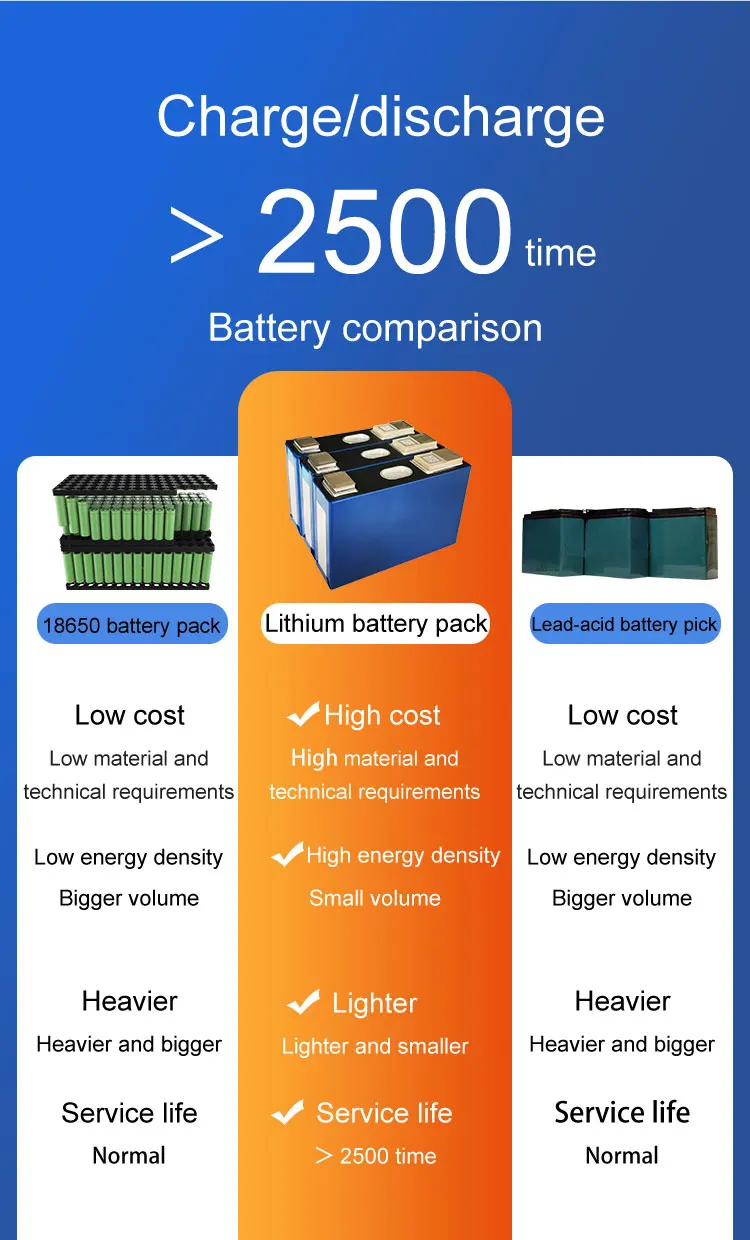

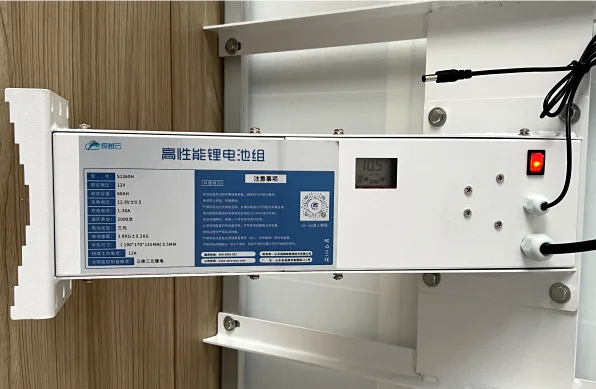

Model | SIY-L60A |
Norminal Voltage | 11.1V |
Rated Capacity | 60AH |
Working Voltage | 7.8V~12.6V |
Max pulse discharge current | 40A |
Cycle life | ≥2500 |

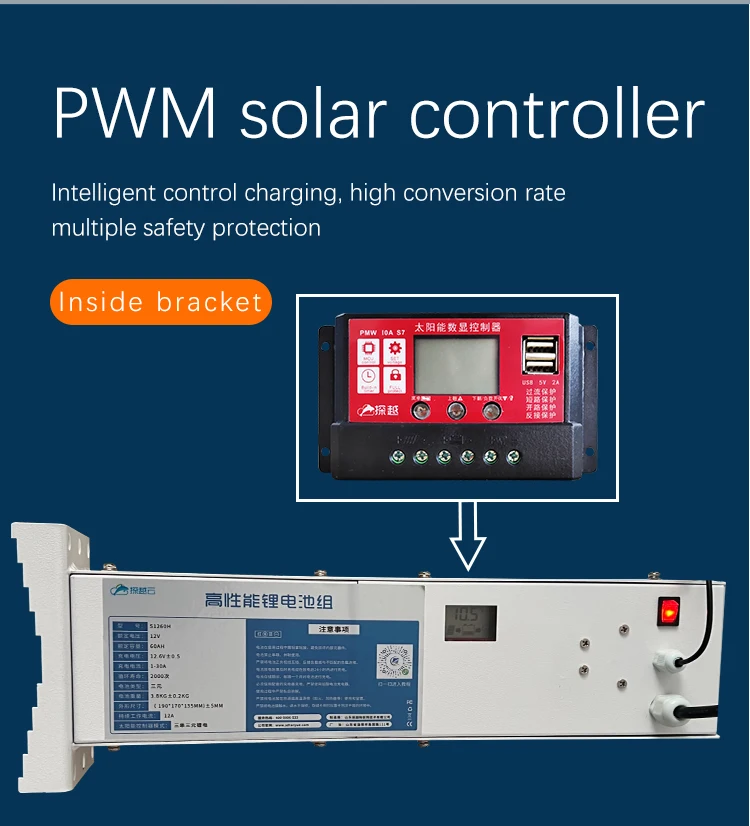

※1.Industrial grade chip
※2.LCD display, data adjustable
※3.PWM charge management
※4.Overload/short circuit protection and other protection functions
※5.Dual MOS anti-backflow circuit, ultra low heat
※2.LCD display, data adjustable
※3.PWM charge management
※4.Overload/short circuit protection and other protection functions
※5.Dual MOS anti-backflow circuit, ultra low heat
ITEM | SIY-PWM10A |
System Voltage | 12V/24V Auto-recognition |
Rated Charge Current | 10A |
Max. PV Input (Voc) | DC50V |
Battery Types | GEL(Default), Sealed(SEL), Flooded(FLD), Lithium(Lit), User-defined(USE) |
Float charging voltage | 13.7V |
Battery System Voltage Range | 10.7V~12.6V |

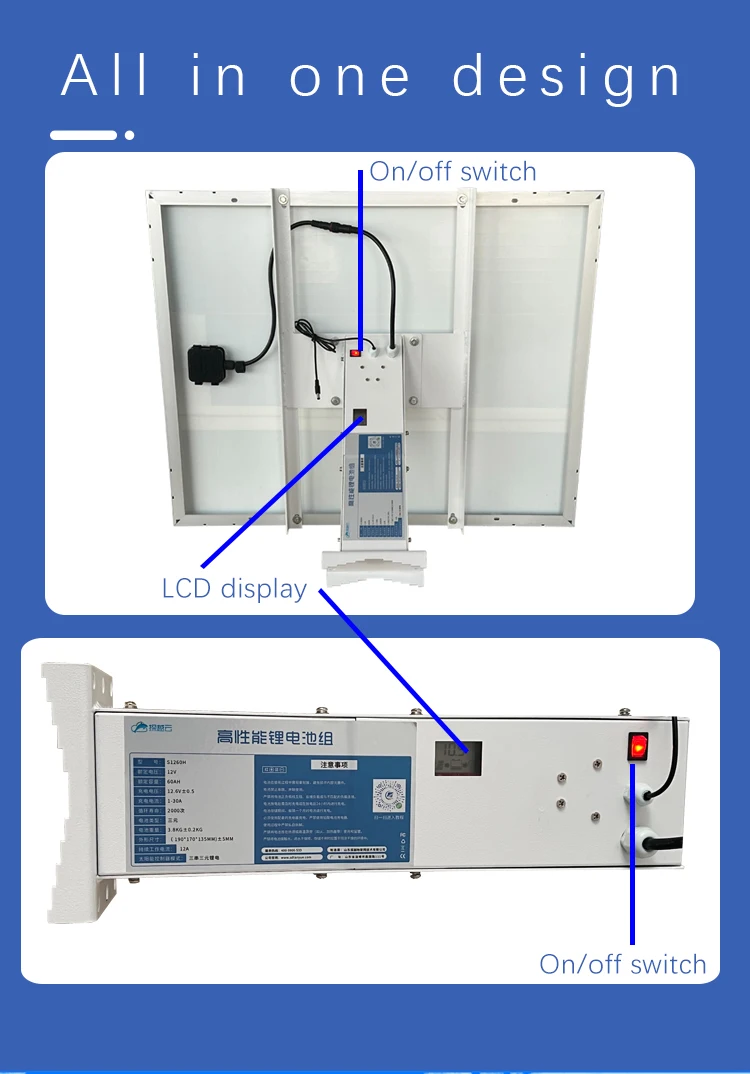

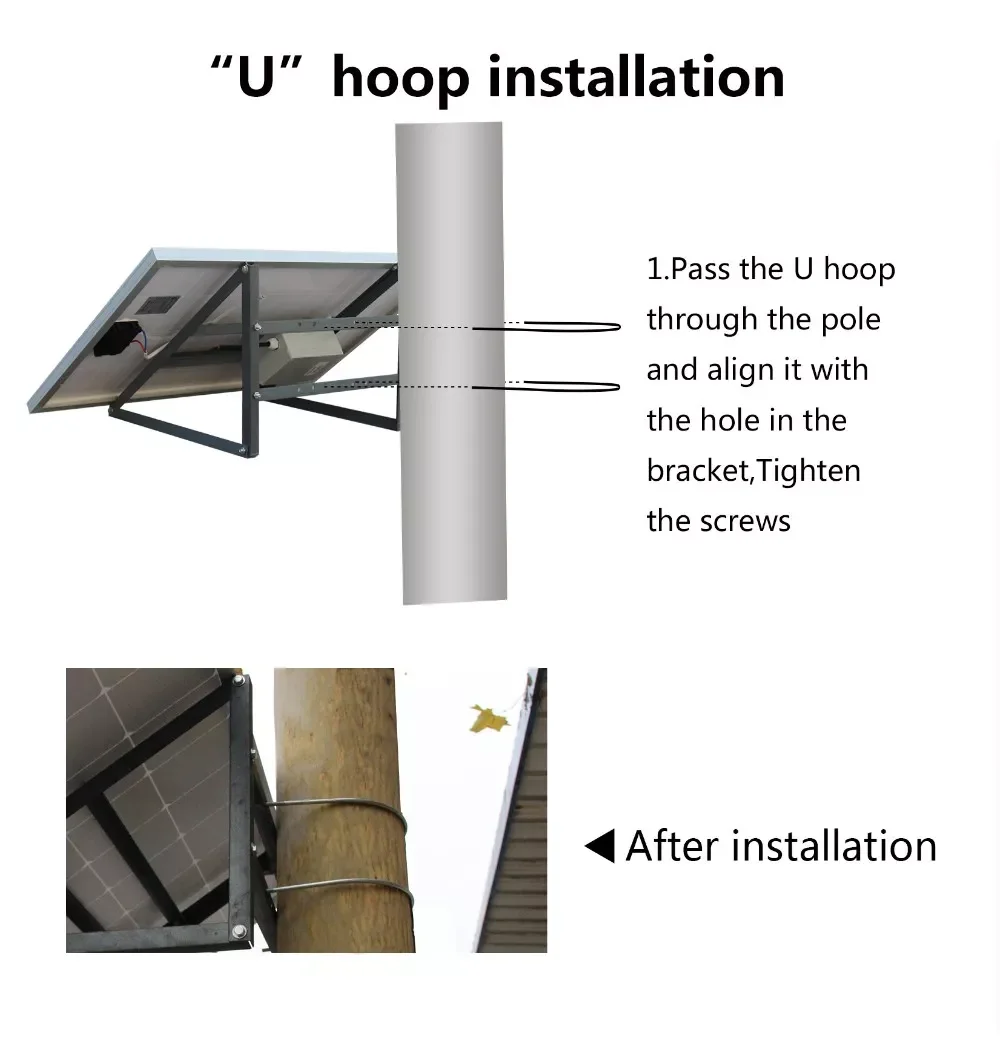

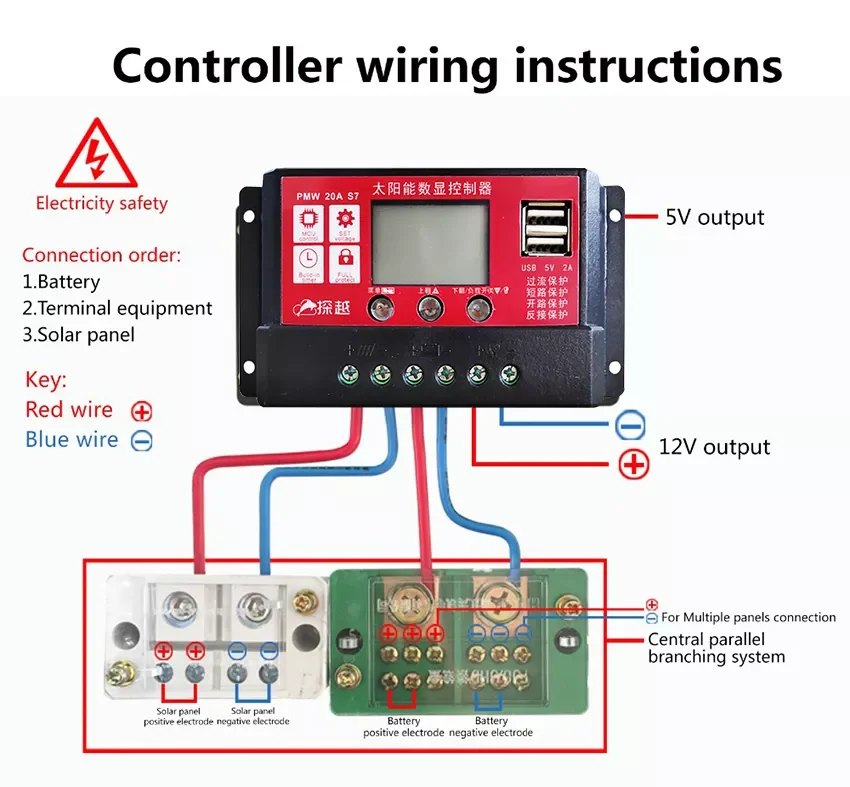

How Easy to Install
※Battery on/off control
※Output 12V DC
※Plug and Play with MC4 PV connector
※Output 12V DC
※Plug and Play with MC4 PV connector

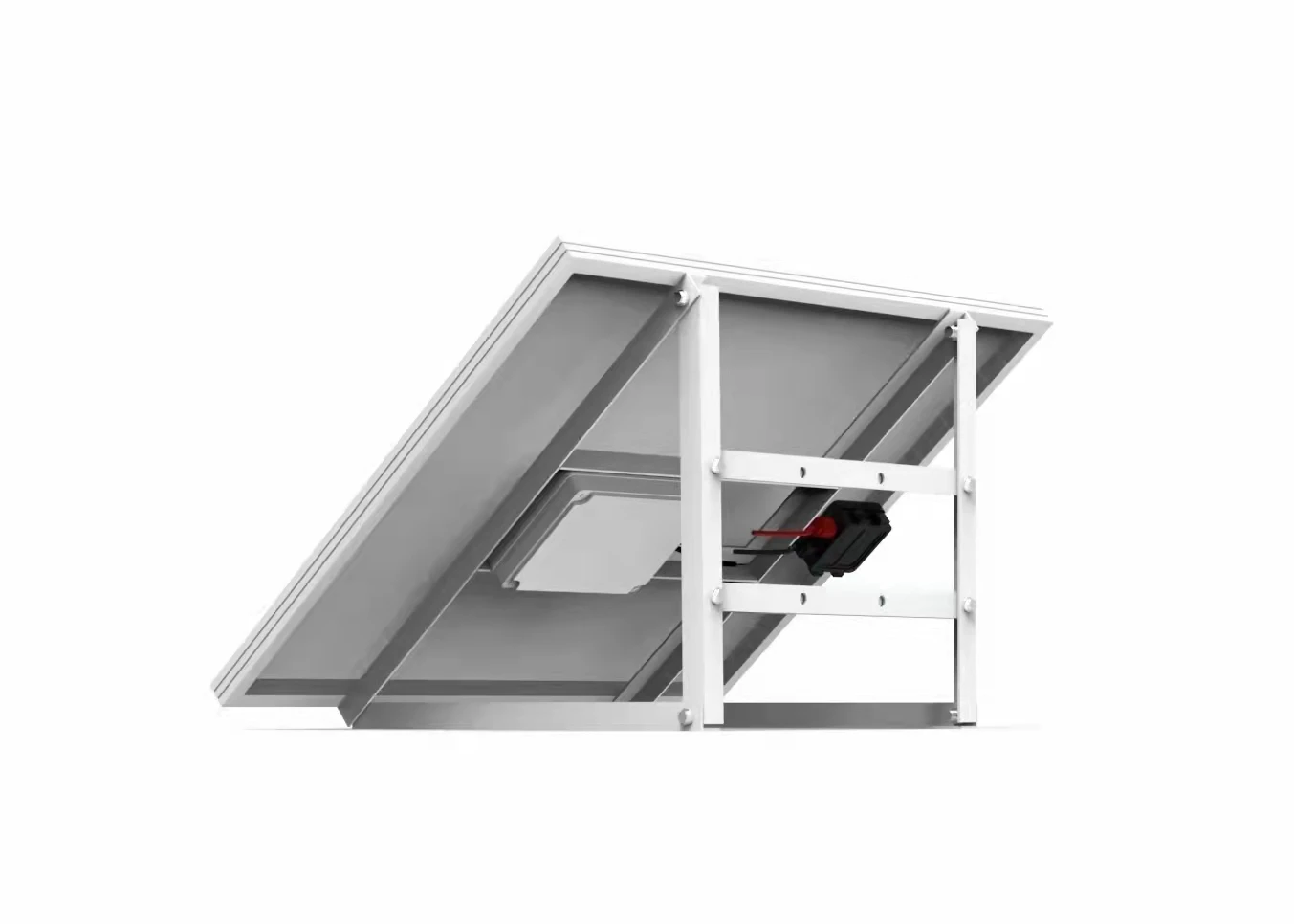

Optional mounting brackets are also available. (As shown below)

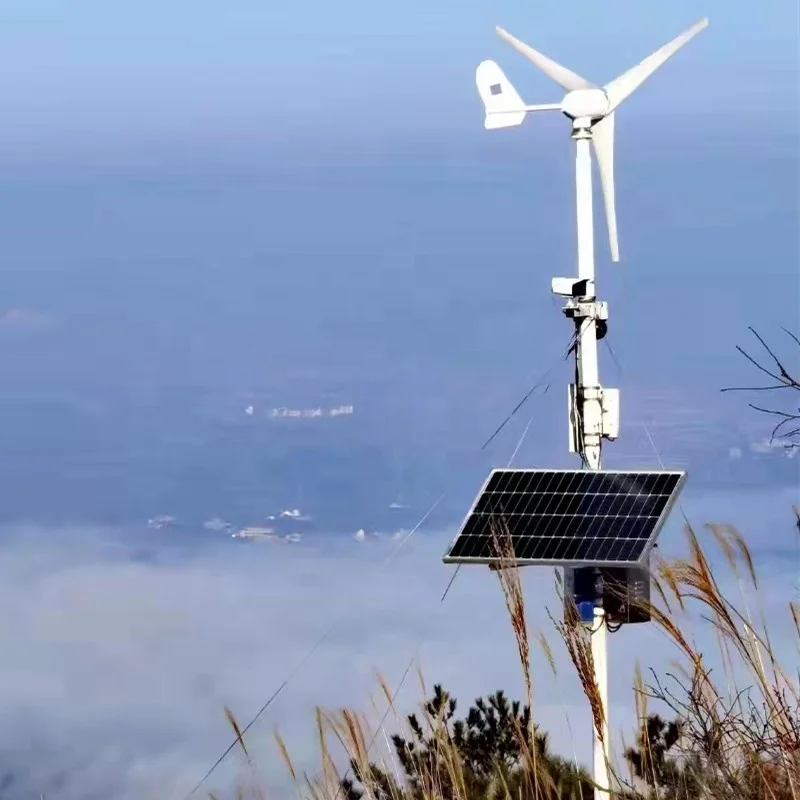

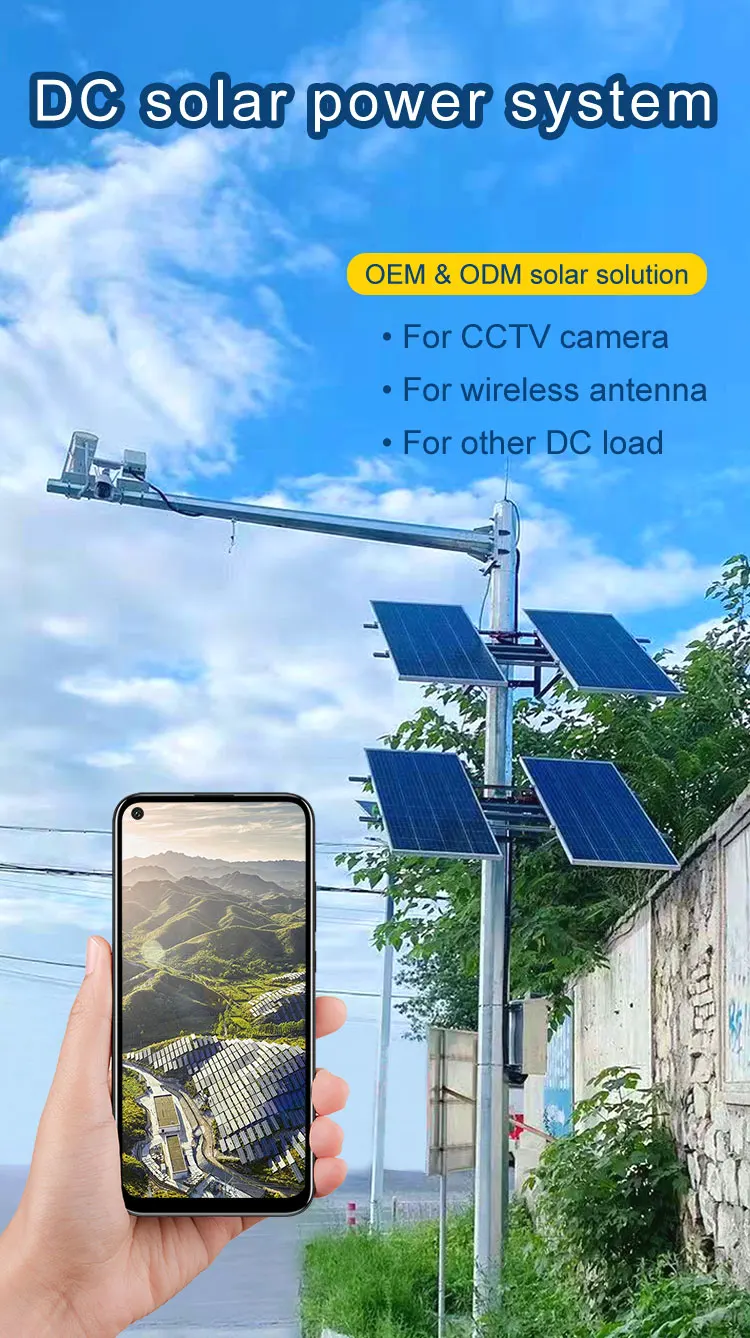

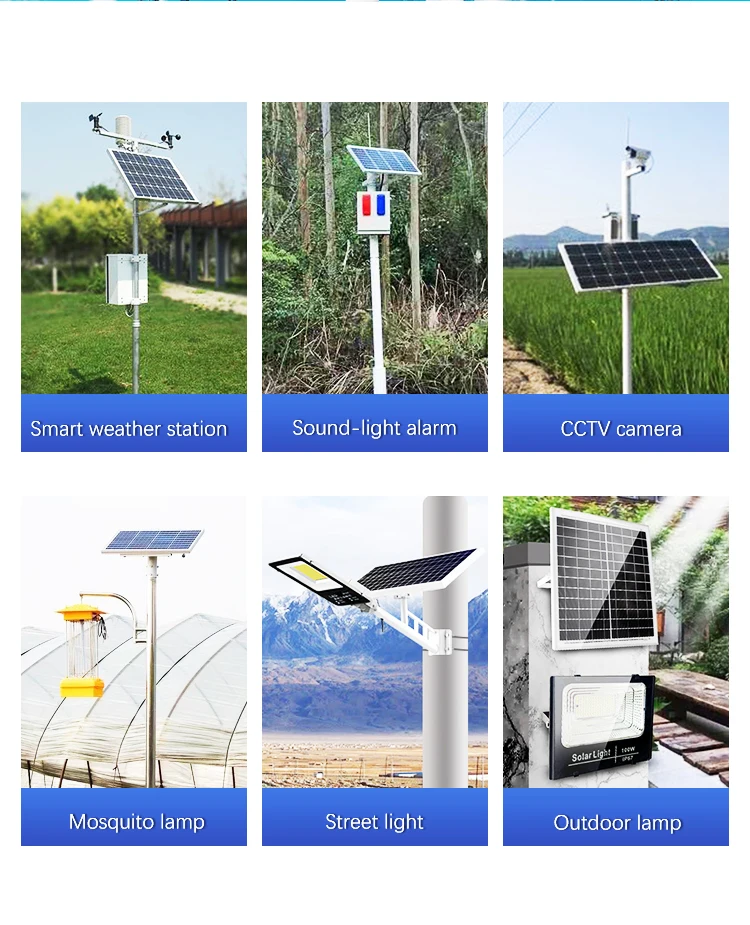

Product Applications

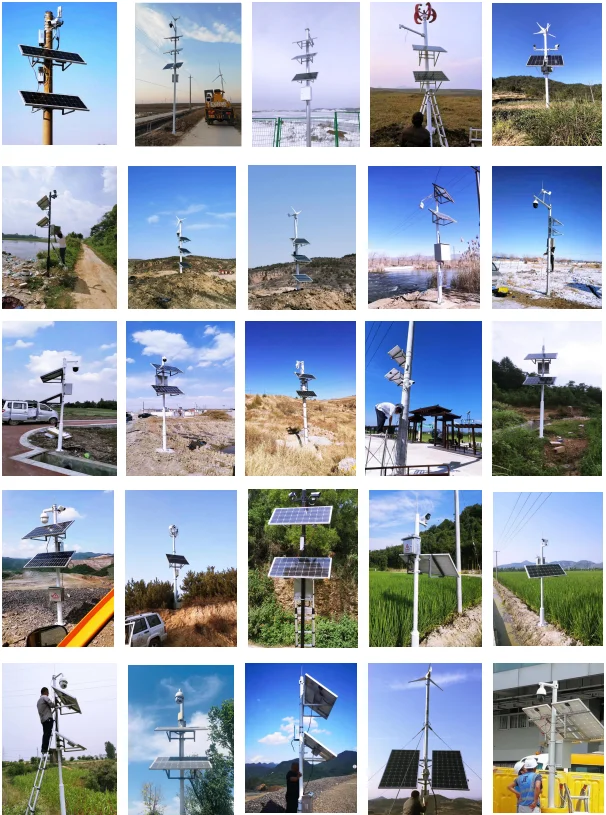

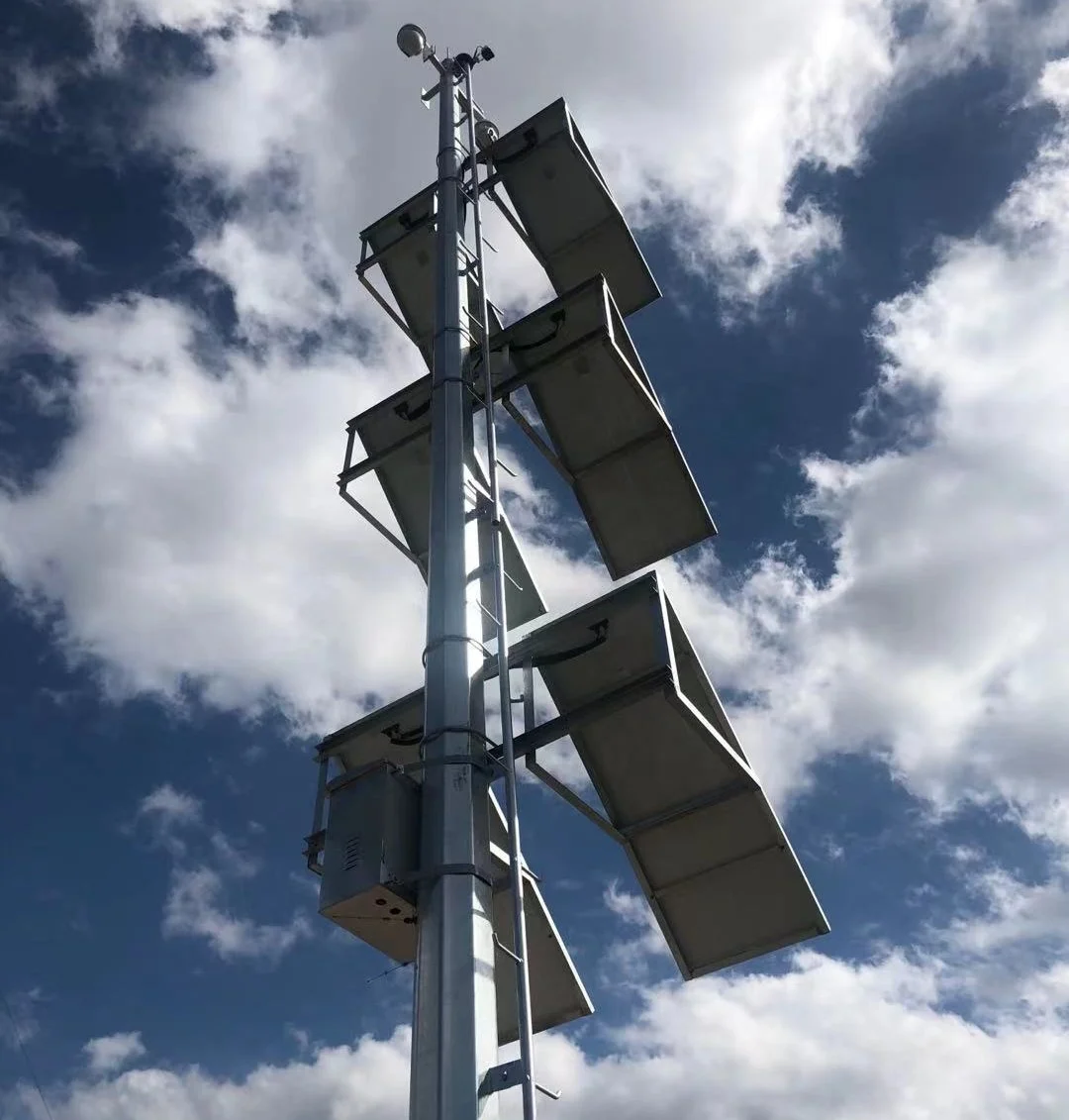

The following are examples of engineering projects our company has done before. For reference only.If you need similar projects, you can find us.We are professional enough to believe that we can do well.

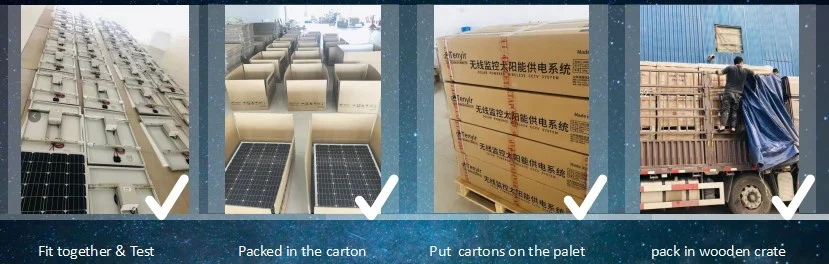

Packing & Delivering
This system is very heavy. Please contact with me, if you are interested in it. I will tell you the best cost-effiective method to get it.
ATTN : Owen
WhatsApp / WeChat / Mobile : +8615315237072
Email : Owen@tenyir.com
WhatsApp / WeChat / Mobile : +8615315237072
Email : Owen@tenyir.com
Packaging requirements | ||
Packadge Contain (set/ctn) | 1set/ctn | |
Carton Dimension | 900*725*285mm /35kg ，2 sets in 1 box | |
Pallet Dimension | 5ctn/pallet, 900*760*1550mm | |
Why Choose Us
The following shows our factory, specialized production equipment and very professional technical personnel, to achieve more professional production and manufacturing process.
We have also done a lot of relevant certification, in terms of quality, you can rest assured that choosing us is your greatest achievement.
FAQ
1. who are we?
We are based in Shandong, China, start from 2019,sell to Domestic Market(21.00%),North America(20.00%),Africa(15.00%),Eastern Asia(12.00%),South Asia(10.00%),Southeast Asia(5.00%),Oceania(4.00%),Mid East(3.00%),Northern Europe(3.00%),South America(2.00%),Western Europe(2.00%),Eastern Europe(00.00%),Central America(00.00%),Southern Europe(00.00%). There are total about 101-200 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Solar Power System,Solar Powered Kit,Solar Panel,Lithium Battery,Solar Trailer
4. why should you buy from us not from other suppliers?
With rich experiences on the wireless devices and cctv system, we can help do complete solutions for your projects. Tenyir Solar sincerely assures you that we will provide high quality PV products with reasonable price to all of our customers around world
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,DDP,DDU；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese
We are based in Shandong, China, start from 2019,sell to Domestic Market(21.00%),North America(20.00%),Africa(15.00%),Eastern Asia(12.00%),South Asia(10.00%),Southeast Asia(5.00%),Oceania(4.00%),Mid East(3.00%),Northern Europe(3.00%),South America(2.00%),Western Europe(2.00%),Eastern Europe(00.00%),Central America(00.00%),Southern Europe(00.00%). There are total about 101-200 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Solar Power System,Solar Powered Kit,Solar Panel,Lithium Battery,Solar Trailer
4. why should you buy from us not from other suppliers?
With rich experiences on the wireless devices and cctv system, we can help do complete solutions for your projects. Tenyir Solar sincerely assures you that we will provide high quality PV products with reasonable price to all of our customers around world
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,DDP,DDU；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese
If you would like more details, please feel free to contact us
ATTN : Owen
WhatsApp / WeChat / Mobile : +8615315237072
Email : Owen@tenyir.com
ATTN : Owen
WhatsApp / WeChat / Mobile : +8615315237072
Email : Owen@tenyir.com
