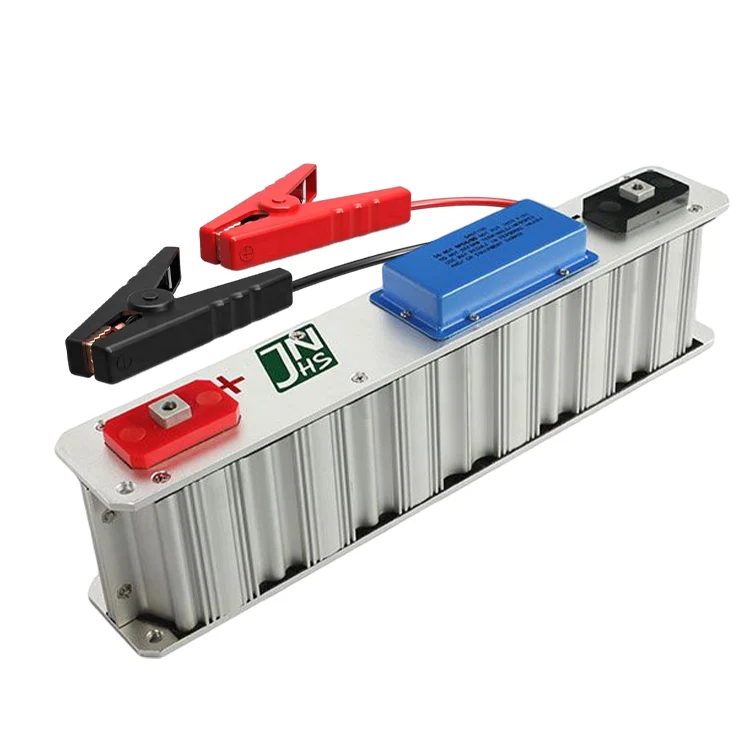

Высококачественный Графеновый супер конденсатор аккумулятор модуль конденсатора гибридная автомобильная батарея 12
145,00 $ - 160,00 $
4 2 в супер конденсатор для хранения солнечной энергии 42000f21000f Графеновый
- Категория: Capacitors >>>
- Поставщик: Shenzhen Yunkun Technology Co. Ltd.
Сохранить в закладки 1600565539055:
Описание и отзывы
Характеристики
Product Description
advantage of super capacitor battery
1) The cycle life shall not be less than 20000 times. It's OK after ten years.
2) Safe and reliable: not easy to catch fire or explode. Much safer than chemical batteries.
3) The energy density is 75-220wh/kg. Small units are powerful.
4) Fast charging: charge 80% in 5-15 minutes.
5) Operating temperature range from -40 ℃ to 70 ℃. Suitable for harsh conditions.
6) Cost effective: no replacement for many years. One time investment
2) Safe and reliable: not easy to catch fire or explode. Much safer than chemical batteries.
3) The energy density is 75-220wh/kg. Small units are powerful.
4) Fast charging: charge 80% in 5-15 minutes.
5) Operating temperature range from -40 ℃ to 70 ℃. Suitable for harsh conditions.
6) Cost effective: no replacement for many years. One time investment
Details Images
Other technical information
Rate charge discharge performance test
Low temperature discharge performance test
Temperature rise performance test
Specifications
Series | Merits | Values | Values | Values |
1 | Rated Capacity | 9.9Ah +5% | 19.8 Ah +5% | 29.7Ah +5% |
21000F+5% | 42000F+5% | 63000F+5% | ||
2 | Upper limit voltage | 4.2V | 4.2V | 4.2V |
3 | Lower limit voltage | 2.5V | 2.5V | 2.5V |
4 | DC internal resistance (10ms) | ≤1mΩ | ≤0.8mΩ | ≤0.6mΩ |
5 | Standard charging current | ≤30A(3C) | ≤60A(3C) | ≤90A(3C) |
6 | Fast charging current | ≤100A(10C) | ≤200A(10C) | ≤300A(10C) |
7 | Rated discharge current | ≤100A(10C) | ≤200A(10C) | ≤300A(10C) |
8 | Maximum continuous discharge current | ≤200A(20C) | ≤400A(20C) | ≤600A(20C) |
9 | Maximum discharge duration | 10s | 10s | 10s |
10 | Maximum temperature rise | 55±5℃ | 55±5℃ | 55±5℃ |
11 | safety | Refer to GB / T 31485-2015 "Safety requirements and test methods for power batteries for electric vehicles" | Refer to GB / T 31485-2015 "Safety requirements and test methods for power batteries for electric vehicles" | Refer to GB / T 31485-2015 "Safety requirements and test methods for power batteries for electric vehicles" |
12 | Charge and discharge temperature range | -40~65℃ | -40~65℃ | -40~65℃ |
13 | Storage temperature range | -40~55℃ | -40~55℃ | -40~55℃ |
14 | Fast charge cycle life | ≥ 10000 times (10c) | ≥ 10000 times (10c) | ≥ 10000 times (10c) |
15 | Slow charge cycle life | ≥ 20000 times (1c) | ≥ 20000 times (1c) | ≥ 20000 times (1c) |
16 | weight | ≤340g | ≤650g | ≤950g |
17 | Dimensions (diameter D × height H) | 300×175*60 | 300×175*120 | 300×175*180 |
Our Advantages
packaging&shipping
Company Profile
Dust-free workshop
Colleagues working in dust-proof operation box in dust-free car
Electrode coating machine
Coating machine is producing electrode
Finished product test
Colleagues are testing the product performance
Electrode roll forming workshop
Super capacitor electrodes are formed by pressing in this workshop
Business colleagues
Corner of the office
A corner of a dust-free factory
A corner of a dust-free factory
FAQ
Q1. Can I have a sample order for this product?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q3. Do you have any MOQ limit for sample order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for the product?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6: Do you offer guarantee for the products?
A: Yes, we offer 1-2 years warranty to our formal products
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q3. Do you have any MOQ limit for sample order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for the product?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6: Do you offer guarantee for the products?
A: Yes, we offer 1-2 years warranty to our formal products
Похожие товары
Прейскурант на конденсатор cbb60 конденсатор 90 мкФ 250vac конденсатор

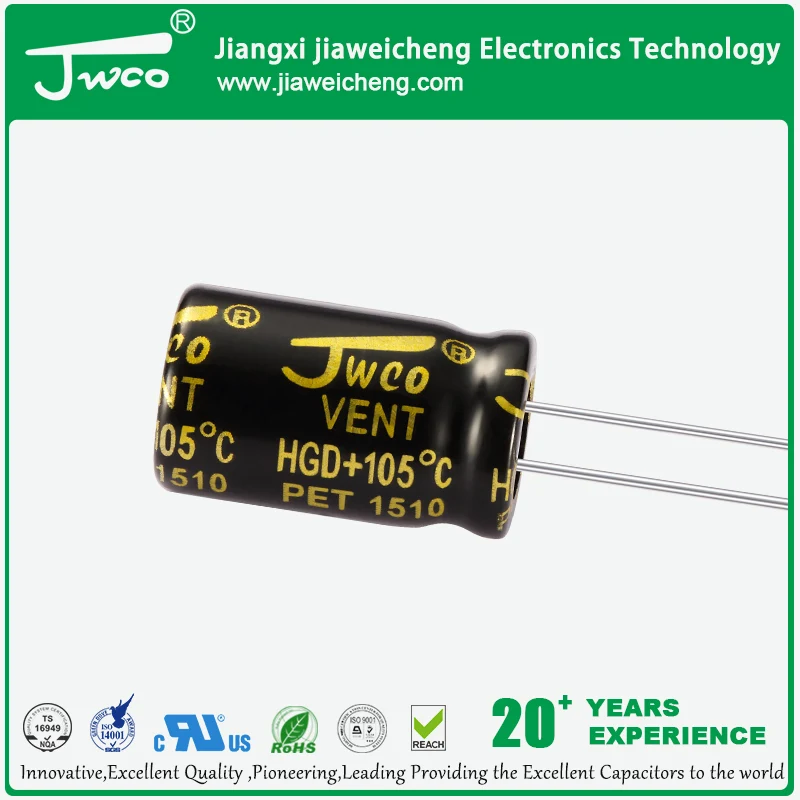

JWCO горячий продавать постоянного тока высокого напряжения электролитический конденсатор

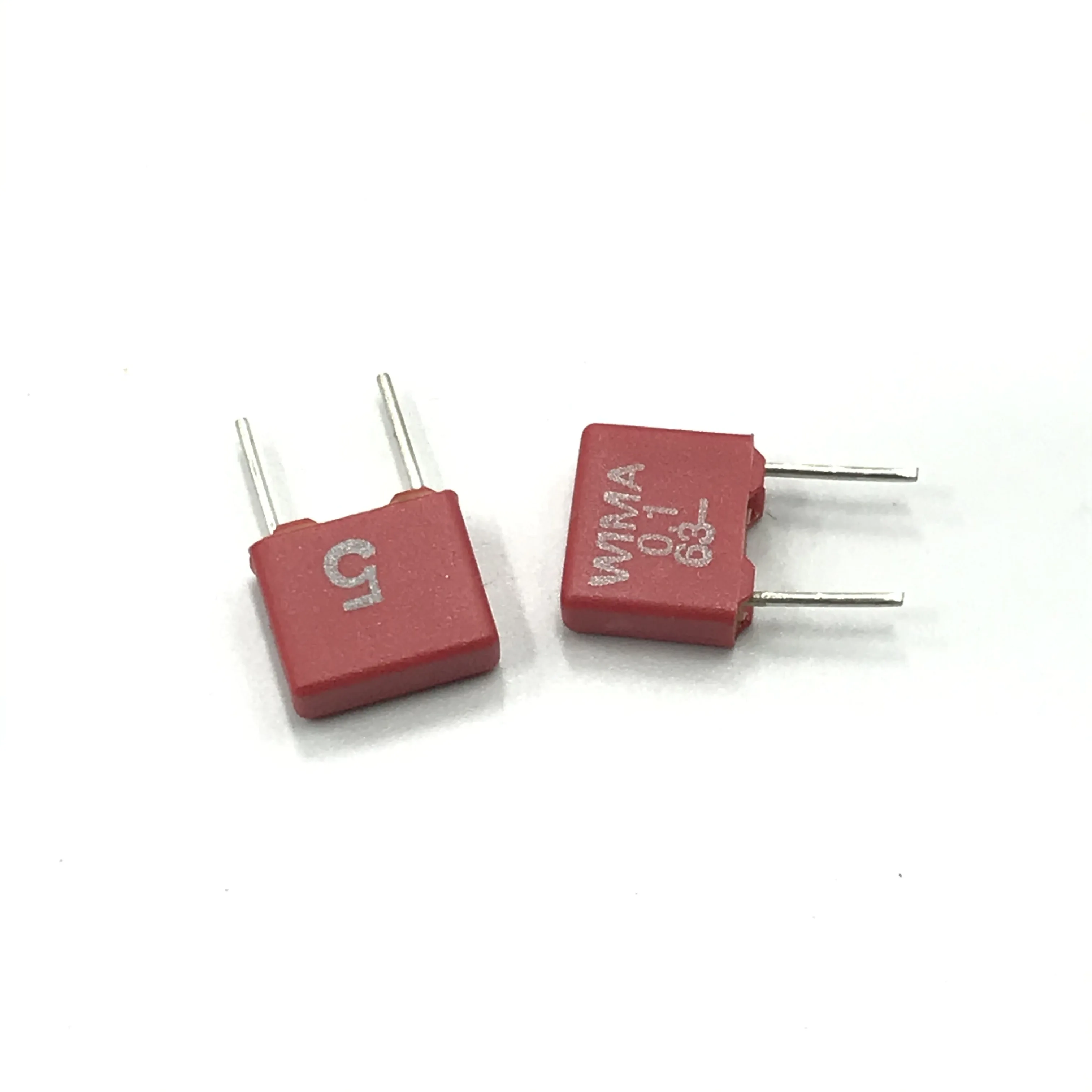

Wima 0,1 мкФ с алюминиевой крышкой, 63В 63VDC пленочный конденсатор
0,20 $

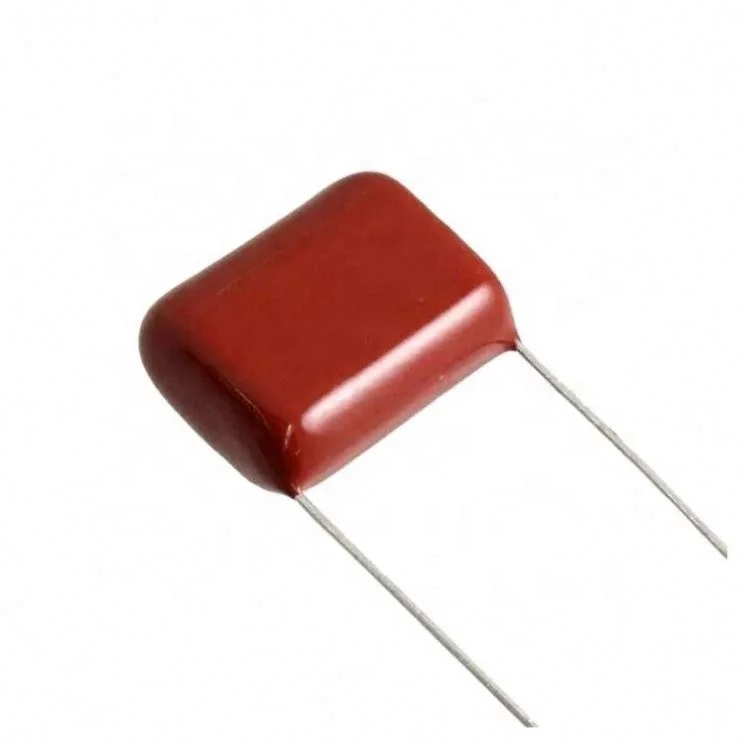

Металлизированный полиэфирный пленочный конденсатор 1 3 UF p20 мм CBB22 135J

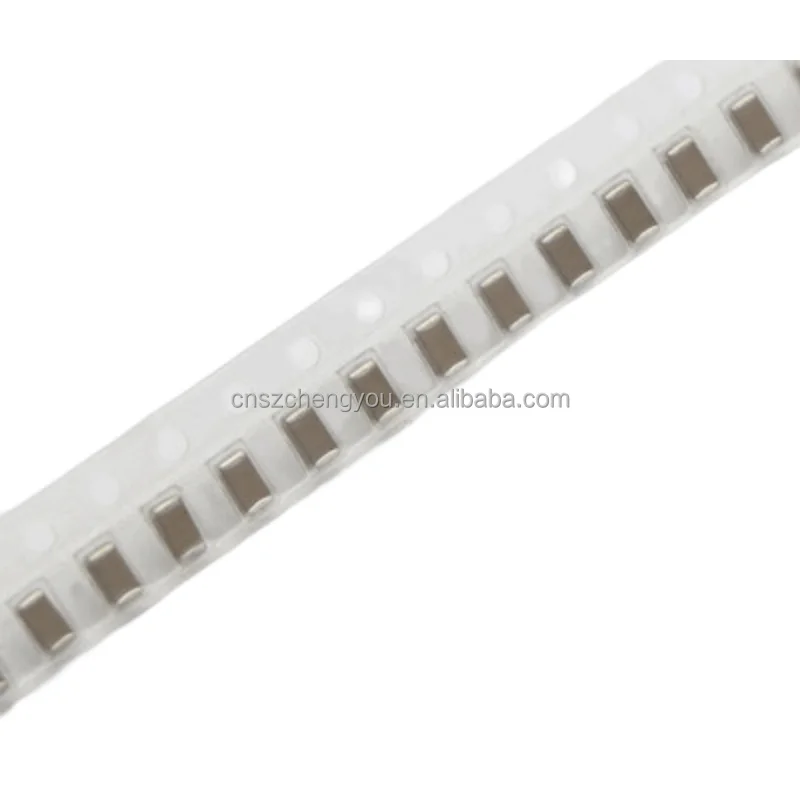

Керамический конденсатор 10 мкФ 25V X5R 10% Pad SMD 0805 T/R GRM21BR61E106KA73L

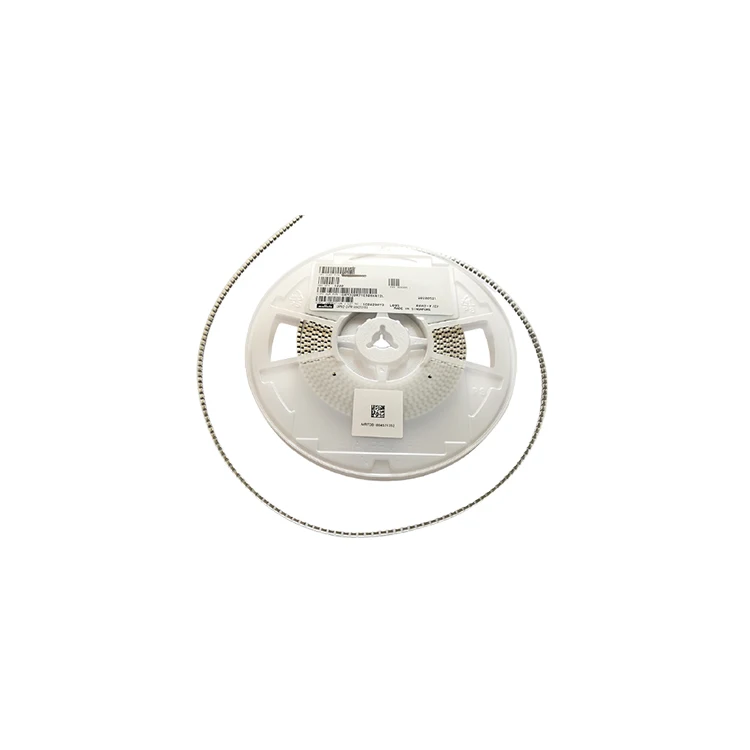

CC0603MRX5R5BB226 0603X5R226M6.3V 22UF Chips capacitor integrated circuit
1,00 $ - 99,90 $

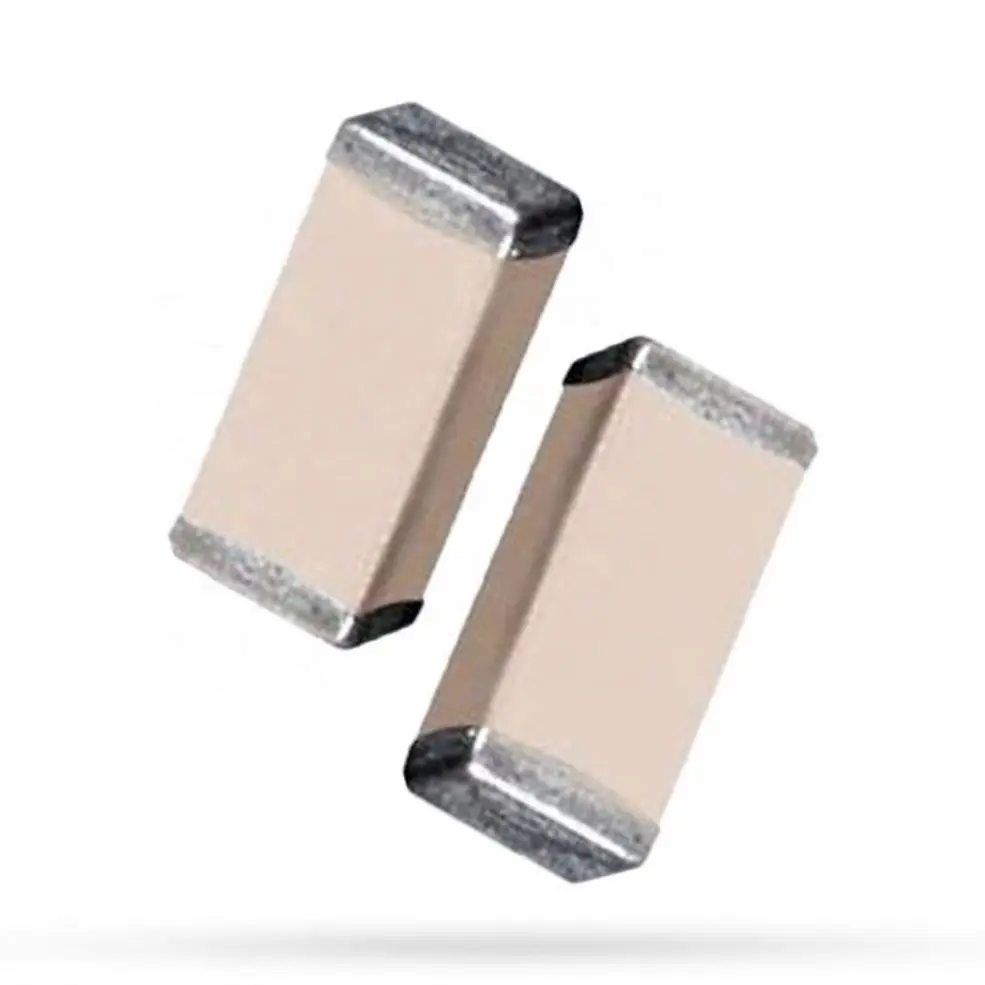

JC NMC1210X5R106K50TRPLPF конденсаторы керамические 10 мкФ 50 В X5R 10% колодка SMD 1210 85C Ультра низкий ESR T/R MLCC
