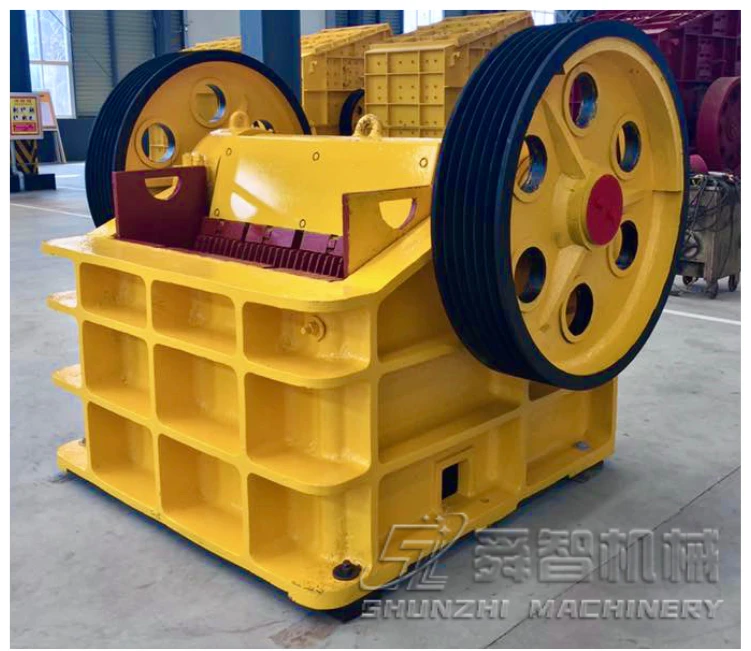

Щековая дробилка для камня от производителя большая камнедробилка Pe 900X1200 щековая заводская цена
- Категория: Mining Machinery >>>
- Поставщик: Henan Shunzhi Machinery Co. Ltd.Henan Ltd.
Сохранить в закладки 1600565842415:
Описание и отзывы
Характеристики
JAW CRUSHER
Jaw crusher is a widely used crushing equipment. It consists of two jaw plates, the movable jaw, and the static jaw, which form a crushing cavity. It stimulates the movement of the two jaws of an animal to complete the material-crushing operation.
As a primary crusher, it is mainly used to break large pieces of ore or rock into smaller particle sizes for further secondary or fine-crushing processing.
Jaw crushers are available in various models and specifications, such as PE-250×400, PE-400×600, PE-500×750, PE-600×900, PE-750x1060, PE-900x1200, PE-1200x1500, etc. In different models, The crushers differ in terms of feed port size, maximum feeding particle size, discharge port adjustment range, processing capacity, motor power, and weight.

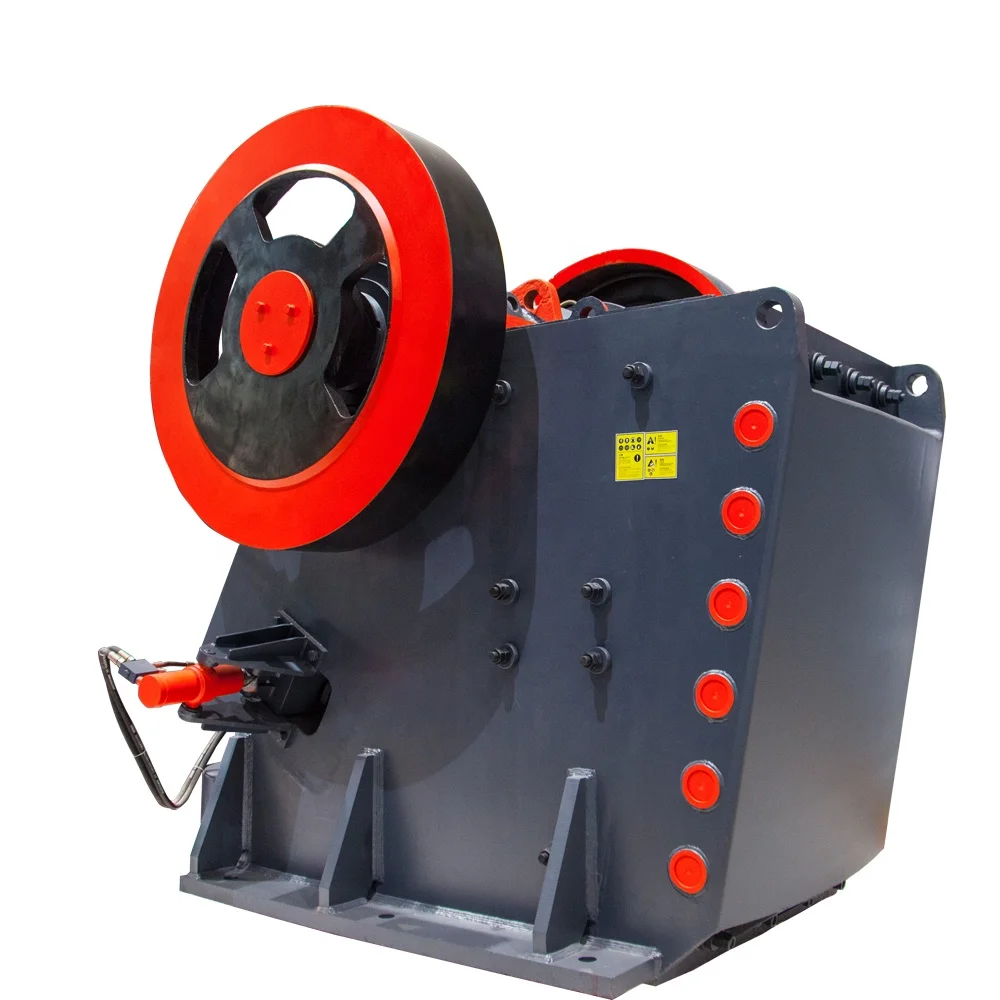

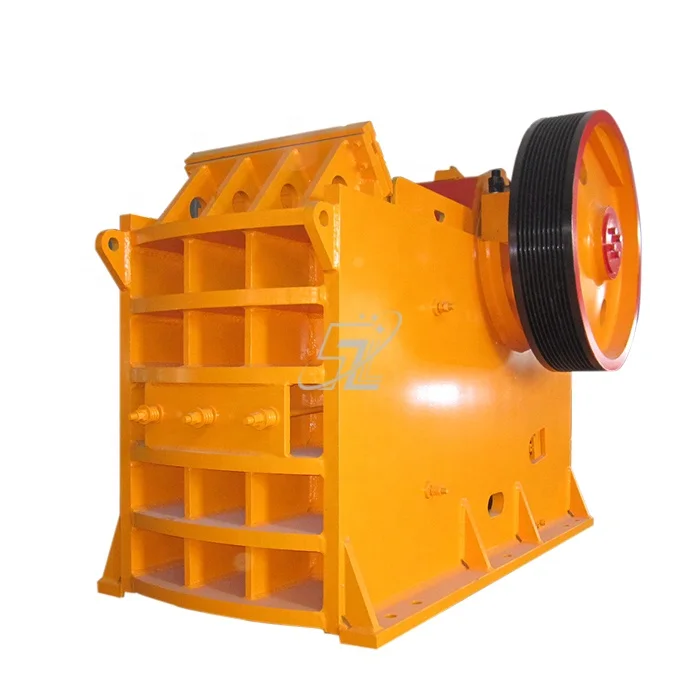

VARIOUS MODELS JAW CRUSHER

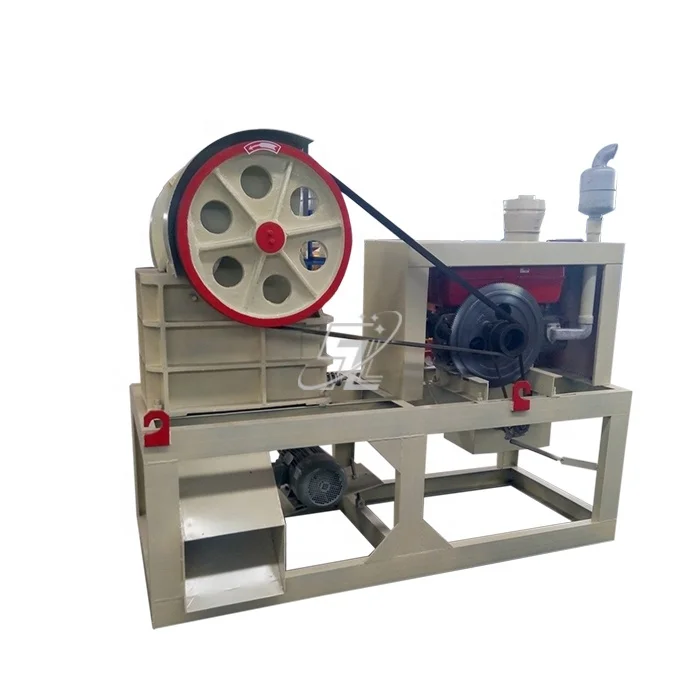

DIESEL VERSION

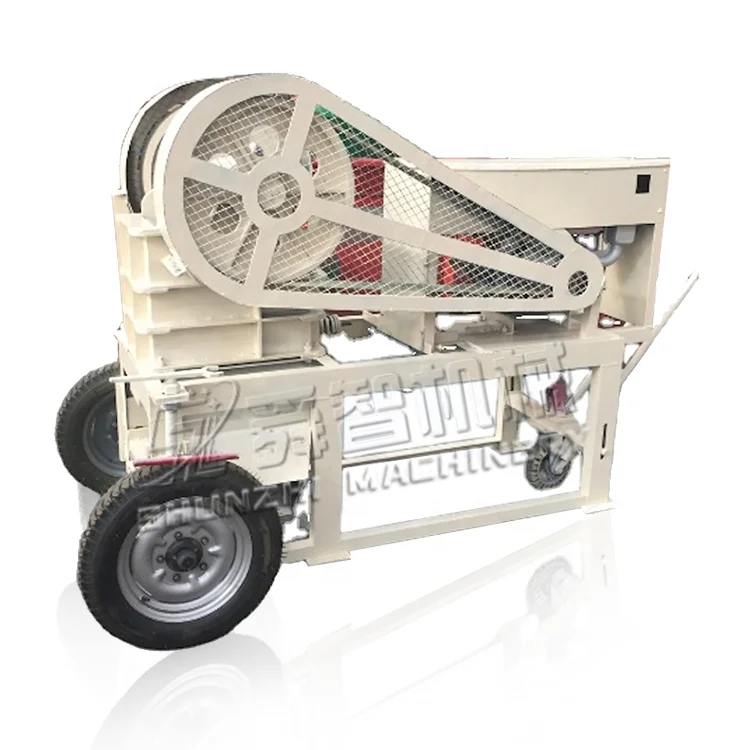

REMOVABLE VERSION

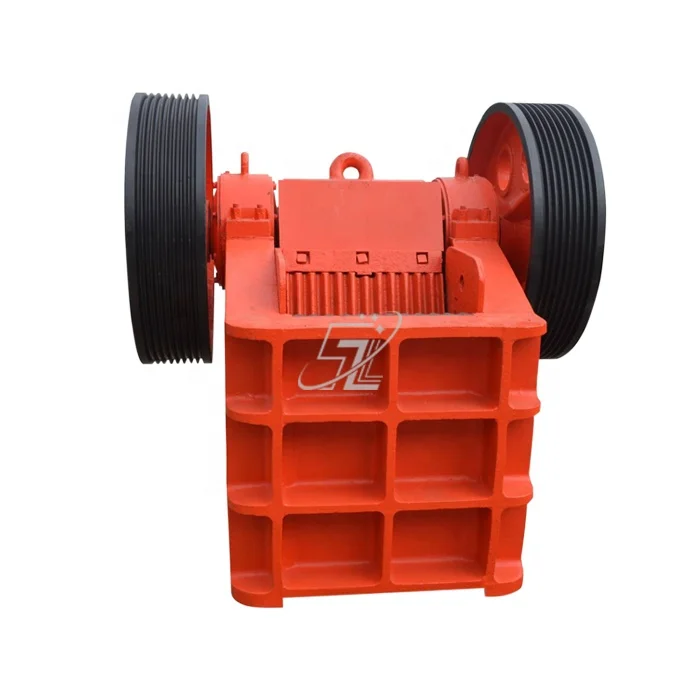

MOTOR VERSION
MORE COMBINATIONS CAN BE CUSTOMIZED ACCORDING TO CUSTOMER NEEDS
PRODUCT DETAILS
1.STATIC JAW PLATE
3.MOVING JAW PLATE
4.PULLEY
5.CENTRIFUGAL SHAFT
6.THRUST PLATE
7.ADJUSTMENT BLOCK
2.SIDE GUARD
3.MOVING JAW PLATE
4.PULLEY
5.CENTRIFUGAL SHAFT
6.THRUST PLATE
7.ADJUSTMENT BLOCK
SCOPE OF APPLICATION
RIVER PEBBLES
MARBLE
BASALT
GRANITE
Jaw crusher is suitable for processing various materials with a particle size not exceeding 1200mm and a compressive strength not exceeding 320MPa.
Ore: such as granite, quartz, river pebbles, calcite, dolomite, iron ore, silica ore, basalt, etc.
Rock: including rocks of various hardness. Because of its large crushing ratio and uniform product particle size, it is particularly suitable for the initial crushing of large rocks.
Construction waste: such as concrete fragments, bricks, construction waste, etc., which can be crushed into recycled aggregates or recyclable materials.
Industrial raw materials: such as limestone, marble, etc., these materials are widely used in many industrial fields, and jaw crushers can effectively handle and meet their processing needs.
Ore: such as granite, quartz, river pebbles, calcite, dolomite, iron ore, silica ore, basalt, etc.
Rock: including rocks of various hardness. Because of its large crushing ratio and uniform product particle size, it is particularly suitable for the initial crushing of large rocks.
Construction waste: such as concrete fragments, bricks, construction waste, etc., which can be crushed into recycled aggregates or recyclable materials.
Industrial raw materials: such as limestone, marble, etc., these materials are widely used in many industrial fields, and jaw crushers can effectively handle and meet their processing needs.
The discharge port of the jaw crusher can be adjusted in size, and the particle size of the material can be controlled by adjusting the size of the discharge port.
The adjustment range of the discharge port of the jaw crusher is generally between 10~300mm, and the specific range may vary depending on the model and specifications.
The width of the discharge port can be changed by manually rotating the bolts on the discharge port or adjusting the wedge.
The adjustment range of the discharge port of the jaw crusher is generally between 10~300mm, and the specific range may vary depending on the model and specifications.
The width of the discharge port can be changed by manually rotating the bolts on the discharge port or adjusting the wedge.
TECHNICAL PARAMETERS
Model | Feed opening (mm） | Max.feeding size (mm) | Adjusting range of discharge opening (mm) | Processing capacity (t/h) | Motor power (kw) | Total weight (t) |
PE-250×400 | 250×400 | 210 | 20-60 | 5-20 | 15 | 2.8 |
PE-400×600 | 400×600 | 340 | 40-100 | 16-60 | 30 | 6.65 |
PE-500×750 | 500×750 | 425 | 50-100 | 40-110 | 55 | 11.73 |
PE-600×900 | 600×900 | 500 | 65-180 | 80-180 | 55-75 | 16.13 |
PE-750×1060 | 750×1060 | 630 | 80-180 | 110-320 | 90-110 | 30 |
PE-900×1200 | 900×1200 | 780 | 95-225 | 220-450 | 110-132 | 49 |
PE-1000×1200 | 1000×1200 | 850 | 195-280 | 280-550 | 110-132 | 55 |
PE-1200×1500 | 1200×1500 | 1020 | 150-300 | 400-800 | 160-220 | 109 |
PEX-150×750 | 150×750 | 120 | 18-48 | 8-25 | 15 | 3.5 |
PEX-250×750 | 250×750 | 210 | 20-50 | 13-35 | 30 | 4.96 |
PEX-250×1000 | 250×1000 | 210 | 25-60 | 16-52 | 30-37 | 6.5 |
PEX-250×1200 | 250×1200 | 210 | 25-60 | 20-61 | 37-45 | 8.8 |
PEX-300×1300 | 300×1300 | 250 | 20-90 | 25-95 | 55-75 | 12.6 |
OTHER PRODUCTS
CUSTOMER SITE
DELIVERY
ABOUT US
Our factory
Henan Shunzhi Machinery Co.,Ltd. is a modern enterprise specialized in manufacturing mining-equipment which is integrated with research, production, and marketing of the mining equipments. We provide complete sets of mine selection machines, crusher equipment, sand making equipment, and dryer equipment, etc.
WELCOME TO VISIT OUR FACTORY
-- Our customers from over 30 countries and regions.
-- High efficiency,high quality,low cost. We can customize capacity according to customer requirements.
-- We provide engineer to help you with installation, training, our engineers are also available to install overseas if you need.
-- High efficiency,high quality,low cost. We can customize capacity according to customer requirements.
-- We provide engineer to help you with installation, training, our engineers are also available to install overseas if you need.

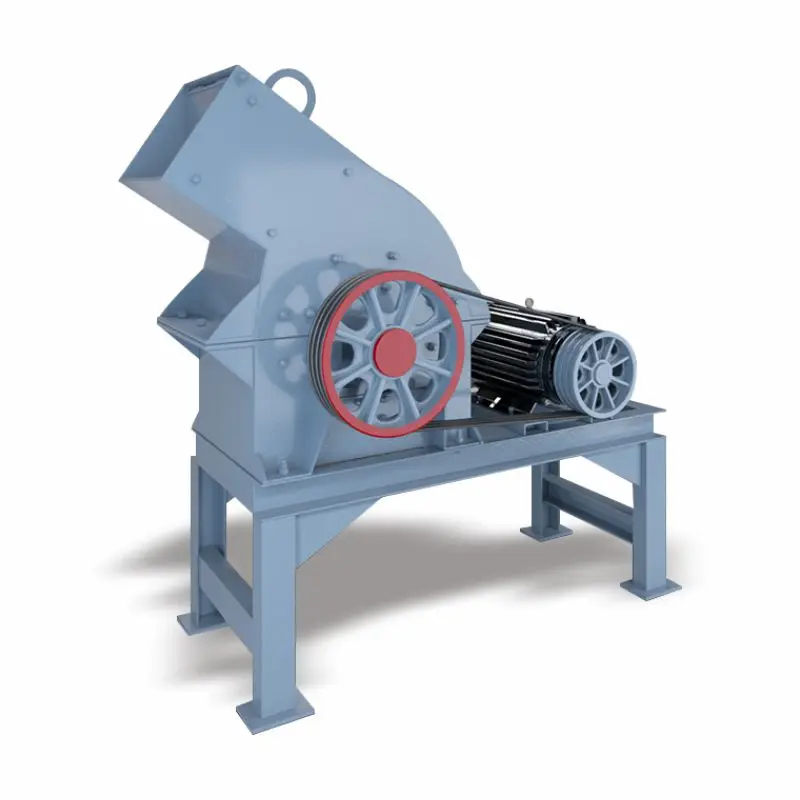

OTHER TYPES OF CRUSHER
FAQ
Q1. Are you factory or trade company?
A1. We are manufacturer, we also supply trade service.
Q2. What about your price?
Q3. What payment terms do you accept?
Q4. How about your delivery time?
Q5: what will you do if the machine is broken down?
Q6: How do you make our business long-term and good relationship?
Q2. What about your price?
A2. We always supply the products with low price, because we believe this is the way to build long-term business and earn good reputation.Our price is 3%-5% lower than the average market price.
Q3. What payment terms do you accept?
A3. Welcome clients to place orders by Alibaba Trade Assurance! Other payment ways such as T/T, L/C, D/P, etc can be negotiated.
Q4. How about your delivery time?
A4: Generally, it will take 15-20 working days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q5: what will you do if the machine is broken down?
A5: The Products warranty is one year. We will provide the technical advice and find the solution immediately for you when the machine is in trouble. For those wear parts, we guarantee the high quality parts for long-term supply.
Q6: How do you make our business long-term and good relationship?
A6: 1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
Похожие товары

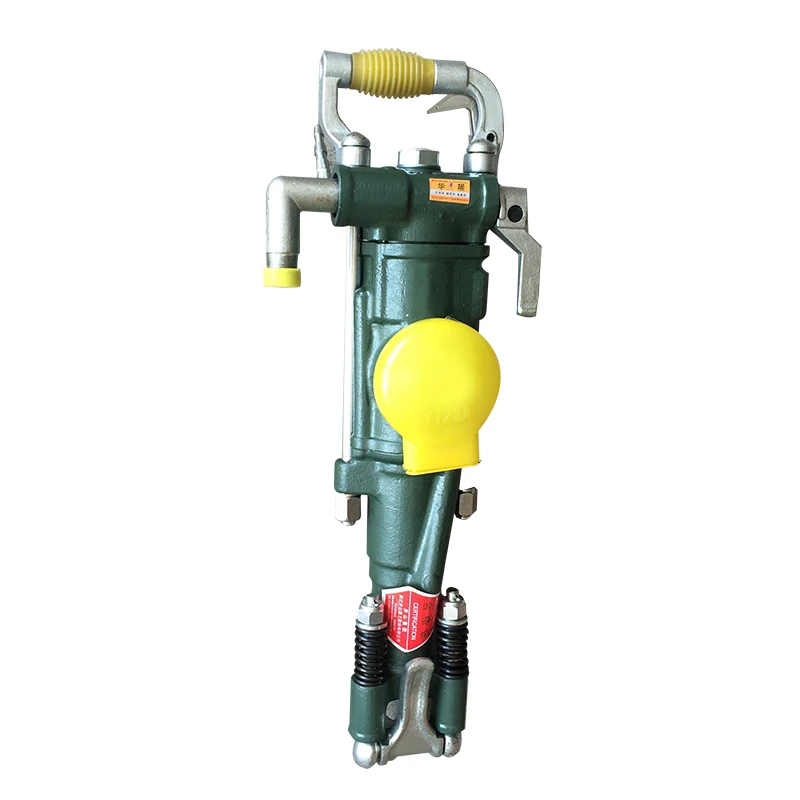

Китайский завод Hualong буровой инструмент YT28A молоток пневматическая цена буровая машина
