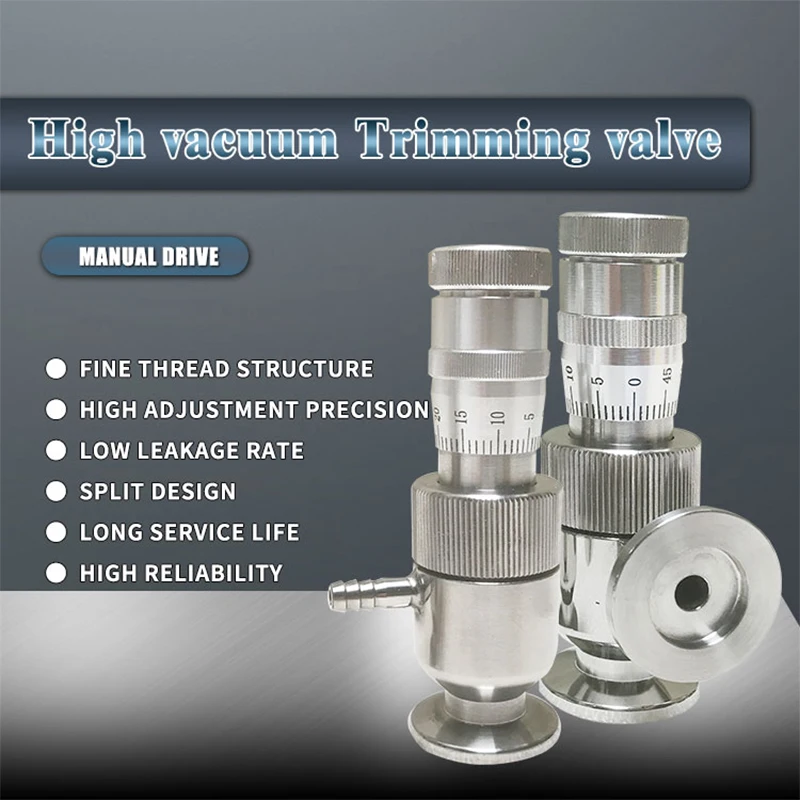

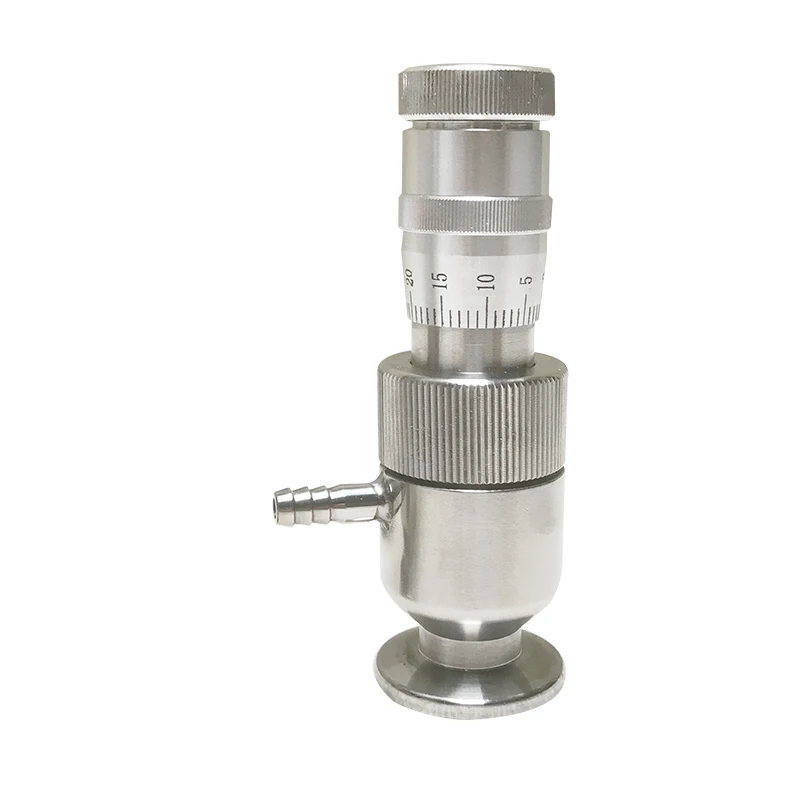

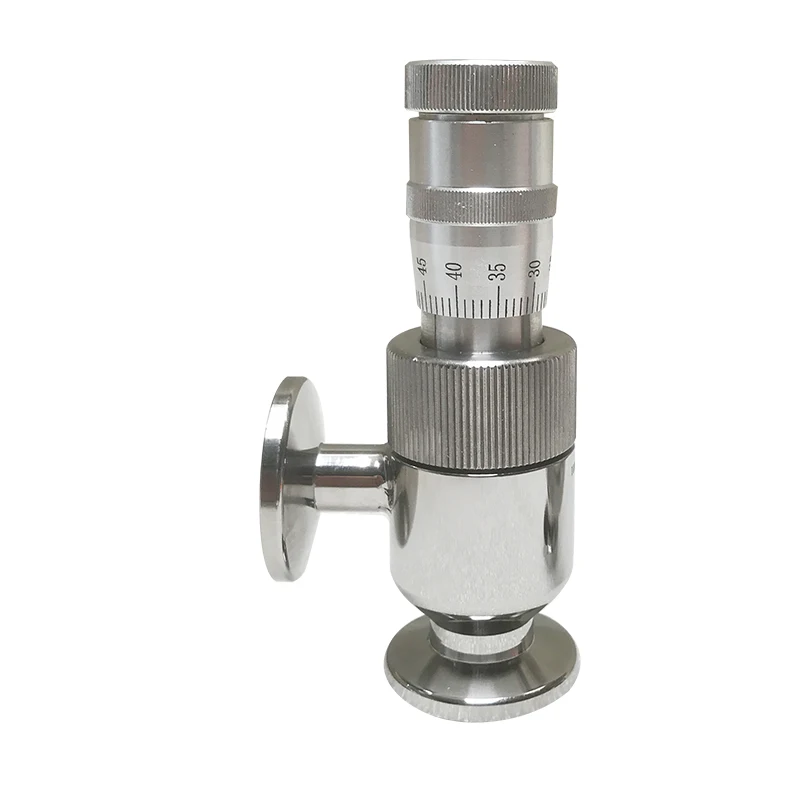

Супер Q с высоким вакуумом обрезки клапан EVGW J2 (см)
- Категория: >>>
- Поставщик: Beijing Super Q Technology Co. Ltd.
Сохранить в закладки 1600565886744:
Описание и отзывы
Характеристики
Products Description

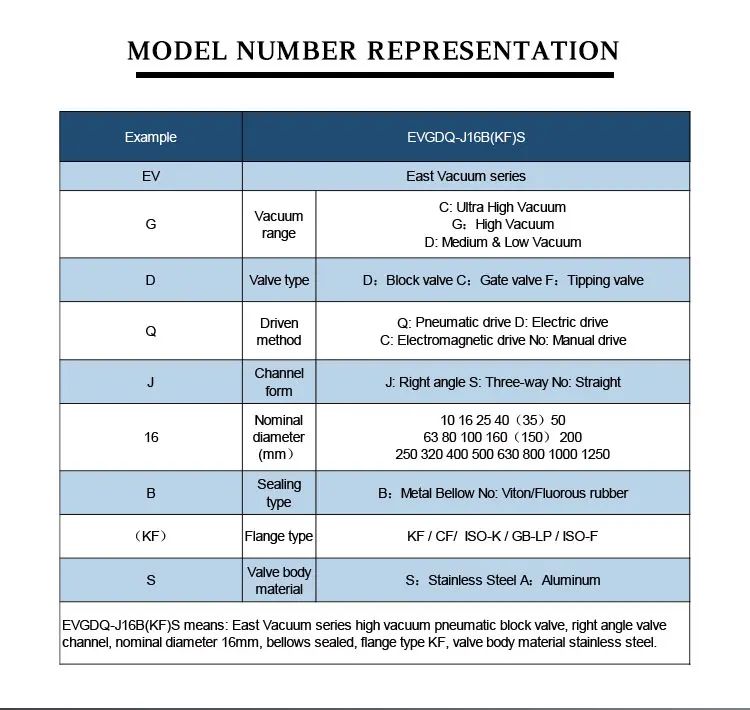

Model | EVGDQ-J16B(KF)S | |||
EV | East vacuum series | |||
G | vacuum | C: supper high G: high D: low | ||
D | structure | D:Angle valves, C: Plug valves F: Gate valves | ||
Q | Driven Type | Q:Pneumatic, D:motor, C:Electromagnetic, others: manual | ||
J | channel | J:Right-Angle S:tees, other: Straight | ||
16 | Symbol | 10/16/25/40/50/63/100/160/200/250/320/400/500/600/800/1000 | ||
B | seat seal | B:Flexible Hoses, other:NBR | ||
(KF) | Flange types | KF CF ISO-K GB-LP ISO-F | ||
S | material | S: Stainless steel, A: Aluminum | ||

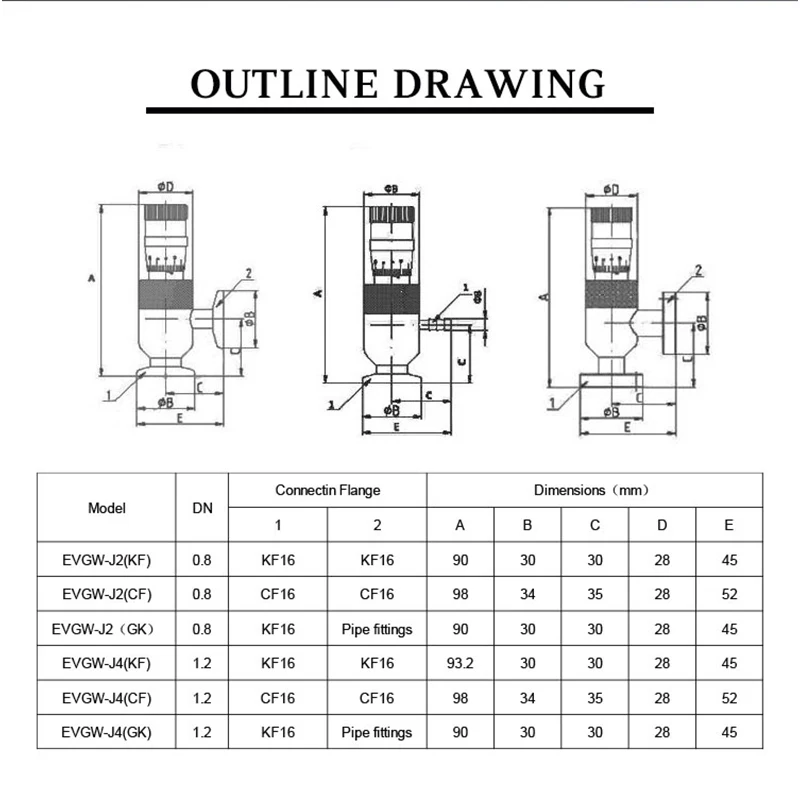

Model | DN | Connectin Flange | Dimensions（mm） | ||||||||||
1 | 2 | A | B | C | D | E | |||||||
EVGW-J2(KF) | 0.8 | KF16 | KF16 | 90 | 30 | 30 | 28 | 45 | |||||
EVGW-J2(CF) | 0.8 | CF16 | CF16 | 98 | 34 | 35 | 28 | 52 | |||||
EVGW-J2（GK） | 0.8 | KF16 | Pipefittings | 90 | 30 | 30 | 28 | 45 | |||||
EVGW-J4(KF) | 1.2 | KF16 | KF16 | 93.2 | 30 | 30 | 28 | 45 | |||||
EVGW-J4(CF) | 1.2 | CF16 | CF16 | 98 | 34 | 35 | 28 | 52 | |||||
EVGW-J4(GK) | 1.2 | KF16 | Pipefittings | 90 | 30 | 30 | 28 | 45 | |||||

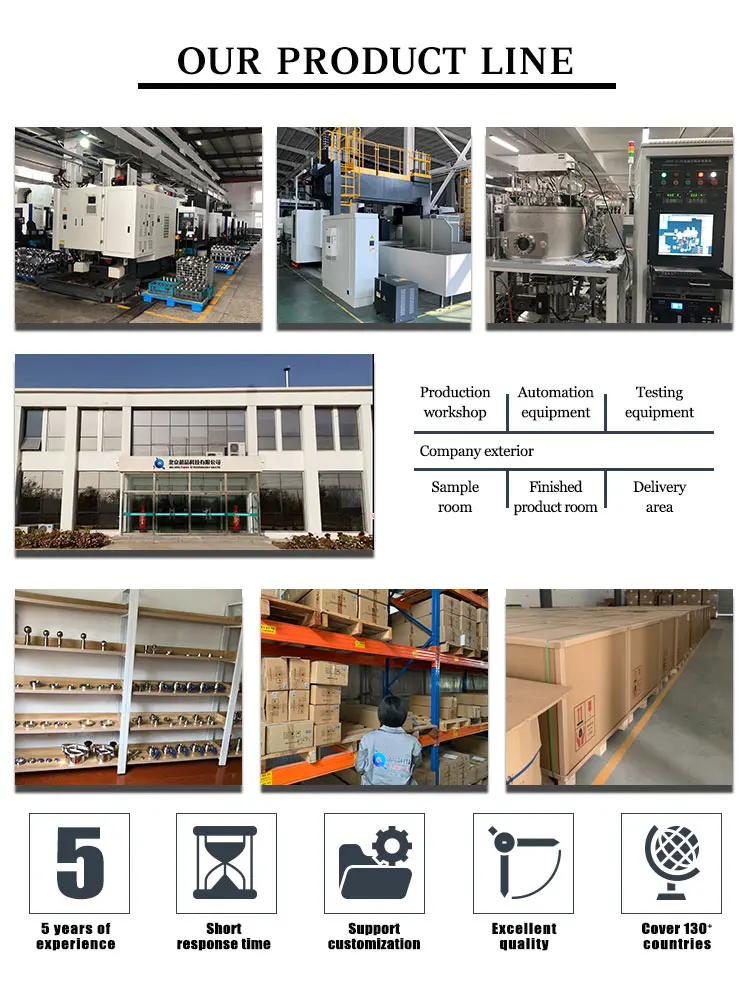

Company Profile
Beijing Super Q Technology Co., Ltd
Super Q Technology Co., Ltd. is a national high-tech enterprise.
Has R&D department, manufacturing department and sales department.
Super Q Technology is committed to providing a range of products from low vacuum to super high vacuum.
Not only a provider of vacuum products, but also solving problems related to vacuum product applications .
Our production cope are vacuum pumps, various series of vacuum valves, vacuum bellows, flange connectors, vacuum chamber manufacturing and processing and other vacuum related products.
Vacuum products are widely used in new energy, new materials, aerospace, semiconductor and other fields,
and provide various vacuum solutions for the application of new vacuum technology in scientific research institutions.
2020, we independently developed and produced a variety of advanced new vacuum technology materials,
mainly including vacuum insulation board, vacuum insulation decorative integrated board, vacuum glass, vacuum energy-saving doors and windows and other products,
Provided consulting, design, construction, operation and maintenance of Passive house or carbon neutrality buildings
Super Q Technology is committed to providing a range of products from low vacuum to super high vacuum.
Not only a provider of vacuum products, but also solving problems related to vacuum product applications .
Our production cope are vacuum pumps, various series of vacuum valves, vacuum bellows, flange connectors, vacuum chamber manufacturing and processing and other vacuum related products.
Vacuum products are widely used in new energy, new materials, aerospace, semiconductor and other fields,
and provide various vacuum solutions for the application of new vacuum technology in scientific research institutions.
2020, we independently developed and produced a variety of advanced new vacuum technology materials,
mainly including vacuum insulation board, vacuum insulation decorative integrated board, vacuum glass, vacuum energy-saving doors and windows and other products,
Provided consulting, design, construction, operation and maintenance of Passive house or carbon neutrality buildings
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample, the sample charge and freight cost is extra.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:
Title goes here.
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample, the sample charge and freight cost is extra.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:
Title goes here.
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Похожие товары
Китай (материк) разливочная насадка для машина SS316 с защитой от падения
3 196,13 ₽ - 3 306,34 ₽
Пневматический угловой седельный клапан 6 МПа 304 316 BSP NPT RC типа y-type обратный углового седла
1 873,60 ₽ - 2 204,23 ₽

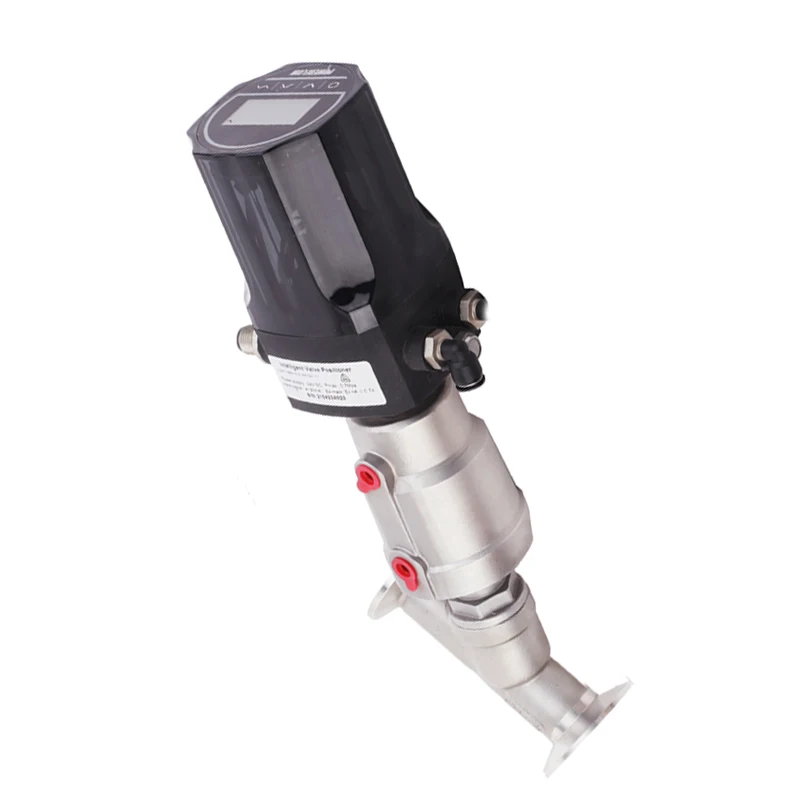

Пневматический угловой клапан из нержавеющей стали с датчиком позиционера PN16 для парового газойля нормально закрытого типа
10 470,08 ₽ - 13 225,36 ₽
Горячая распродажа! SMC клапан сброса давления VHS30-03A-R
606,17 ₽ - 881,70 ₽
Пневматический двигатель трубный фитинг 316L литой DN25 smc пневматический угловой паровой клапан

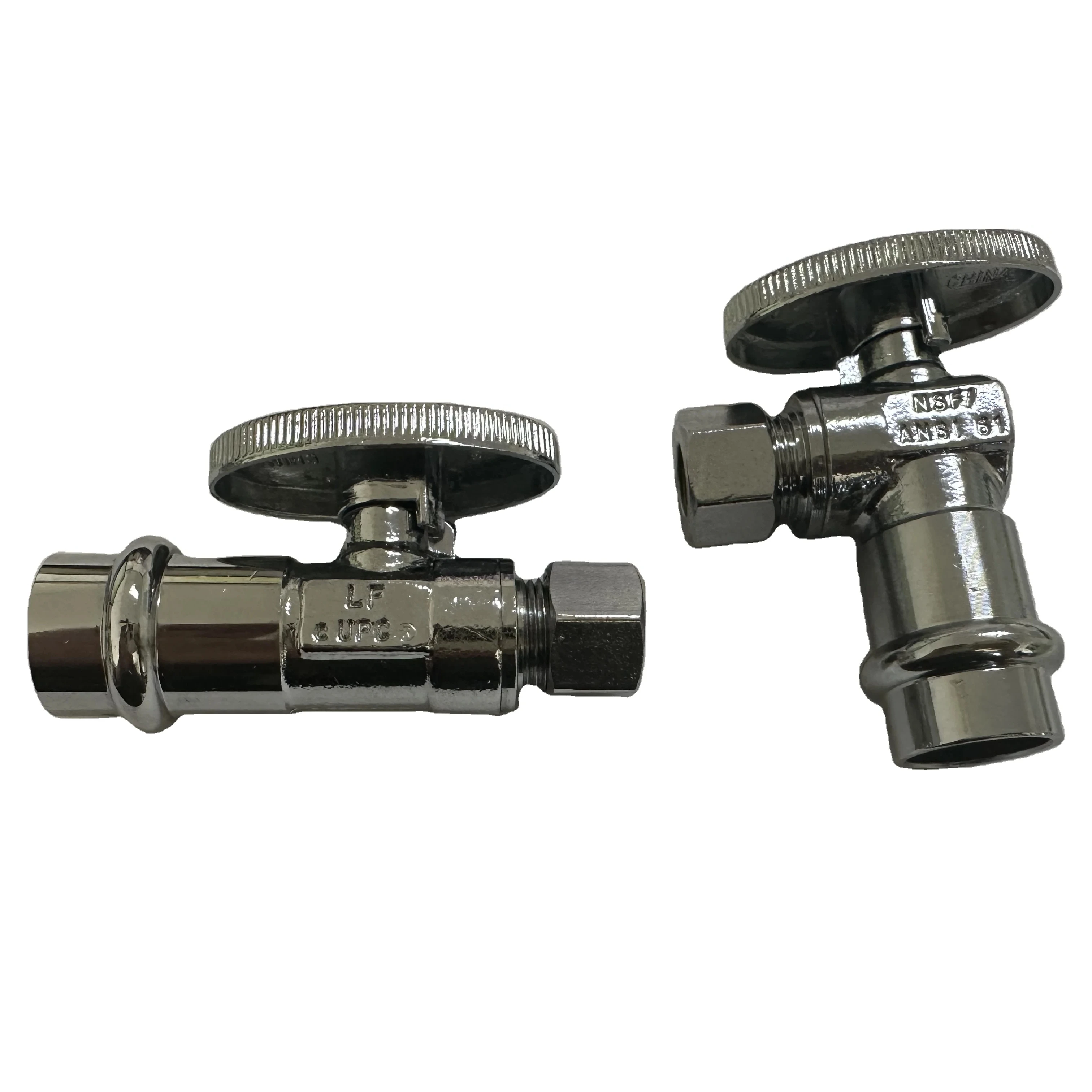

Запорный клапан без свинца 1/4 поворот прямой угол запорный
