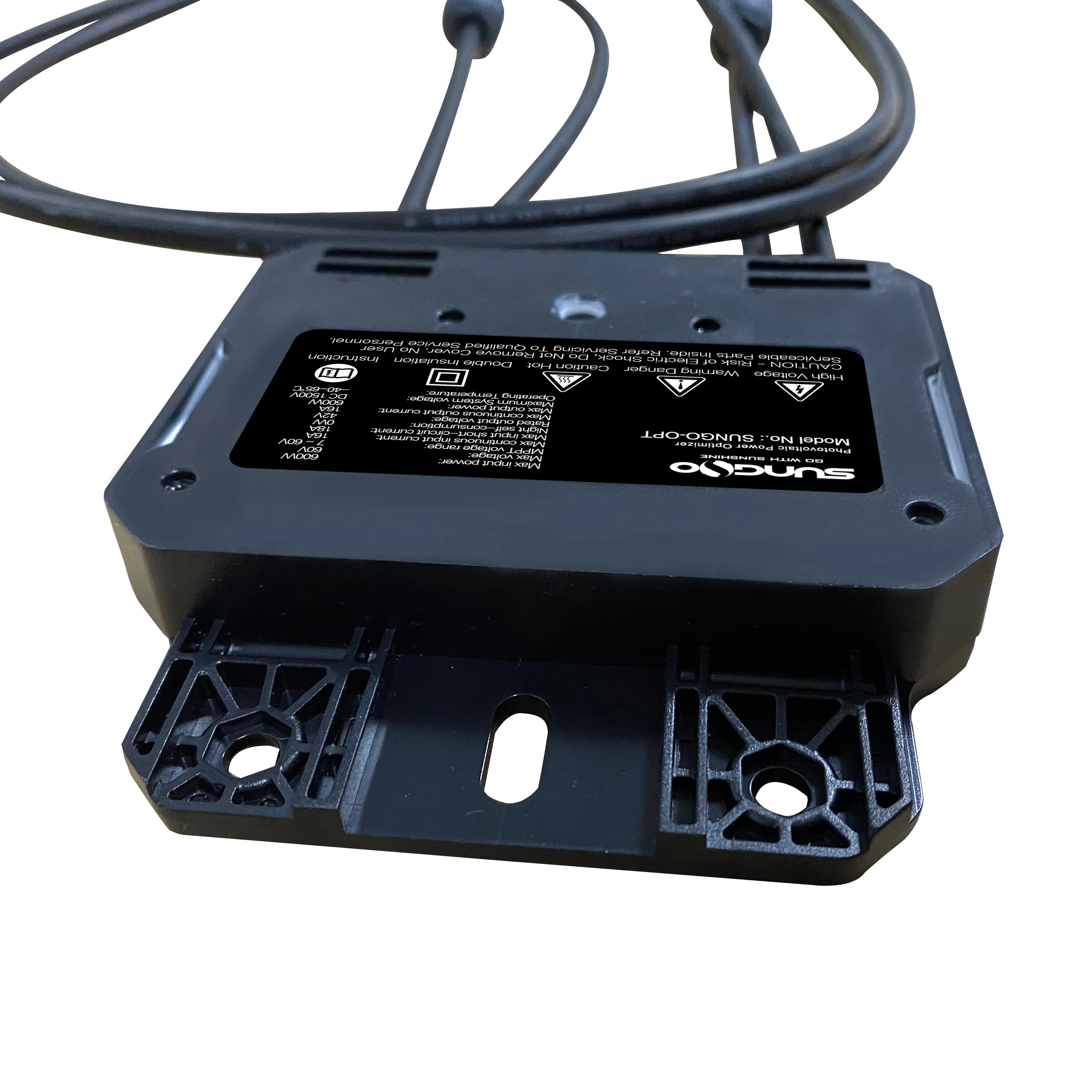

SUNGO солнечный оптимизатор 600 Вт солнечные продукты готовые к
18,00 $ - 25,00 $
Заводская цена на Встроенный MPPT off grid 18.5KW гибридный солнечный инвертор контроллер инверторы и
- Категория: Solar Applications >>>
- Поставщик: CLV Drives Co. Ltd.
Сохранить в закладки 1600566008718:
Описание и отзывы
Характеристики
Product Description
Technical Specifications
Control System | High performance of current vector control technology to realize 3 phase asynchronous motor control | ||||||
Maximum Input DC Voltage | 800V DC | ||||||
DC Brake | DC Brake Frequency: 0.00Hz to maximum frequency Brake time: 0.0s to 36.0s Brake current value: 0.0% to 100.0% | ||||||
Mains loss Ride Through | When instantaneous power off, voltage reduction is compensated through load feedback energy, which could make Inverter keep running in a short period of time. | ||||||
Recommended MPPT Voltage Range | 450~600V DC | ||||||
Command Source | Operation panel reference, control terminal reference, and serial COM port reference. It can be switched in various ways. | ||||||
Recommended Input Operation Voltage | 540V DC | ||||||
Rated Output Voltage | 3 phase 380V | ||||||
Maximum Frequency | Vector Control: 0~500Hz V/F Control: 0~500Hz | ||||||
Control Mode | Open Loop Vector Control(SVC) V/F Control | ||||||
Startup Torque | G Type: 0.5Hz/150%(SVC); 0Hz/180%(SVC); P Type: 0.5Hz/100% | ||||||
Overload Capability | G Type:150% rated current 60 seconds; 180% rated current 3 seconds; P Type:120% rated current 60 seconds; 150% rated current 3 seconds | ||||||
Protection Function | It can implement power-on motor short-circuit detection, output phase loss protection, over current protection, over voltage protection, under voltage protection, overheating protection and overload protection. | ||||||
Communication Protocol | Modbus | ||||||
Ambient Temperature | -10 ℃ to +40 ℃ (Derating use when under ambient temperature of 40 ℃ to 50 ℃) | ||||||
Humidity | Less than 95%RH, without condensing | ||||||
Vibration | Less than 5.9m/s (0.6g) | ||||||
Products Series
Single-phase power supply: 220V, 50/60Hz | ||||||||
Product ID | Adaptation motor | Rated Power | Rated Output Current(A) | Product Dimensions H*W*D(mm) | ||||
PV500-0007G1 | 0.75 KW 1HP | 0.75KW 220V | 4 | 170*86*141 | ||||
PV500-0015G1 | 1.5KW 2HP | 1.5KW 220V | 7 | 170*86*141 | ||||
PV500-0015G1 | 2.2KW 3HP | 2.2KW 220V | 10 | 188*96*171 | ||||
Three-phase power supply: 380V, 50/60Hz | ||||||||
PV500-0007G3 | 0.75 KW 1HP | 0.75KW 380V | 2.5 | 170*86*141 | ||||
PV500-0015G3 | 1.5KW 2HP | 1.5KW 380V | 3.7 | 170*86*141 | ||||
PV500-0022G3 | 2.2KW 3HP | 2.2KW 380V | 5.1 | 170*86*141 | ||||
PV500-0040G3 | 4KW 5HP | 4KW 380V | 8.5 | 188*96*171 | ||||
PV500-0055G3 | 5.5KW 7.5HP | 5.5KW 380V | 13 | 188*96*171 | ||||
PV500-0075G3 | 7.5KW 10HP | 7.5KW 380V | 16 | 228*114*192 | ||||
PV500-0110G3 | 11KW 15HP | 11KW 380V | 25 | 228*114*192 | ||||
PV500-0150G3 | 15KW 20HP | 15KW 380V | 32 | 290*160*182 | ||||
PV500-0185G3 | 18.5KW 25HP | 18.5KW 380V | 38 | 290*160*182 | ||||
PV500-0220G3 | 22KW 30HP | 22KW 380V | 45 | 328*193*217 | ||||
PV500-0300G3 | 30KW 40HP | 30KW 380V | 60 | 328*193*217 | ||||
Company Profile
CLV Drives Co., Ltd. is a high-tech enterprise which is dedicated in the R&D, manufacturing and sales of electrical drive and Inverter products. Based on the variable frequency control technology with independent intellectual property rights, CLV is positioned to serve the middle and high-end equipment manufacturers, to rapidly provide users with customized solutions so as to achieve the common growth of enterprise value and customer value.
At present, the company has mastered motor drive, vector control and permanent magnet synchronous motor control technology and other core platform technologies. CLV Drives has been a leader in variable frequency drive(VFD) and industrial automation control technology, and is committing to promote industrial civilization with leading technology, as well as providing users with more intelligent and more reliable Inverter products and energy saving applications.
The main products are: V900 general purpose inverter, PV500 solar pump inverter, 800 series inverter cabinet and so on, which are with leading edge design and technology, incredible performance, global network of specialist sales and service partners, global engineered support, world class manufacturing, low cost of installation.
Why Choose Us
Packing & Delivery
We have cartons and wooden boxes, which are packed in cartons below 75KW and wooden boxes above 93KW. Thickened shockproof foam is filled inside to prevent damage to equipment in transit.
Recommend Products
FAQ
Q1. Are you trading company or manufacturer?
A: We are manufacturer.
Q2. How long is your lead time?
A: Generally it is 3-7 days if the goods are in stock. Or it is 10-20 days if the goods are not in stock, it is according to quantity.
Q3. Do you provide samples? Is it free or extra?
A: Yes, we could offer the sample, but we will charge the sample fee and the cost of freight.
Q4. What is your terms of payment?
A: We accept T/T, L/C and CASH.
Q5. What is the standard of package?
A: Export standard package or special package according to customer requirements.
Q6. Is there any discount?
A: The discount will depend on the quantity your purchased.
Q7. What is your supply capacity?
A: The week output of the factory exceeds 3000 PCS.
Q8. Do you provide warranty for the goods?
A: Yes, we provide 18 months of warranty for all the goods from us.
Q9. Could CLV Drives provide technical support?
A: We' have more than 12 years experience in this field. If there's any problem, please feel free to contact us, we'll provide suggestion from our engineer to help you solve the problem.
