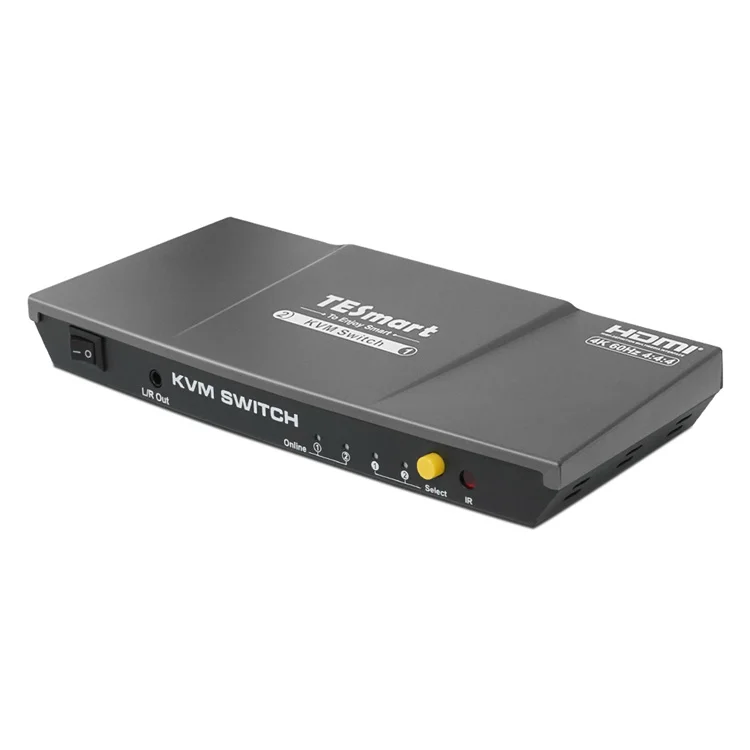

TESmart 4K HDMI переключатель с 2 портами поддержка Ultra HD 4K Hotkey 3D HDR HDCP для офиса 1x2 USB 2,0 автоматический HDMI KVM переключатель
42,78 $ - 65,22 $
Полуавтоматический дозатор клея для силикона эпоксидная смола полиуретановый прецизионный жидкости
- Категория: >>>
- Поставщик: Guangzhou Zhengqi Technology Co. Ltd.
Сохранить в закладки 1600566601342:
Описание и отзывы
Характеристики
Details Images
Double component potting system
We Daheng Automation specialize in different types of potting and dispensing system. No matter what your resin application requirements look like: we can do most of them in our fully equipped lab. We can handle 1- and 2-component polyurethanes, epoxies,acrylics, silicones, temperature, humidity and UV curing materials. They can be from low- to high-viscosity, filled or unfilled and even high abrasive for thermal conductivity.
Potting and encapsulation is the process of embedding electronic components & assemblies in a liquid resin (potting compounds) to protect them against rough environment conditions. Potting can be performed in atmosphere pressure or even under vacuum, if high voltage insulation and high temperature differences are needed. Encapsulation of parts will stop corrosion of metals and reduce damage caused by vibration and mechanical stress.
AB potting machine is composed of Five Systems
1. Automatic material-feeding system
2. High precision pump metering system
3. Dynamic/Static mixing system
4. Configured with foot-pedal and hand held glue gun for easy apply material
5. Auto cleaning system
2. High precision pump metering system
3. Dynamic/Static mixing system
4. Configured with foot-pedal and hand held glue gun for easy apply material
5. Auto cleaning system
AB-component materials flows into the pump through the feeding system (AB tanks) separately by the self-suction force of the metering pump.
Features&Functions
Strong versatility / High production capacity / High precision
* Auto feeding :take use of vacuum pressure to feed materials into A&B tank separately.
* Tank Stirring :A and B tank configure with stirring motors and blades to prevent material sediment in the tank bottom . * Heating : Tank , pipe , pumps are optional with heaters to assure the whole system can be heating from room temperature to 90°C adjustable.
* Vacuum : A &B tank vacuum for degas the bubble inside material .
* Dynamic mixing : Configuring dynamic motor and mixer to mix A and B fluids evenly.
** Auto cleaning : self-cleaning and fully auto cleaning system assure machine keep in clean without any materials cure inside .
Advantages:
1、Accurated metering and even mixing helps to avoid the waste of material.
2、Dispensing volume and positioning keep machine work consistent and fast.
3、Good universality
4、Easy to program and operate.
5、Tally function, non-standard mode, primer mode, level alert, filter mode, liquid display device, preventing back-flow device and other functional device.
2、Dispensing volume and positioning keep machine work consistent and fast.
3、Good universality
4、Easy to program and operate.
5、Tally function, non-standard mode, primer mode, level alert, filter mode, liquid display device, preventing back-flow device and other functional device.
Tech Data
ITEM | Parameter |
Mixing ratio | 1:1--10:1 adjustable |
Out-glue speed | 1-24g/s（base on the glue ratio） |
Accuracy | ±2%（output volume）±2%（mixing） |
tolerance | ≤0.2mm |
Flow control | Digital input |
Program memory | 99pcs |
Motion trail | Dot , line ,curve ,circle |
Automatic controlling system | Touch screen (to achieve program programming, modification, storage and so on |
Out-glue control system | AB glue back suction valve, achieve AB glue independent operation |
programmatically | Tech programming |
Mixing method | dynamic mixing |
Power supply | 220V/50Hz/1500W |
Air source | 0.5-0.8Mpa |
Viscosity range | 50-20000cps |
Outer dimension | 1500L*1200W*1600H mm |
A tank | 25L stainless tank（optional） |
B tank | 10L stainless tank（optional） |
Others | AB tank 、A pump、AB pipeline heating function |
Application

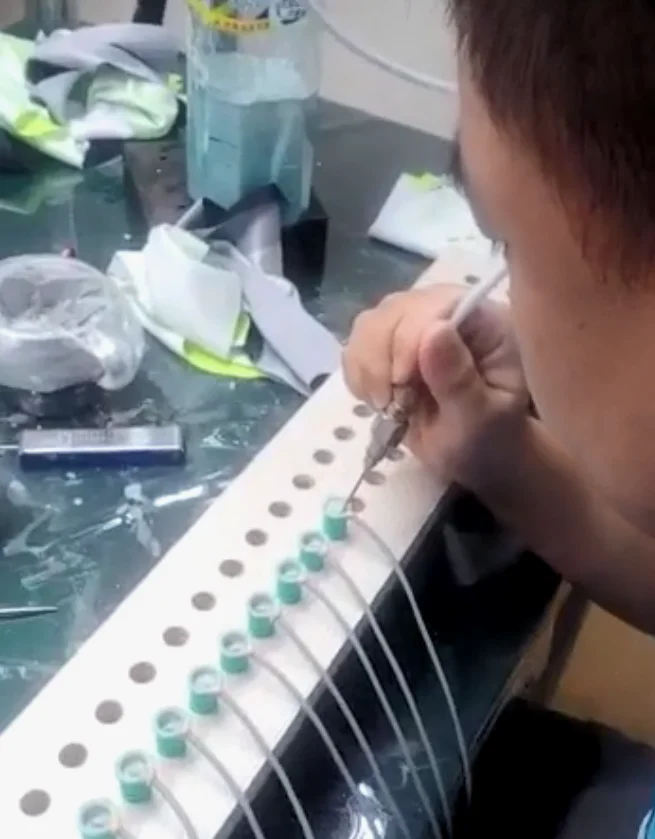

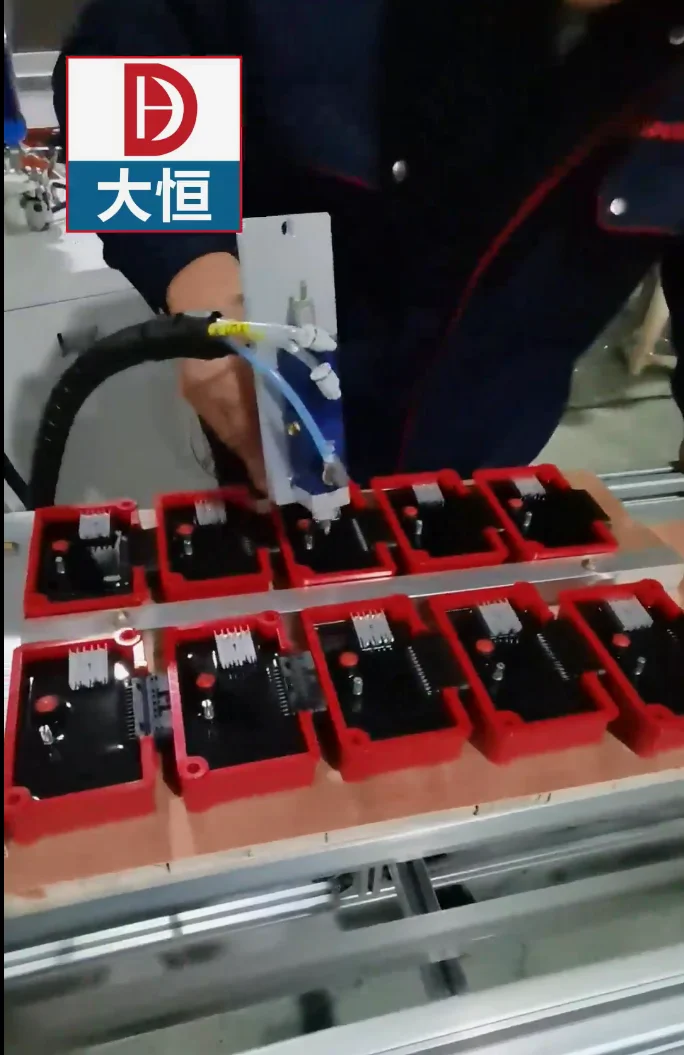

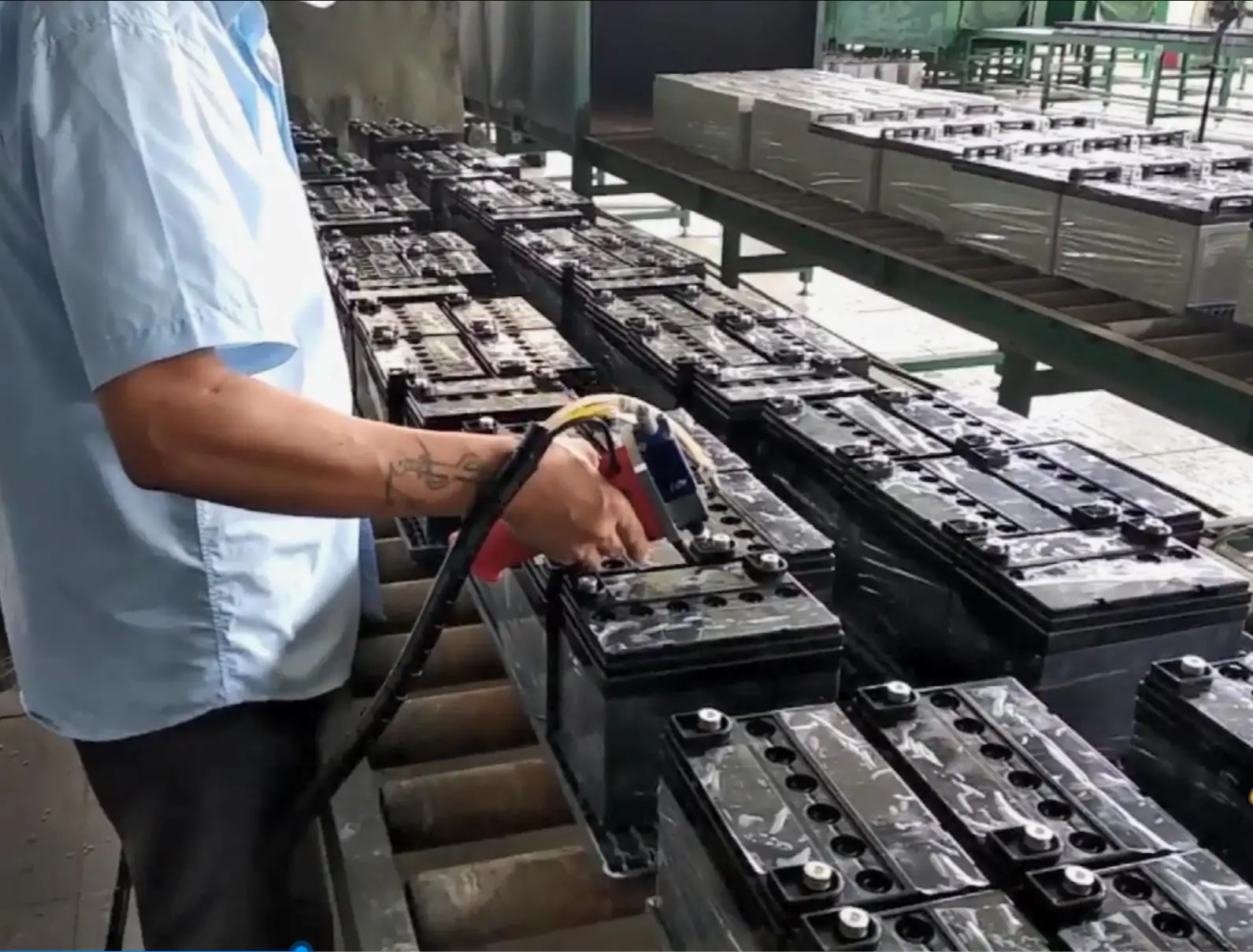

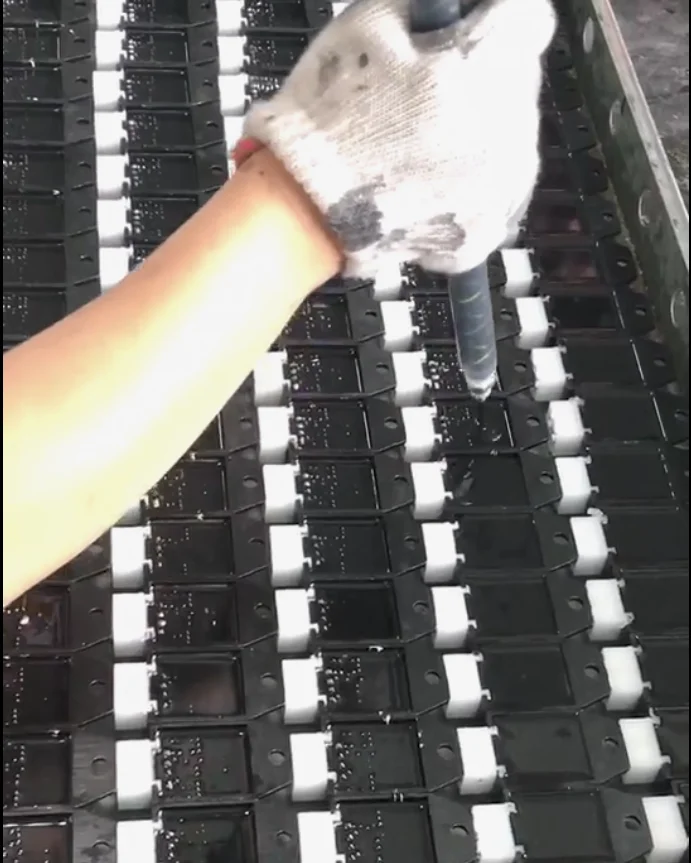

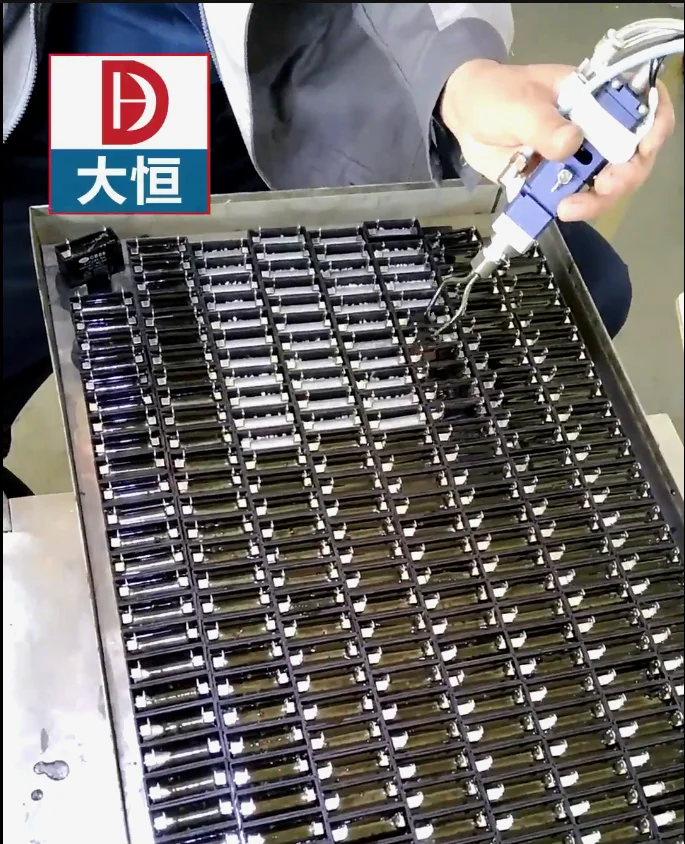

1. Potting&Encapsulation &Casting: electronics components , PCB board, Capacitor, power supply, transformer, ignition coil, reverse sensor, circuit board, electronic ballast , motor , art mold ,aviation parts, aerospace parts .
2. Dispensing&Dosing: LED strip , led lamp , led bulb , aluminum,led screen , display module / medical parts，medical liquid , filling ...
3. Bonding&doming: LCD screen ,LOCA bonding，ABS plastic / different types of stickers , badge , keychains , souvenirs ,arts ,photo frame , and other arts graphics .
2. Dispensing&Dosing: LED strip , led lamp , led bulb , aluminum,led screen , display module / medical parts，medical liquid , filling ...
3. Bonding&doming: LCD screen ,LOCA bonding，ABS plastic / different types of stickers , badge , keychains , souvenirs ,arts ,photo frame , and other arts graphics .
Main applications in electronics components
package , solid relay ,fault indicator , Sensors , junction box , clutch , wave filter , water meter , battery cover , rectifier and so on ...
Applicable Materials
1K and 2-component polyurethanes, epoxies, acrylics, silicones, temperature, humidity and UV curing materials.
Two component potting materials , 2-part compound materials, AB part compound materials , 2K silicones ,2K epoxies resin, Bi-component PU, Ployerster, Polyurethane, dual-component compound material UV materials and so on .
Two component potting materials , 2-part compound materials, AB part compound materials , 2K silicones ,2K epoxies resin, Bi-component PU, Ployerster, Polyurethane, dual-component compound material UV materials and so on .
Working Principle
Compound materials A & B are kept in two tanks separately. There are two sets of metering pumps inside the machine for metering A and B resin by setting ratio, draining out material individually from tank A & B. Liquid A & B mix with each other in the mixer pipe and dispensed out according to the programmable data.
About Company
■ About D&H
D&H is a company who has its own core tech and provides professional glue controlling solutions in the industry.In 2006 we developed the patent-“double cylinder plunger pump”,the glue dispensing machine with such a pump type was launched into the market successfully.This patent design becomes the heart of a new generation of metering device.The new design leads the liquid controlling device into a direction of high filling,high precision ,high crystallization,high output speed and production line.
Certifications
■ QUALIFICATION CERTIFICATE
We have more than 30 national patents, and are at the industry pioneer level in the core technologies of adhesive potting and dispensing .
Sales Network & Customers
Exhibition
Packing & Delivery
■ Standard Wooden Case with Vacuum Package
● By air, for sample and small package, international express like DHL, UPS, EMS...
● By sea, for large package and quantity;
● Other ways as customer requested.
● By sea, for large package and quantity;
● Other ways as customer requested.
FAQ
Q：Do you offer oversea service? A：We have overseas service center in some countries, we can support local service as per discussion. And we also can offer oversea service if customer required, engineer will offer face to face service. | ||||||||
Q：How dose your factory do regarding quality control? A：We assure 1 year warranty for the main part,also we offer spare part for back up. Please check with sales engineer in detail. | ||||||||
Q：What are your payment terms? A：Normally, 30% advance by T/T and balance paid off before delivery. | ||||||||
Q：Are you a factory or trading company ? A：We are a factory with SGS certified and more than 30 patents,and cooperate with different customers coverd about 50 countries for over 19 years. | ||||||||
Похожие товары

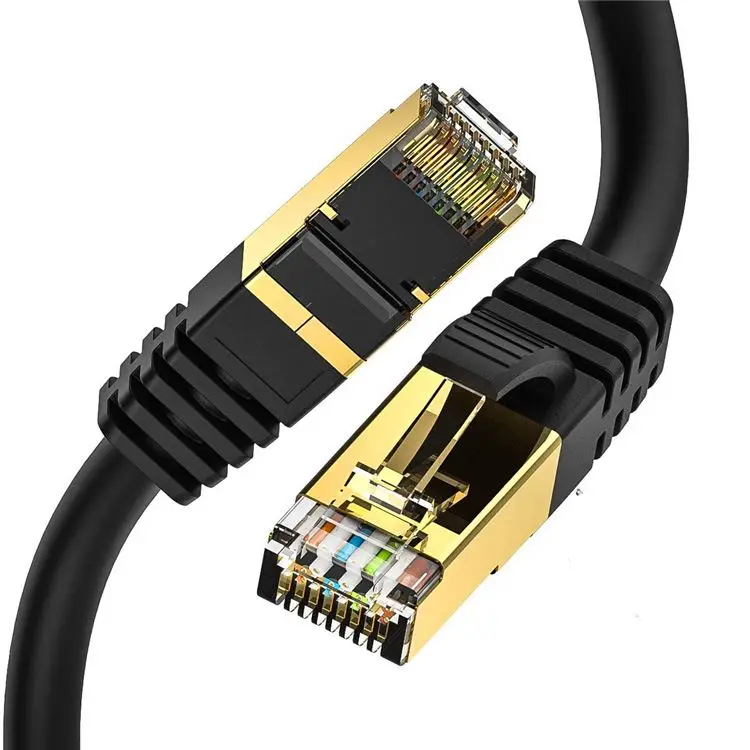

Лучшая цена OEM Ethernet 8 пар сетевой Соединительный шнур Cat Lan

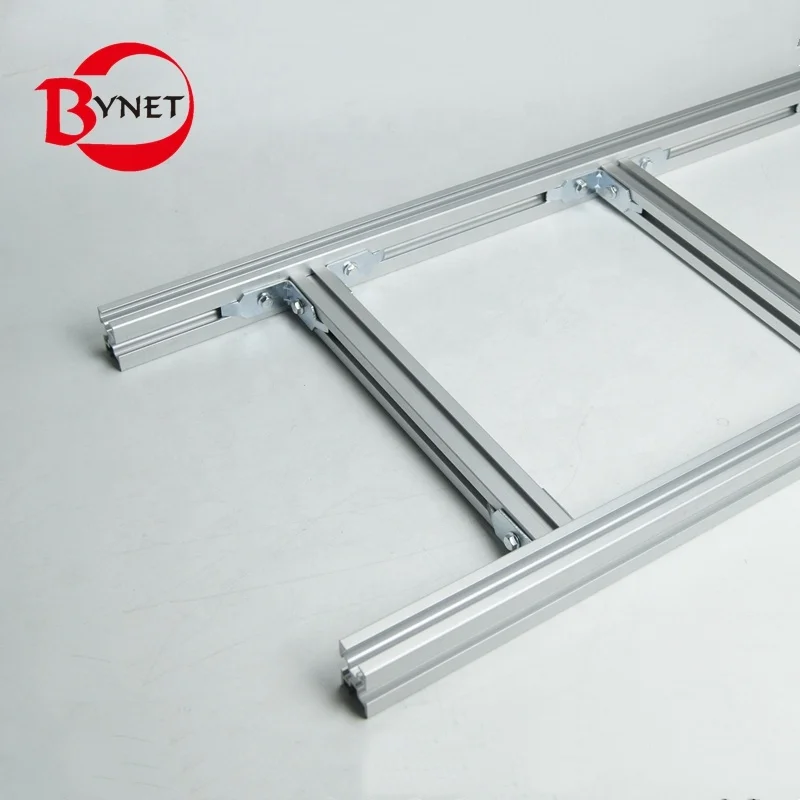

Алюминиевая кабельная лестница для центра обработки данных с открытой системой управления кабелями
17,00 $ - 21,00 $

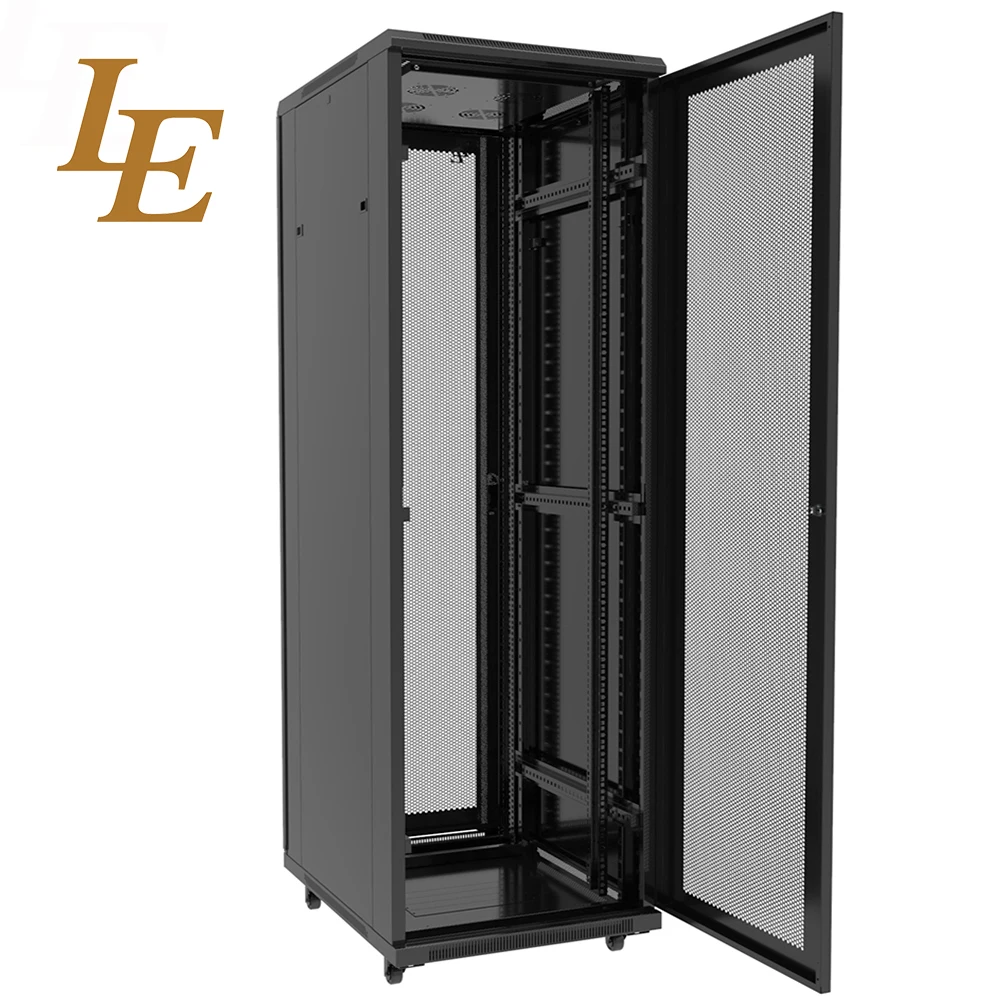

LE 18U 22U 27U 32U 37U 42U серверная стойка для центра обработки данных 19 дюймов корпус стойка для связи Sever 42u
Оптовая продажа с фабрики, Женская подушка для поддержки бедер и спины автомобиля, Бразильская Подушка bbl для восстановления ягодиц и подъема
4,21 $ - 5,10 $

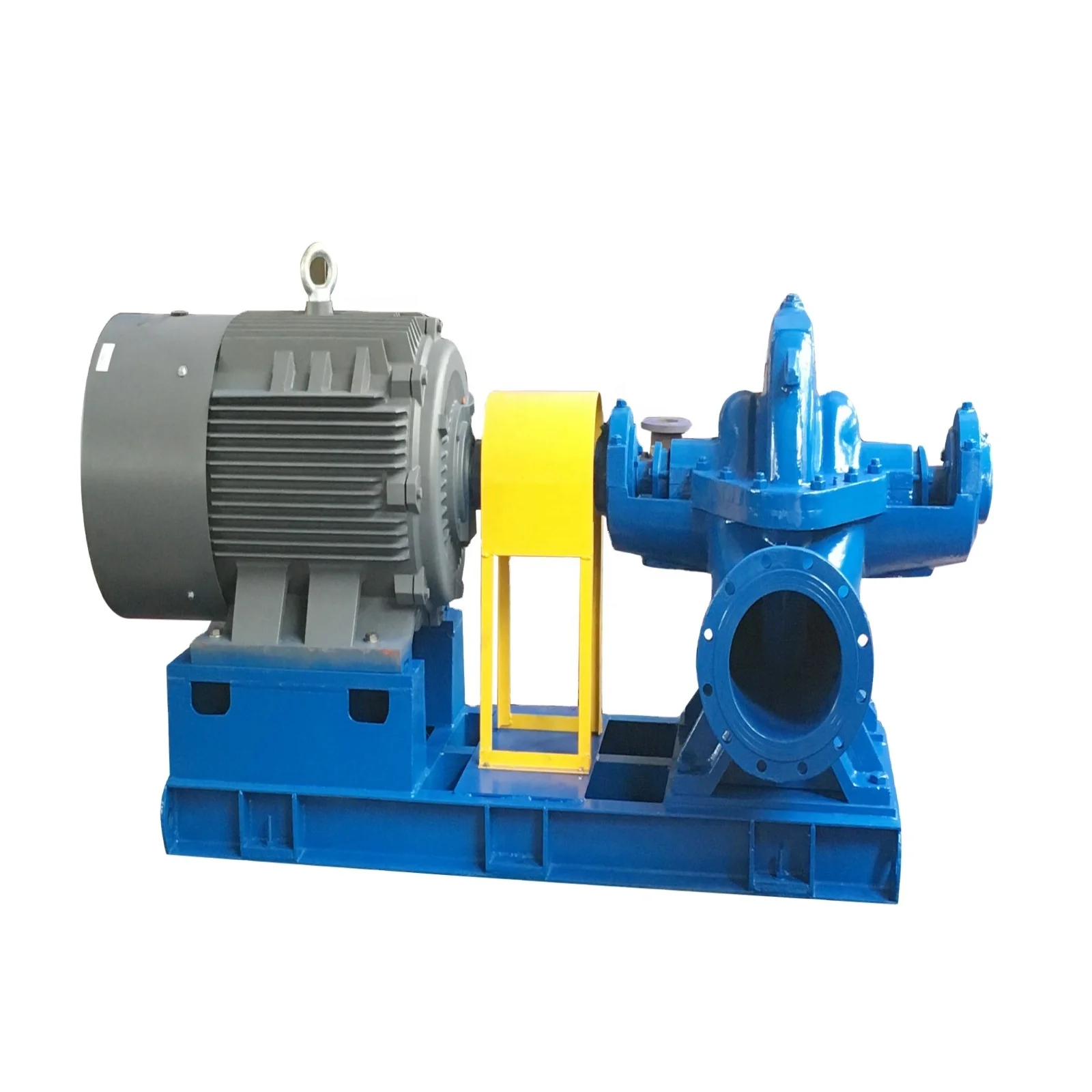

Серия TPOW из нержавеющей стали коррозионно-стойкие сельскохозяйственные оросительные водяные насосы
30 960,03 ₽ - 82 560,08 ₽

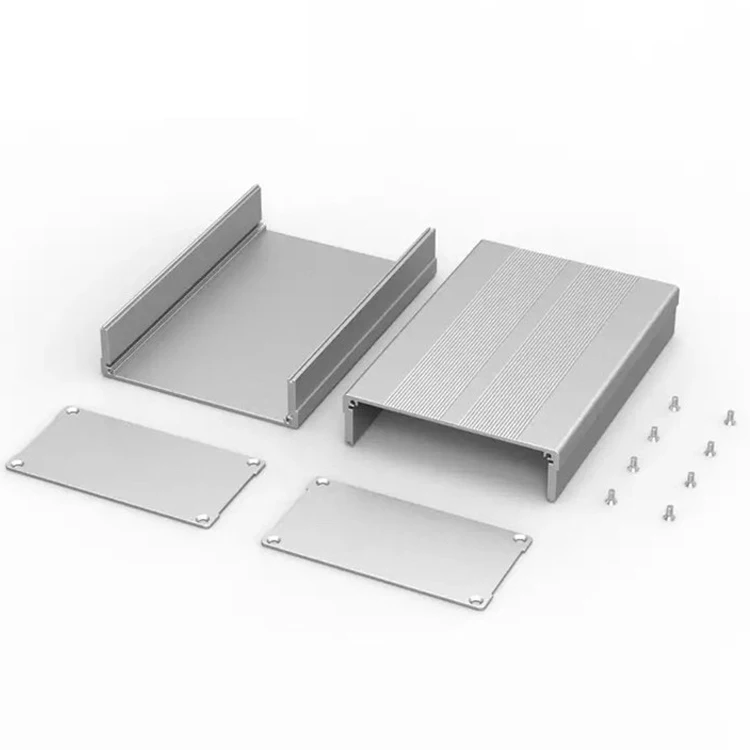

Хорошо продаваемый алюминиевый корпус для алюминиевого инструмента, индивидуальный корпус для электропитания, алюминиевый корпус для печатной платы
5,50 $ - 6,50 $

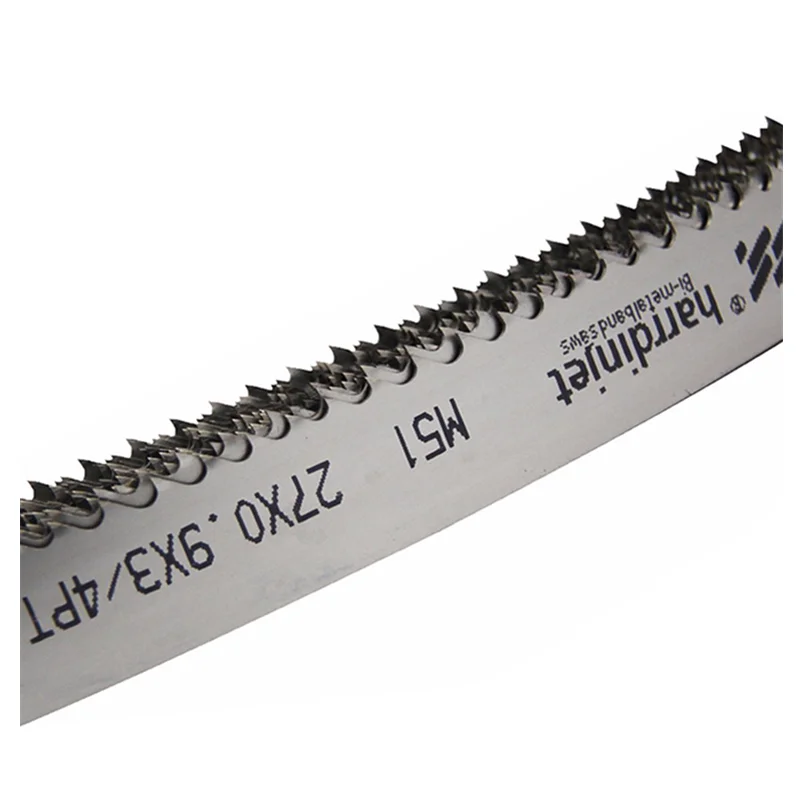

Полотно пилы для плитки, полотно пилы, полотно пилы для дерева
