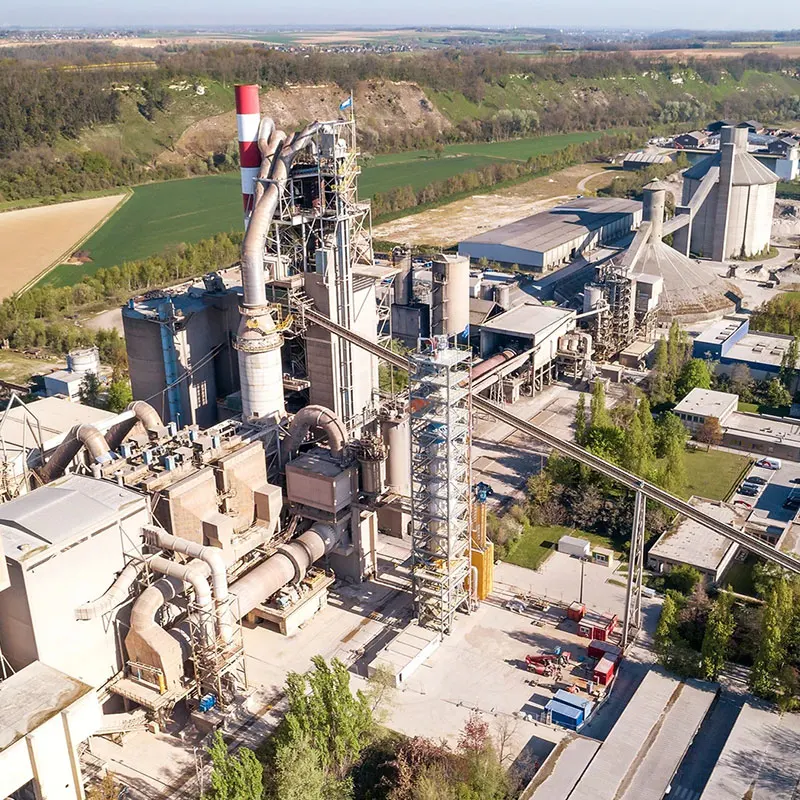

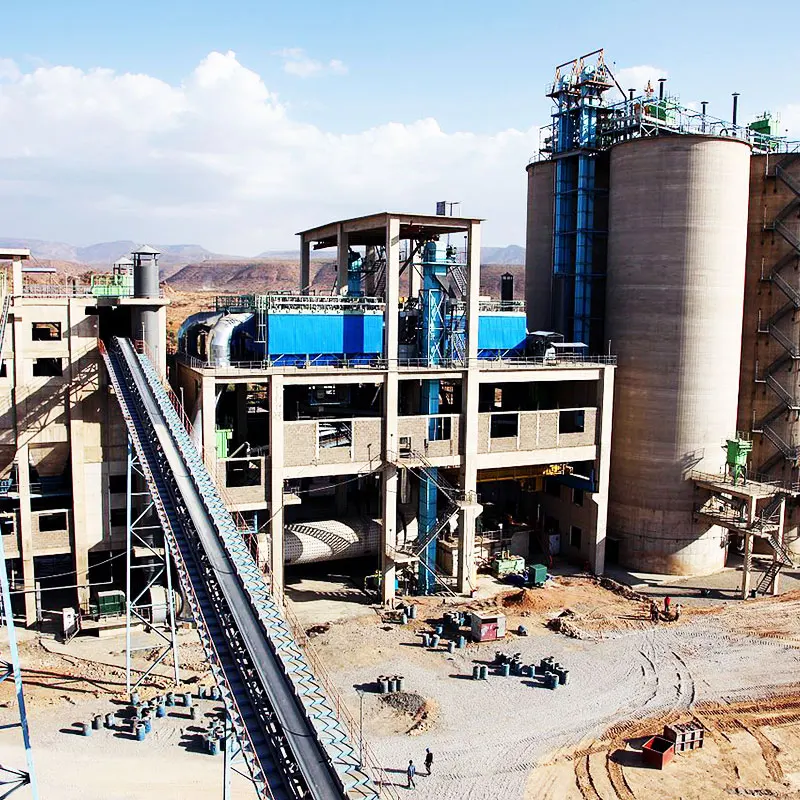

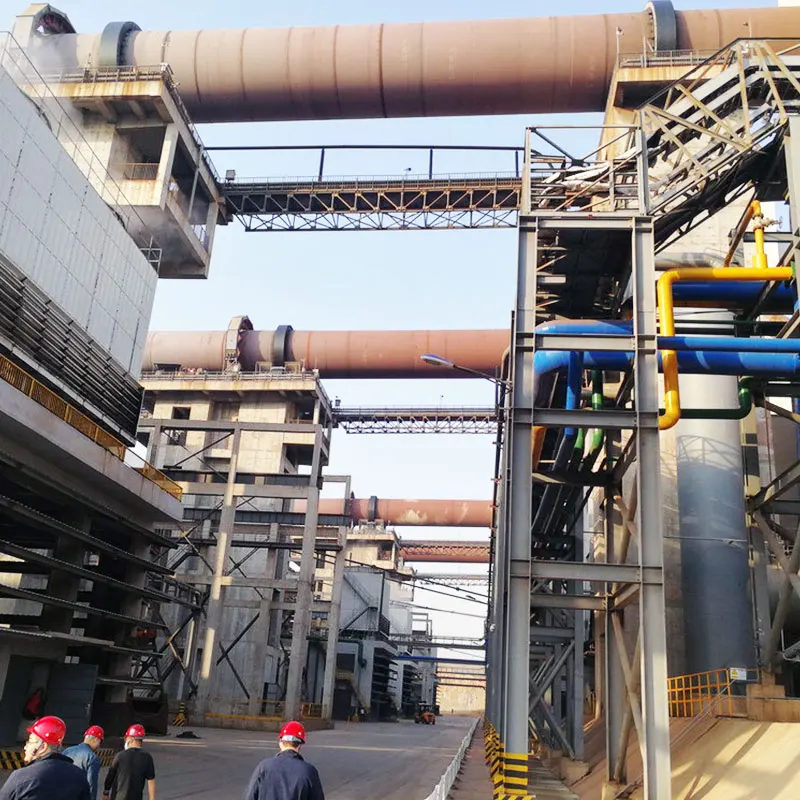

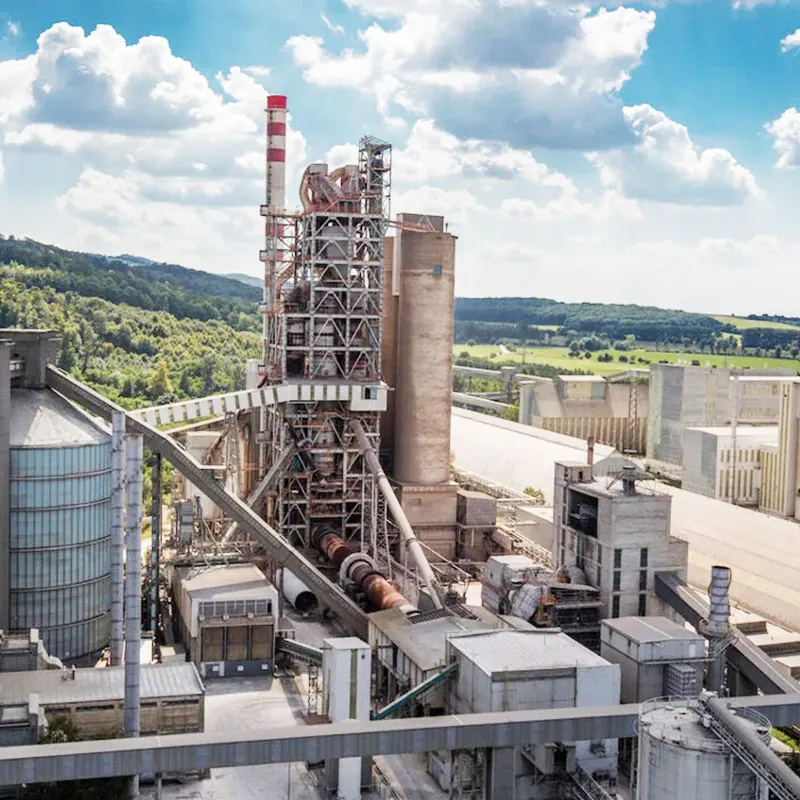

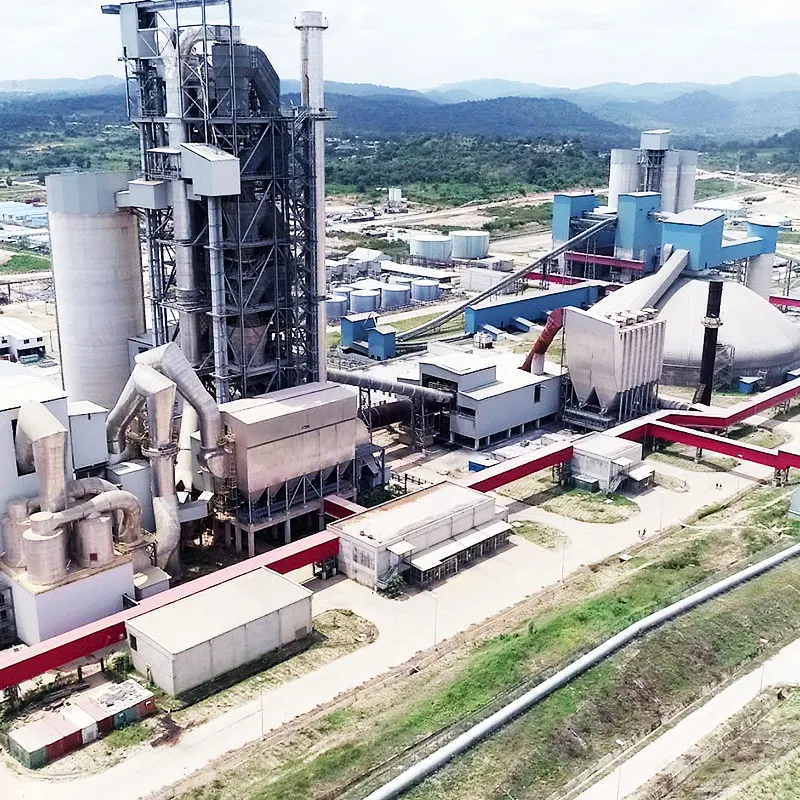

Стоимость нового цементного завода мощностью 500 т/сутки/линия по производству цемента/оборудование для производства цемента
- Категория: >>>
- Поставщик: Henan Turui Machinery Co. Ltd.
Сохранить в закладки 1600566768573:
Описание и отзывы
Характеристики
Product Description
Product Description
The cement production line is a production line construction project composed of a series of supporting equipment for the production of cement. It is mainly composed of crushing, homogenizing, raw material preparing, drying, preheating decomposition, clinker firing, cooling, grinding, packaging, conveying, environmental protection dust collection and other equipment. Turui company provides process design, civil construction, complete sets of equipment, installation and commissioning, technical and other services.

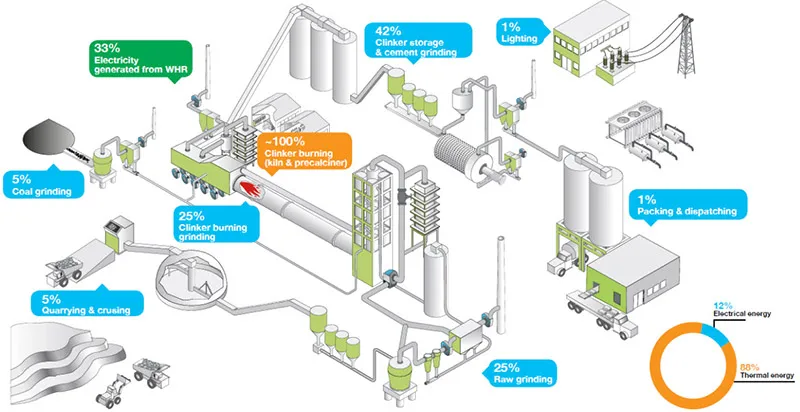

Process Flow Description
Cement production uses limestone and clay as the main raw materials, which are crushed, batched, and grinded into raw material by raw mill, and then fed into cement rotary kiln for calcination to become clinker, and then add appropriate amount of gypsum to the clinker, add some mixed materials or additives, and grind it into cement by cement ball mill, and then transported out of the factory by a packaging machine or a bulk machine.
At present, cement plants usually adopt the dry process cement production process, which dry and grind raw materials into raw materials at the same time and feed them into a dry rotary kiln for calcining become clinker. The main advantage of dry production is the low heat consumption.
1. Crushing & Proportioning
Primary crushing involves limestone rock fed through large capacity crushers. This reduces the rock to a maximum size of
approximately 150 mm. Secondary crushing further reduces this to 75mm or under. Residule material is stacked and reclaimed with a
bridge reclaimer in a cross section so that the homogeneous limestone is fed further in the process. This averages the limestone
quality.
2. Raw milling & Blending
Crushed particles are ground to 90 microns or less in a closed circuit ball mill with high efficiency separator. The raw meal is
transferred to continuous blending silos (CFC) for homogenization ,extracted by load cell hopper for feeding to the kiln pre
heaters.
3. Pyro processing

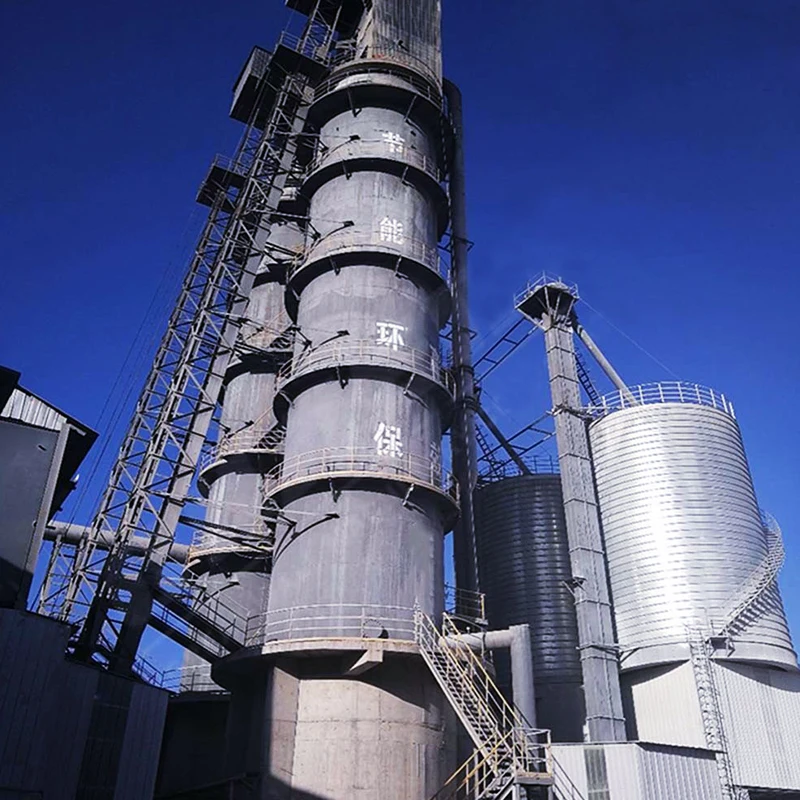

Raw material is heated to over 1,450 °C in a pre-heater tower,then through a pre-calciner and finally to the rotary kiln.
4. Burning
As the material progresses through the kiln, certain elements areremoved in the form of gases. The remaining elements unite to
form a new substance (clinker) with new physical and chemical characteristics. Clinker is formed in small marble sized pieces.
5. Cooling
Clinker is discharged from the kiln and the temperature is reduced in grate coolers. The hot air from the coolers is redirected
back to the kiln, this saves fuel and increases burning efficiency.
6 . Milling, Storage & Packing
Portland cement, the basic ingredient of concrete, is a combination of calcium, silicon, aluminum, iron and small amounts of other
ingredients to which gypsum is added in the final grinding process to regulate the setting time of the concrete.
Primary crushing involves limestone rock fed through large capacity crushers. This reduces the rock to a maximum size of
approximately 150 mm. Secondary crushing further reduces this to 75mm or under. Residule material is stacked and reclaimed with a
bridge reclaimer in a cross section so that the homogeneous limestone is fed further in the process. This averages the limestone
quality.
2. Raw milling & Blending
Crushed particles are ground to 90 microns or less in a closed circuit ball mill with high efficiency separator. The raw meal is
transferred to continuous blending silos (CFC) for homogenization ,extracted by load cell hopper for feeding to the kiln pre
heaters.
3. Pyro processing
Raw material is heated to over 1,450 °C in a pre-heater tower,then through a pre-calciner and finally to the rotary kiln.
4. Burning
As the material progresses through the kiln, certain elements areremoved in the form of gases. The remaining elements unite to
form a new substance (clinker) with new physical and chemical characteristics. Clinker is formed in small marble sized pieces.
5. Cooling
Clinker is discharged from the kiln and the temperature is reduced in grate coolers. The hot air from the coolers is redirected
back to the kiln, this saves fuel and increases burning efficiency.
6 . Milling, Storage & Packing
Portland cement, the basic ingredient of concrete, is a combination of calcium, silicon, aluminum, iron and small amounts of other
ingredients to which gypsum is added in the final grinding process to regulate the setting time of the concrete.
Crushing
Grinding
Calcinng
Cooling
Packing
Conveying
Advantages
1. Proven Technology: New five-stage cyclone pre-heater system, high efficiency air girder grate cooler, multi-passage pulverized coal burner, Davison heat temperature fan, jet pulse dust collector, as well as chain-board elevator, chain conveyor adopted in this production line can ensure that the technology is advanced compared to other production lines with the same scale.
2. Energy Saving: We invest substantially in researching and developing alternative fuel technology, and many of our market-leading products are specially designed for use with alternative fuels.
3. Environmental Protection: We provides emissions testing services to help determine if plants need to take emissions-reducing measures.
Technical Parameter
No. | Workshop name | Main equipment | Work plan | Quantity |
1 | Limestone crushing | Single-Stage Hammer Crusher Feeding size: <600mm Capacity: 120t/h Discharging size: 90% <25mm | 6d/w×7h/d | 1 |
2 | Mixed material crushing | High-Efficiency Crusher Feeding size: <215mm Capacity: 50t/h Discharging size: 90% <20mm | 1d/w×7h/d | 2 |
3 | Raw material grinding | Ball Mill Feeding size:≤25mm Finished fineness:Feeding moisture:≤ 8% Finished moisture:<1% Capacity: 50 t/h | 7d/w×20h/d | 1 |
4 | Clinker calcination | Rotary Kiln Heat consumption: ≤950kCal/kg Capacity: 800t/d(33.3t/h) Power: 220kW Fuel: gas | 7d/w×24h/d | 1 |
5 | Cement grinding | Cement Mill Feeding size:≤20mm Finished fineness:Capacity: 45 t/h PC32.5 Power: 1600kw | 7d/w×22h/d | 1 |
6 | Cement packing | Rotary Packing Machine Capacity: 100t/h With cement bulk machine | 6d/w×12h/d | 1 |
Packaging & Shipping
Packaging Details:
We will load different sizes of packing according to different machine sizes, and the normal packing is in wooden cases. If exported to European countries, wood frame will be fumigation. If the container is too tight, we will use the PE film according to the customer's special requirements.
Delivery Time:
We are based on the actual needs of customersto carryout tailor-made sales. By senior engineer to design scheme, after receipt of customer deposits began production, regardless of the size of the equipment we can deliver the goods in two weeks. delivered the balance after delivery.

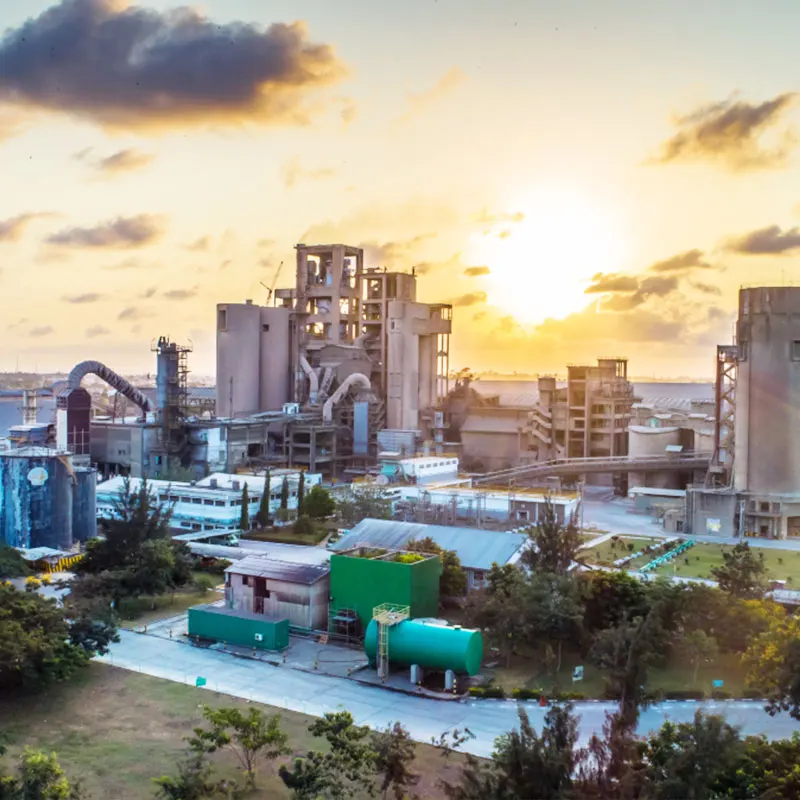

Project Cases
Zimbabwe
Mozambique
South Africa
Indonesia
Hot-sale in many countries: Zimbabwe, Mozambique, Zambia, South Africa, Kenya, Philippines, Indonesia, Vietnam, Uganda, Ethiopia, Tanzania, Peru, Mexico and so on.

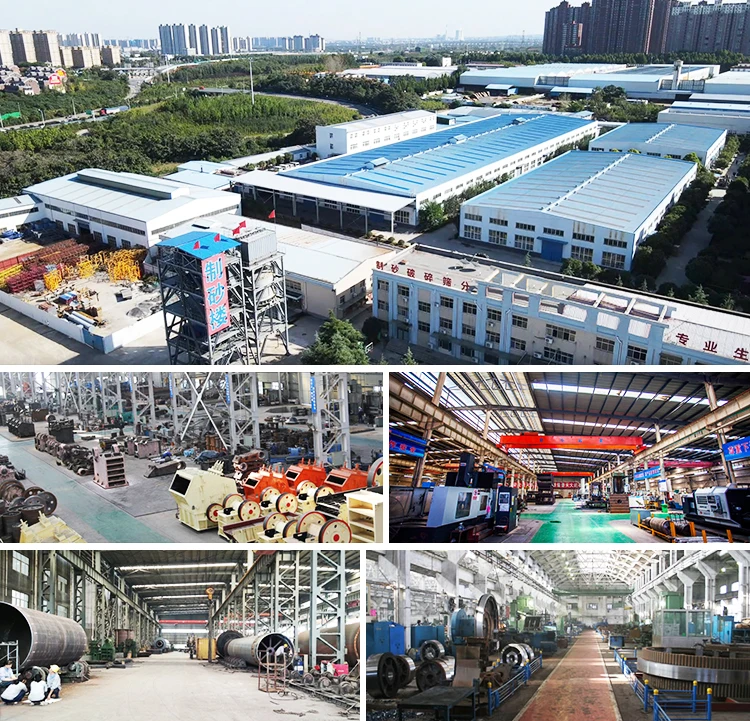

Company Profile
Henan Turui Machinery Co., Ltd is a professional manufacturer of different mining machinery. It integrates the design, research, production, sales and installation together, guaranteeing the reliable and stable quality. Its main products includes calcining equipment, ore dressing equipment, crushing and screening equipment, drying and cooling equipment, and grinding equipment. There are more than hundred of customers using our products all over the world, such as in south-east Asia, south-Asia, middle Asia, middle-east area, Africa, Australia, South America. The company covers an area of 40,000 square meters, building area of 10,000 spare meters. There are more than forty sets of boring-milling machine, gear hobbling machine, vertical lathe, and travelling crane at the workshop.
Certifications
FAQ
1. How is the quality of your products?
Our products are manufactured strictly according to national and international standard, and we take a test on every grinderbefore delivery.
2. Guaranteed:
If products ‘quality is not consistent with the description as we described or the promise before you place order, we promise 100% refund.
3. How about price?
Yes, we are factory and are able to give you the lowest price than market one and we have a policy that “for saving time and absolutely honest business attitude, we quote as low as possible for any customer, and discount can be given according to quantity.
4. Service and Payment Terms?
A. We usually accept T/T, L/C, but other terms also workable.
B. We take pictures of finished products before delivery.
B. We take pictures of finished products before delivery.
Похожие товары

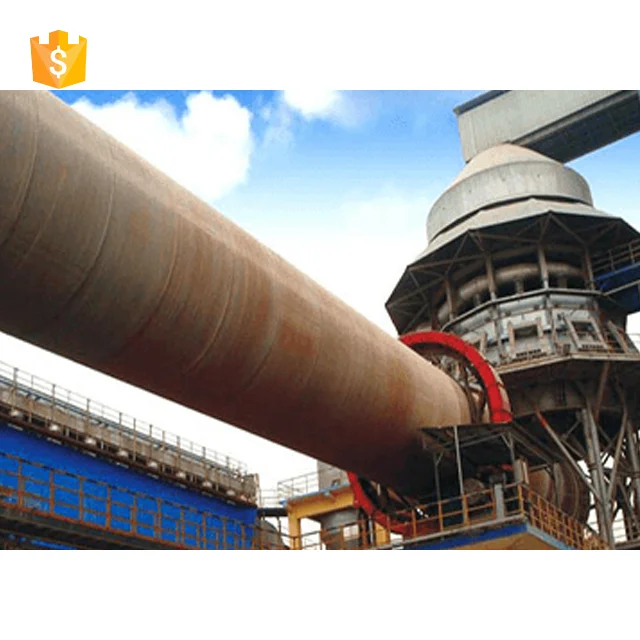

Цементный завод чугунная вращающаяся сушильная печь кольцевая перевязочная ротационная печь
