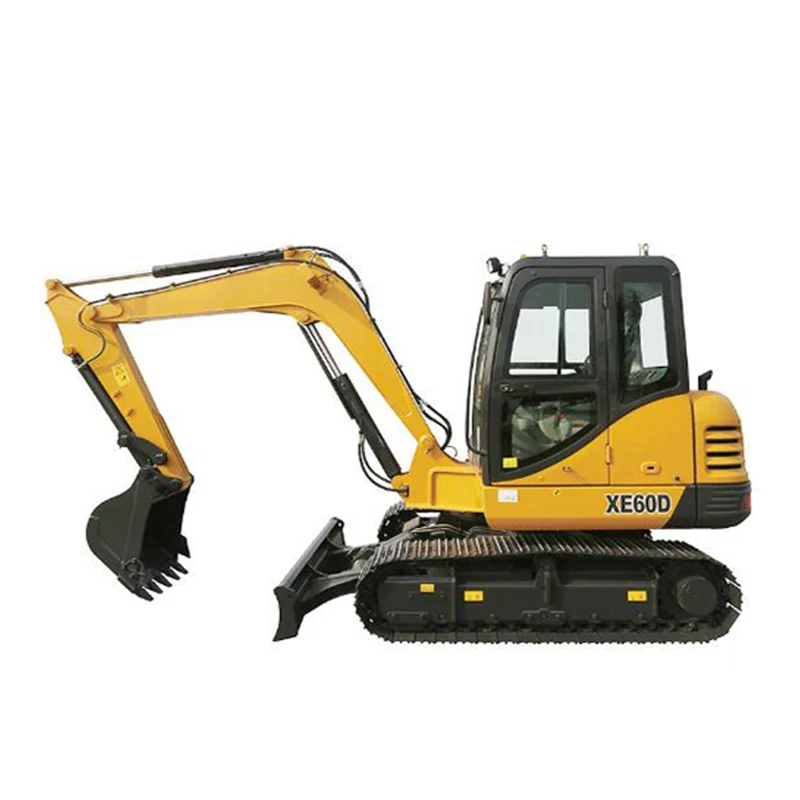

Mini Hydraulic 6Ton Crawler Excavator Digger Machine XE60D
Products Description
XE60D adopts a good engine excellent in environmental protection and energy saving. Moreover, it uses a load sensitive hydraulic system, able to guarantee operator's better controlling of the machine and better movement coordination, reduce the demand for operation proficiency of the driver; in addition, the reliability of this system has been recognized by the majority of users.
The stress analysis and structure optimization of such key components platforms, swing arms, bucket rods and lower chassis has fully guaranteed the reliability of the structural members.
The daily maintenance is sufficiently convenient and you only need to open the rear hood for maintenance of the engine oil, fuel and air filters.
* More energy efficient and environmental protection Adopt new type environmental protection Yanmar engine which has the features of low speed, large torque, low fuel consumption, high operating efficiency, reliability and durability. Adopt large displacement main pump with large low and high pressure-withstanding value, which can guarantee that the machine has smooth operation and high digging efficiency.
* More reliable and durable Optimize the design of boom and arm and further strengthen the key positions to make them more wear resisting and secure. Bucket teeth are installed with cross pin, which can effectively prevent the toothed sleeve from falling off and thus can improve the service life.
* More comfortable and safe Humanized detail design, all the control components inside the cab are arranged scientifically and reasonably according to ergonomics theory. Cup holder, standby power, magazine bag, storage box and other humanized configurations are added to improve the convenience and comfort of operation to the most extent.
The stress analysis and structure optimization of such key components platforms, swing arms, bucket rods and lower chassis has fully guaranteed the reliability of the structural members.
The daily maintenance is sufficiently convenient and you only need to open the rear hood for maintenance of the engine oil, fuel and air filters.
* More energy efficient and environmental protection Adopt new type environmental protection Yanmar engine which has the features of low speed, large torque, low fuel consumption, high operating efficiency, reliability and durability. Adopt large displacement main pump with large low and high pressure-withstanding value, which can guarantee that the machine has smooth operation and high digging efficiency.
* More reliable and durable Optimize the design of boom and arm and further strengthen the key positions to make them more wear resisting and secure. Bucket teeth are installed with cross pin, which can effectively prevent the toothed sleeve from falling off and thus can improve the service life.
* More comfortable and safe Humanized detail design, all the control components inside the cab are arranged scientifically and reasonably according to ergonomics theory. Cup holder, standby power, magazine bag, storage box and other humanized configurations are added to improve the convenience and comfort of operation to the most extent.
Specification
Operation Weight | 6010 kg | ||
Bucket Capacity | 0.23 m ³ | ||
Main performance | Travel speed(H/L) | 4.2/2.2 km/h | |
Rotating speed | 10 r/min | ||
Gradeability | 35° | ||
Ground pressure | 32.5 kPa | ||
Bucket digging force | 48.3 kN | ||
Arm digging force | 32.5 kN | ||
Maximum traction | 50.5 kN | ||
Hydraulic system | Rated flow of main pump | 151.2 L/min | |
Pressure of prime valve | 24.5 Mpa | ||
Pressure of travel system | 22 Mpa | ||
Pressure of swing system | 21 Mpa | ||
Pressure of pilot system | 3.5 Mpa | ||
Oil capacity | Fuel tank capacity | 110 L | |
Hydraulic tank capacity | 85 L | ||
Engine oil capacity | 12 L | ||
Appearance size | Overall dimensions(L*W*H) | 5860×1920×2585 mm | |
Width of platform | 1780mm | ||
Width of crawler | 400 mm | ||
Clearance under counterweight | 700 mm | ||
Min. ground clearance | 385 mm | ||
Min. tail swing radius | 2890 mm | ||
Working scope | Max. digging height | 5630 mm | |
Max. dumping height | 3945 mm | ||
Max. digging depth | 3830 mm | ||
Max. vertical wall digging depth | 2680 mm | ||
Max. digging reach | 6130 mm | ||
Min. swing radius | 2460 mm | ||
Standard | Boom length | 3000 mm | |
Arm length | 1600 mm | ||
Bucket Capacity | 0.23 m ³ | ||
Details Images
Our Advantages
Company Profile
Похожие товары
Это 'О мини-экскаватор ET-12 мини-экскаватор с кабиной мини гусеничный экскаватор
299 937,04-328 777,14 ₽
Быстрая доставка CAT Machine C4.4 3054C двигатель E416E E420D E420E E428D Турбокомпрессор 2373786 237-3786 317-2508 GT2556S для продажи
7 994,48-11 420,68 ₽
QIANYU от китайского поставщика PVD-2B-40P-16G5 насос PVD-2B-40P PVD-2B-44P PVD-2B-42L-поршневой автомата перекоса
Китай Шаньдун Jining мини-гусеничный экскаватор земляной для продажи
2 900,00-3 100,00 $
Мини-экскаватор YFE10 xn10 xn18 xn20 2 тонны с двигателем EPA экскаватор 1 8 мини-экскаватор большой 1000 кг маленький мешочек
4 999,00 $

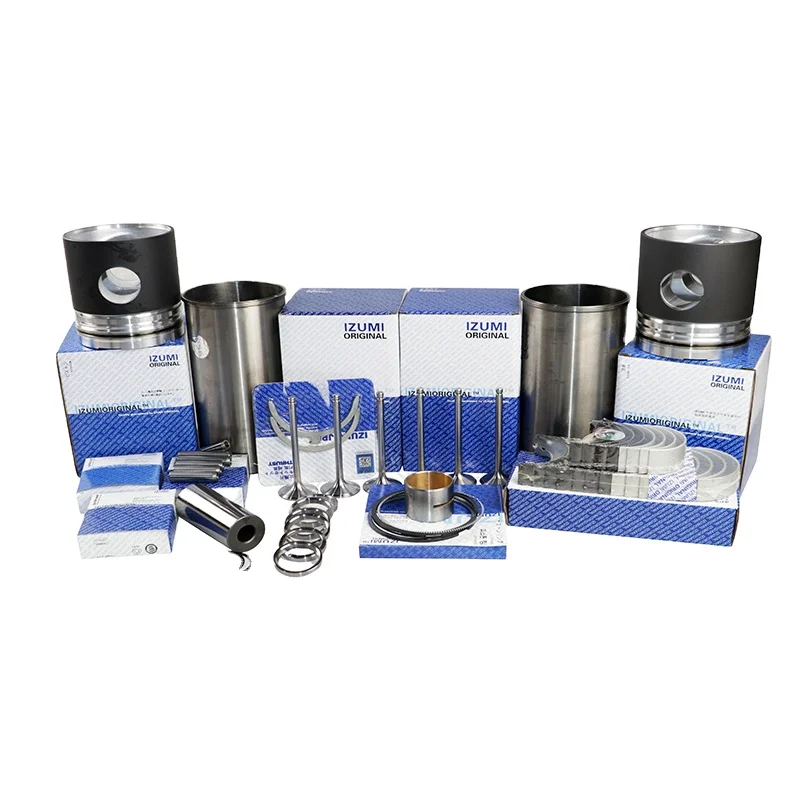

IZUMI оригинальная строительная техника двигатель D2366 DE12TIS поршневой комплект DE12T DE12
