Product Overview

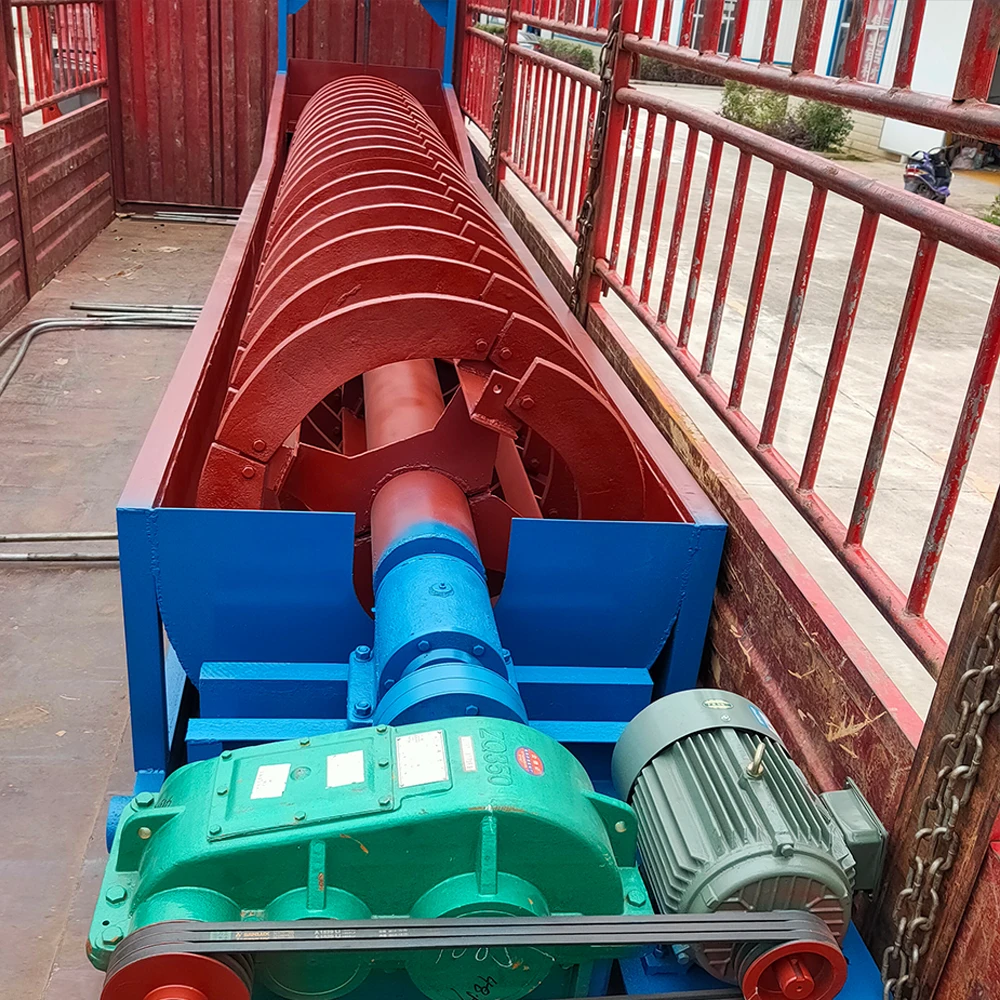

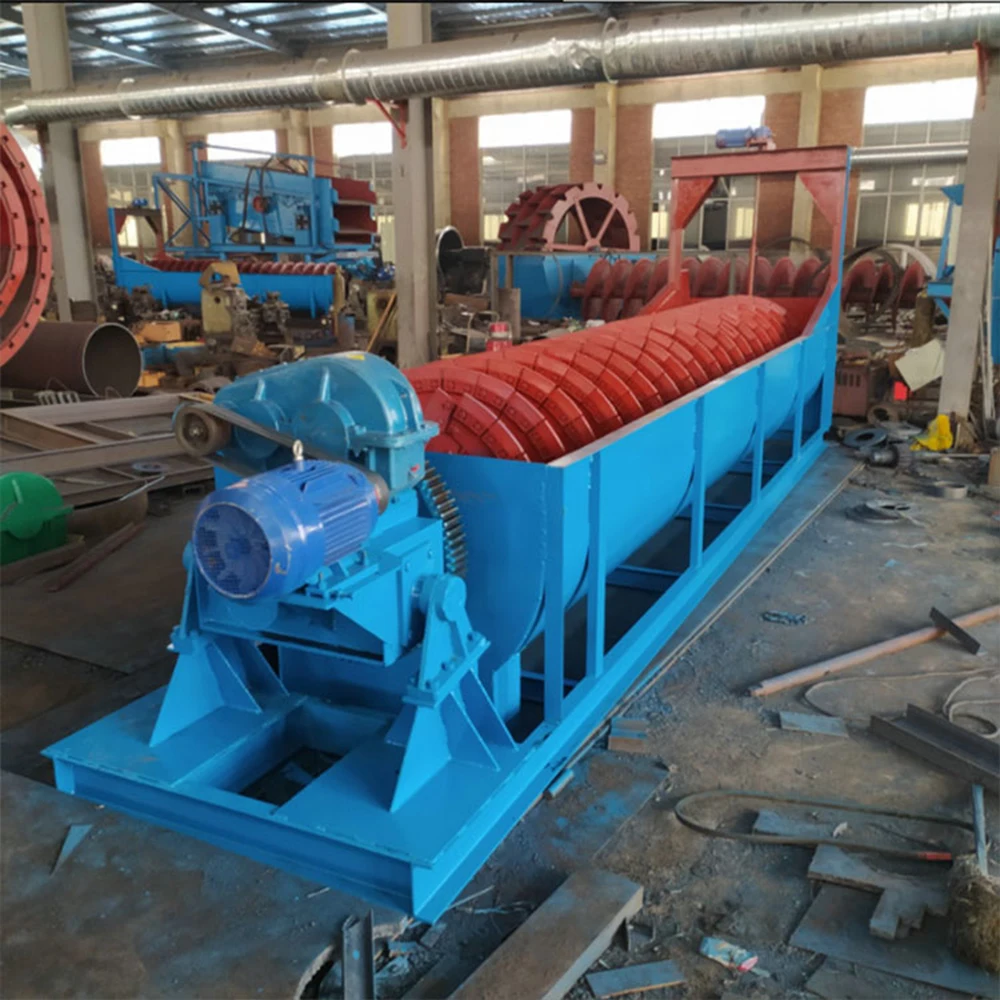

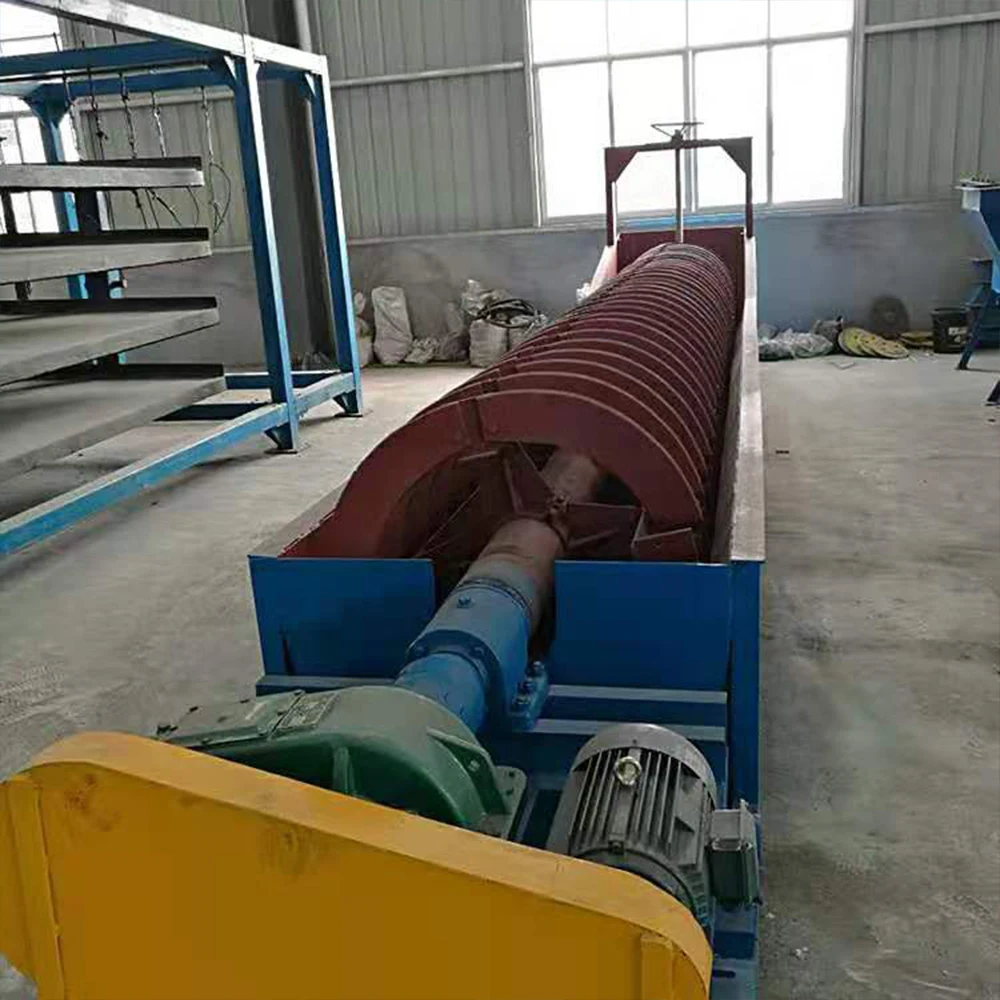

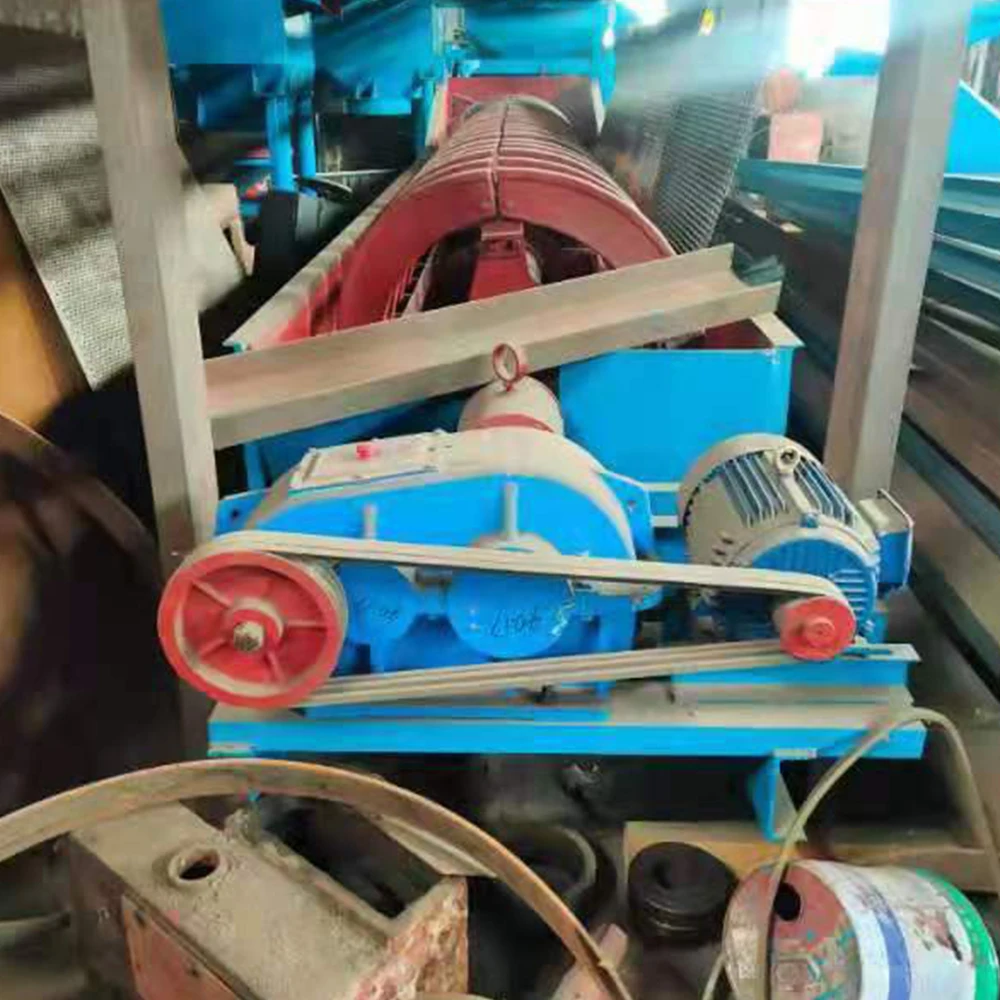

Spiral Classifier
Spiral classifiers suitable for dewatering, de-medium, desliming and wet and dry classifying in mine.This machine is mainly used in the production flow of metal processing, according to the difference in sedimentation rate of mineral particles and mud, the ore with particle size 14-325 meshes can be classified, it also can separate waste mud or dewatering for the ore. According to liquid level the spiral classifier can be divided into high weir type and submersion (or sinking ) type, The overflow weir of high
weir classifier is higher than the center of the spiral axis at lower end, but lower than the upper edge of the spiral blade. The length of liquid level is short, so its surface can directly gets the stirring effect by the spiral blade, therefore it suitable for coarse particle classification, usually the classified particle size is over 0.15mm. The spiral blade of submersion classifier at lower end completely submerged under the liquid level, the classifying area is big and smooth, suitable for classification for fine particle which is less than 0.15mm, its overflow productivity is higher.
weir classifier is higher than the center of the spiral axis at lower end, but lower than the upper edge of the spiral blade. The length of liquid level is short, so its surface can directly gets the stirring effect by the spiral blade, therefore it suitable for coarse particle classification, usually the classified particle size is over 0.15mm. The spiral blade of submersion classifier at lower end completely submerged under the liquid level, the classifying area is big and smooth, suitable for classification for fine particle which is less than 0.15mm, its overflow productivity is higher.
FEATURES AT A GLANCE
Features
1. Low power cosumption;
2. Heavy duty, long workinglife;
3. Powerful self-contained spiral lifting device;
4. Continuous spiral raking;
5. High classifying efficiency;
6. Wide choice of weir height;
7. Rigid tank and substructure;
8. Wide choice of tank design;
9. Wide range of industries serviced.
2. Heavy duty, long workinglife;
3. Powerful self-contained spiral lifting device;
4. Continuous spiral raking;
5. High classifying efficiency;
6. Wide choice of weir height;
7. Rigid tank and substructure;
8. Wide choice of tank design;
9. Wide range of industries serviced.
Working Principle
plate. The water inlet head and the shaft head of the spiral shaft are covered by raw iron, which is wear-resisting and durable. And the lifting device can be controlled both electronically and manually.
The specific gravity of solids differs due to their different sizes, so does their sedimentation rates. Therefore, the light and fine particles float above the surface and overflow from the overflow edge. Then they flow into the next working procedure of ore dressing. The heavy and thick particles sink into the bottom of the water tank and become return sand which is transported by the spirals to the ore discharge mouth for discharge. The body seat is made from the channel steel while the body is welded by steel
plate. The water inlet head and the shaft head of the spiral shaft are covered by raw iron, which is wear-resisting and durable. And the lifting device can be controlled both electronically and manually.
PRODUCT SPECIFICATIONS
Model | Spiral diameter (mm) | Overflow (m3) | Sand return (m3) | Power (Kw) Driving motor, Lifting motor | Dimension (mm) | Weight (Kg) |
FLG-5 | 500 | 32 | 143-261 | 1.1, 0 | 4500*555 | 1600 |
FLG-7 | 750 | 65 | 256-564 | 3, 0 | 5500*830 | 2900 |
FLG-10 | 1000 | 85 | 473-1026 | 5.5, 0 | 6500*1112 | 4400 |
FLG-12 | 1200 | 155 | 1170-1600 | 5.5, 1.5 | 6500*1372 | 8800 |
FLG-15 | 1500 | 235 | 1140-2740 | 7.5, 2.2 | 8265*1664 | 11680 |
FLG-20 | 2000 | 400 | 3890-5940 | 11/15, 3.0 | 8400*2200 | 20450 |
FLG-24 | 2400 | 580 | 6800 | 15, 3.0 | 9130*2600 | 25650 |
2FLG-12 | 1200 | 310 | 2340-3200 | 5.5×2, 1.5×2 | 6500*2600 | 15840 |
2FLG-15 | 1500 | 470 | 2280-5480 | 7.2×2, 2.2×2 | 8250*3200 | 22100 |
2FLG-20 | 2000 | 800 | 7780-11880 | 11×2 , 3×2 | 8400*4280 | 36400 |
2FLG-24 | 2400 | 1160 | 13600 | 30, 3×2 | 9130*5100 | 45874 |
Details Images
SIMILAR PRODUCTS
Company Profile
Victor is a large mineral processing manufacturer for 15 years history, with covering an area of 48,000 square meters and 20,000 square meters for workshop, with various large modernized machinery facilities, professional R&D team and installation team.
With 32% market share in China and the rest to overseas, already successfully exported to over 50 countries, such as USA, England, Australia, Brazil, Turkey, Italy, Russia, South Africa, Zimbabwe, Sudan, Ghana, Congo, Morocco, India,Indonesia, Malaysia, Philippines, North Korea, Mongolia, Vietnam, Thailand etc.
Our goal is to provide one-stop service for you and assist you to solve all problems from investment to his return in the field of mining, including the preliminary mineral analysis, mineral processing test, engineering design, equipment debugging and technical training etc..
We are expert especially at mining separating and lab mining plant, main products as below:
We are expert especially at mining separating and lab mining plant, main products as below:
FAQ
1.How is the quality of your products? (mining equipment/machine)
Answer: Our products are manufactured strictly according to national and international standard, and we will take a test on every
grinder before delivery.
2.Guaranteed?
Answer: All of our products are guaranteed for one year. If products quality is not consistent with the description as we
described or the promise before you place order, we promise 100% refund.
3.How about price?
Answer: For the complete same machine, we can promise our quality is the best when the price same as other competitors, and our
price can be lowest when the quality at standard level.
4.Service and Payment Terms?
Answer: We can accept T/T and L/C; 30% deposit, 70% balance before delivery, which is international trade practice;Finished
product pictures will provide to customers before delivery.
Our Service:
1) Pre-sale service: Freely provide project designing, process designing, choosing suitable equipment for you.
2) Medium-sales service: Accompany you to complete the acceptance of the equipment, draft the construction scheme and detailed
process, and complete process of export
3) After-sales service: Offer considerate technical guidance in installation, debugging and operators training. We are available
at any time if you need.
Answer: Our products are manufactured strictly according to national and international standard, and we will take a test on every
grinder before delivery.
2.Guaranteed?
Answer: All of our products are guaranteed for one year. If products quality is not consistent with the description as we
described or the promise before you place order, we promise 100% refund.
3.How about price?
Answer: For the complete same machine, we can promise our quality is the best when the price same as other competitors, and our
price can be lowest when the quality at standard level.
4.Service and Payment Terms?
Answer: We can accept T/T and L/C; 30% deposit, 70% balance before delivery, which is international trade practice;Finished
product pictures will provide to customers before delivery.
Our Service:
1) Pre-sale service: Freely provide project designing, process designing, choosing suitable equipment for you.
2) Medium-sales service: Accompany you to complete the acceptance of the equipment, draft the construction scheme and detailed
process, and complete process of export
3) After-sales service: Offer considerate technical guidance in installation, debugging and operators training. We are available
at any time if you need.
Похожие товары

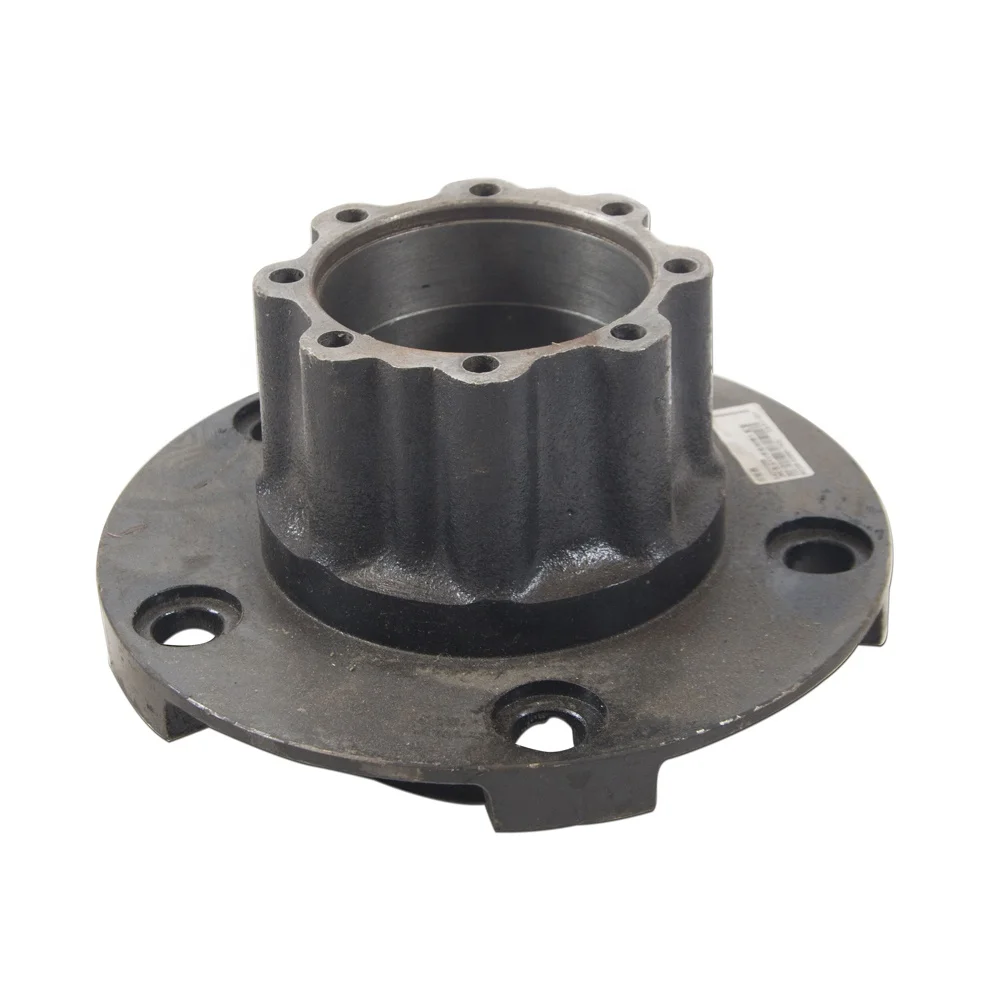

Производители высококачественных запасных частей для Грузовиков FOTON 1049/1046/1039, Задняя Ступица OE.NO 2205020320
8,00 $ - 15,00 $

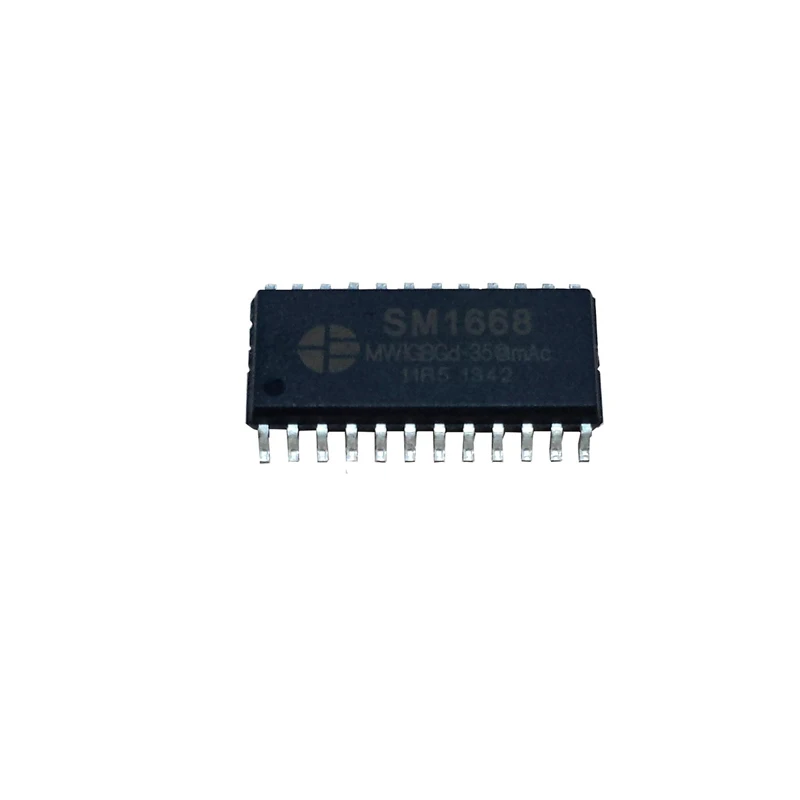

Индукционная плита SM1668 = SM1688 SM1668S SOP-24, панель дисплея IC, новый и оригинальный дисплей ic

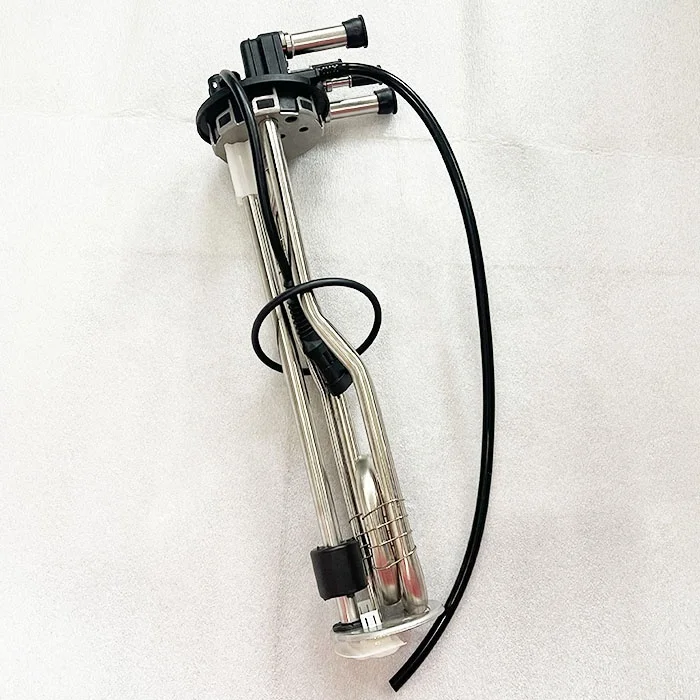

Датчик расхода жидкости уровня мочевины для грузовиков 3690610 kx100

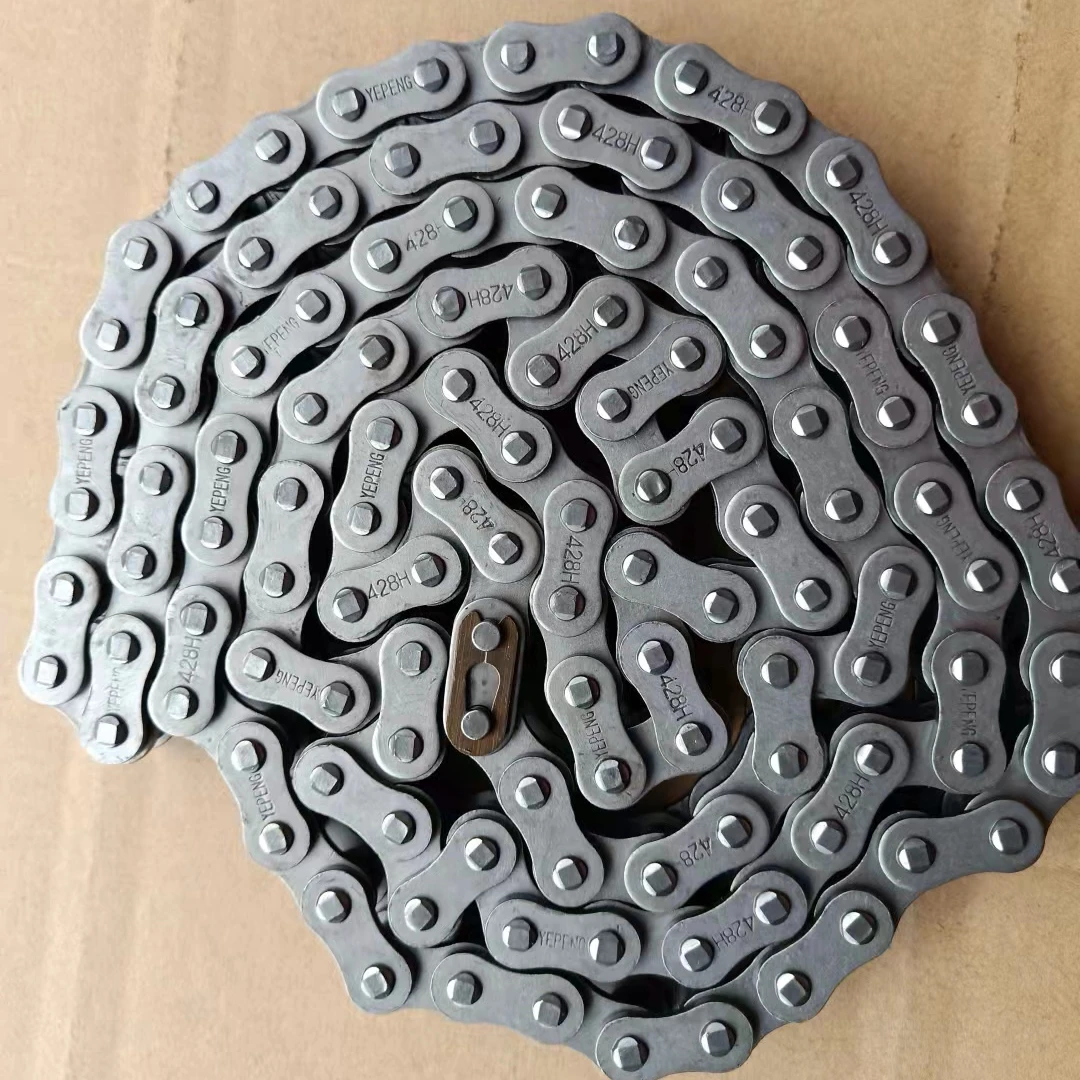

Китайский поставщик, хорошее качество, конвейерная транспортировка, автоматическая парковочная машина, роликовая цепь
2,41 $

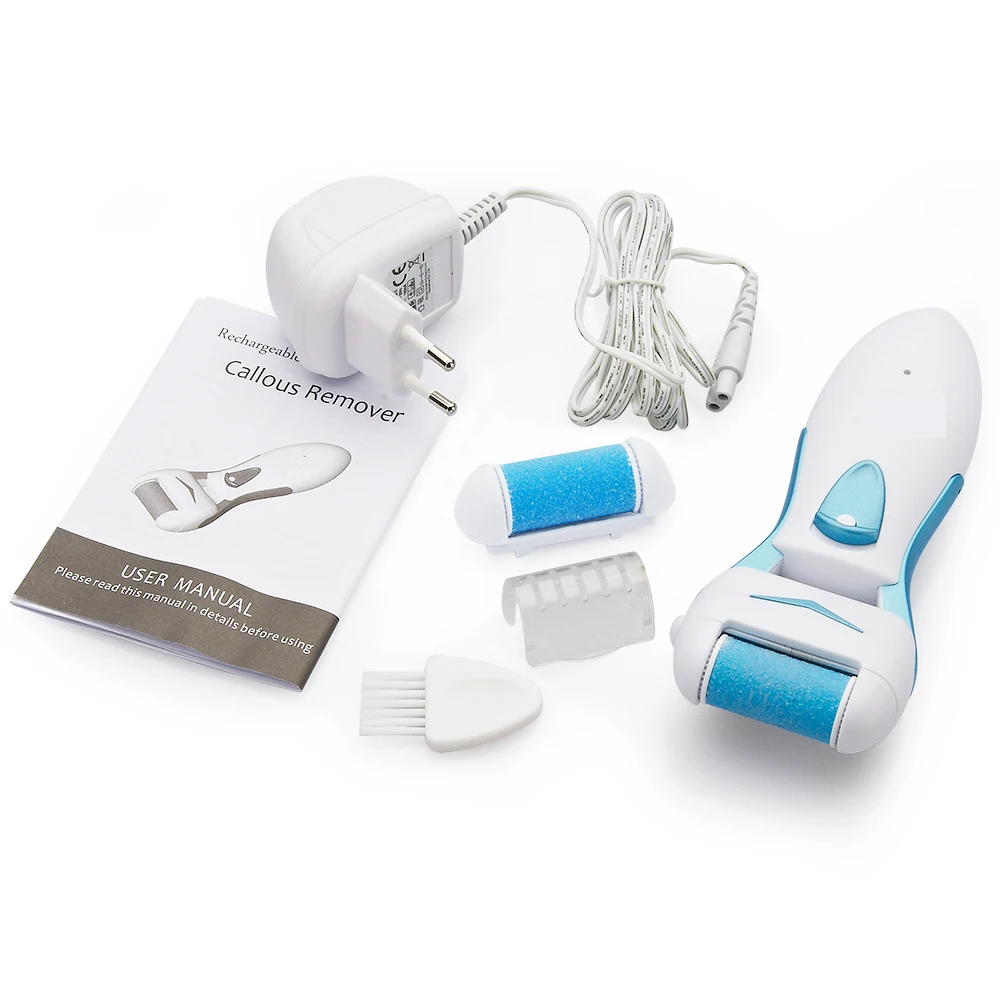

Электрический прибор для ухода за ногами с американской/европейской вилкой перезаряжаемый удаления огрубевшей кожи и
5,80 $ - 6,20 $
Сушеные рыбы Maws Basa, плавающий пузырь, оптовая продажа по лучшей цене, из Вьетнама, для экспорта, 99 золотых данных
3,00 $ - 4,00 $

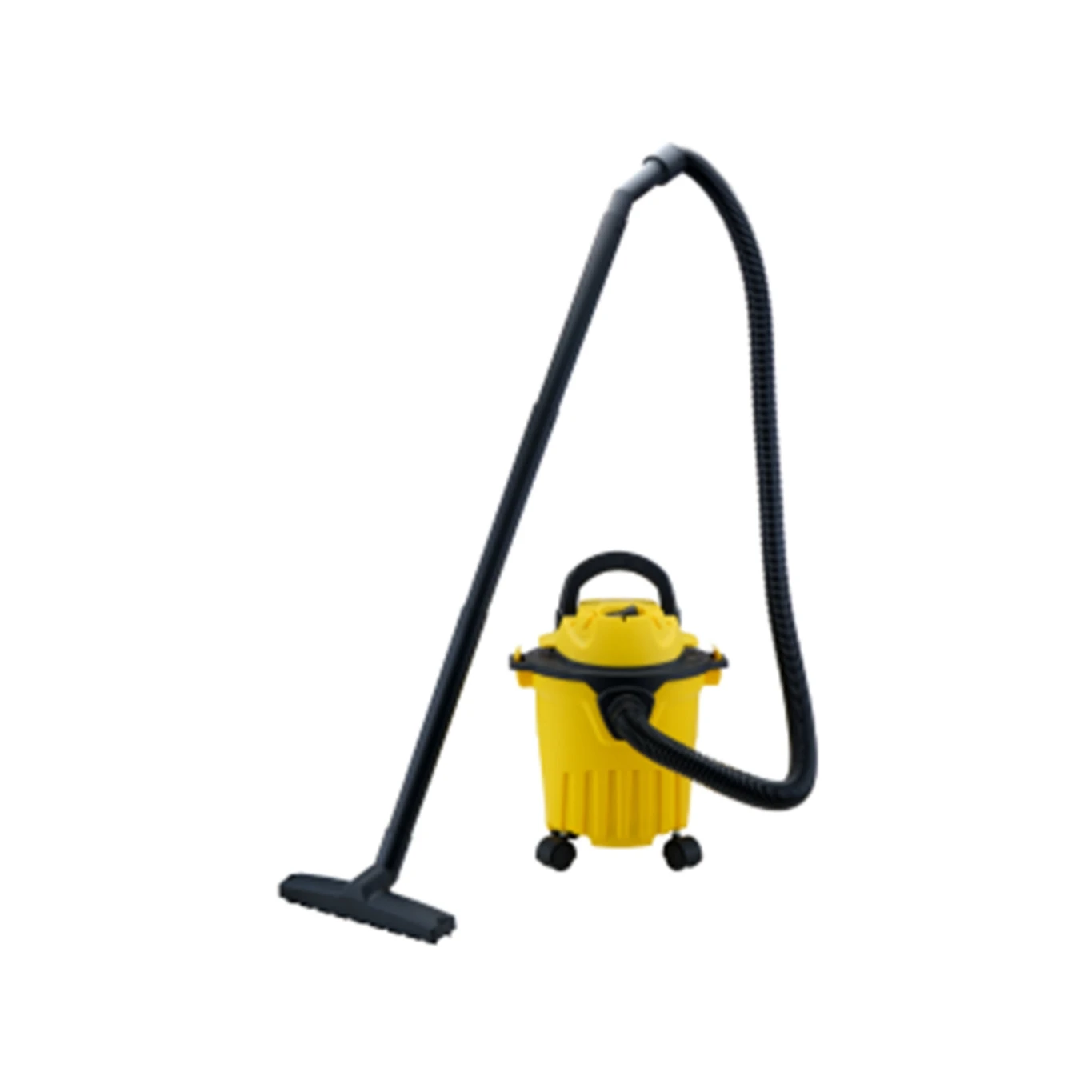

Портативный мощный пылесос 1000 Вт-12 л с низким уровнем шума
