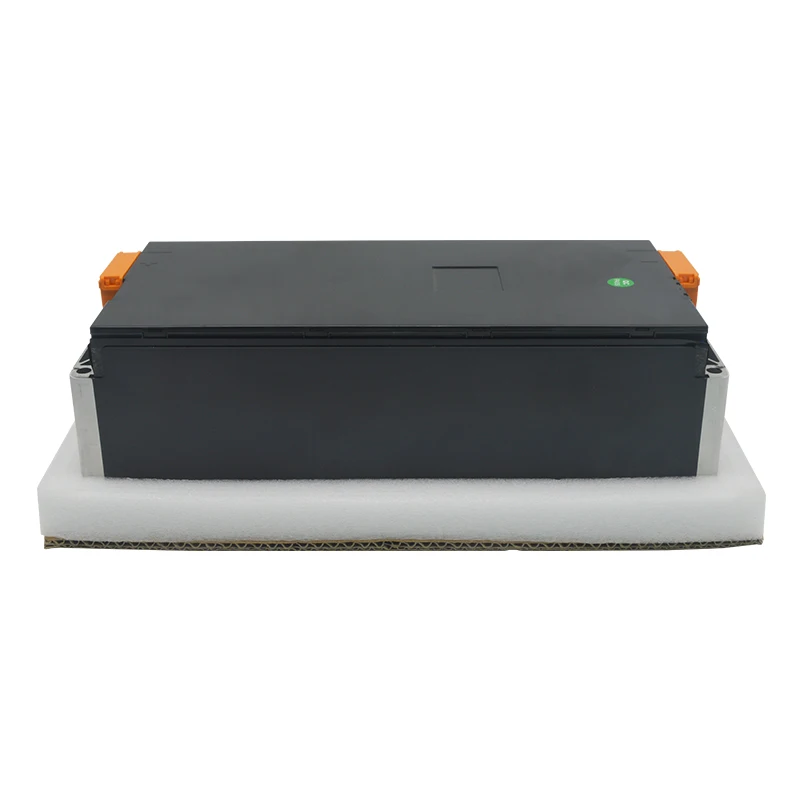

CATL 4S1P 180Ah 14 8 V лист батареи модули технология изготовления свинцово кислотных аккумуляторов NMC автомобильного
- Категория: >>>
- Поставщик: Aoyouji Electronics (huizhou) Co. Ltd.
Сохранить в закладки 1600567259735:
Описание и отзывы
Характеристики

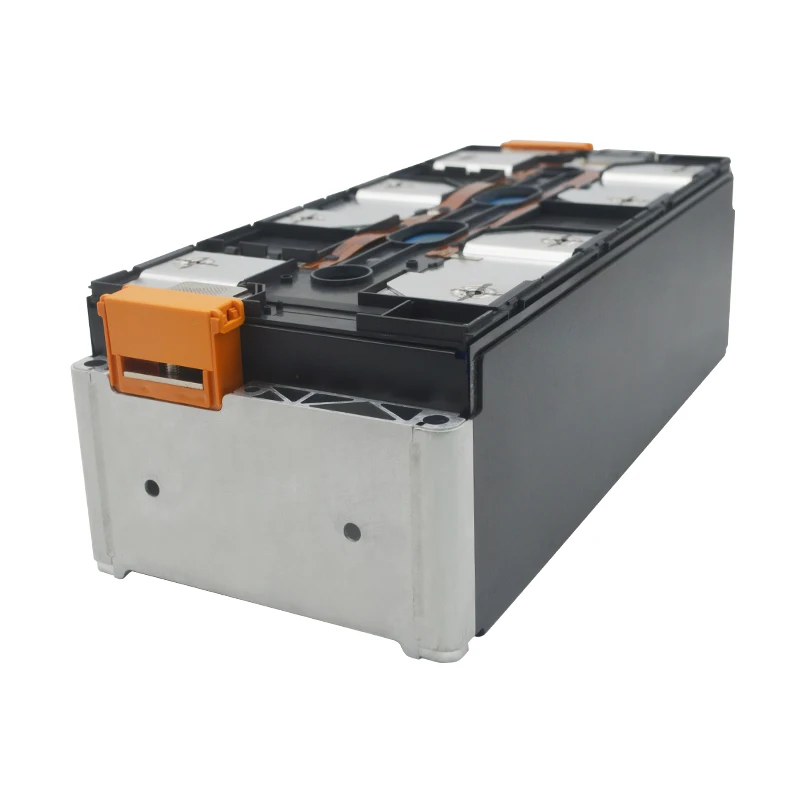

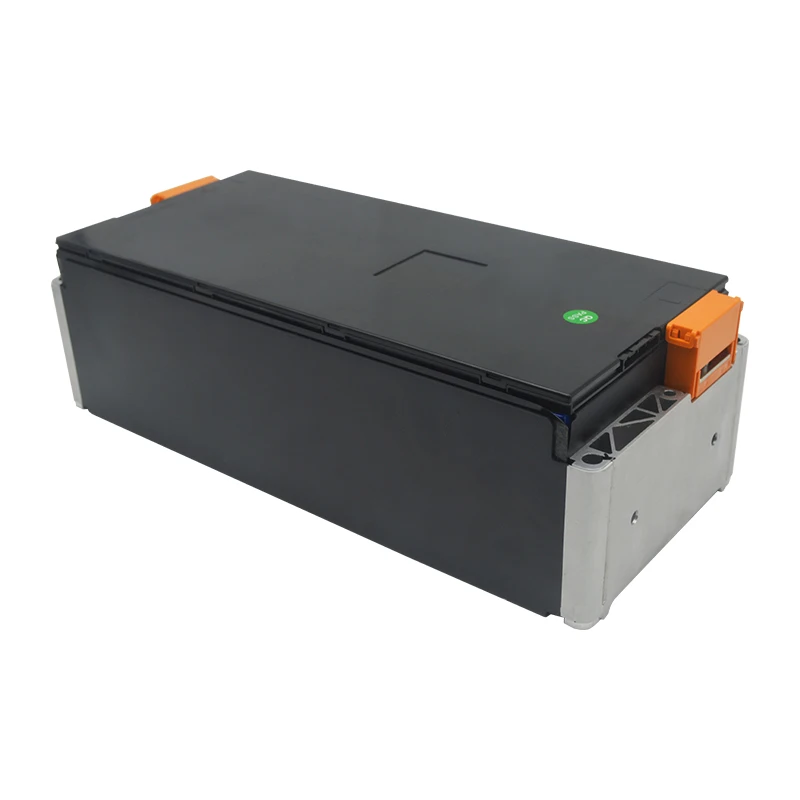

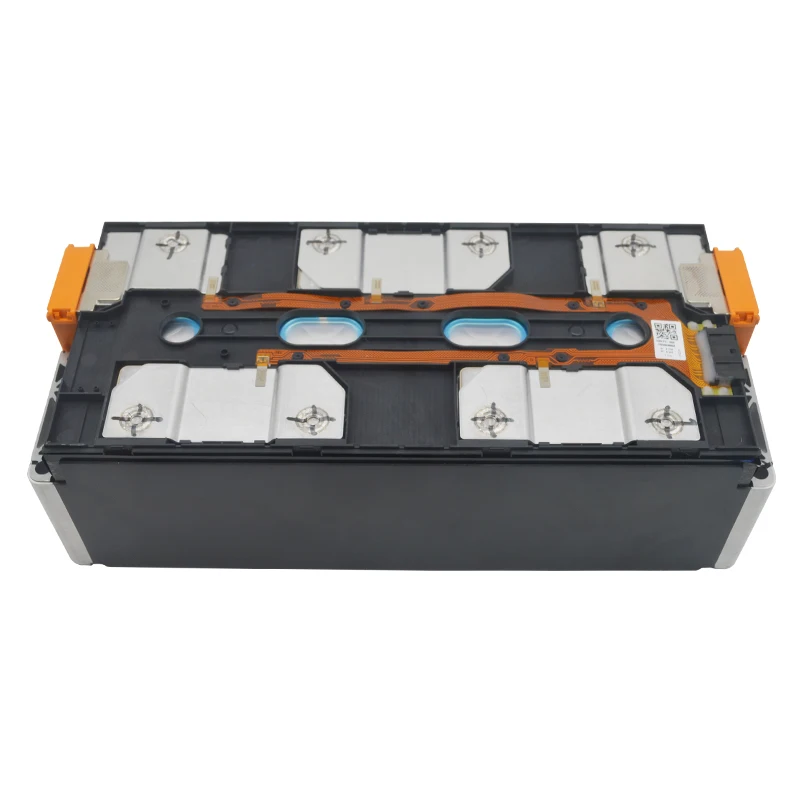

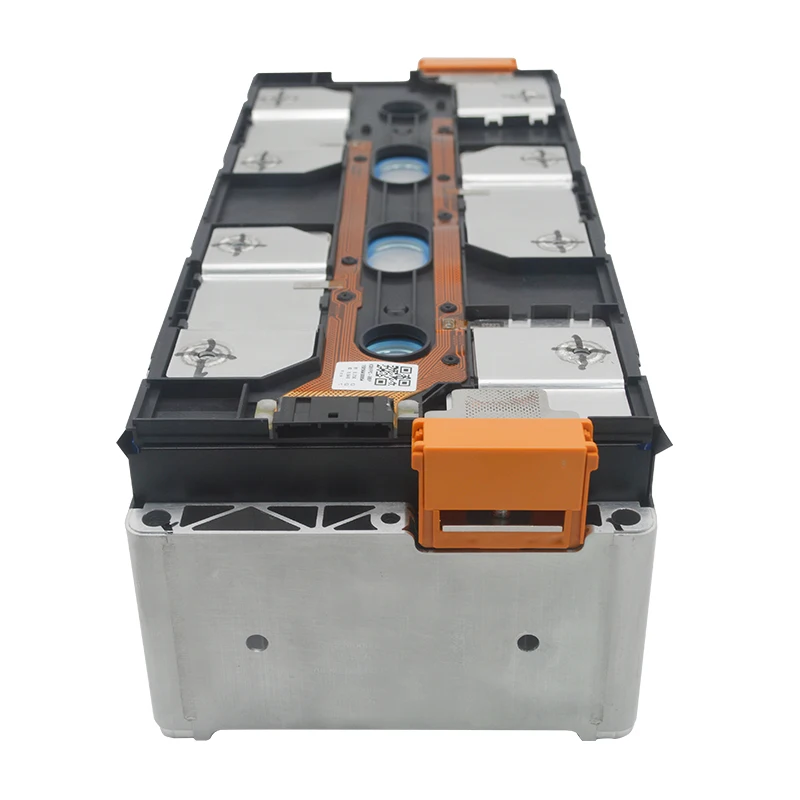

Good Quality CATL Module 4S1P 14.8V 165Ah Leaf Battery 170Ah 180Ah Lithium Ion Battery Module for EV RV Golf Carts
Specification
Item | Value |
Battery Type | CATL NCM Battery Module (4S1P 3.7V 180Ah cells) |
Nominal Voltage | 14.8V |
Battery Capacity | 180Ah |
The charging ratio | 1C |
The discharge rate | 3C |
Charge Cut-off Voltage | 17V |
Discharge Cut-off Voltage | 10.8V |
Standard Charging Current | 0.5C |
Max Charging Current | 1C |
Standard Discharging Current | 1C |
Max Continuous Discharging Current | 2C |
Max Discharging Current (Peak) | 3C |
Battery Cycle Life | ≥1500times |
Standard Charging Mode | CC/CV |
Weight | 11.64kg |
Dimensions | 355*152*102 mm |
Application | EV, RV, AGV, Golf Carts, Electric Folklifts, Trucks, Cars,Solar Energy Storage System |
Product Description
Long Cycle Life
- Large capacity;
- Low resistance;
- Smooth discharge；
- After 600 times standard charge & discharge, capacity>=80%.
- Low resistance;
- Smooth discharge；
- After 600 times standard charge & discharge, capacity>=80%.
Multiple Protection
- Over charge and over discharge protection
- Explosion-proof design
- Recycle and Rechargeable
- Multiple protections ensure safe use and extend span life
- Explosion-proof design
- Recycle and Rechargeable
- Multiple protections ensure safe use and extend span life
Product Features
* Genuine Grade A lithium battery cells, brand new
* Light weight and high performance with 300A continuous discharge
* Small internal resistance
* High energy density, low self-discharge
* Pollution free, long cycle life
* No memory effect
* Existing stock for short delivery time.
* OEM orders are available (battery pack, battery with spot welding ect.)
Safety instructions
Stop charging the battery if charging isn't completed within the specified time.
Stop using the battery if the battery becomes abnormally hot, order, discoloration, deformation, or
abnormal conditions is detected during use, charge, or storage.
Keep away from fire immediately when leakage or foul odors are detected. If liquid leaks onto your
skin or cloths, wash well with fresh water immediately.
If liquid leaking from the battery gets into your eyes, don't rub your eyes and wash them with clean
water and go to see a doctor immediately.
If the terminals of the battery become dirty, wipe with a dry cloth before using the battery.
The battery can be used within the following temperature ranges. Don't exceed these ranges.
The operating temperature is based on the cell surface temperature in hottest position in pack.
Charge temperature ranges : 0ºC ~ 50ºC
Discharge Temperature ranges : -20ºC ~ 75ºC
Store the battery at temperature below 45ºC
Cover terminals with proper insulating tape before disposal.
* Genuine Grade A lithium battery cells, brand new
* Light weight and high performance with 300A continuous discharge
* Small internal resistance
* High energy density, low self-discharge
* Pollution free, long cycle life
* No memory effect
* Existing stock for short delivery time.
* OEM orders are available (battery pack, battery with spot welding ect.)
Safety instructions
Stop charging the battery if charging isn't completed within the specified time.
Stop using the battery if the battery becomes abnormally hot, order, discoloration, deformation, or
abnormal conditions is detected during use, charge, or storage.
Keep away from fire immediately when leakage or foul odors are detected. If liquid leaks onto your
skin or cloths, wash well with fresh water immediately.
If liquid leaking from the battery gets into your eyes, don't rub your eyes and wash them with clean
water and go to see a doctor immediately.
If the terminals of the battery become dirty, wipe with a dry cloth before using the battery.
The battery can be used within the following temperature ranges. Don't exceed these ranges.
The operating temperature is based on the cell surface temperature in hottest position in pack.
Charge temperature ranges : 0ºC ~ 50ºC
Discharge Temperature ranges : -20ºC ~ 75ºC
Store the battery at temperature below 45ºC
Cover terminals with proper insulating tape before disposal.
Packing & Delivery
standard carton package
Company Profile
AUG ENERGY ELECTRONICS CO.,LTD was founded in HongKong 2009,Passing 12 years hard-working and growth.AUG has became a leader in the lithium battery fields who concentrate on R&D,Manufacture,Market,Services in one of advanced company.Through these rich experience,AUG not only can provide high-quality standard products but also can make use of our advantages above to provide OEM&ODM services to our clients,thus it will help customers bring their products get to market faster.
By 2020,AUG have passed ISO9001-2008 quality management system for 8 years,AUG have passed CE,ROSH,MSDS,UN38.3,UL1642,IEC62133 etc.. certifications. AUG's lithium battery&battery pack have been trusted by customers from more than 40 countries and regions.
At present,AUG's products widely use on "Protable Electronics Equipments,E-Bike,E-Scooter,Solar storage system,Medical Equipment,Electric Golf Cart,Electric Vehicle Electric Forklift etc...".
By 2020,AUG have passed ISO9001-2008 quality management system for 8 years,AUG have passed CE,ROSH,MSDS,UN38.3,UL1642,IEC62133 etc.. certifications. AUG's lithium battery&battery pack have been trusted by customers from more than 40 countries and regions.
At present,AUG's products widely use on "Protable Electronics Equipments,E-Bike,E-Scooter,Solar storage system,Medical Equipment,Electric Golf Cart,Electric Vehicle Electric Forklift etc...".
Applications
Certifications
FAQ
1. who are we?
We are based in Guangdong, China, start from 2020,sell to North America(30.00%),Eastern Europe(20.00%),Western Europe(15.00%),Southern Europe(10.00%),South America(5.00%),Southeast Asia(5.00%),Mid East(5.00%),Eastern Asia(5.00%),Northern Europe(5.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Lithium/LiFePo4 Battery,OEM&ODM Battery Pack,Solar Storage Battery,Electric Vehicle Power Battery,E-Scooter Power Battery
4. why should you buy from us not from other suppliers?
1.More than 15 years R&D experience.
2.Factory.
3.Complete export qualifications.
4.More than 10 years export experience.
5.ISO9001-2008 Quality Management System passed.
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,PayPal;
Language Spoken:English,Chinese
We are based in Guangdong, China, start from 2020,sell to North America(30.00%),Eastern Europe(20.00%),Western Europe(15.00%),Southern Europe(10.00%),South America(5.00%),Southeast Asia(5.00%),Mid East(5.00%),Eastern Asia(5.00%),Northern Europe(5.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Lithium/LiFePo4 Battery,OEM&ODM Battery Pack,Solar Storage Battery,Electric Vehicle Power Battery,E-Scooter Power Battery
4. why should you buy from us not from other suppliers?
1.More than 15 years R&D experience.
2.Factory.
3.Complete export qualifications.
4.More than 10 years export experience.
5.ISO9001-2008 Quality Management System passed.
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,PayPal;
Language Spoken:English,Chinese
Contact
Похожие товары
USB Перезаряжаемый автомобильный аромадиффузор SCENTA, Электрический ультразвуковой бесводный автомобильный аромадиффузор эфирного масла
11,00 $ - 13,00 $
Машина для обезвоживания пищевых продуктов, 5 лотков, профессиональный электрический многоуровневый пищевой консерв для фруктов/овощей, сушилка
9,39 $ - 11,72 $
Новая светодиодная лампа в форме НЛО специального назначения 85-265 в светодиодная лампочка E27/B22 Энергосберегающая светодиодная лампочка теплый желтый белый
0,60 $

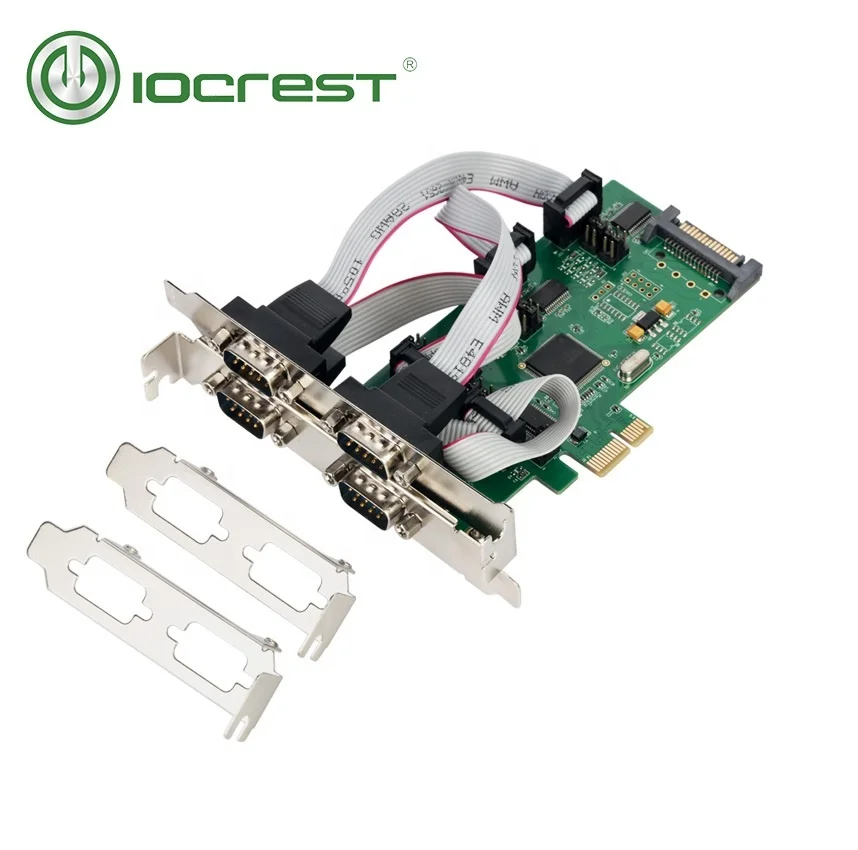

Горячая Распродажа 120% SRGB 4 порта Rs232 последовательная карта да Pcie Последовательный Rs232 4 порта 120% SRGB Pci на Rs232 4 порта
7,90 $ - 10,50 $
ТВ-приставка CLYTTE EM95 Pro на Android 9,0, 4 + 32 ГБ, Wi-Fi, IPTV, 4K, 2 + 16 Гб
Wholesale Large Hand Carved Natural Rose Quartz Crystal Point Wands
13,00 $ - 20,00 $

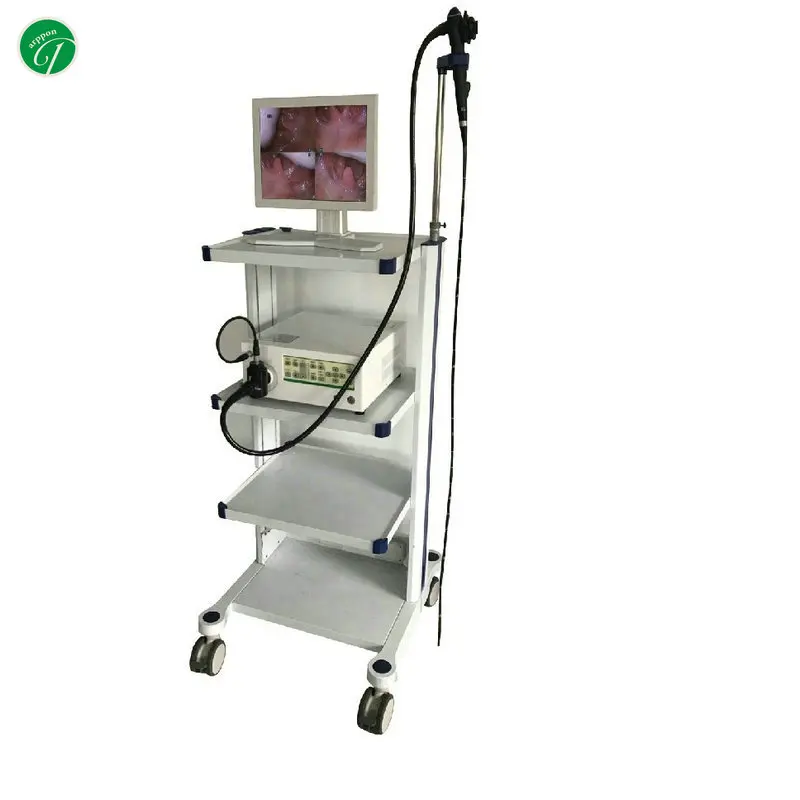

В продаже, КИТАЙСКИЙ HD ветеринарный видеоэндоскоп для мелких животных, ветеринарное оборудование
