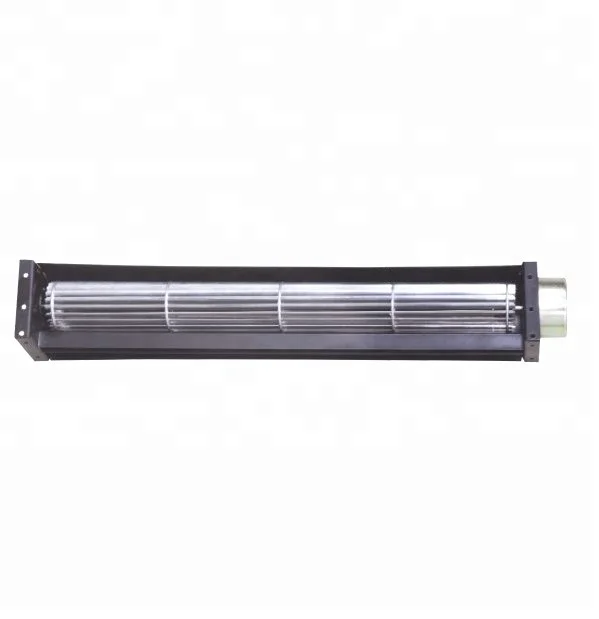

Toyon dc вентилятор 30x290 мм алюминиевый поперечный потоковый 12V 24V
9,50 $ - 13,00 $

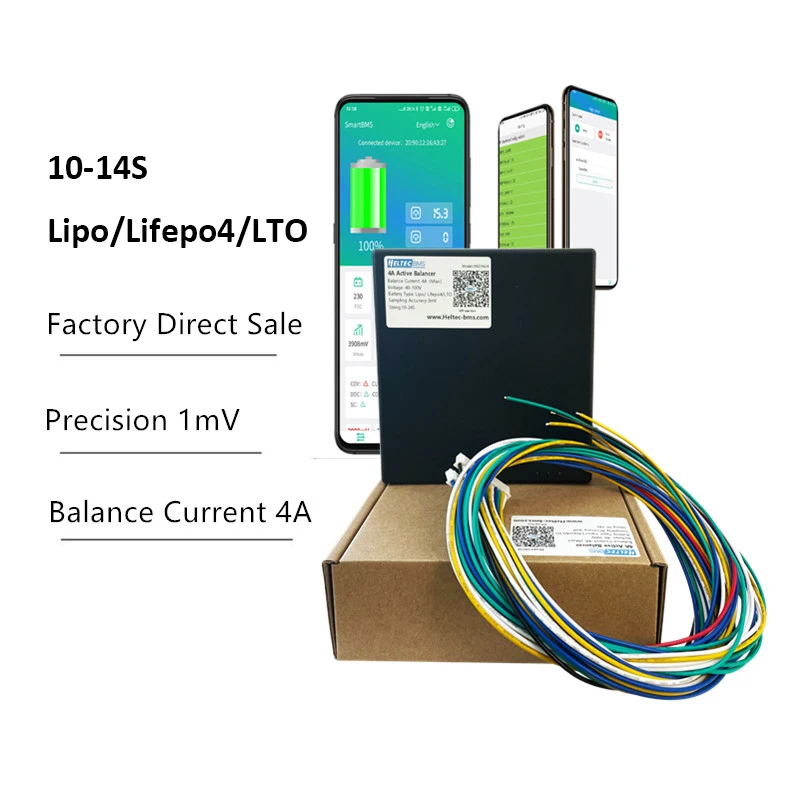

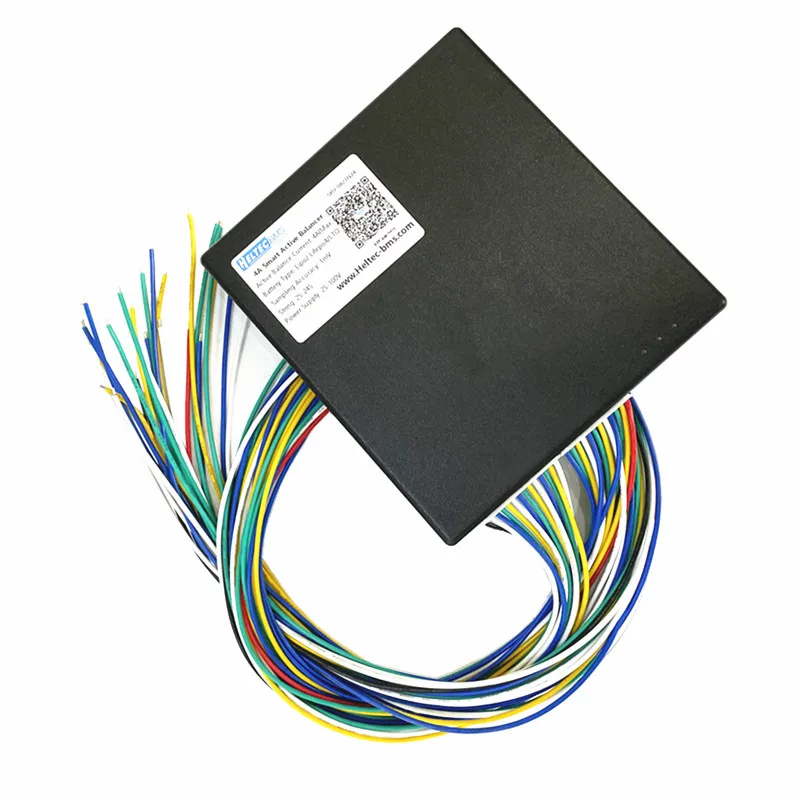

Новый Умный активный стабилизатор Heltec 1 4A 10S 24S 1A 2A 4A Суперконденсатор эквалайзер APP Li Ion Lipo /Lifepo4/LTO
- Категория: >>>
- Поставщик: Chengdu Heltec Automation Technology Co. Ltd.
Сохранить в закладки 1600567502893:
Описание и отзывы
Характеристики
Products Catalog
Product Description
Supercapacitor active equalization principle
The basic principle of the active equalization technology is to use the ultra-pole capacitor as a temporary energy storage medium, charge the battery with the highest voltage to the ultra-pole capacitor, and then release the energy from the ultra-pole capacitor to the battery with the lowest voltage. equal. The constant current DC-DC technology ensures that the current is constant regardless of whether the battery is charged or discharged. The advantages of this equalization solution are as follows:
1. Each time the energy is transferred, the highest compensation is taken to the lowest, which avoids invalid charge and discharge cycles and has almost no impact on battery life.
2. Cross-flow DC-DC technology ensures a constant equalization current, and will not affect the equalization ability due to the small voltage difference between the batteries.
3. It takes only two energy transfer processes to complete the equalization of the battery from high to low, and the equalization efficiency is not affected by the distance between the batteries, which greatly improves the equalization efficiency. The average efficiency is 0.95 squared to approximately 0.9.

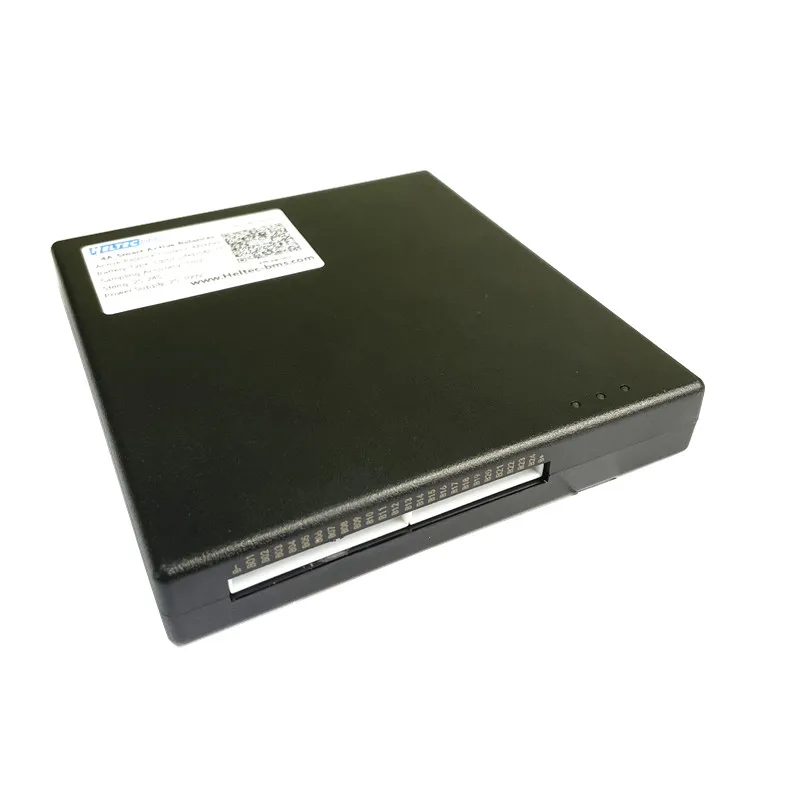

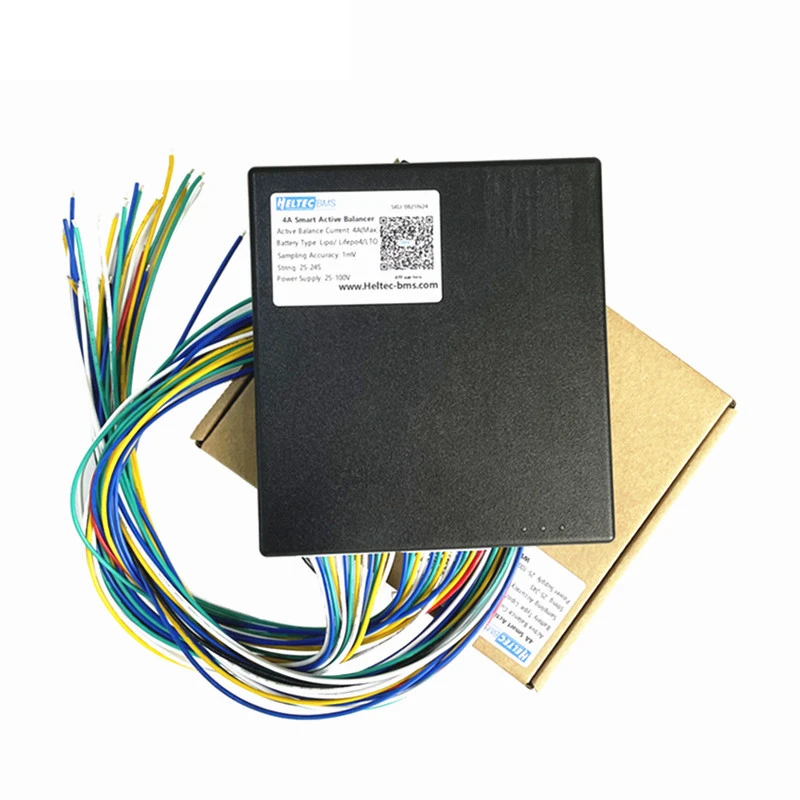

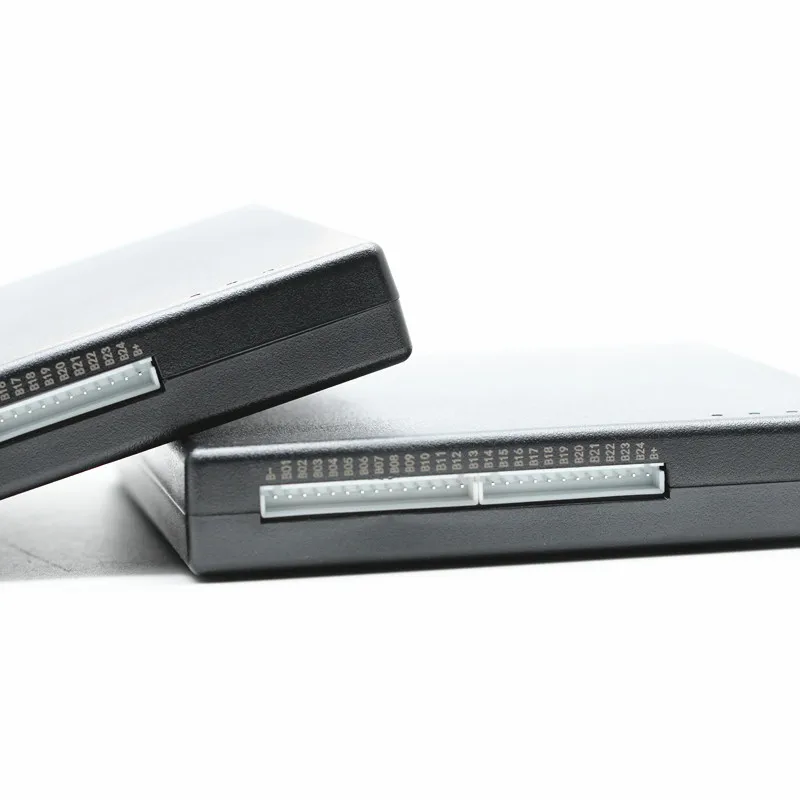

10-24S 4A Balancer New on sale
Attention
It is strongly recommended to insert the low series cable first and then the high series cable; when inserting the cable, please start from B-
model | 24S 4A (0821N24) | ||||
Applicable string | 10-24S | ||||
Applicable battery type | NCM/LFP/LTO (ternary/lithium iron/lithium titanate) fully compatible | ||||
Number of applicable strings for power supply range | The minimum total voltage of the battery pack is greater than 30V, the recommended value: ternary battery ≥ 10 strings,iron-lithium battery ≥ 12 strings, LTO battery ≥ 20 strings | ||||
Single voltage working range | 1.0～4.5V | ||||
Voltage balance accuracy | ±1mv (voltage measurement accuracy), ±1mv (voltage equalization accuracy), this product is calibrated by Keithley DMM7510 | ||||
Balanced method | Patented balance architecture flying capacitor method, combined with point-to-point energy transfer algorithm for high-efficiency balance. | ||||
Balance current | APP custom setting: 1-4A, due to the use of constant current and constant voltage technology, the balance current has nothing to do with the battery voltage difference. | ||||
Drop detection | support | ||||
Undervoltage protection sleep voltage | Under-voltage sleep voltage can be customized by APP: 1.5-4.2V | ||||
Static working current | Balance off 10mA, balance on 25mA | ||||
Product size (MM) | L140*W128*T22 | ||||
Product weight including packaging | 470g | ||||
Working temperature | （-20℃-55℃） | ||||
external power supply | No need for external power supply, relying on the internal energy transfer of the battery to achieve the balance of the whole group | ||||
Company Overview
Chengdu Heltec Automation Technology Co., Ltd. ( English abbreviation Heltec Automation). At present, The company's research and development and production include OLED dot matrix screen, electronic ink screen, IoT series products, LoRa supporting solutions and high-precision temperature controllers with automatic control algorithms as the core.
At present, there is a strong technical research and development team, a scientific production and manufacturing platform and a strict quality management system.
OUR SERVICES & STRENGTH
Stable performance, cost-effective products, high-quality and superior service, our products have not only gained a good reputation in the country, but also received high-quality evaluation in France, Germany, Russia, the United States, South Korea and other countries.
1). Rigorous quality assurance system. |
2). High level of service awareness. |
3). High quality team. |
4). Components use well-known brands. |
5). Quick response customer program. |
6). Self-owned processing plant, rapid production, equipped with automatic SMT placement machine, automatic screen printing machine and reflow oven. |
Похожие товары

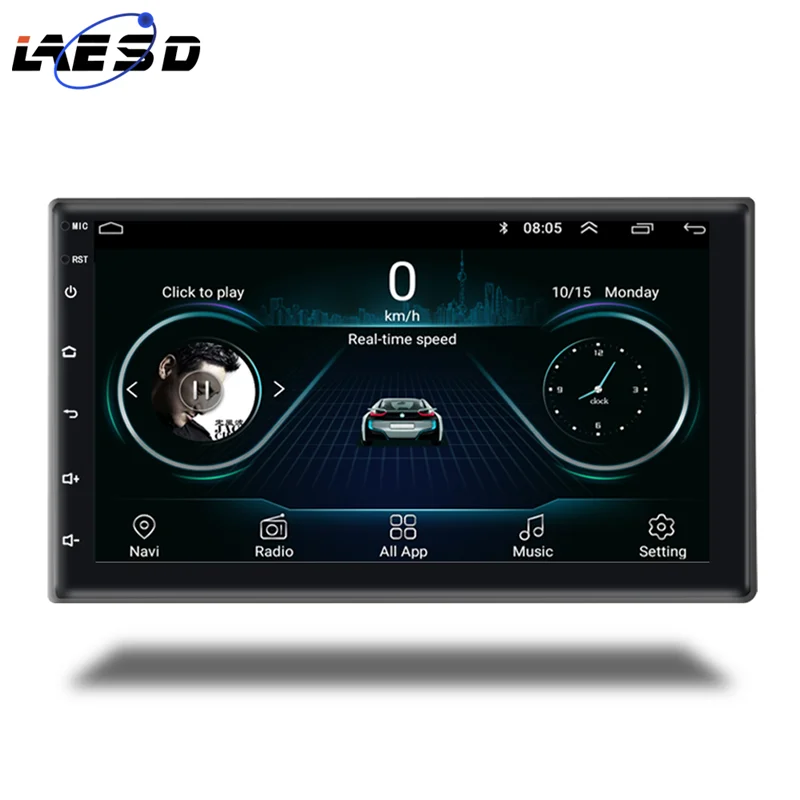

Универсальный автомобильный DVD-плеер 9211A, 1,3 ГГц, 2 + 32 ГБ, 7 дюймов, 4 ядра, FM/RDS
38,30 $ - 40,90 $
MS 81036 2023, женские оптовые продажи, квадратная оправа, очки, модные солнцезащитные очки, поляризованные, подходят поверх оптики, оправа для очков
5,10 $ - 5,50 $

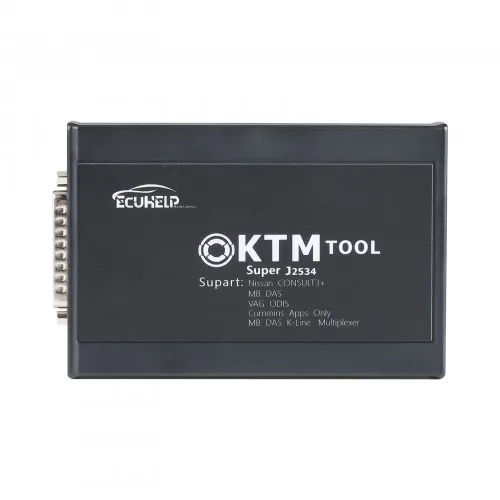

KTM200 67 в 1 ktmtool 1,20 программатор системного блока управления Обновление версии KTM100 Ktag renolink OBD2 добавляет 200 ECU, они могут быть высланы. PCR2.1 PSA SID208
389,00 $ - 399,00 $

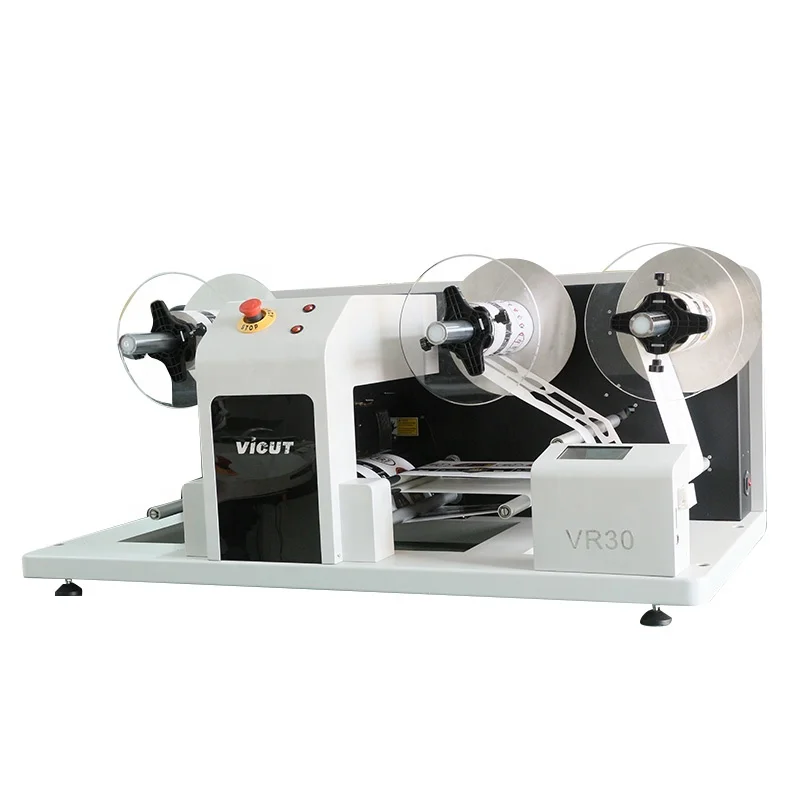

Китайский Недорогой цифровой автоматический плоттер Vr30 для резки этикеток с программным обеспечением для студии
Заводская поставка скэп круглая пенопластовая уплотнительная лента/губчатый резиновый

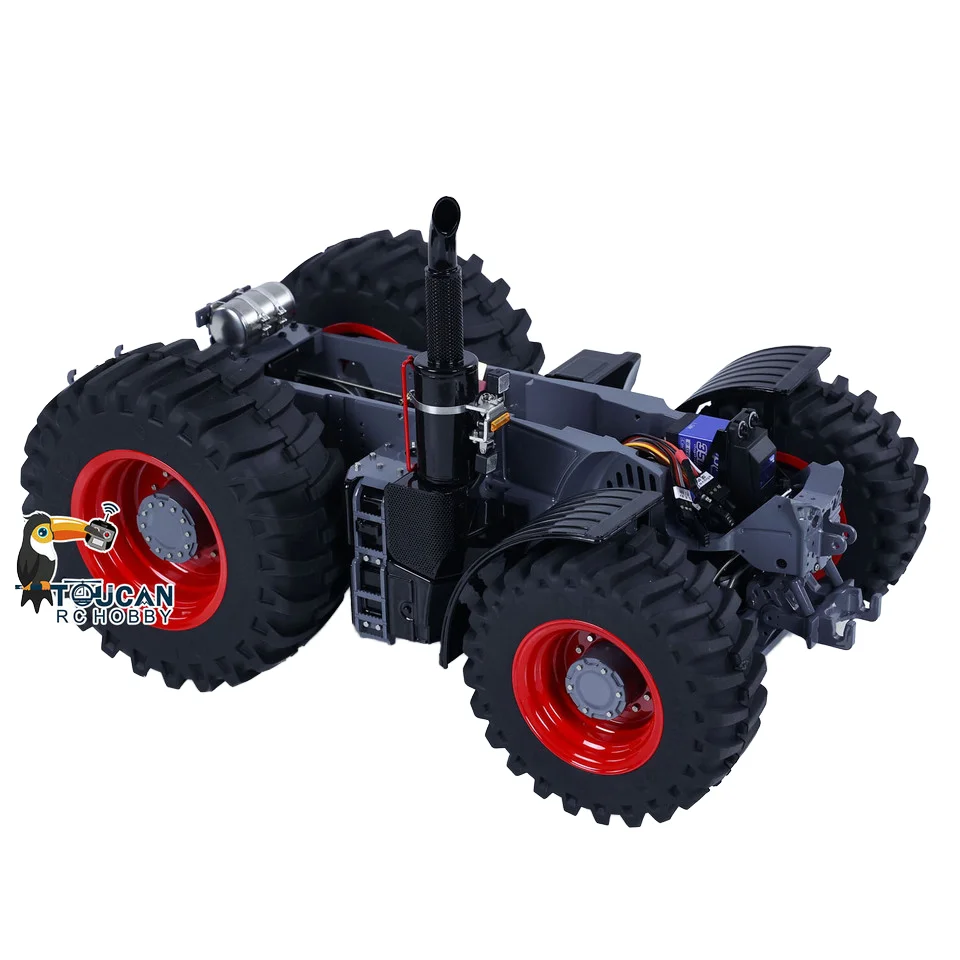

LESU 1/16 4x4 металлические детали шасси неокрашенные комплекты для игрушек AOUE-1050 радиоуправляемых тракторов DIY модель автомобиля с мотором ESC сервопривод
